Craftex CX401 Cyclone Dust Collector
Craftex CX401 Cyclone Dust Collector
Description

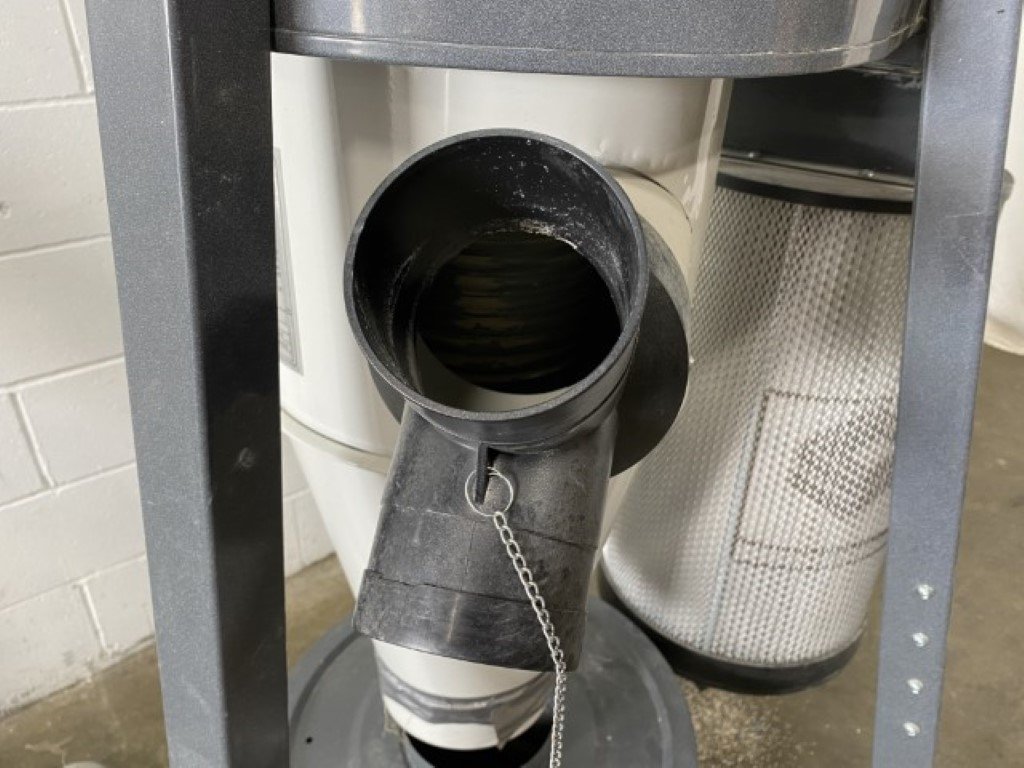

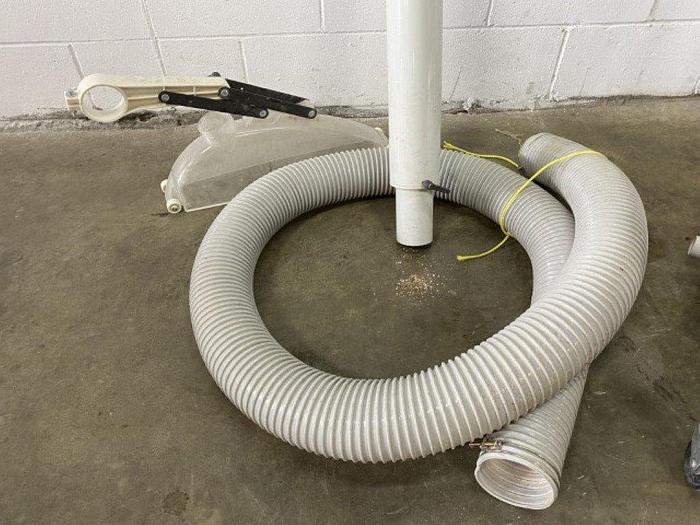

A two-stage cyclone dust collector designed to collect wood sawdust. Previously used for clay dust. Cyclone funnel – top diameter: 13″, straight side: 9.5″, slope: 15.25″, bottom diameter: 7″ Y-inlet: 4″ diameter Collection drum: 19.5″ diameter x 15″ deep, inlet: 7″ diameter, volume: 20 gallons Canister filter: 15″ diameter x 25.5″H, filtration: 1 micron, surface area: 3.8 m² Suction capacity: 763 CFM Extra hose, and pipe available. Digital manual available upon request.
Specifications
| Manufacturer | Craftex |
| Model | CX401 |
| Year | 2012 |
| Condition | Used |
| Serial Number | M100927 |
| Stock Number | 3489 |
| Dimensions (l x w x h) | 72" x 42" x 63.5" |
| Includes manual | Yes |

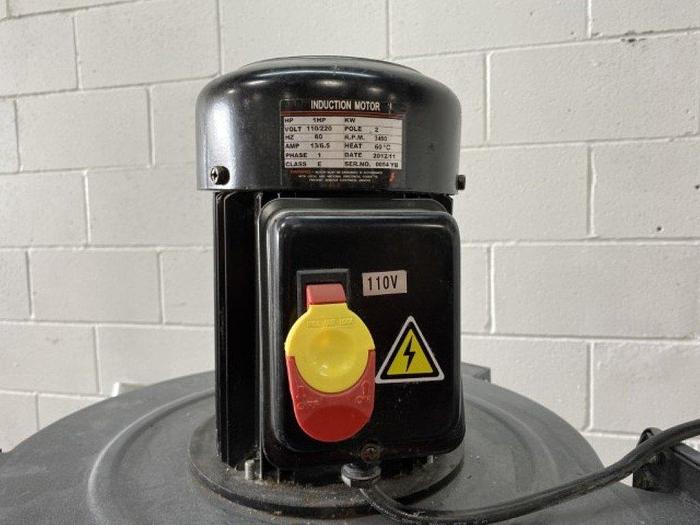

| Power | 110/220 V | 13/6.5 A | 60 Hz |
| Location code | USA |
| Length (in) | 72 |
| Width (in) | 42 |
| Height (in) | 63.5 |
