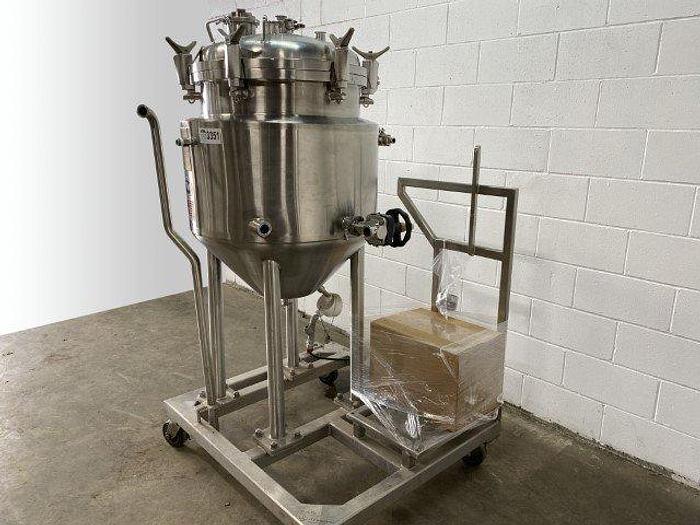

T&C Stainless Steel Jacketed Reactor
T&C Stainless Steel Jacketed Reactor
Description
Jacketed reactor: 150 L (40 USG), rated for 30 psi and full vacuum at 300°F.
Vessel – straight side: 16″, outside diameter approx 30″, inside diameter approx 24″ diameter, inside depth approx 30″
Ports: 1.5″ diameter, with flange 2″

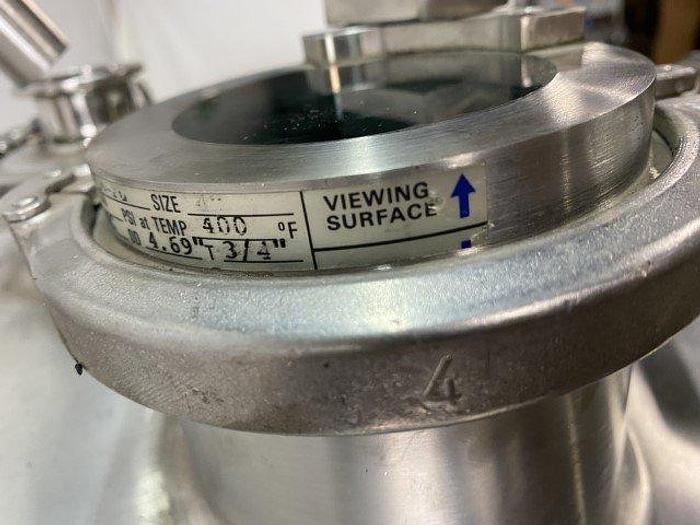

Sight port (viewing surface): 4.5″ diameter
Vessel MDMT: -20°F at 30 psi
Jacket MAWP: 50 psi at 300°F, MDMT: -20°F at 50 psi
Includes the following:

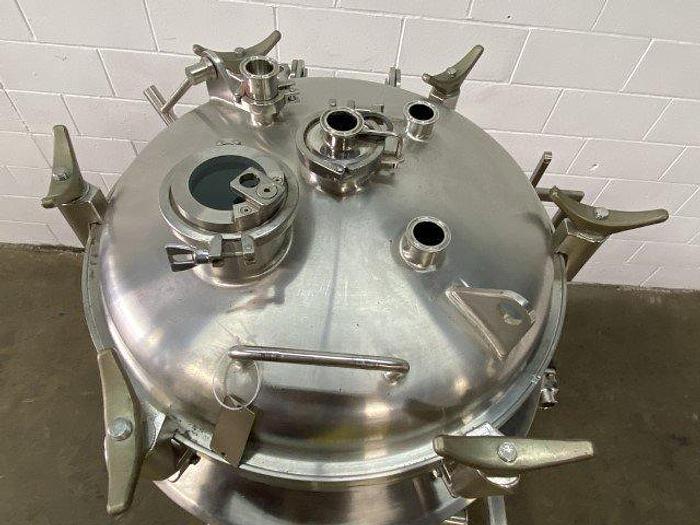

- hinged top

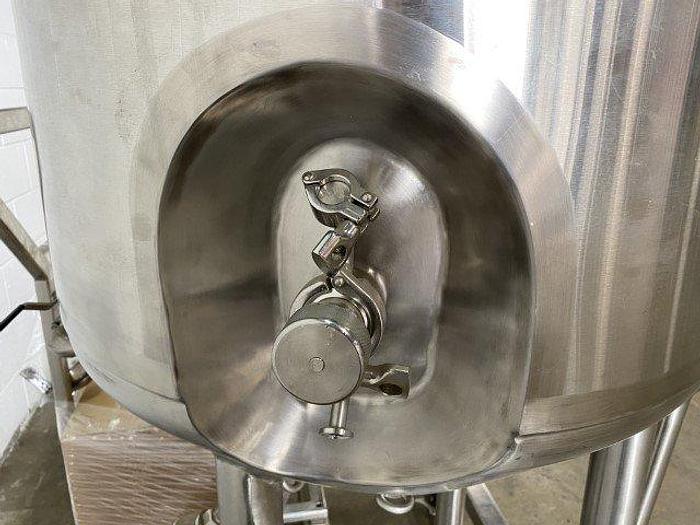

- side entry port
- top sight port with fiber optic light
- sterile sample port

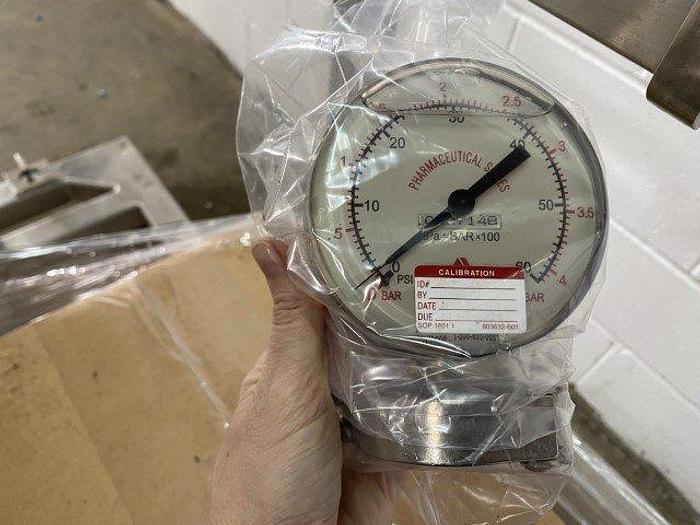

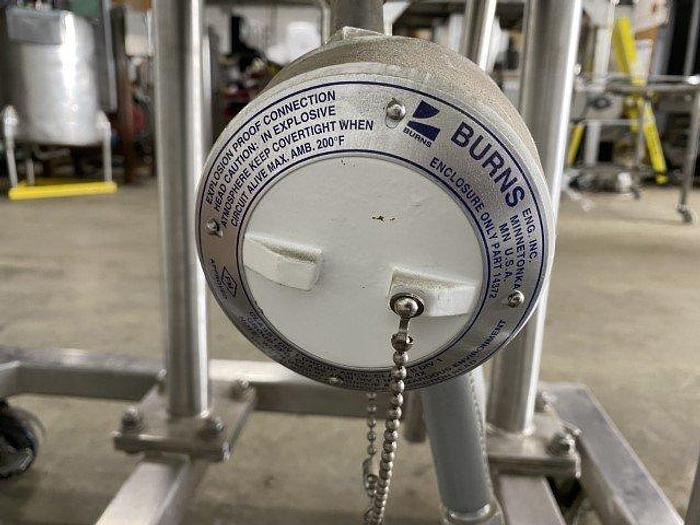

- temperature press gauge and sensor

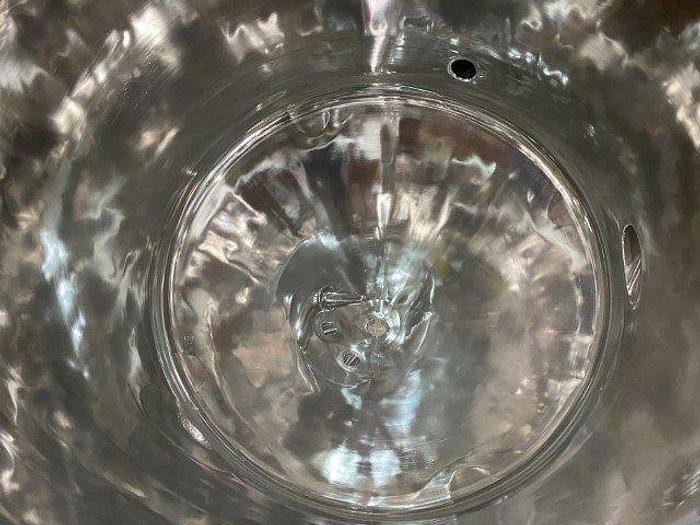

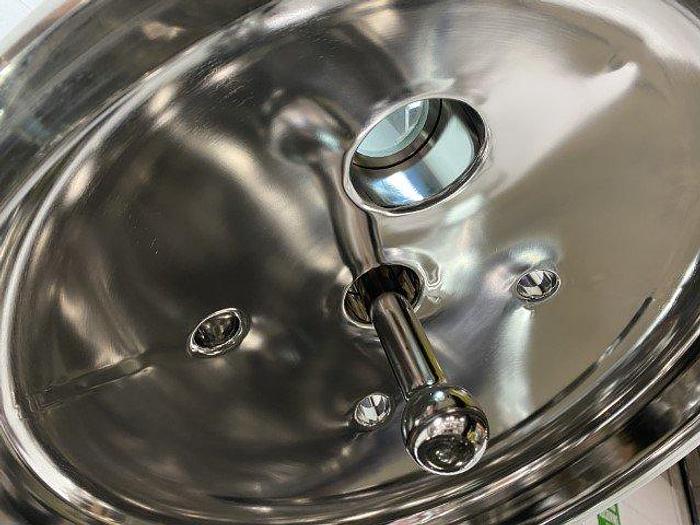

- electro polished interior
- tangential inlet
- heavy-duty mobile frame
Center top tri-clamp port for mixer or CIP ball not included.
Box contains fibre optic light. Excellent condition!
Specifications
| Manufacturer | T&C |
| Model | 150L |
| Year | 2002 |
| Condition | Used |
| Serial Number | TC5859 |
| Stock Number | CN3351 |
| Dimensions (l x w x h) | 45" x 40" x 75" |
| Location Code | CC6 |
| Location code | CC6 |
| Vessel MDMT | -20°F at 30 psi |
| Jacket MAWP | 50 psi at 300°F |
| Reactor Volume | 150 L | 40 USG |
