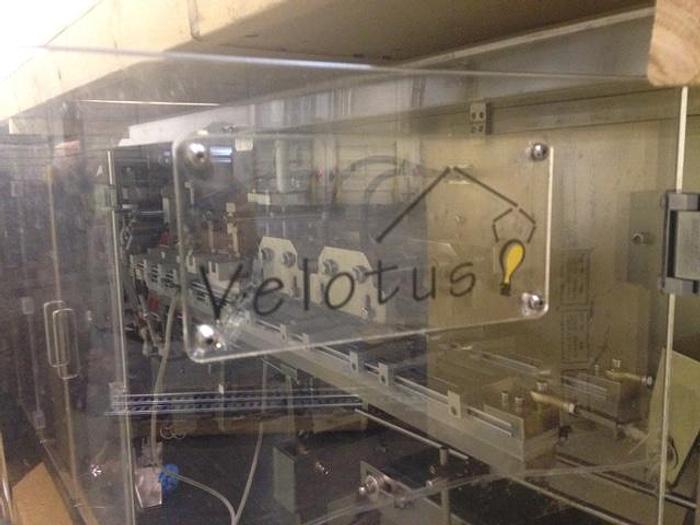

2014 Velotus HFFS Packing Machine

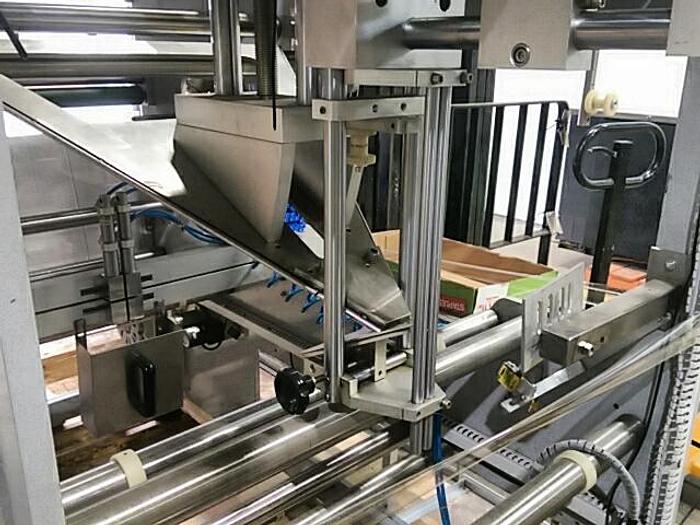

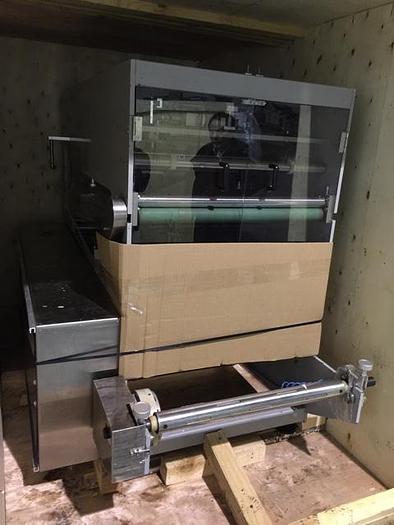

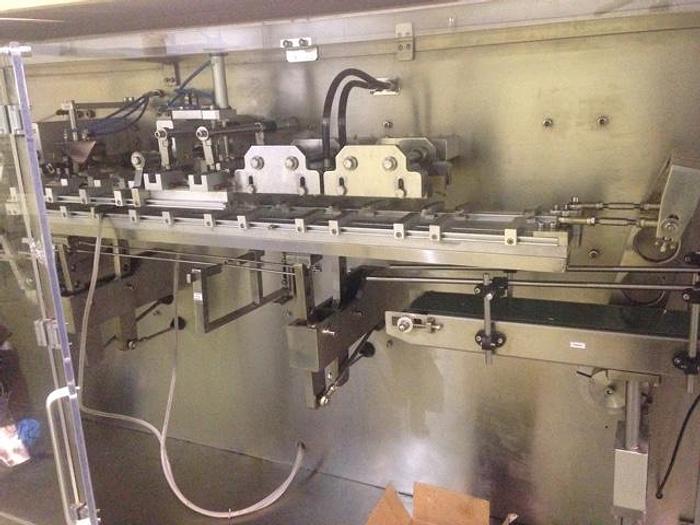

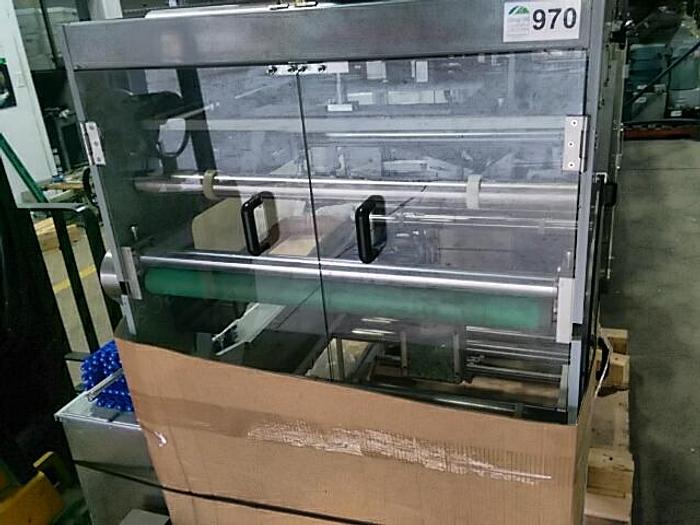

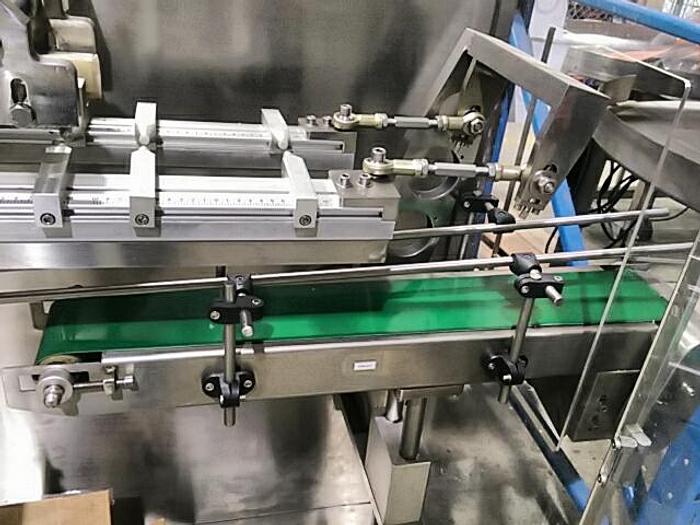

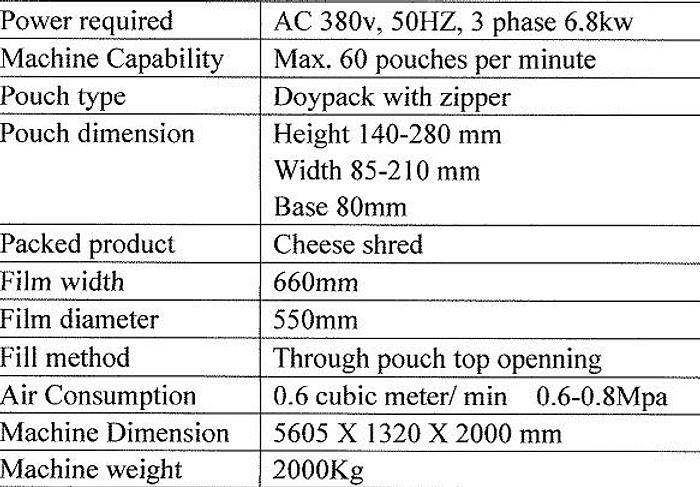

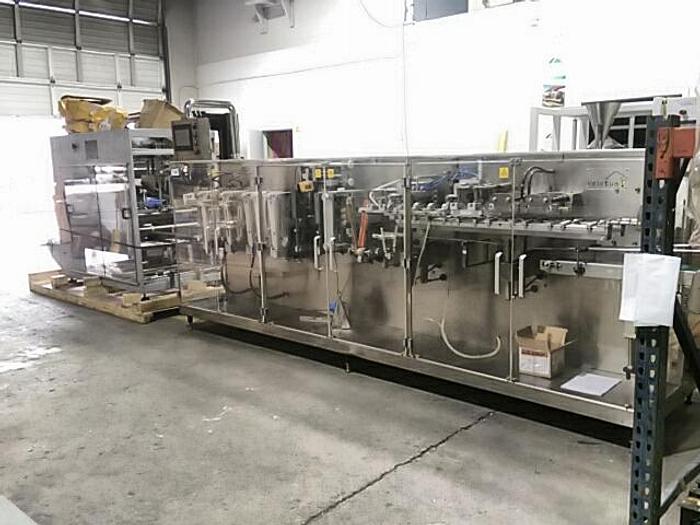

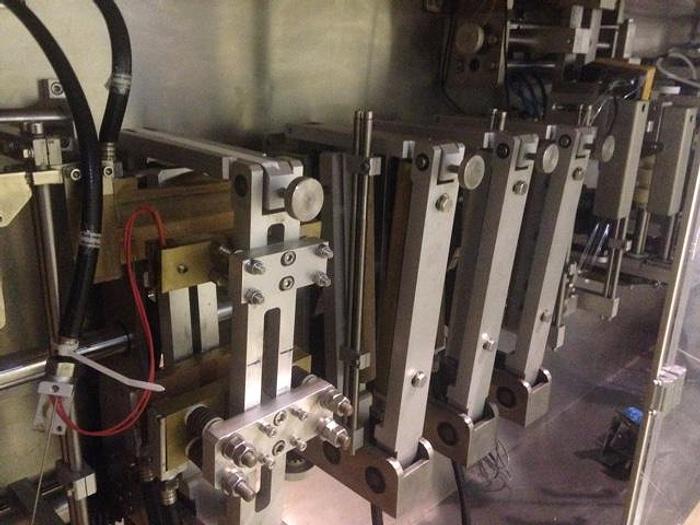

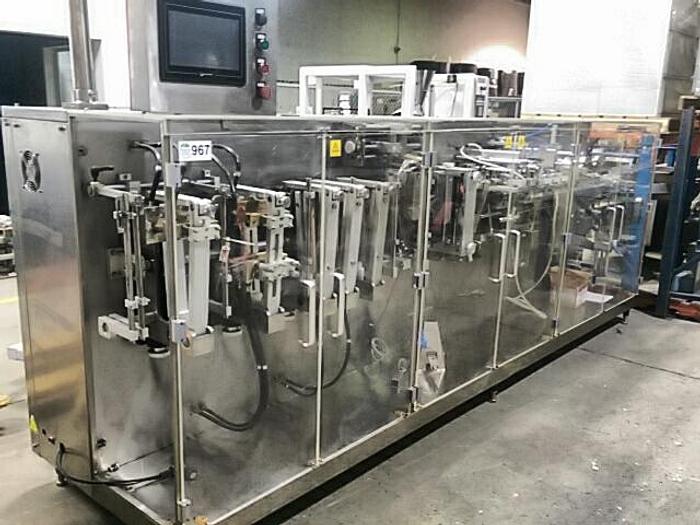

Velotus HFFS Packaging Machine This is a full bag forming (stand up pouch) and filling machine. Any type of scale that can be mounted above the infeed zone will work. The machine can do different bag sizes but if you stray too far from our size you probably need to change sealing jaw sizes. The way it works is that the film advance dictates your bag width and the film roll size dictates the height- then there are these massive scissors that cut the finished bags from each other. It’s all completely adjustable that way. The final top weld that seals the top is where you might need the right sealing insert if you are doing a wider bag. Pouch size: (85-210) mm X (165-260) mm X 80mm Roll diameter: 550mm Roll width: 600mm Pneumatic expansion shaft diameter: 76mm Pouch type: stand up pouch with zipper Output: 35 pouches/min Power supply: 415V 50HZ Air consumption: 0.6M³/min Noise level: <75Db Dimensions, main unit: 180″ x 40″ x 56″ Dimensions, film advance: 100″ x 62″ x 68″ We needed gas flush capability – diving nozzle for gas.
