Baumüller BUS20-60/90-30-001 Servo Drive

Baumüller BUS20-60/90-30-001 Servo Drive

C$1,500 (CAD)

Description

PLEASE CONTACT US FOR SHIPPING RATES.

We ship worldwide via DHL and within Canada Purolator

30-day guarantee on all parts unless listed as is.

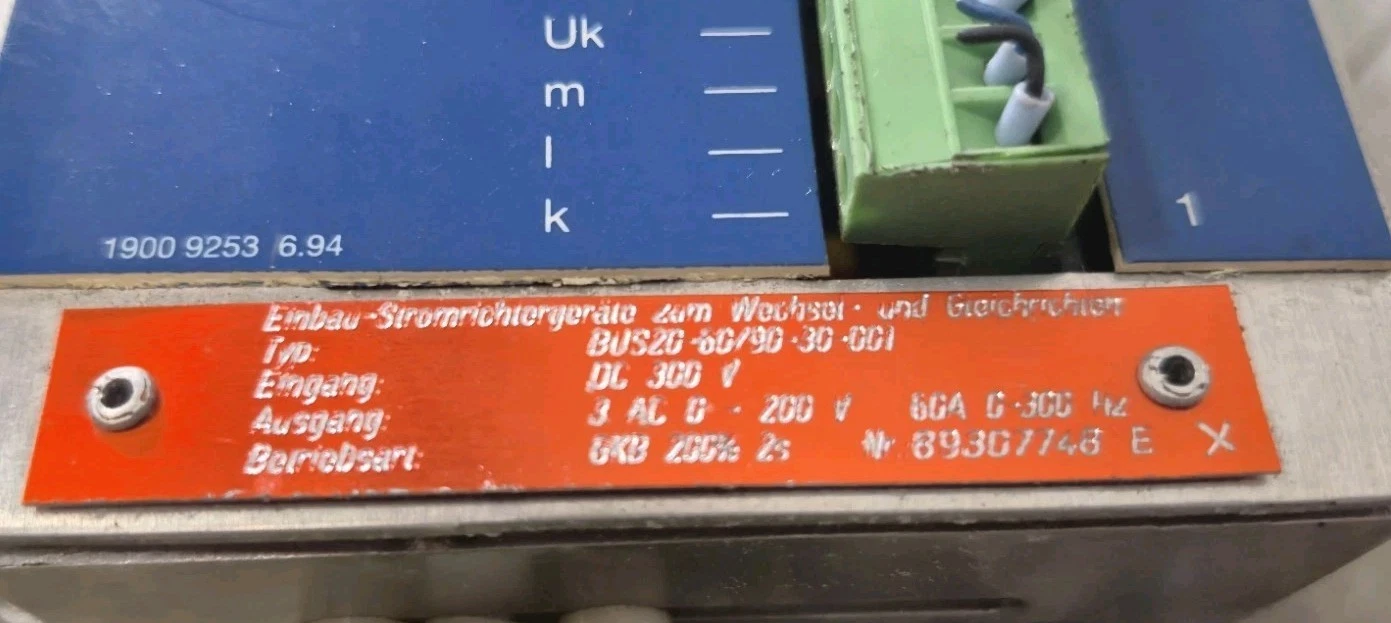

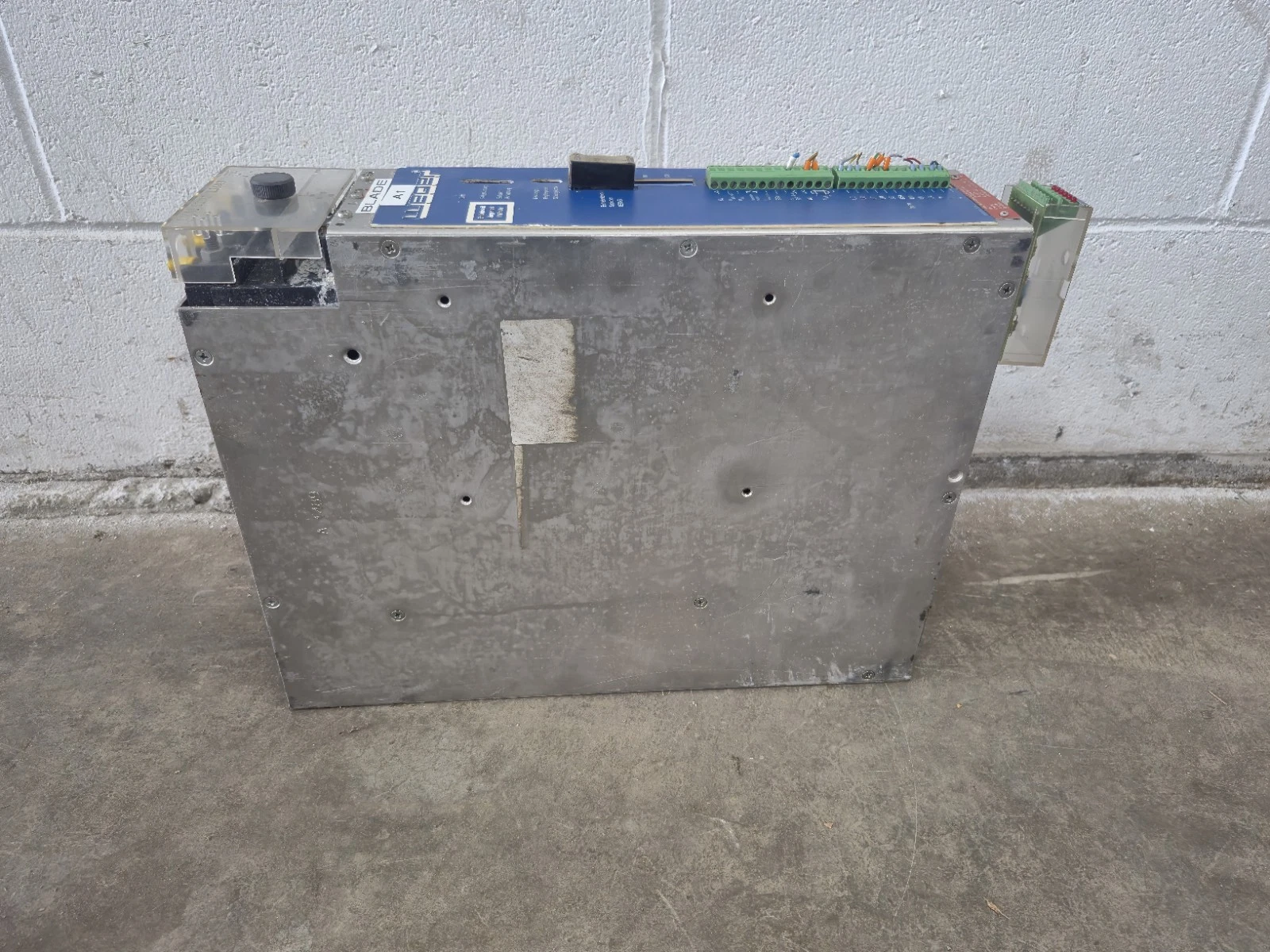

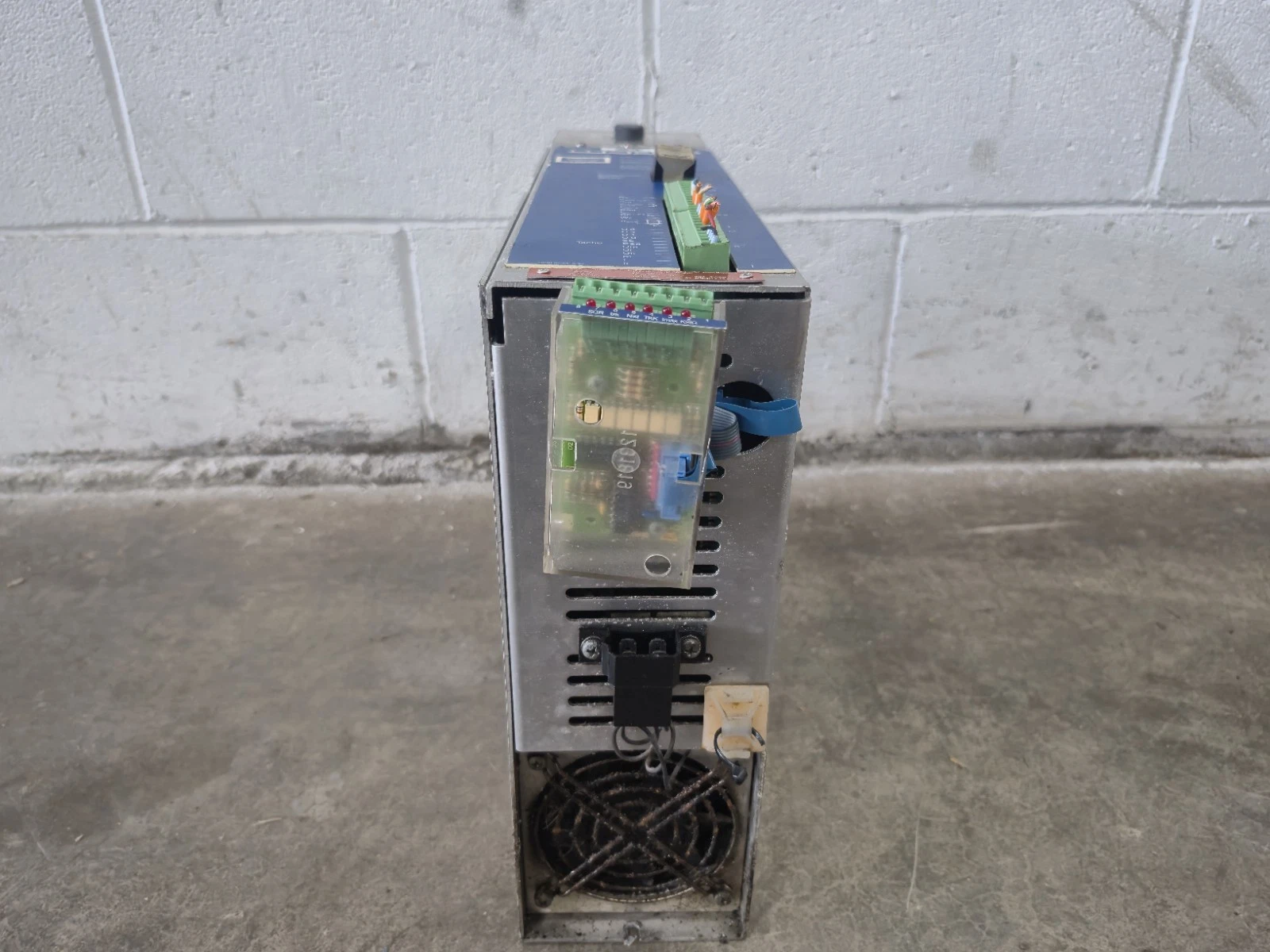

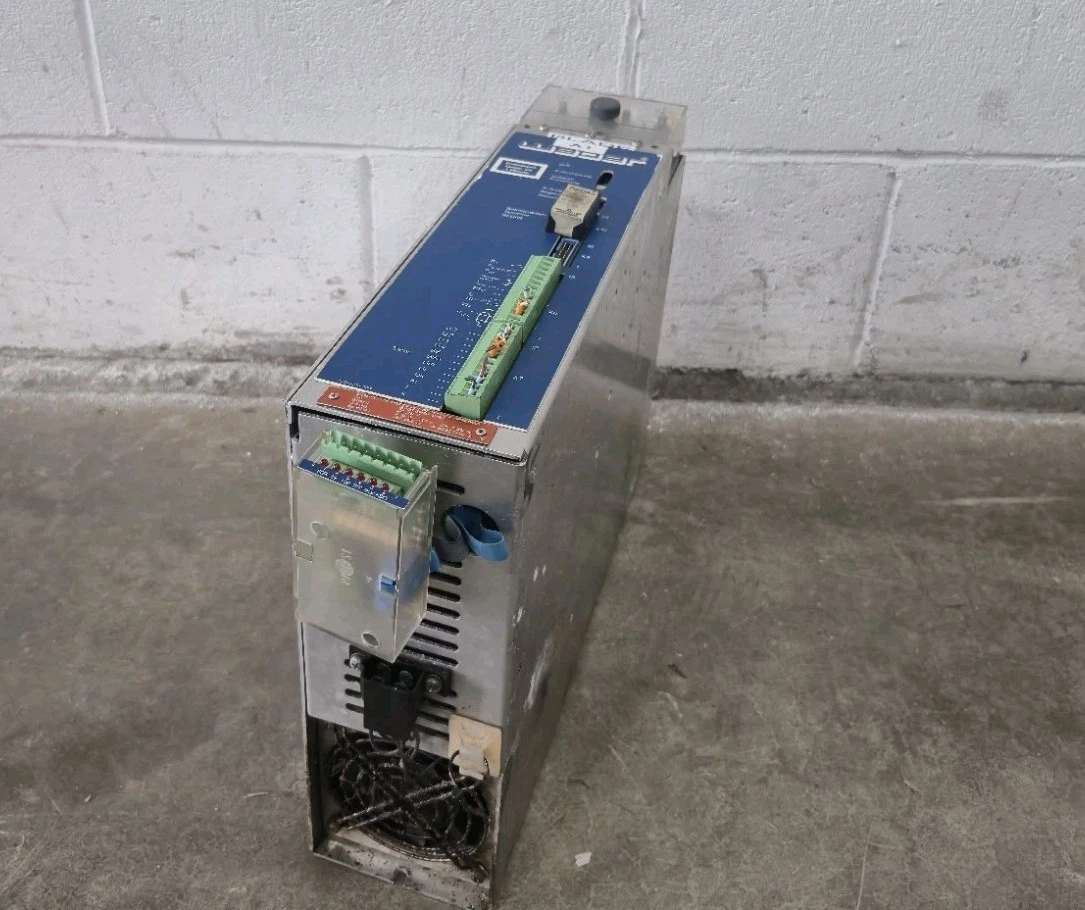

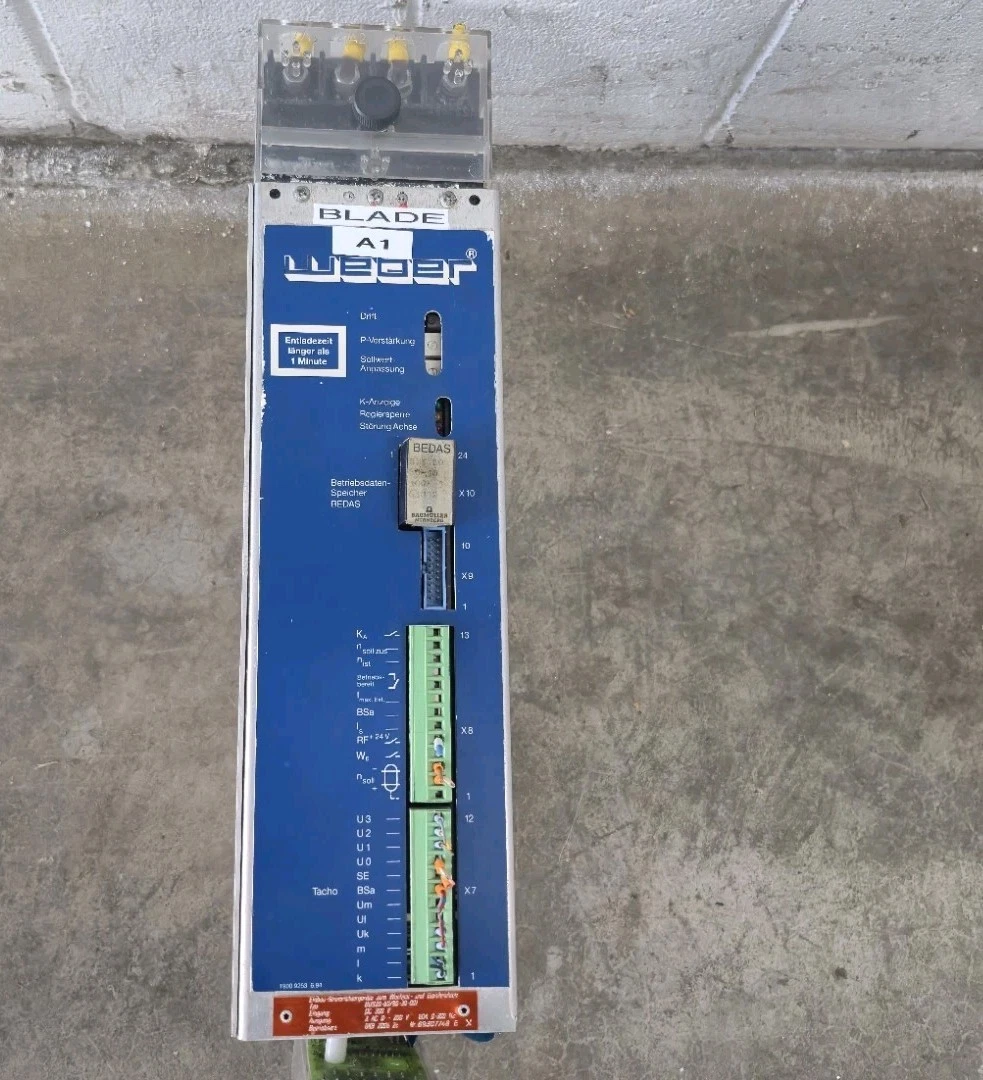

Baumüller BUS20-60/90-30-001 Servo Drive

The Baumüller BUS20-60/90-30-001 is used to provide dynamic speed, torque, and position control for industrial AC servo motors. Because of its high current capacity (60A continuous / 90A peak), it was built to drive heavy-duty automated machinery rather than light electronics. It is typically found in high-performance production environments that demand synchronized, multi-axis movements.

Specs:

  • Input Voltage: 300 VDC (supplied via the common DC link bus)
  • Output Voltage: 200 VAC, 3-Phase
  • Output Current: 60 A (Continuous) / 90 A (Peak) (as designated by the 60/90 part number naming convention)
  • Output Frequency Range: 0 to 300 Hz
  • Operating Topology: Four-quadrant transistor converter system for precise motoring and regenerative braking control
Show All

Specifications

ManufacturerBaumüller
ModelBUS20-60/90-30-001
ConditionUsed
Stock NumberE12,078
Location CodeEB2
Input Voltage300 VDC (supplied via the common DC link bus)
Output Voltage200 VAC, 3-Phase
Output Current60 A (Continuous) / 90 A (Peak) (as designated by the 60/90 part number naming convention)
Output Frequency0 to 300 Hz
