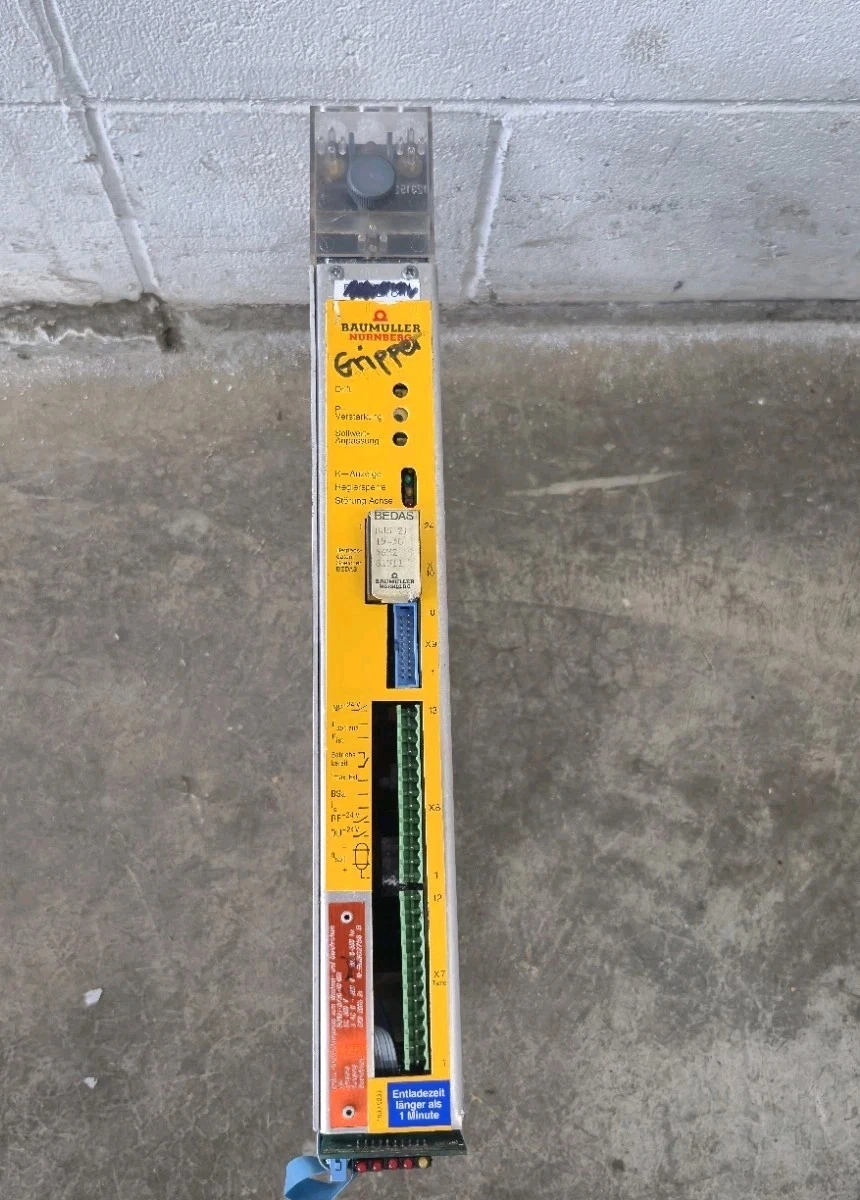

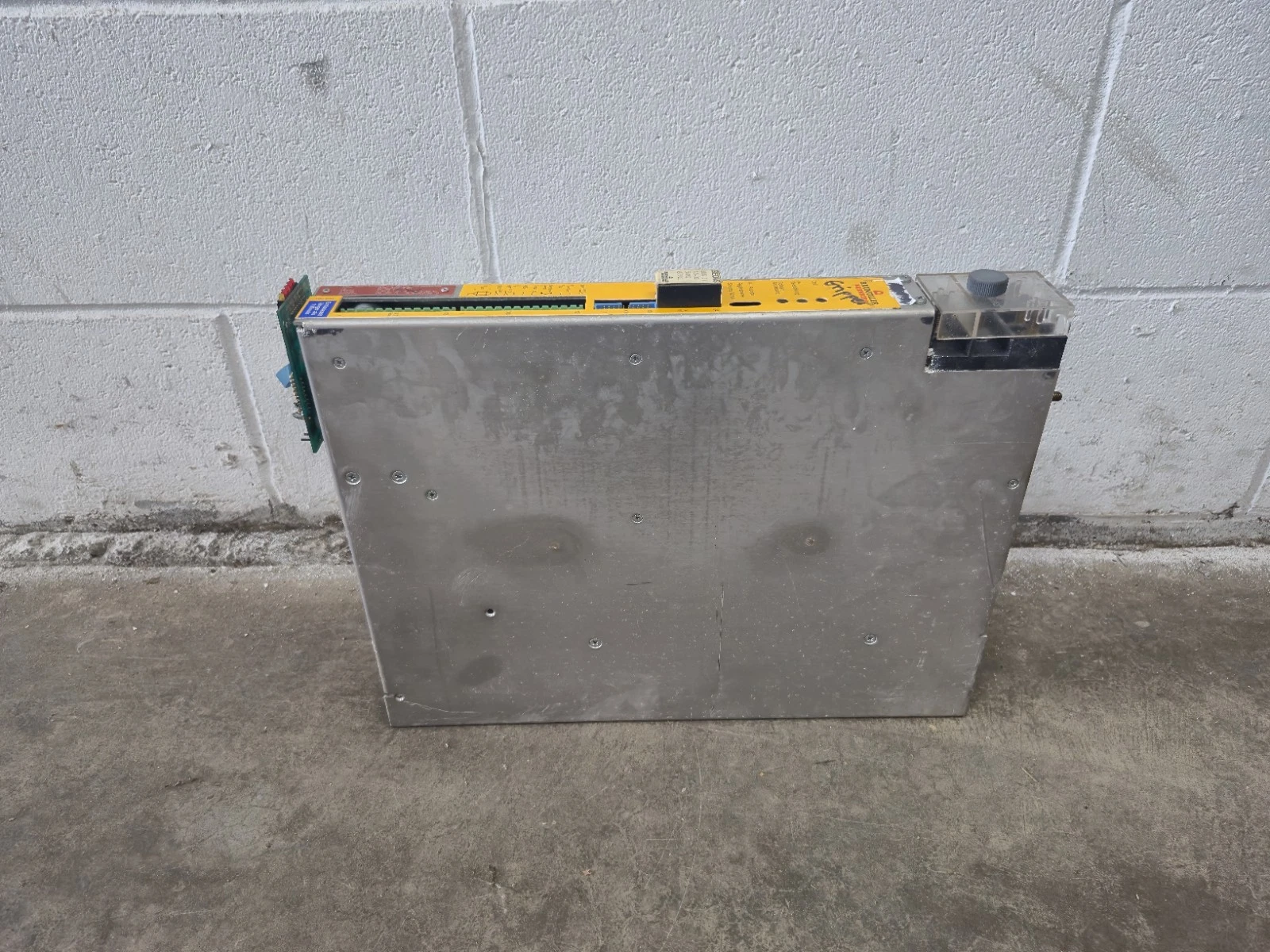

Baumüller BUS 21-15/30-30-001 Servo Drive

Baumüller BUS 21-15/30-30-001 Servo Drive

C$1,150 (CAD)

Description

PLEASE CONTACT US FOR SHIPPING RATES.

We ship worldwide via DHL and within Canada Purolator

30-day guarantee on all parts unless listed as is.


Baumüller BUS 21-15/30-30-001 Servo Drive

The Baumüller BUS 21-15/30-30-001 servo drive is used to precisely control the speed, torque, and position of electric motors in industrial automated machinery.

Specs:

  • Input DC Link Voltage: 300 VDC to 310 VDC (Requires an external Baumüller BUG or BKD supply module)
  • Rated Output Current: 15 Amps (Continuous current capacity)
  • Peak Output Current: 30 Amps (Maximum current for short-duration acceleration/deceleration)
  • Output AC Voltage: 3-phase, 0 to 200 VAC (Pulse-width modulated to drive the motor)
  • Output Frequency: 0 to 300 Hz
  • Switching Frequency: 8 kHz (Typical internal chopper frequency)
Show All

Specifications

ManufacturerBaumüller
ModelBUS 21-15/30-30-001
ConditionUsed
Stock NumberE12,079
Location CodeEB2
Input DC Link Voltage300 VDC to 310 VDC (Requires an external Baumüller BUG or BKD supply module)
Rated Output Current15 Amps (Continuous current capacity)
Peak Output Current30 Amps (Maximum current for short-duration acceleration/deceleration)
Output AC Voltage3-phase, 0 to 200 VAC (Pulse-width modulated to drive the motor)
Output Frequency0 to 300 Hz
Switching Frequency8 kHz (Typical internal chopper frequency)
