Baumüller BUG2-60-30-B-003-04 Servo Drive
Baumüller BUG2-60-30-B-003-04 Servo Drive
C$1,500 (CAD)
Description
PLEASE CONTACT US FOR SHIPPING RATES.
We ship worldwide via DHL and within Canada Purolator
30-day guarantee on all parts unless listed as is.

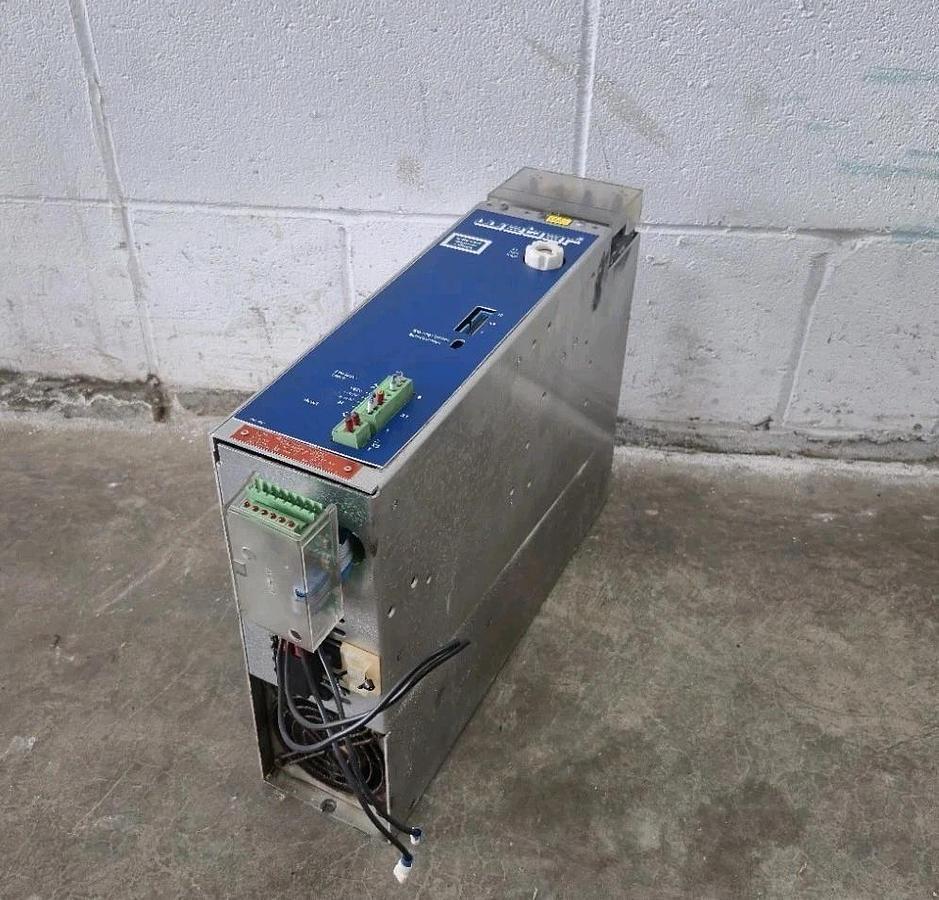

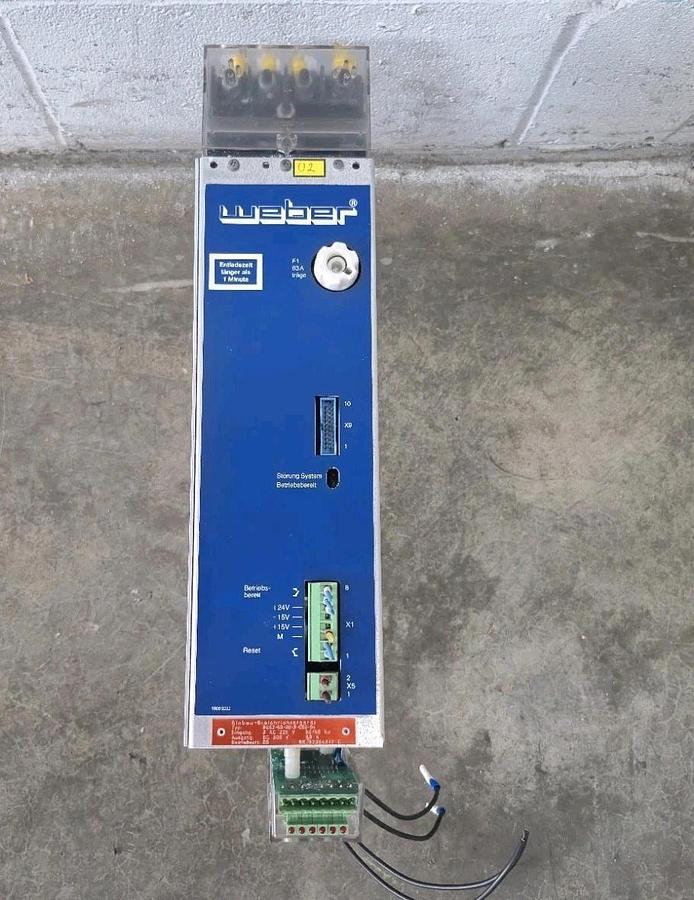

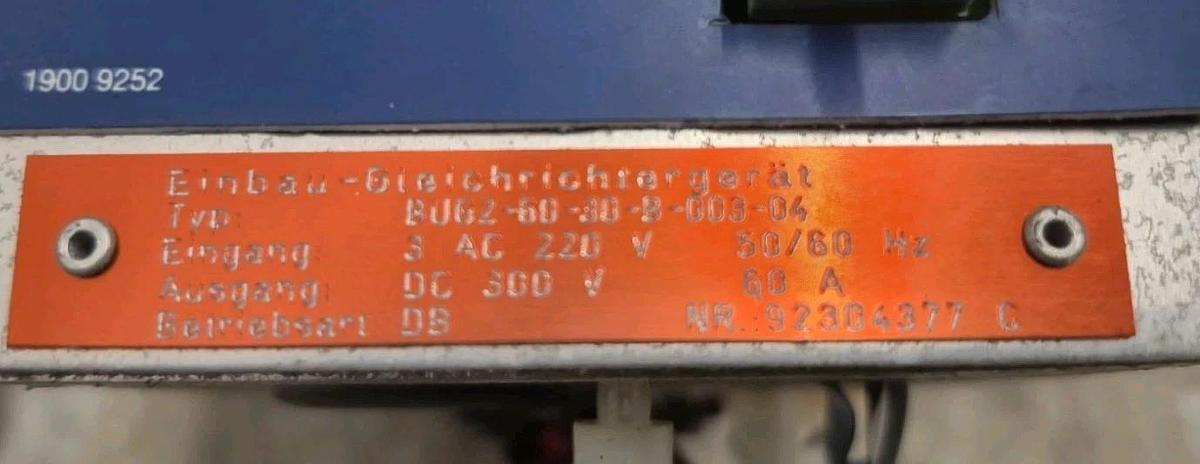

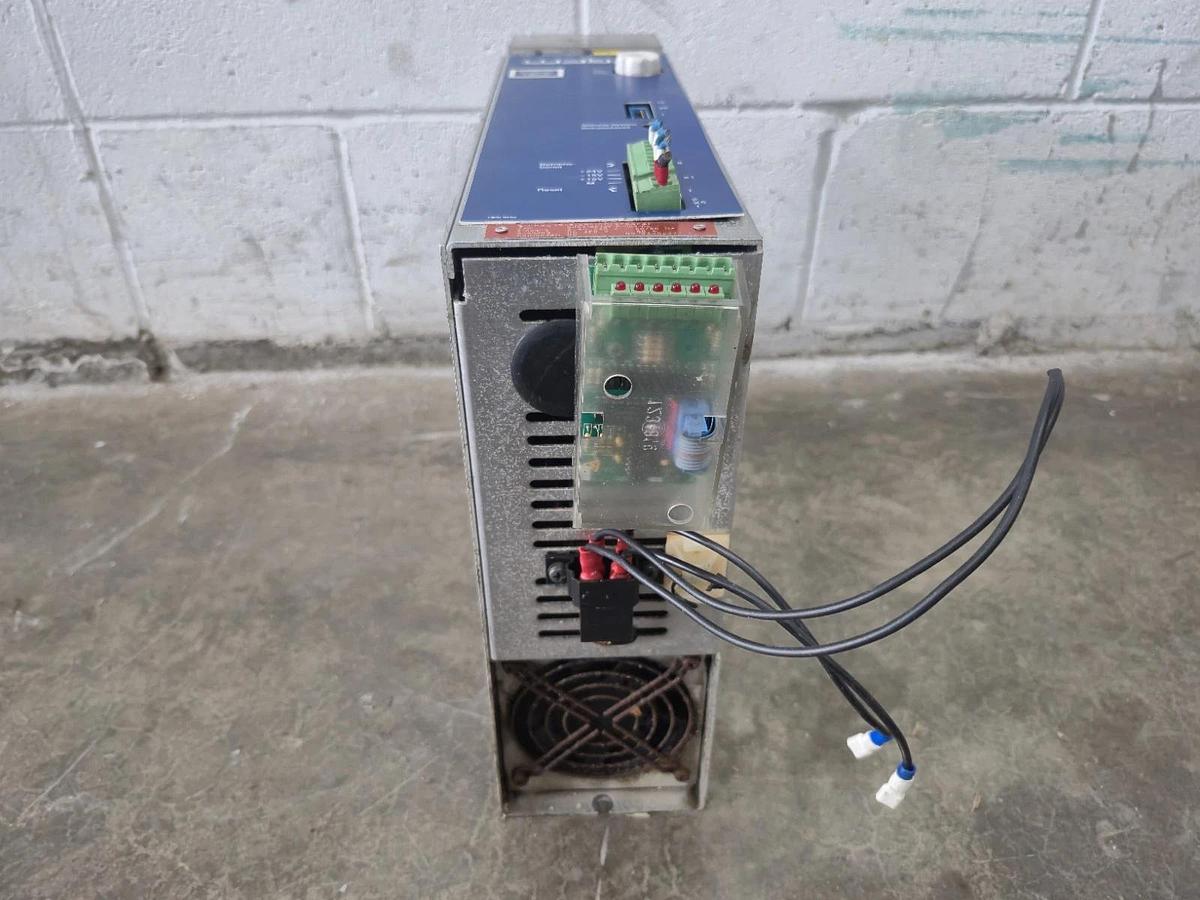

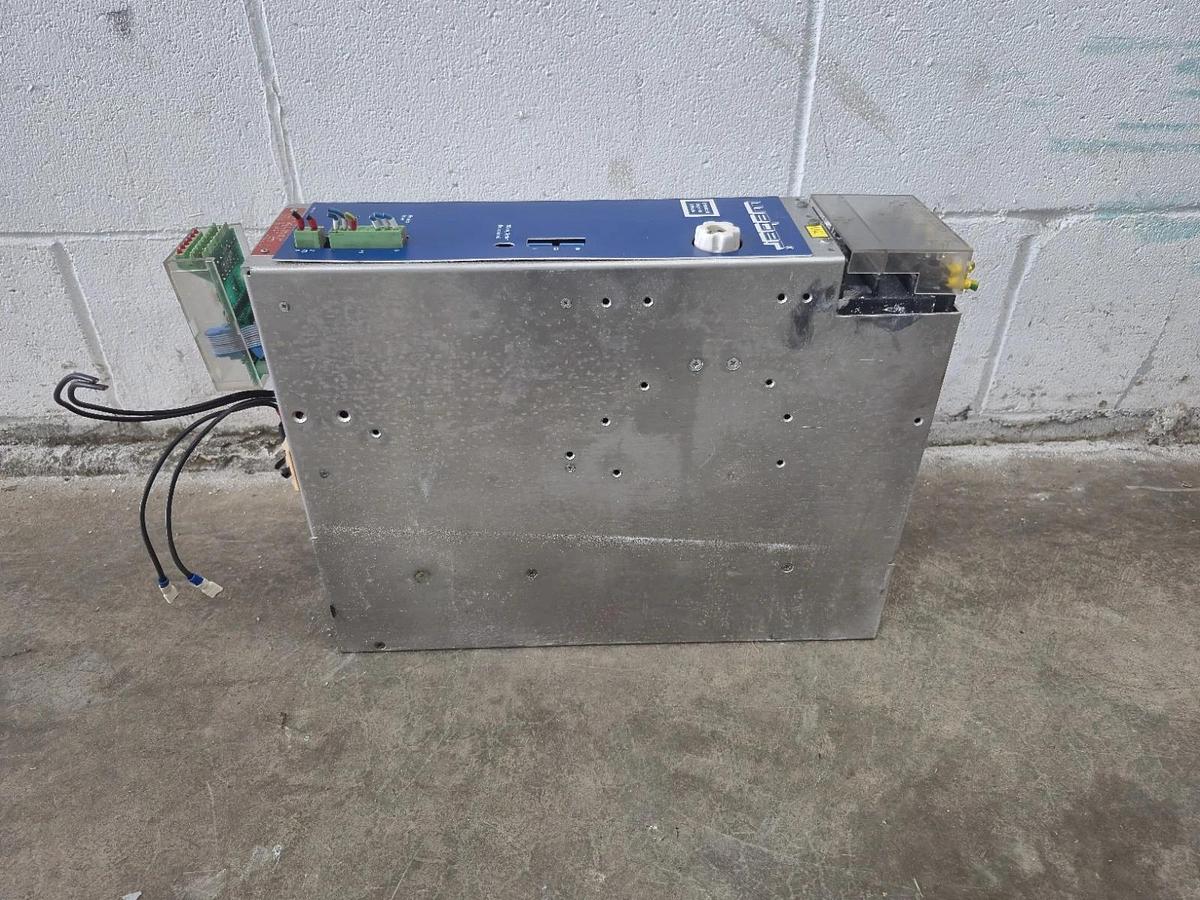

Baumüller BUG2-60-30-B-003-04 Servo Drive
The Baumüller BUG2-60-30-B-003-04 is used as a central power supply unit in industrial automation systems to provide stable electrical power to multiple servo motor drives. Instead of every individual motor controller plugging directly into the factory wall, this unit acts as the single "power hub" for a modular drive lineup.
Specs:
- Device Type: Servo Power Supply / Rectifier Unit
- Input Voltage: 3-Phase / 220–230 VAC at 50/60 Hz
- Output Voltage: 300 VDC
- Continuous Current: 60 Amps
- Peak Current: 180 Amps
- Ballast Circuit: Integrated internally to safely dissipate regenerative braking energy from the connected servo drives
- Weight: Approximately 19.2 lbs (8.7 kg)
Specifications
| Manufacturer | Baumüller |
| Model | BUG2-60-30-B-003-04 |
| Condition | Used |
| Stock Number | E12,083 |
| Location Code | EB2 |
| Input Voltage | 3-Phase / 220–230 VAC at 50/60 Hz |
| Output Voltage | 300 VDC |
| Continuous Current | 60 Amps |
| Peak Current | 180 Amps |
