Baumüller / Weber WUS20-60/90-30-011-04 Servo Drive

Baumüller / Weber WUS20-60/90-30-011-04 Servo Drive

C$1,500 (CAD)

Description

PLEASE CONTACT US FOR SHIPPING RATES.

We ship worldwide via DHL and within Canada Purolator

30-day guarantee on all parts unless listed as is.

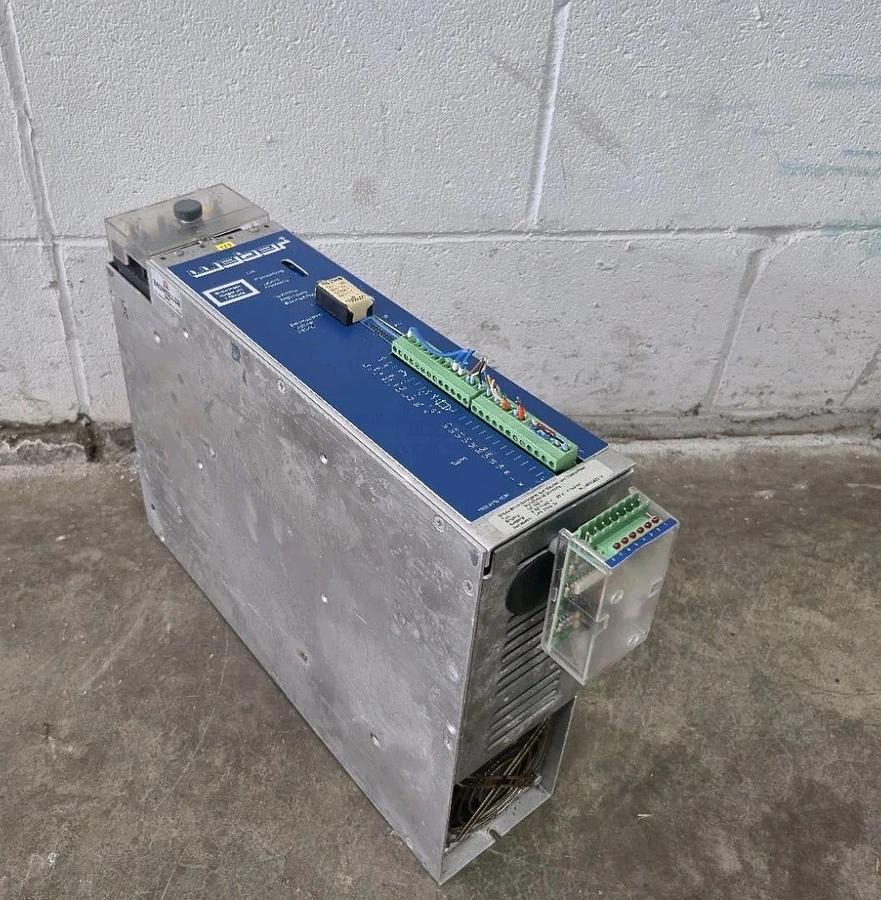

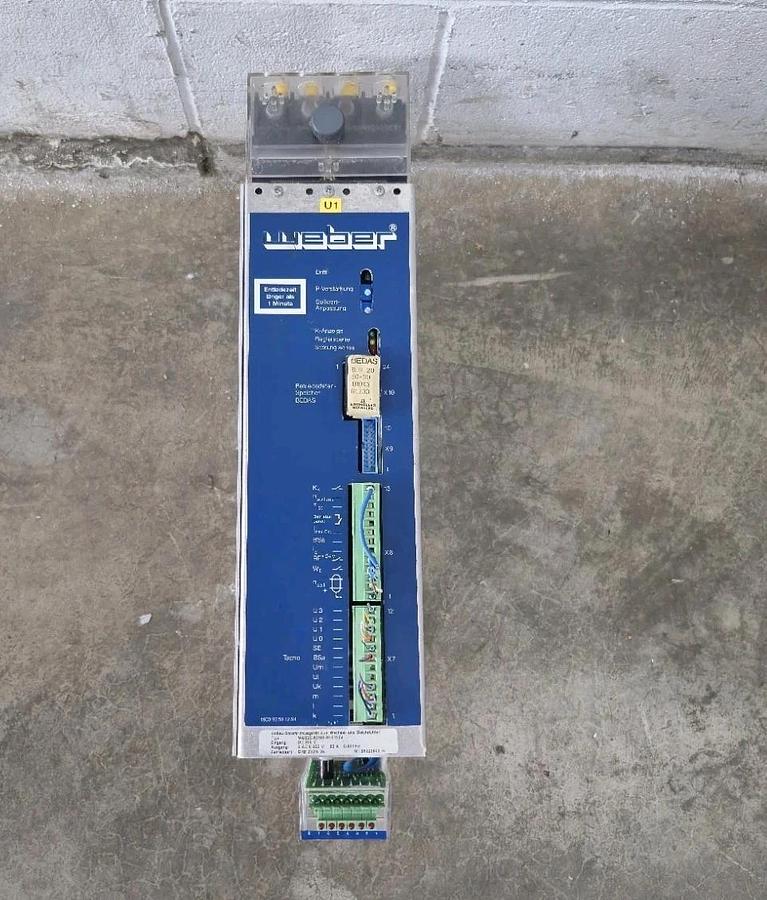

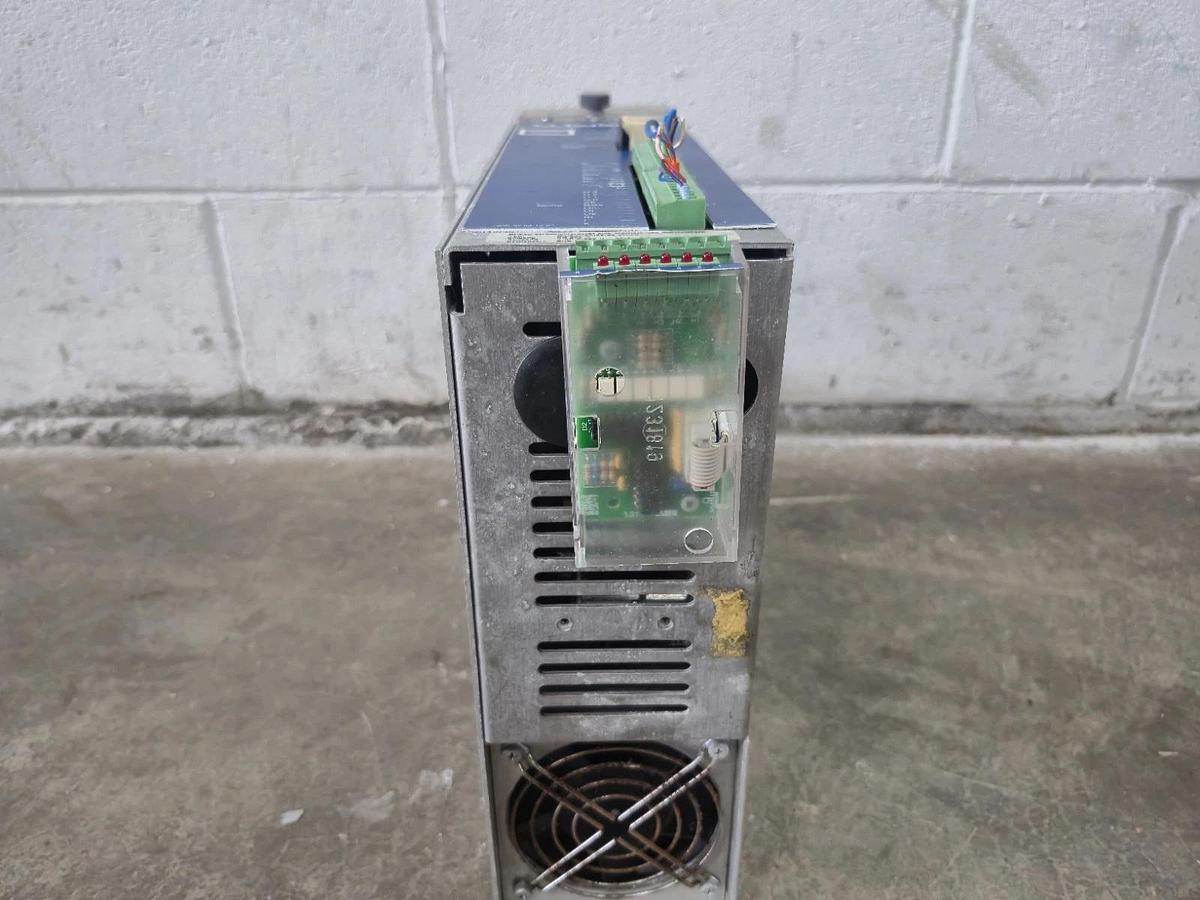

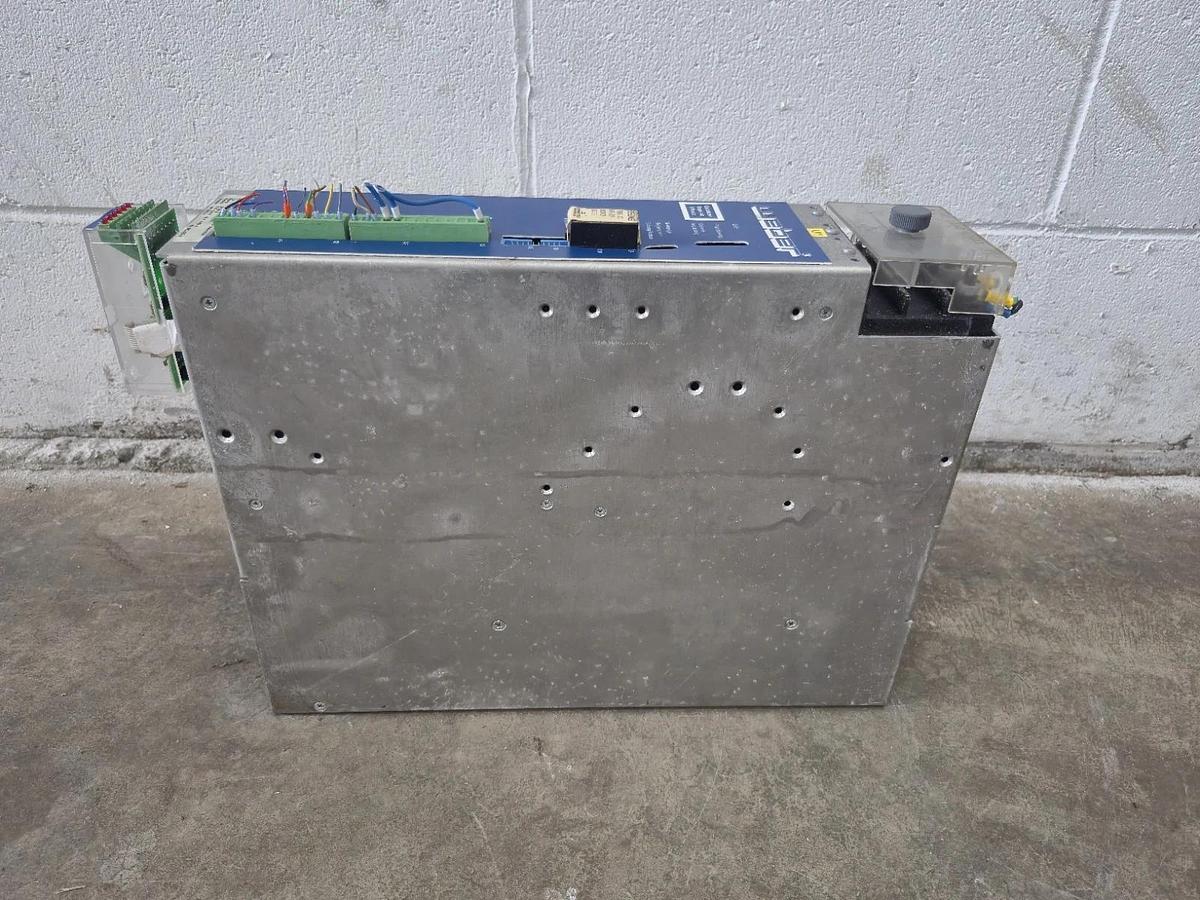

Baumüller / Weber WUS20-60/90-30-011-04 Servo Drive

The Baumüller / Weber WUS20-60/90-30-011-04 servo drive is used for precise speed, torque, and position control of high-power electric motors in automated machinery. Because it handles substantial electrical currents (60A continuous and 90A peak), it is designed for demanding, heavy-duty industrial tasks. Rather than turning a motor completely on or off, this drive continuously reads feedback from the motor to make micro-adjustments thousands of times per second.

Specs:

  • Input Voltage: DC 300V
  • Output Voltage: 3-Phase AC 0–200V
  • Current Ratings: 60A nominal continuous current / 90A peak current
  • Output Frequency: 0–300 Hz
  • System Type: 3-Phase synchronous servo controller (Baumotronic line)
Show All

Specifications

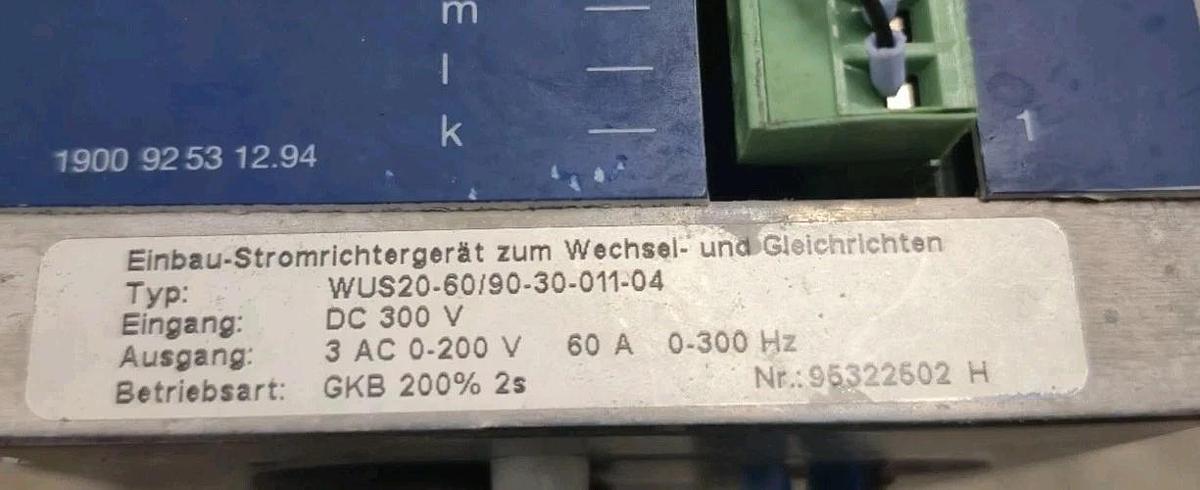

ManufacturerBaumüller
ModelWUS20-60/90-30-011-04
ConditionUsed
Stock NumberE12,086
Location CodeEB2
Input VoltageDC 300V
Output Voltage3-Phase AC 0–200V
Output Frequency0–300 Hz
