Elektra 0.37kW Electric Motor 4AP71-4 w/ Bosch Rexroth Hydraulic Pump 0510010003

PLEASE CONTACT US FOR SHIPPING RATES.

We ship worldwide via DHL and within Canada Purolator

30-day guarantee on all parts unless listed as is.

Elektra 0.37kW Electric Motor 4AP71-4 w/ Bosch Rexroth Hydraulic Pump 0510010003

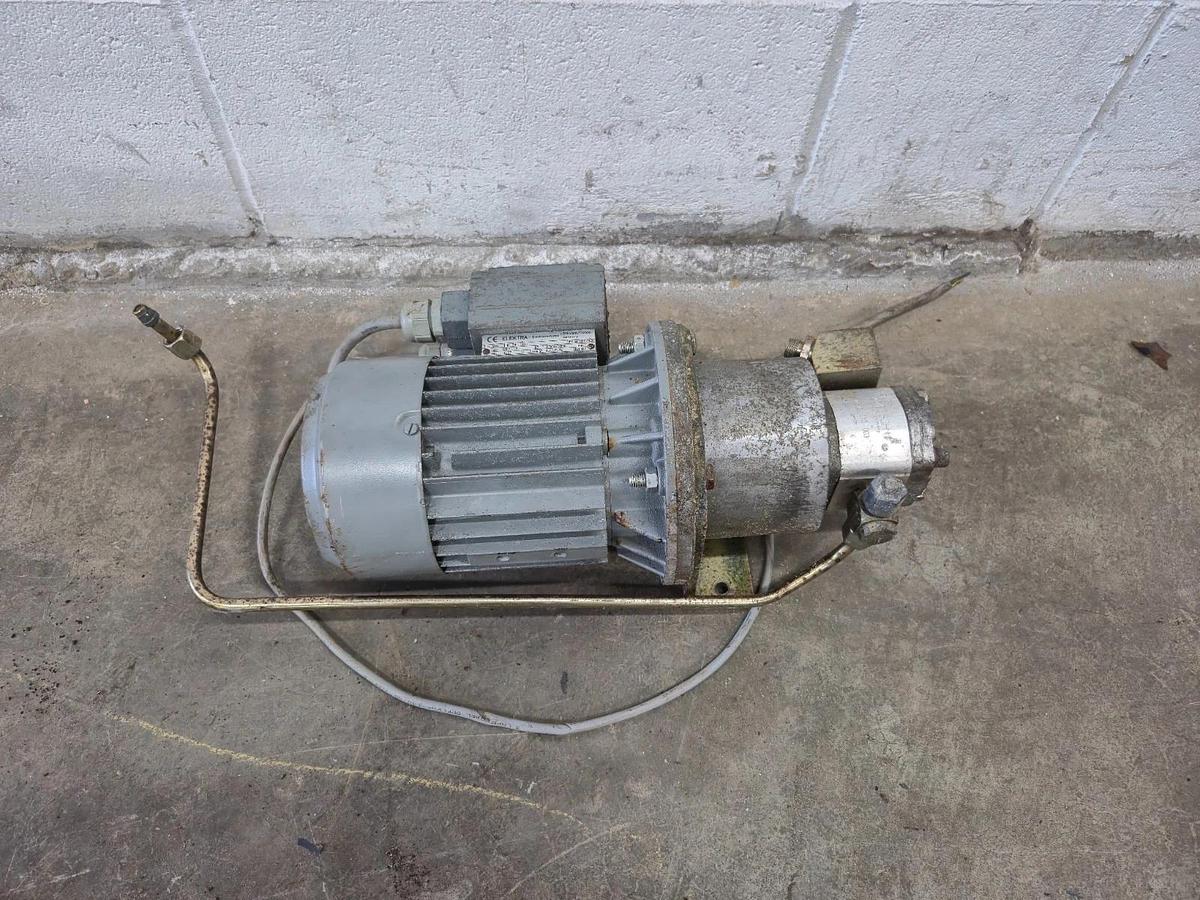

This integrated motor-pump unit is designed to generate low-volume, continuous hydraulic fluid flow under moderate pressures. Because the unit features a very small displacement pump (1.0 cm³/rev) driven by a compact 0.37kW (0.5 HP) electric motor, it is strictly utilized for auxiliary, auxiliary-control, or light-duty industrial applications rather than driving heavy machinery.

Specs:

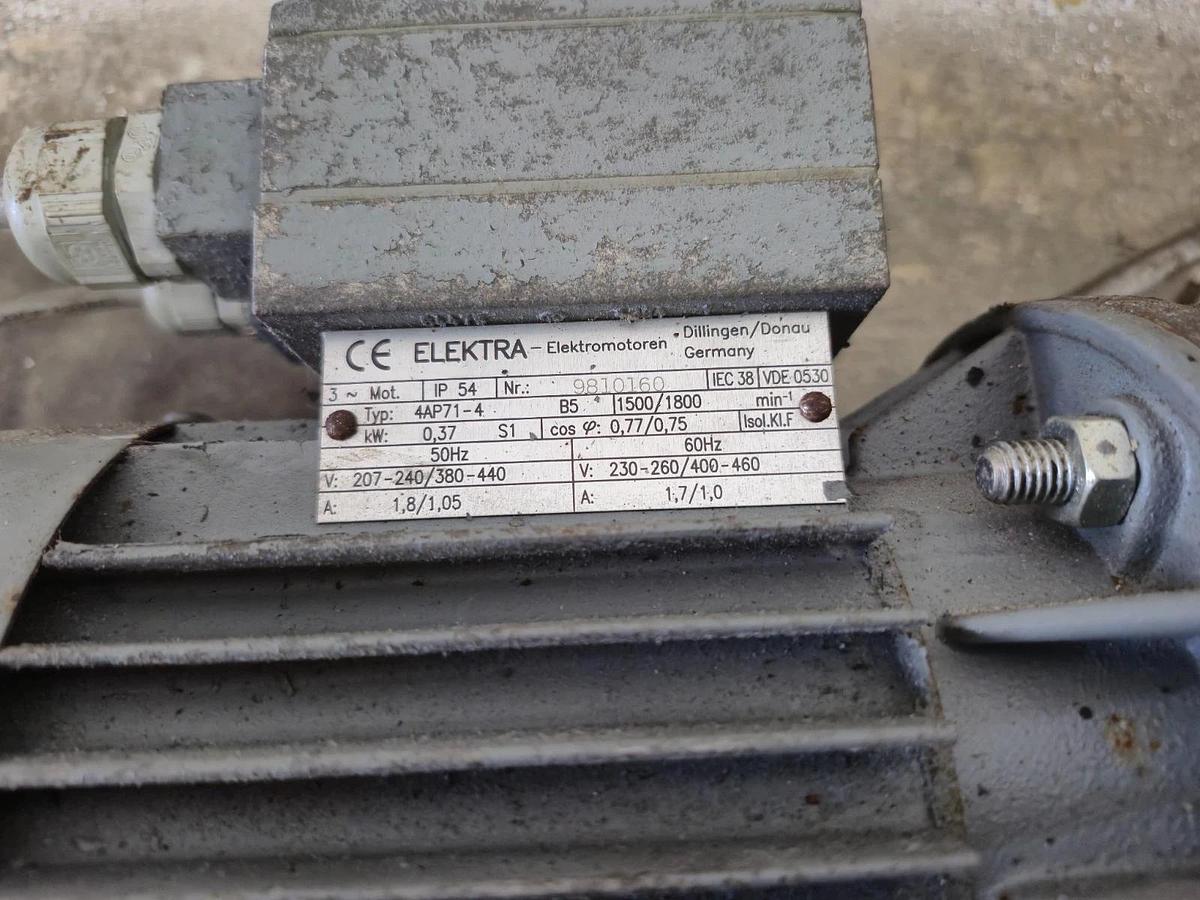

Elektra 0.37kW Electric Motor (4AP71-4)

• Power Output: 0.37 kW (approximately 0.5 Horsepower)
• Speed: 4-pole design operating at roughly 1370 to 1400 RPM at a 50Hz frequency
• Frame Size: 71 (indicated by the "71" in the model name, matching standard IEC motor dimensions)
• Electrical Parameters: Usually configured for 230V Delta / 400V Star or 415V three-phase configurations

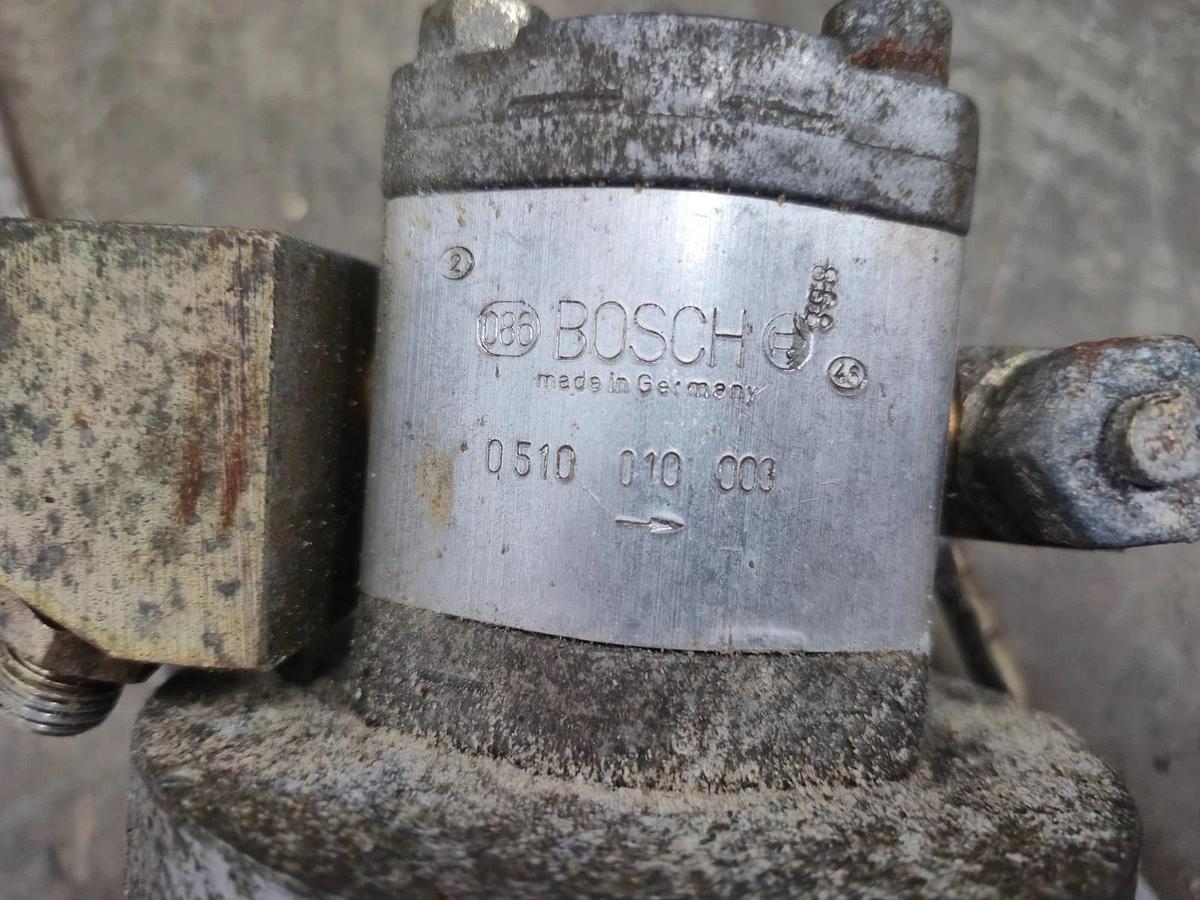

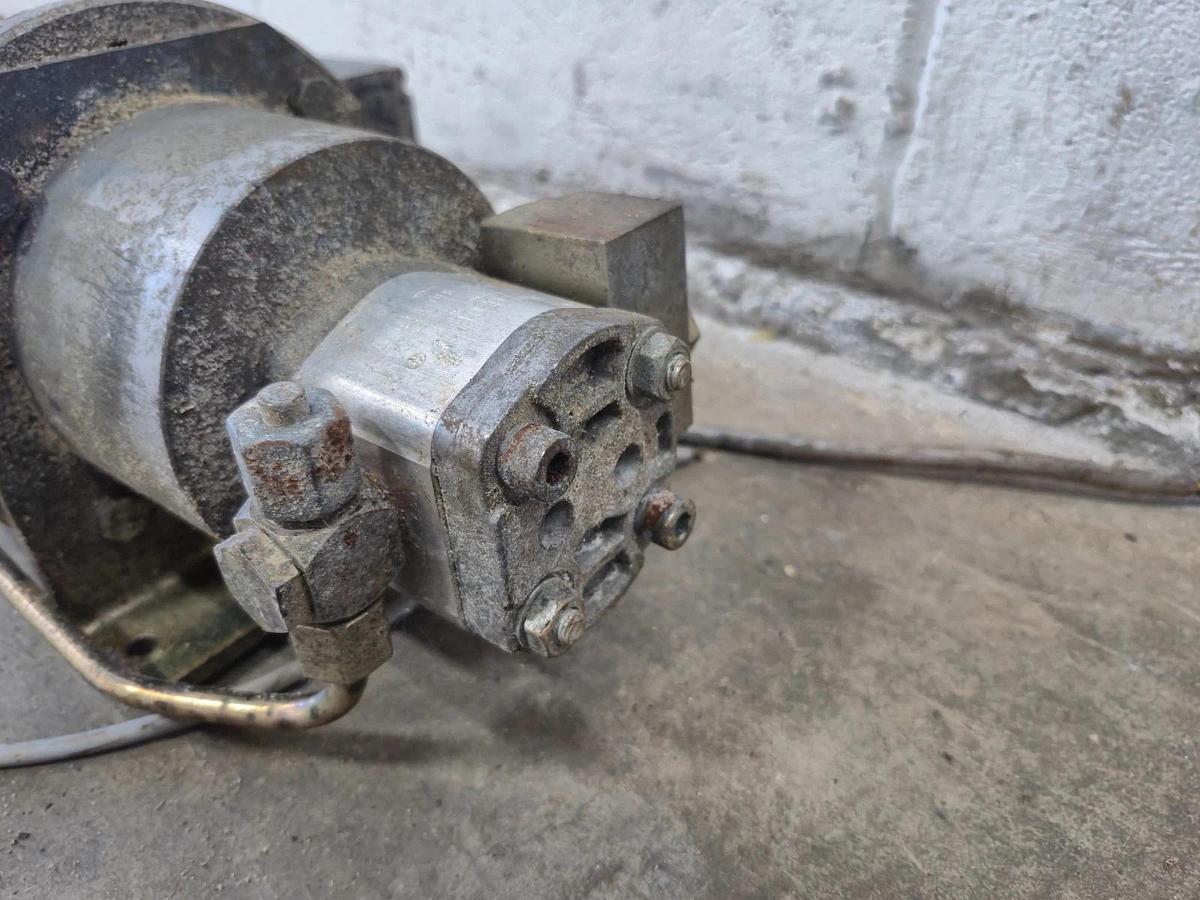

Bosch Rexroth Hydraulic Pump (0510010003)

• Type: AZPB-10-1,0RCP02MB
• Displacement: 1.0 cm³/rev
• Pressure Rating: Capable of a continuous operating pressure of up to 220 bar (intermittent up to 250 bar), though constrained by the motor's power output in this specific assembly
