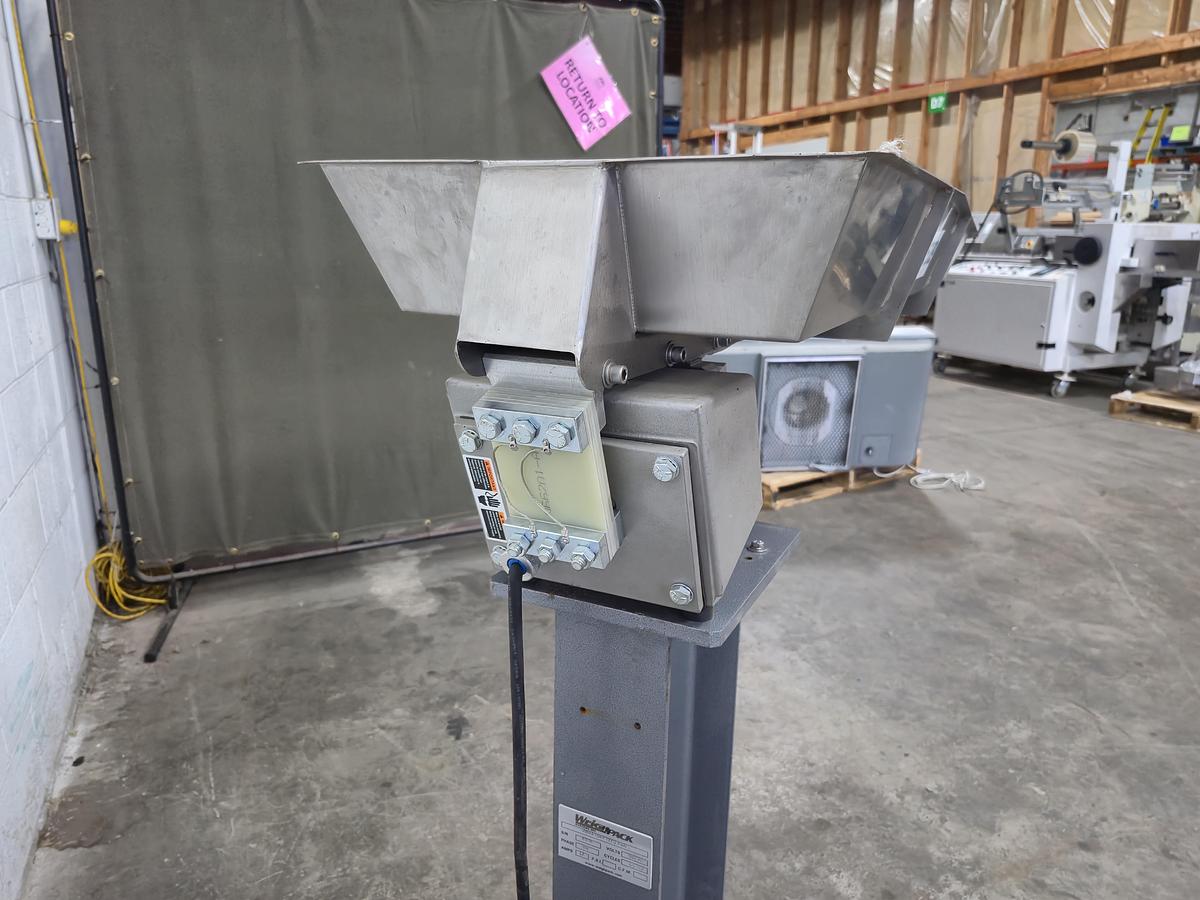

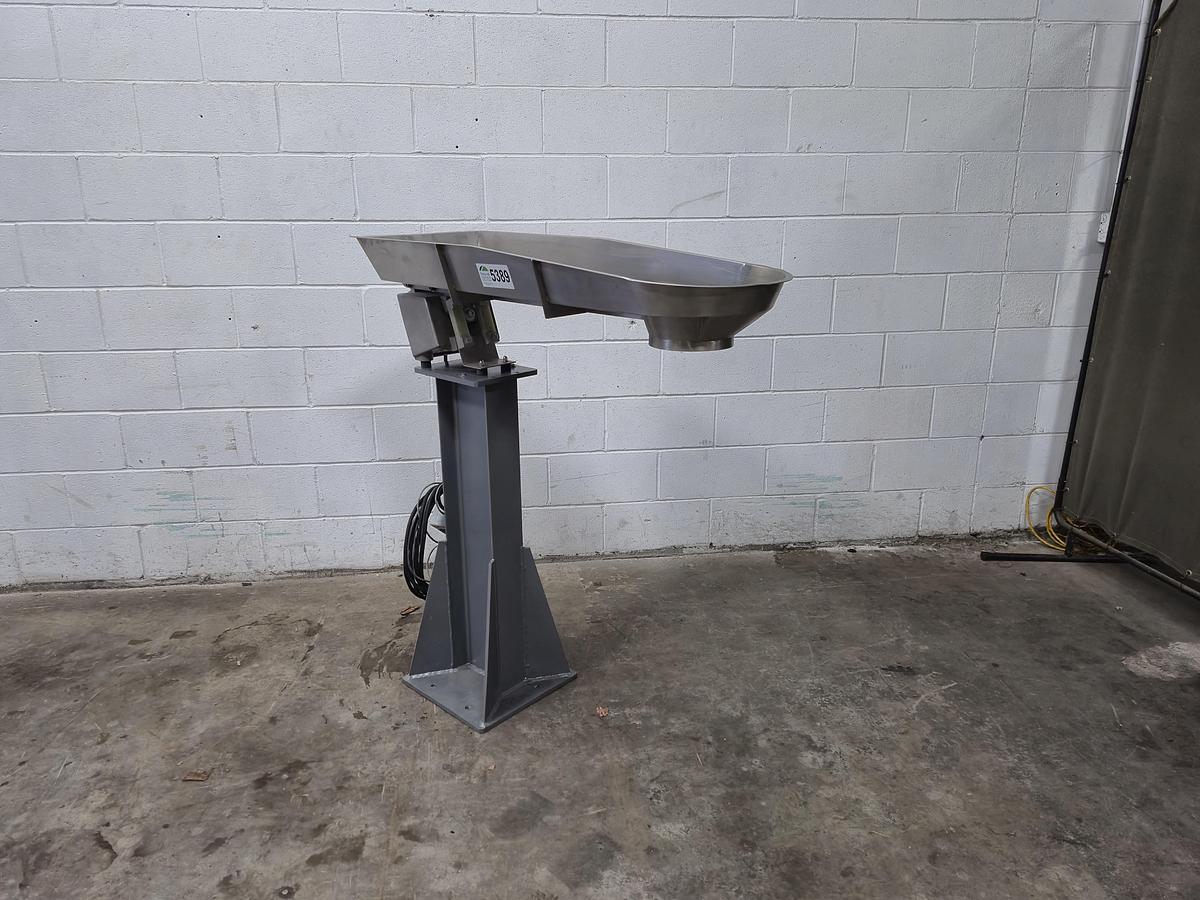

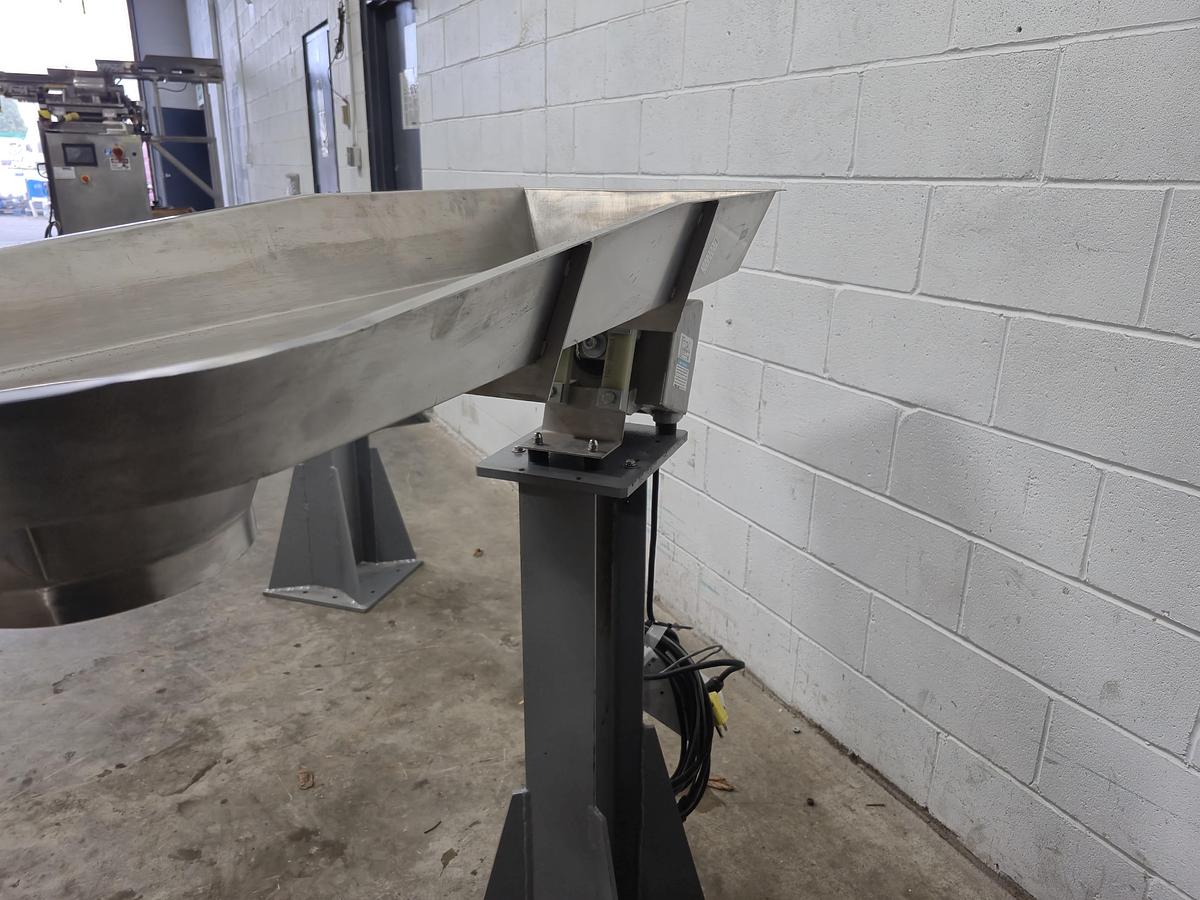

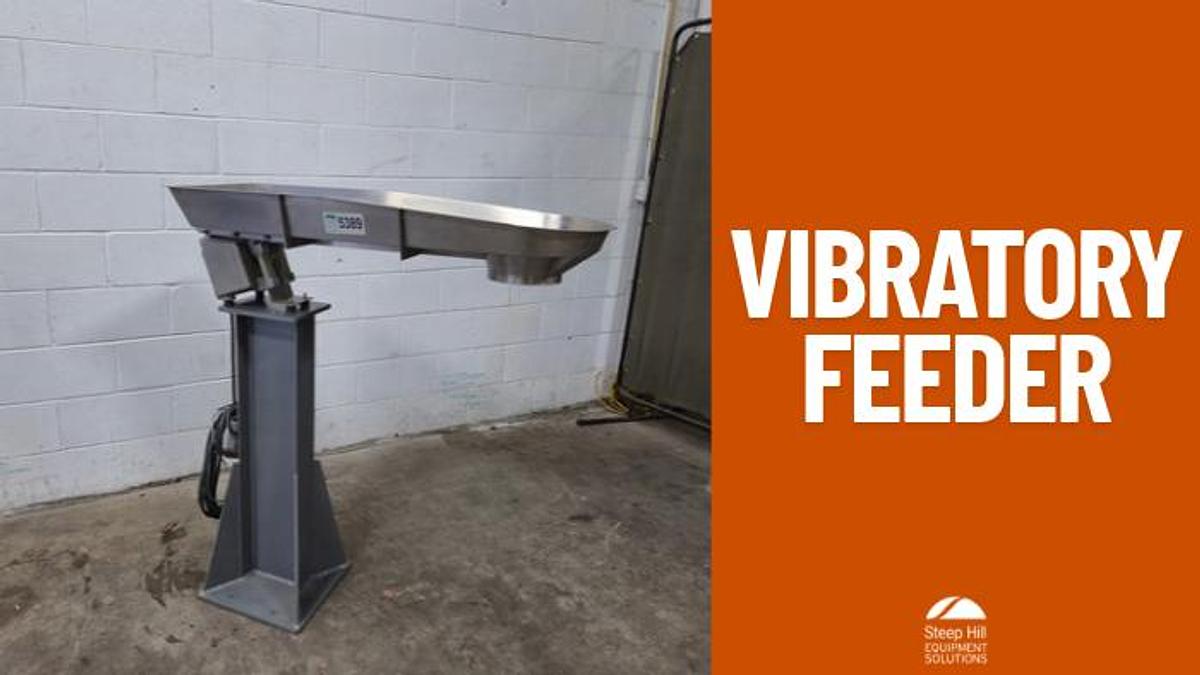

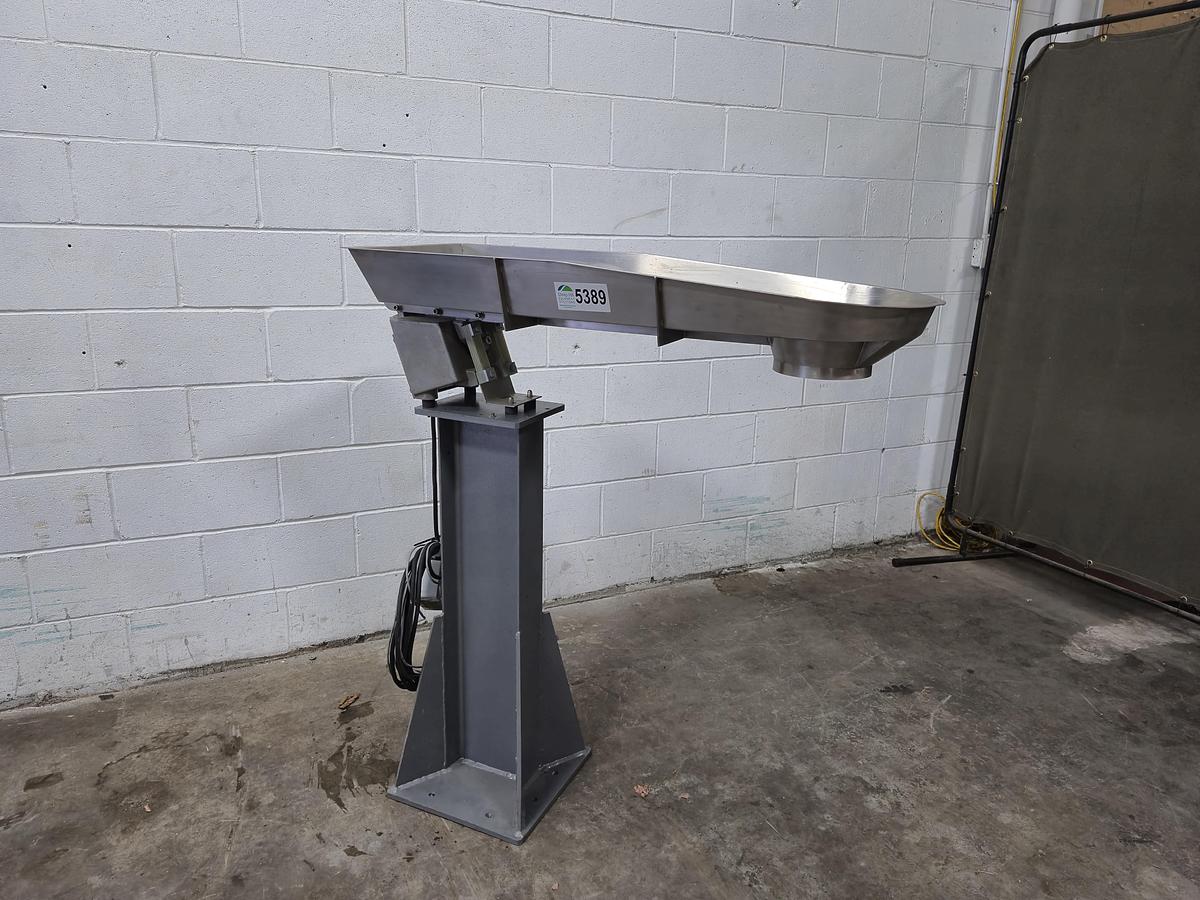

Syntron BF-2-B Magnetic Vibratory Feeder

Syntron BF-2-B Magnetic Vibratory Feeder

This equipment is used for automatically controlling and conveying the flow of bulk materials from one part of a production line to another. Because it uses an electromagnetic drive instead of moving mechanical parts (like belts, gears, or bearings), it can start and stop instantly. This allows operators to dose precise amounts of materials with zero product spillage.

Specs:

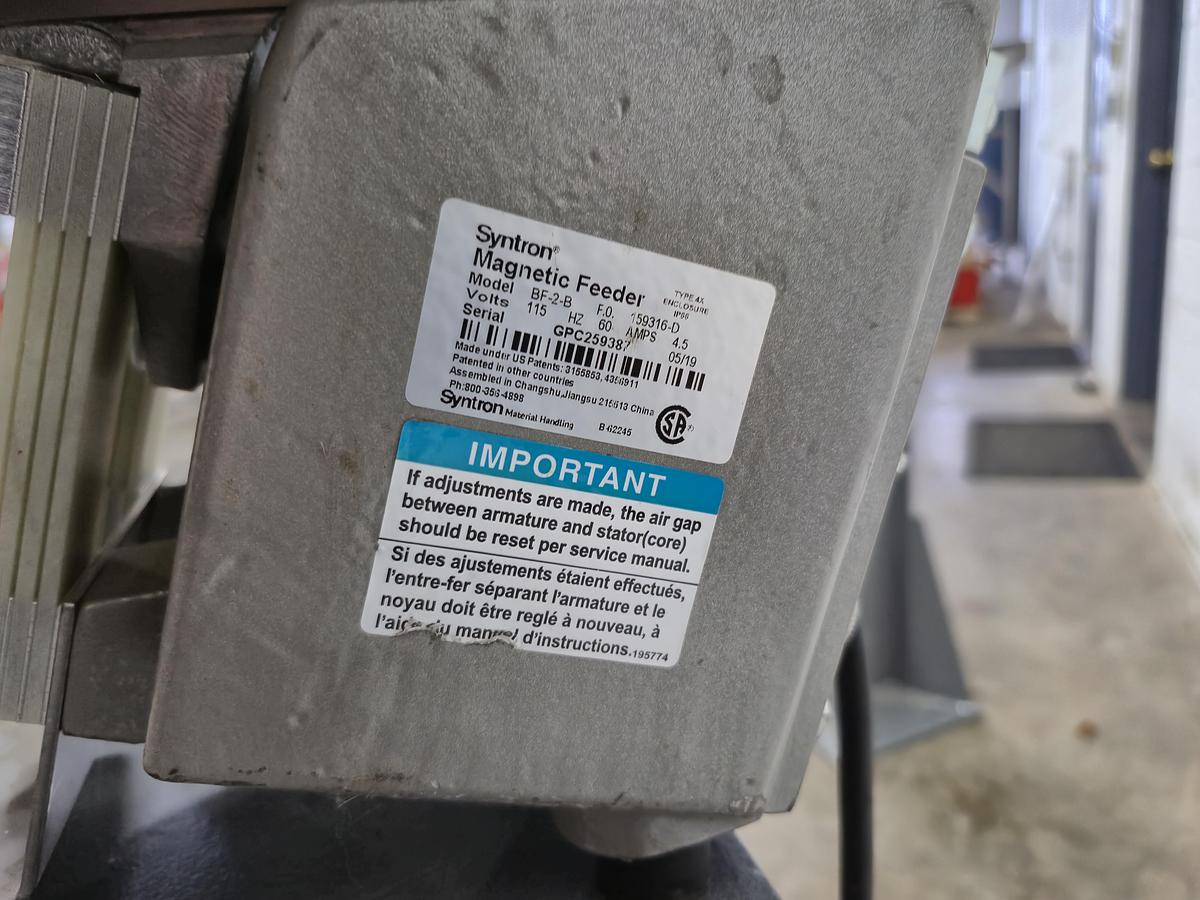

• Voltage: 115 V AC
• Frequency: 60 Hz
• Current Rating: 4.5 Amps
• Phase: Single Phase (1 PH)
• Maximum Feeding Capacity: Up to 7.5 to 9.5 tons per hour(Depending on material density and trough settings)
• Vibrating Speed: 3,600 vibrations per minute (Vpm) at 60 Hz

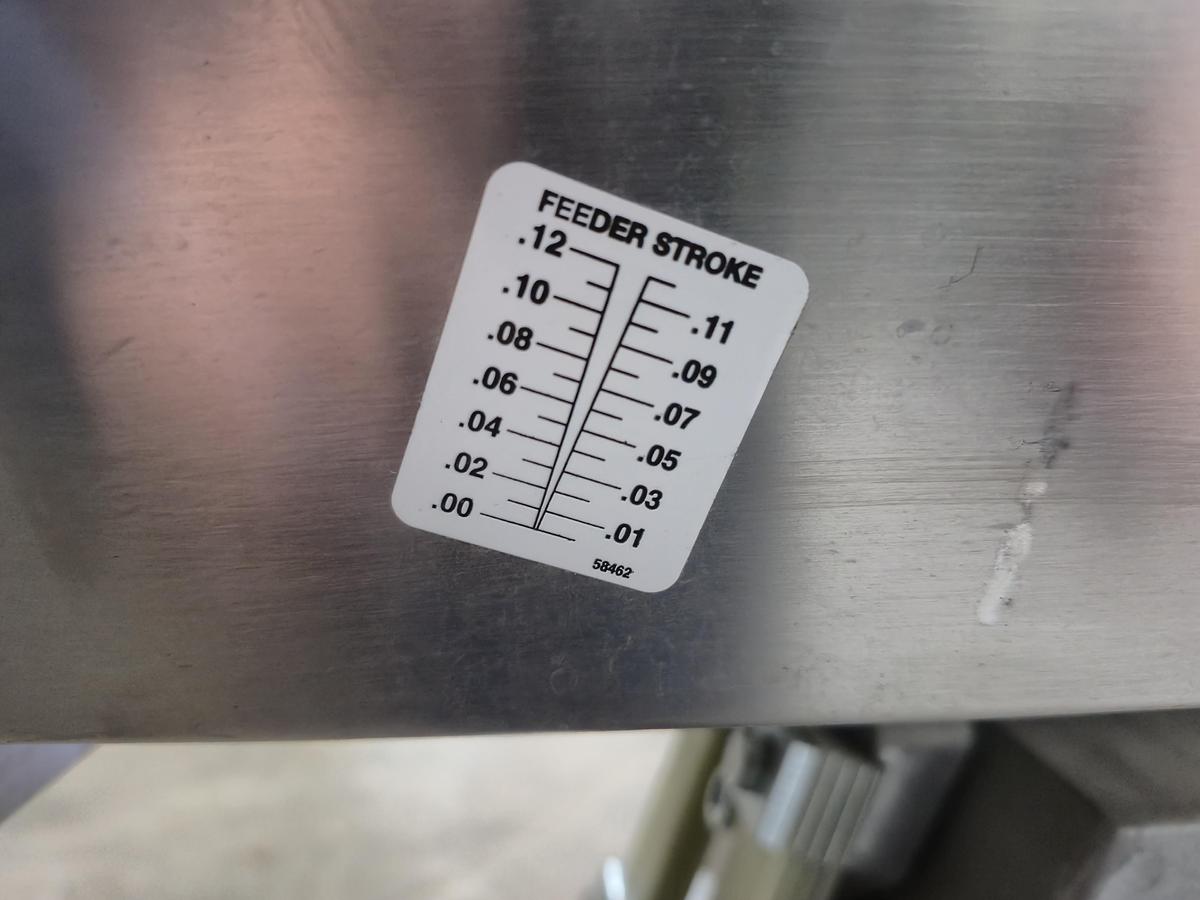

• Trough Stroke Range: 0.055 to 0.090 inches
• Trough Pan Type: Flat Pan ("B" Type Trough)

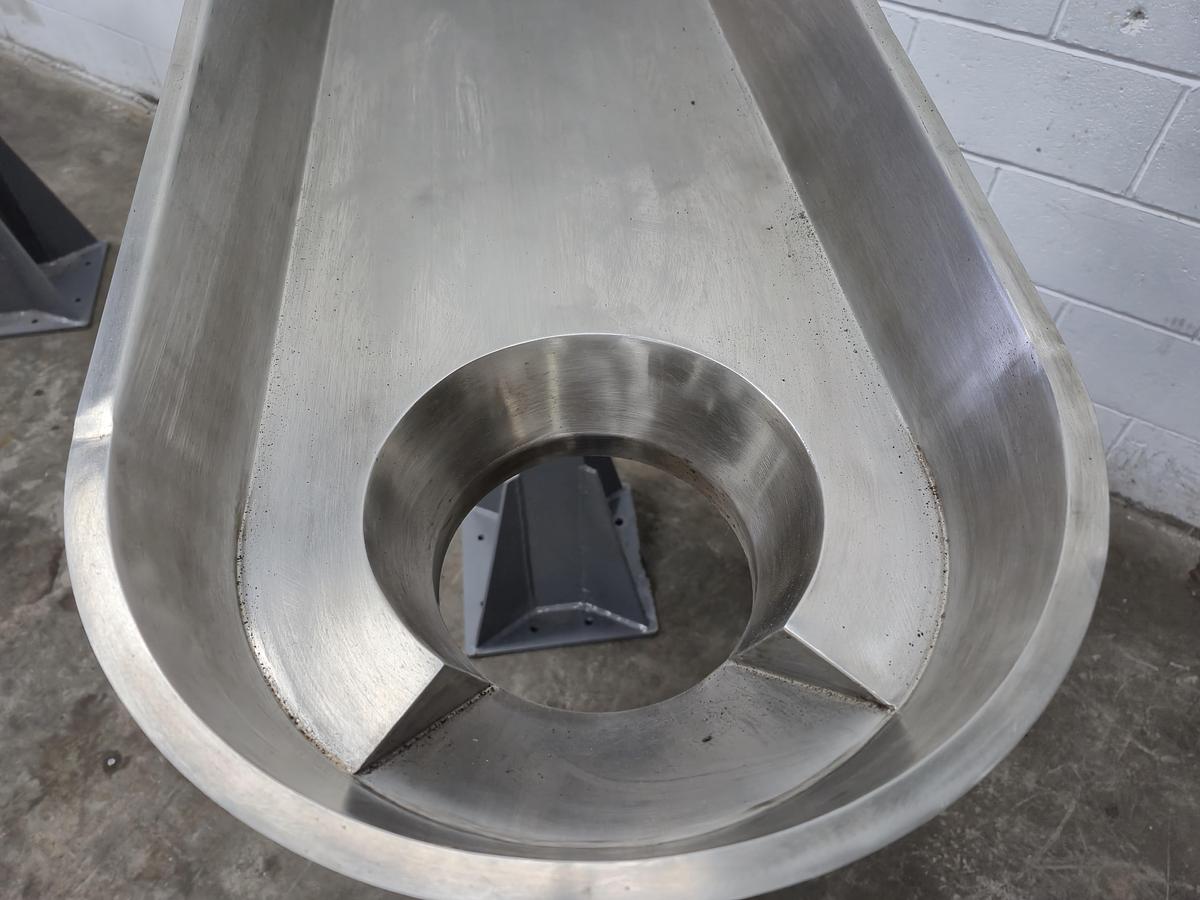

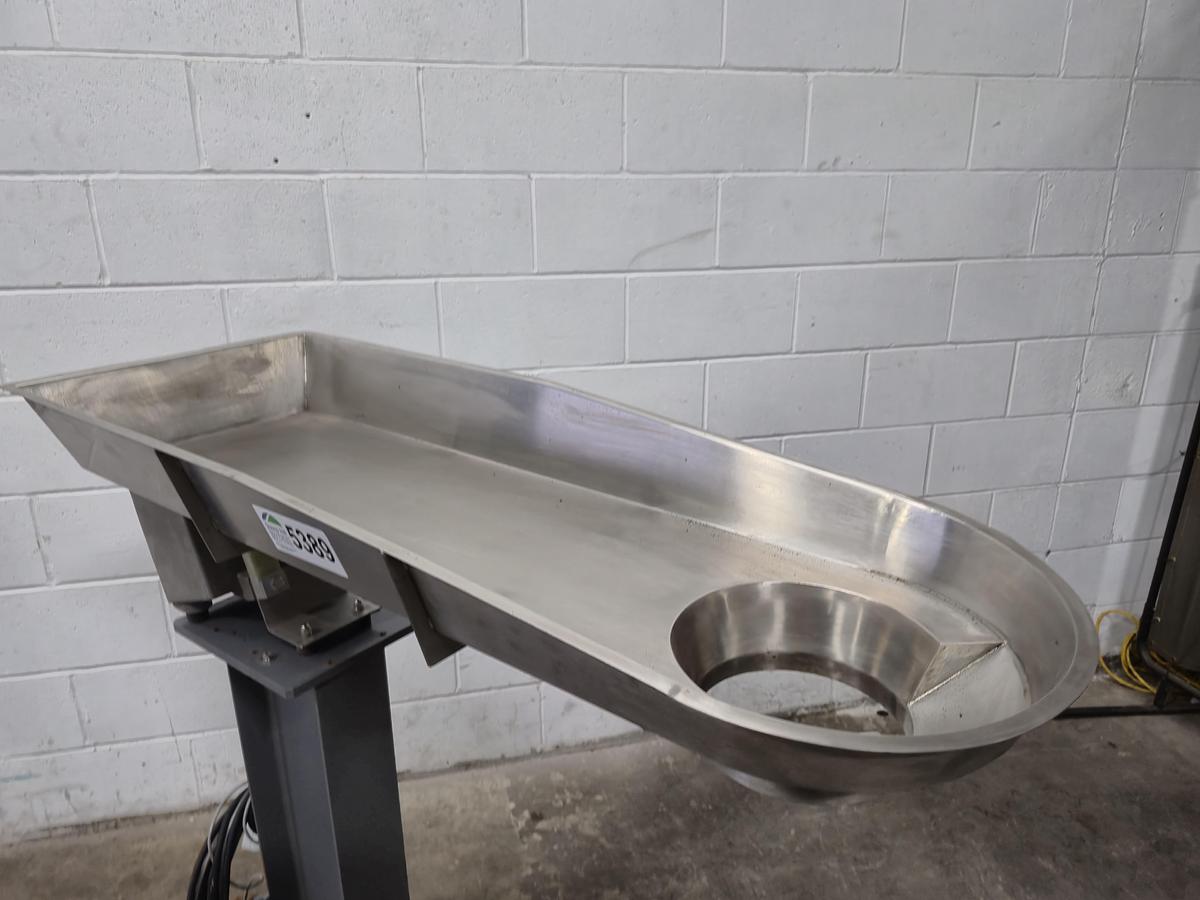

• Standard Pan Size: Approximately 8" Wide x 30" Long x 2-1/4" Deep(Stainless steel construction)
• Max Allowed Trough Weight: 20 lbs (9 kg)
• Min Allowed Trough Weight: 12 lbs (5.44 kg)

The stainless steel pan makes it ideal for clean, sanitary environments, including:

• Food Processing: Feeding snacks, grains, or ingredients into industrial scales and packaging machines
• Pharmaceuticals: Moving tablets, capsules, or fine powders cleanly
• Chemicals & Plastics: Metering pellets, flakes, or powders evenly into mixers or extruders
