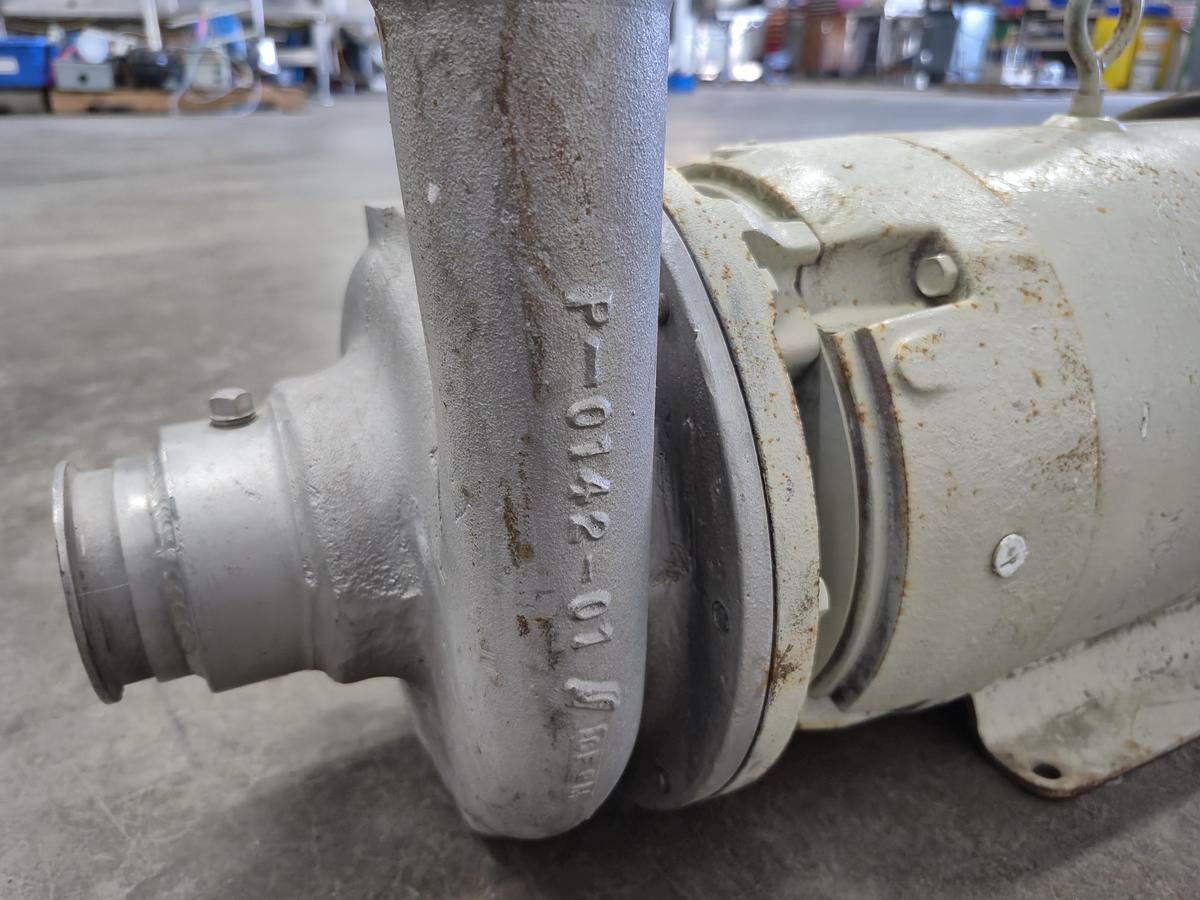

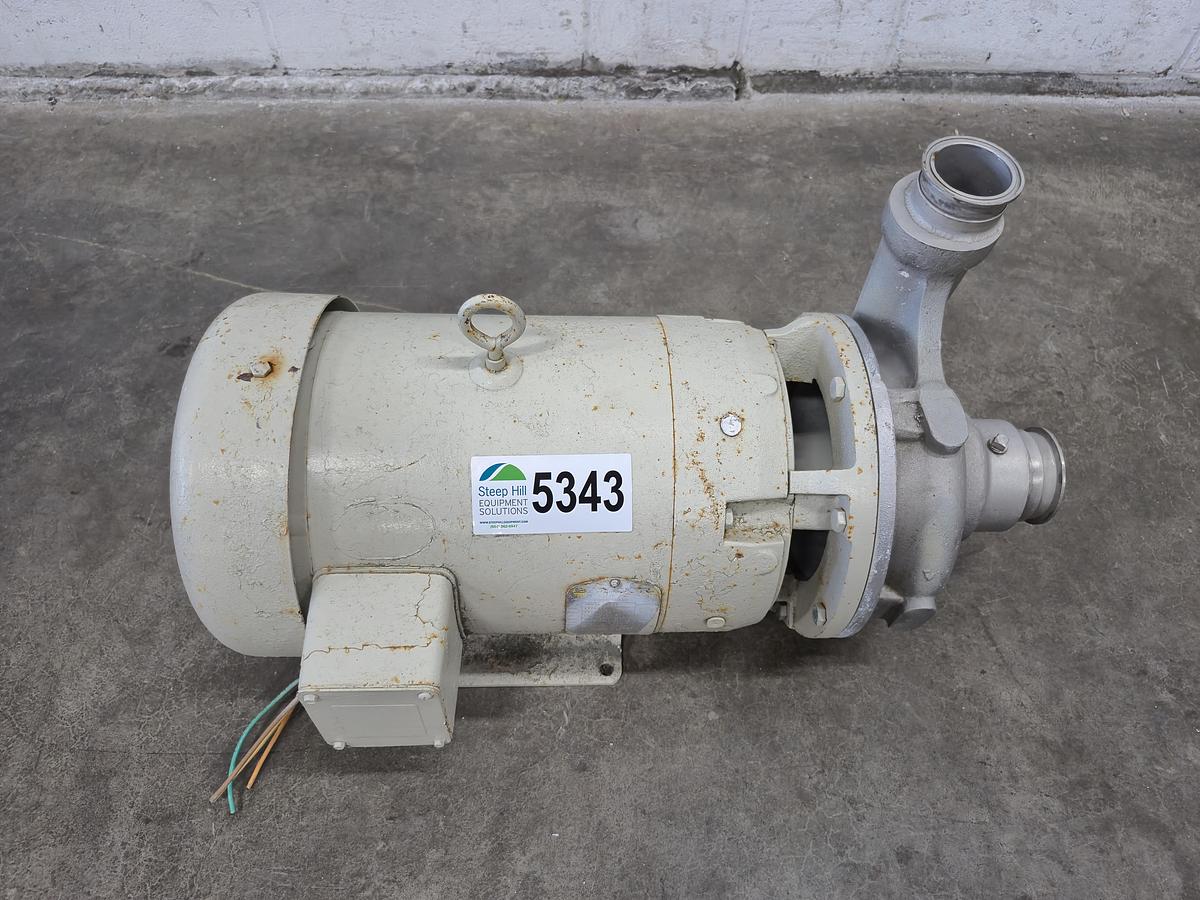

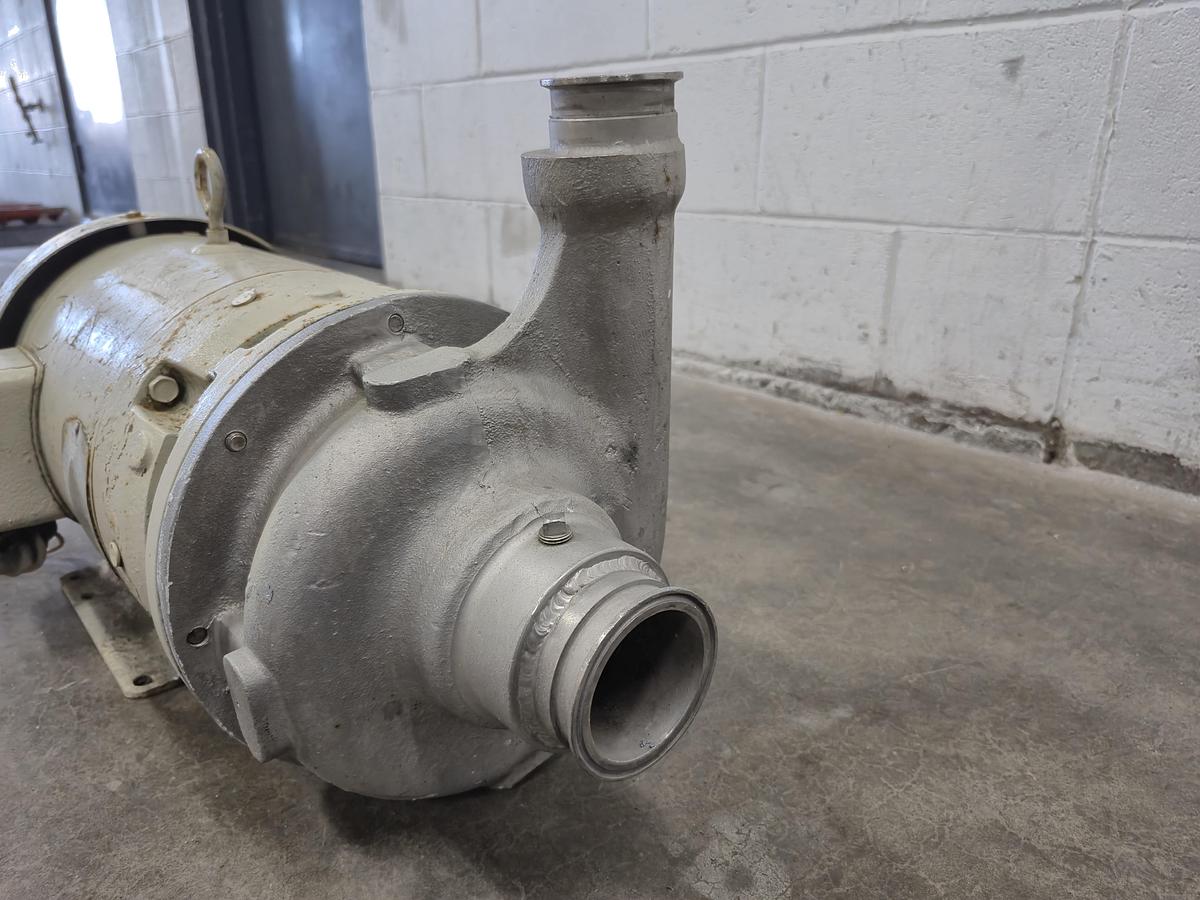

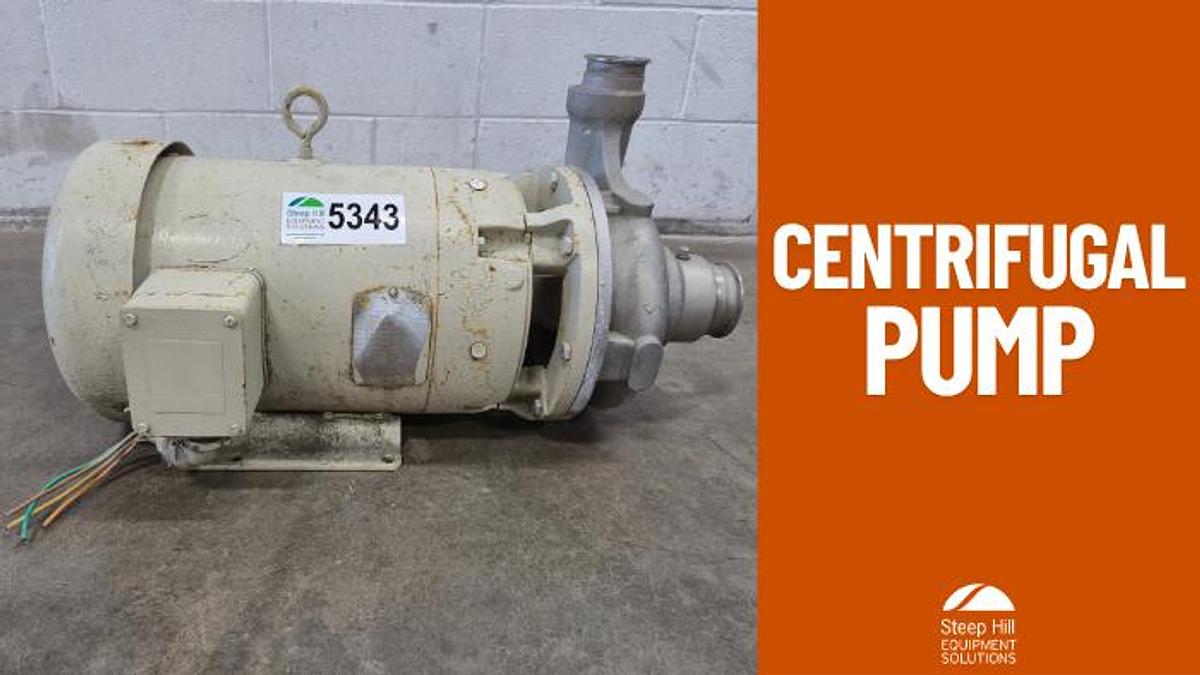

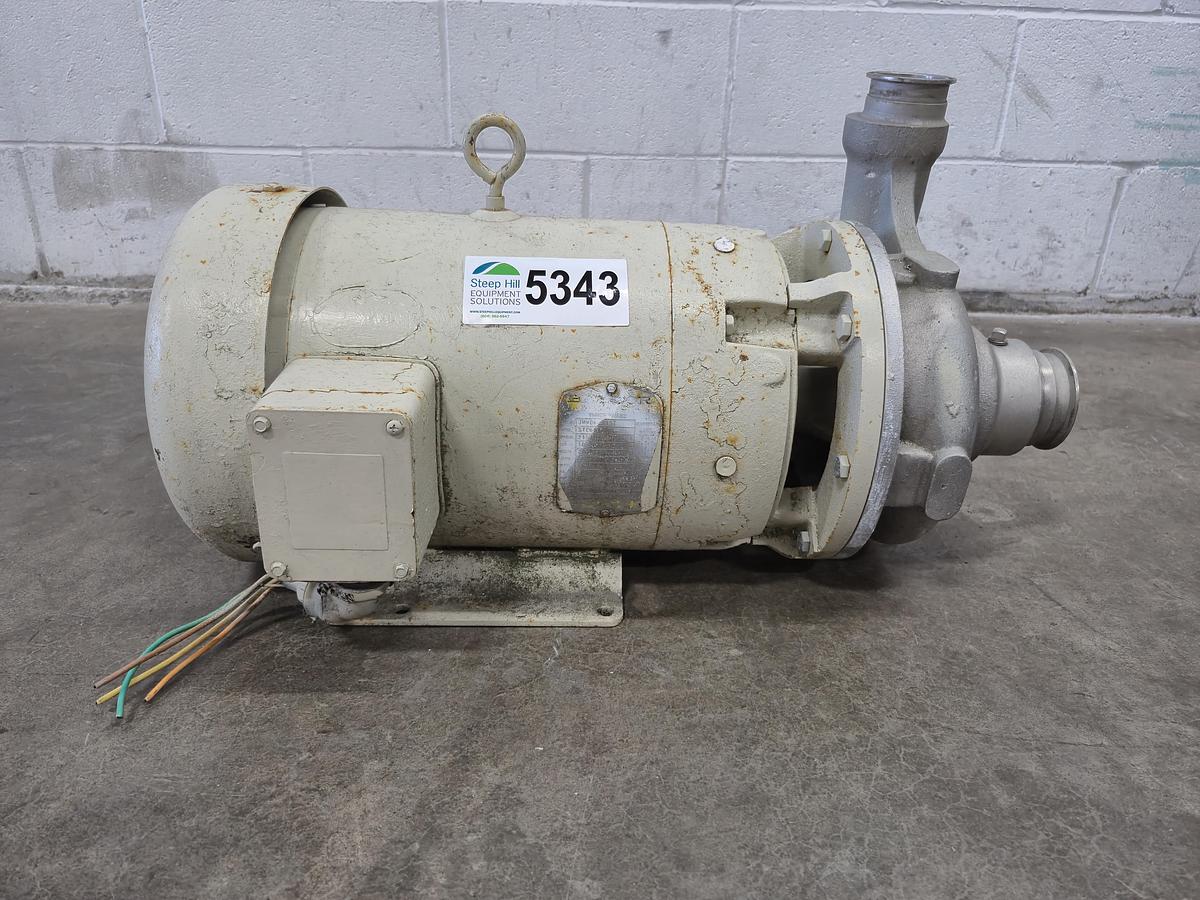

Byron Jackson LX-Bilton Close-Coupled Centrifugal Pump
Byron Jackson LX-Bilton Close-Coupled Centrifugal Pump
Description
Byron Jackson LX-Bilton Close-Coupled Centrifugal Pump
This industrial pump is used for moving large volumes of clean, low-viscosity fluids across various commercial and utility systems. Because it is a close-coupled centrifugal pump (where the pump impeller is mounted directly onto the electric motor shaft), it is a compact, highly reliable workhorse engineered for continuous duty.
Specs:
- Type:Close-Coupled Centrifugal Volute Pump
- Connection Type: Threaded/NPT suction inlet and discharge nozzle ports
- Common Applications: Liquid transfer, commercial water circulation, booster systems, or industrial light-slurry pumping
- Inlet. 1.25 inches
- Outlet: 1 inch

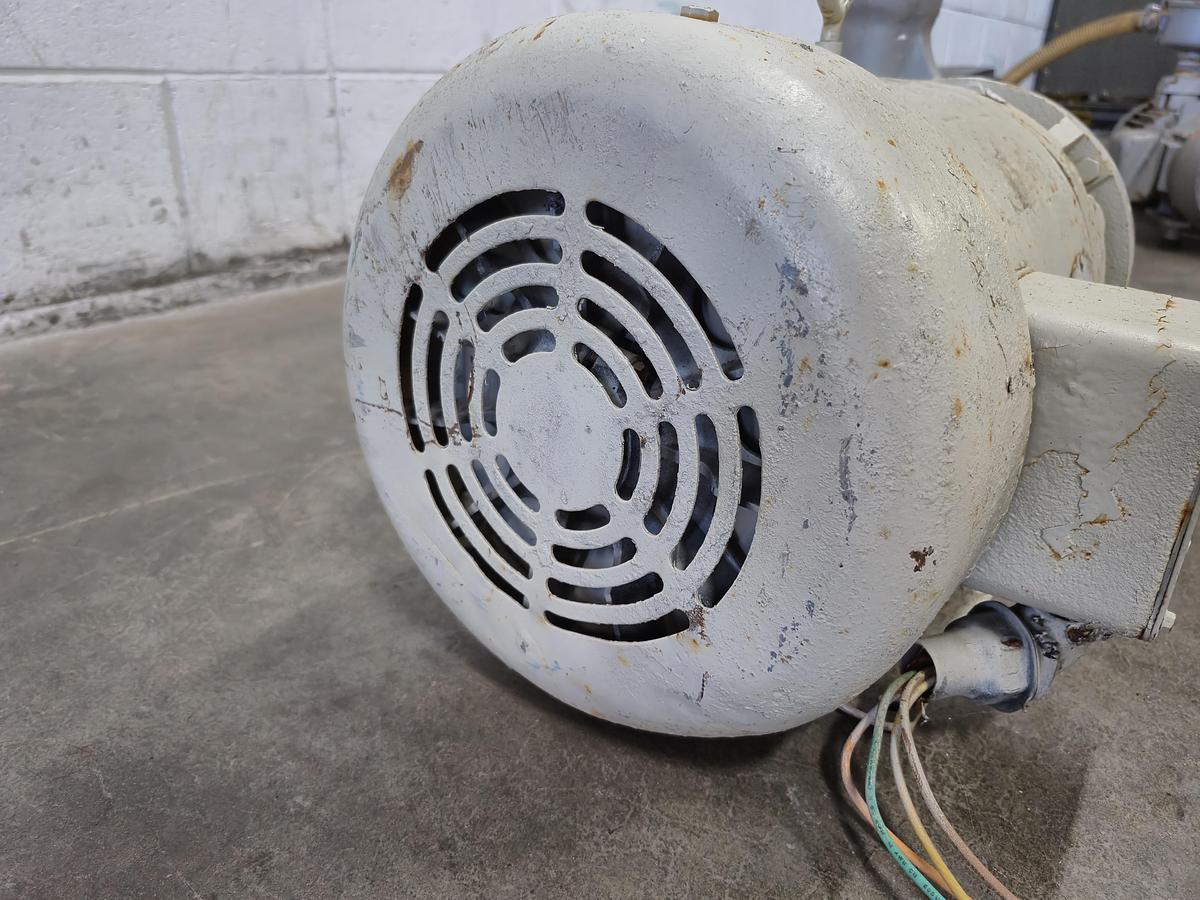

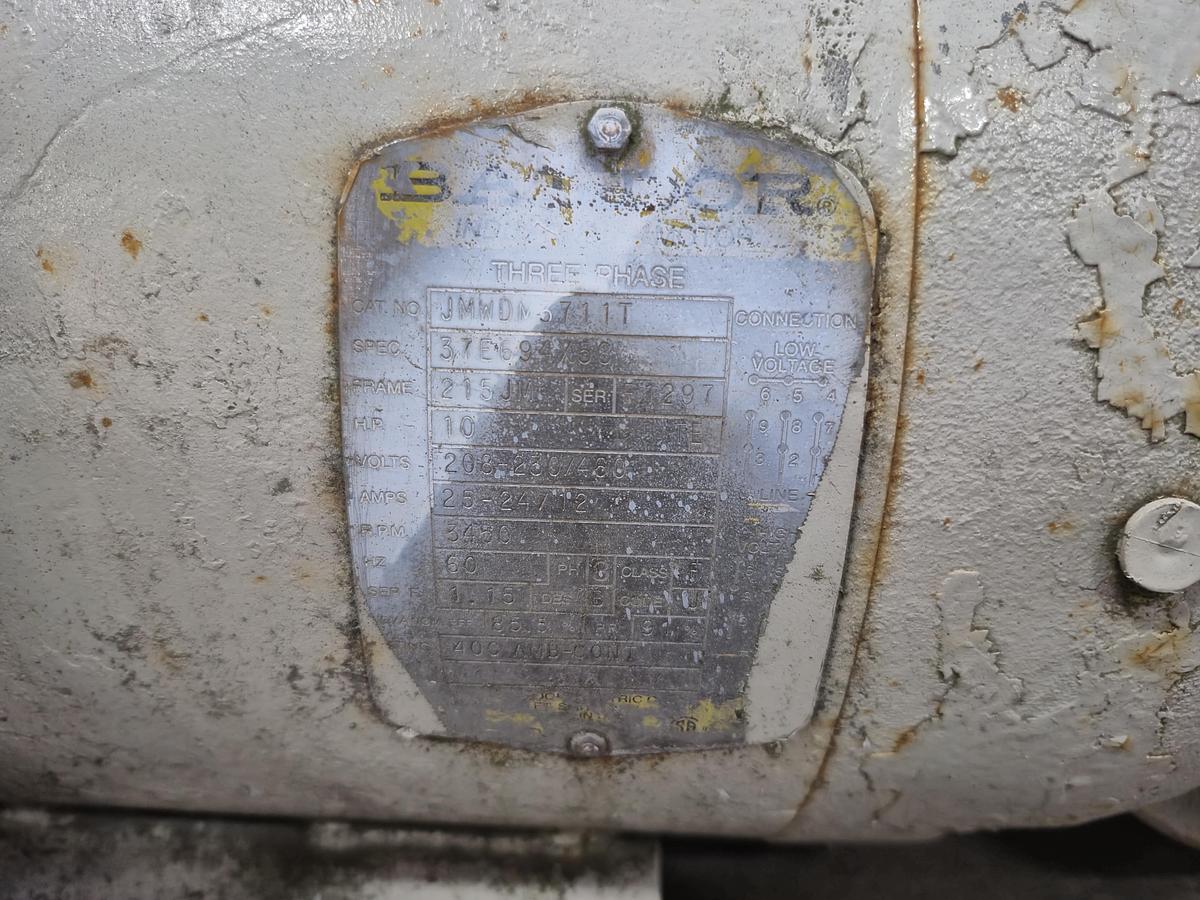

Powered by a 10 HP Baldor Motor
- Catalog Number (CAT. NO):JMMD3711T
- 3-Phase
- 3450 RPM
- 208-230/460 V
- 60 Hz
- 26-24/12 A
Specifications
| Manufacturer | Byron Jackson LX-Bilton |
| Model | 1.25X1X5-C1 |
| Condition | Used |
| Stock Number | 5343 |
| Location Code | AA7 - 9 - B |
| Pump Inlet Size (in) | 1.25 inches |
| Pump Outlet Size (in) | 1 inch |
