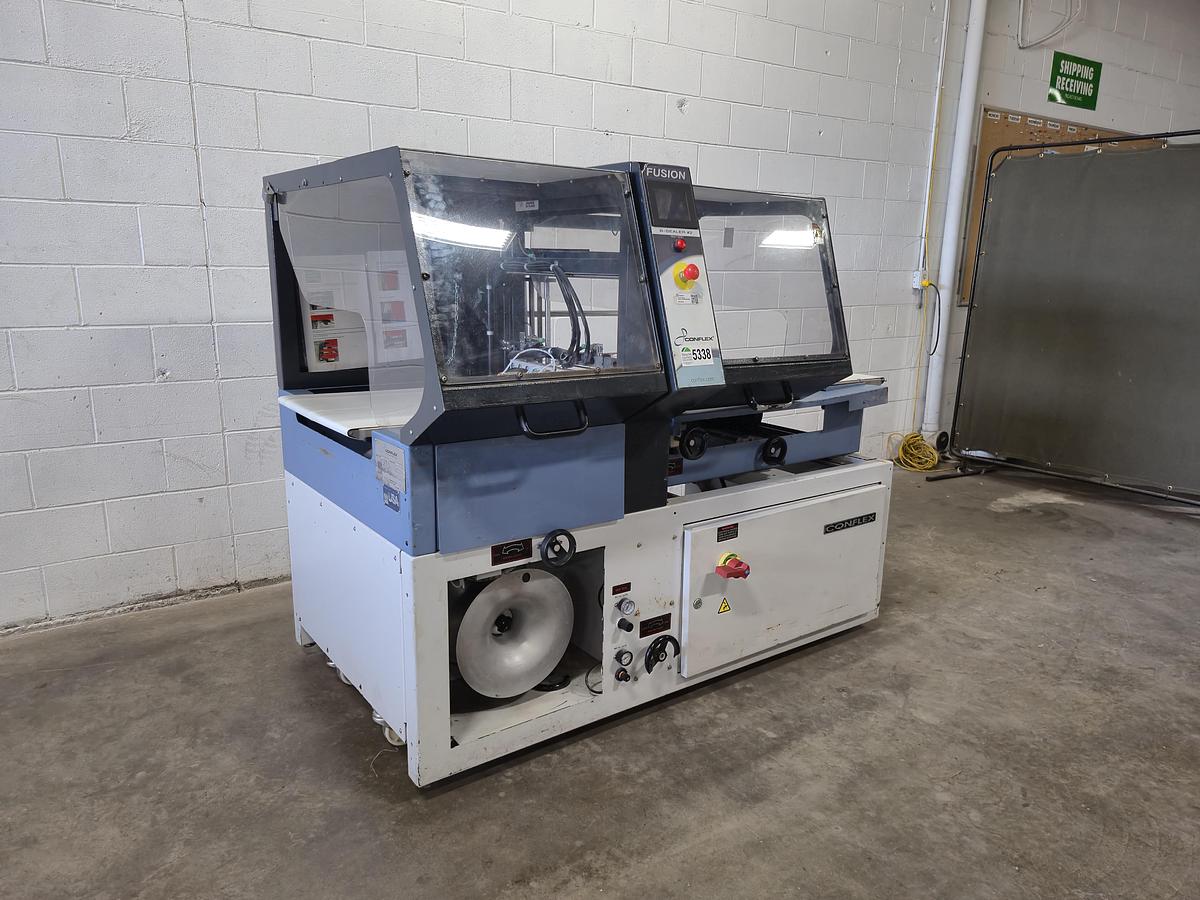

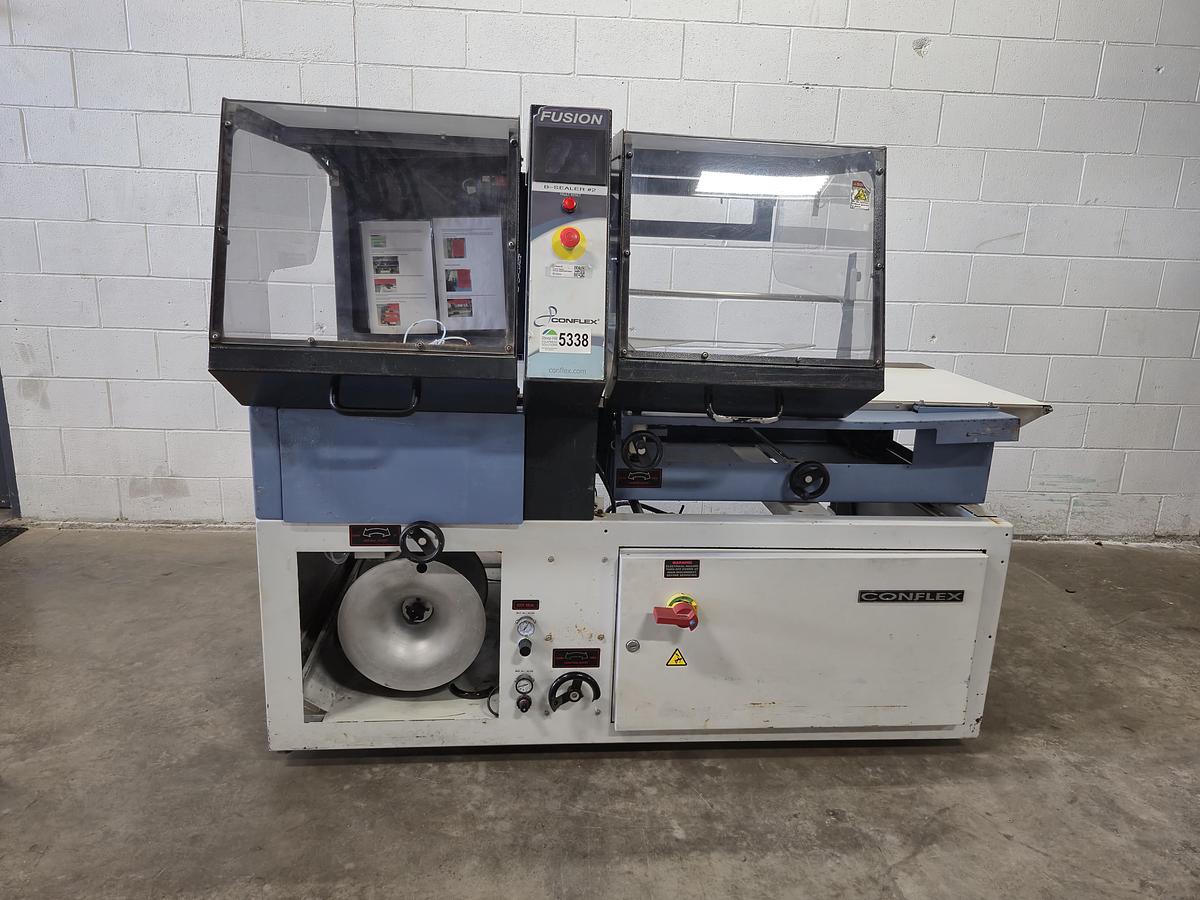

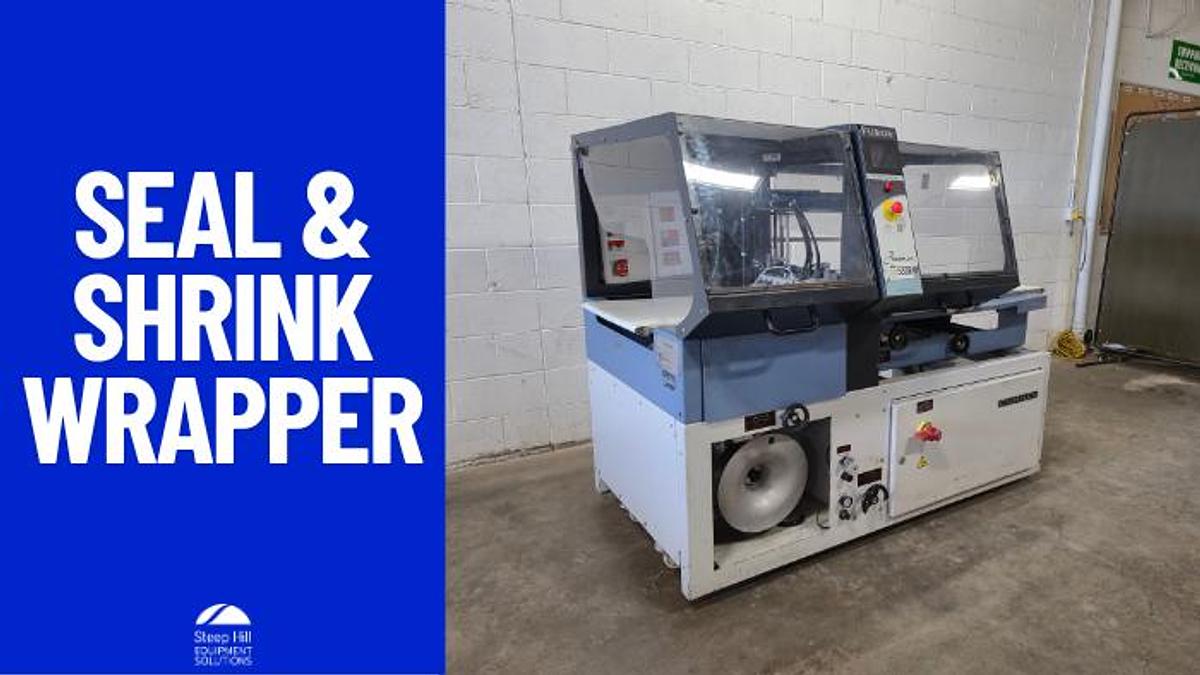

Conflex Fusion Automatic Side Seal Shrink Wrapper

Conflex Fusion Automatic Side Seal Shrink Wrapper

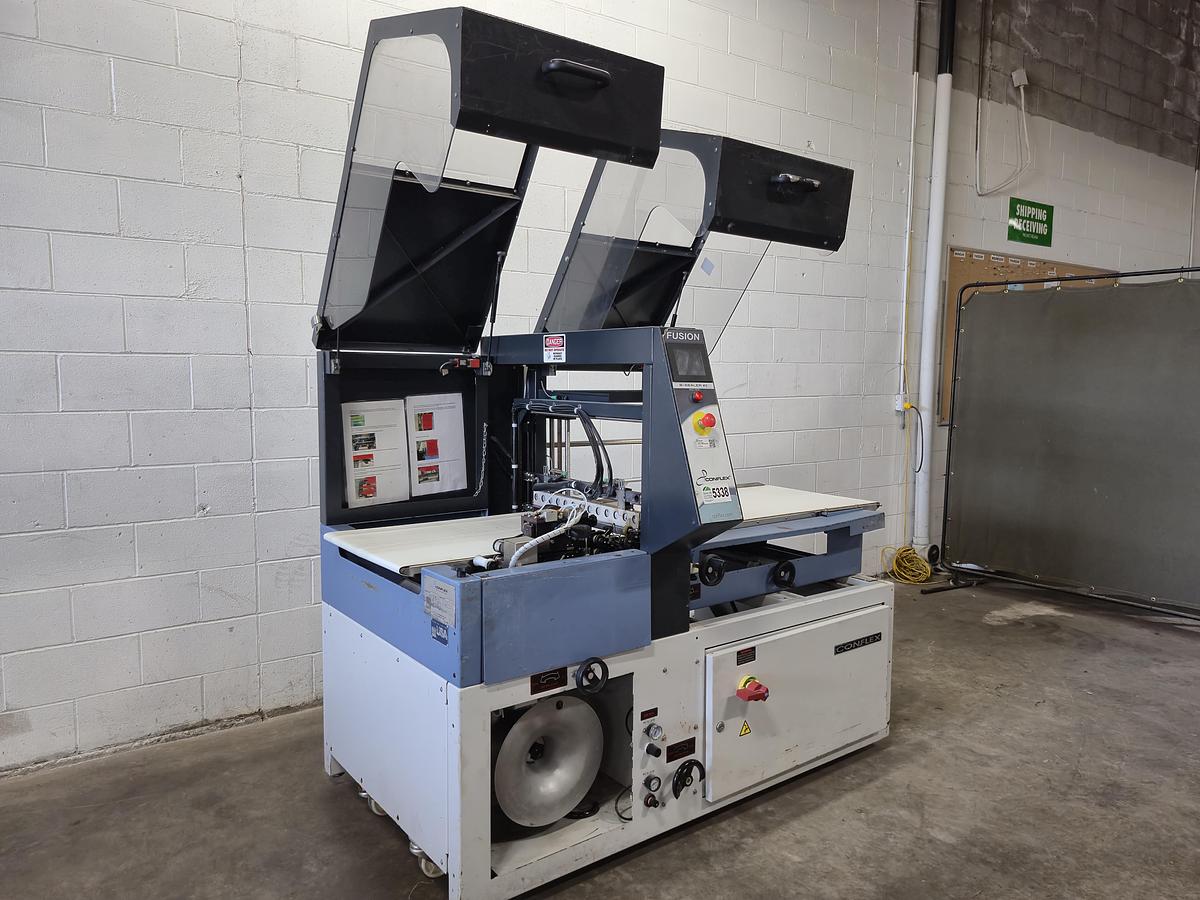

The Conflex Fusion is a high-speed packaging machine used to automatically wrap products in plastic shrink film and seal the edges. It is designed for businesses that need to package high volumes of products quickly, neatly, and securely before they are shipped or placed on retail shelves.

Specs:

• Electrical Requirements: 220V - 230V, 20 Amps, 1 Phase
• Air/Pneumatic Requirements: 80 PSI, 1 CFM
• Seal Bar Dimensions: 24″ Wide x 10.5″ High
• Maximum Film Width: Up to 32″ Center-fold film
• Maximum Roll Diameter: 14″
• Package Size Limits: 2” to unlimited length; 1” to 22” width; 1/8” to 10” height (product dependent)

What it actually does (The Process):

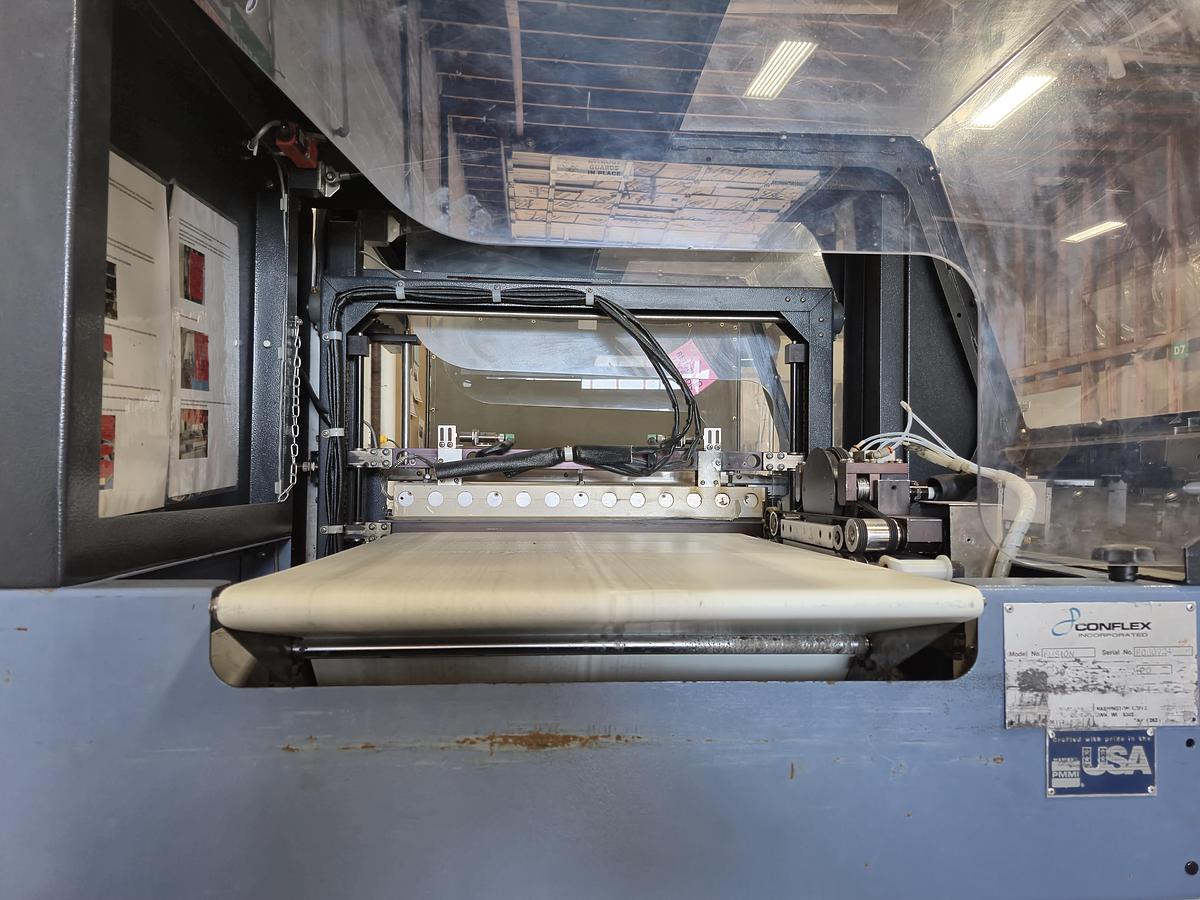

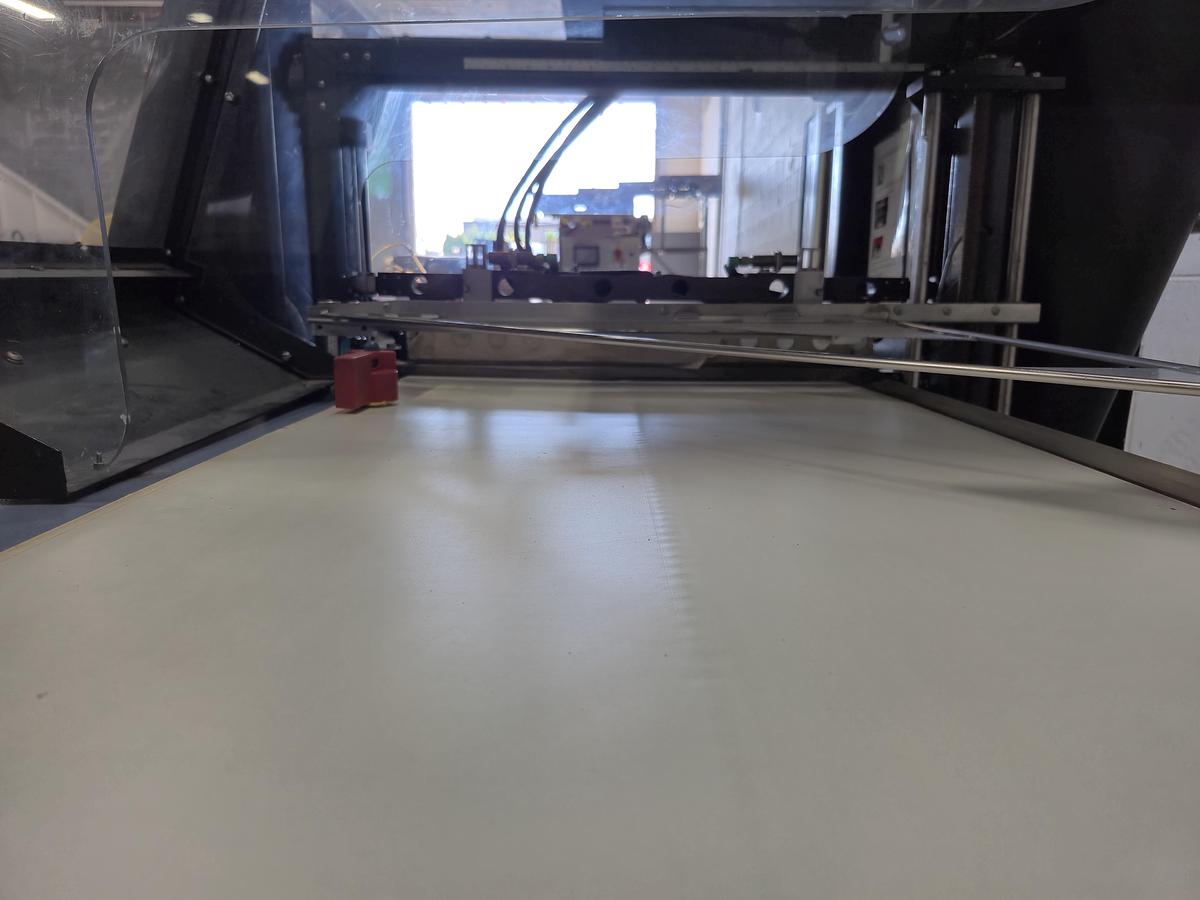

• Feeding: Products move down a conveyor belt into the machine
• Wrapping: The machine automatically folds a continuous roll of plastic center-folded film around the product

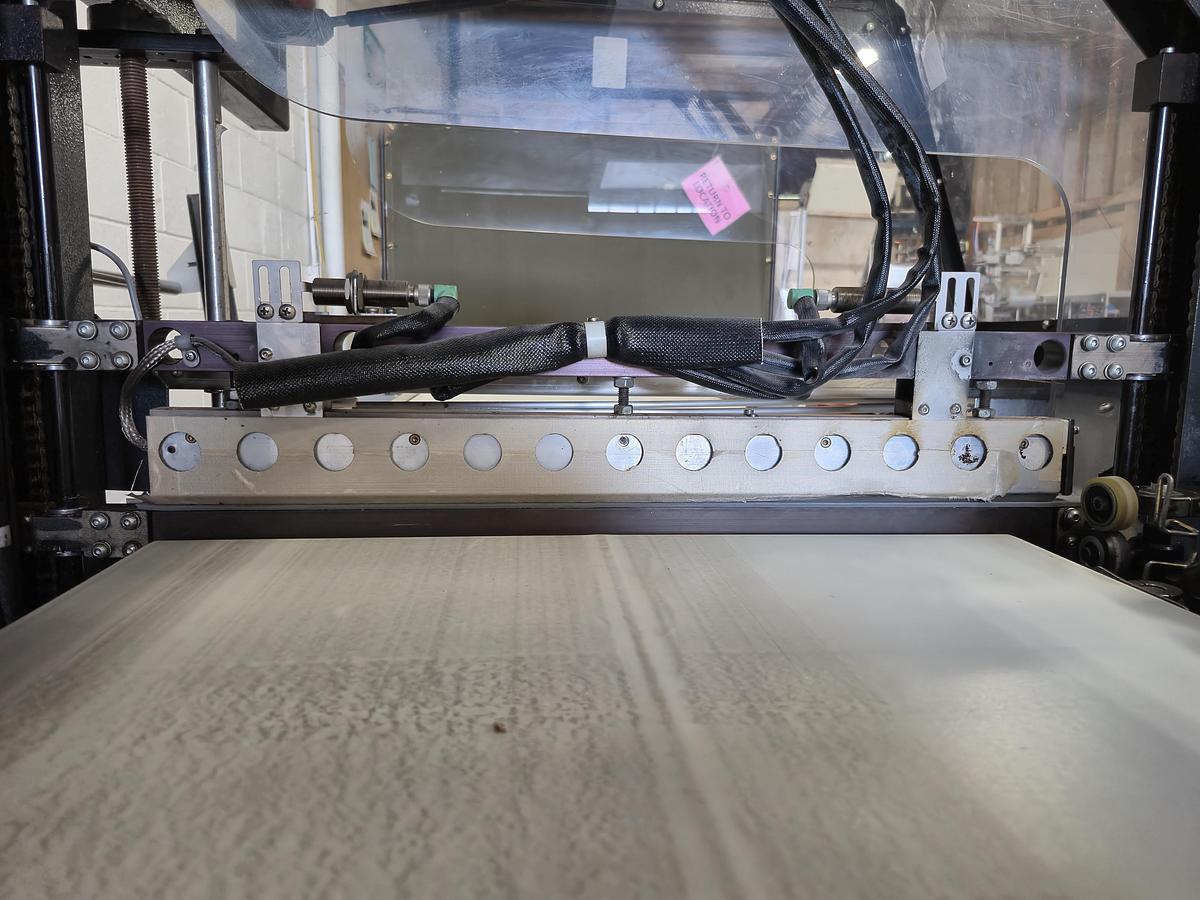

• Sealing: It uses a heated element to cut and seal the open side and the ends of the film, completely enclosing the product in a loose plastic pouch
• Shrinking (Next Step): The product then typically travels immediately into a heated shrink tunnel (sold separately or as a system), which heats the film, causing it to shrink tightly and conform perfectly to the shape of the product

Common Products Packaged With This Machine:

• Retail & Consumer Goods: Multipacks of items (like a 3-pack of soap), cosmetics, games, DVDs, and toys
• Printed & Paper Materials: Books, stacks of paper, calendars, and bound documents
• Food Products: Trays of baked goods, frozen pizzas, and bundled boxes of food (providing a tamper-evident seal)
• Industrial Parts: Long items like pipes, trim molding, or stacked hardware items
