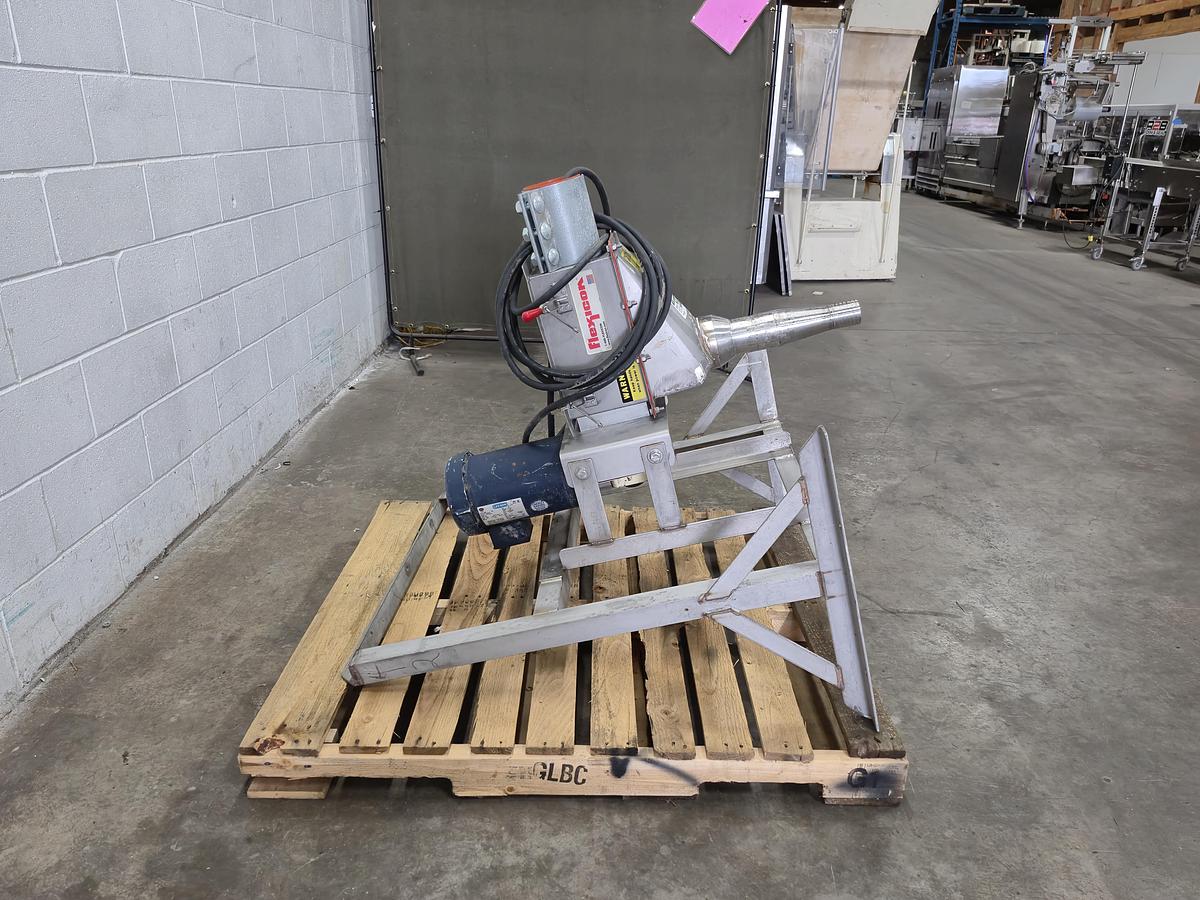

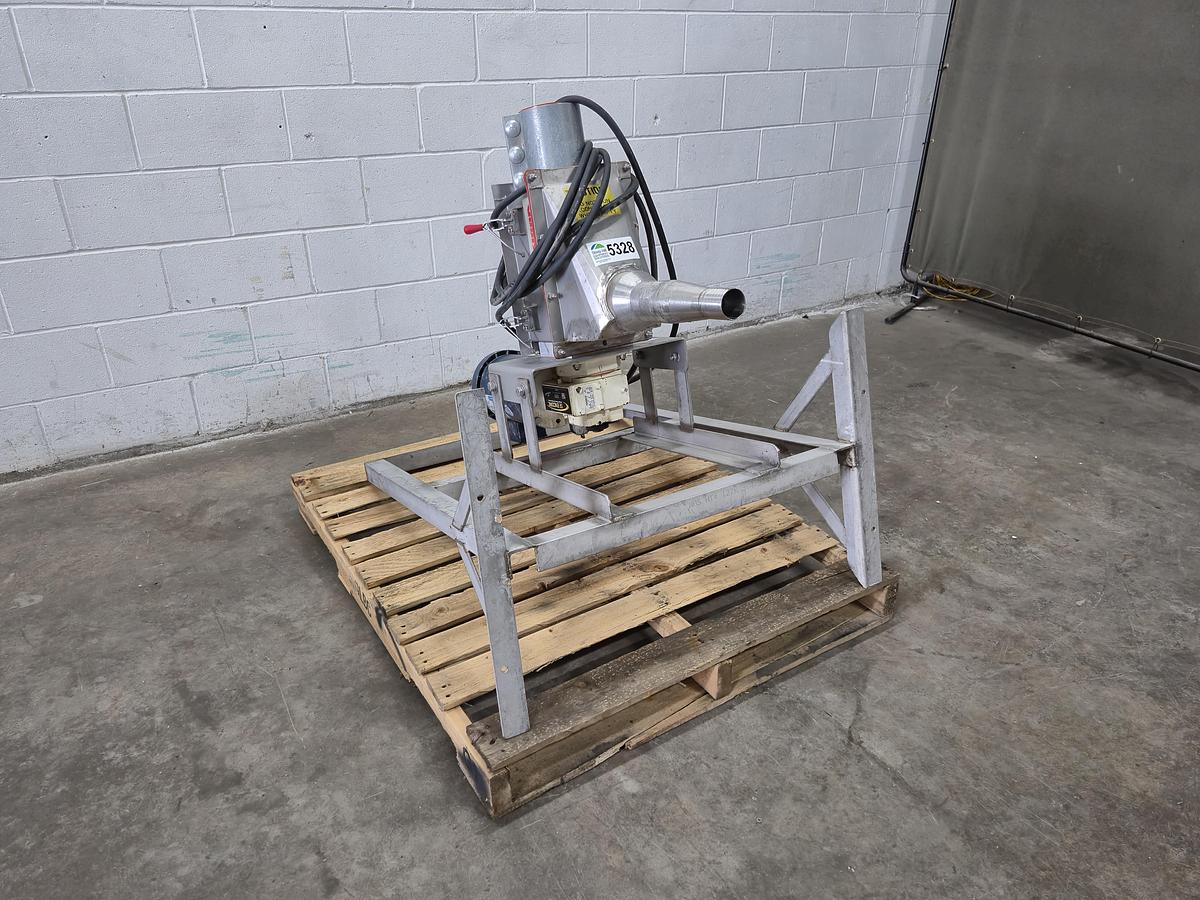

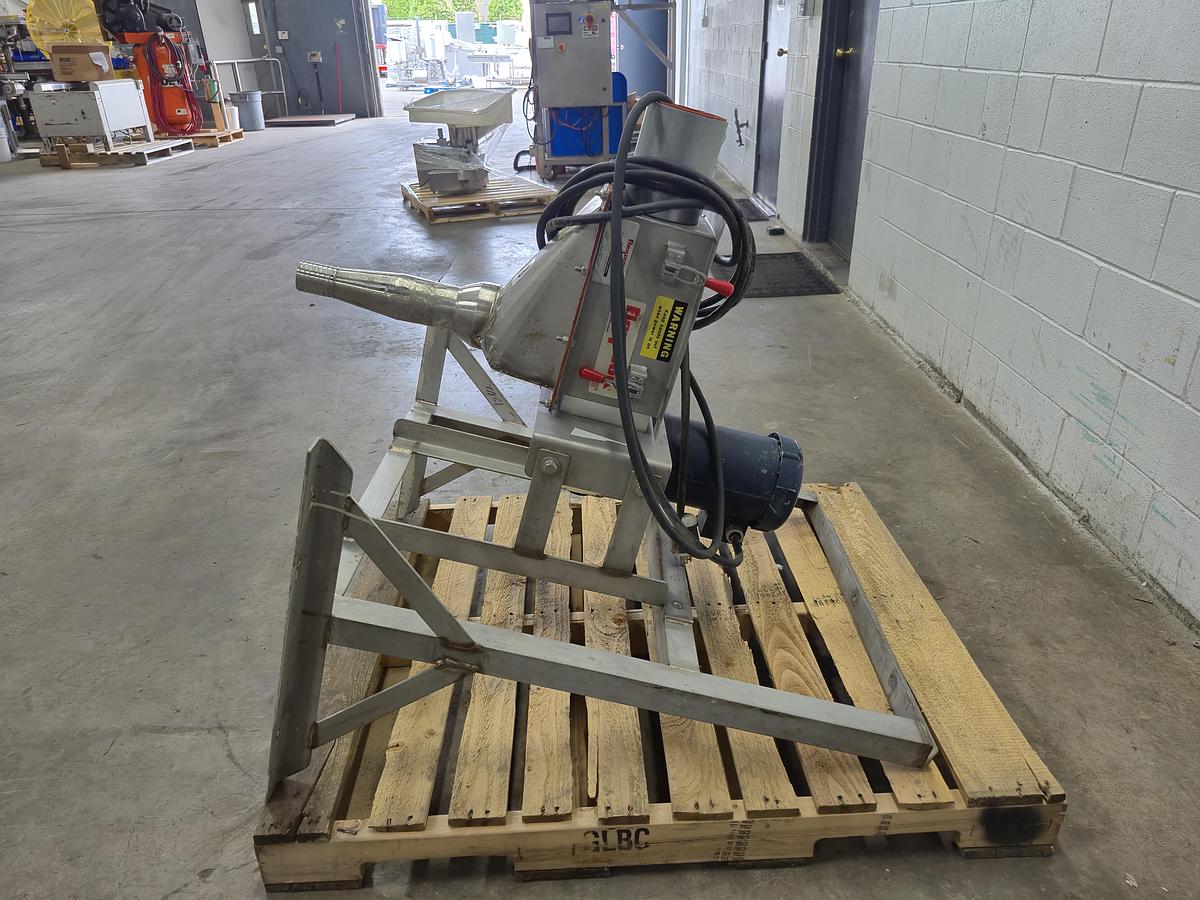

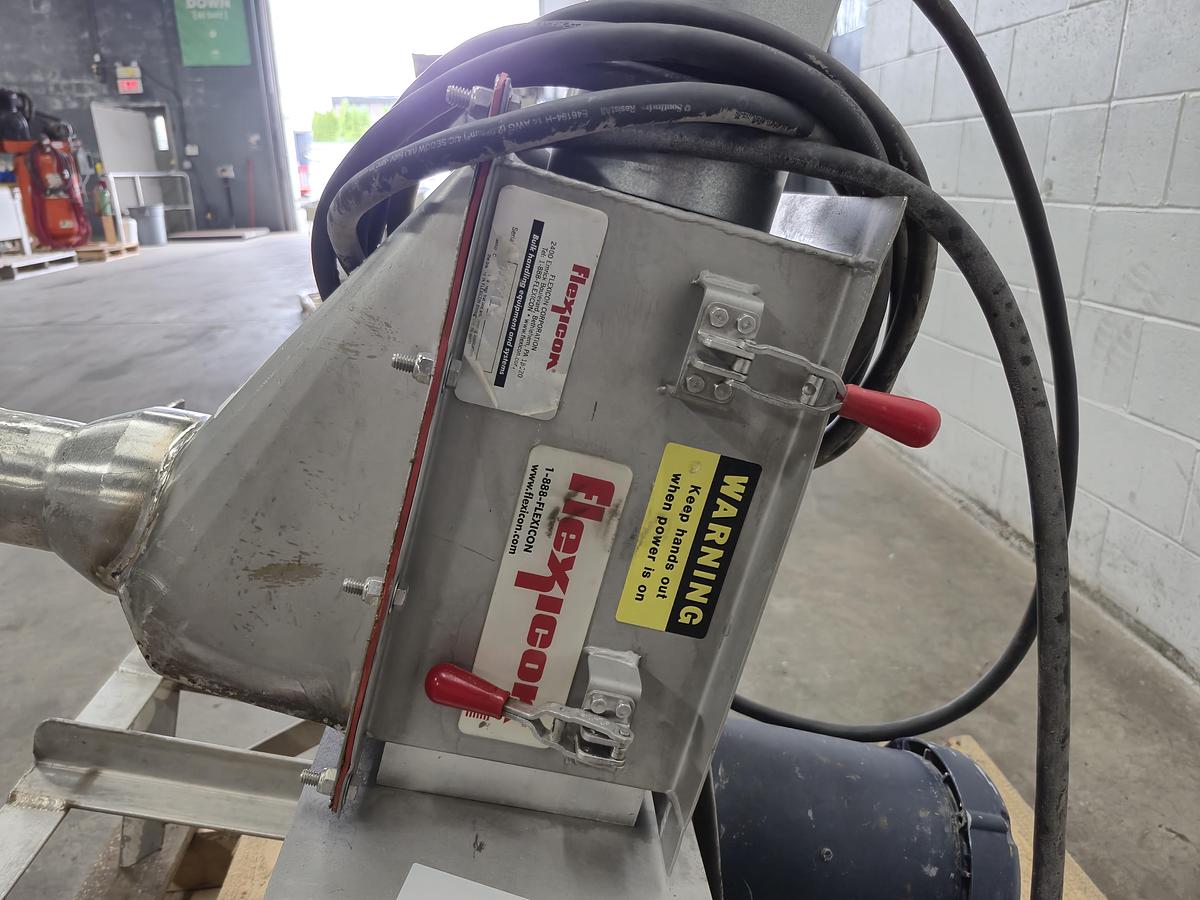

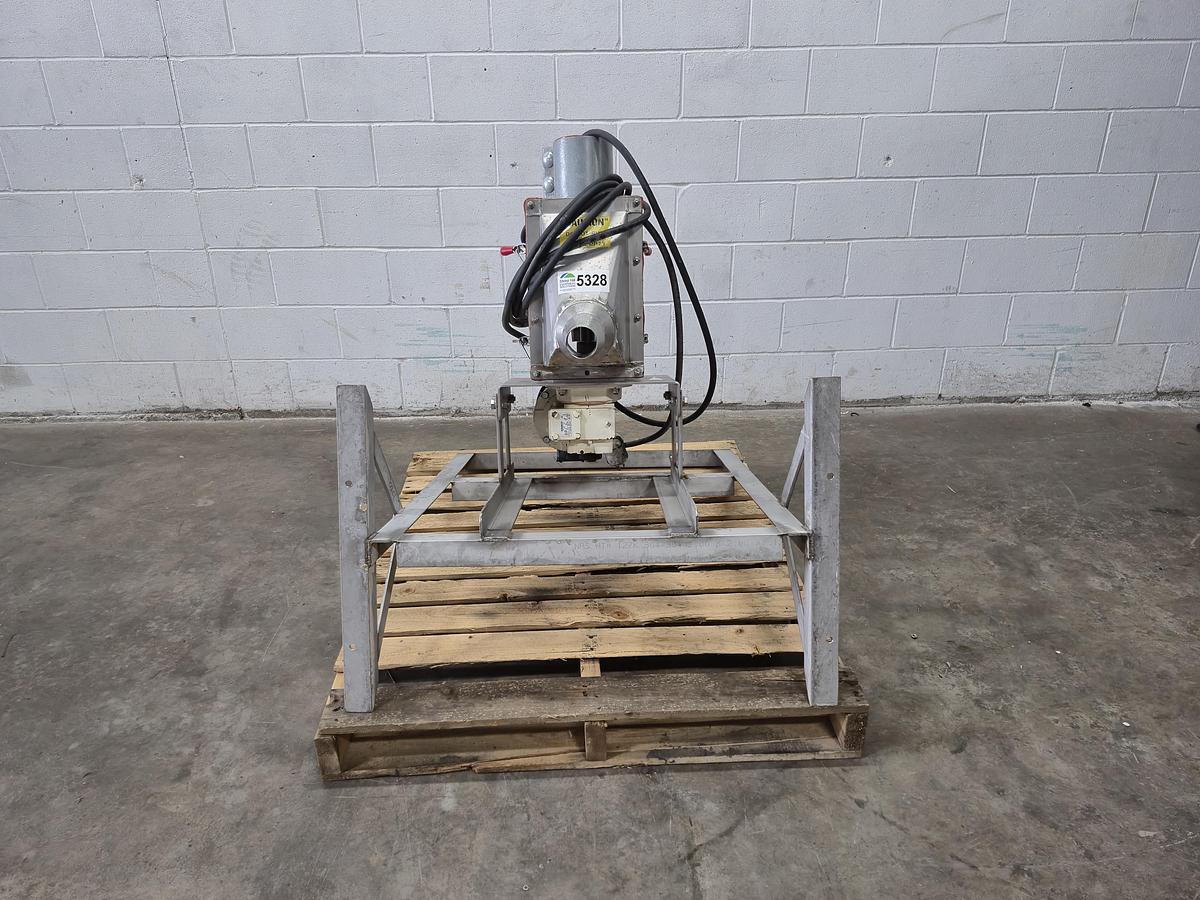

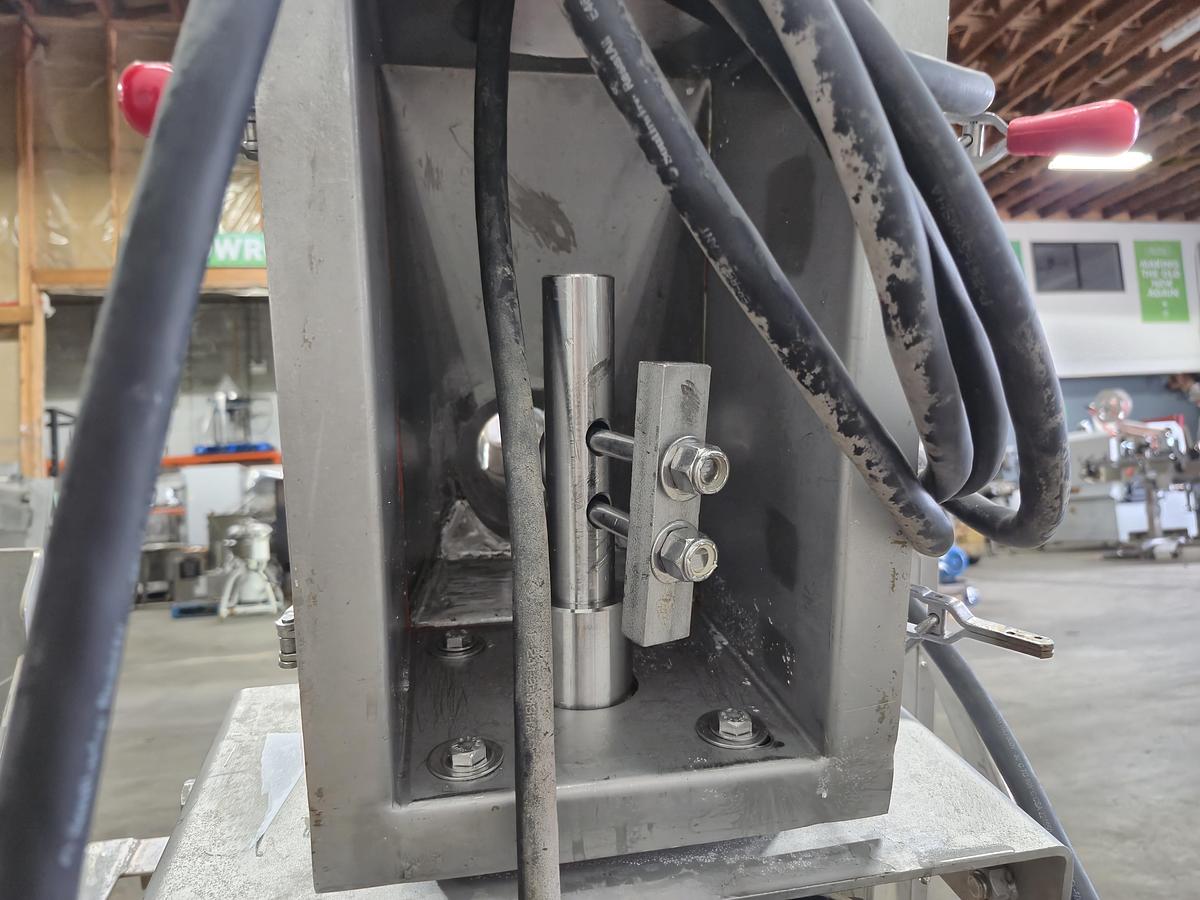

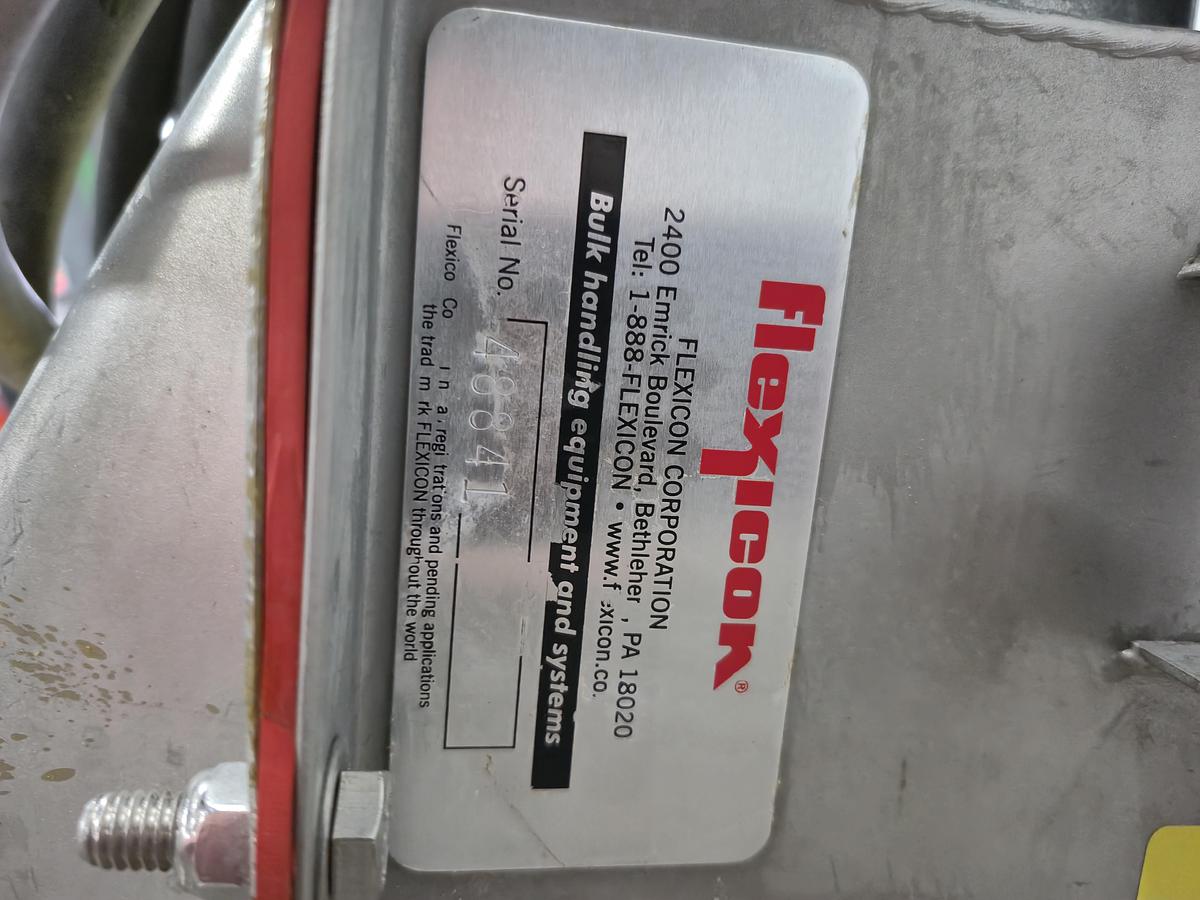

A Flexicon Pneumatic Wye Line Diverter Valve is used to route dry bulk materials from a single supply line into either of two separate destination points within a pneumatic (air-driven) conveying system. Instead of moving liquids or gases, this valve handles dry powders, flakes, pellets, and granular ingredients.

Specs:

• Conveying Type: Dilute-phase pneumatic conveying (vacuum or positive pressure systems
• Maximum Pressure Rating: Engineered to handle differential pressures up to 15 psig (1 barg)
• Material Construction: Heavy-duty, industrial-grade 304 or 316L Stainless Steel body and internal diverting flap
• Outlet Branch Angle: Standard geometry features a 30-degree deflection angle from the straight-through center line to optimize material flow without blinding or clogging

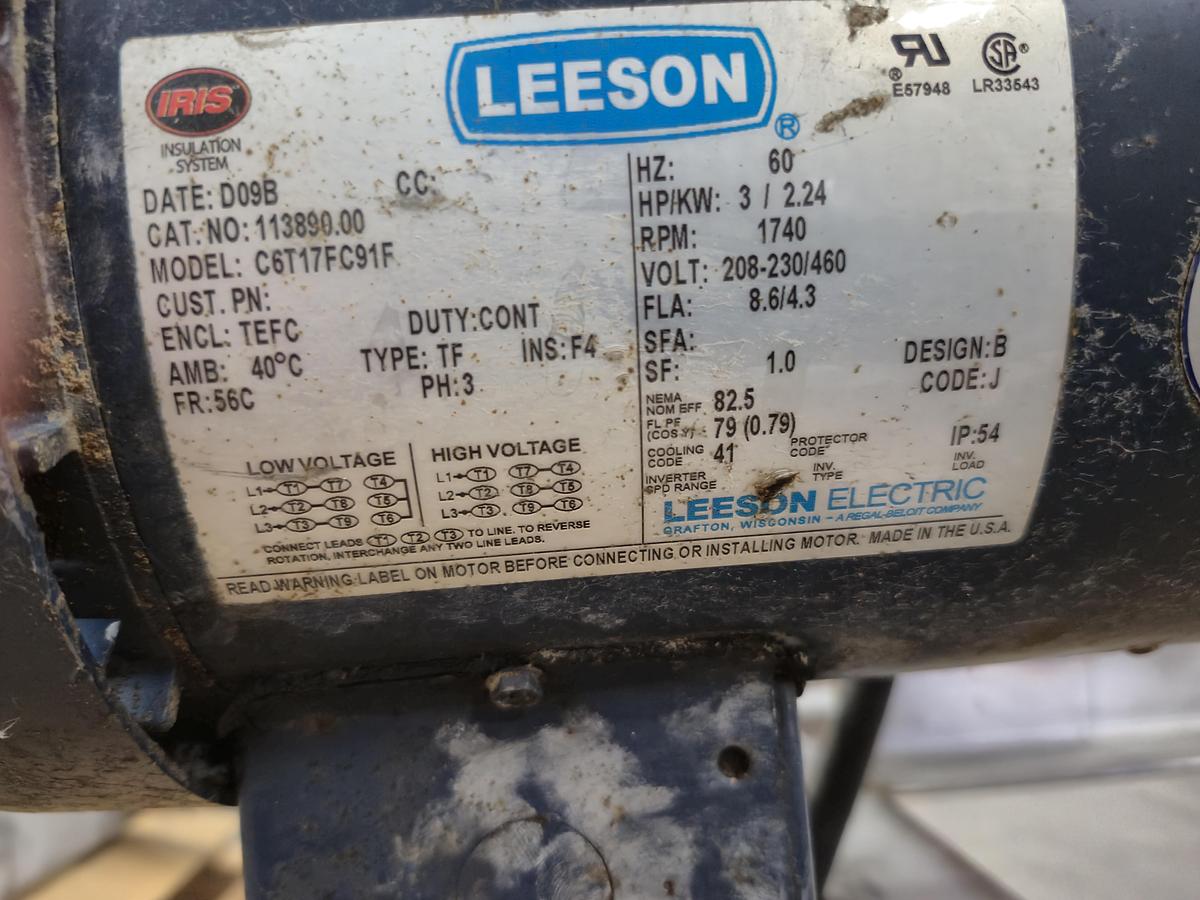

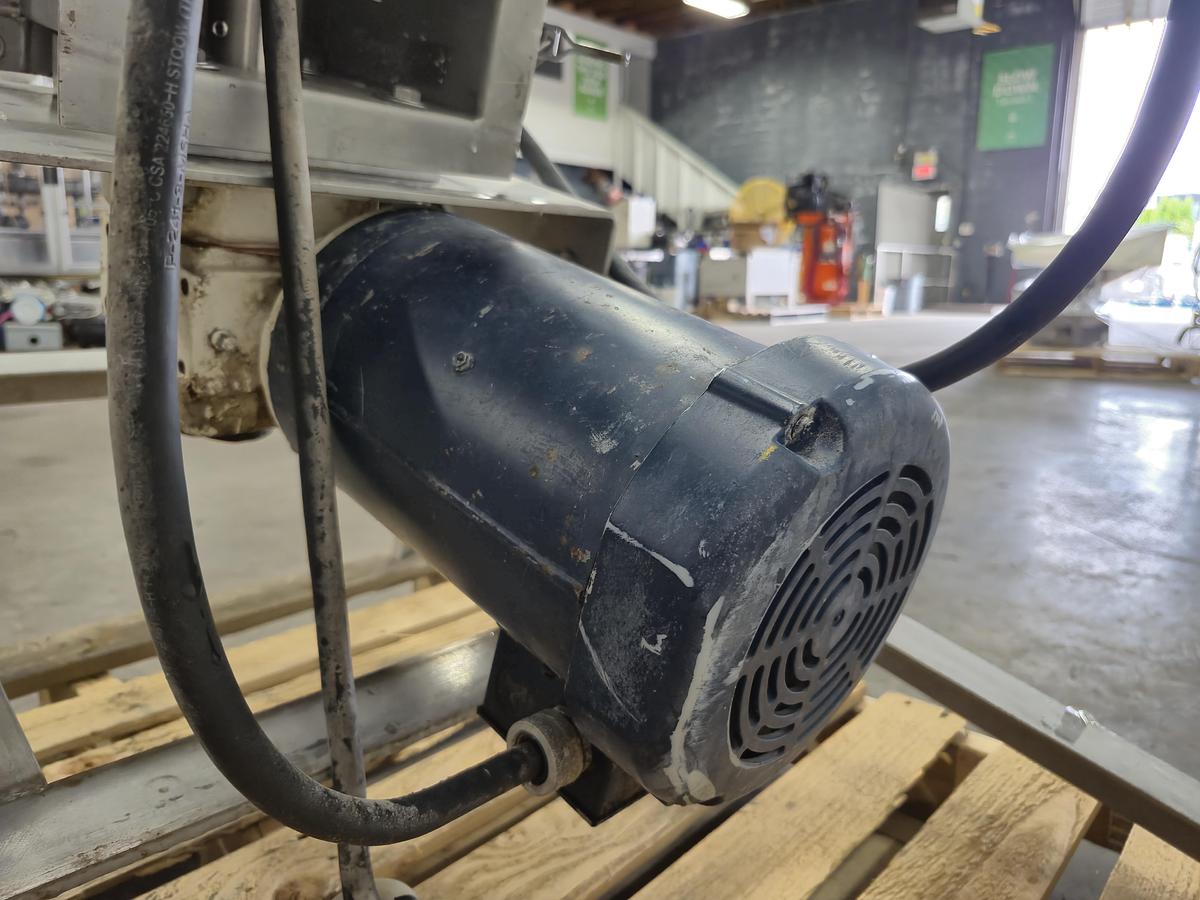

Leeson Electric Motor:

• Model Number: C6T17FC91F
• Horsepower / Kilowatts:3 HP / 2.24 kW
• Speed: 1740 RPM (4-pole motor configuration running on standard 60 HZ power)
• Voltage Options:208-230 / 460 Volts
• Full Load Amps (FLA):8.6 Amps (when wired for low voltage 208-230V) / 4.3 Amps (when wired for high voltage 460V)

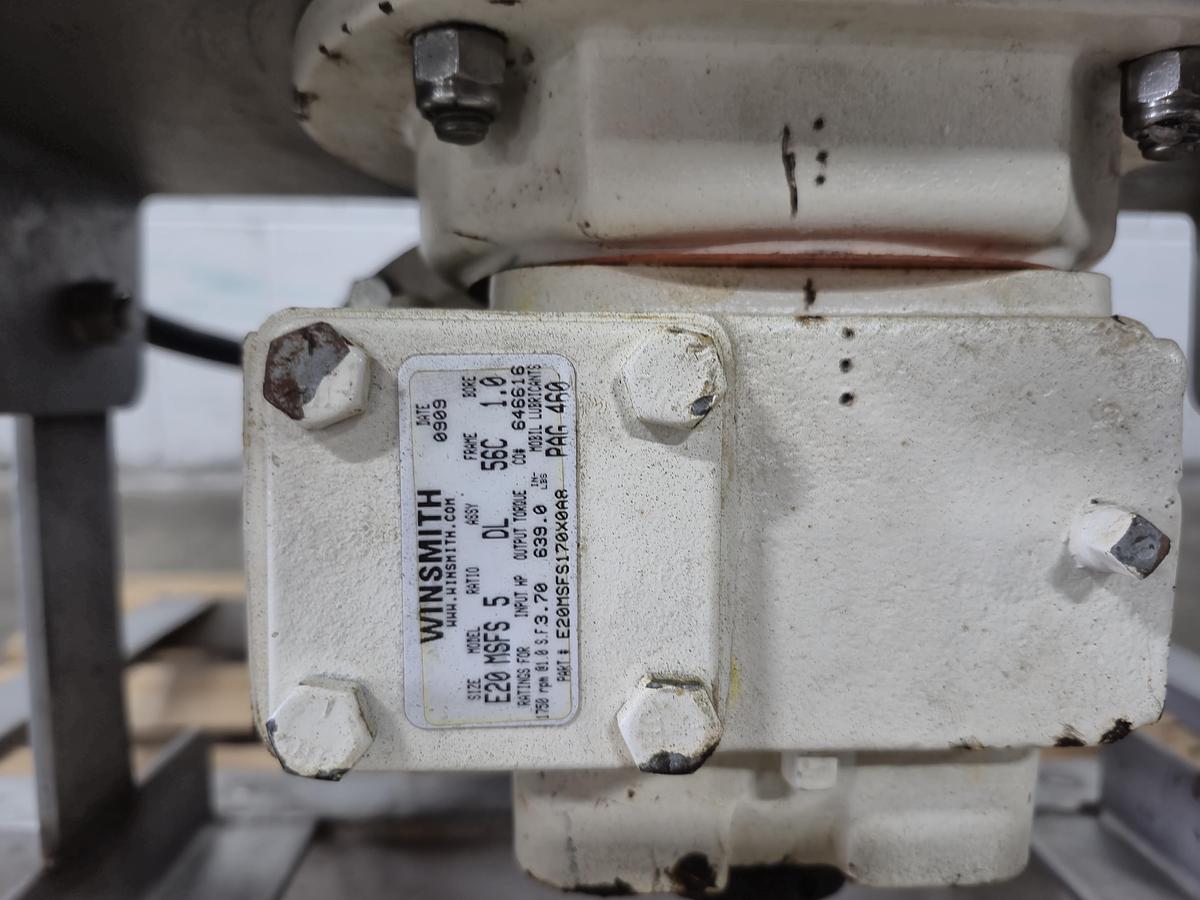

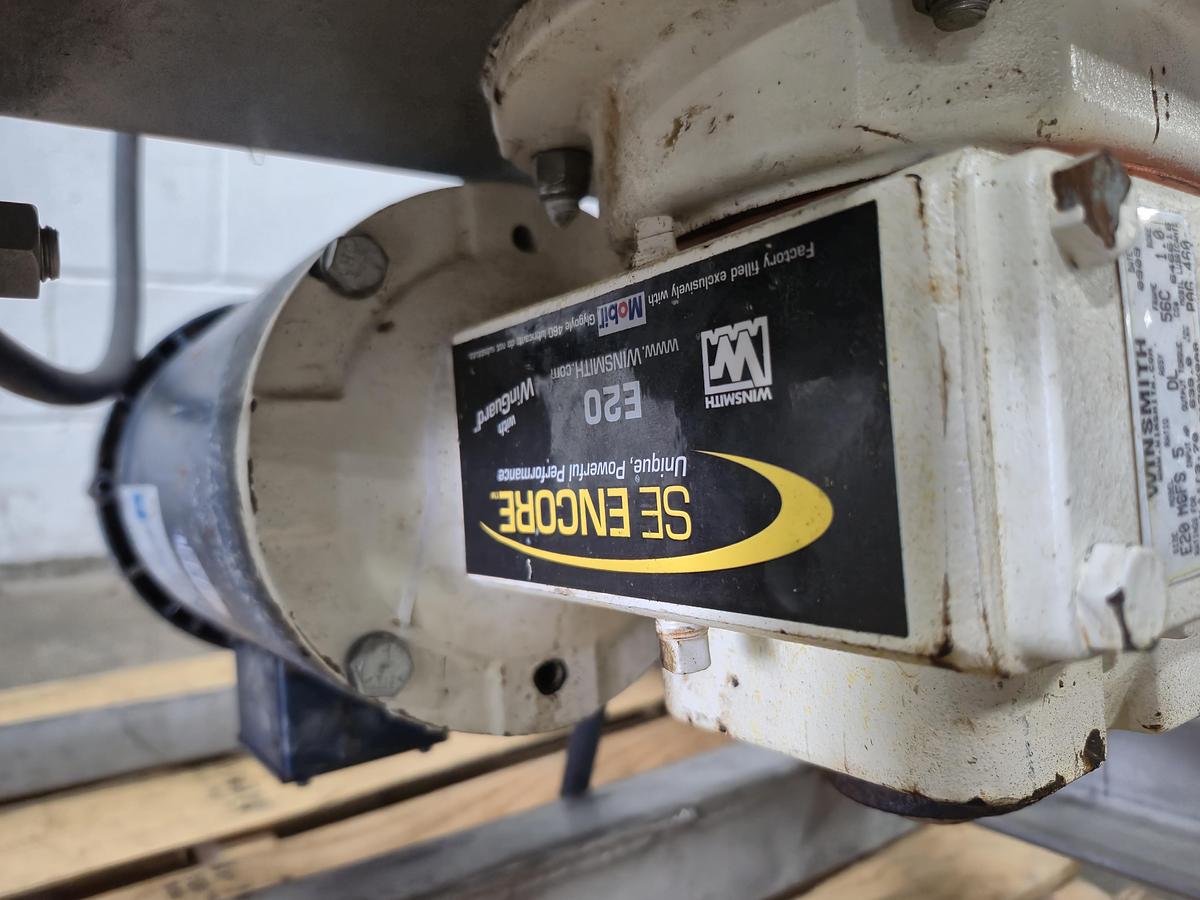

Winsmith Speed Reducer Gearbox

• Model Number: E20 MSFS 5
• Gear Ratio:5:1 (This reduces the 1740 RPM motor speed down to an output speed of 348 RPM)
• Frame Size:56C (Matches the exact C-face mounting layout of your Leeson motor)
• Bore Size:1.0 inch (The inner diameter of the output shaft connection)
• Output Torque:639.0 in-lbs
• Input Horsepower Rating: Rated for a 1.0 HP motor at 1750 RPM with a 1.0 Service Factor (S.F. 3.70 listed for this lighter load setup)
