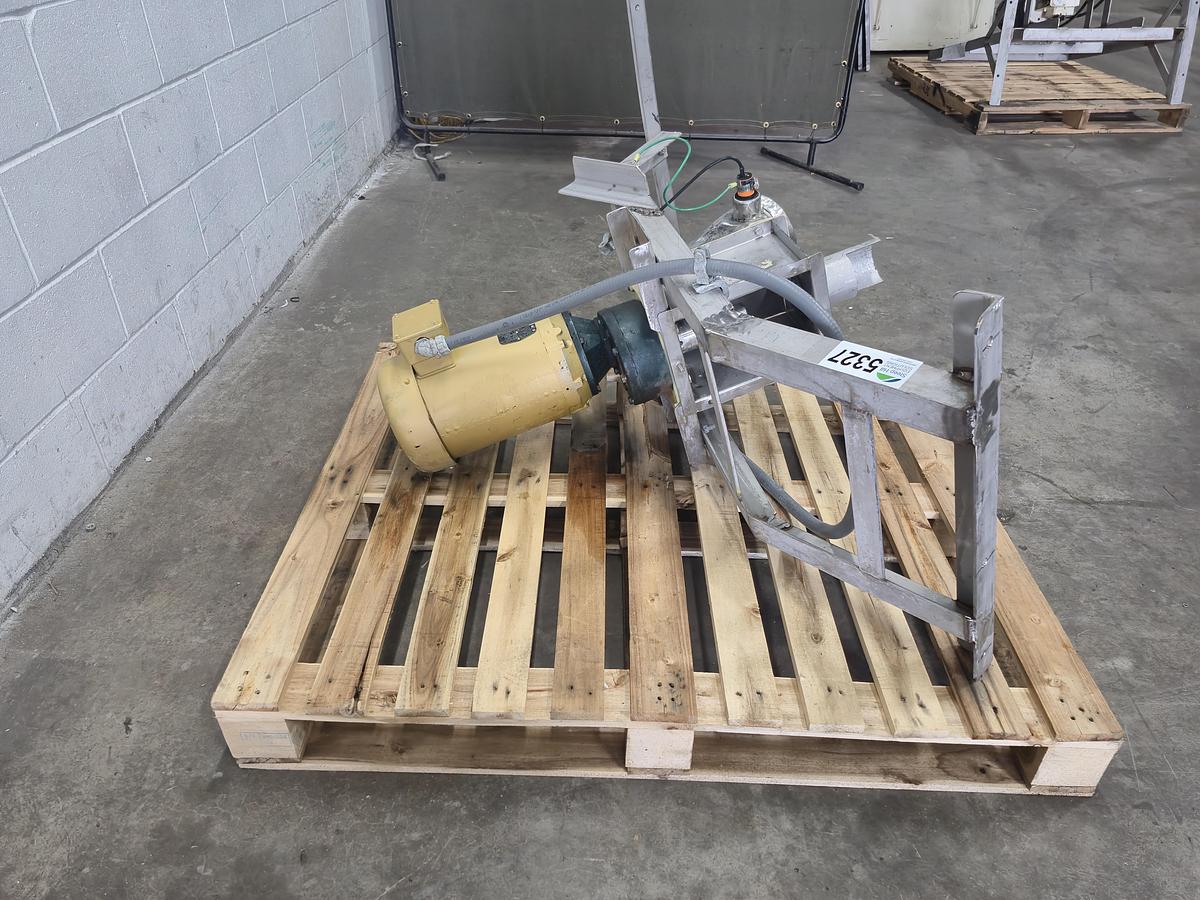

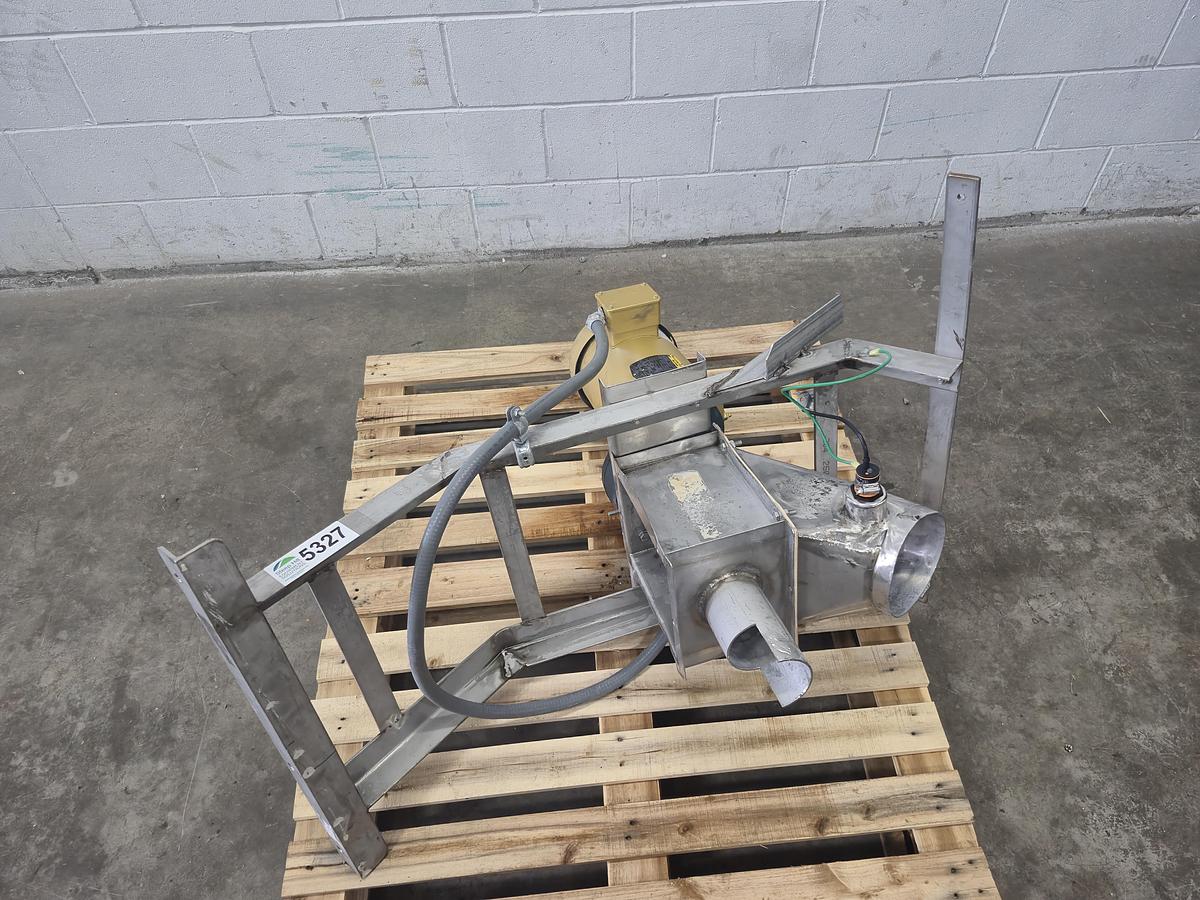

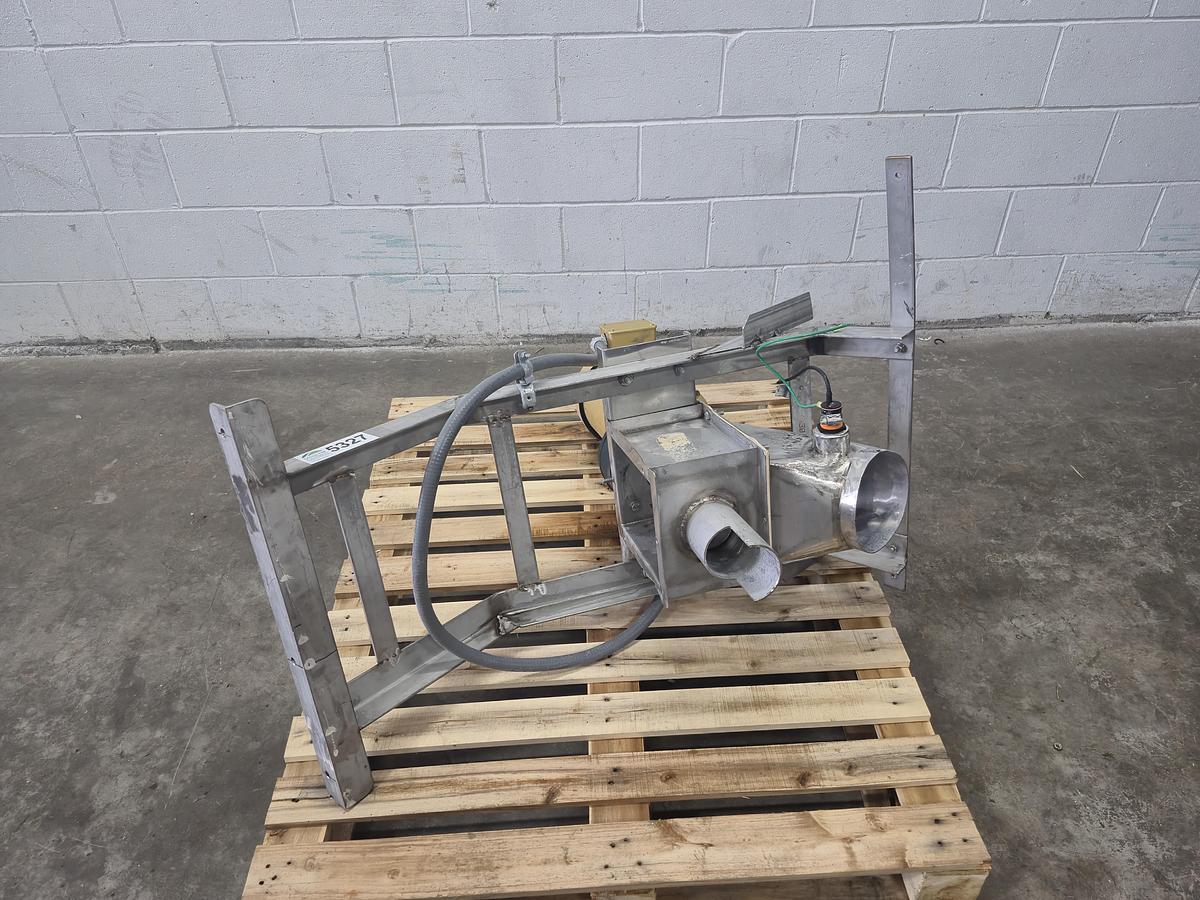

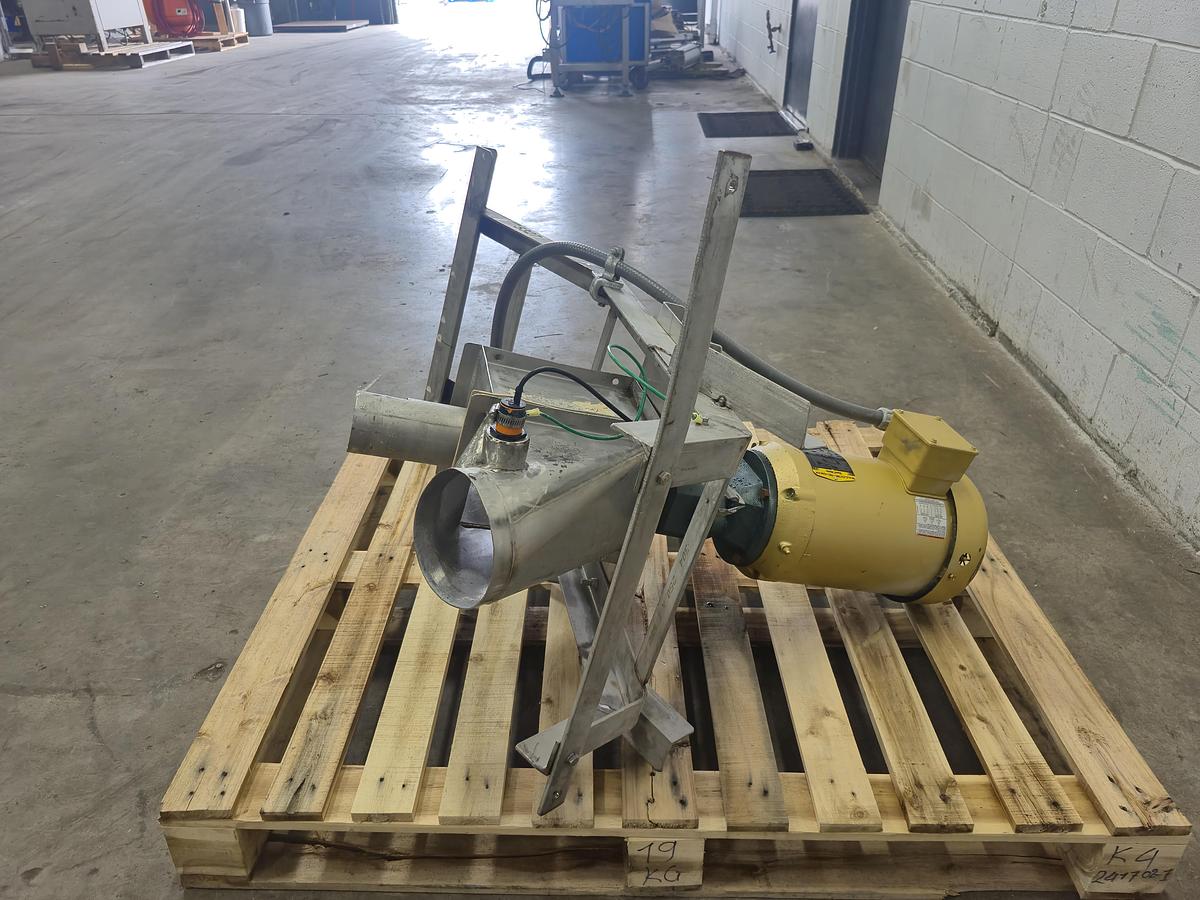

Flexicon Auger Drive Head with Inline Diverter Discharge Chute

Flexicon Auger Drive Head with Inline Diverter Discharge Chute

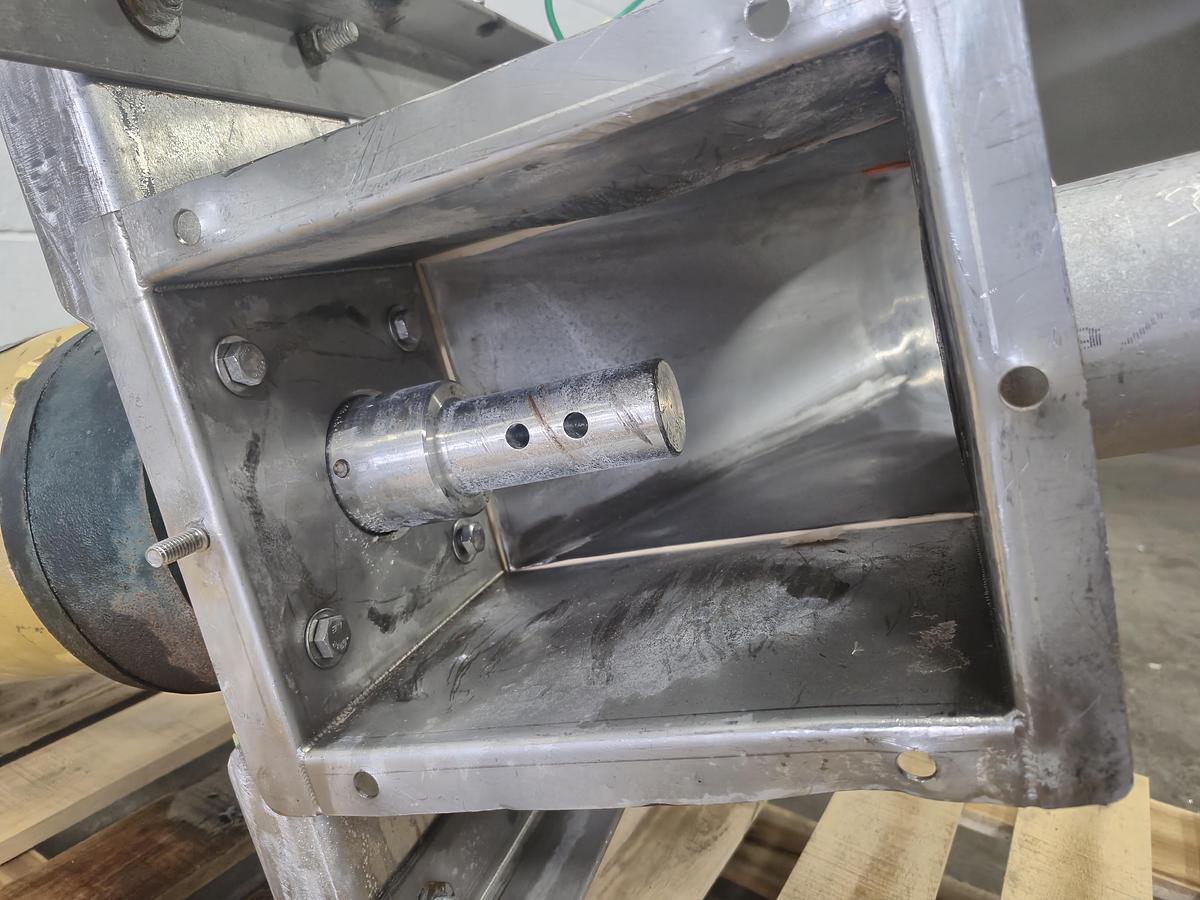

This assembly is used to transfer bulk powders, granules, or pellets from a flexible screw conveyor into a production line while safely discharging any contaminated or off-spec material.

Specs:

• Material of Construction:304 Sanitary Stainless Steel (all product contact surfaces)
• Inlet Pipe Connection: Accepts standard 3" Outer Diameter (O.D.) flexible screw conveyor casing tubes
• Discharge Output Port: Approx. 6" Inner Diameter (I.D.) round outlet chute

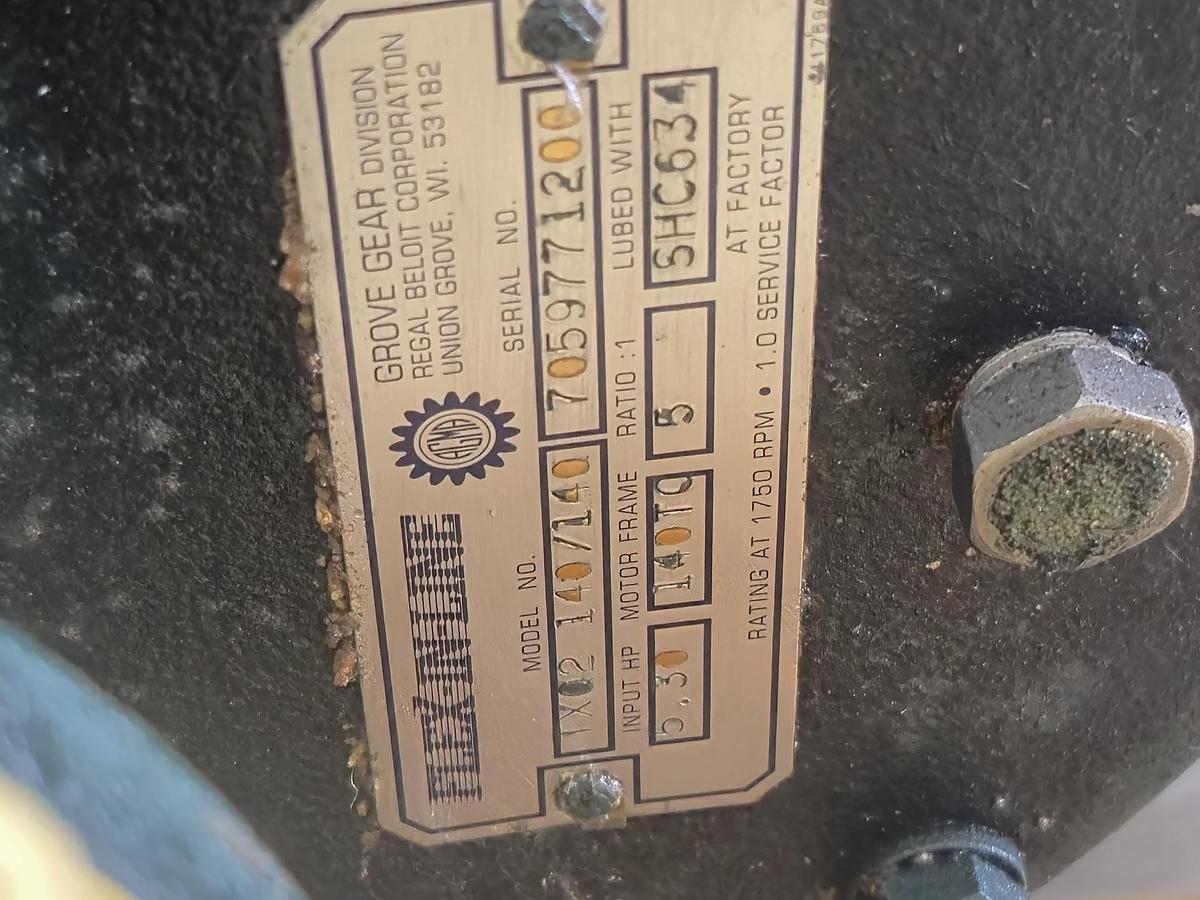

Powered by a Grove Gear / Flexinline Gearbox

• Product Line: Flexinline Series
• Model Number: TXO2 140/140
• Serial Number: 7059771200
• Reduction Ratio:5:1
• Input Horsepower Rating: Up to 5.30 HP (at 1750 RPM Input)
