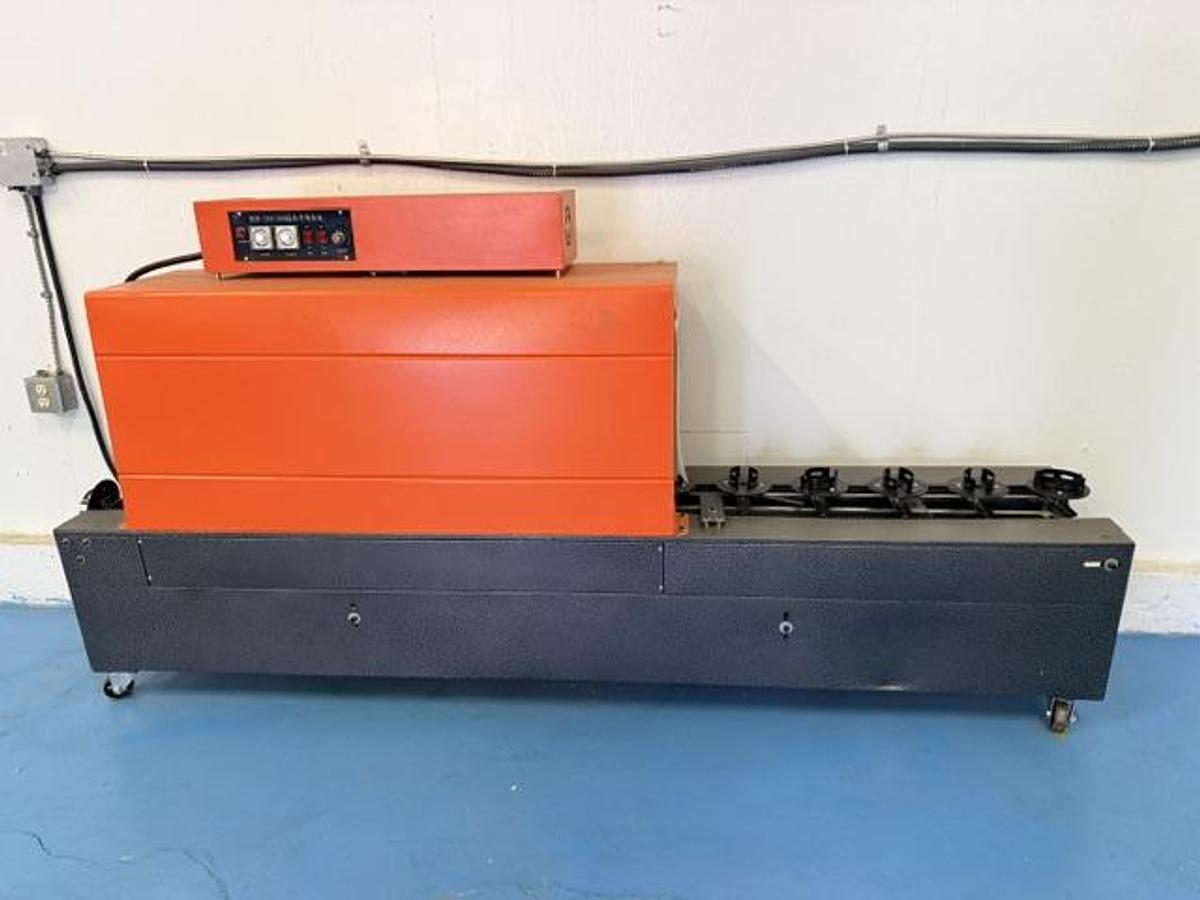

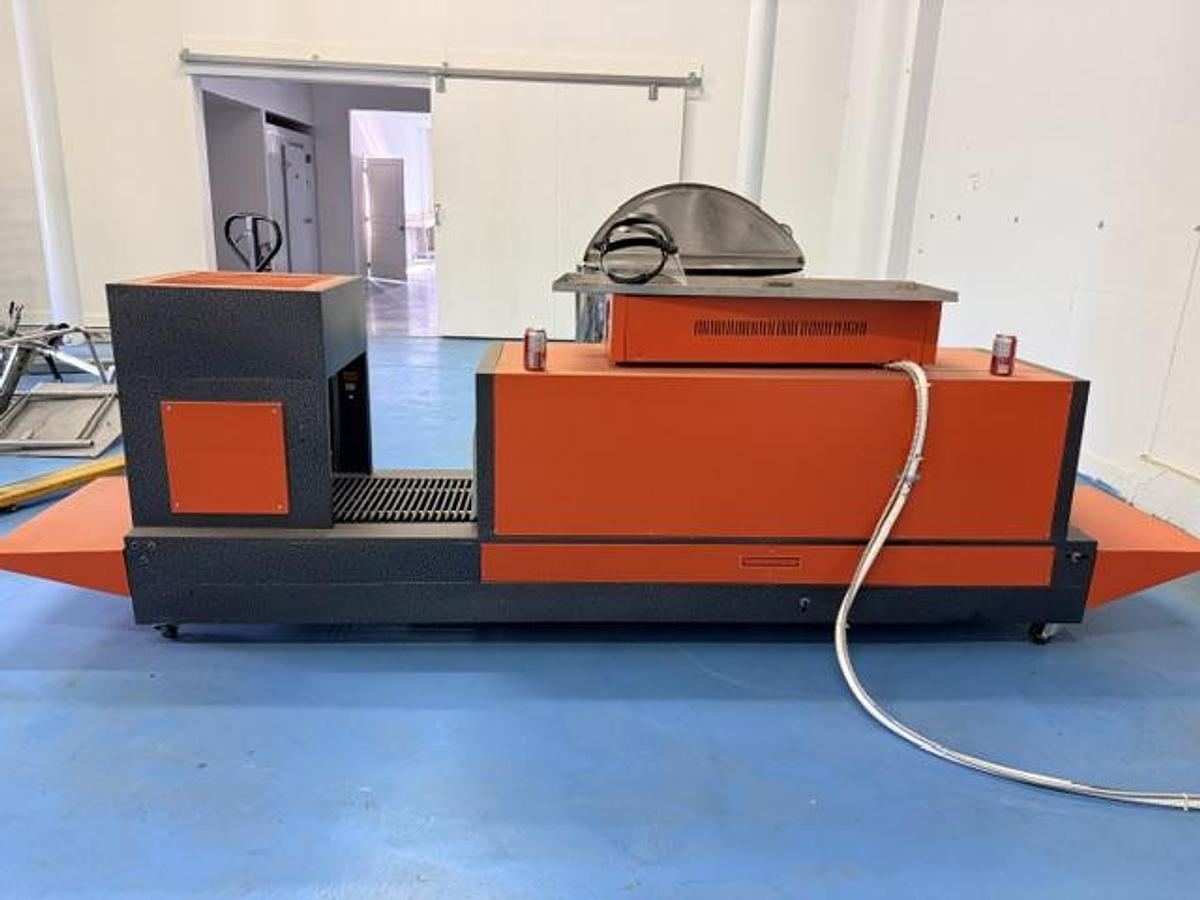

BSX-PE Industrial Infrared Heat Shrink Tunnel Packaging Machine

BSX-PE Industrial Infrared Heat Shrink Tunnel Packaging Machine

This machine is used to tightly shrink plastic packaging or labels around products using intense heat. It automates the final packaging stage for retail items, ensuring they look clean, professional, and secure.

Specs:

• Power Supply: 220V or 380V (Single-phase or 3-phase depending on factory setup), 50/60 Hz
• Power Consumption: 4.5 kW to 6.5 kW (Driven by the infrared quartz heating tubes)
• Heating Element Type: Far-Infrared Quartz Thermal Tubes VEVOR

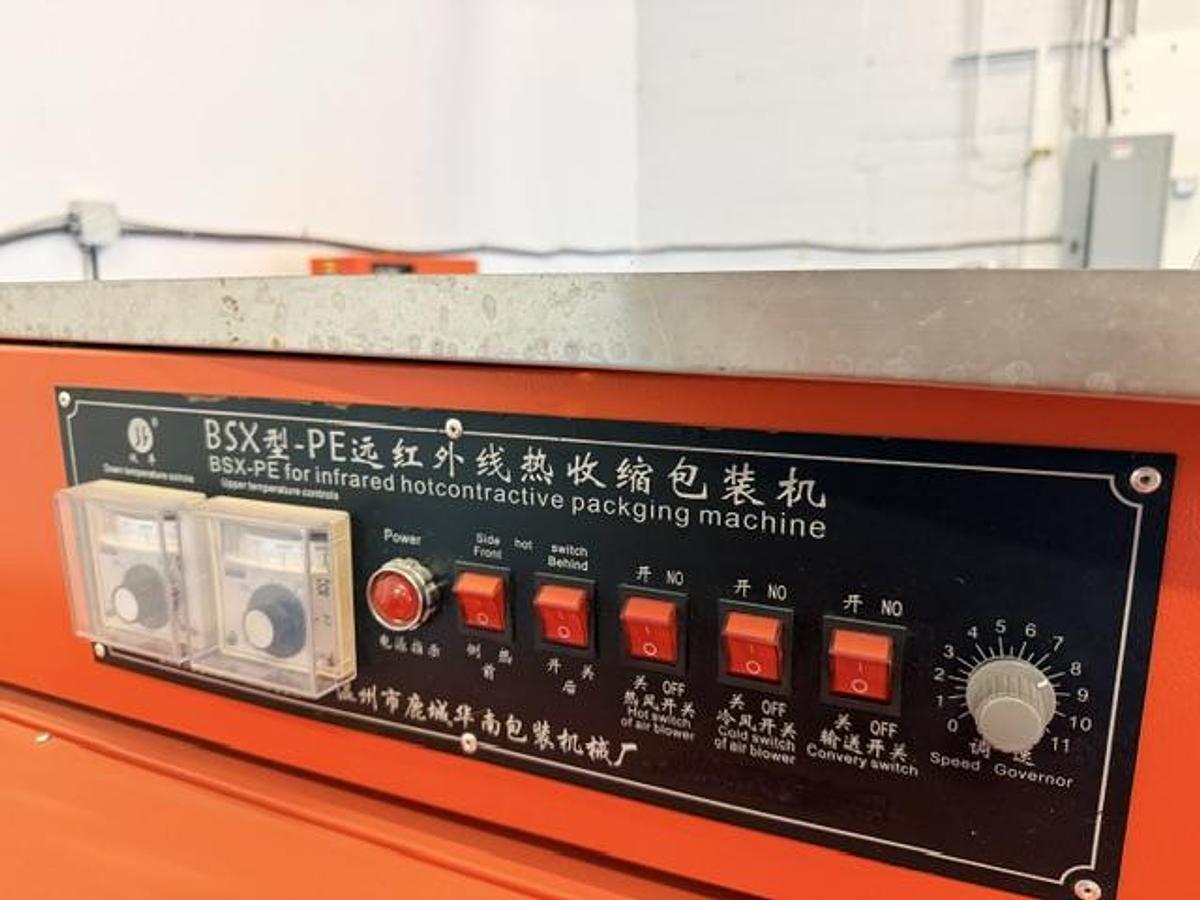

• Conveyor Speed: Variable from 0 – 10 meters per minute (Adjustable via the speed governor knob) VEVOR
• Maximum Conveyor Load: Up to 15 kg (33 lbs)
• Temperature Range: 0°C – 300°C (32°F – 572°F) managed via individual upper/lower dials VEVOR

Film Compatibility:

• Primary Material: Optimized for heavier PE (Polyethylene) film wrappers, but fully compatible with thinner PVC (Polyvinyl Chloride) and POF (Polyolefin) shrink membranes or neckbands VEVOR
• Film Thickness Range: Best suited for film profiles between 0.01 – 0.06 mm

It is used to automate three main packaging tasks:

• Labeling: Shrinking full-body plastic sleeve labels perfectly onto uniquely shaped bottles or cans
• Safety Sealing: Securing plastic tamper-evident bands over product caps and lids
• Bundling: Tightly wrapping multiple items together (like multi-pack drinks) for retail display
