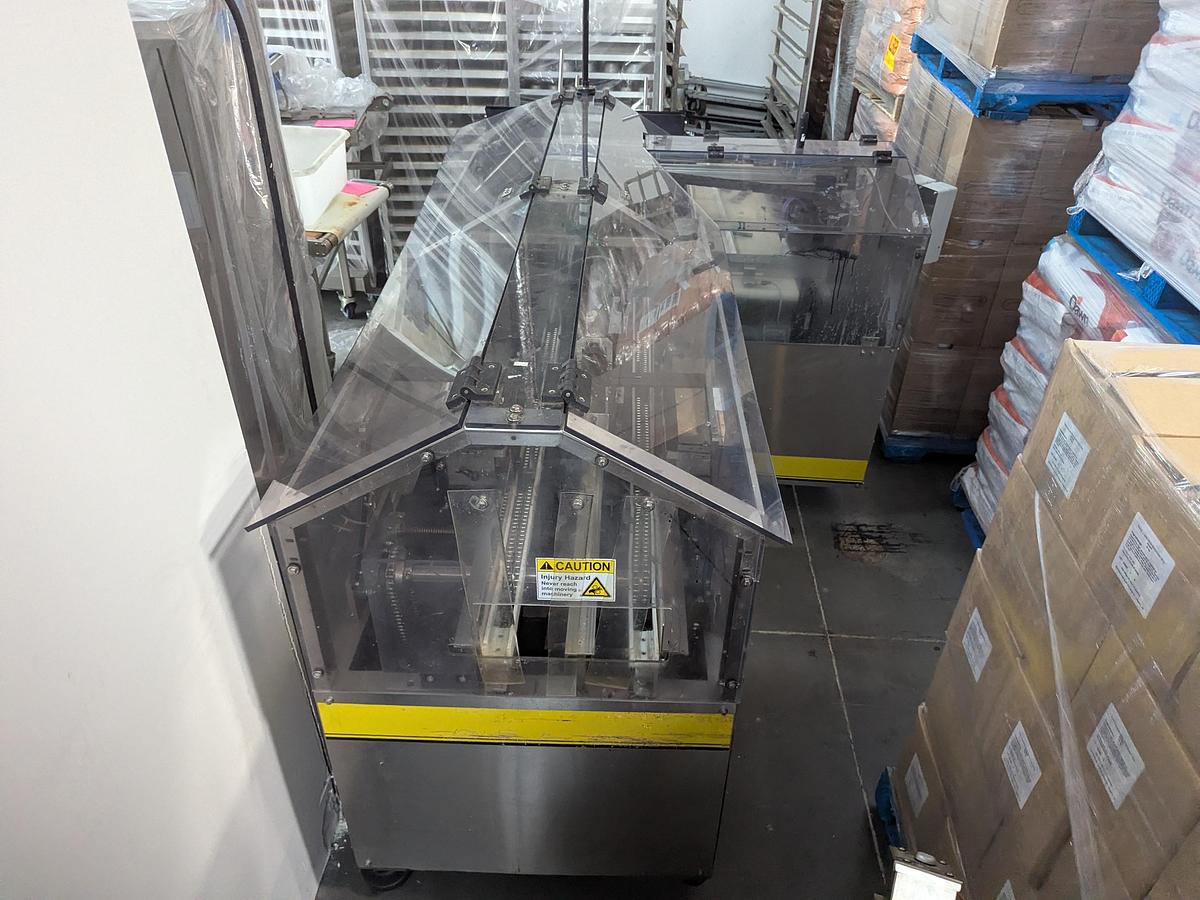

Econoseal 11234 Spartan Cartoner

Econoseal 11234 Spartan Cartoner

The Econocorp Econoseal Spartan Cartoner is an industrial secondary packaging machine used to automatically erect, load, and seal cardboard boxes (cartons) on a production line. Instead of workers manually folding and gluing boxes by hand, this machine mechanizes the process to speed up production and reduce labor costs.

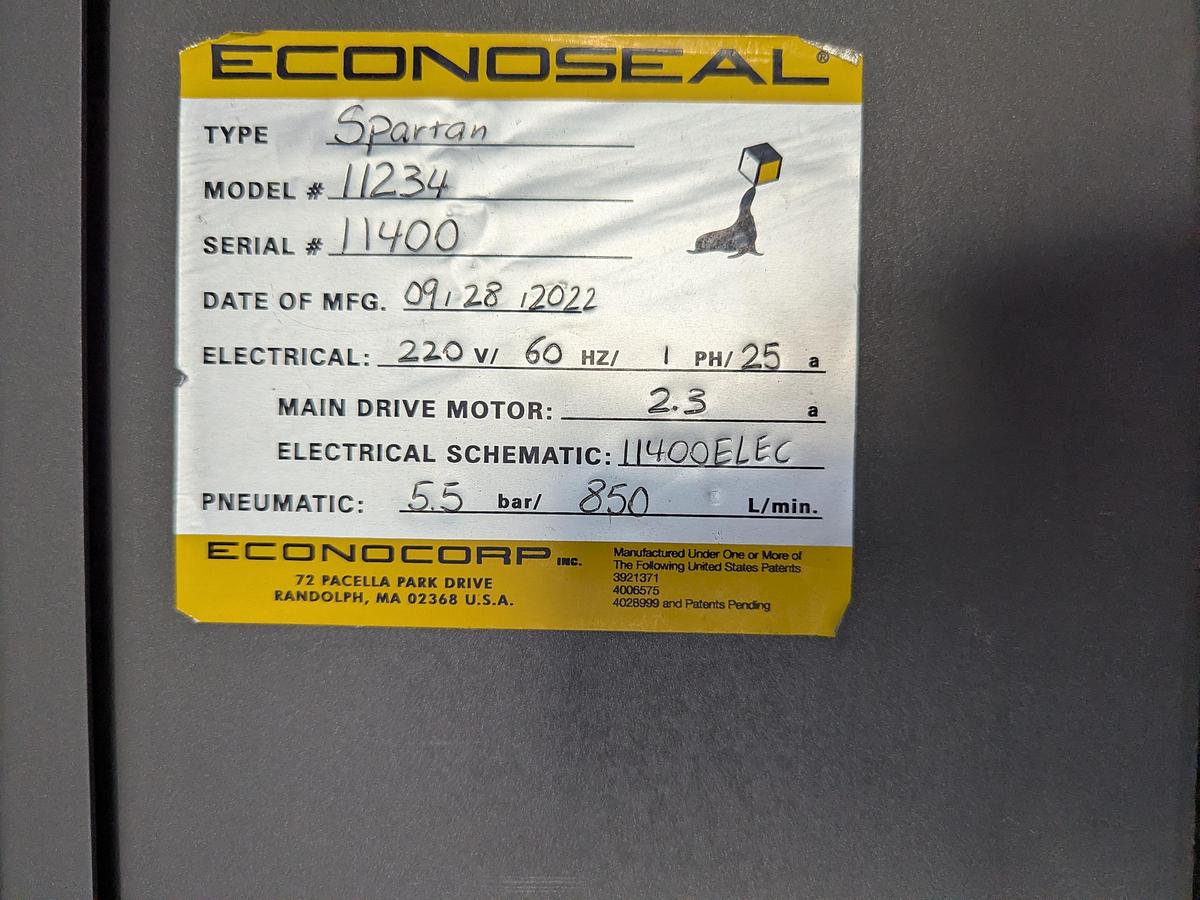

Specs:

• Voltage: 220 V
• Frequency: 60 Hz
• Phase: 1 PH
• Amperage: 25 A
• Main Drive Motor: 2.3 A
• Pressure: 5.5 bar
• Airflow Volume: 850 L/min

How it Works Step-by-Step:

• Feeding: It pulls a flat, collapsed cardboard box blank from a supply hopper/magazine
• Erecting: It automatically pops and opens the box into a 3D rectangular shape
• Loading: It pushes the product into the open side of the box (this can be done automatically via a conveyor or manually by an operator standing at a loading station)
• Sealing: It folds the side dust flaps and seals the box closed using either hot melt glue or a tuck-in closure system
• Discharge: It dispenses the finished, professionally sealed box onto a conveyor belt toward case packers or shipping pallets

Common Industry Applications:

• Frozen Foods: Frozen burger patties, pizzas, fish fillets, and boxed frozen meals
• Bakery & Snacks: Cake mixes, snack bars, cookies, and trays of pastries
• Craft Beverages: Multi-packs of canned beer, sodas, and seltzers
• Consumer Goods: Cosmetics, bath bombs, household goods, and auto parts
