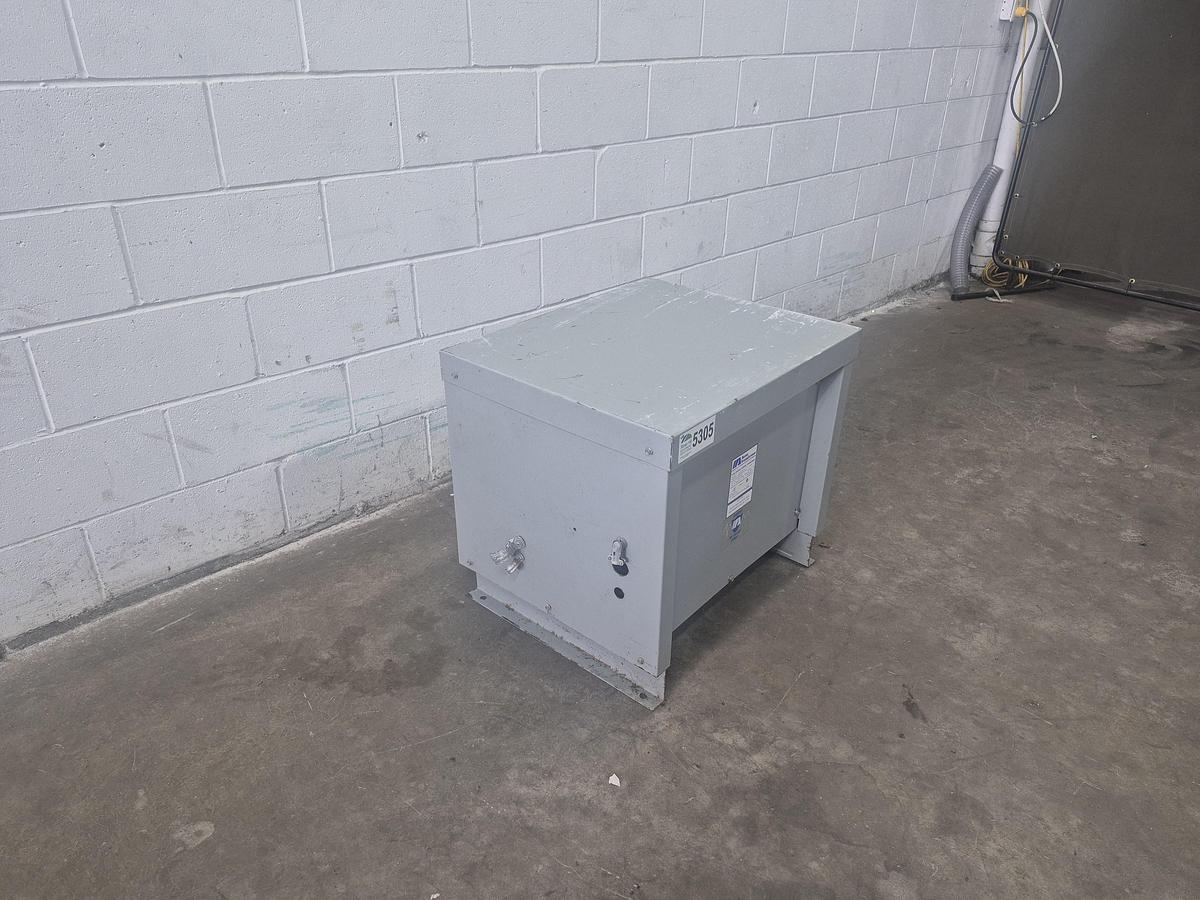

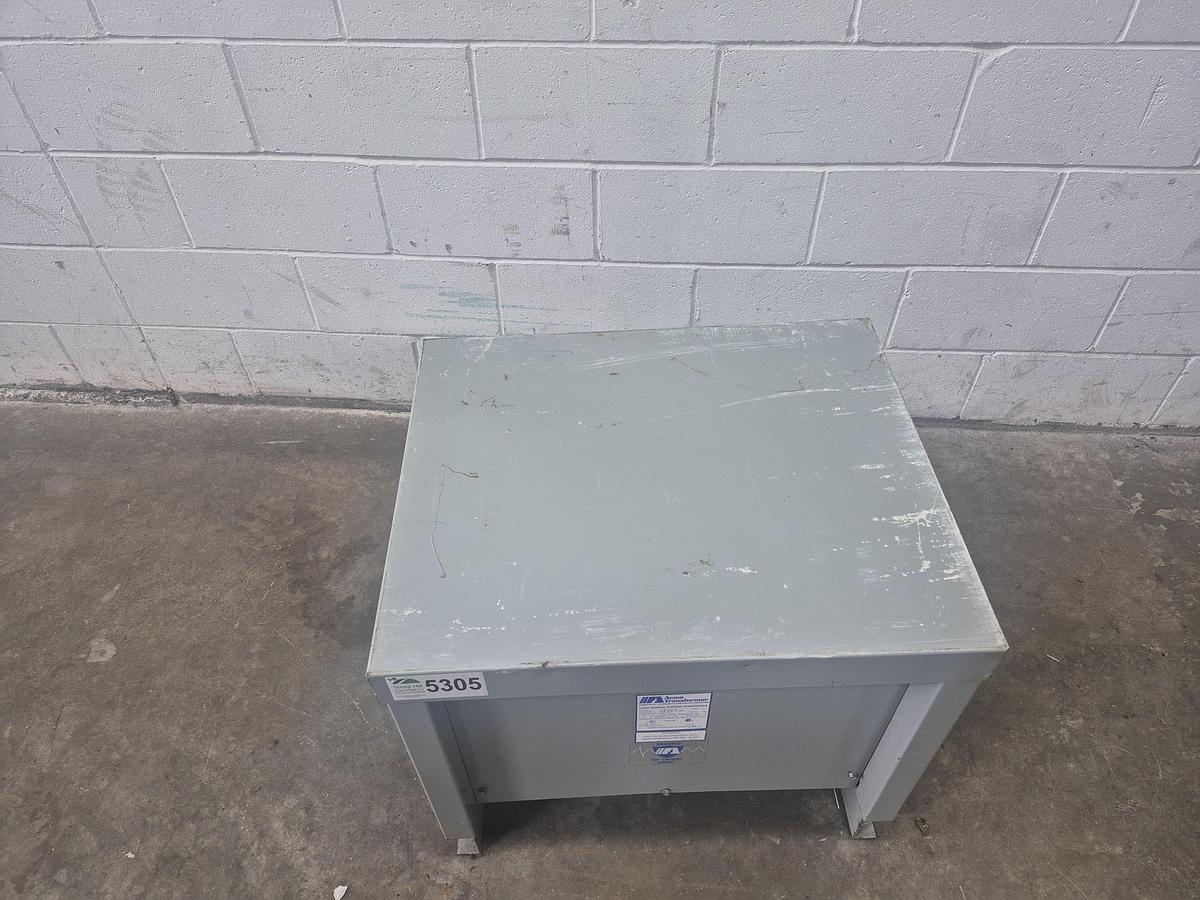

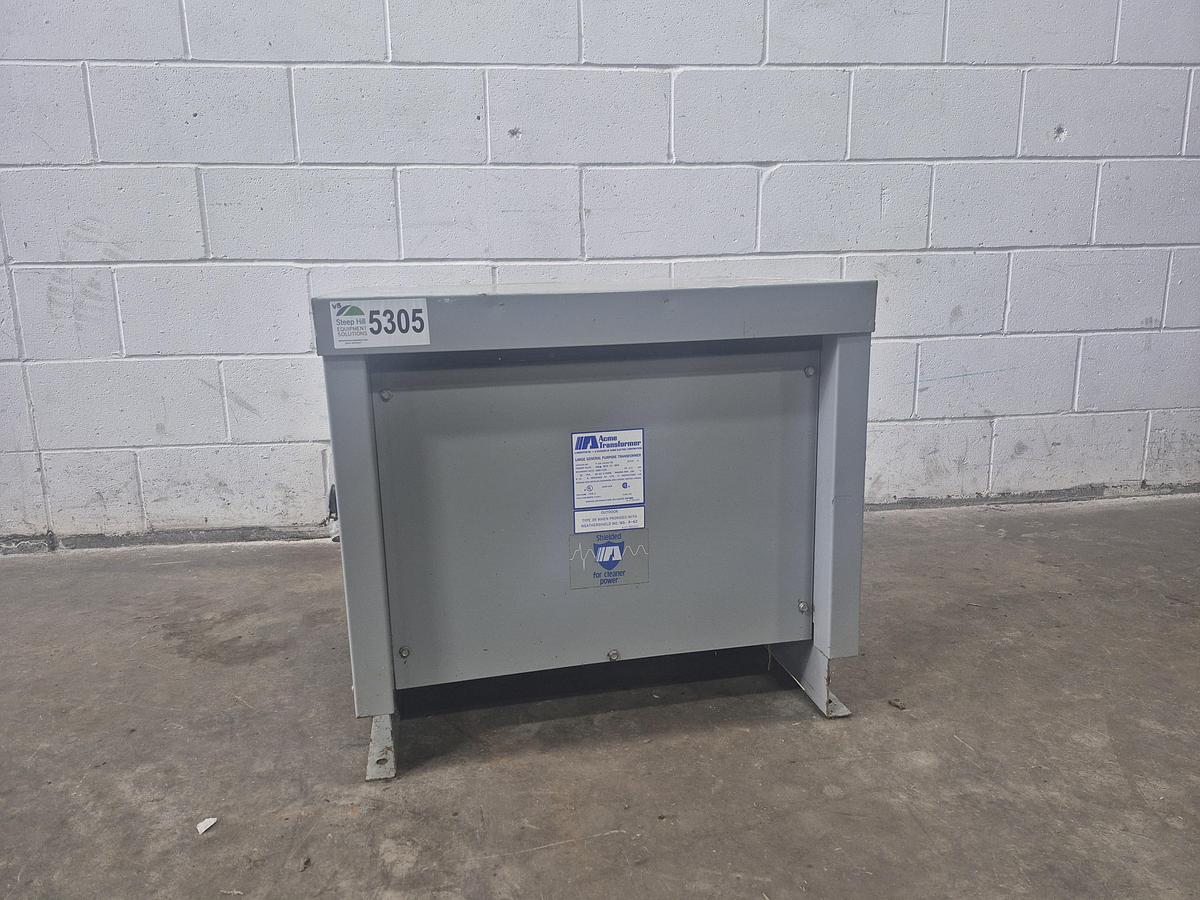

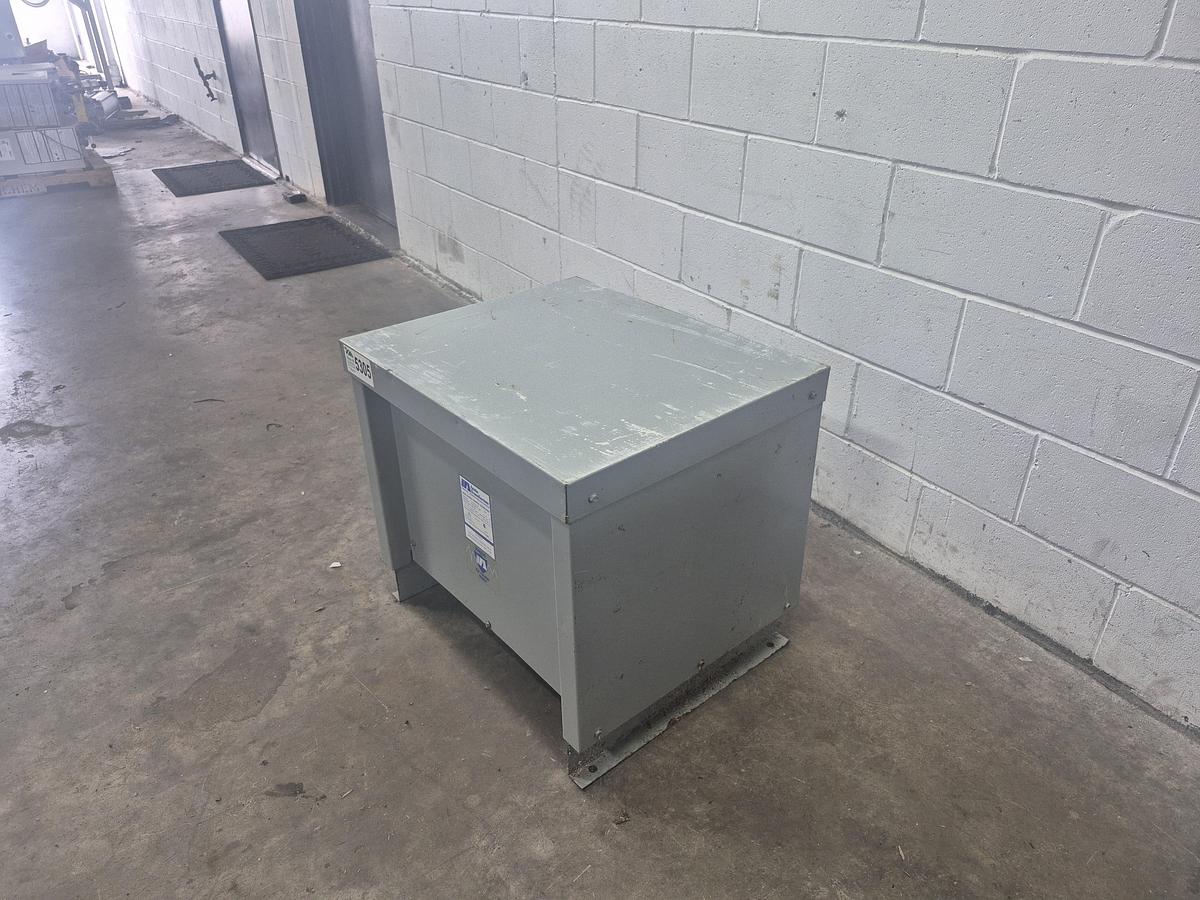

Acme 30 kVA 3-Phase Step-Down Transformer

Acme 30 kVA 3-Phase Step-Down Transformer

This transformer is used to safely drop high-voltage industrial power down to lower voltage so it can run everyday machinery and appliances. Specifically, it changes 600-Volt industrial power into 208-Volt and 120-Volt power.

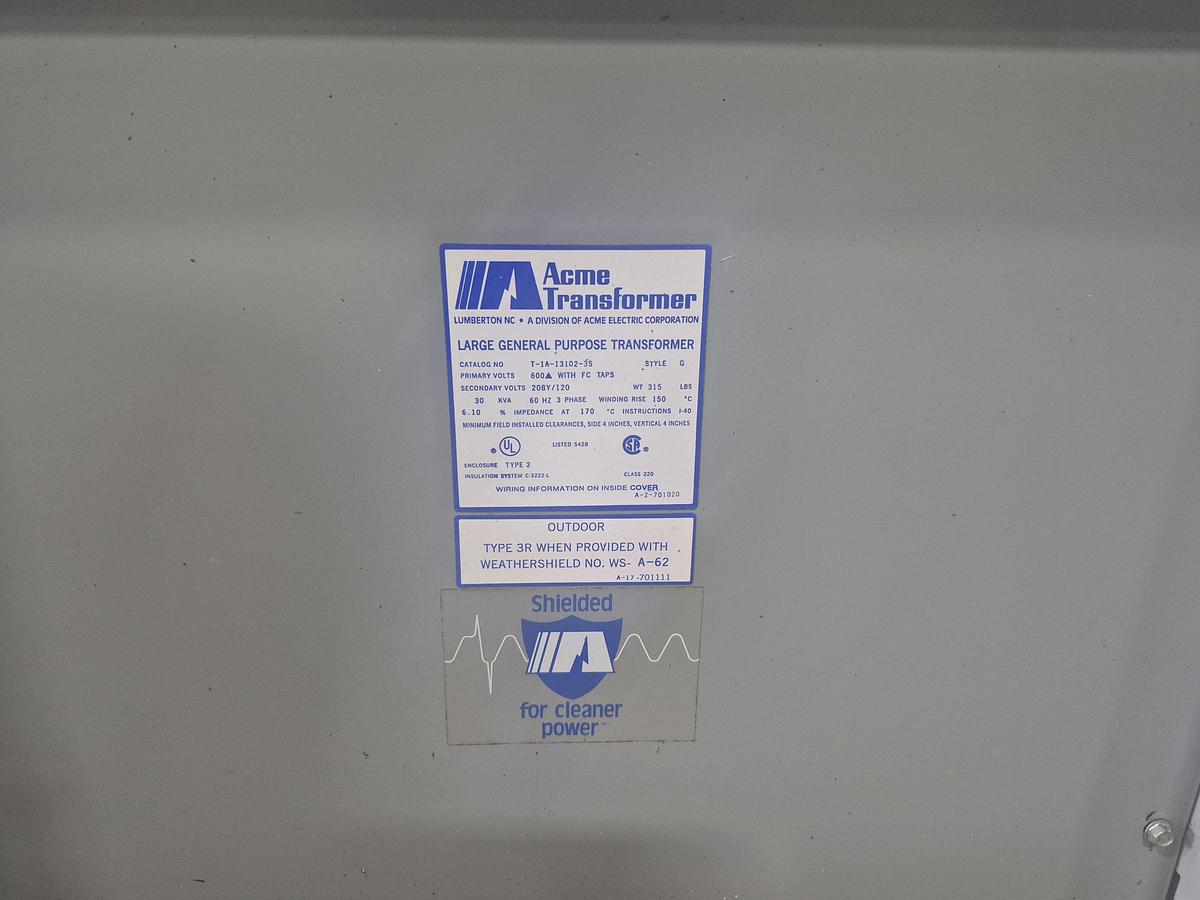

Specs:

• Power Rating: 30 kVA (Kilovolt-Amperes)
• Phase: 3-Phase
• Frequency: 60 Hz

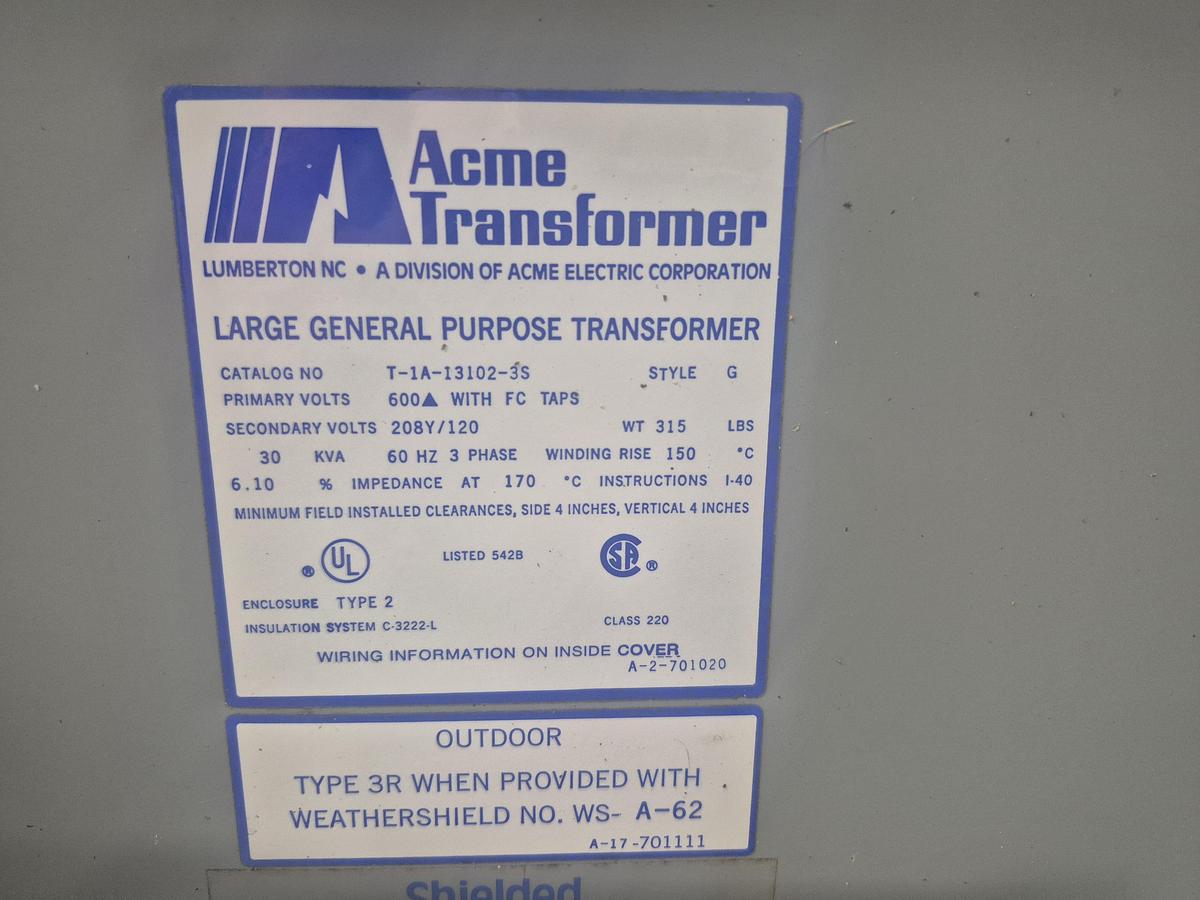

• Primary (Input) Voltage: 600Δ Volts (Delta configuration) with FC (Full Capacity) Taps
• Secondary (Output) Voltage: 208Y/120 Volts (Wye configuration, providing 208V line-to-line and 120V line-to-neutral)
• Impedance: 6.10% at 170°C
• Winding Temperature Rise: 150°C (with a Class 220 insulation system)
• Enclosure Rating: Type 2 (Indoor protection against falling dirt and light splashing). It can be upgraded to Type 3R Outdoor if configured with the specified external weathershield (No. WS-A-62)

Typical Applications:

• Power Standard Machinery: Convert high industrial service lines to run 208V three-phase motors or machinery
• Provide Utility Power: Drop the voltage to 120V to safely power everyday office gear, standard lighting circuits, and regular wall outlets
• Isolate Circuits: Create a separately derived electrical system to safeguard sensitive electronic components from electrical upstream noise
