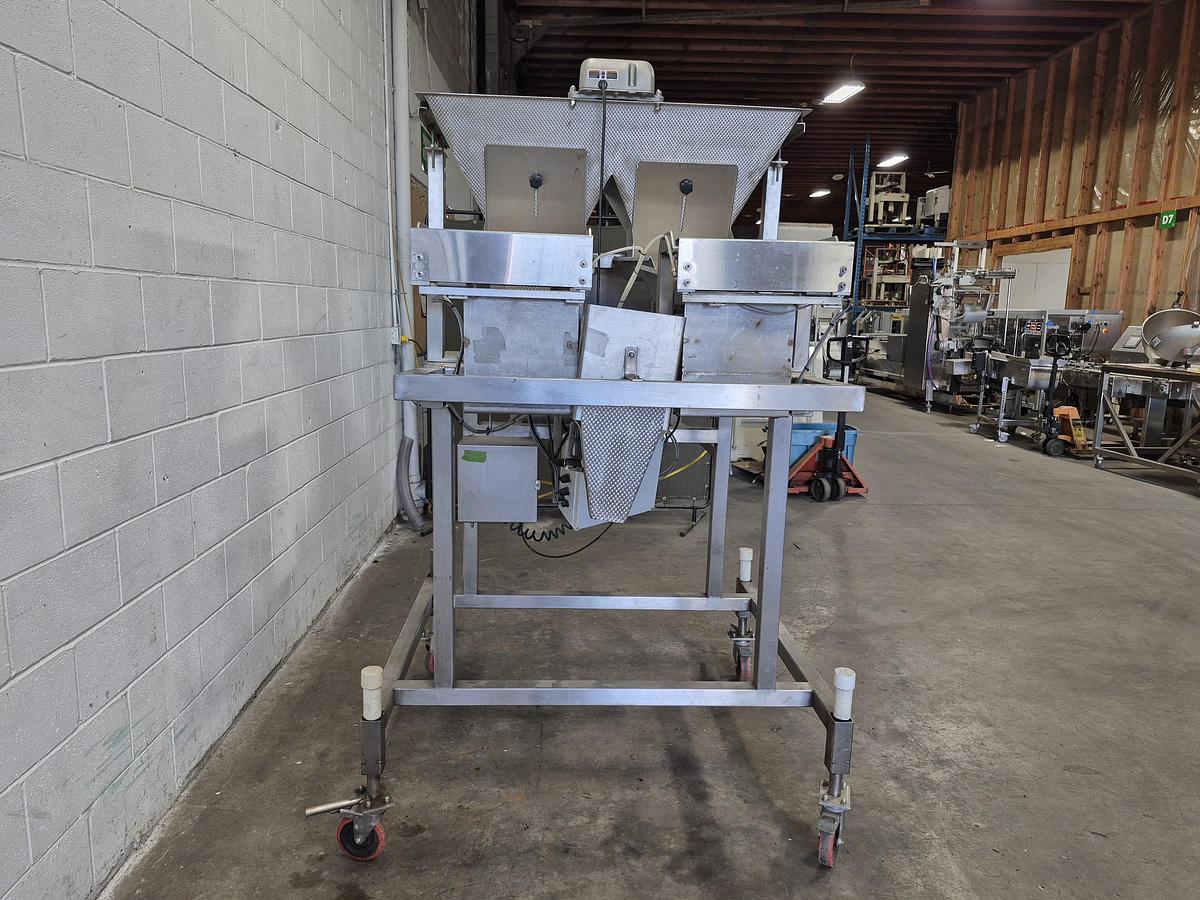

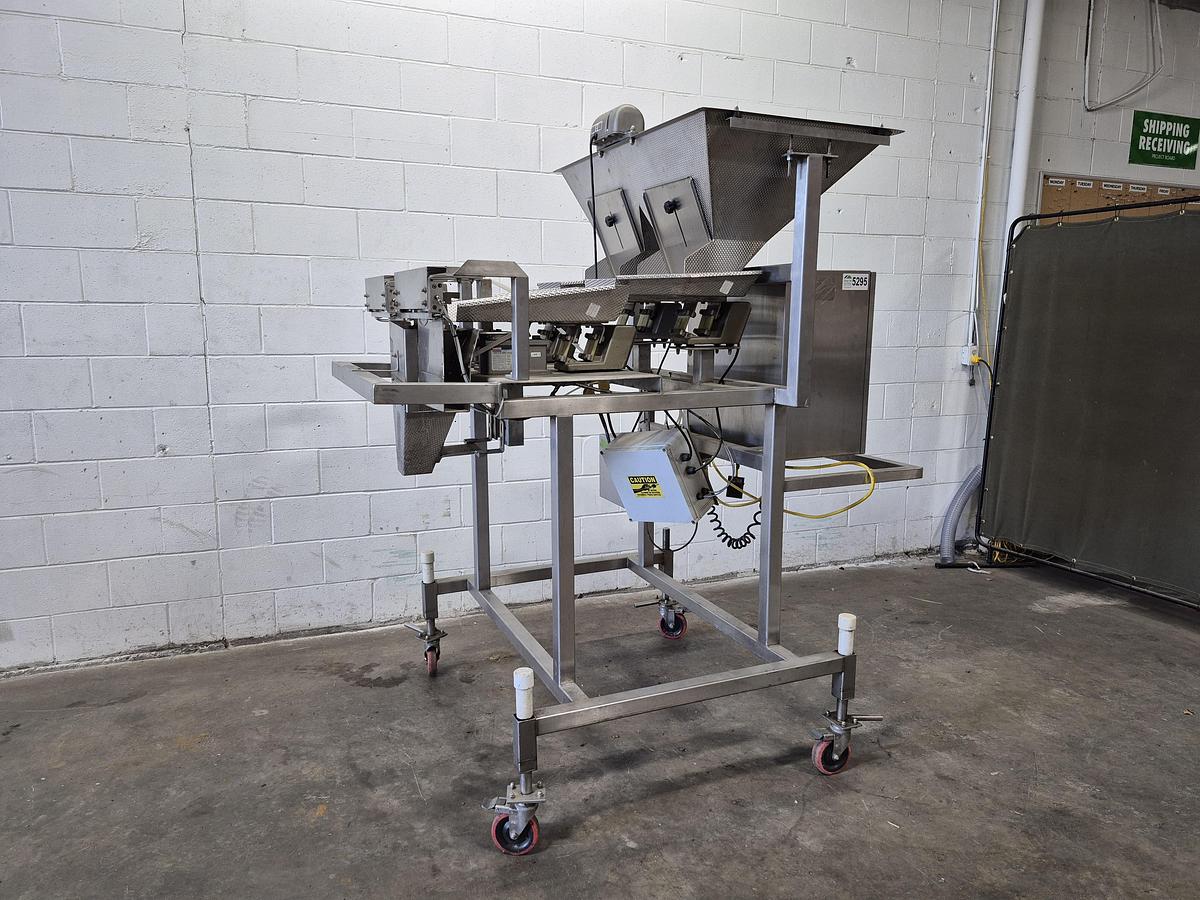

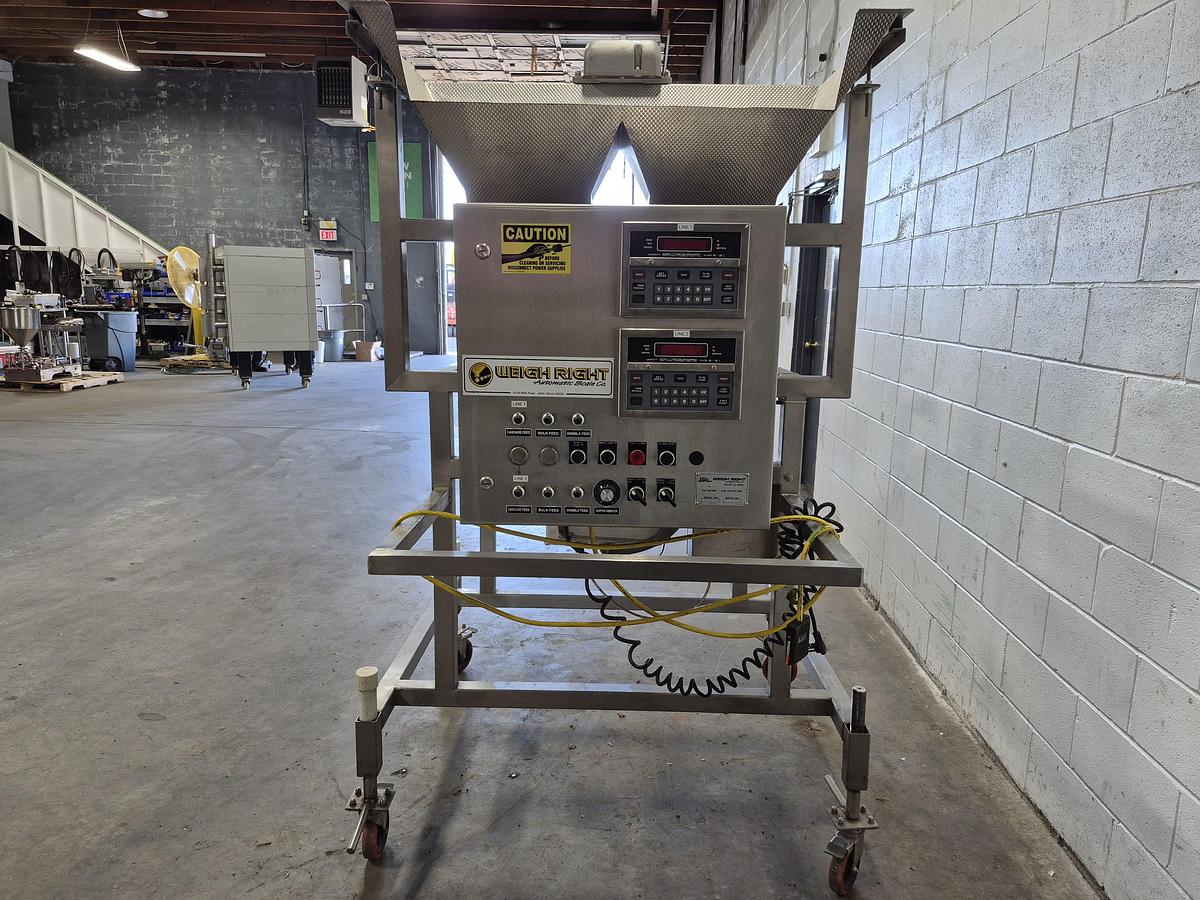

Weigh Right PMB-2F Automatic Linear Filling Scale

Weigh Right PMB-2F Automatic Linear Filling Scale

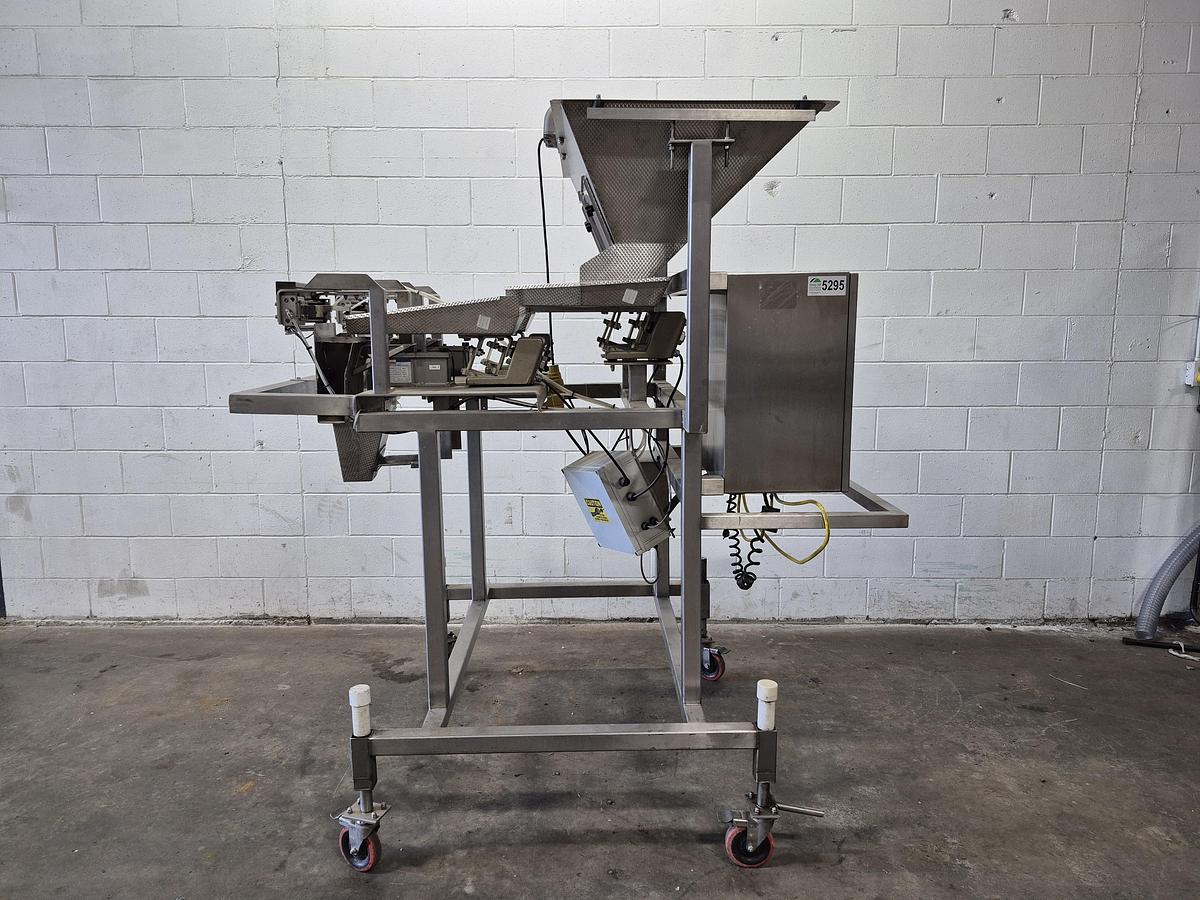

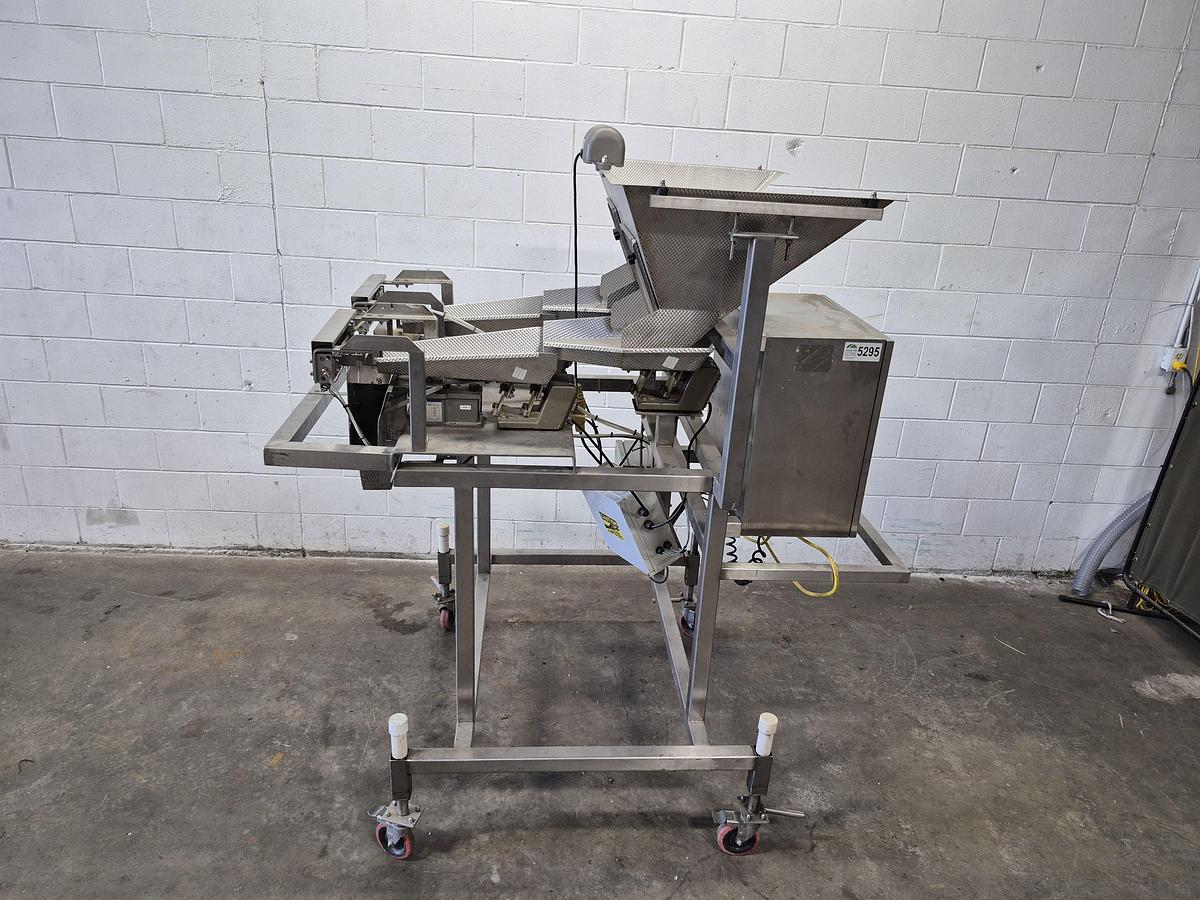

The Weigh Right PMB-2F is a commercial linear vibratory net-weighing and filling machine used to precisely portion out specific weights of product before sealing them into final packaging. It is designed to automate the process of measurement, shifting away from manual hand-scooping to high-speed commercial packaging.

Specs:

• 2 Lanes
• Target Weight Range: Portions between 4 oz. to 40 oz. (approx. 113g to 1.13 kg) of product per cycle
• Operating Speed (Throughput): Capable of up to 20 to 30 fills (cycles) per minute. (Note: Precise output speed varies depending on your target package weight, overall product density, and specific flow traits)
• Scale System Accuracy: Highly precise load cell configuration sensitive up to 0.01 lbs. (approx. 4.5 grams)
• Standard Electrical Power: 120 VAC, Single-Phase, 60 Hz, drawing approximately 15–20 Amps
• Compressed Air Requirements: Requires clean, dry compressed air regulated to 80 PSI (Pounds per Square Inch) to actuate the pneumatic discharge gates

Main Industries & Uses:

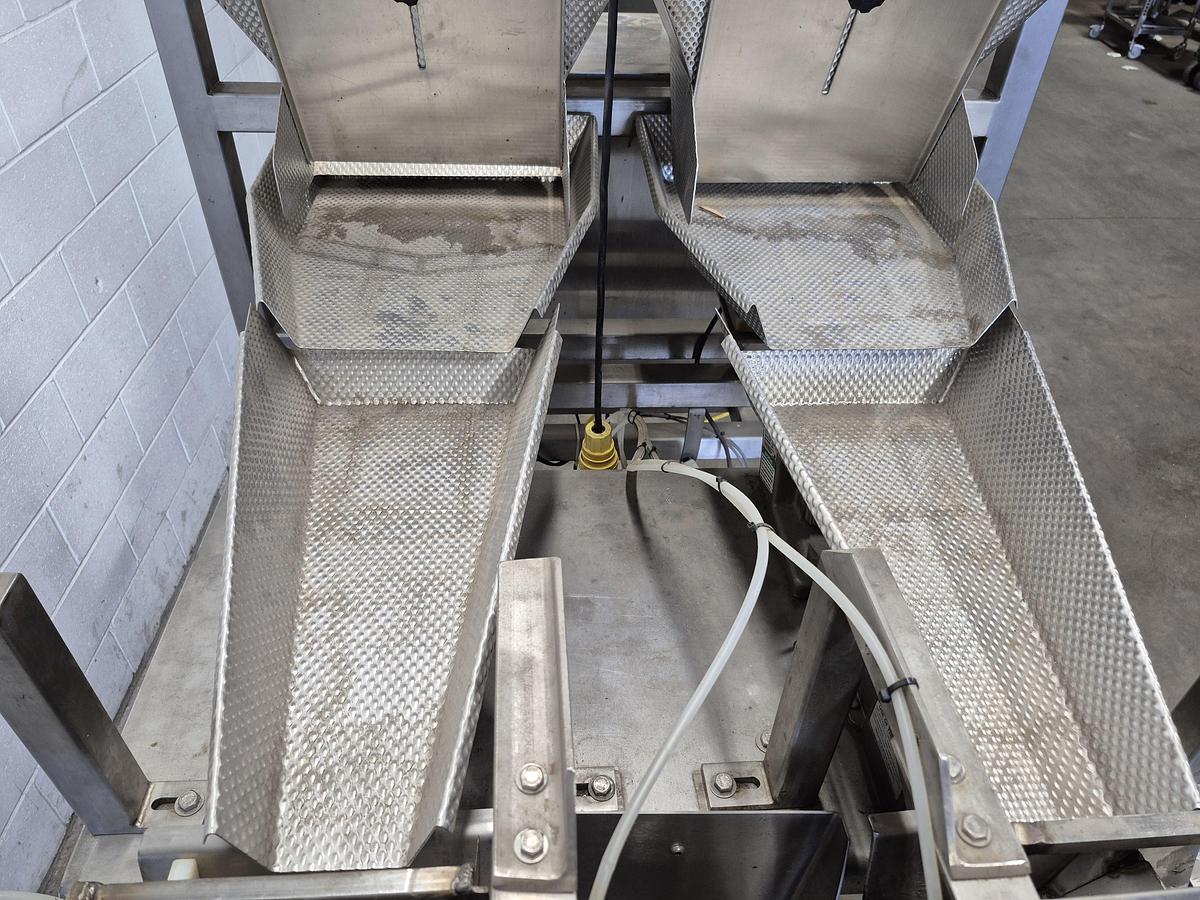

• Fresh-Cut Produce: Diced fruit, apple slices, and berries (the "F" variant utilizes dimpled stainless steel specifically to prevent wet fruit from sticking)
• Frozen & Dried Foods: IQF vegetables, shrimp, pasta, snacks, and candy
• Agriculture: Whole coffee beans, nuts, seeds, and dry pet kibble
• Industrial Hardware: Industrial kitting for screws, nuts, bolts, and plastic fasteners

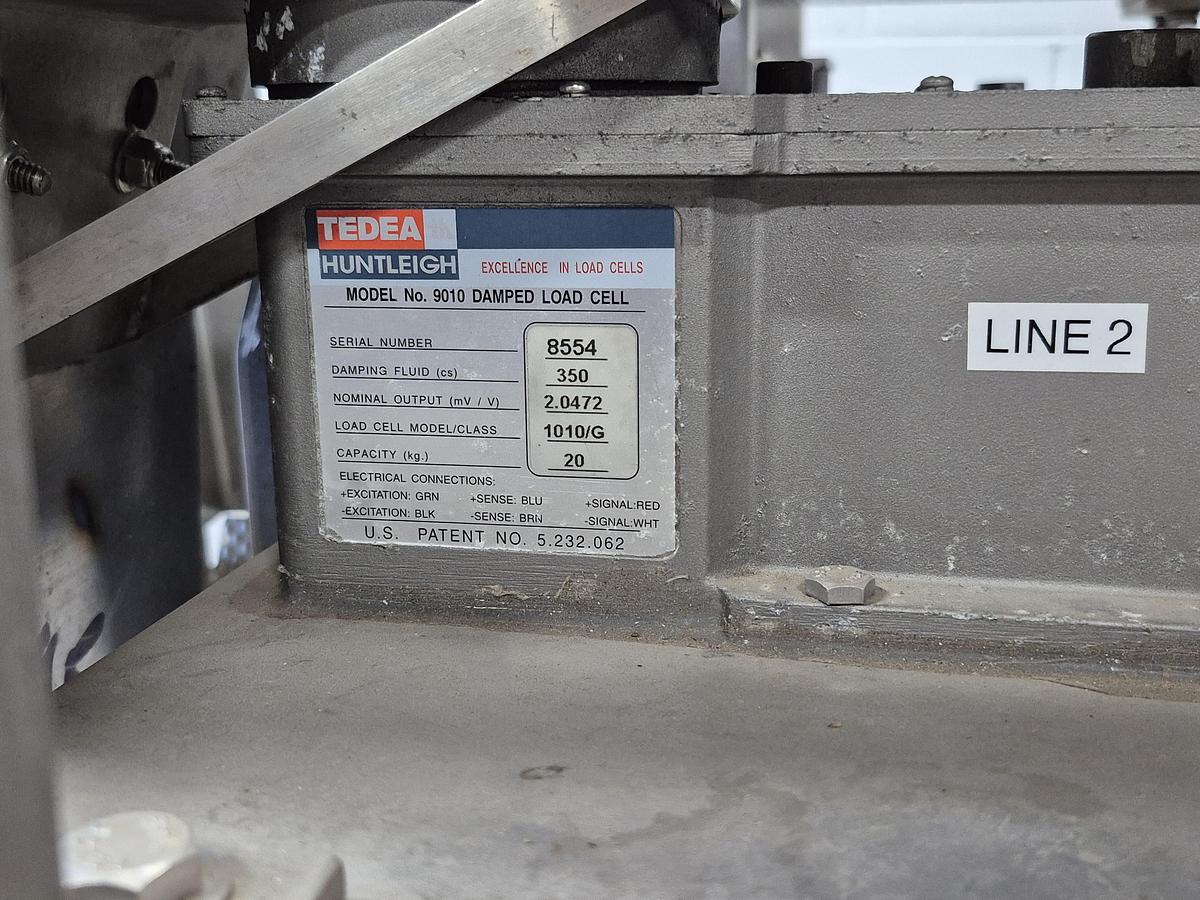

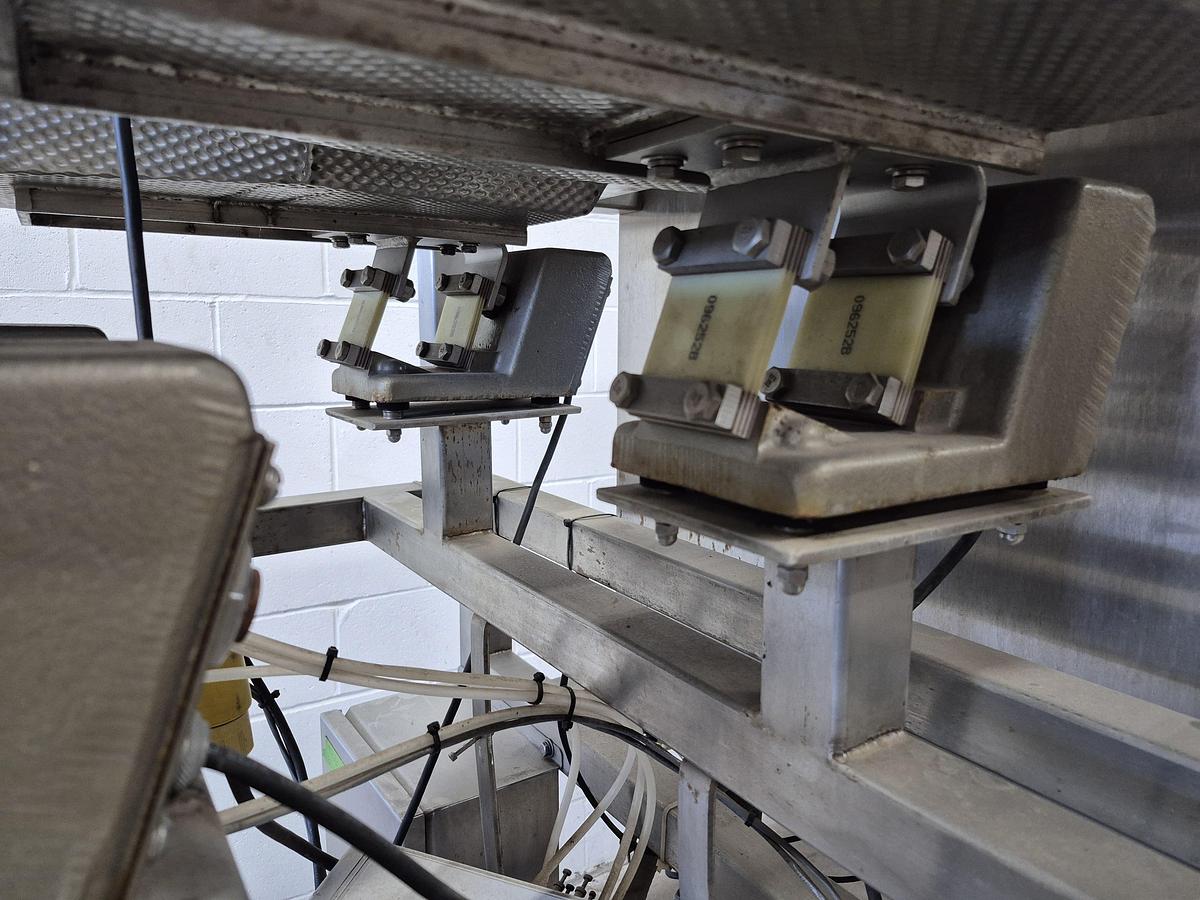

Comes with a Tedea-Huntleigh Model 9010 Damped Load Cell

• Available Capacities: 3 kg, 5 kg, 7 kg, 10 kg, 15 kg, 20 kg, 30 kg, 50 kg, 90 kg

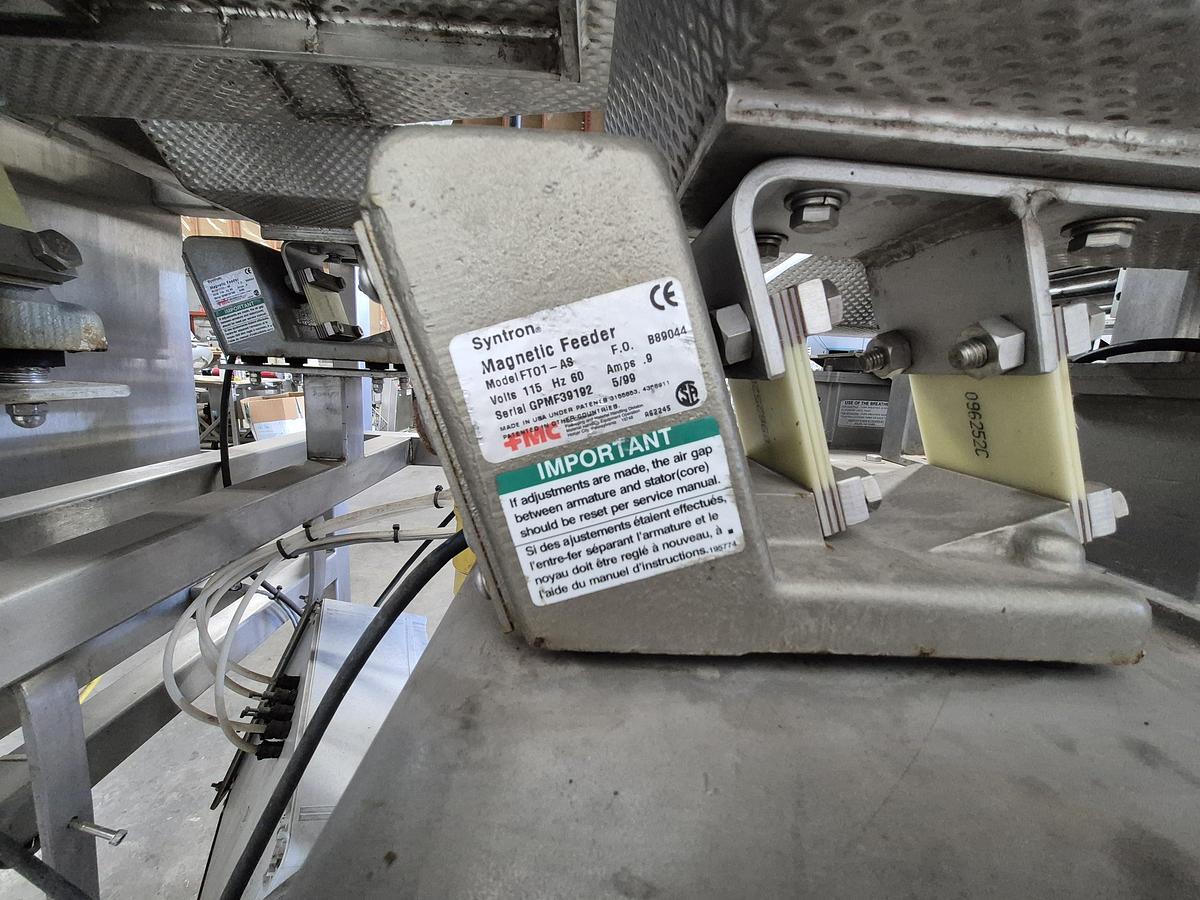

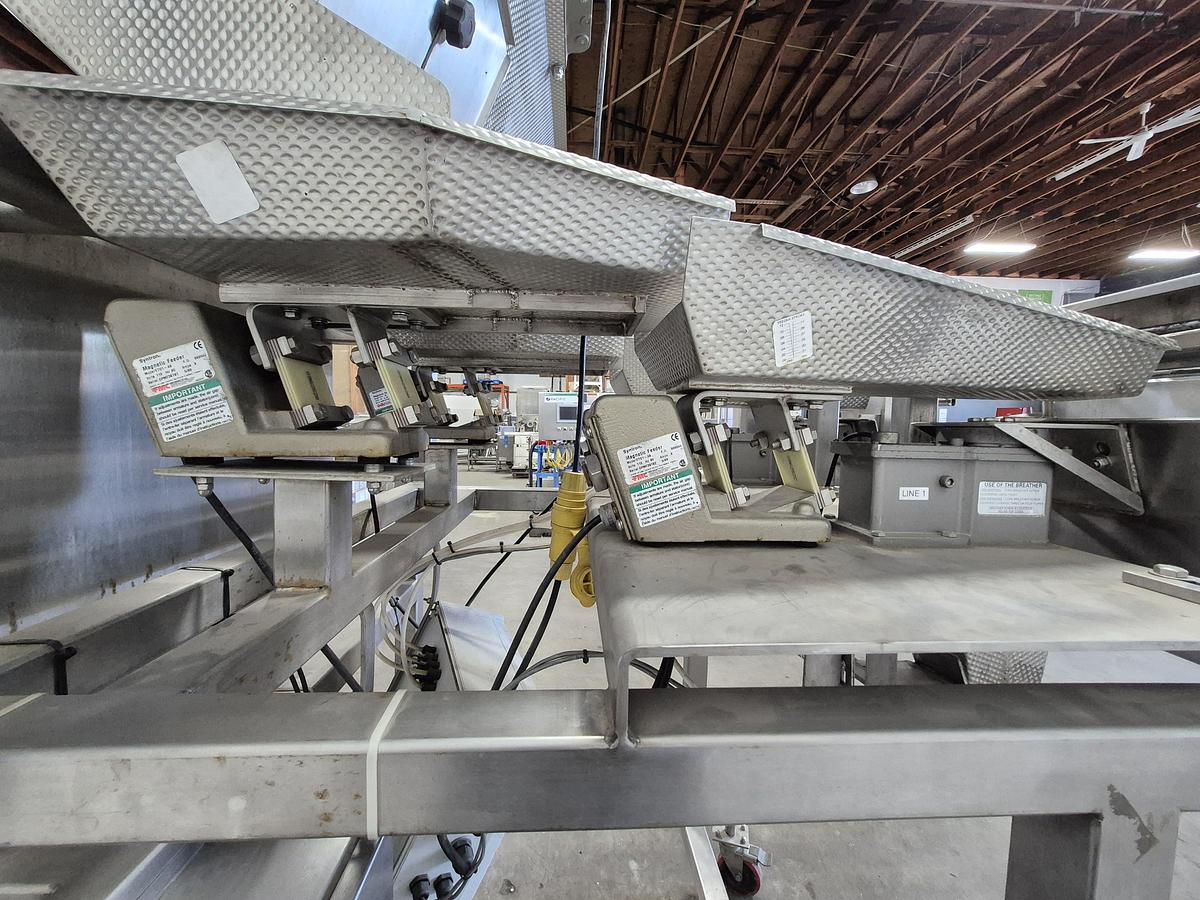

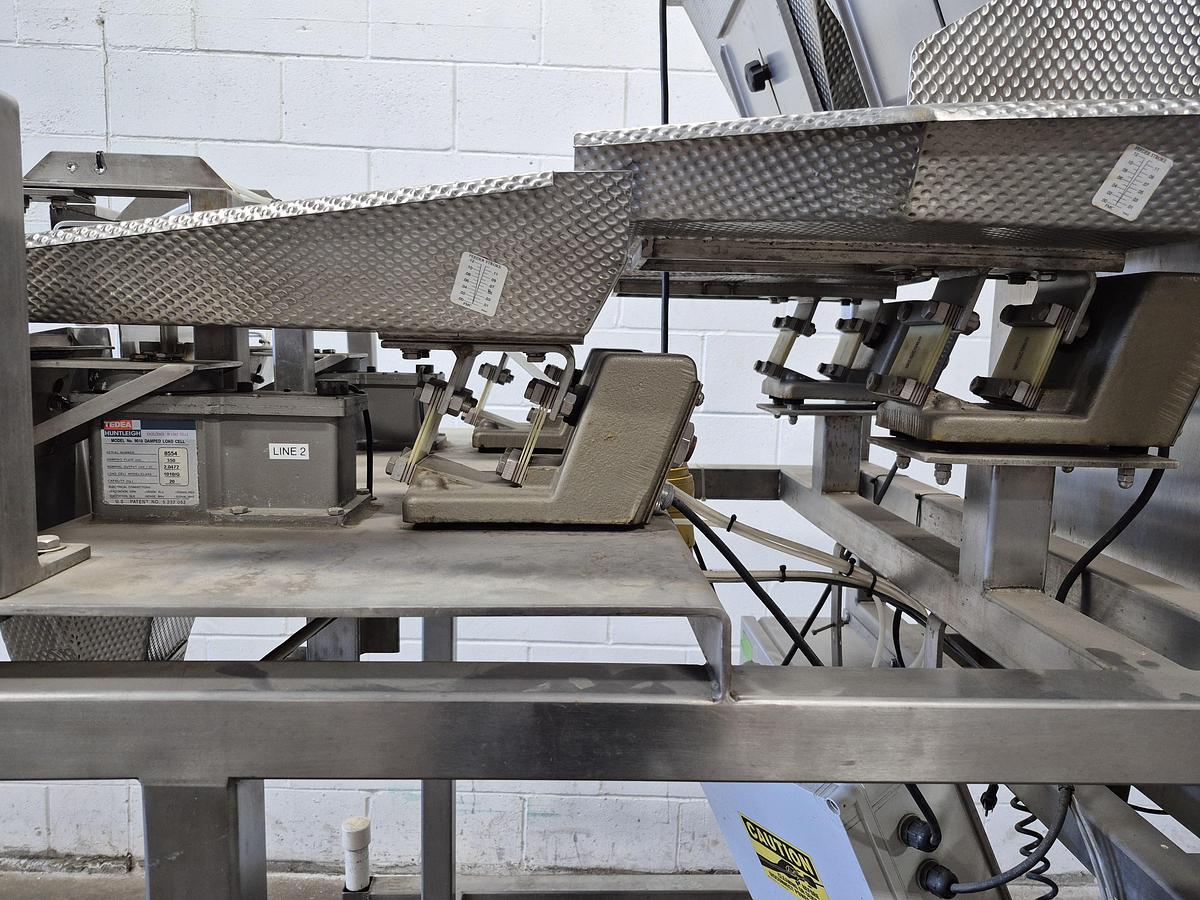

Comes with 2 Syntron F-T01-AS

• Maximum Flow Capacity: Up to 2 tons per hour (based on dry sand density)
• Electrical Load: 115 VAC, Single-Phase, 60 Hz, drawing approximately 0.8 to 0.9 Amps
• Electrical Load: 115 VAC, Single-Phase, 60 Hz, drawing approximately 0.8 to 0.9 Amps
