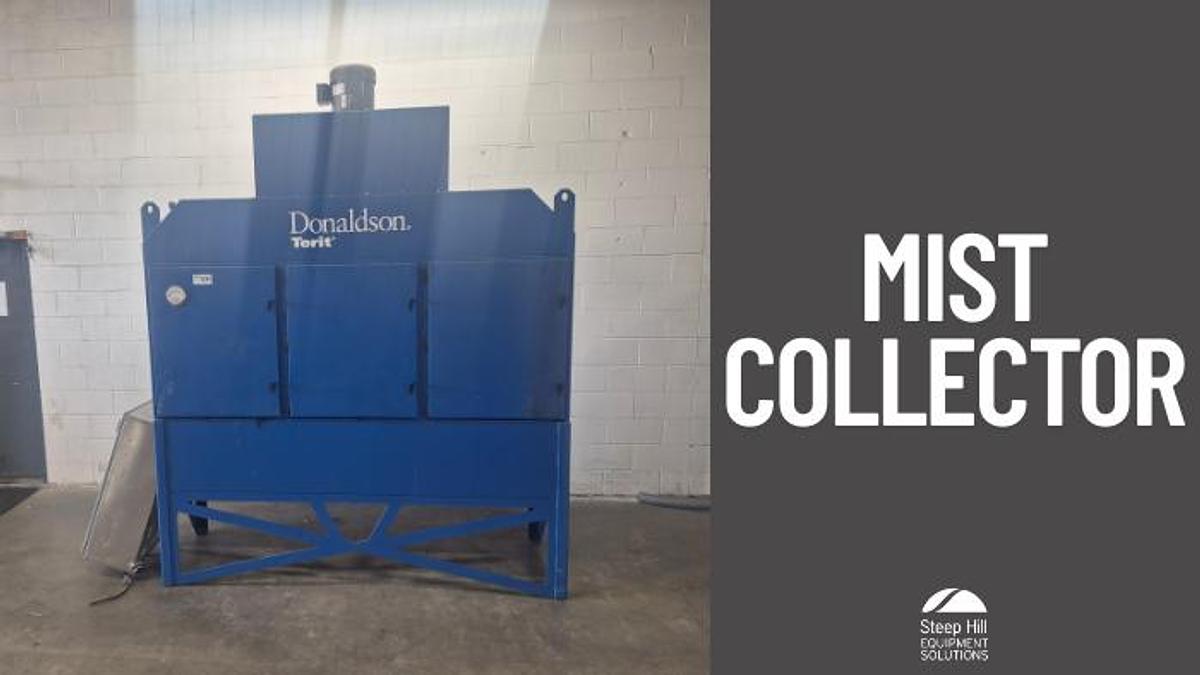

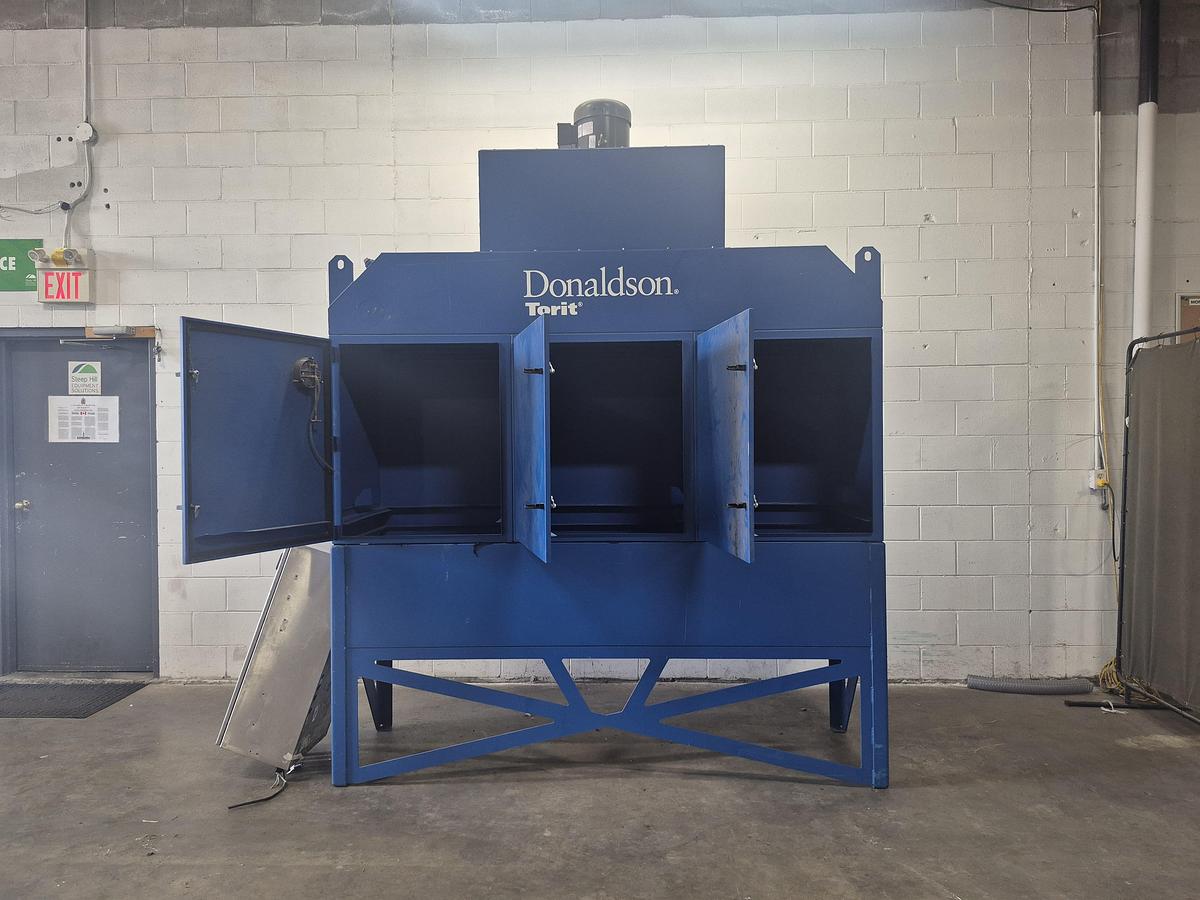

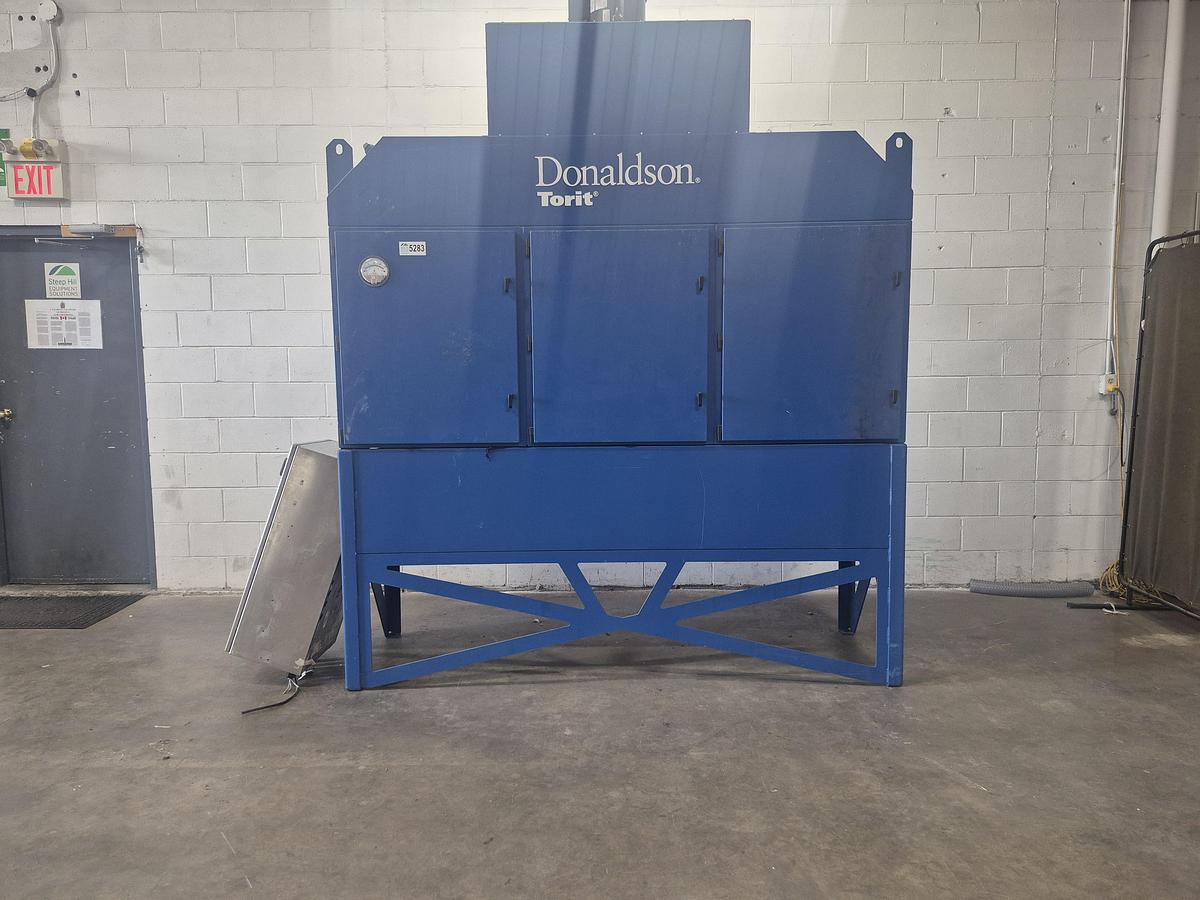

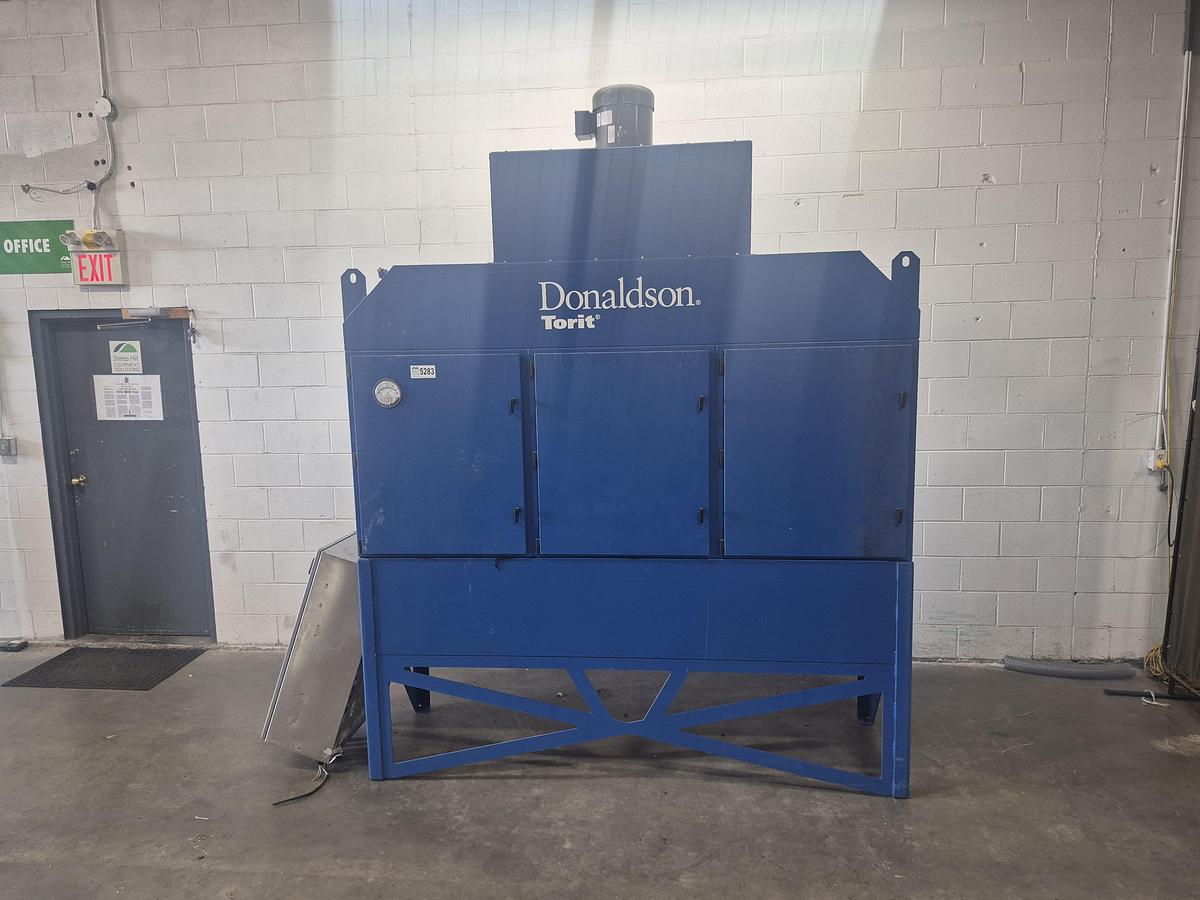

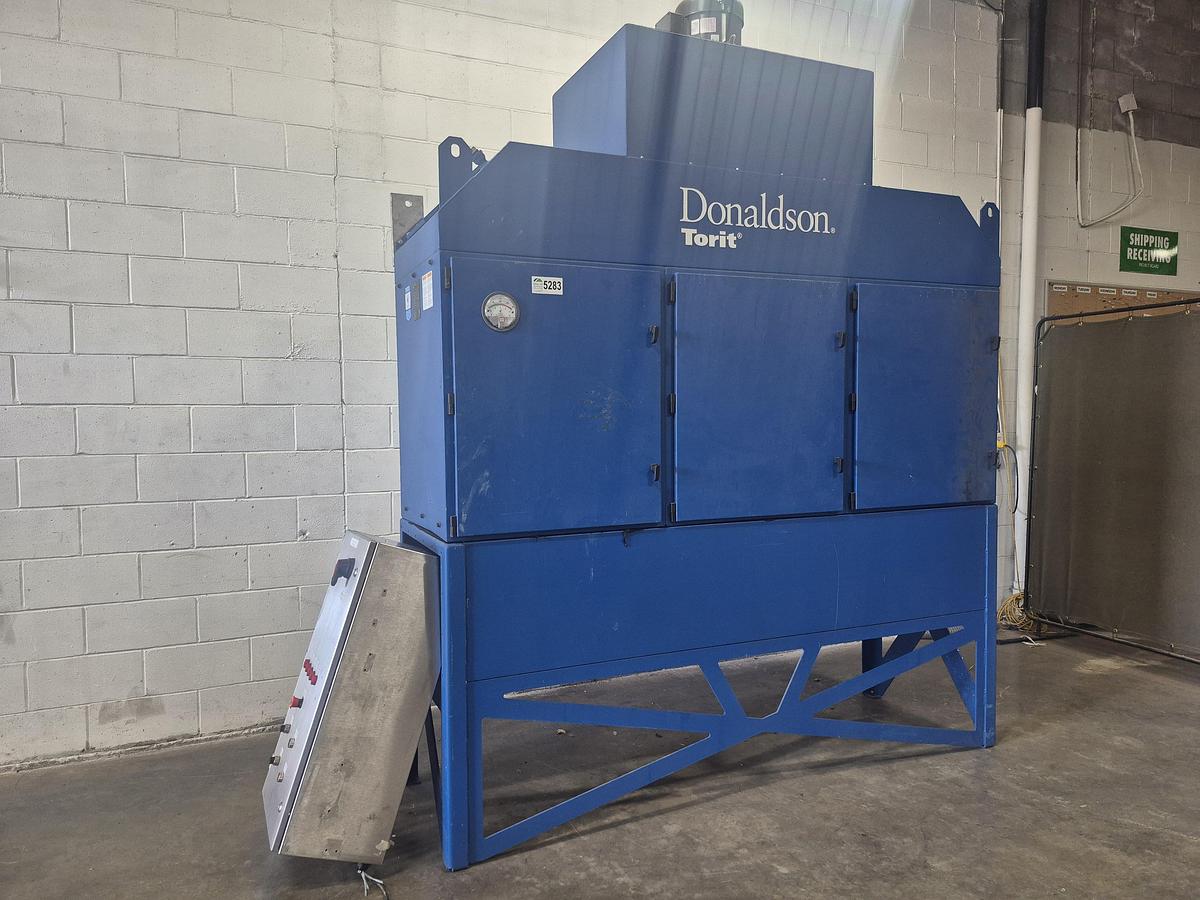

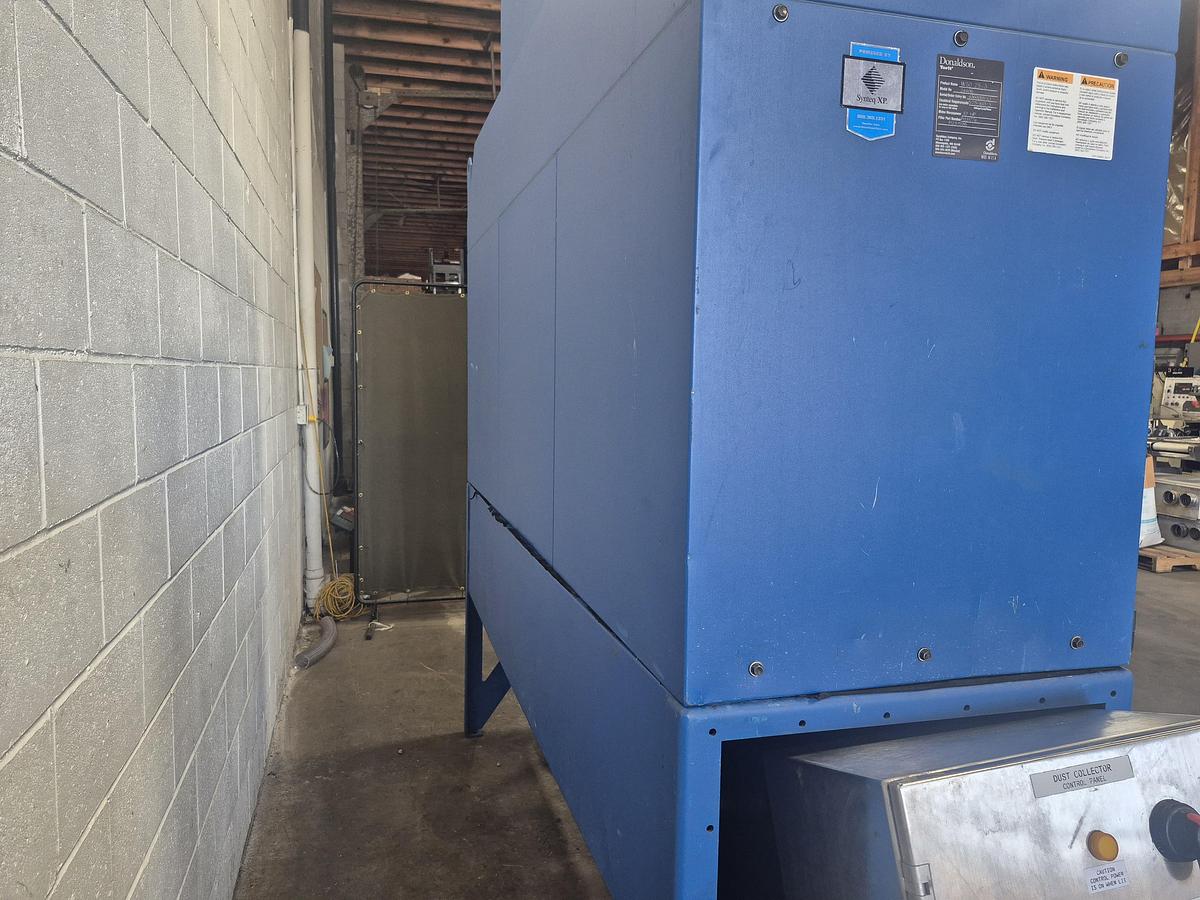

Donaldson Torit WSO 25-3 Mist Collector

Donaldson Torit WSO 25-3 Mist Collector

The Donaldson Torit WSO 25-3 Mist Collector is used to filter out hazardous airborne mist, smoke, and liquid droplets from industrial machine shops. When heavy industrial machinery operates at high speeds, the friction creates immense heat. To keep tools cool, a continuous spray of liquid cutting fluid or oil is applied. This process breaks the liquid down into a fine, airborne aerosol mist that fills the air inside the machine enclosure or shop floor.

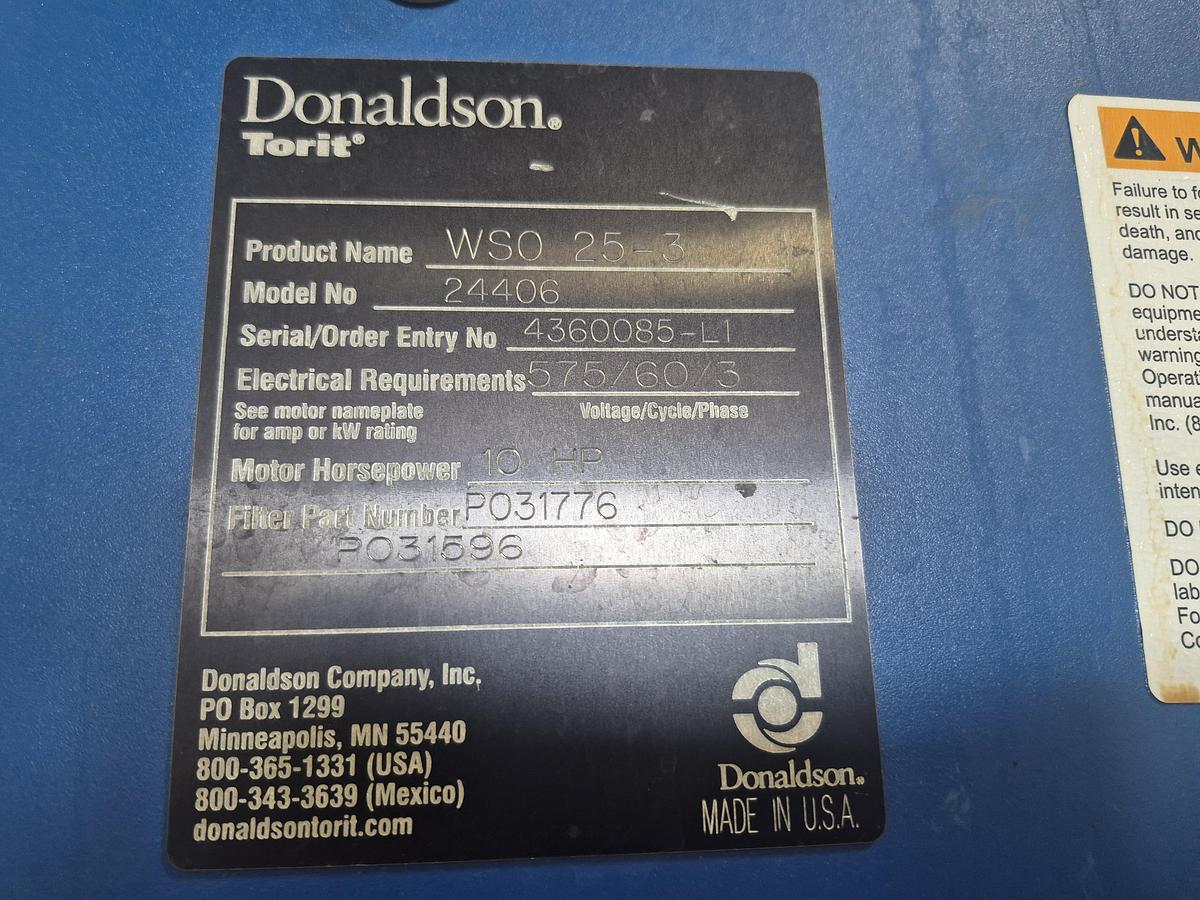

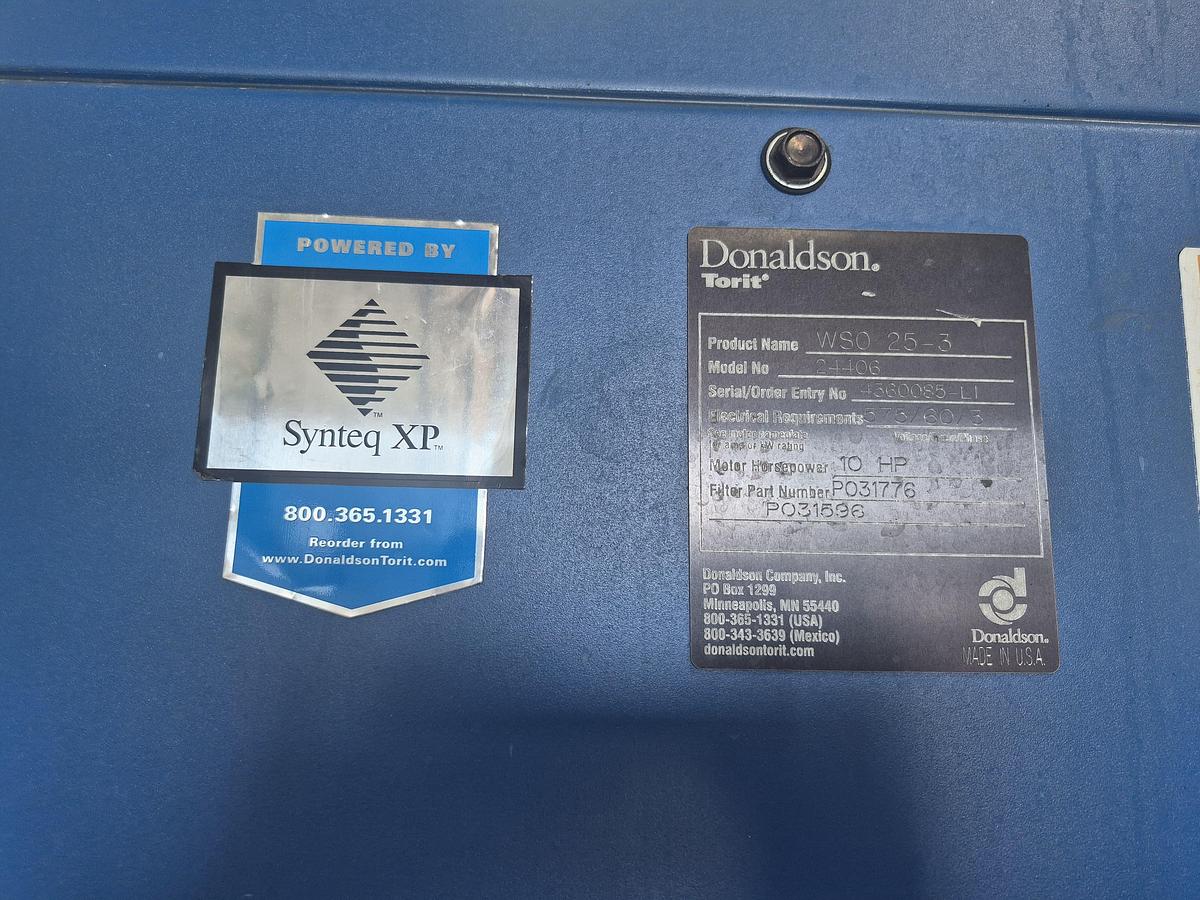

Specs:

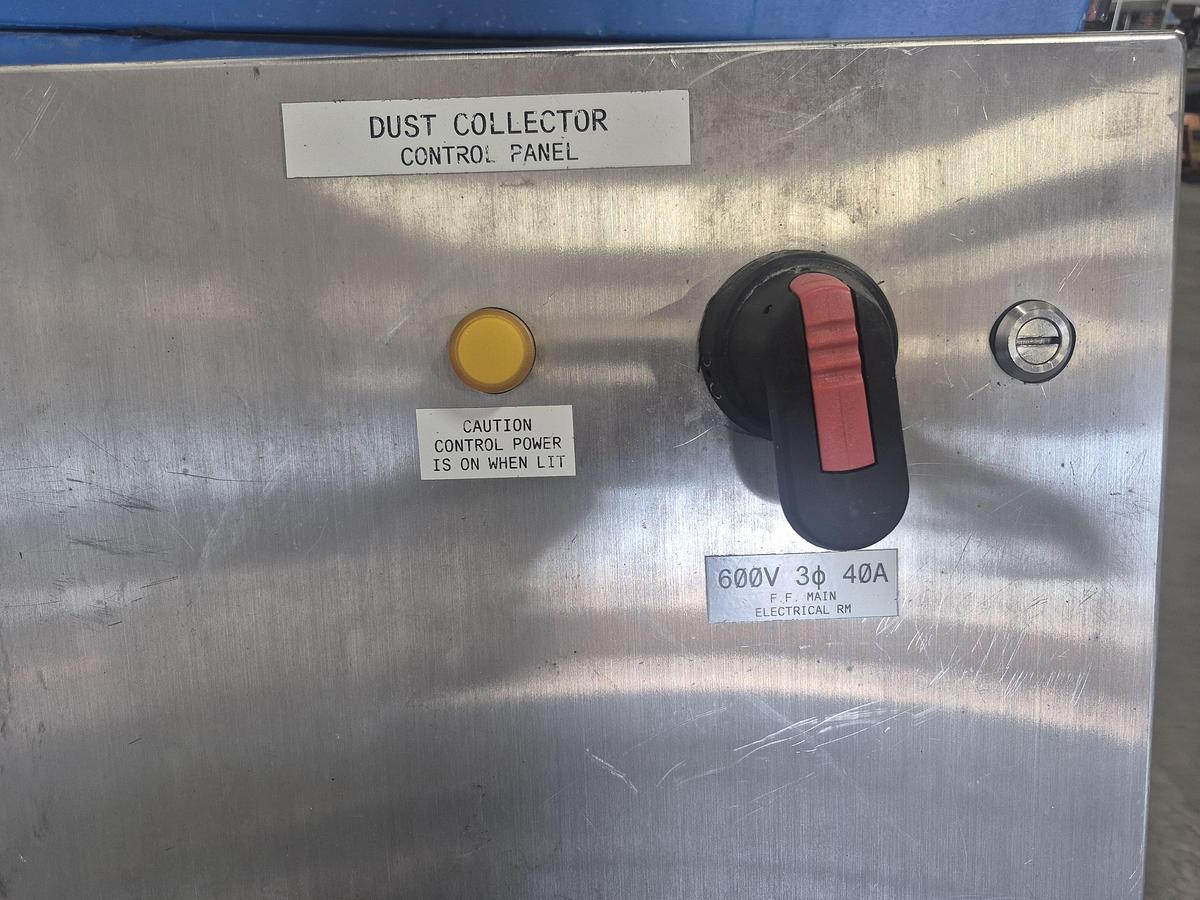

• 575 Volts / 60 Hz / 3 Phase

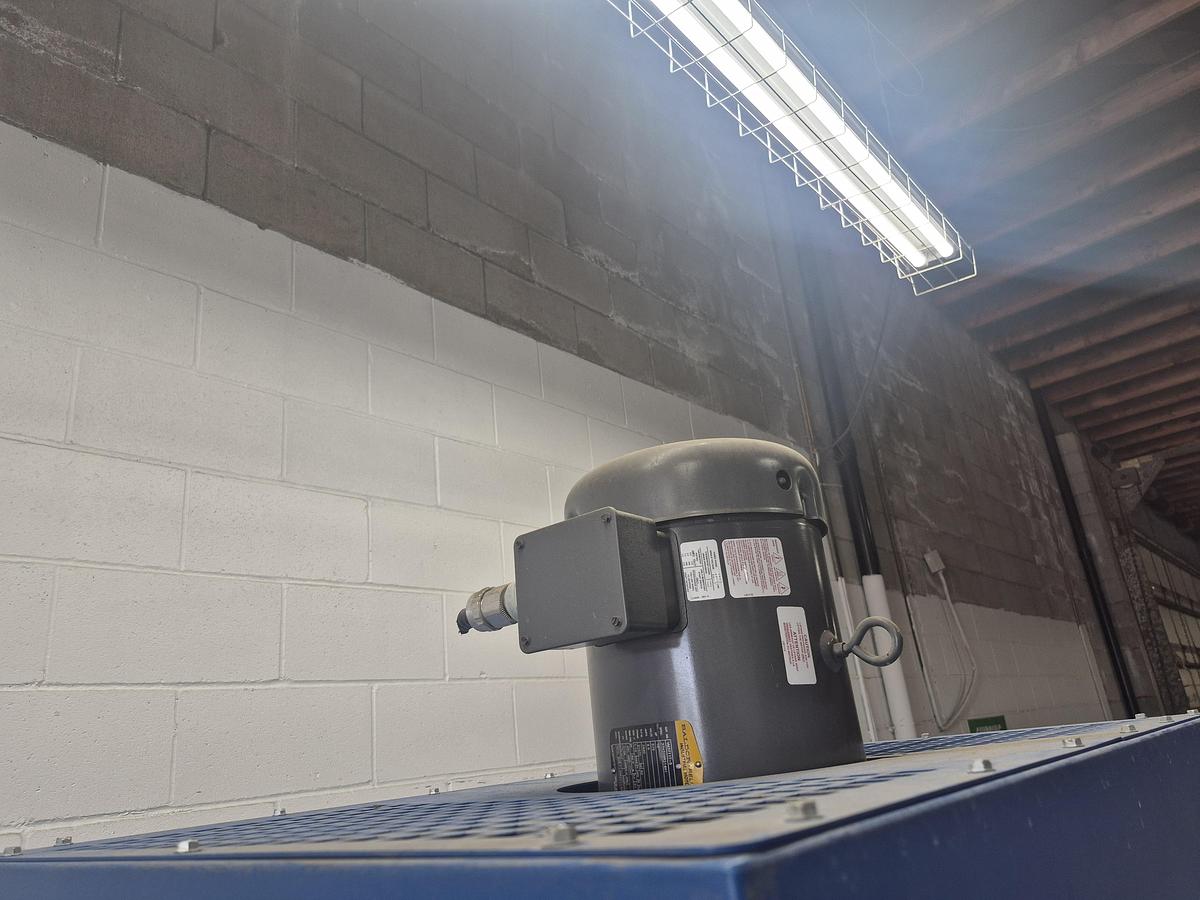

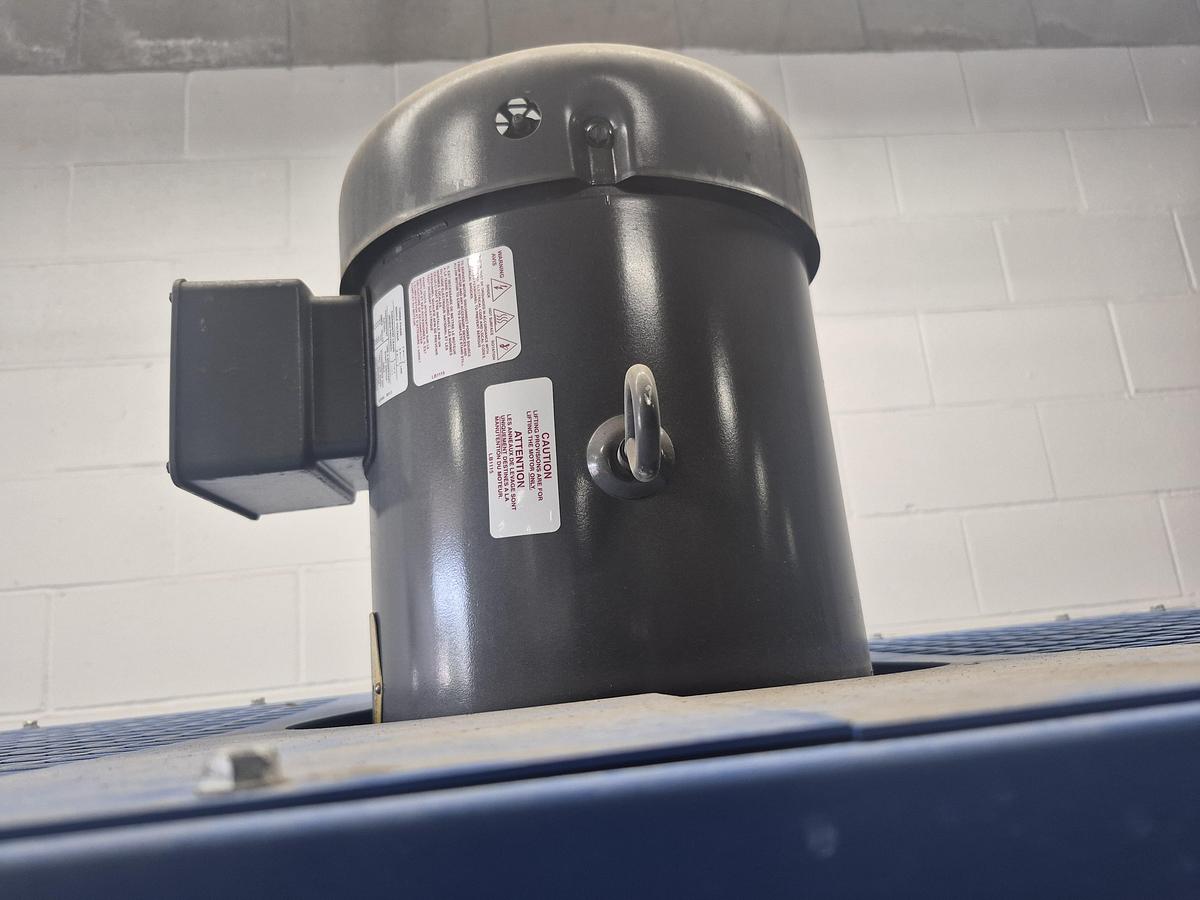

• Motor Horsepower: 10 HP

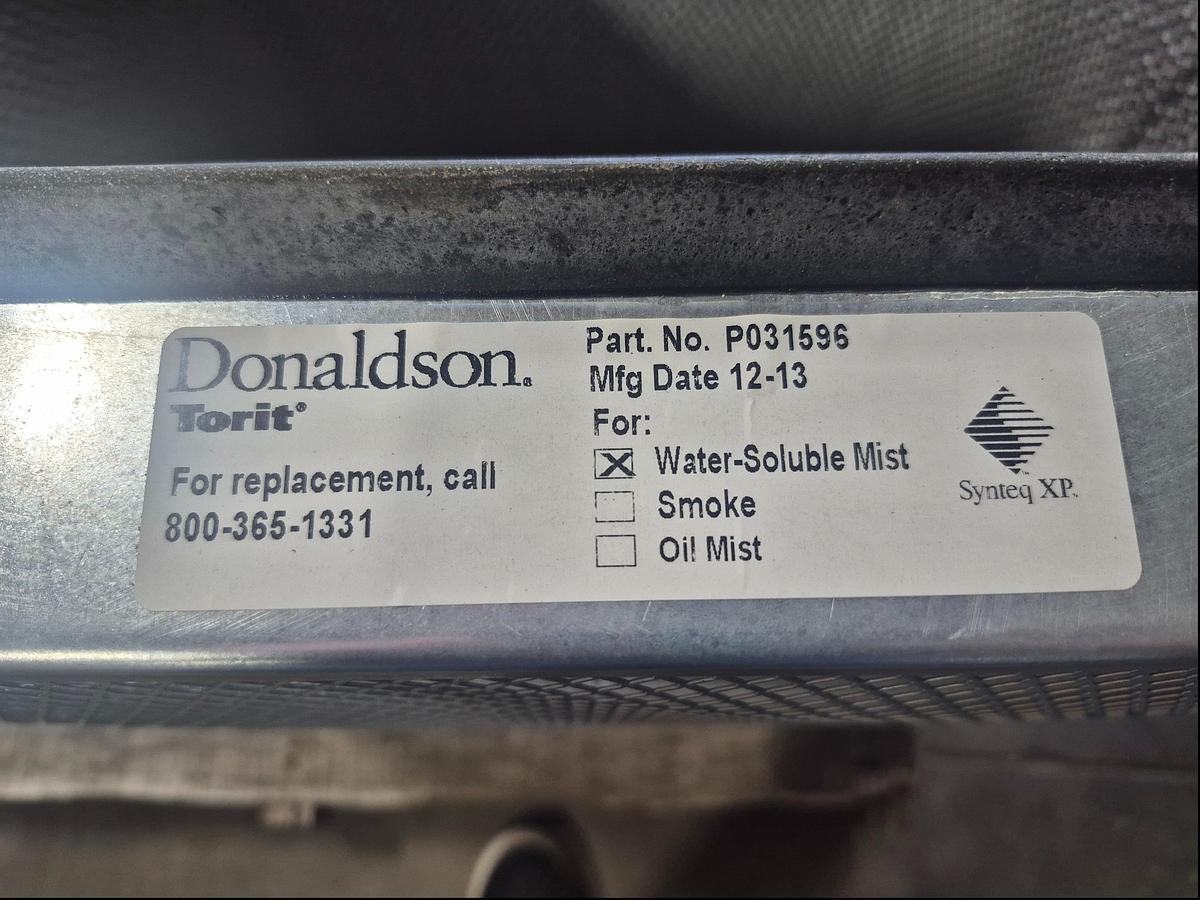

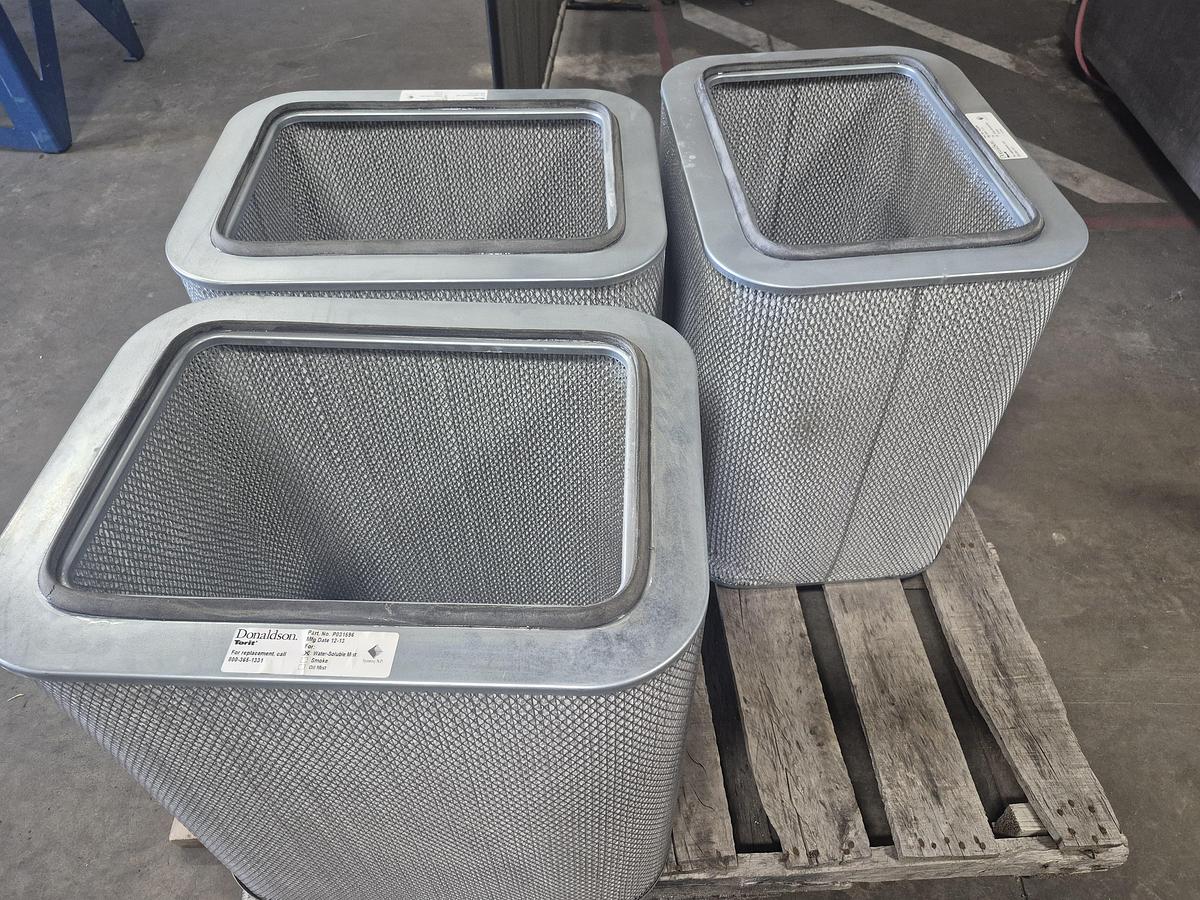

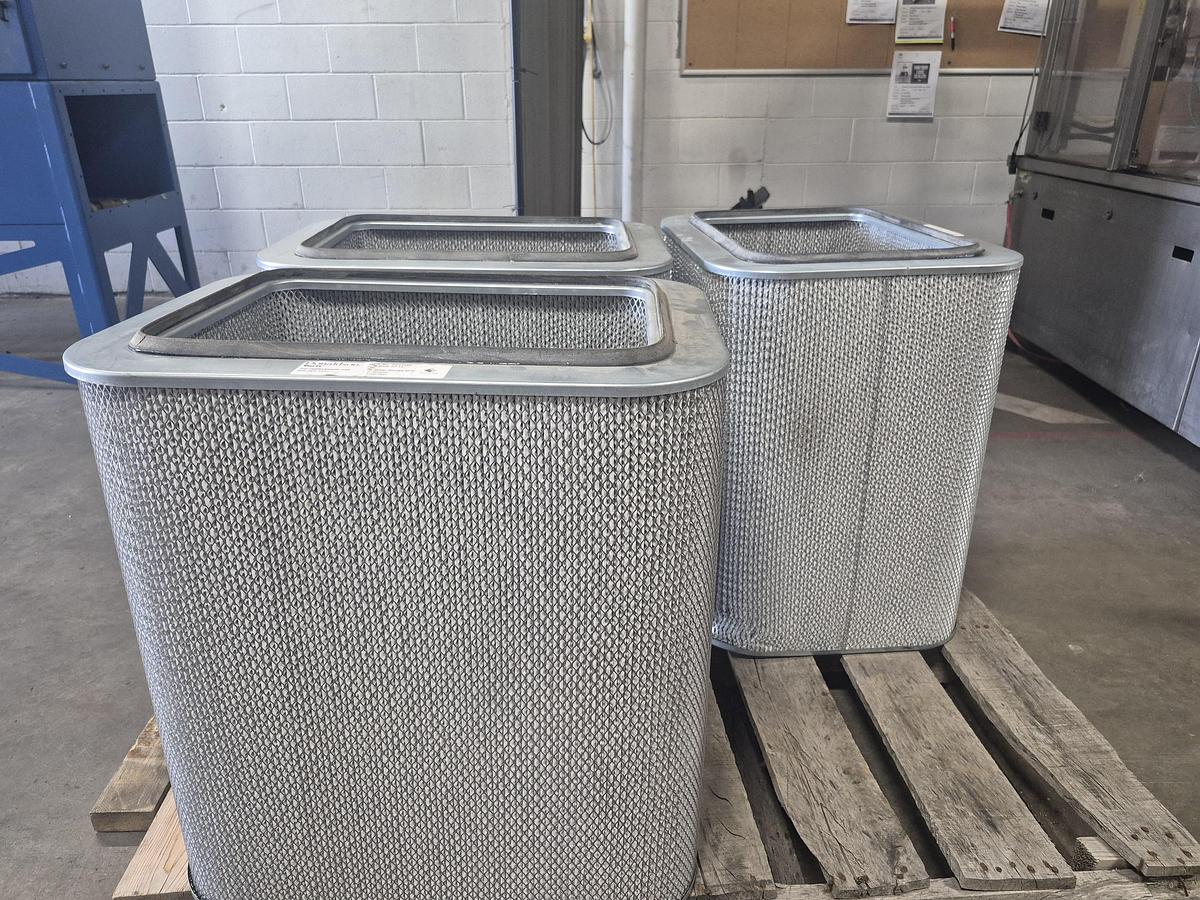

• Filter Part Numbers: P031776 and P031596

It is specifically designed to handle three types of mist:

• Water-Soluble Coolants: Coalesces and drains water-based mist back into the machine for reuse
• Straight Oils: Traps slippery petroleum/synthetic oils to keep them off shop floors and equipment
• Oily Smoke: Uses high-efficiency filters to scrub out fine, burnt smoke particles created by extreme heat

***Shipping Dimensions: 90" x 60" x 84"***

***Assembled Dimensions: 90" L x 30" W x 124" H***
