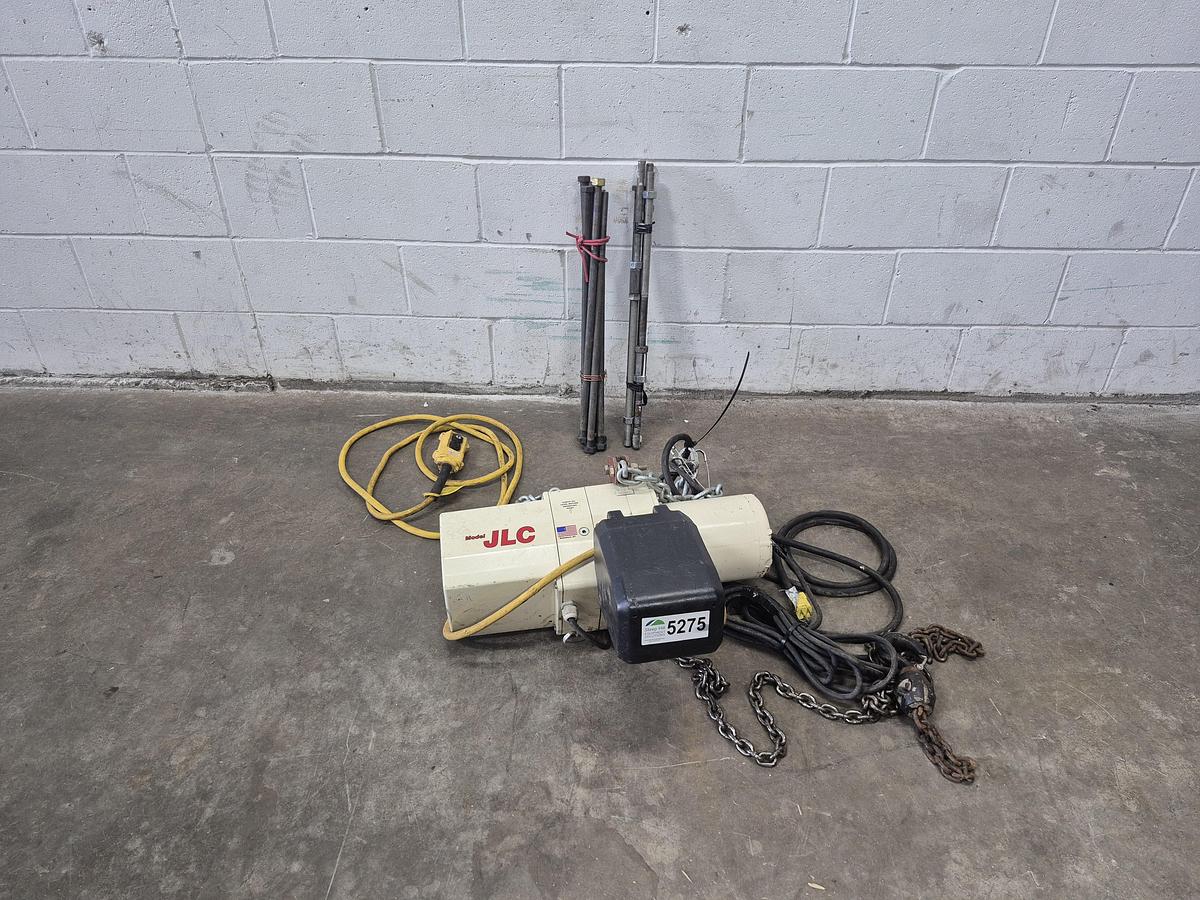

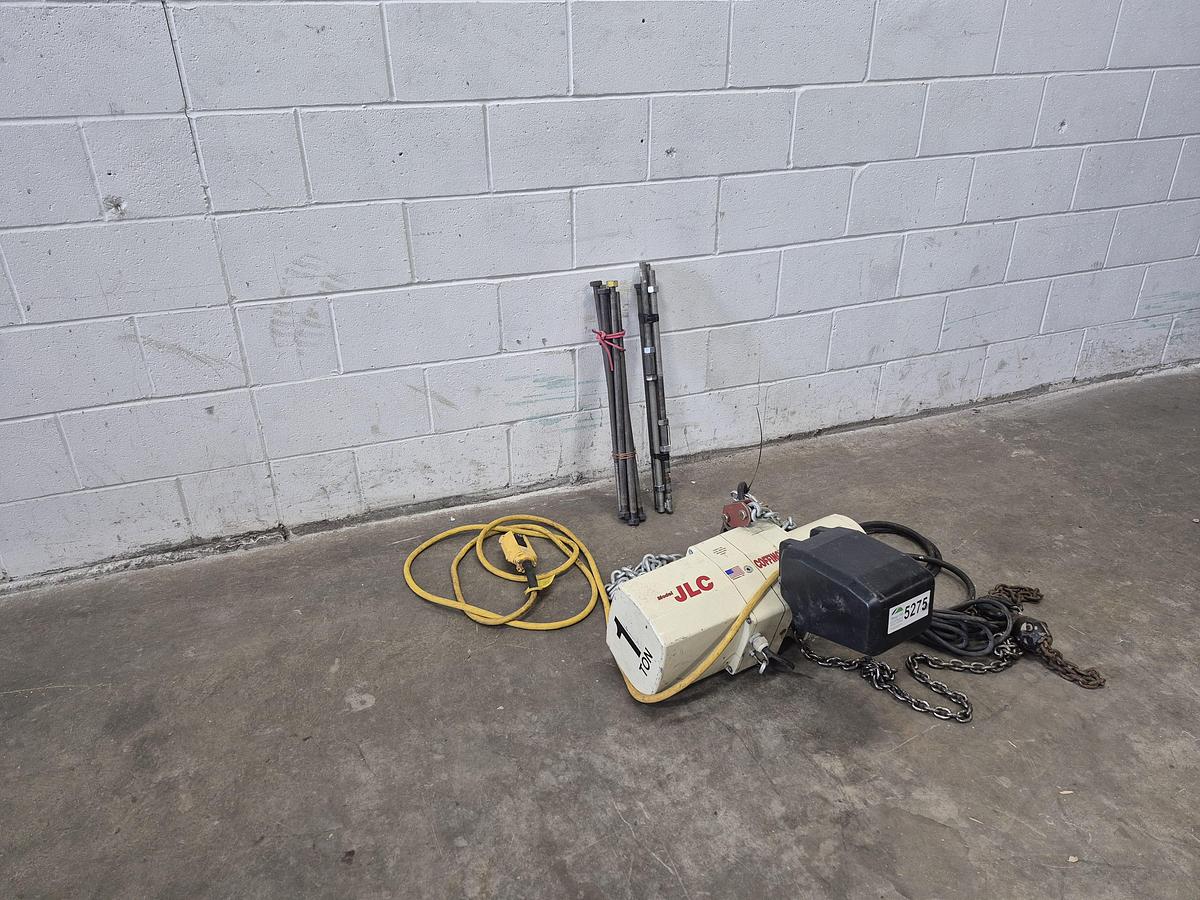

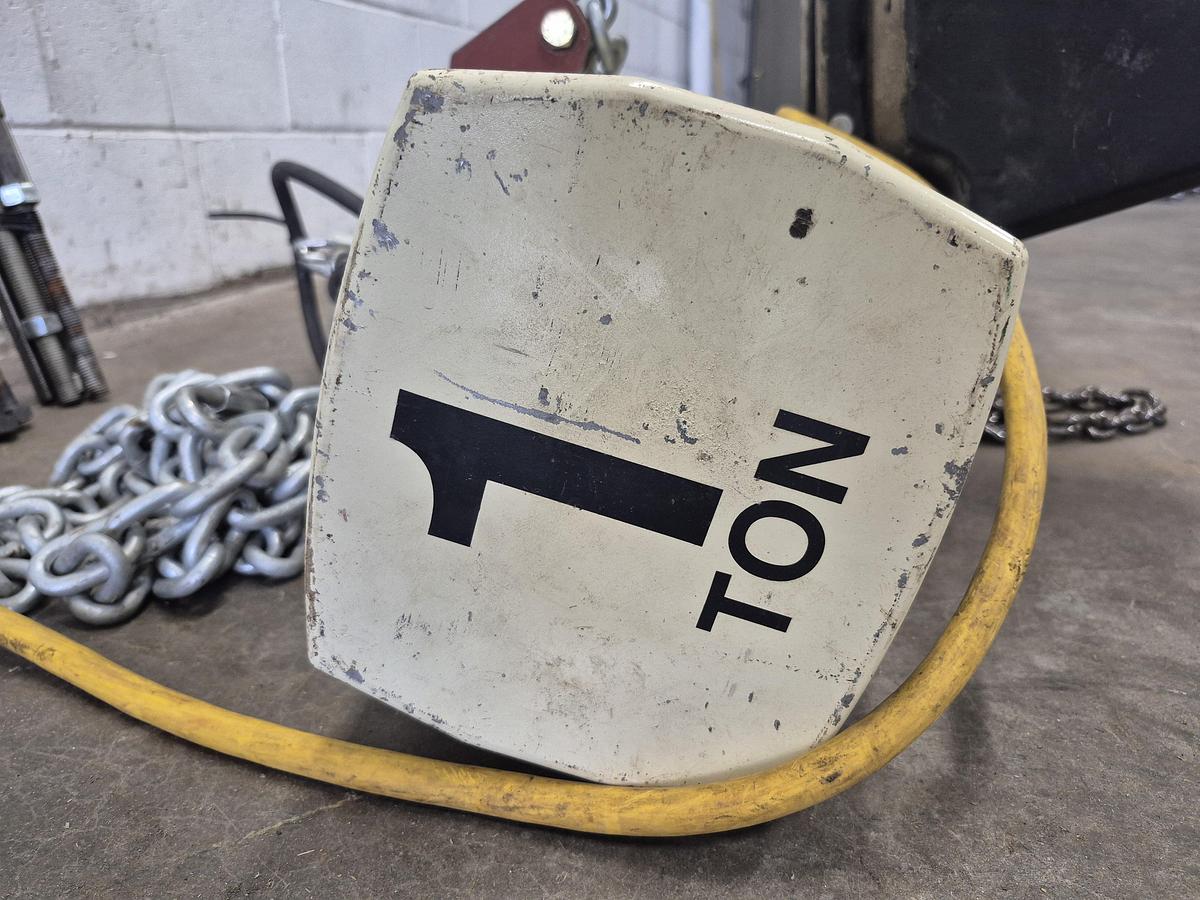

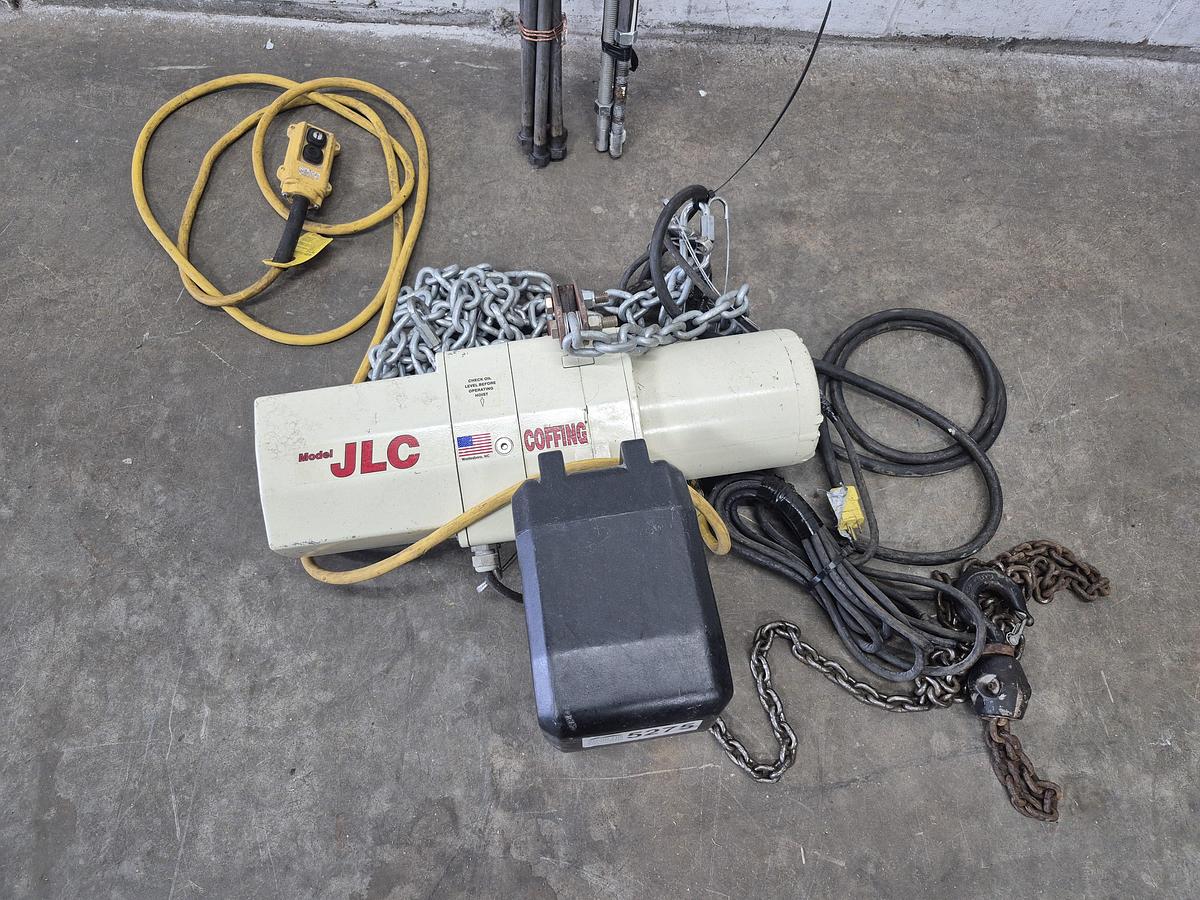

Coffing JLC 1-Ton Electric Chain Hoist

Coffing JLC 1-Ton Electric Chain Hoist

The Coffing JLC2016 1-Ton Electric Chain Hoist is used for heavy-duty overhead lifting, lowering, and holding of heavy loads in industrial, mechanical, and commercial work environments. Because it can effortlessly lift up to 2,000 pounds (1 ton) at a controlled speed of 16 feet per minute, it is primarily used to perform tasks that are dangerous or physically impossible for manual labor.

Specs:

• Capacity:1-Ton (2,000 lbs / 1,000 kg weight limit)
• Speed:16 FPM (FPM stands for Feet Per Minute lifting speed, represented by the "16" in the model number)
• Capacity: The internal transmission gear case is filled at assembly with approximately 2 pints of gear oil
• 1-Phase Power
• Type: Electric Chain Hoist

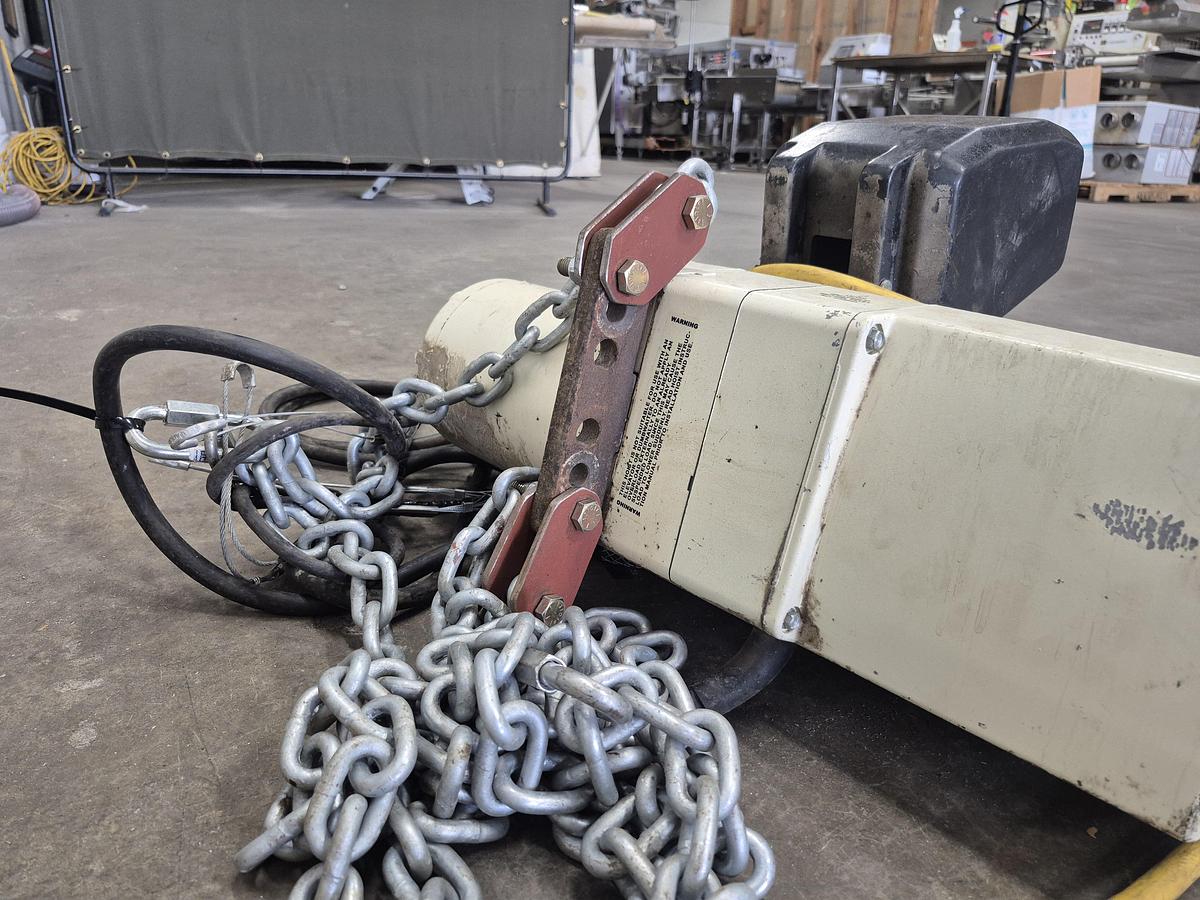

• 10-Foot Lift Chain
• Lubricant Type: If the level is low, replenish it using standard SAE 90 Wt. EP (Extreme Pressure) Gear Oil

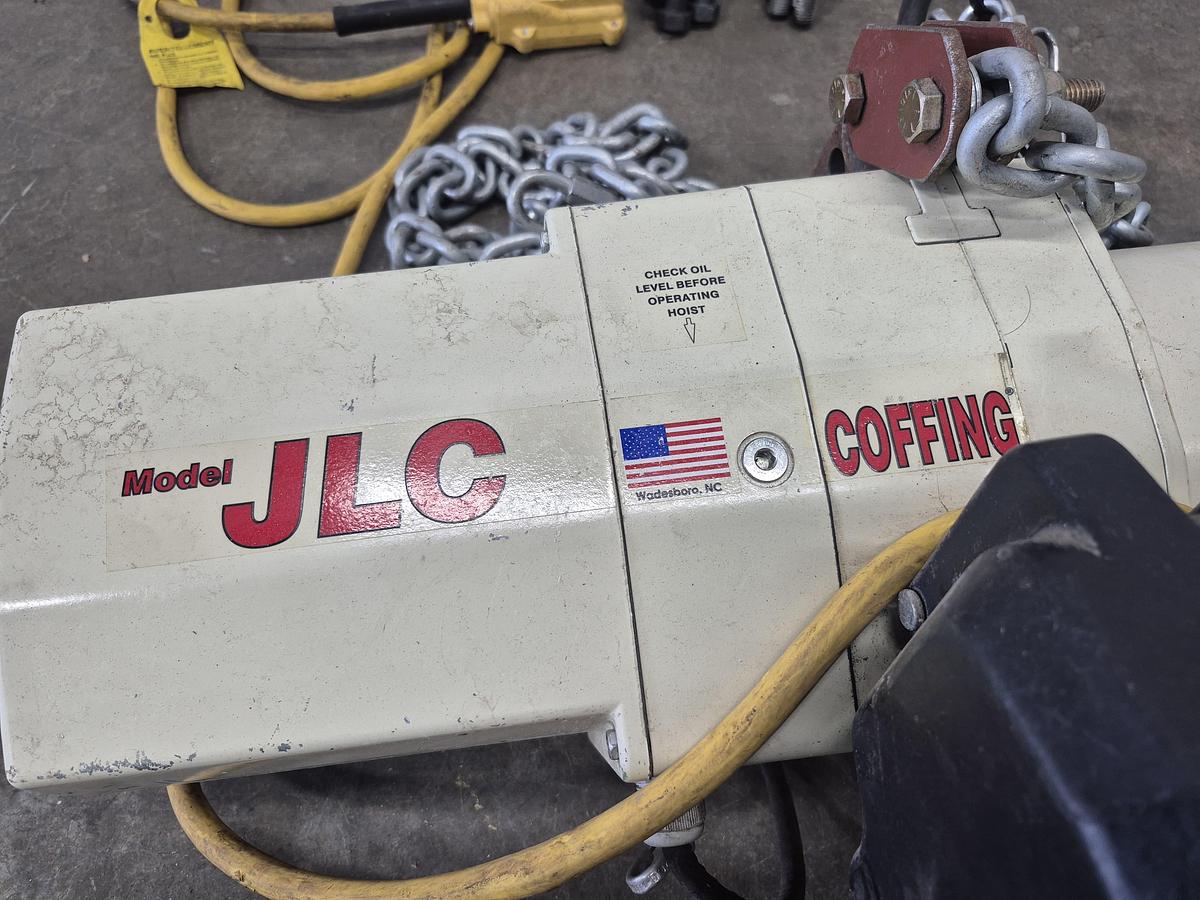

• Testing: To check the oil level accurately, ensure the hoist is suspended and hanging perfectly level. Remove the designated oil level check plug located on the side of the hoist frame. The oil level should be completely even with the bottom edge of the tapped plug hole

Common Uses & Industries:

• Automotive Repair Shops: Lifting and holding heavy vehicle engines, transmissions, truck beds, or full assemblies out of a chassis
• Manufacturing Plants: Moving heavy raw metal materials, machinery components, and large molds smoothly along an assembly line
• Machine & Metal Fabrication Shops: Lifting large sheets of steel, structural beams, or heavy steel parts onto CNC machines, welding tables, and cutting stations
• Warehouses & Shipping Docks: Loading and unloading extremely heavy pallets or crated equipment from flatbed trucks and freight shipping docks
• Maintenance & Facilities Management: Safely lifting heavy HVAC rooftop components, industrial pumps, and commercial motors during facility repairs

How It Is Set Up to Work:

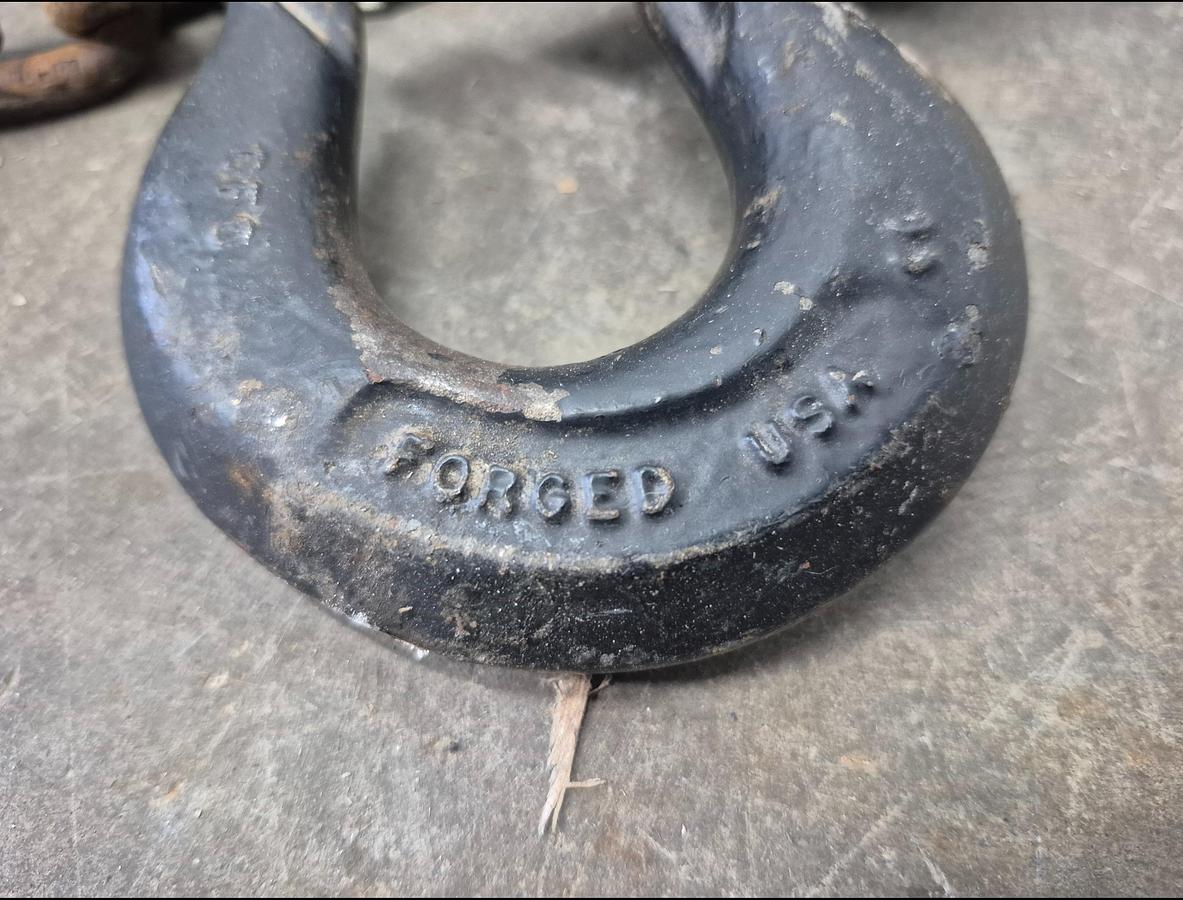

• Stationary Use: It is commonly hung from a fixed structural I-beam using a top hook or rigid mount to lift loads up and down vertically in one specific spot
• Mobile Use: It is frequently attached to a trolley (a wheel assembly that rides along the bottom flange of a crane or structural beam). This allows the hoist to lift a heavy object and then push or roll it horizontally across a workshop floor
