Kaeser TF 280 Refrigeration Dryer

Description

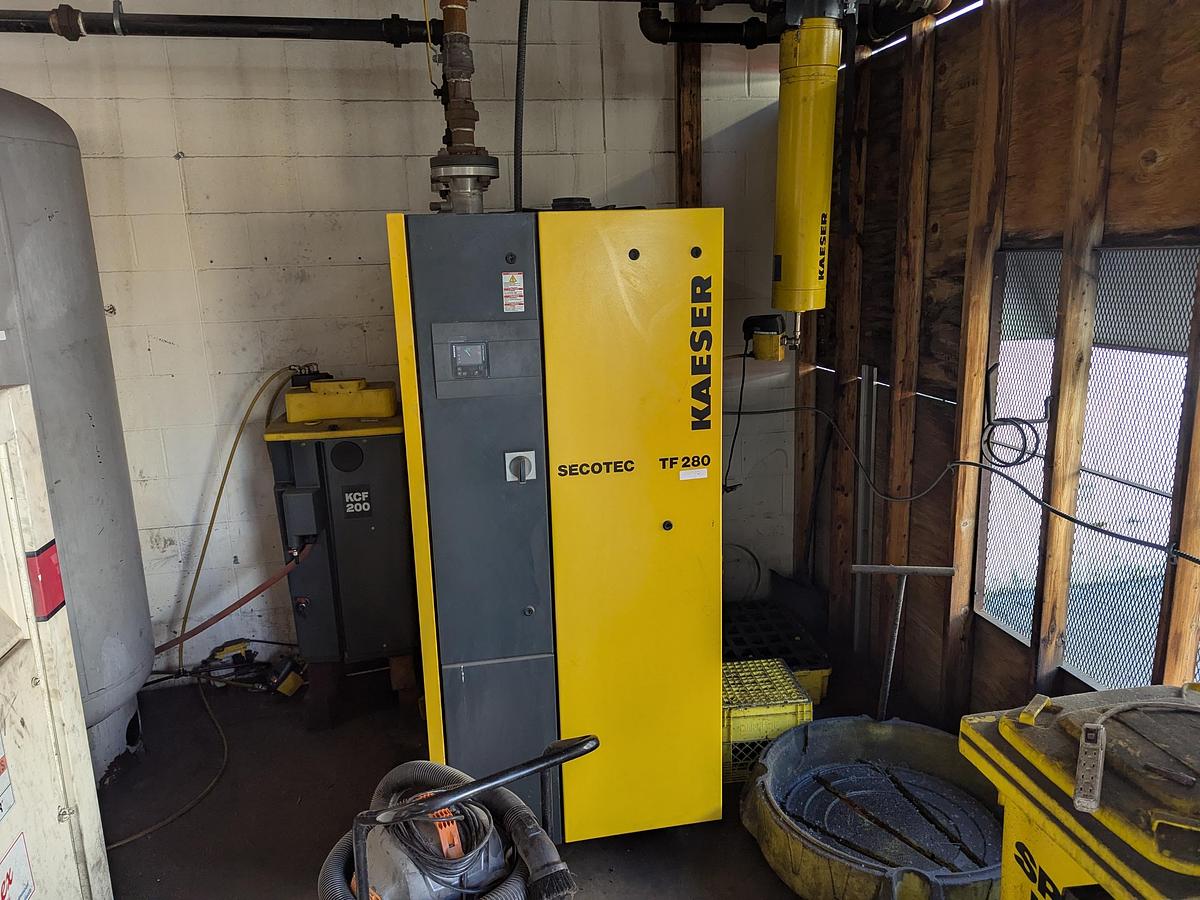

Kaeser TF 280 Refrigeration Dryer

This unit is used to remove moisture and water vapor from industrial compressed air systems.

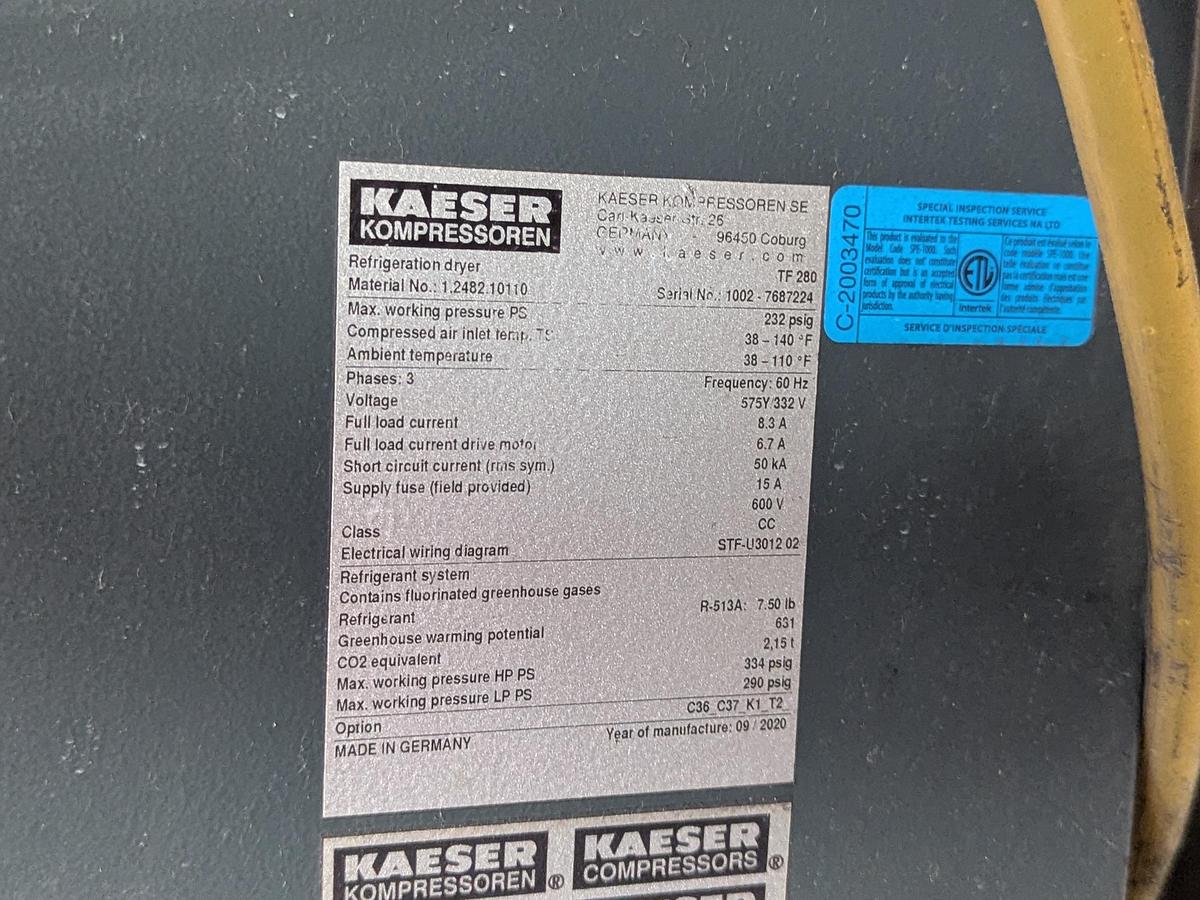

Specs:

  • 3-Phase
  • 60 Hz
  • 575/332 V
  • Full Load Current: 8.3 A
  • Full Load Current (Drive Motor): 6.7 A
  • Short Circuit Current: 50kA
  • Supply Fuse (Field Provided): 15 A / 600 V
  • Refrigerant Type: R-513A
  • Refrigerant Charge: 7.50 lb
  • Greenhouse Warming Potential (GWP): 631
  • CO2 Equivalent: 2.15 t
  • Max. Working Pressure HP PS: 334 psig
  • Max. Working Pressure LP PS: 290 psig
  • Compressed Air Inlet Temp.: 38 – 140 °F
  • Ambient Temperature: 38 – 110 °F

This refrigeration dryer functions to prevent several operational issues:

  • Prevents Tool & Equipment Damage: Water causes rust and corrosion inside pneumatic tools, valves, and cylinders, leading to premature failure
  • Protects End Products: It ensures that water doesn't ruin processes that require clean, dry air, such as spray painting, sandblasting, packaging, or automated production lines
  • Eliminates Pipe Corrosion: It stops liquid water from pooling in the distribution piping, preventing scale and rust from breaking loose and clogging the system
  • Prevents Line Freezing: If air lines run through cold or unheated areas, trapped water can freeze and completely block air flow


Specifications

ManufacturerKaeser Kompressoren SE
ModelTF 280
Year2020
ConditionUsed
Serial Number1002 - 7687224
Stock NumberB3731DELAFG
