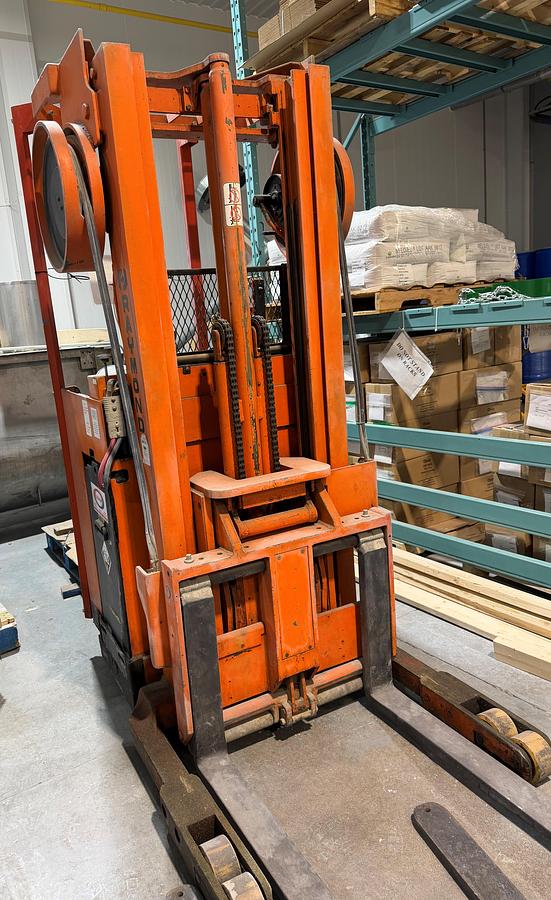

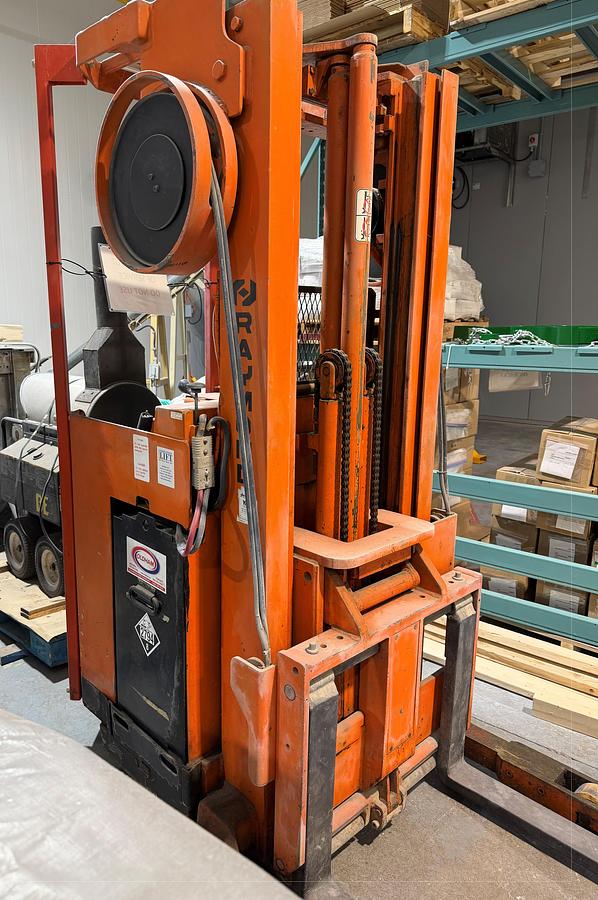

Raymond 20R30TT Electric Reach Forklift

Raymond 20R30TT Electric Reach Forklift.

This specific Raymond model 20R30TT is an electric stand-up rider reach truck. It is heavily utilized for vertical material handling in modern supply chains, manufacturing plants, and warehousing facilities.

Specs:

• Electrical System: 24 VDC
• Maximum Lifting Capacity: 3,000 lbs up to a height of 186 inches (15.5 feet)
• Chassis Weight(Without Battery): 3,800 lbs
• Minimum Battery Weight: 1,300 lbs
• Standard Load Center: 24 inches (This dictates how far out the center of the load can sit from the forks while maintaining full lift capacity)

Primary Uses:

• Stacking Pallets In Narrow Aisle Warehouses: Reach trucks have an outer mechanism that allows the forks to "reach" forward into deep shelving racks while the heavy chassis stays stationary
• Operating In Tight Spaces: Standard forklifts require wide aisles to turn around. This machine can spin around inside very narrow aisles, maximizing warehouse storage capacity

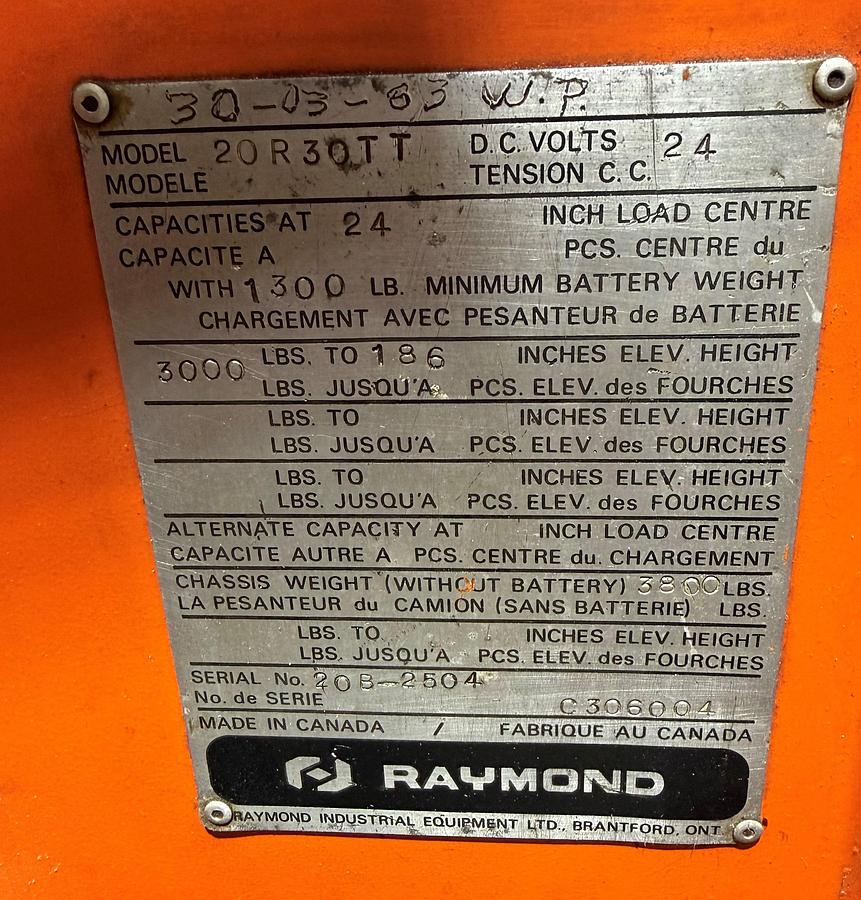

• High-Vertical Lifting:  As shown on the plate, it can safely lift heavy standard loads (up to 3,000 lbs) very high into the air (186 inches or 15.5 feet)
• Indoor Material Handling:  Because it runs on a 24V electric battery, it produces zero emissions. This makes it ideal for indoor food storage, manufacturing, and retail backrooms
