Waukesha Cherry-Burrell 200 Series Sanitary Centrifugal Pump

Waukesha Cherry-Burrell 200 Series Sanitary Centrifugal Pump

Designed specifically to transfer low-viscosity liquids safely and efficiently. Because it is built with high-grade 316L stainless steel, it meets strict 3-A Sanitary Standards. This means it can be thoroughly sanitized using Clean-In-Place (CIP) processes without being taken apart, making it a critical component in hygienic production environments.

Specs:

• Inlet Diameter: 2.5 inches
• Outlet Diameter: 2 inches
• Application: Heavy-duty sanitary and industrial processing, commonly utilized in food, beverage, dairy, pharmaceutical, and chemical industries
• Material: Precision-machined 316L stainless steel volute, impeller, backplate, and shaft to prevent corrosion and support Clean-In-Place (CIP) sanitization
• Performance: Typically engineered to handle fluid temperatures up to 450°F (232°C) with standard modular, easy-to-replace internal mechanical seals

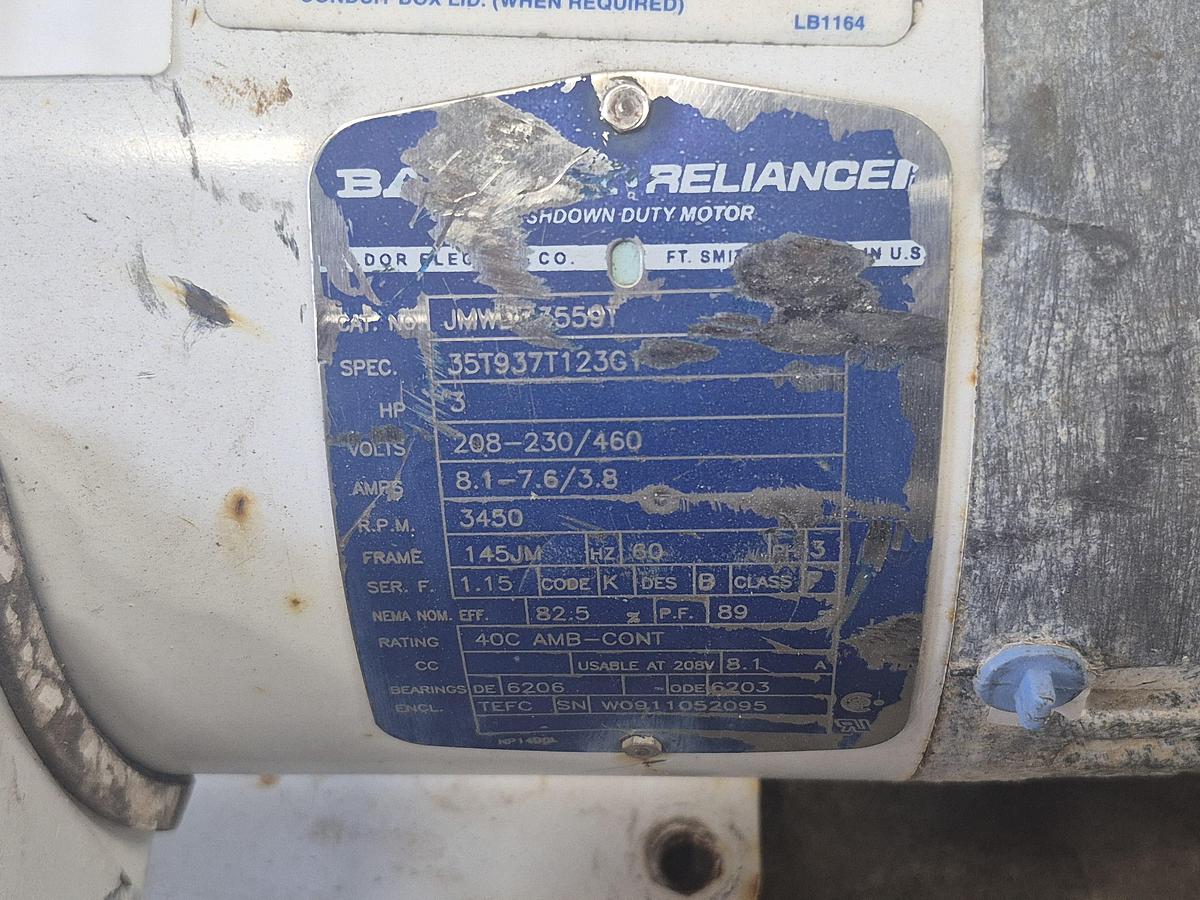

Powered by a Baldor-Reliance Washdown Duty Electric Motor

Specs:

• Type: Washdown Duty Motor (designed for moisture and chemical spray environments)
• Horsepower: 3 HP
• RPM: 3450 (2-pole high-speed motor)
• Phase: 3 (Three-phase industrial power)
• Voltage: 208–230 / 460 V
• Amperage: 8.1–7.6 / 3.8 A
• Frequency: 60 Hz
