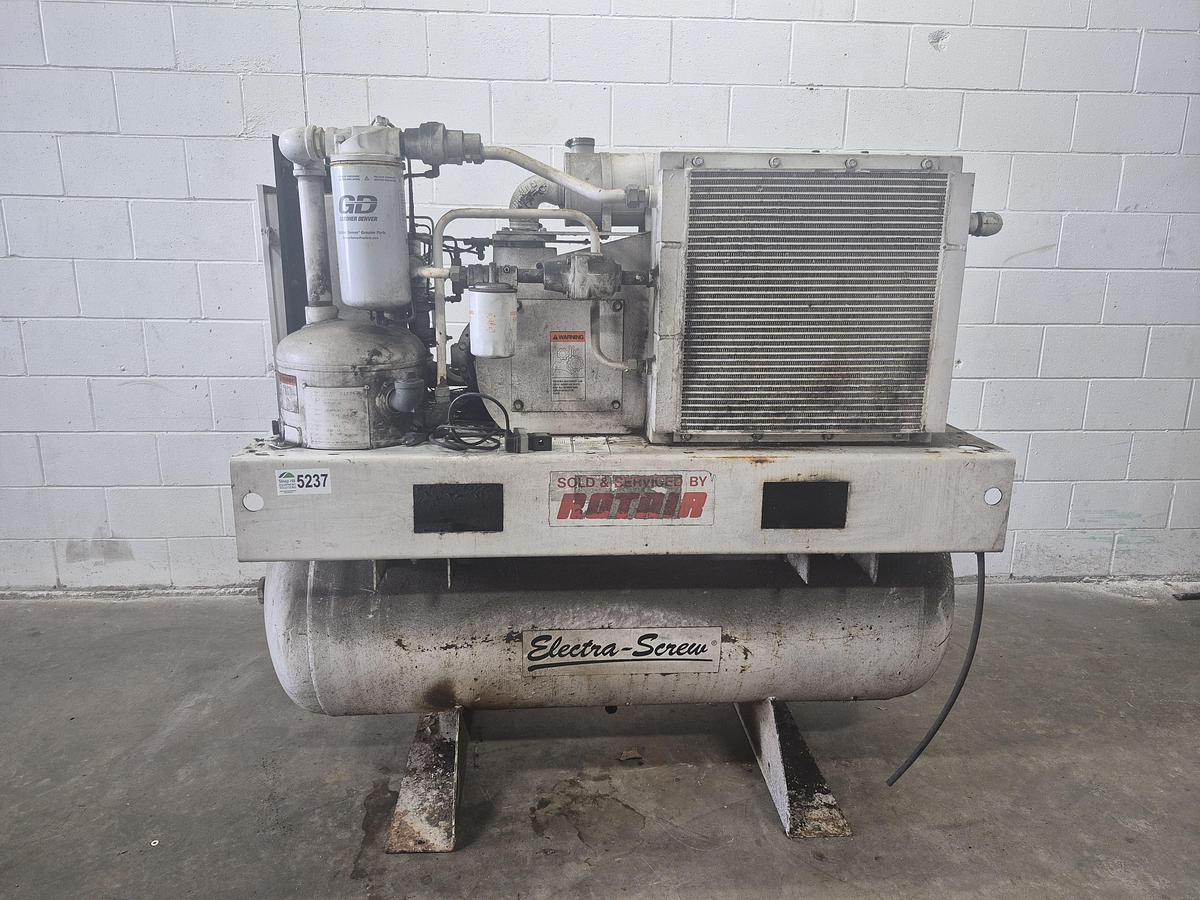

Gardner Denver Electra-Screw Air Compressor

Gardner Denver Electra-Screw Air Compressor

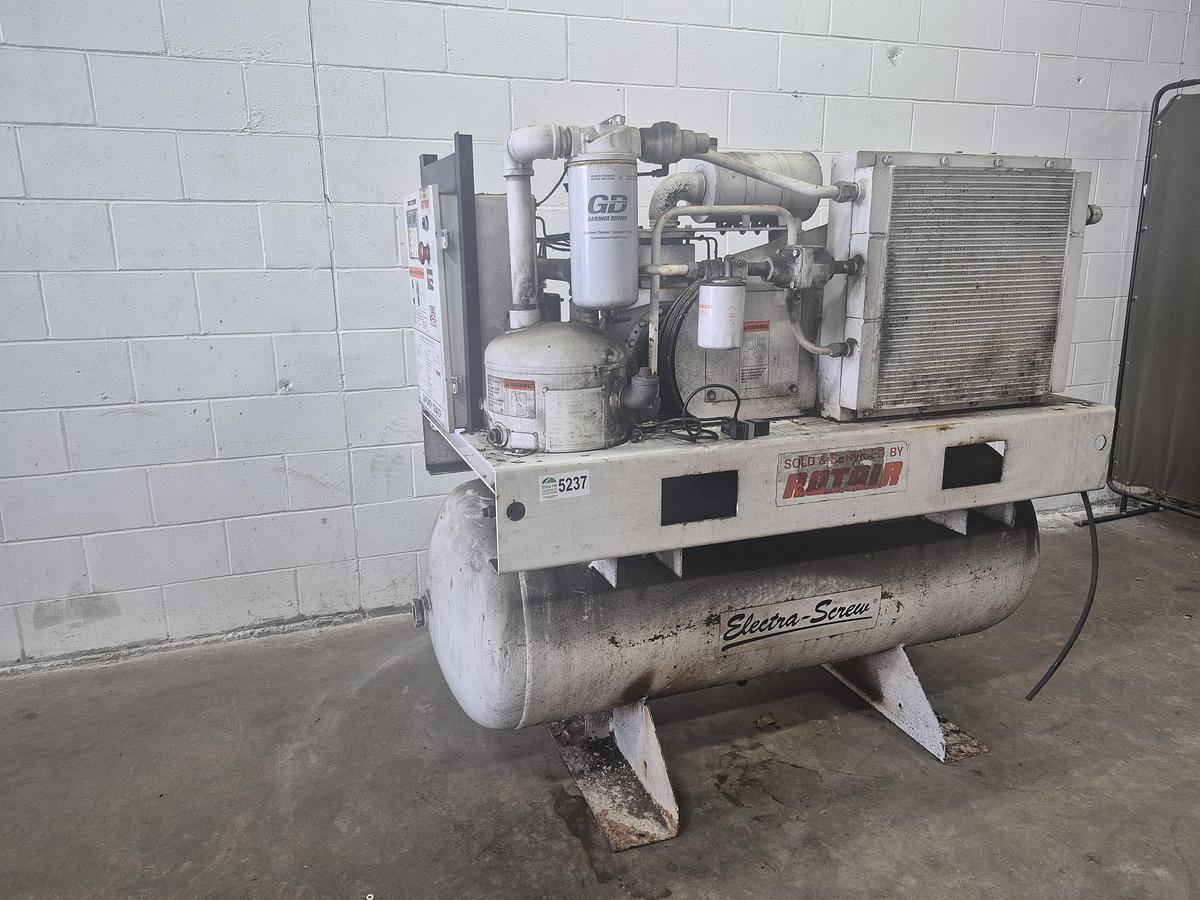

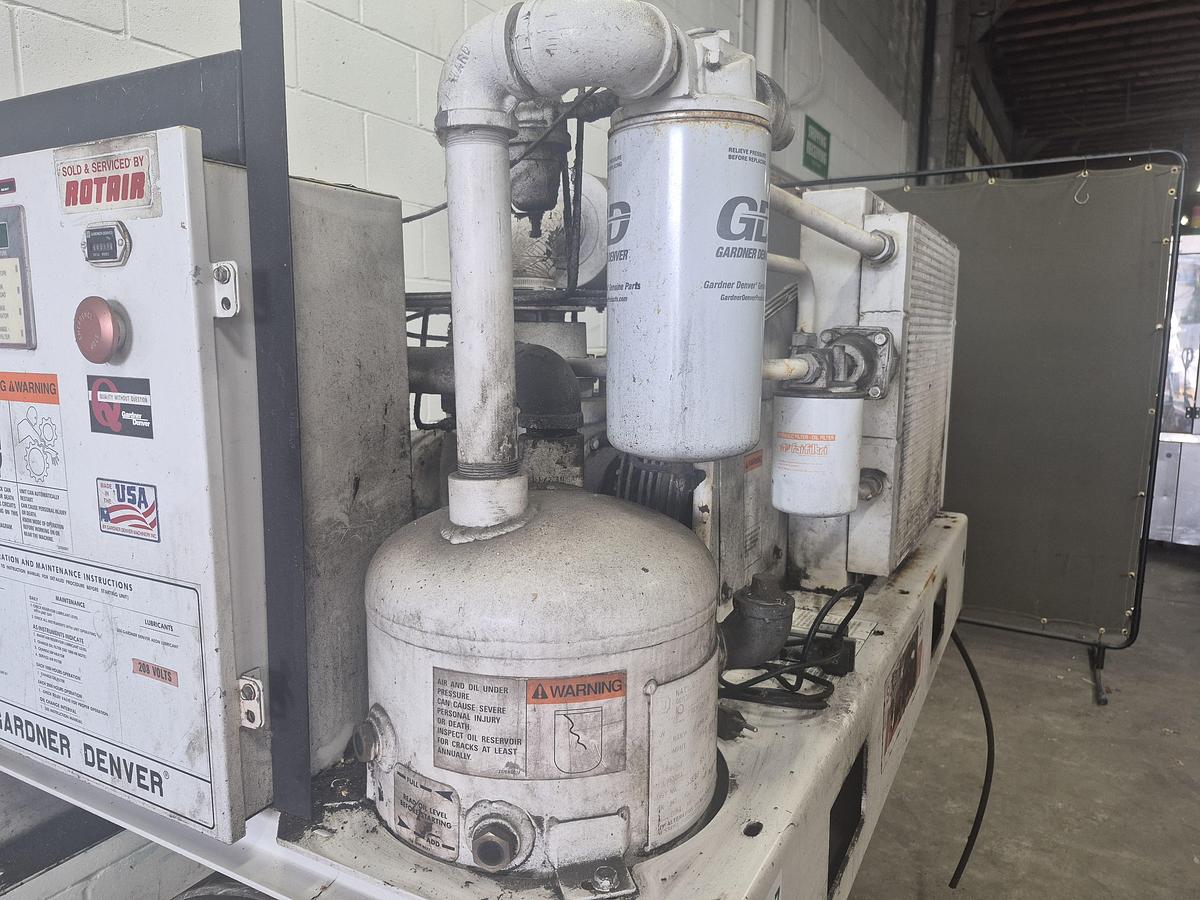

This is an industrial-grade rotary screw air compressor, designed to provide a high-volume, continuous supply of compressed air for demanding environments. Unlike smaller home-use compressors that cycle on and off, this unit is built for a 100% duty cycle, meaning it can run 24/7 without needing to stop and cool down.

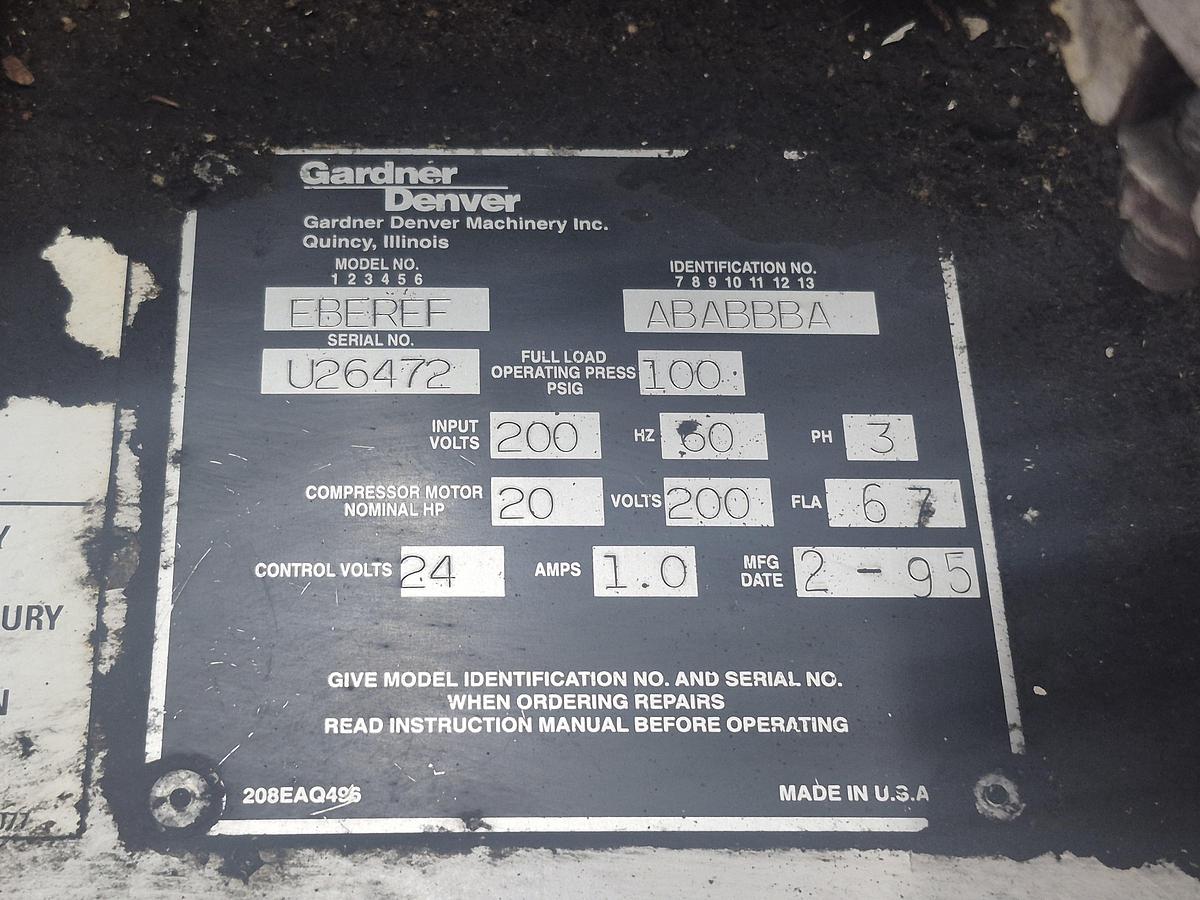

Specs:

• Compressor Motor: 20 Nominal HP
• Full Load Operating Pressure: 100 PSIG
• Input Electricals: 200 Volts / 60 Hz / 3 Phase
• Full Load Amps (FLA): 67

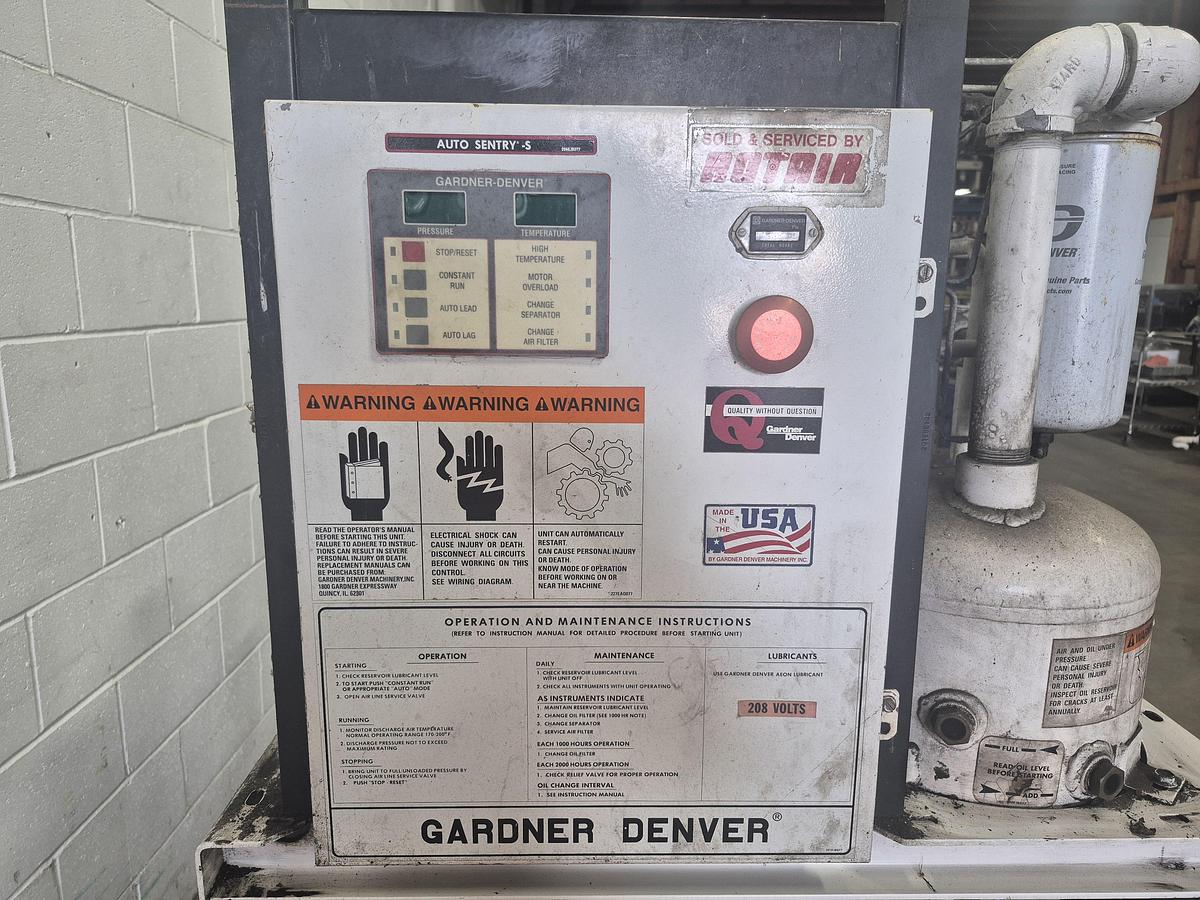

• Control Volts: 24

Because it produces a steady flow of air at 100 PSIG, this type of machine is typically used in the following sectors:

• Manufacturing & Fabrication: Powering heavy-duty pneumatic tools like air hammers, grinders, and sandblasters on assembly lines
• Automotive Workshops: Running large-scale painting systems, lifts, and impact wrenches in professional garages
• Food & Beverage Production: Operating automated packaging machinery and pneumatic conveying systems
• Specialized Facilities:  Supplying clean air for laboratory equipment, pharmaceutical manufacturing, or high-purity dental clinics

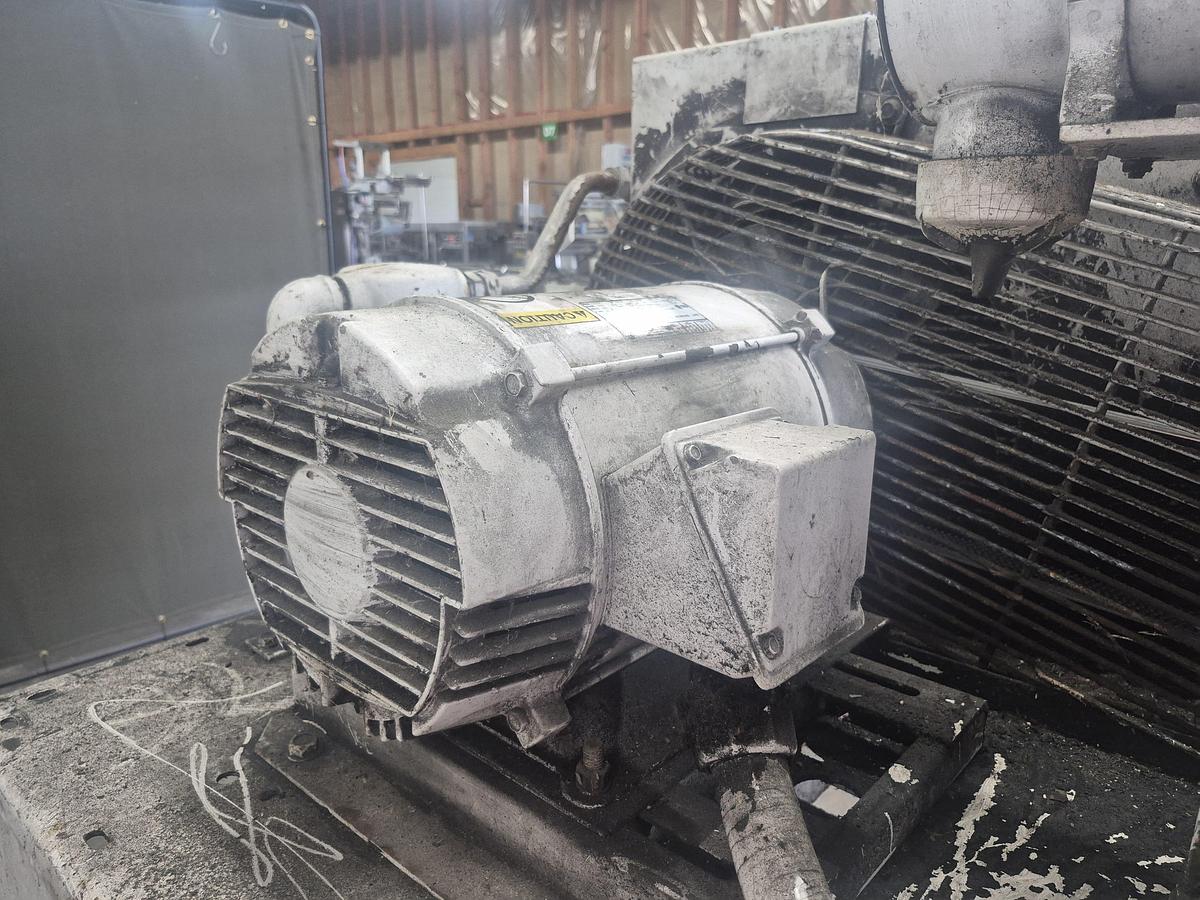

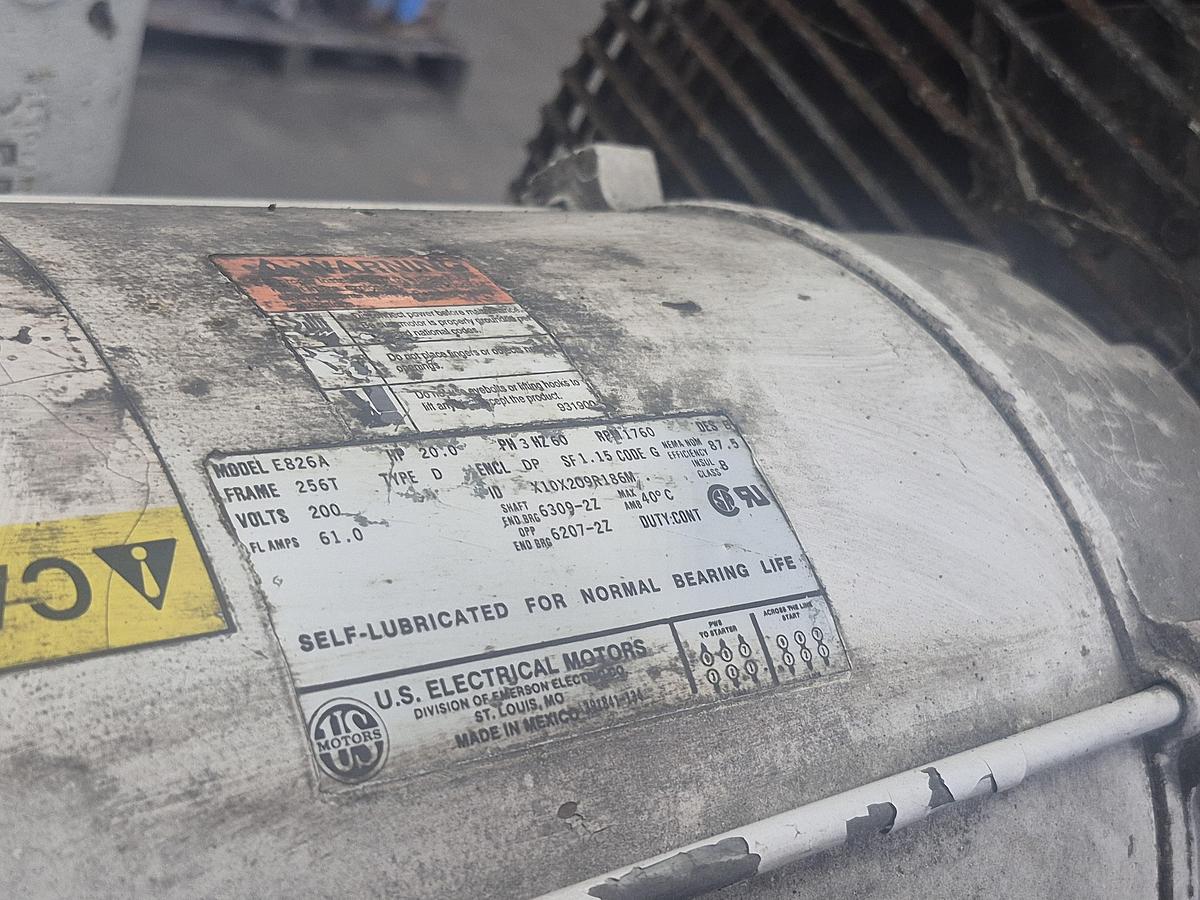

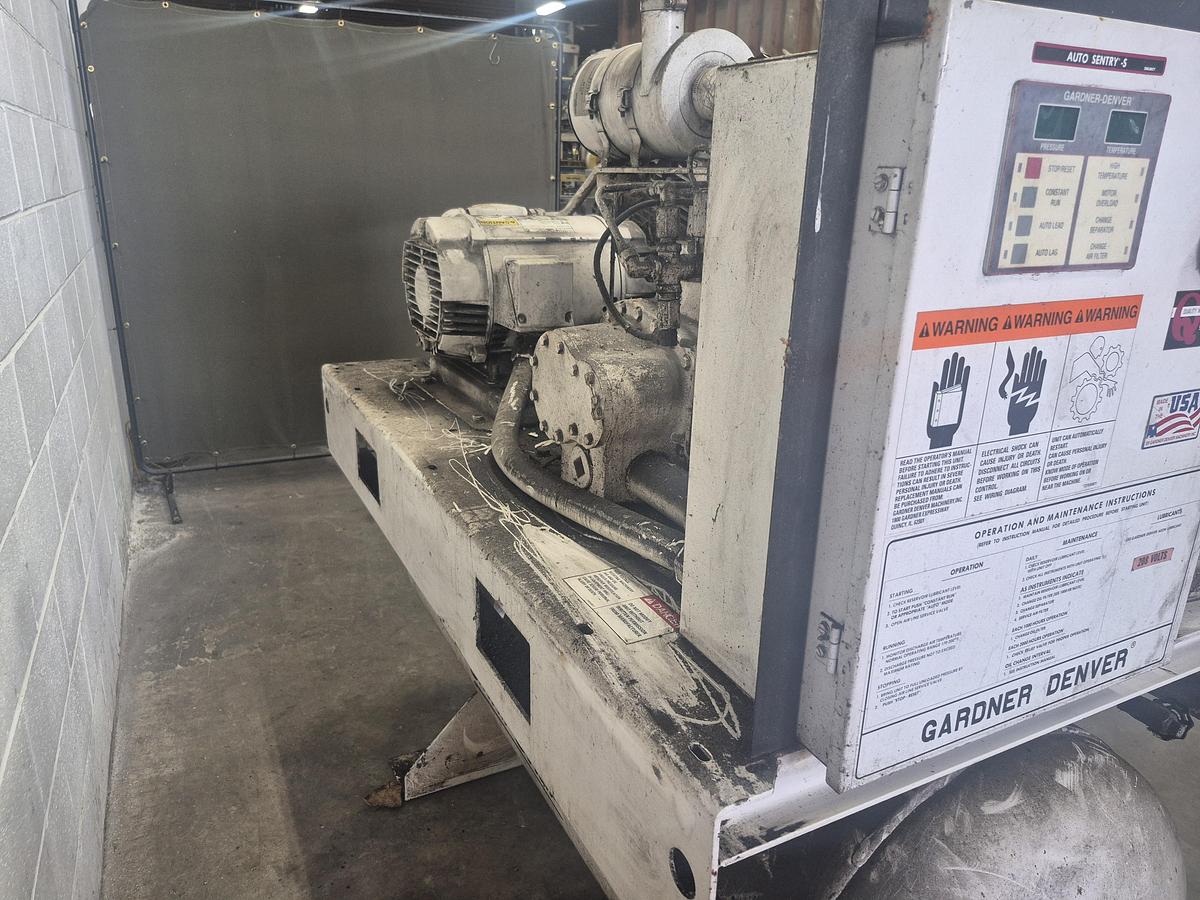

Electric Motors 20 HP Motor

• Model: E826A (Catalog No. E826)
• Voltage: 200V AC (Three-Phase)
• Speed: 1,760 RPM
• Amperage (FL Amps): 61.0
• Enclosure:  DP (Drip Proof), designed for indoor use where it is protected from falling liquids

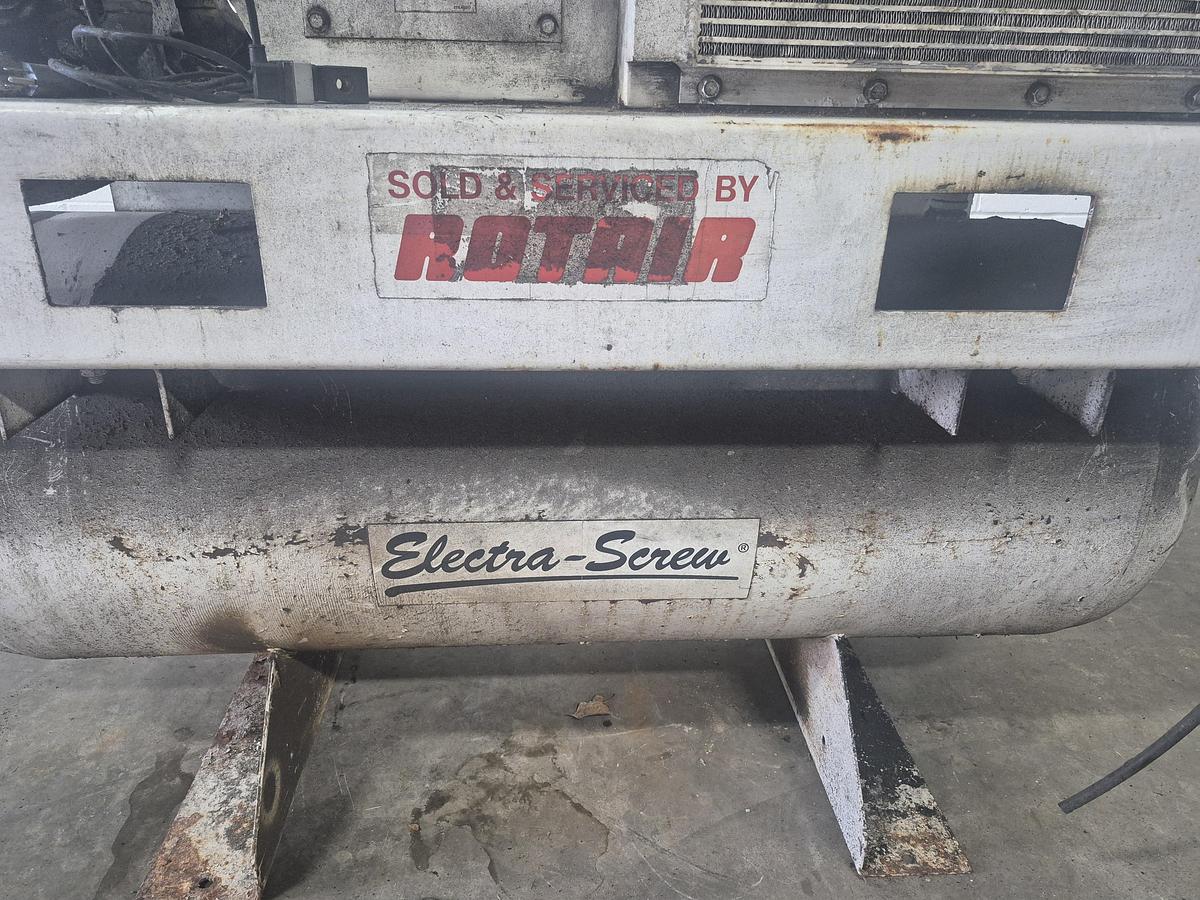

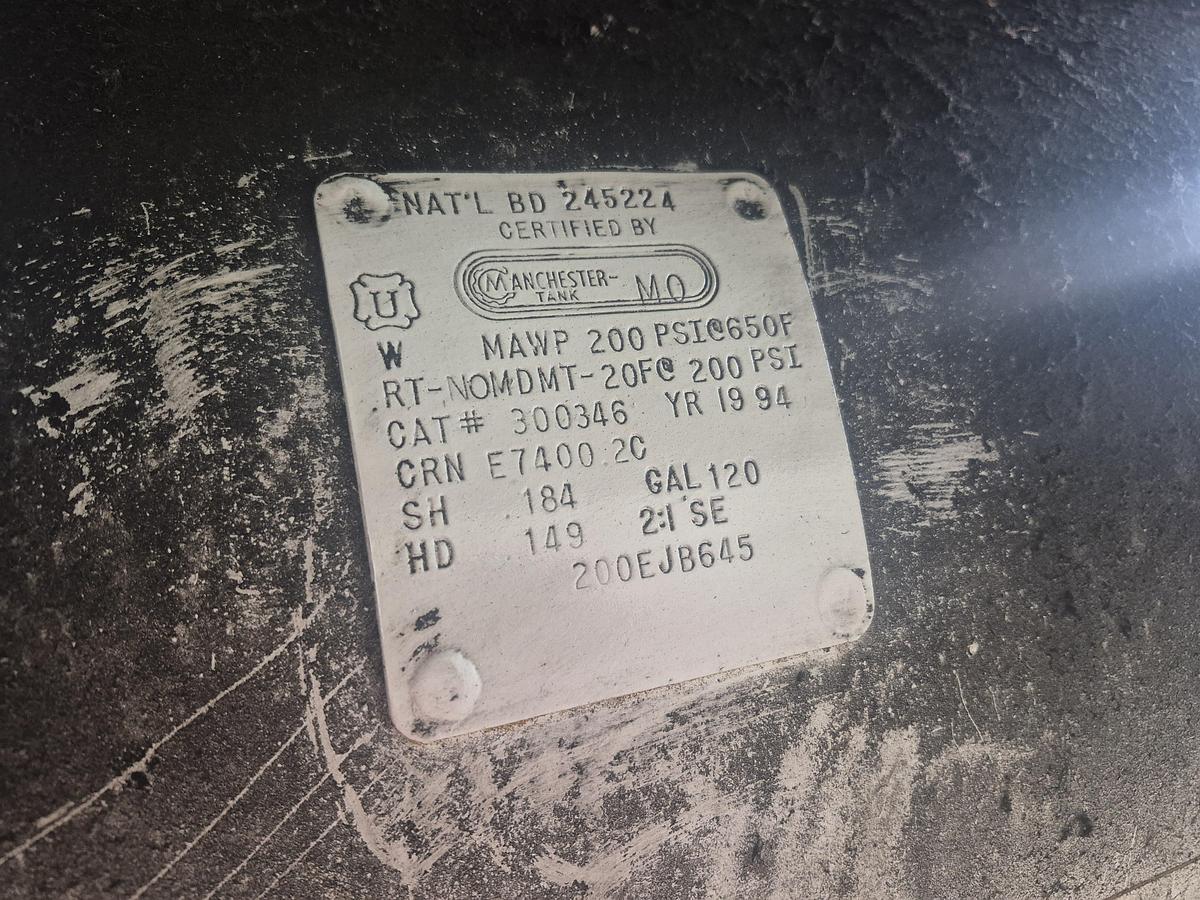

ASME 120-Gallon Air Receiver Tank

• Capacity: 120 Gallons
• MAWP: 200 PSI @ 650°F (Maximum Allowable Working Pressure at its design temperature)
• MDMT: -20°F @ 200 PSI (Minimum Design Metal Temperature)
• CRN:  E7400.2C (Canadian Registration Number)
