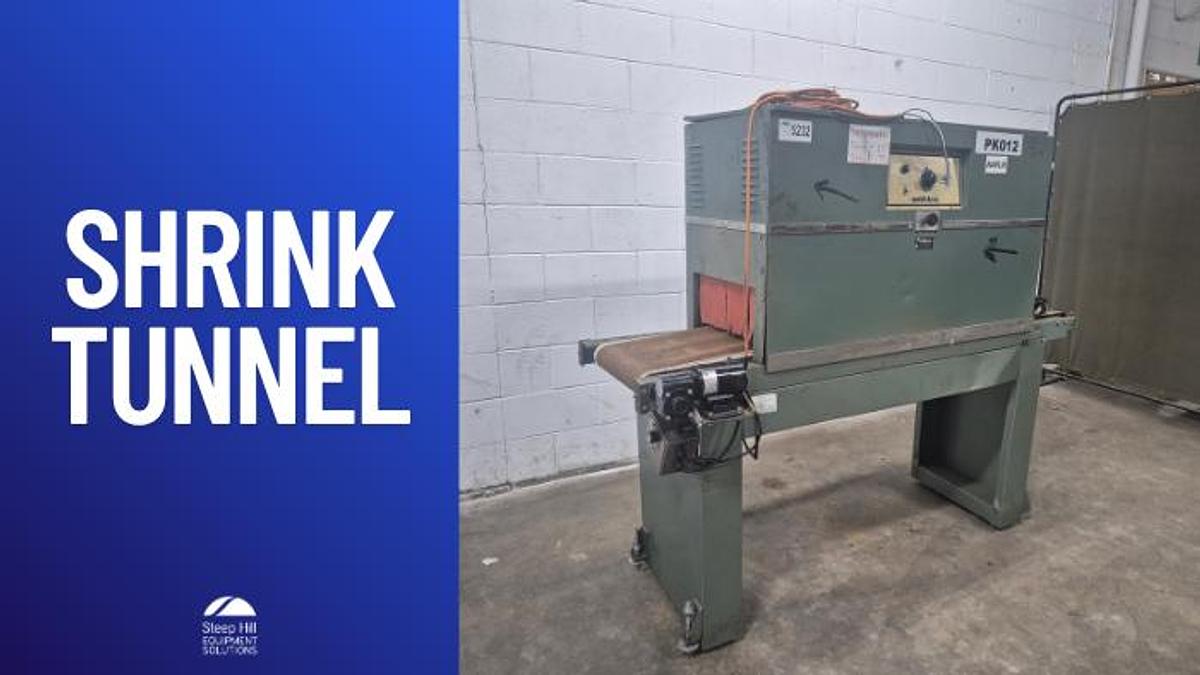

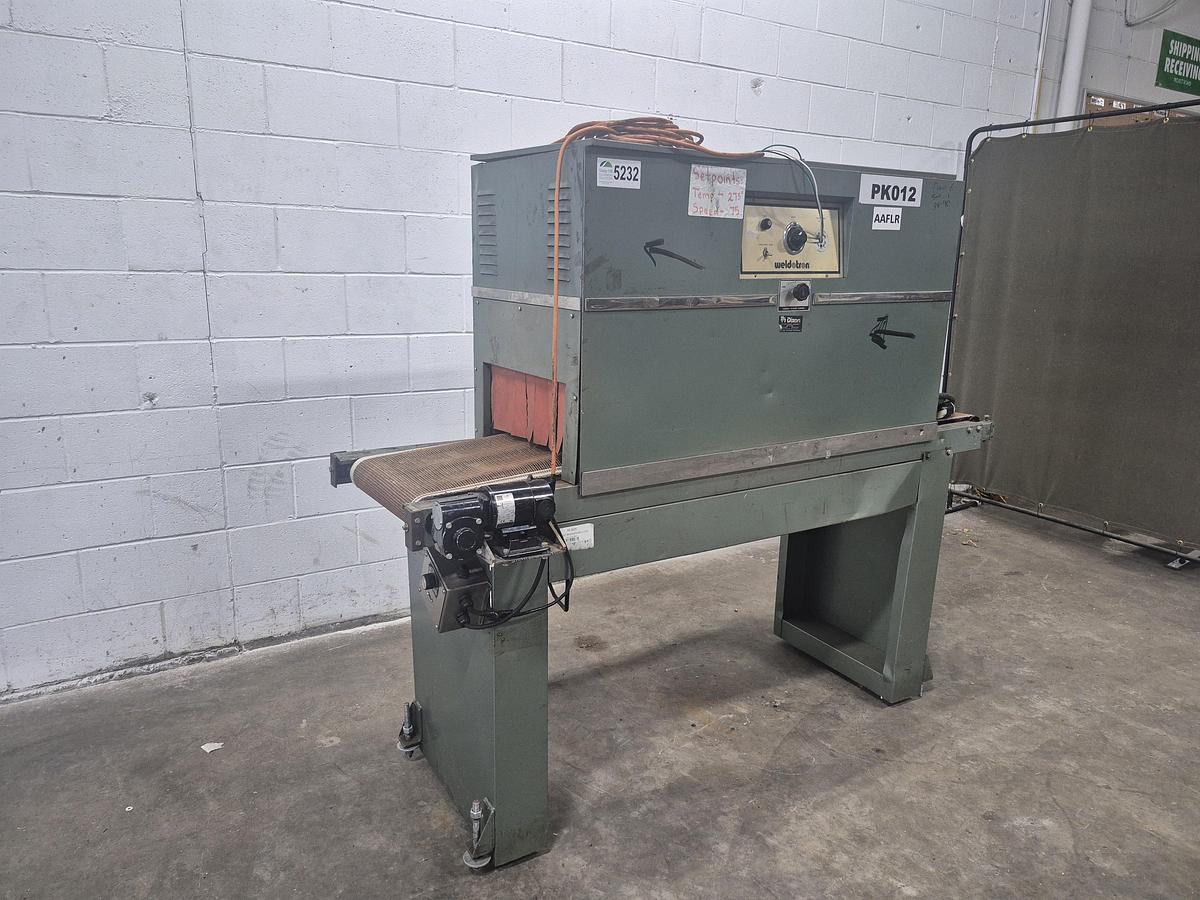

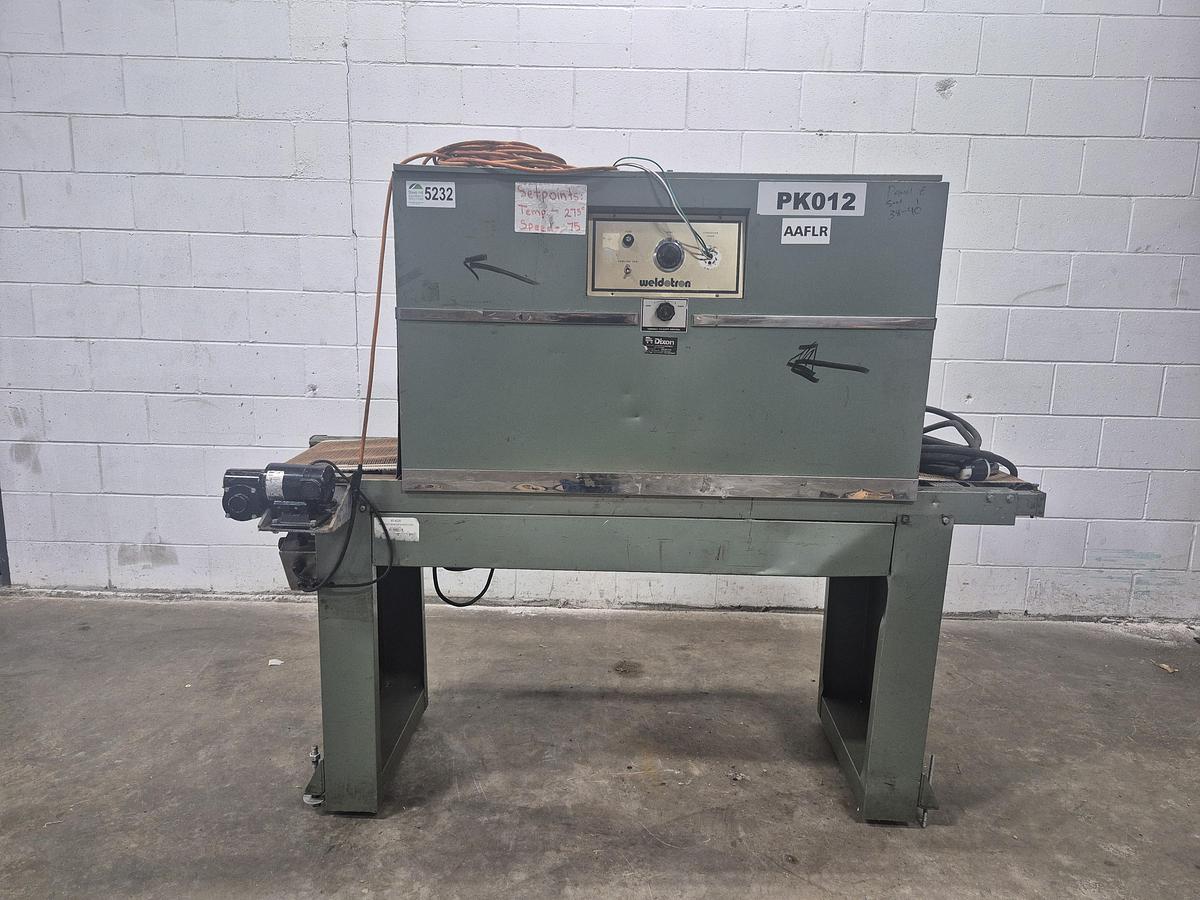

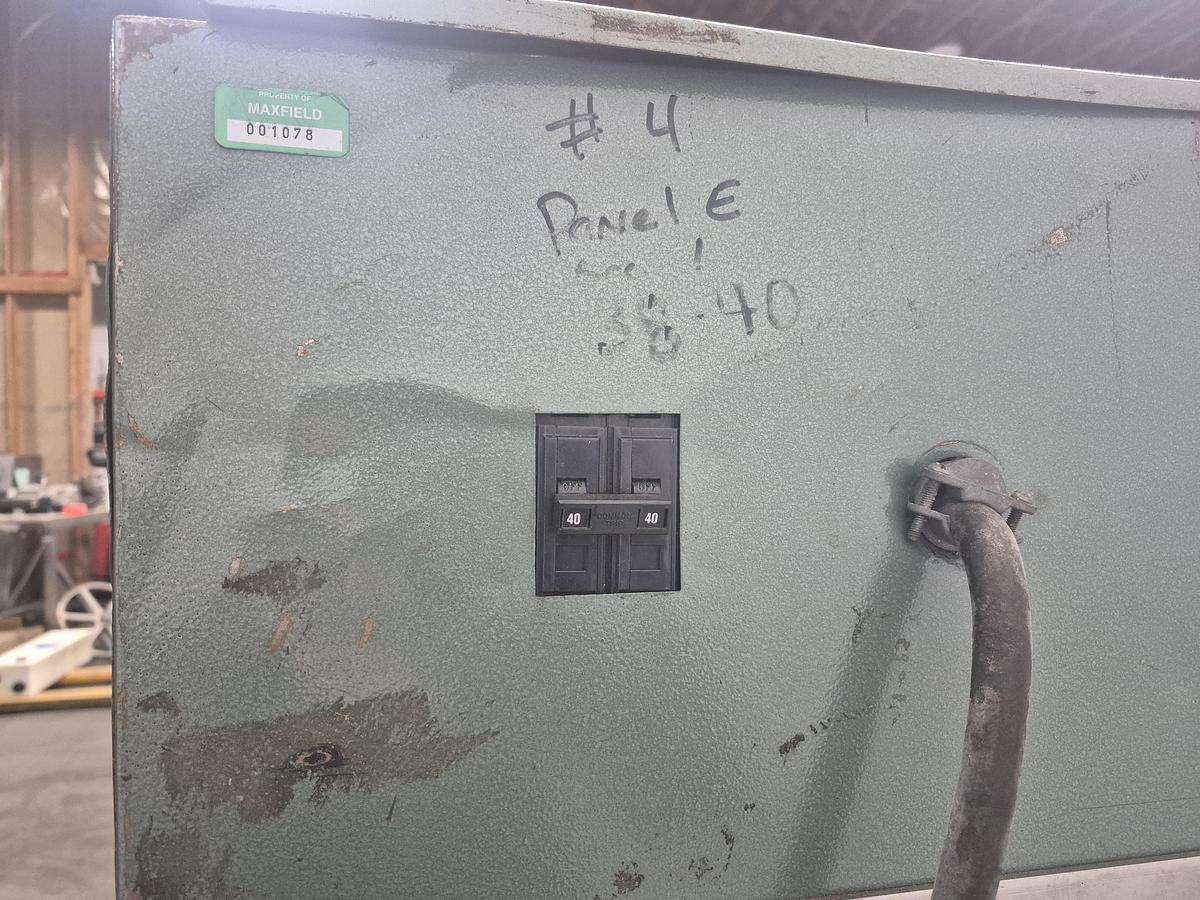

Weldotron 7121 Shrink Tunnel

Weldotron 7121 Shrink Tunnel

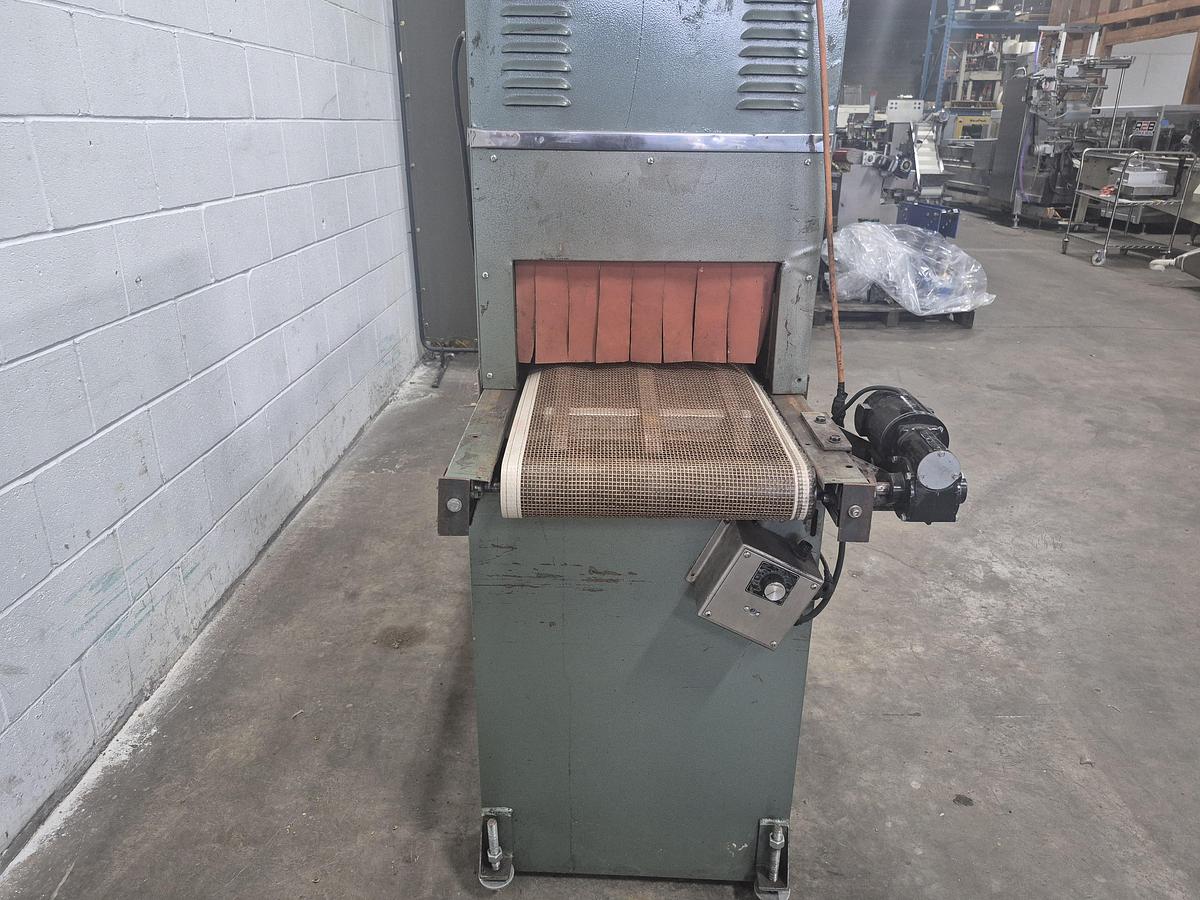

This industrial machine is a Weldotron 7121 Shrink Tunnel, which is used in high-volume production lines to shrink plastic film tightly around products.

Specs:

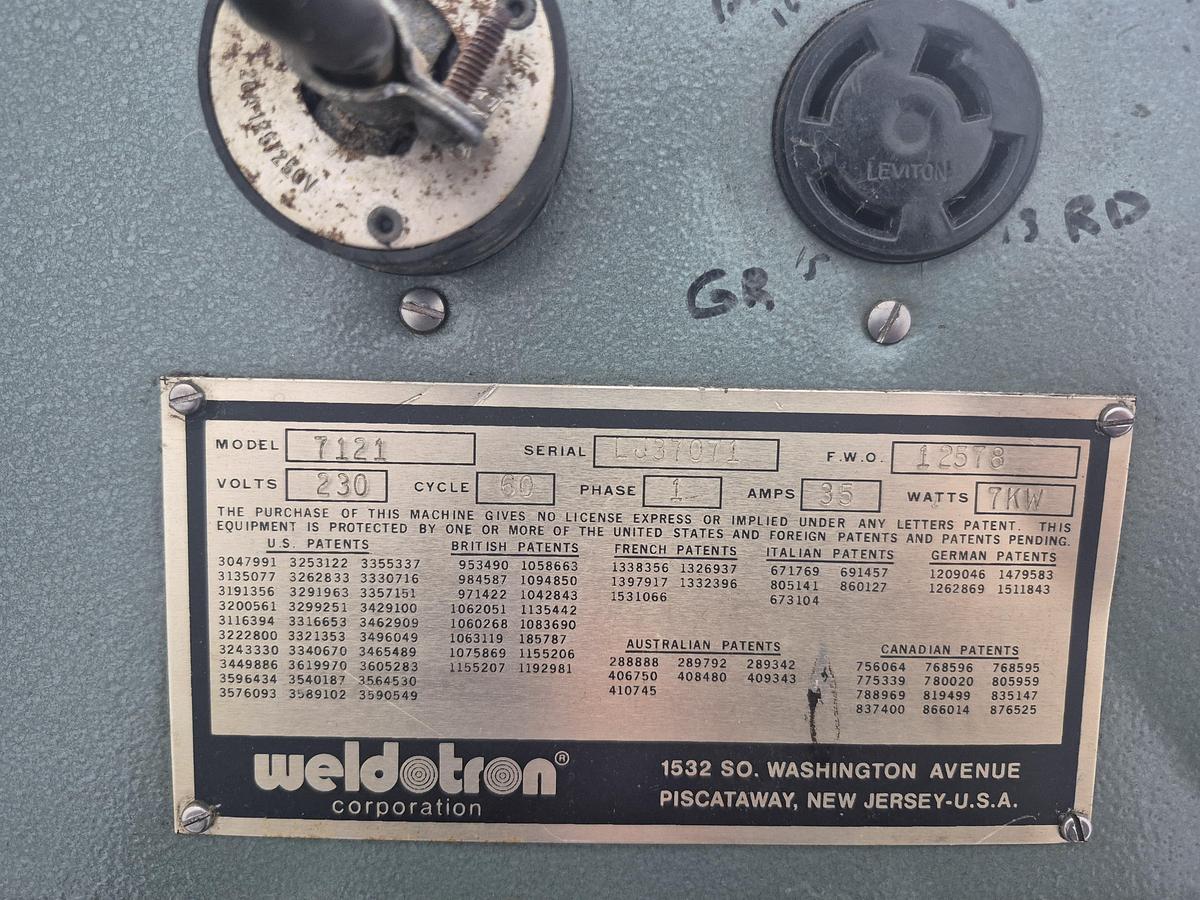

• Electrical: 230 Volts, Single Phase, 60 Cycles, 35 Amps, 7,000 Watts (7kW)

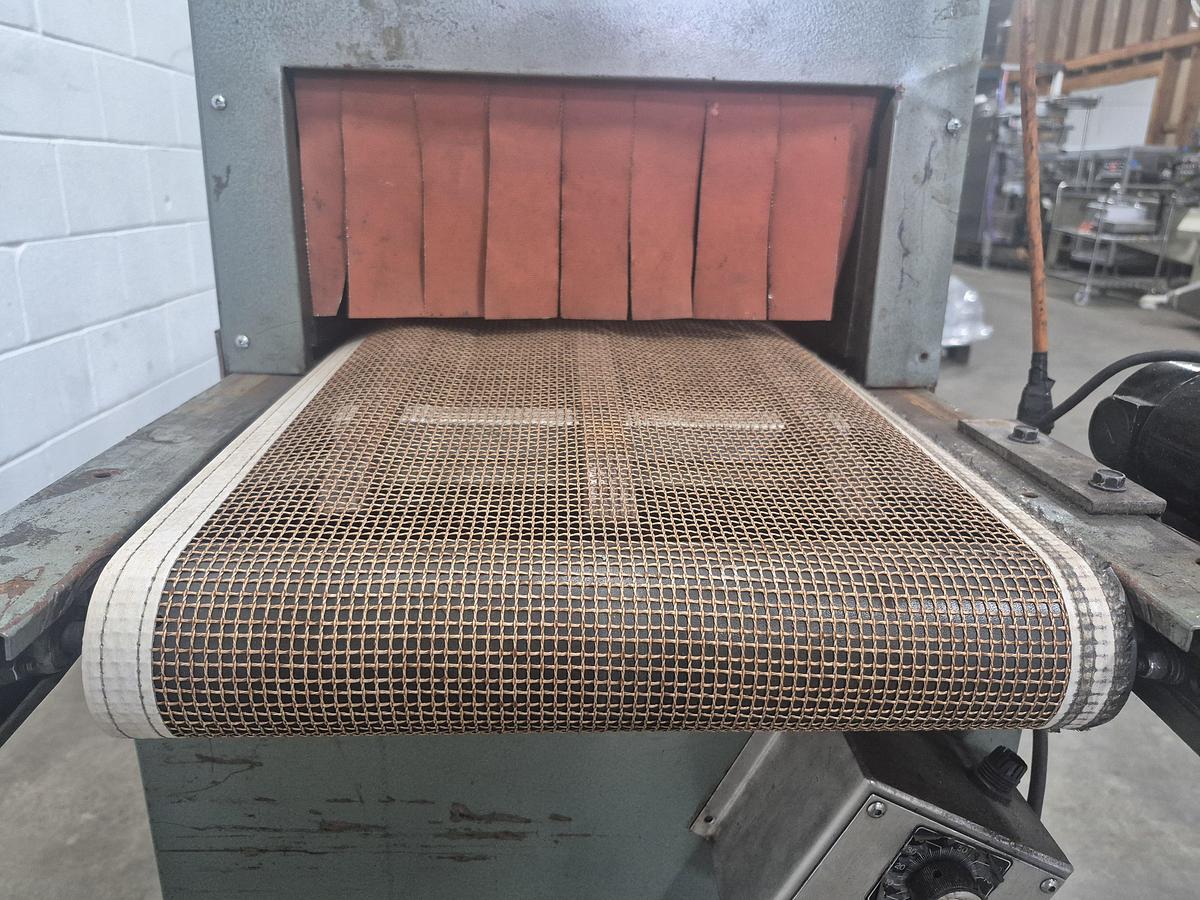

• Chamber Dimensions: 16" wide x 8" high aperture with a 46" to 47" long heating chamber

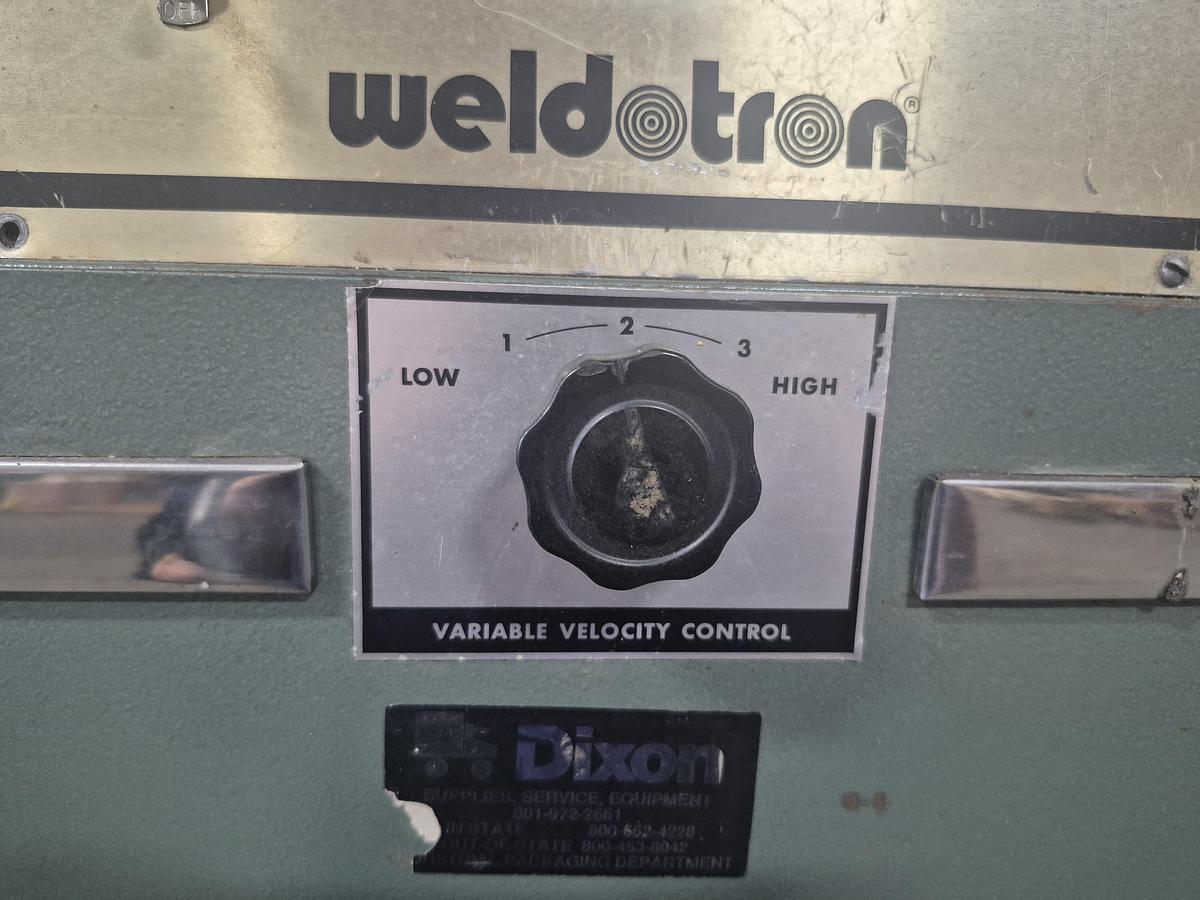

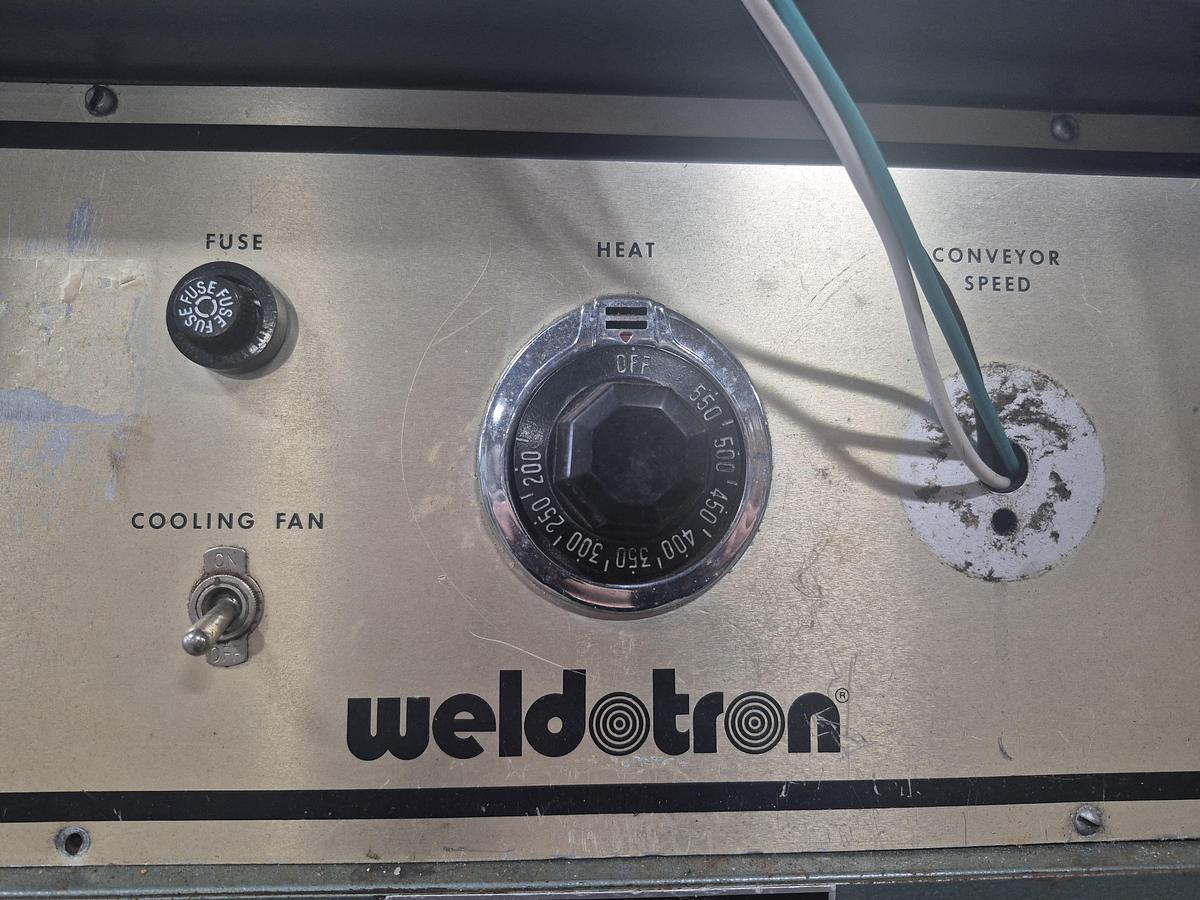

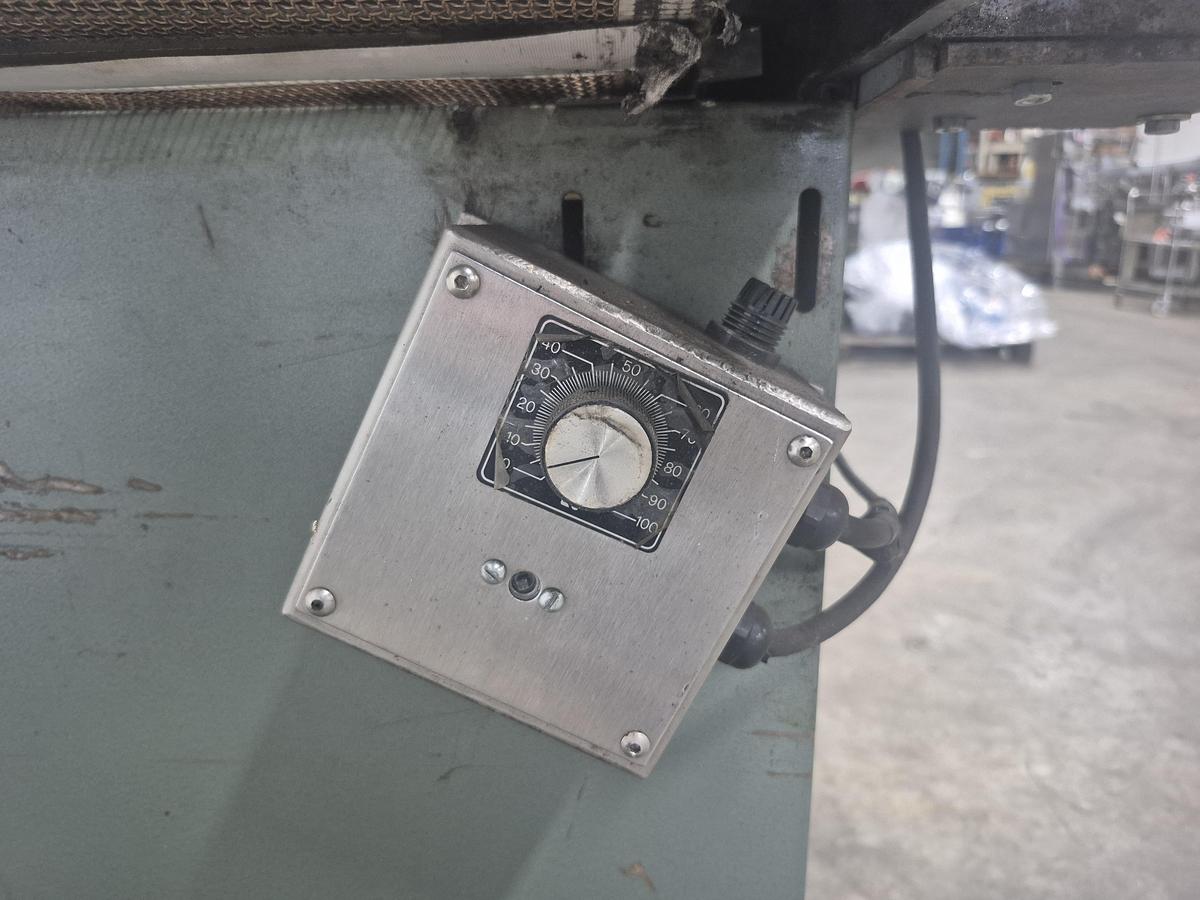

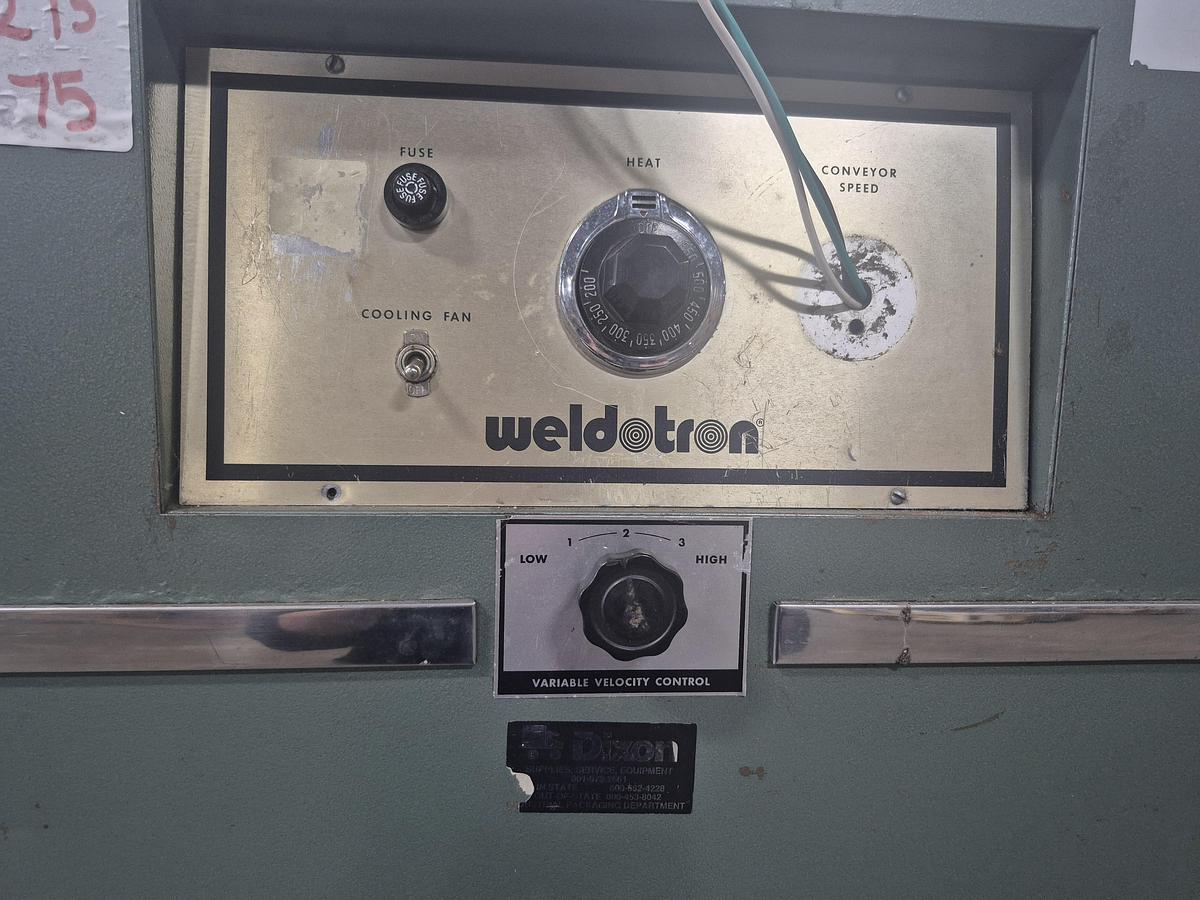

• Controls: Features adjustable analog temperature controls (up to 450°F) and variable conveyor speed
• Preparation: A product is wrapped in loose shrink film (often using a companion machine like an L-Bar Sealer)

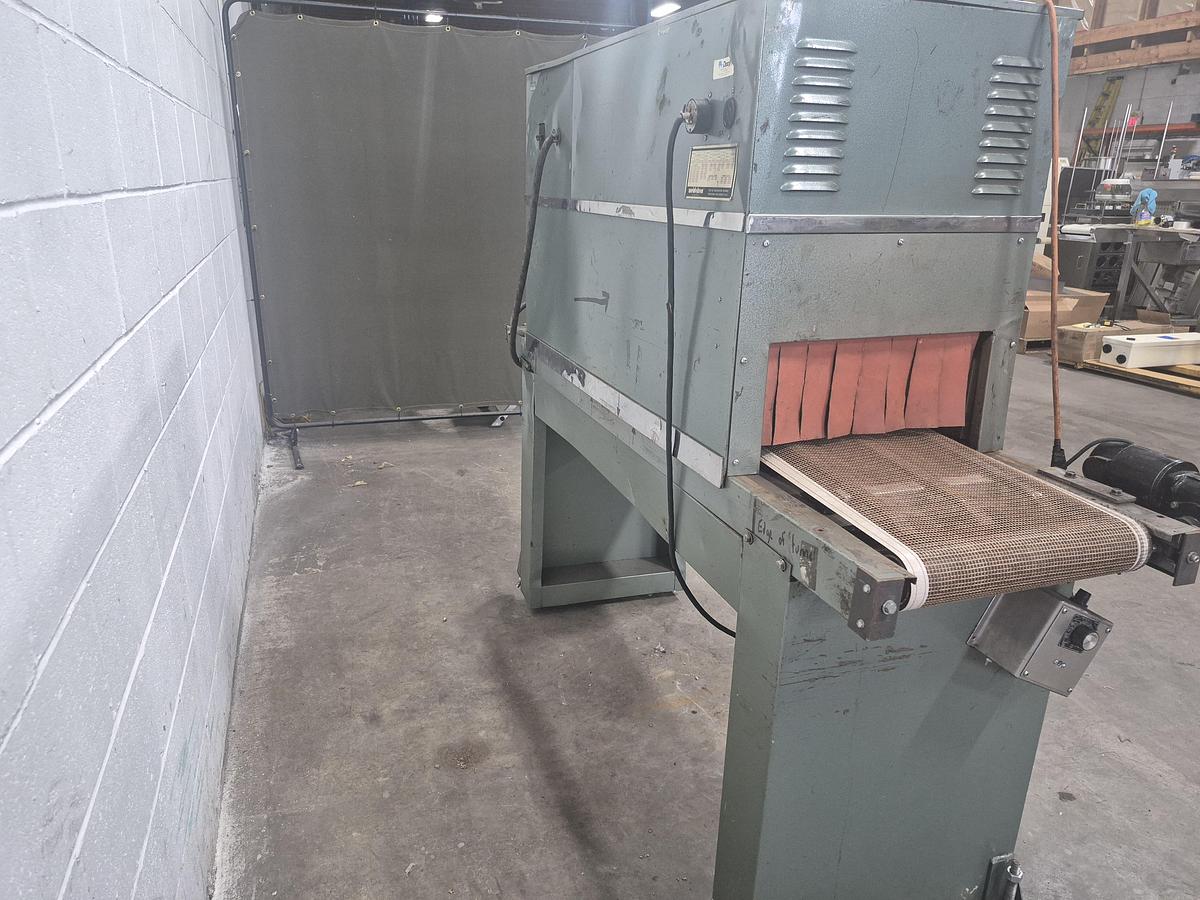

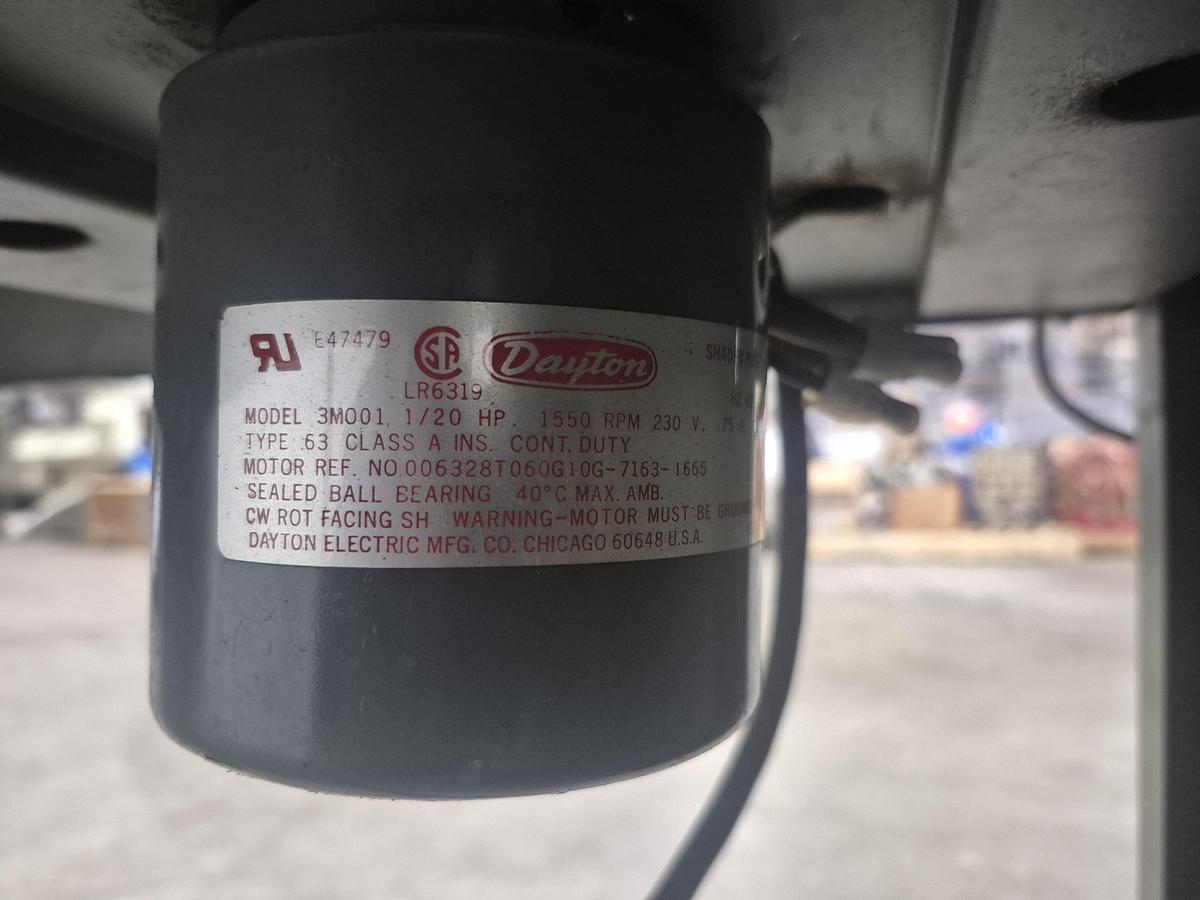

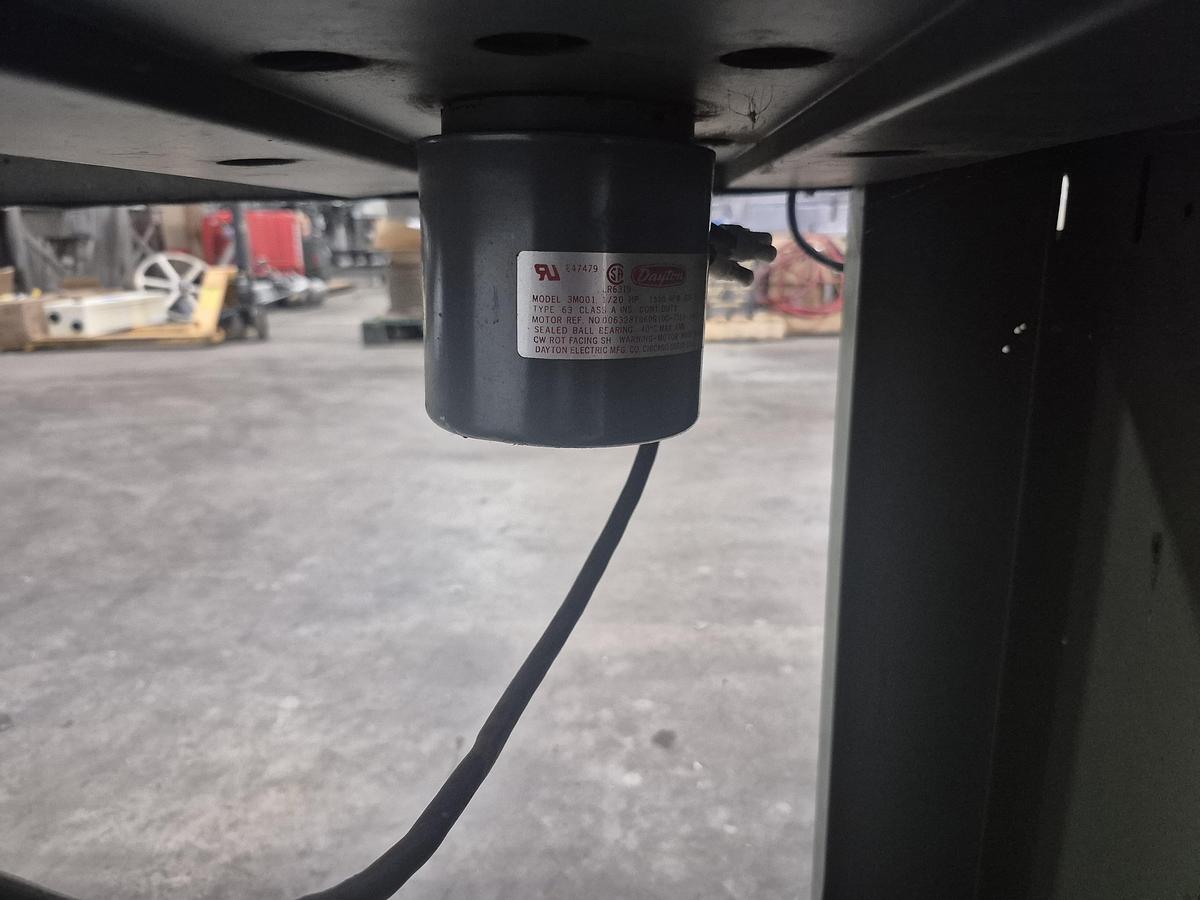

• Heating: As the conveyor carries the product through the tunnel, a "heater bank" and blower motors circulate hot air
• Shrinking: The heat causes the molecules in the plastic film to contract, pulling the film tightly and uniformly around the product’s shape
• Cooling:  The product exits the tunnel with a finished, professional-looking "shrink-wrapped" seal

It is typically used for primary and secondary packaging of various items, such as:

• Retail Goods: Board games, software boxes, and frozen pizza boxes
• Bundling: Grouping multiple items together, like multi-packs of water bottles or cans
• Protection & Tamper-Evident Seals: Applying protective sleeves or tamper-evident bands to bottles and containers
