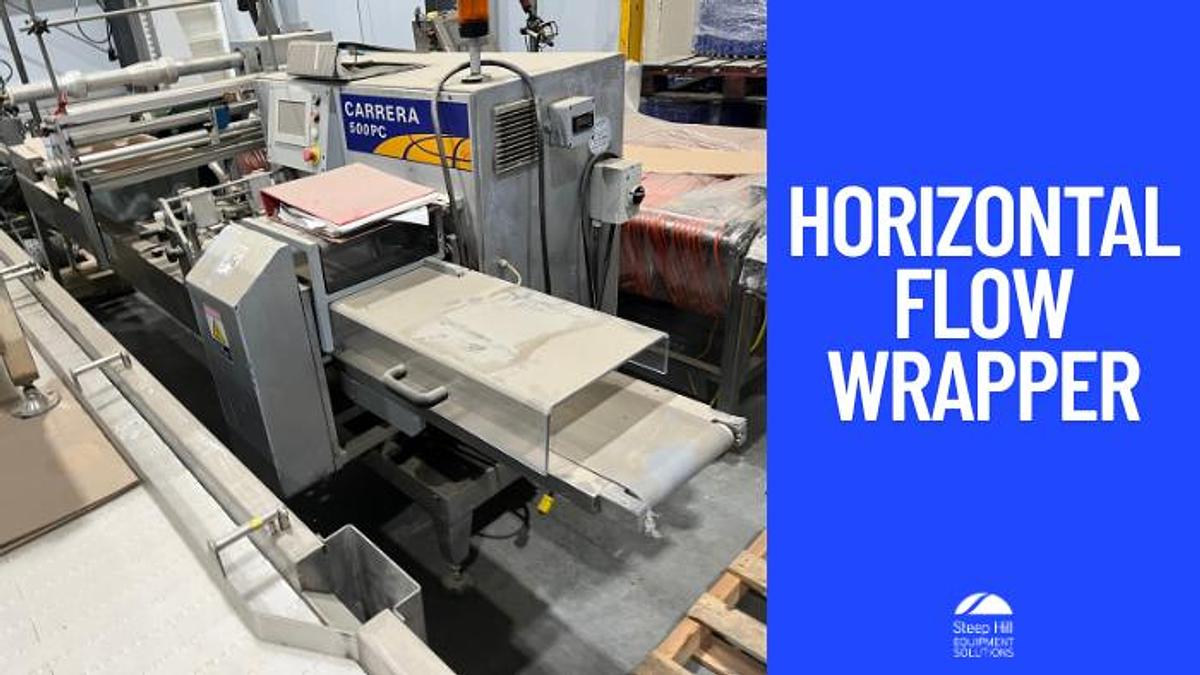

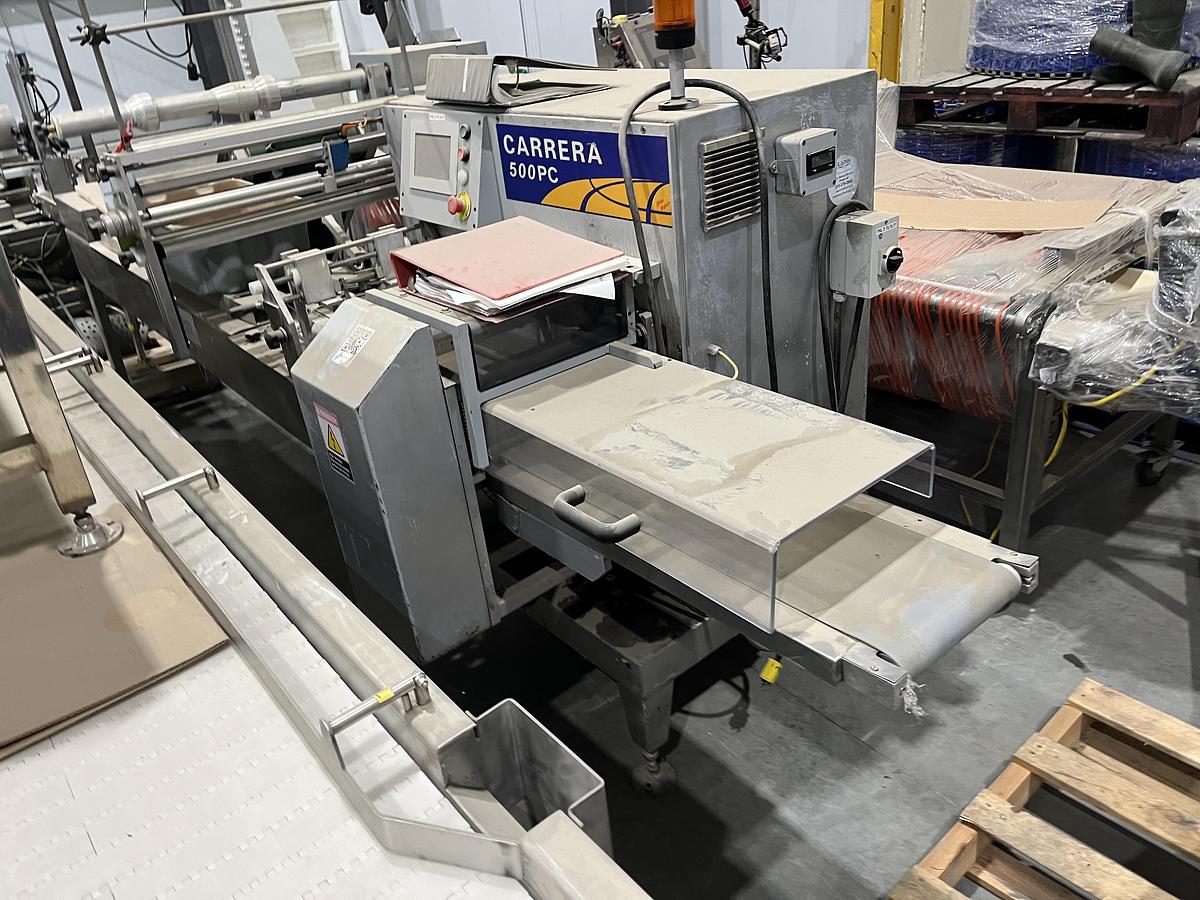

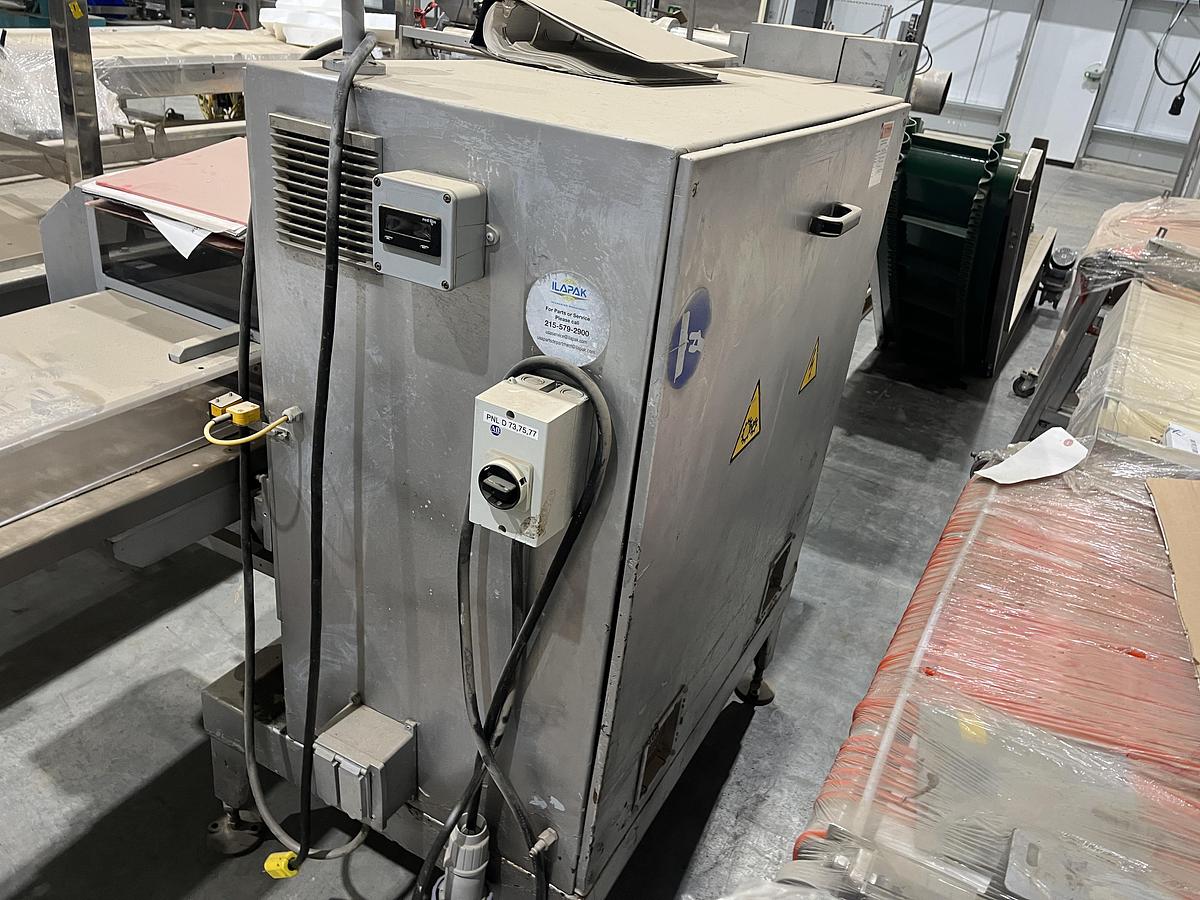

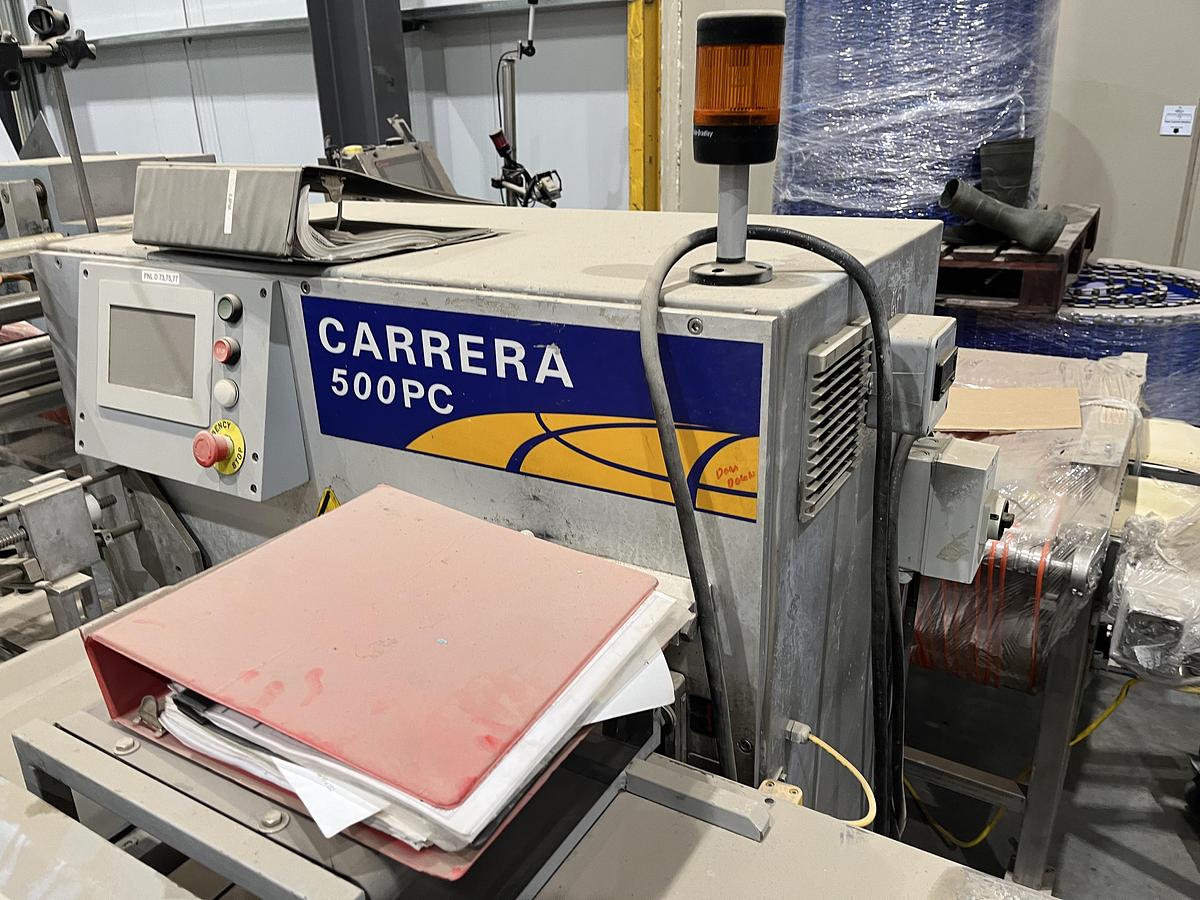

Ilapak Carrera 500PC Horizontal Flow Wrapper

Ilapak Carrera 500PC Horizontal Flow Wrapper

Is an electronically controlled horizontal form-fill-seal (HFFS) flow wrapper designed for mid-range, multipurpose packaging applications. It is widely used in industries such as bakery, confectionery, and fresh produce.

Specs:

• Production Speed: Up to 100 cycles per minute (cpm) with a single jaw, or up to 200 cpm with twin jaws
• Production Dimensions: Length - 50 mm to 550 mm (2" – 21.6") | Width - 20 mm to 230 mm (0.8" – 9") with standard 250 mm jaws; up to 300 mm (11.8") with 325 mm jaws | Height - Up to 90 mm (3.5") or 120 mm (4.7") depending on the jaw center configuration
• Film Specifications: Maximum Width - 650 mm (25.6") | Maximum Reel Weight - 40 kg (88 lbs) | Reel Core/Outer Diameter - 76 mm (3") core; 350 mm (13.8") outer diameter
• Power: 220V to 480V, 50/60 Hz, 3-phase, typically 5.0 kW
• Compressed Air: 6 bar at 1 L/min
• Control System: PLC-controlled with a simple-to-use operator interface (typically a TFT touchscreen) and 64-99 program memory
• Drive Technology:  Multi-axis drive system with independent circuits for product infeed, sealing rollers, and rotary sealing jaws
• Waste Reduction: Features "No Product / No Bag" technology to prevent empty packages and misplaced product detection to avoid jaw damage
• Hygiene: Often built with a cantilevered body design and available in stainless steel versions for easier wash-down and improved hygiene
