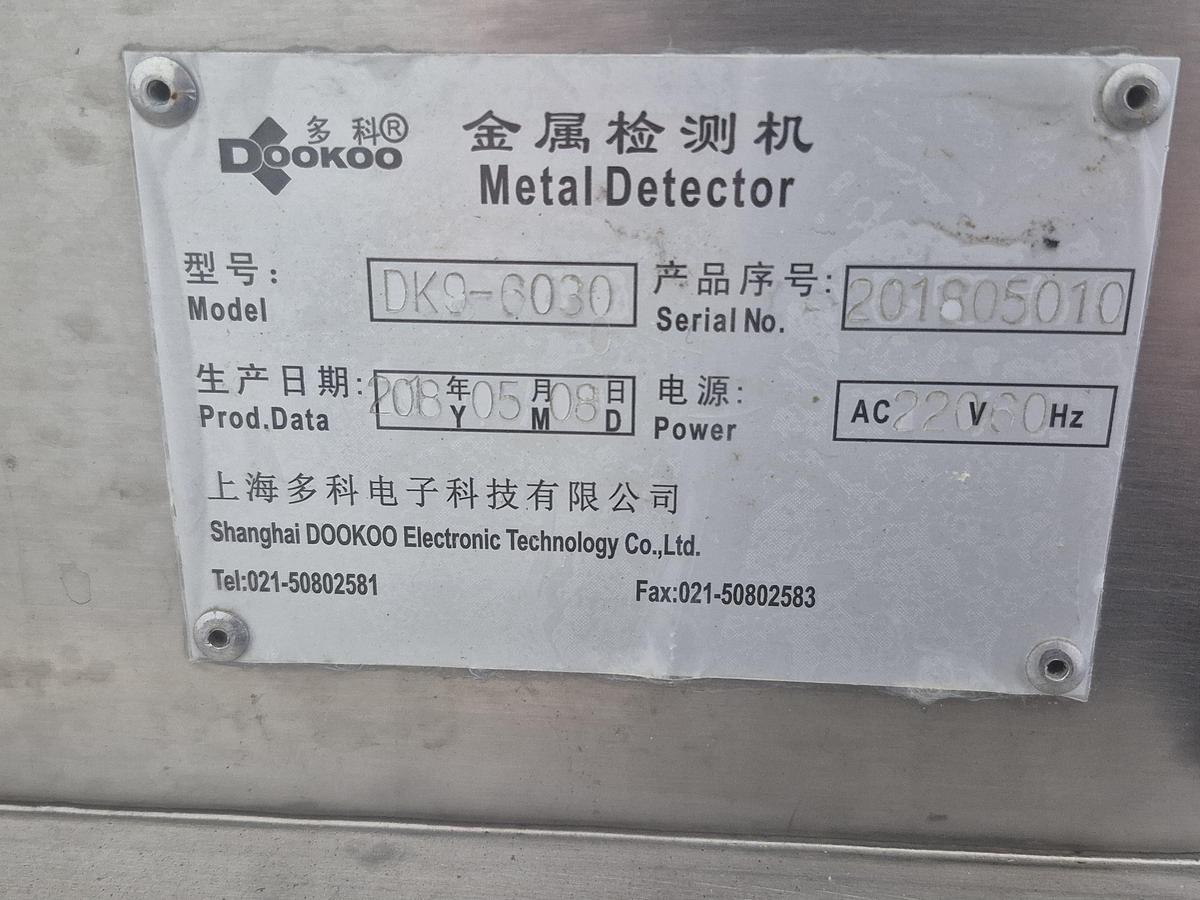

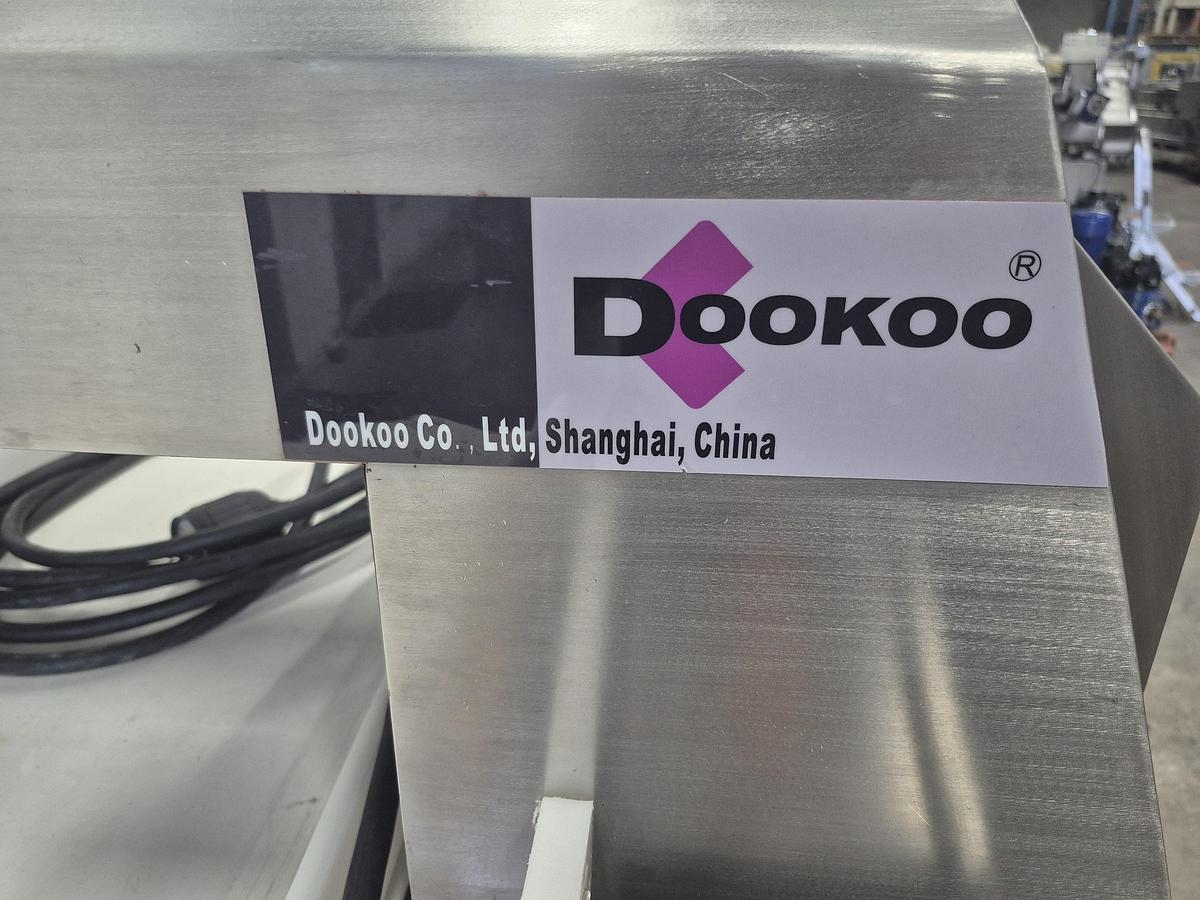

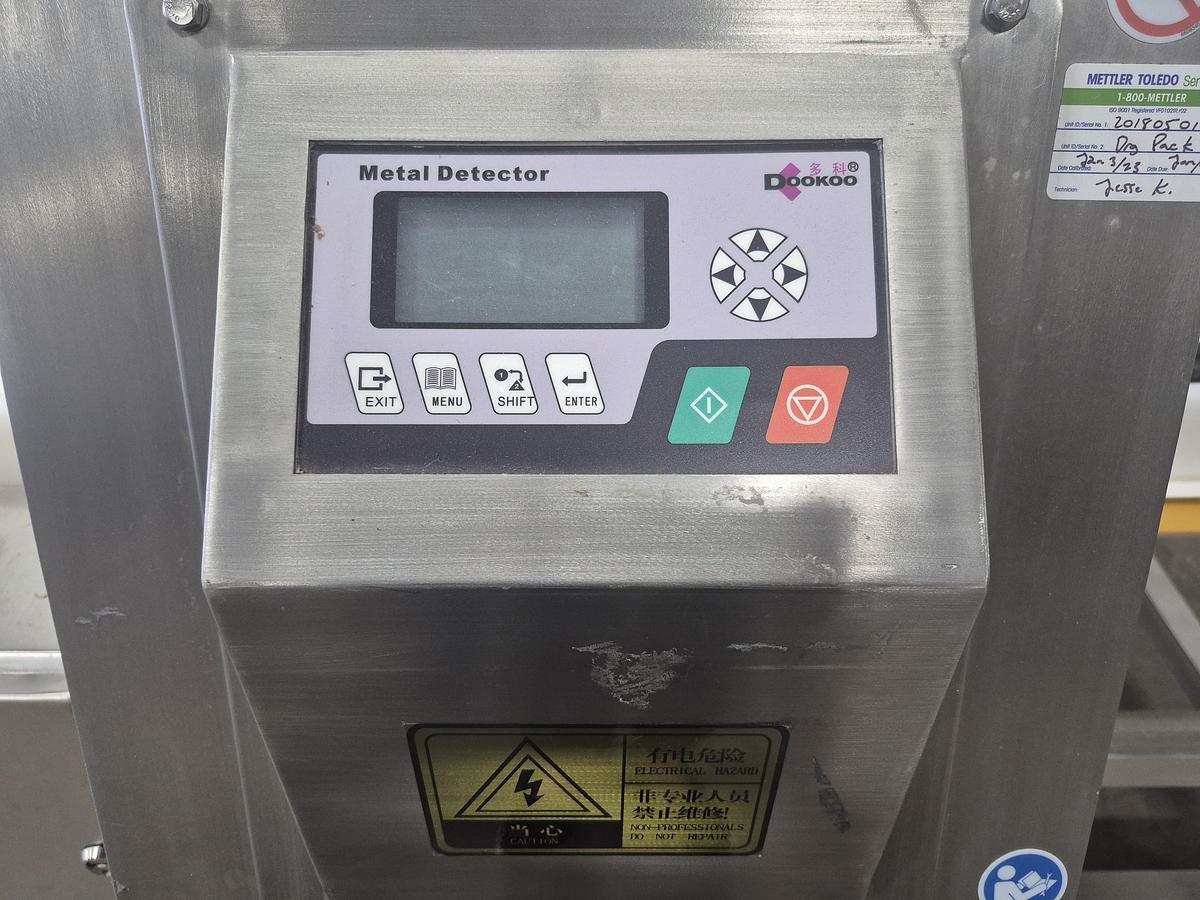

Dookoo DK9-6030 Metal Detector

Dookoo DK9-6030 Metal Detector

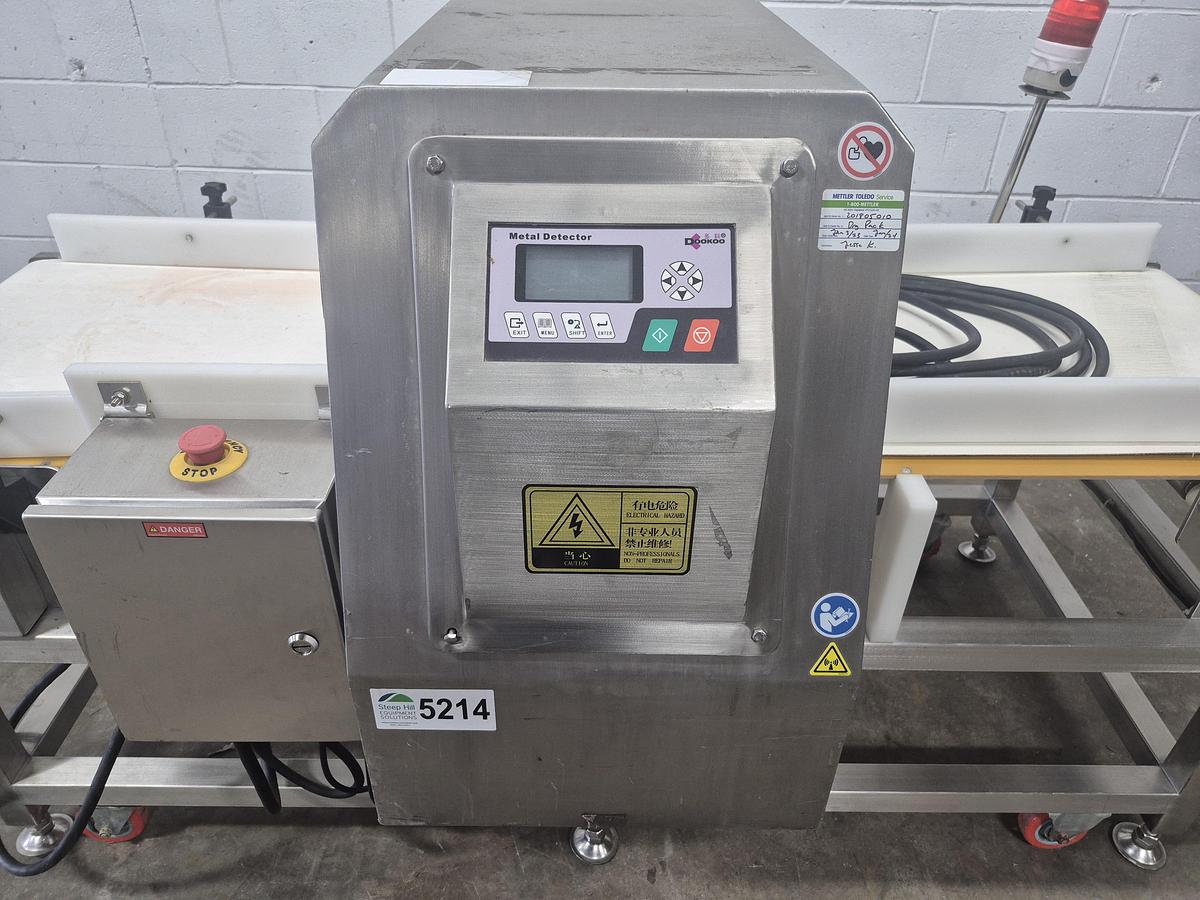

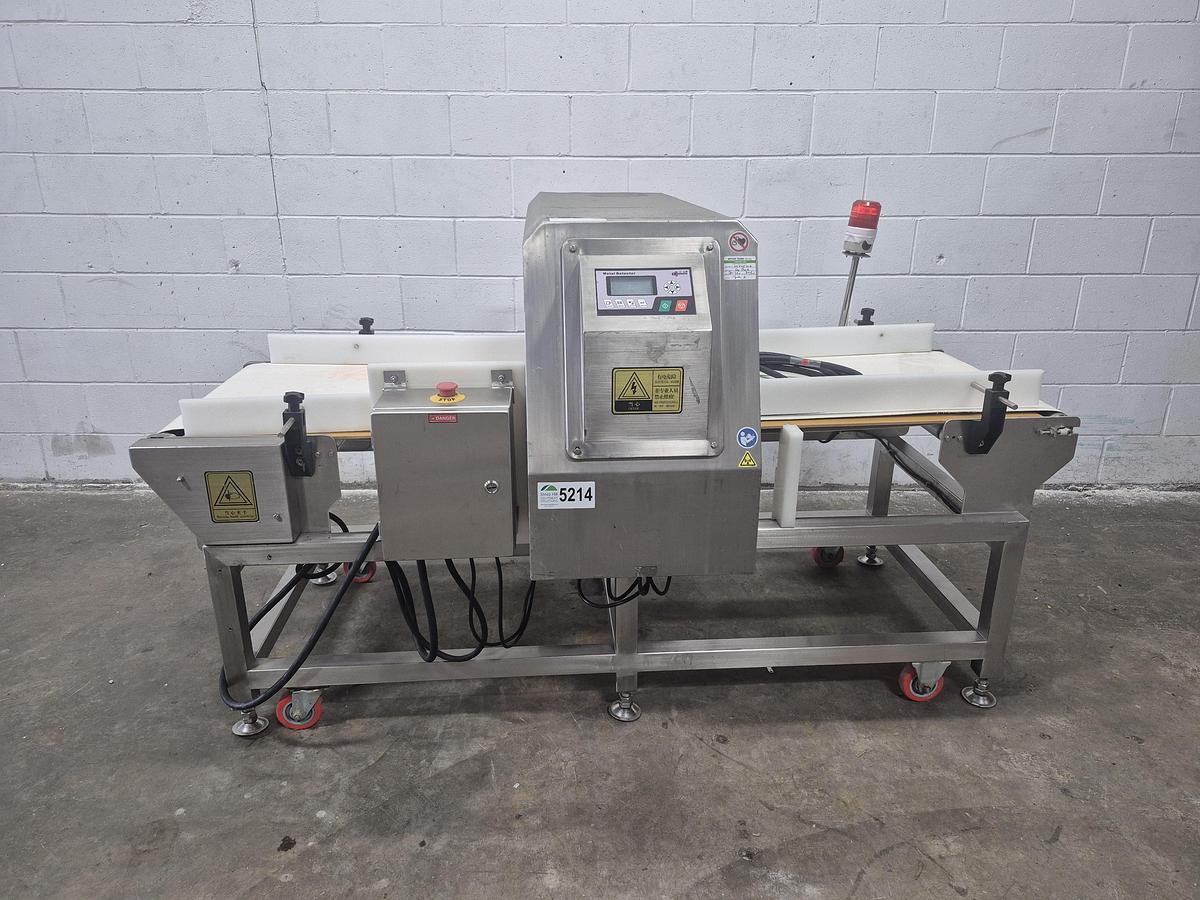

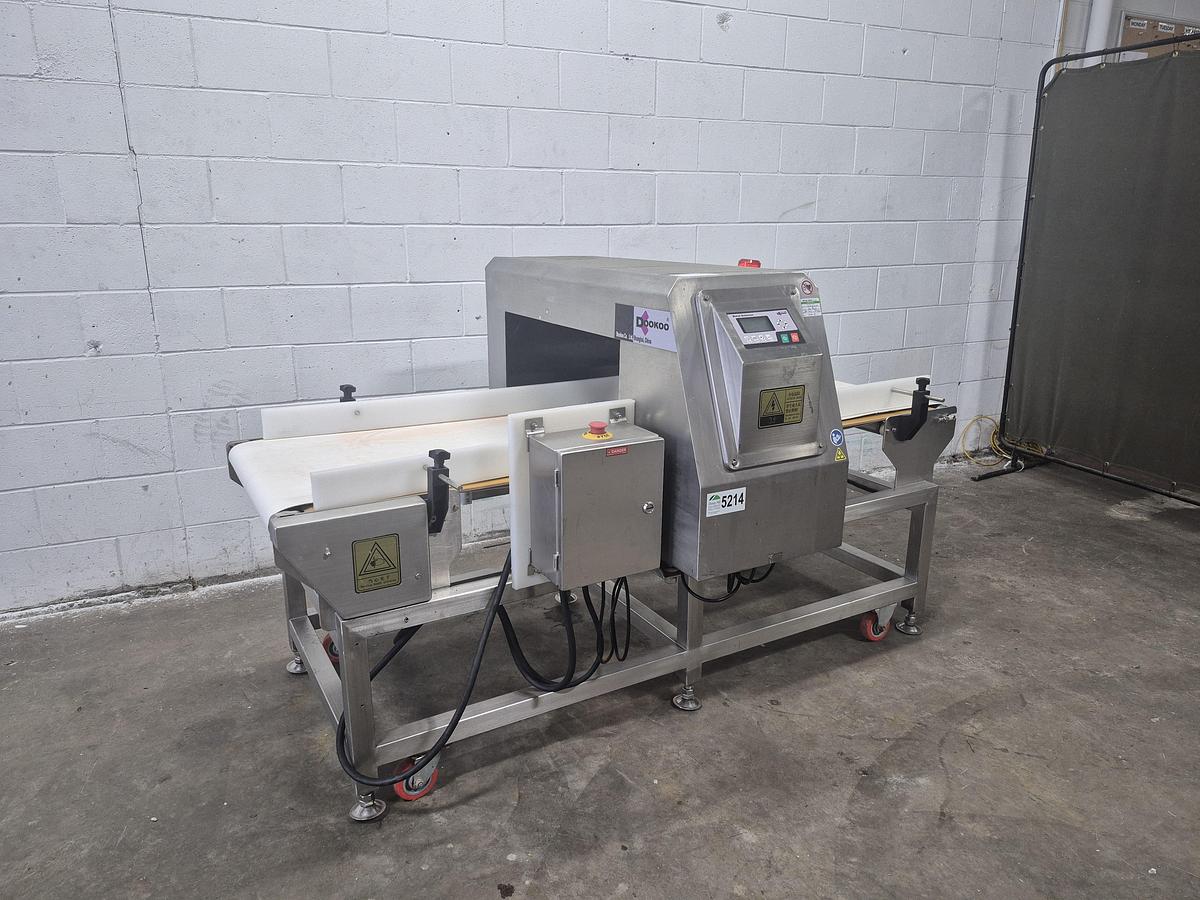

This industrial unit is a conveyor-style metal detector primarily used for quality control and safety in manufacturing.

Specs:

• Aperture: 16.75″L x 26″W x 13″H, from belt: 11.5″H

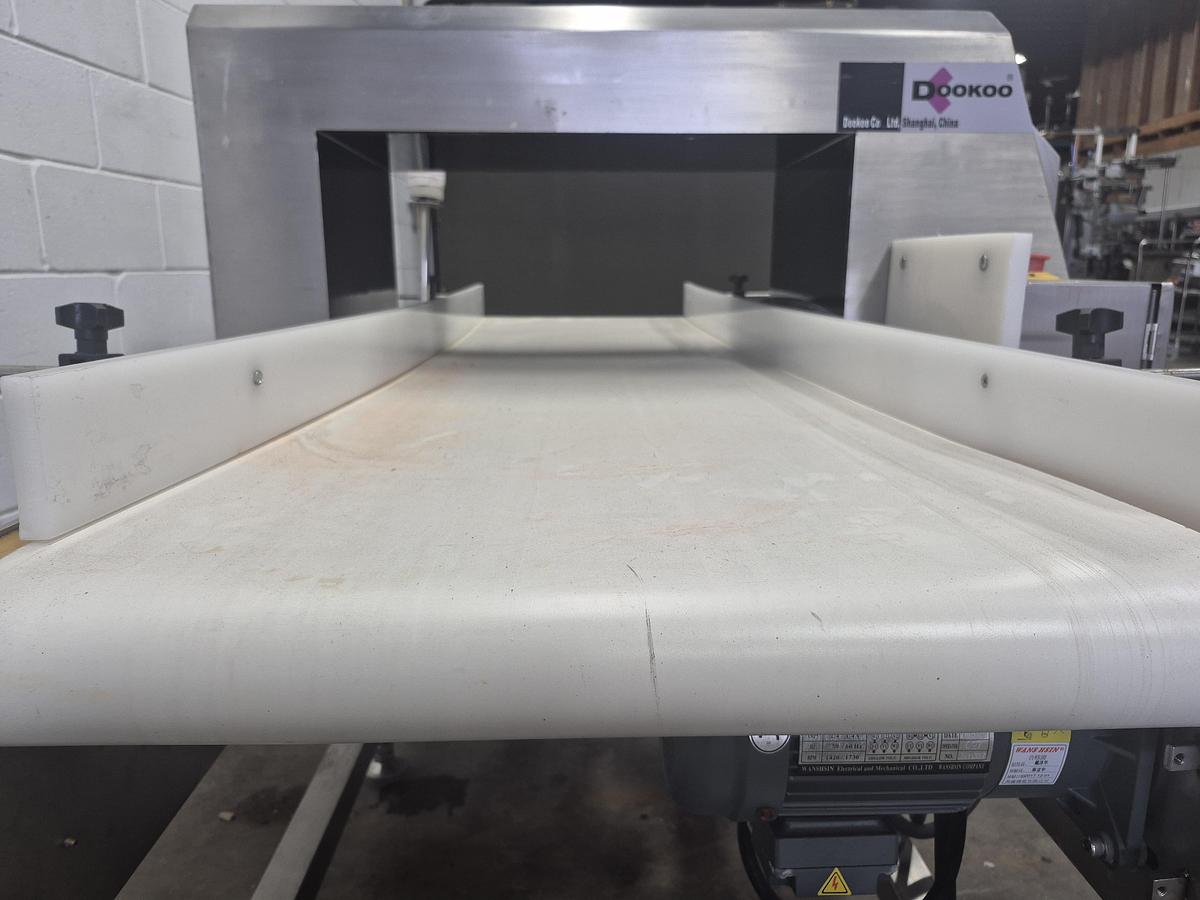

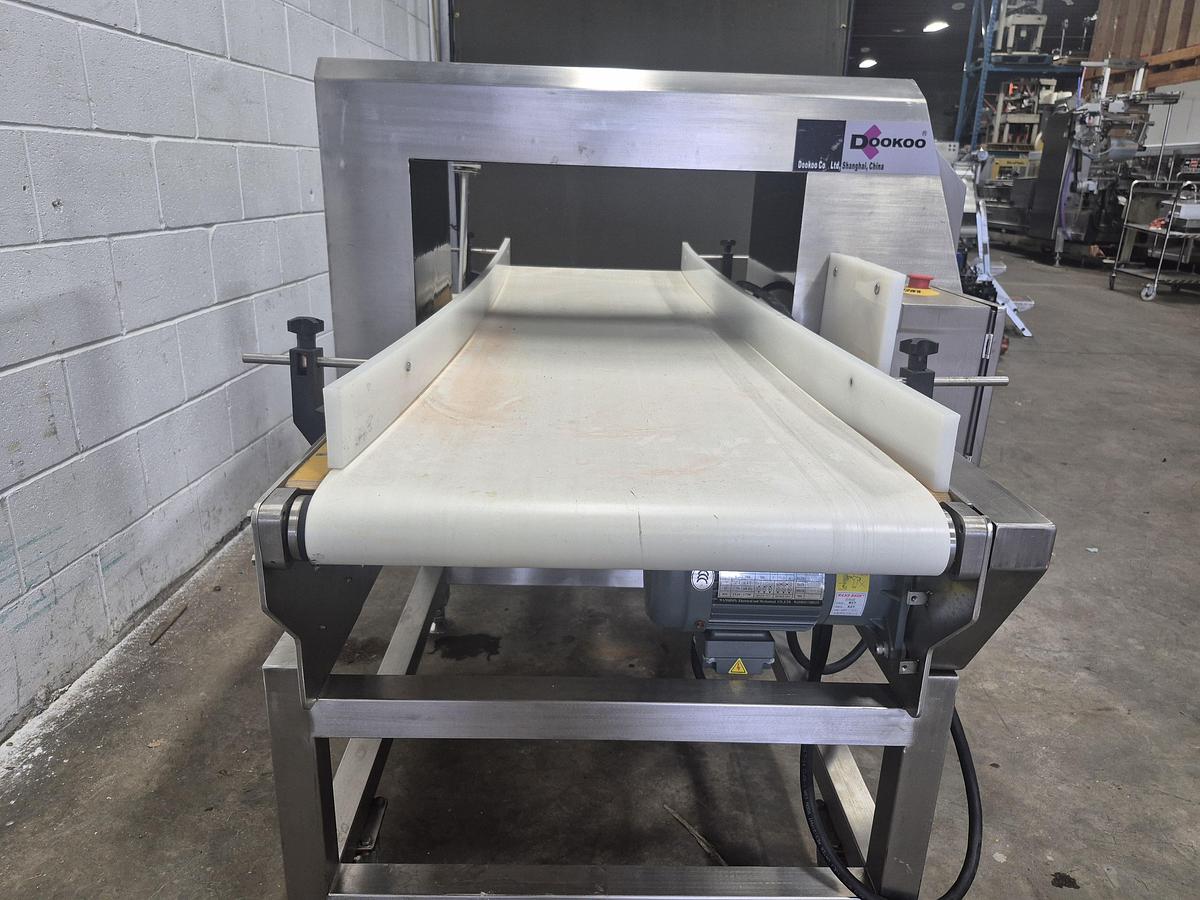

• Conveyor Belt: 79″L x 22.5″W, usable width: 19.25″W
• Side Rails: 72.5″L x 3.5″H high
• Belt Speed: 27m per min
• Power Supply: AC 220V, 50Hz
• Sensitivity: 1.6Fe, 2.3nFe, 3.0SS
• Frequency: 187K
• Balanced Signal: 11m
• Proof: IP67
• Detection:  A product moves through the "Detecting Head" via a belt
• Signal Analysis: If metal is found, the system creates an error signal

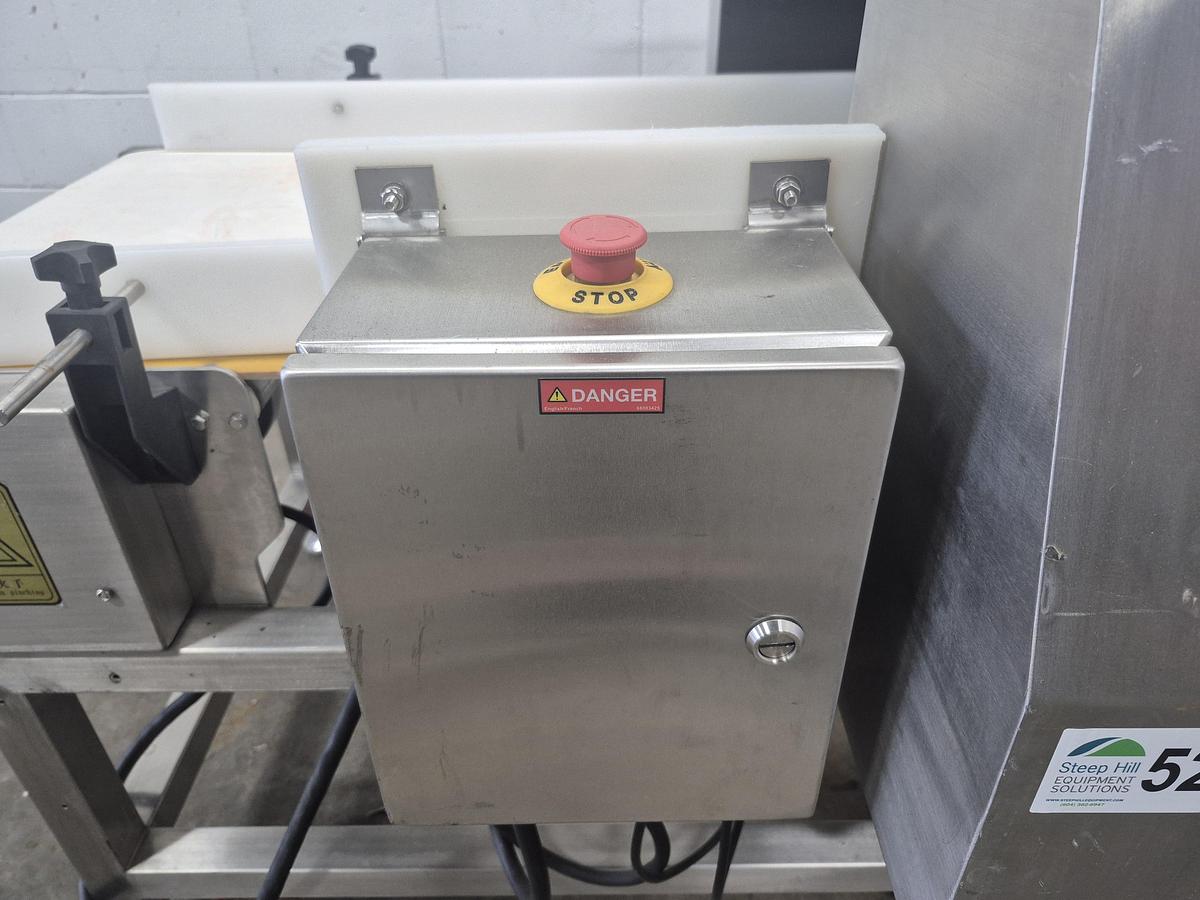

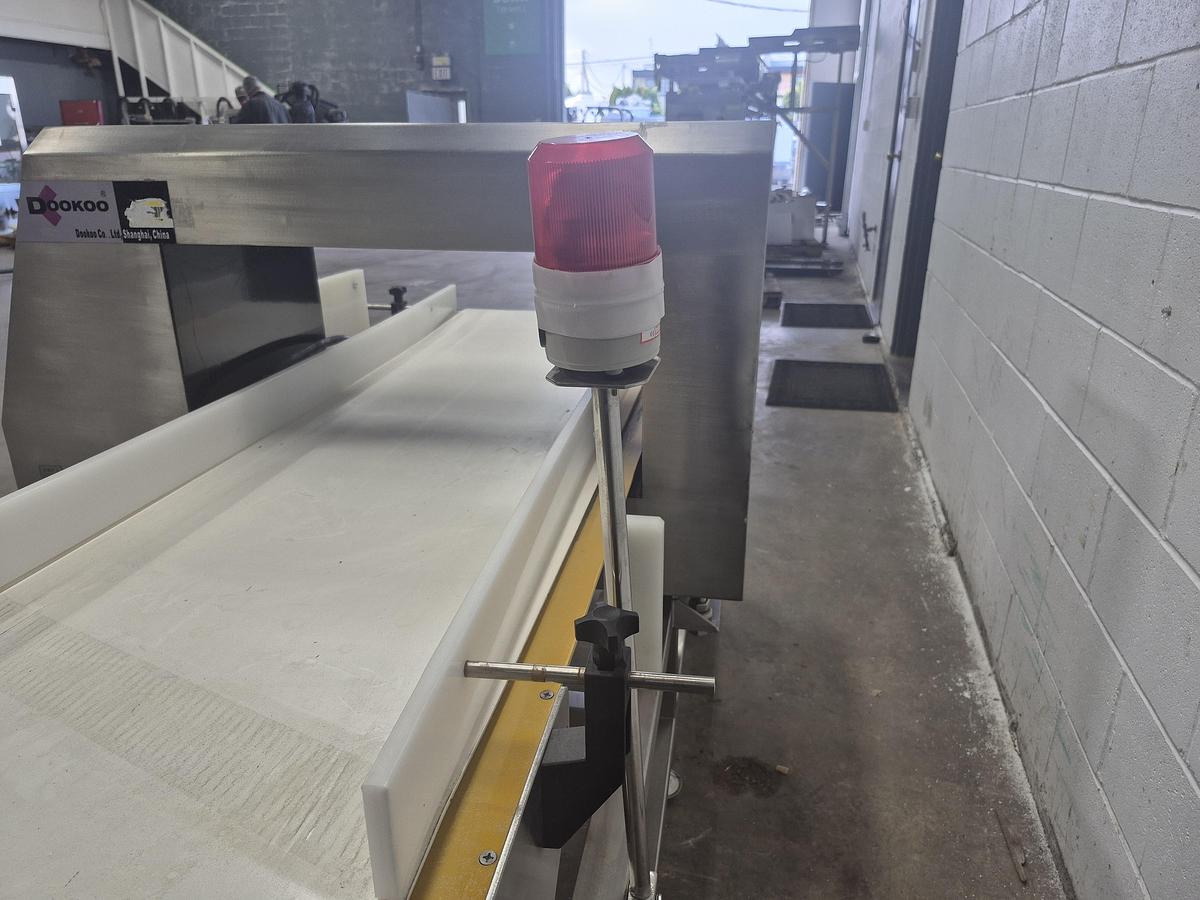

• Rejection: The machine typically triggers a "Reject Method," such as stopping the belt and sounding an alarm, or using a mechanical arm to push the contaminated product off the line
• Primary Applications: Food Industry, Pharmaceuticals, Machine Protection and Consumer Goods

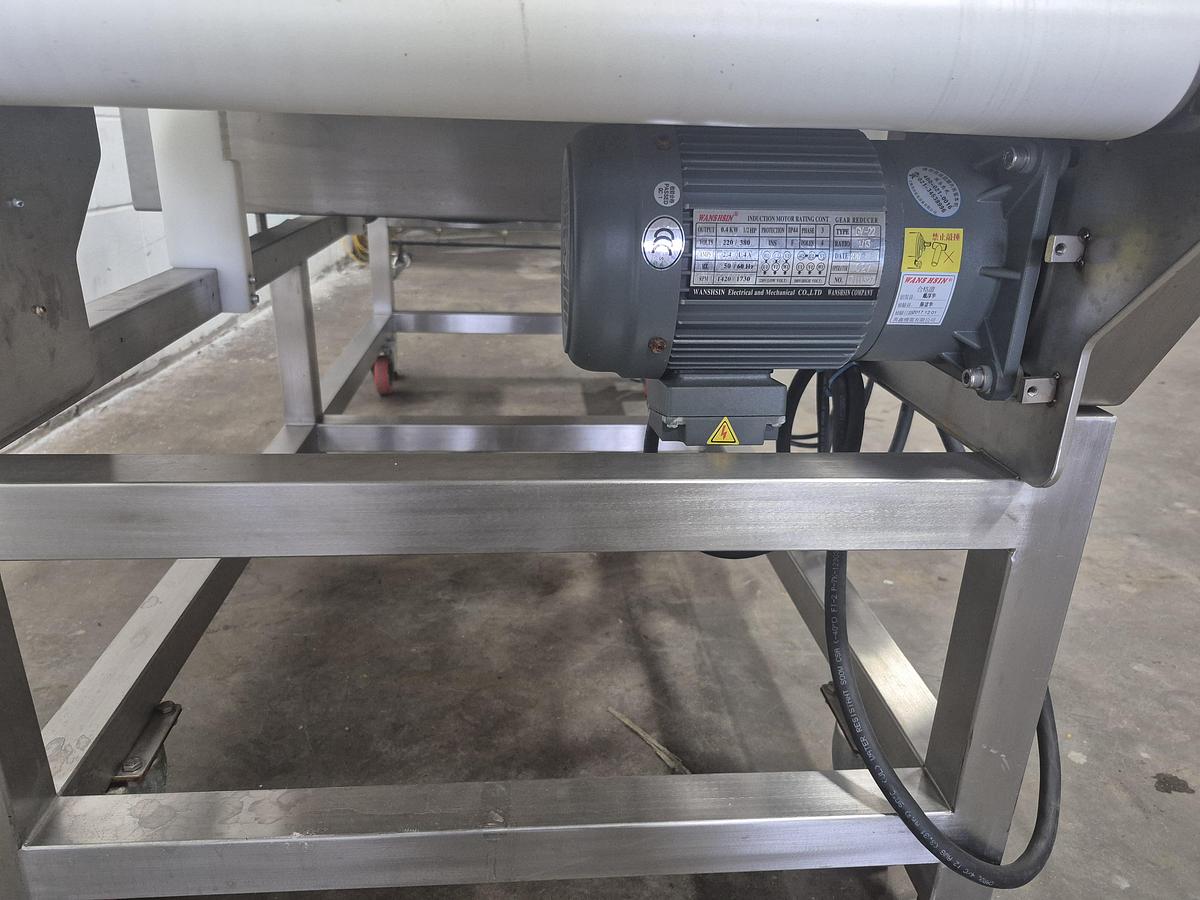

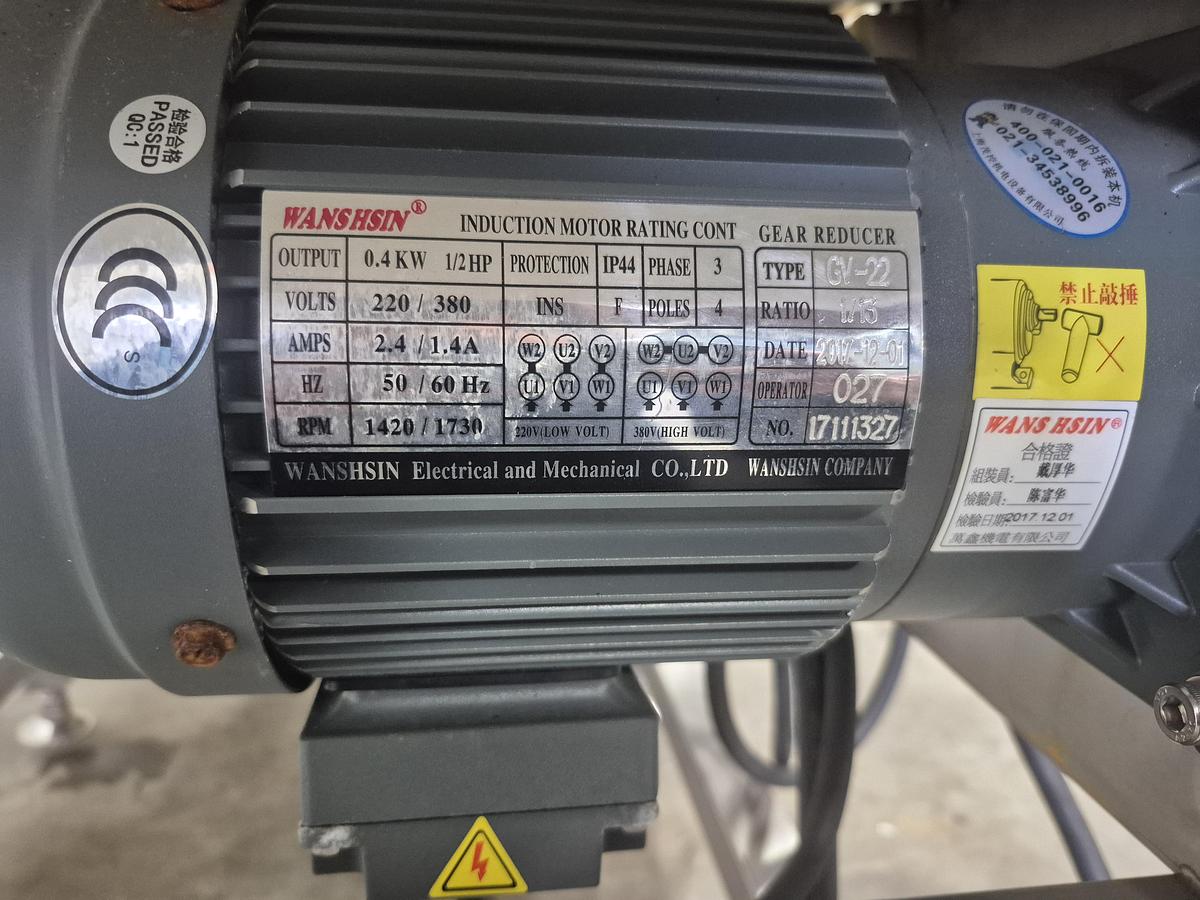

Powered by a Wanshsin GV-22 Three-Phase Induction Gear Motor

Specs:

• Power Output: 0.4 KW (equivalent to 1/2 HP)
• Gear Ratio: 1:15
• Speed (RPM): The raw motor runs at 1420 RPM (at 50Hz) or 1730 RPM (at 60Hz). After the 1:15 reduction, the final output shaft rotates at approximately 95–115 RPM
• Electrical: Designed for 3-phase power, supporting either 220V (Delta connection) or 380V (Star connection)
