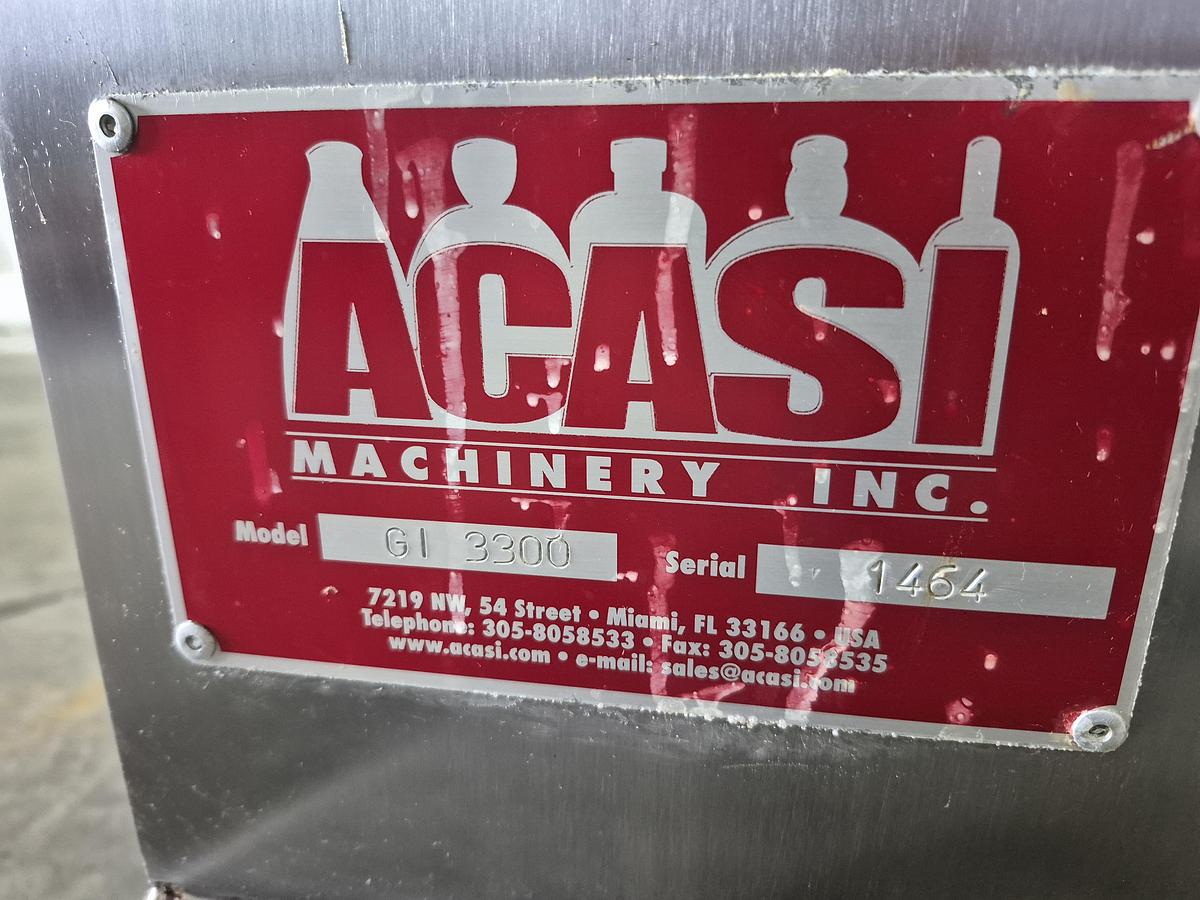

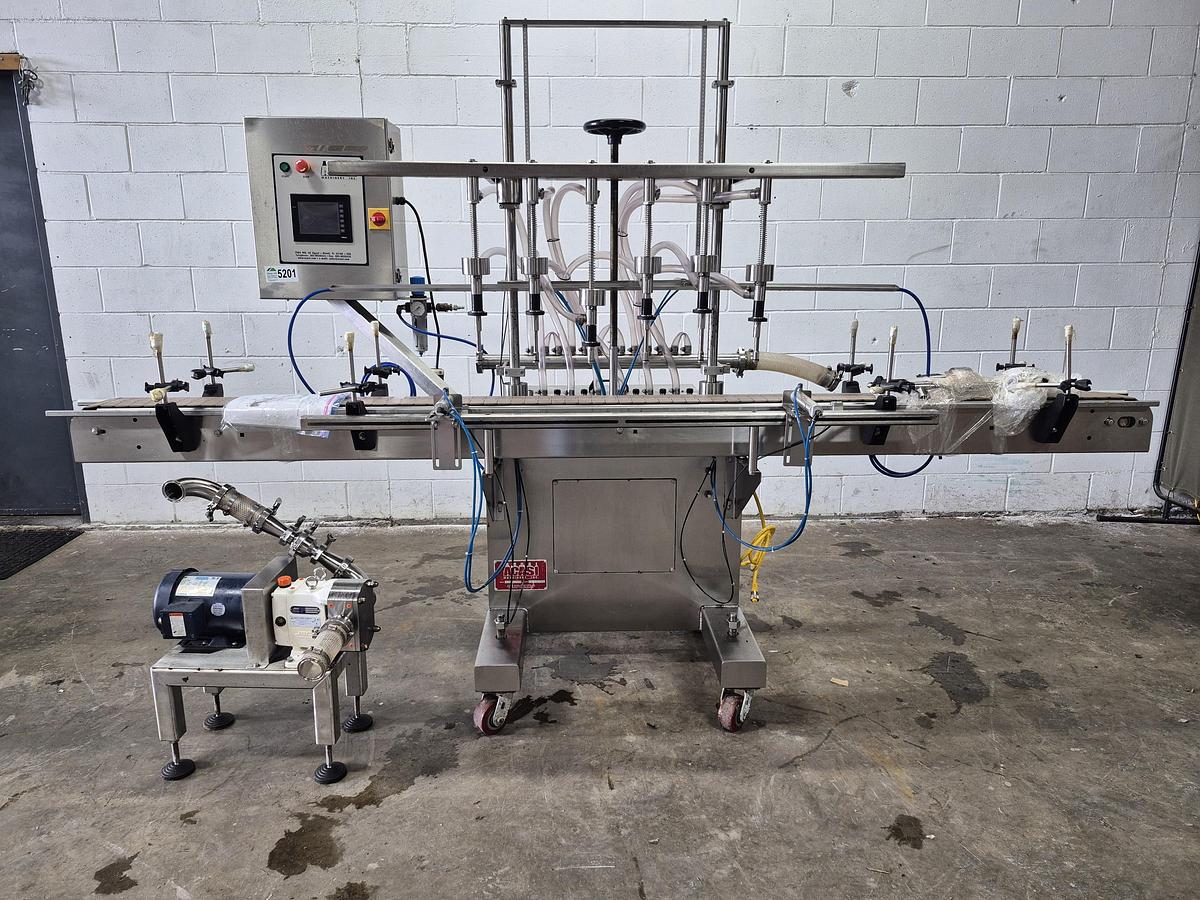

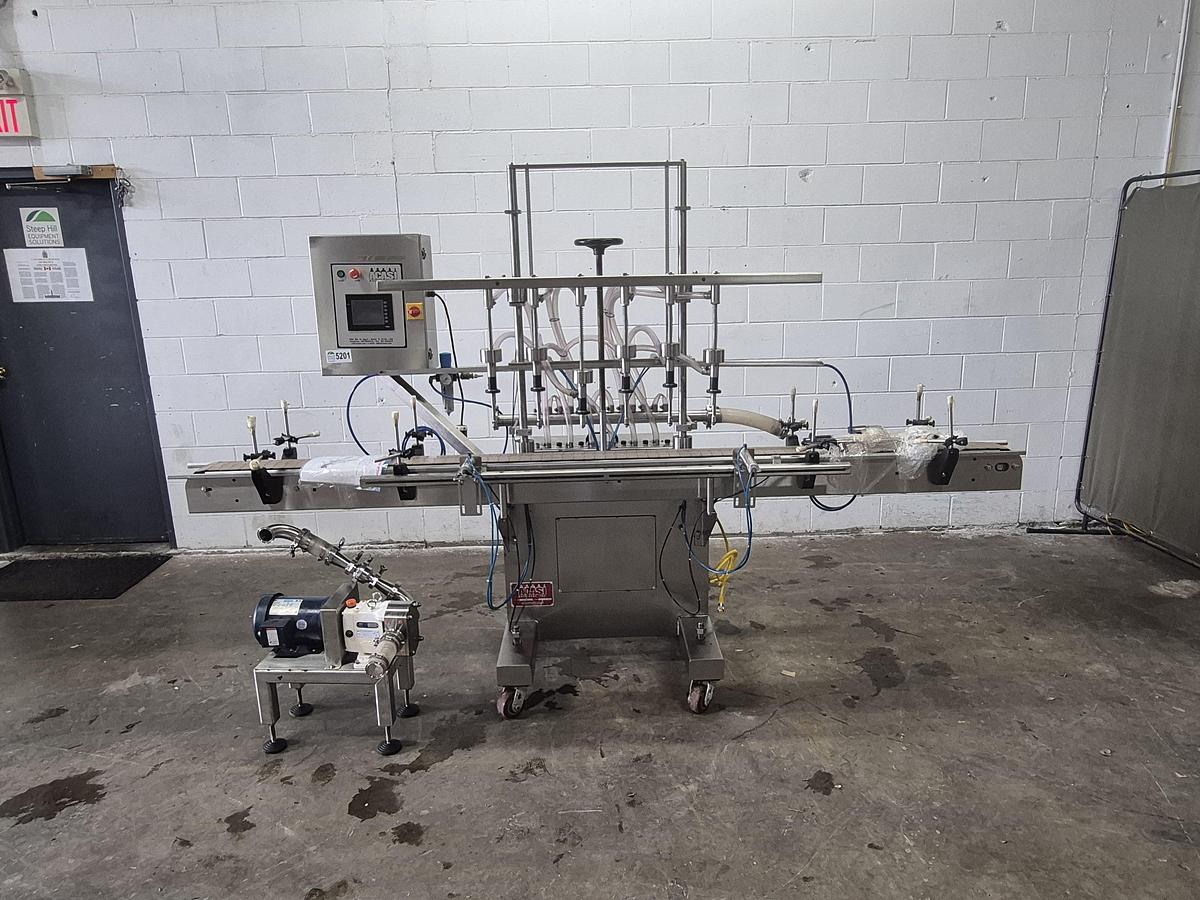

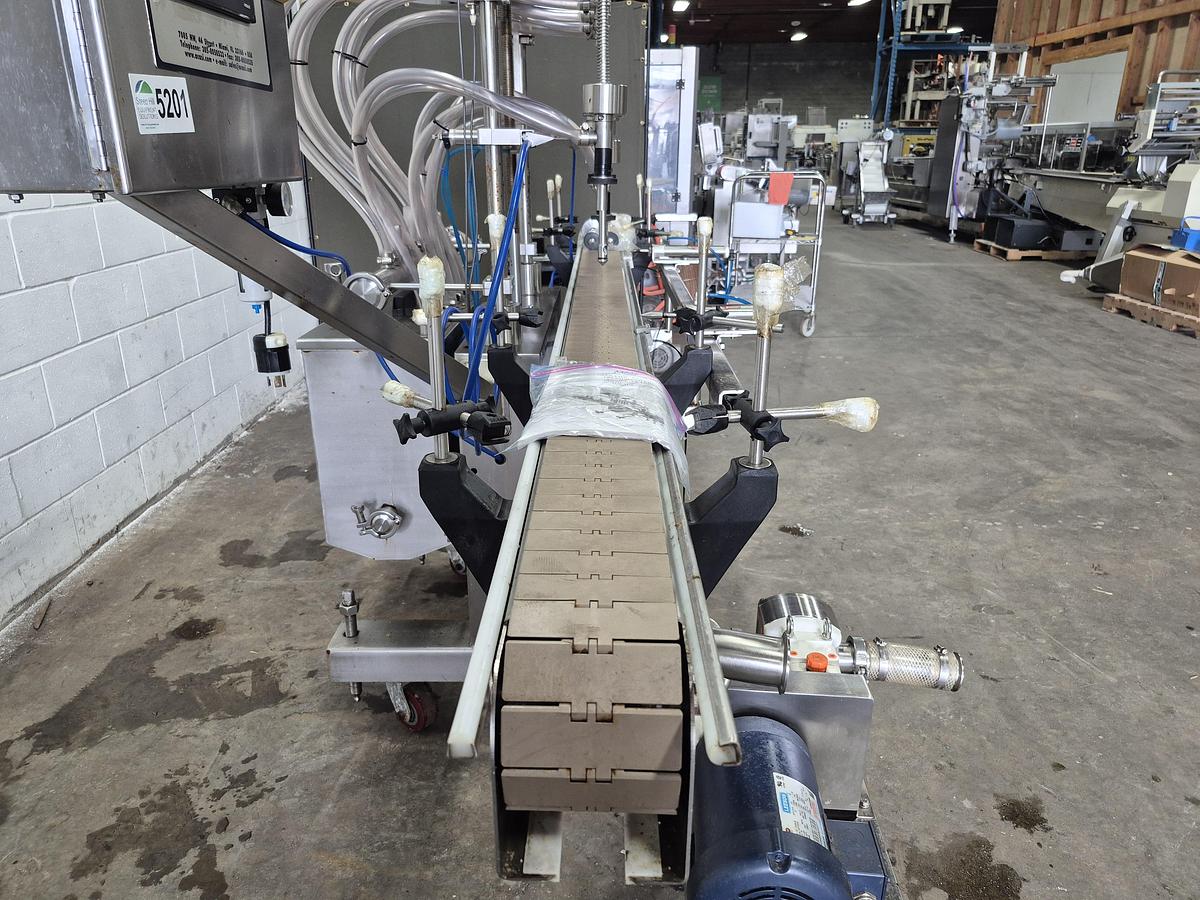

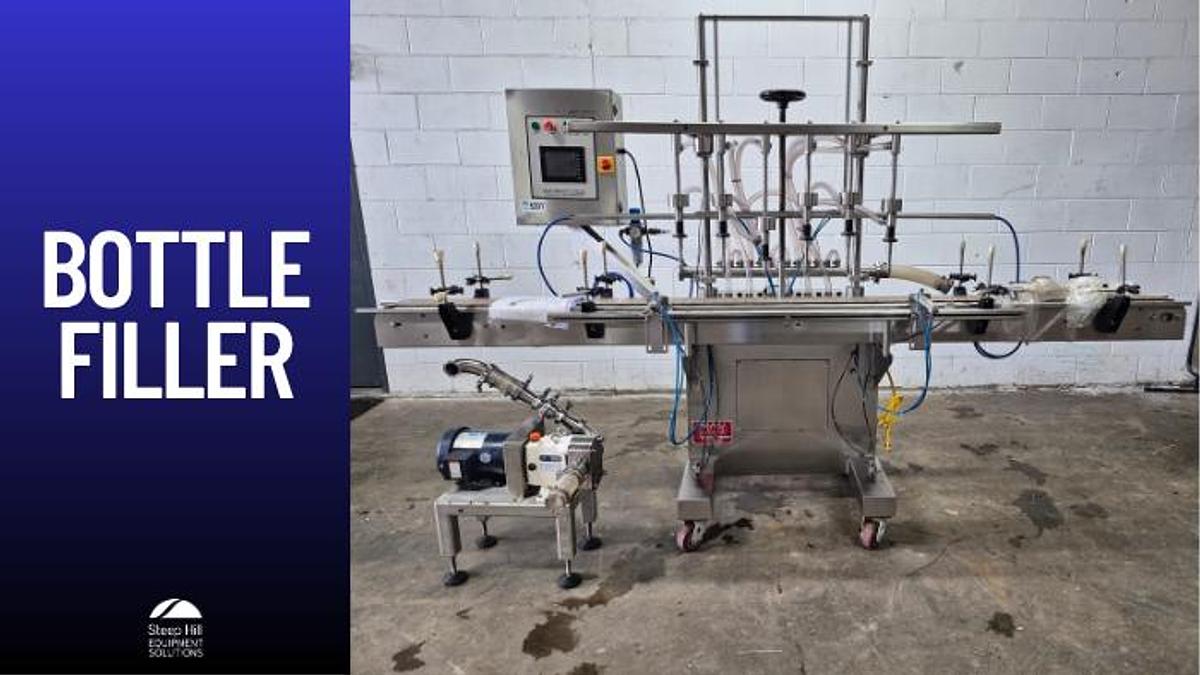

Acasi Expandable Pressure Overflow Bottle Filler

Acasi Expandable Pressure Overflow Bottle Filler

Is an automatic inline pressure overflow bottle filling machine designed for low to medium-viscosity liquids. It is primarily used in industries like beverages, cosmetics, and cleaning solutions where consistent fill levels and product appearance are critical.

Specs:

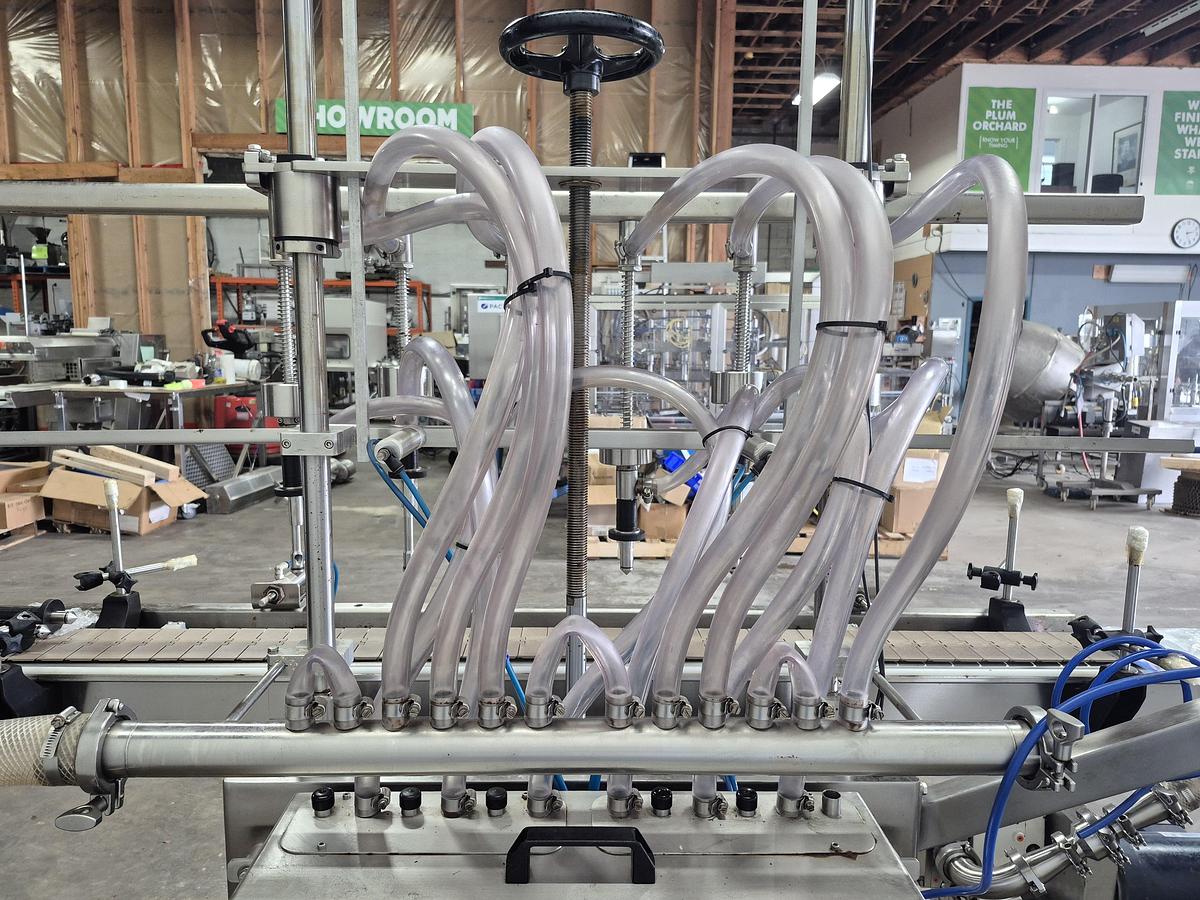

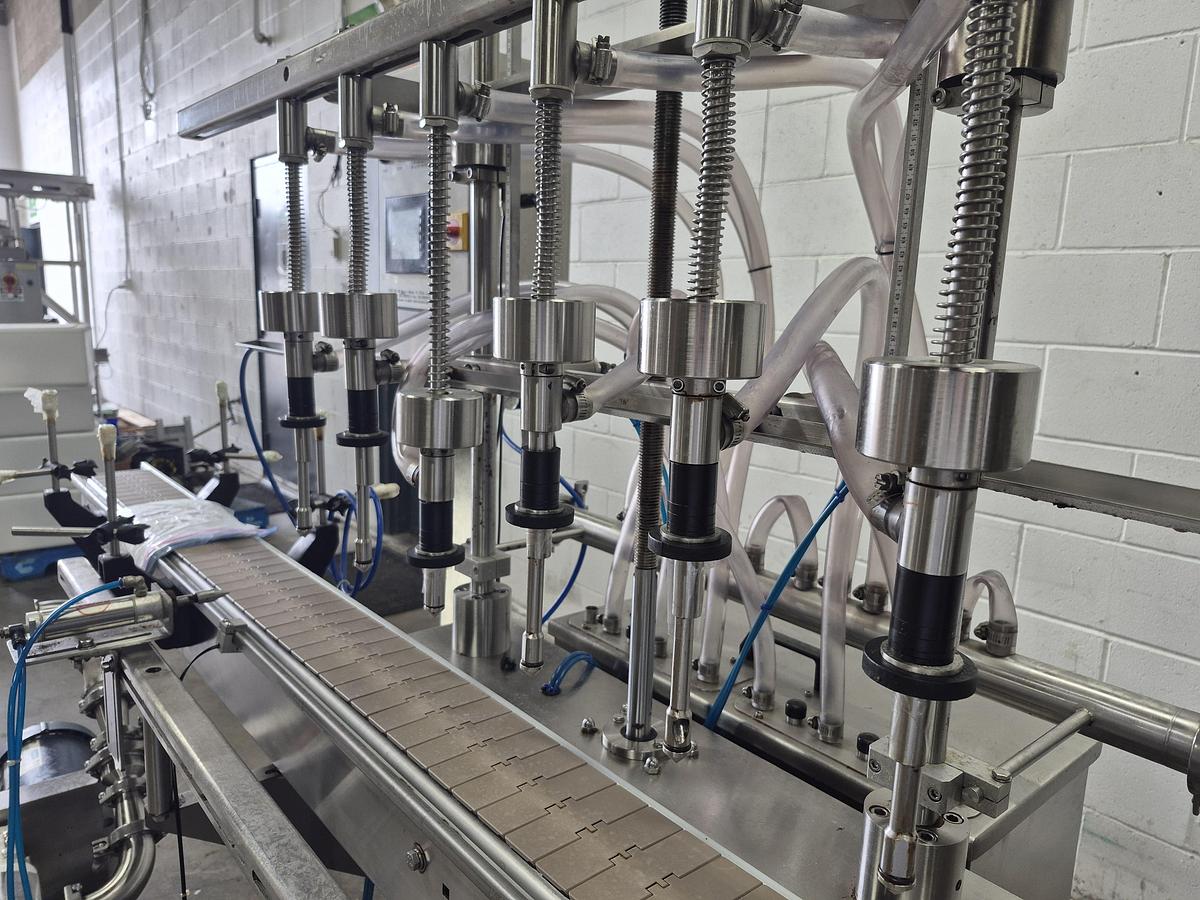

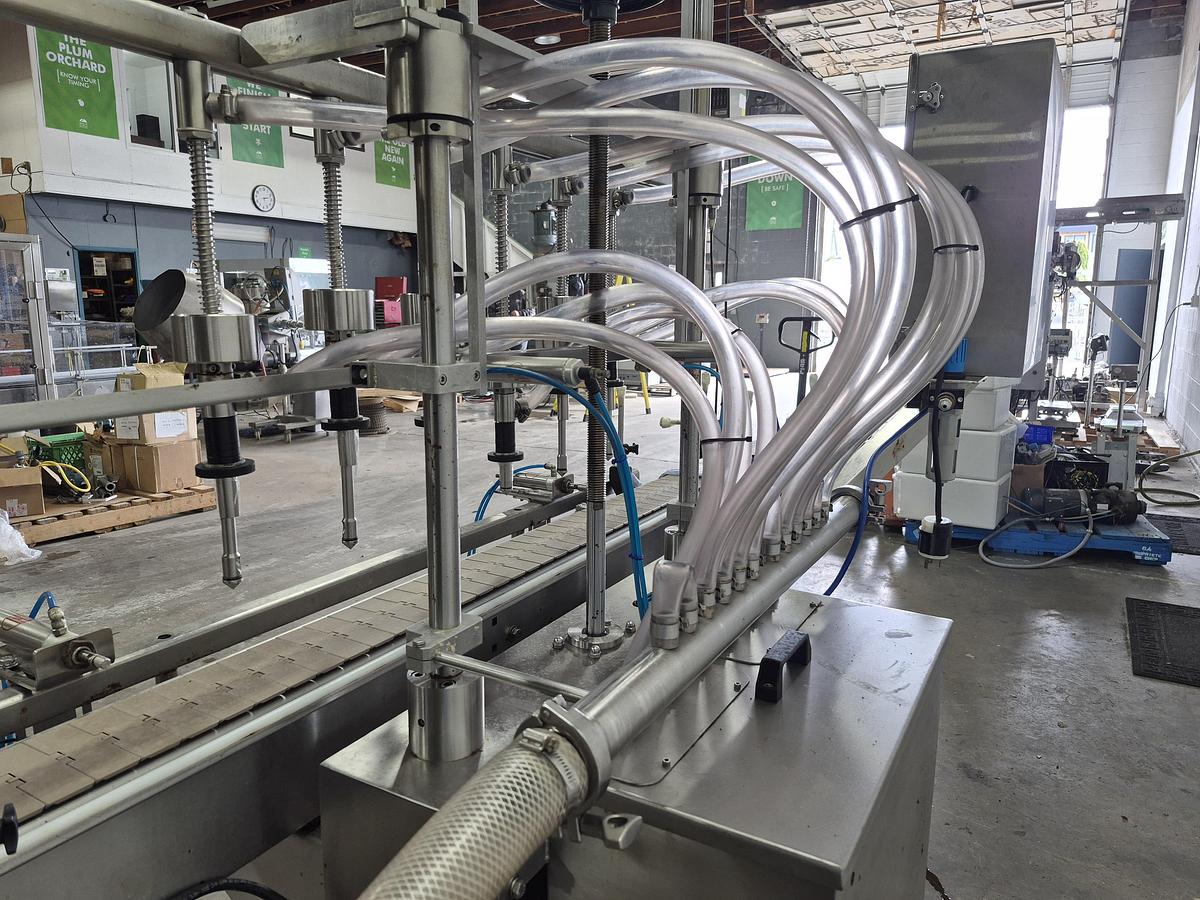

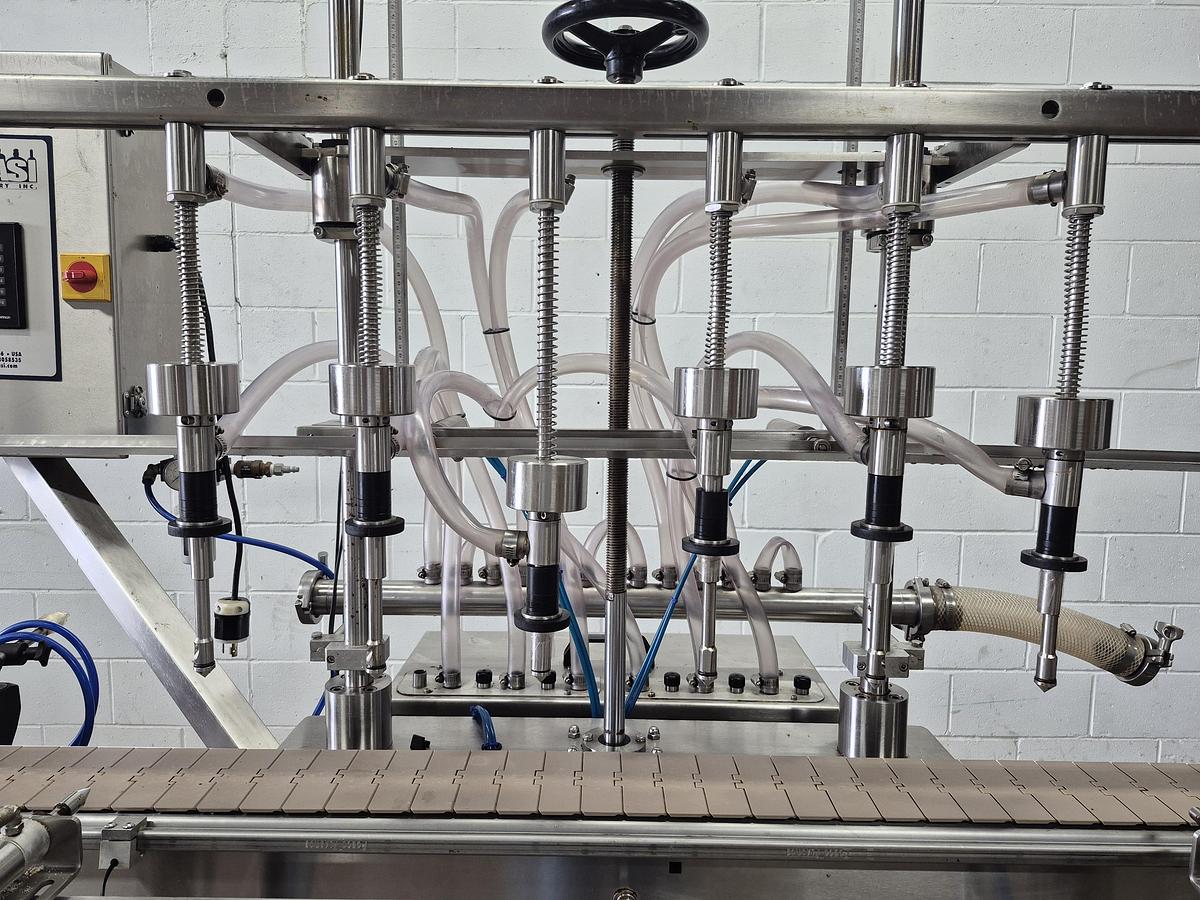

• Filling System:  Uses a pressure overflow system with two tubes per nozzle (one for fill, one for return) to ensure containers are filled to a predetermined level
• Capacity & Speed: Features a 20-gallon stainless steel overflow tank and a centrifugal pump capable of 96 gallons per minute
• Container Height: Accommodates containers from 1 to 16 inches tall
• Nozzle Stroke: Adjustable from 0 to 10 inches
• Expandability: Can be expanded to hold up to 20 nozzles to increase production speed

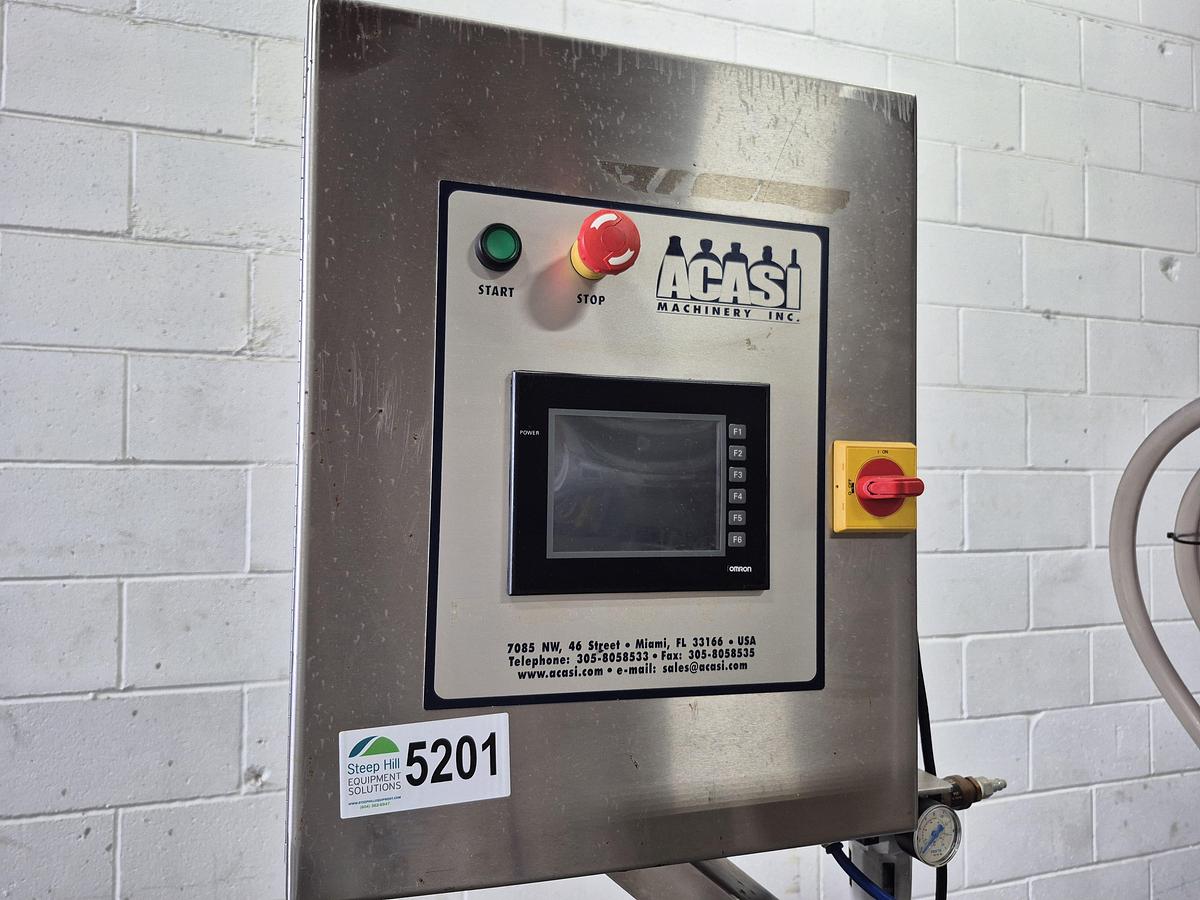

• Controls: Equipped with an Omron PLC for machine logic and a color touch-screen control panel

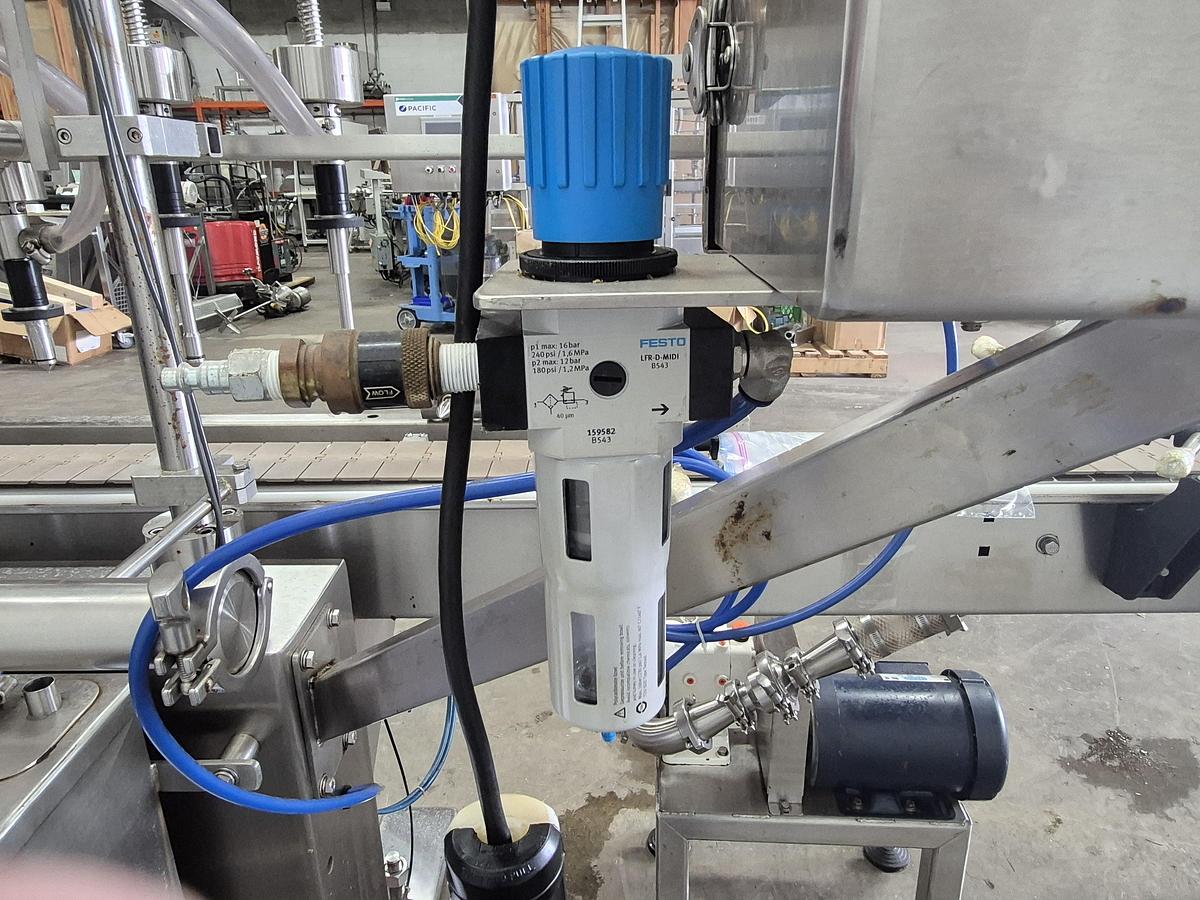

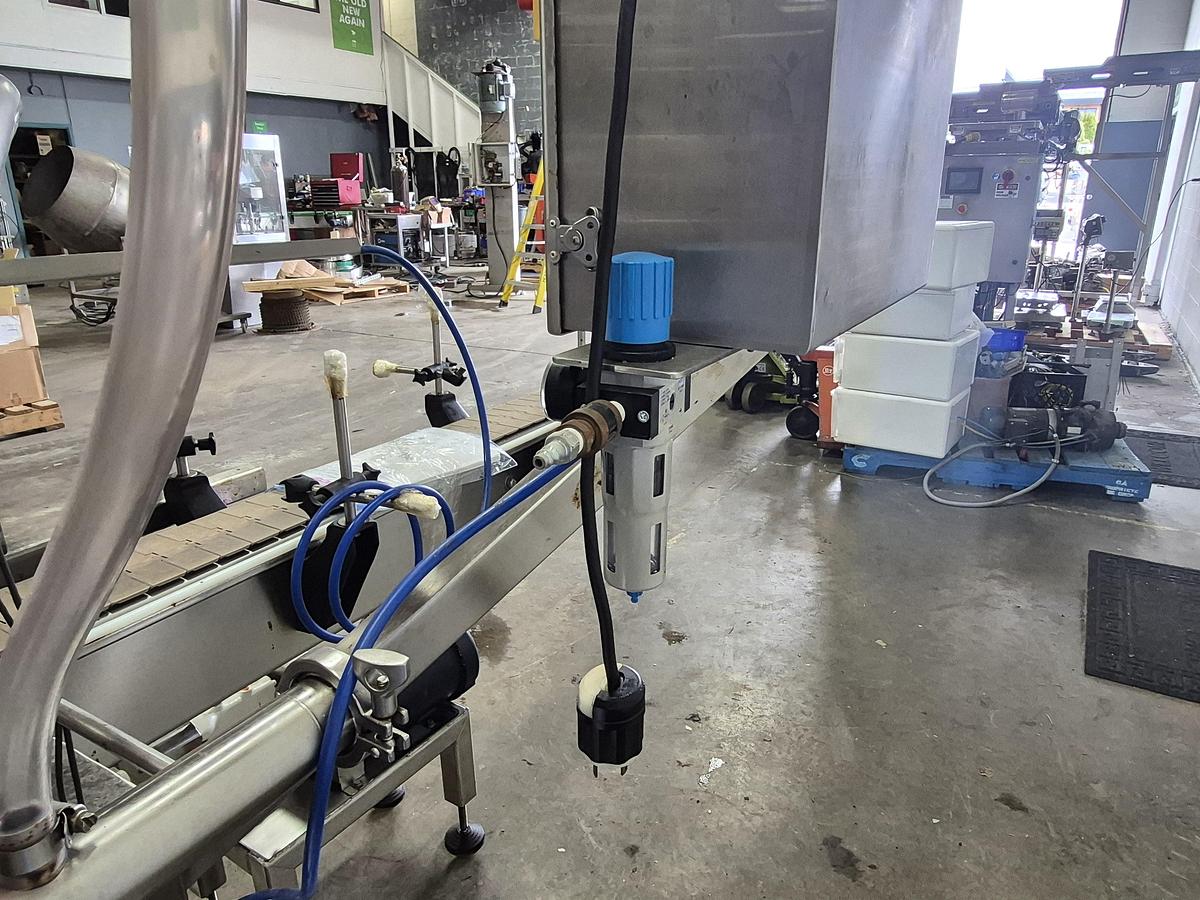

• Power Requirements: Operates on 220 Volts, 60Hz, and 10 Amps, requiring 5 CFM of air at 80 p.s.i.
• Conveyor: 112.50" L x 4.5" W x 34" Discharge Height

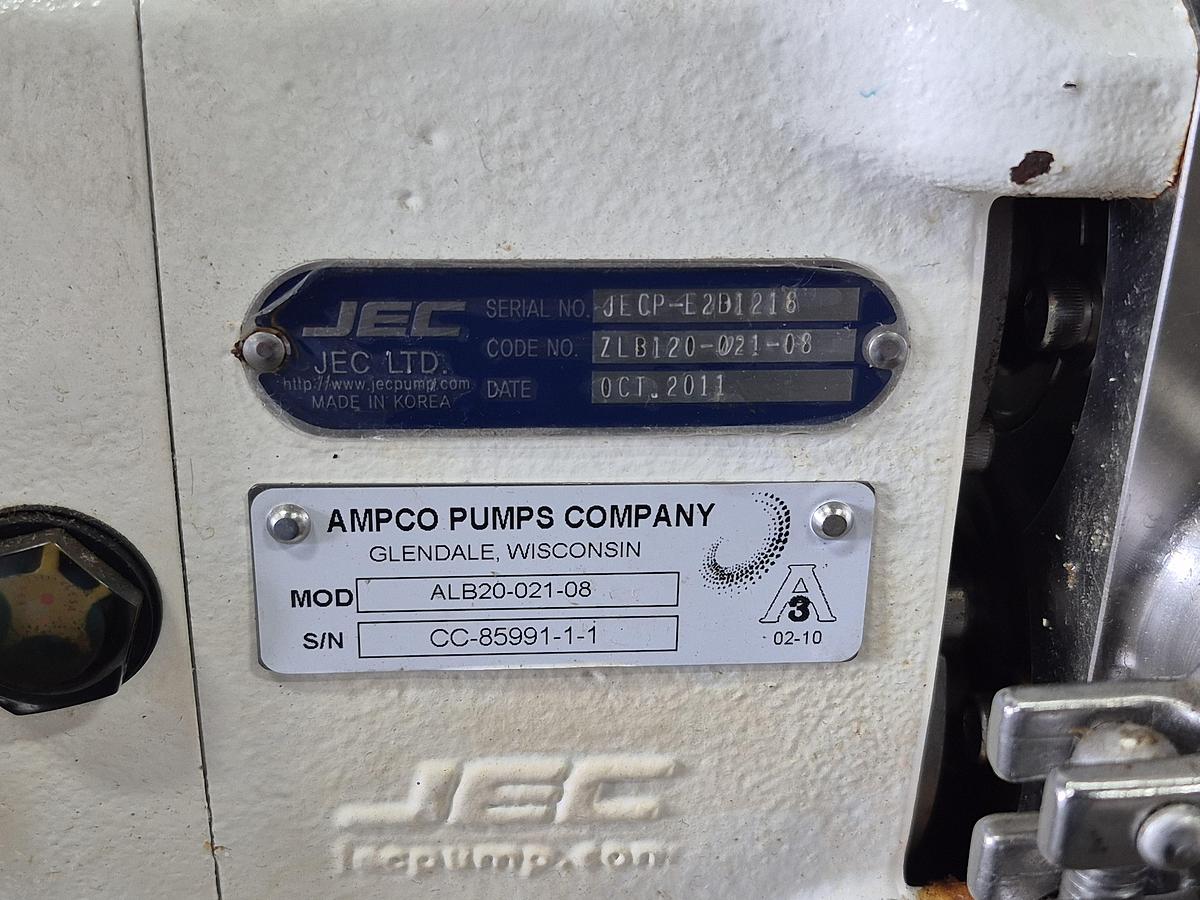

Comes with a JEC Ltd. (now a Verder company) JRZL Rotary Lobe Pump

Specs:

• Inlet/Outlet: 2 inches
• Max Flow Rate: 100 liters/min (at max rpm)
• Max Pressure: 8 bar (approx. 115 psi)
• Max Speed: 800 rpm

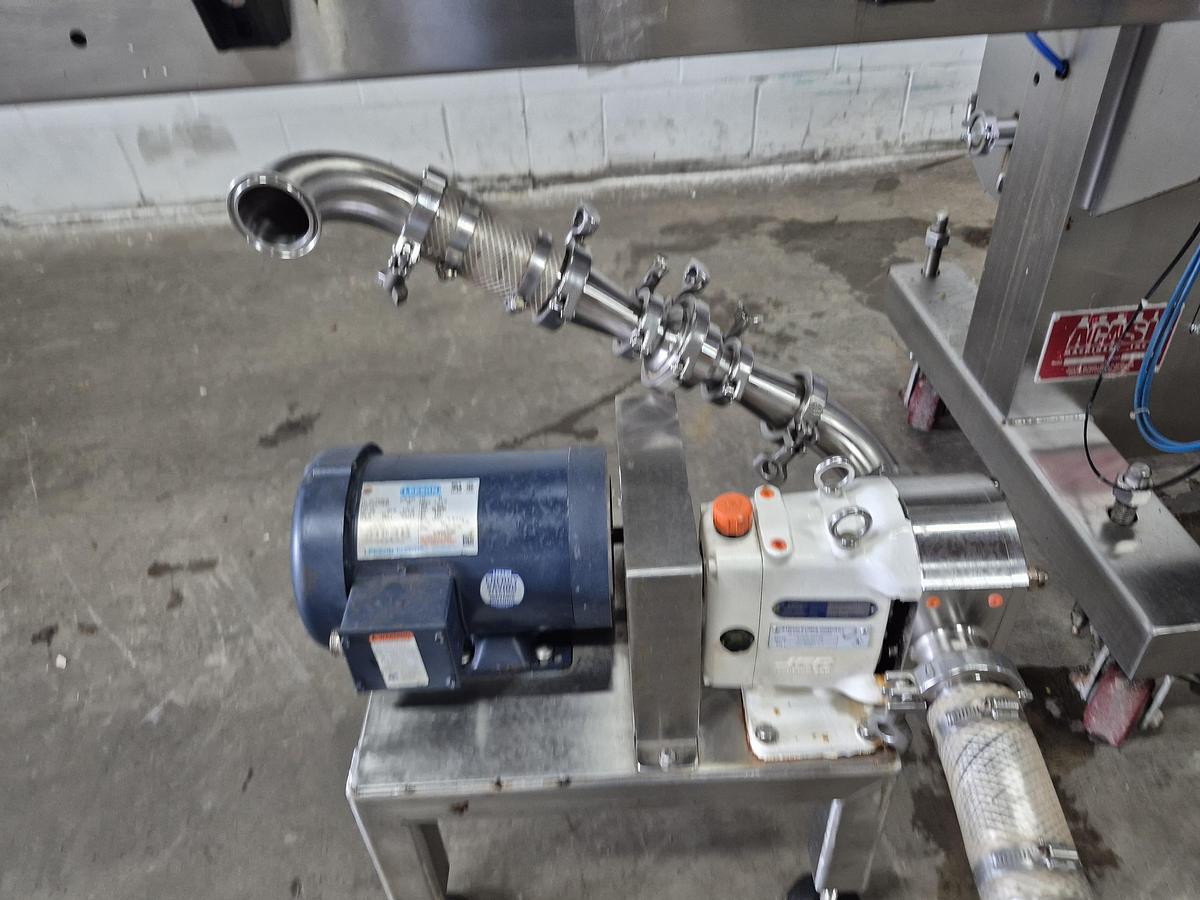

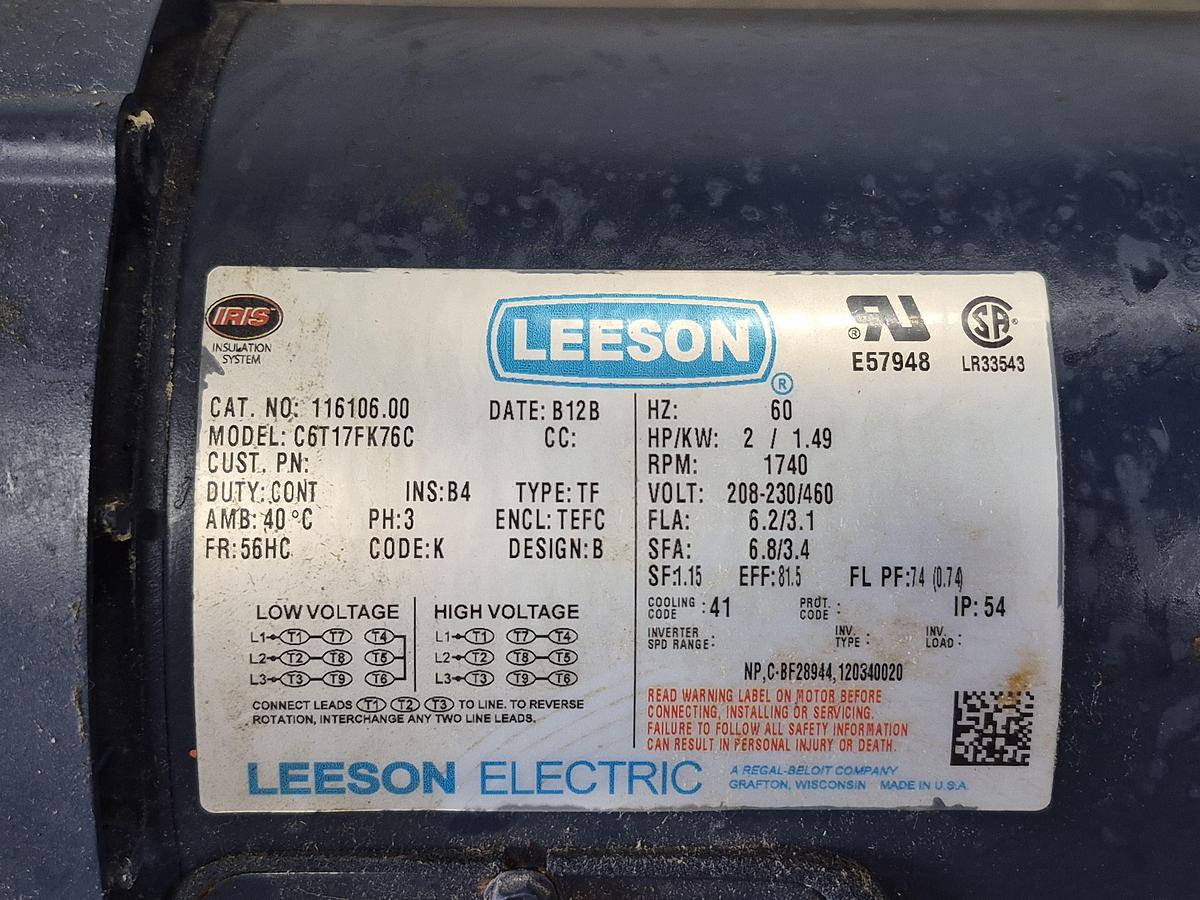

Pump powered by a LEESON Electric

Specs:

• Model: C6T17FK76C
• Power: 2 HP (1.49 kW)
• Speed: 1740 RPM
• Voltage: 208-230/460 Volts (Three Phase)
• Frequency: 60 Hz
