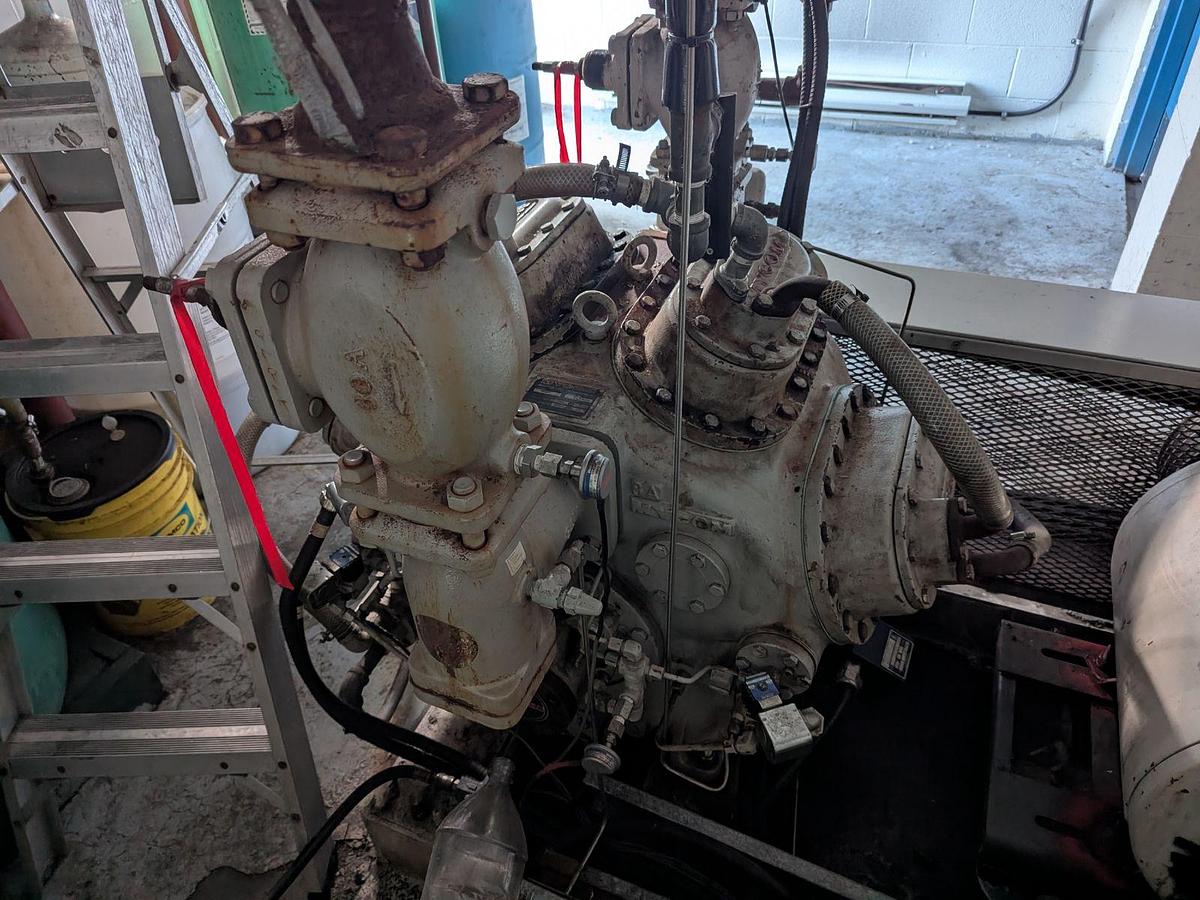

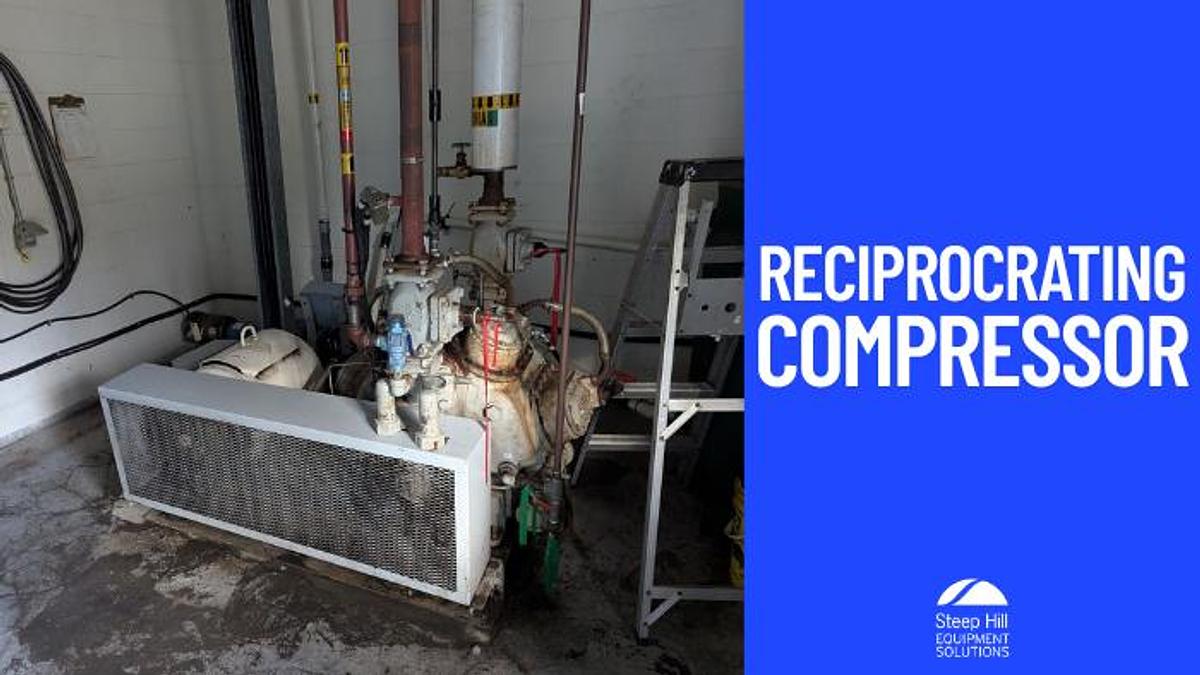

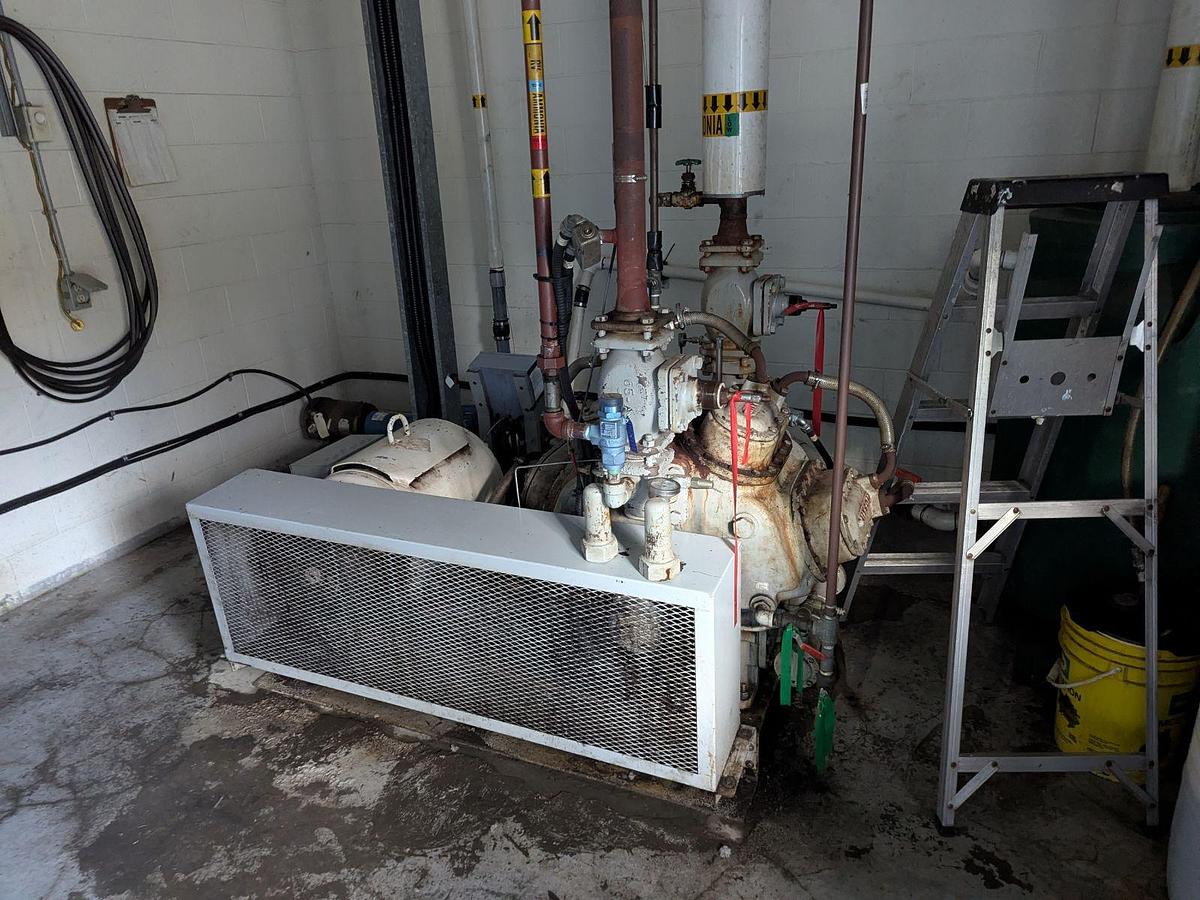

Mycom N8WA Reciprocating Compressor

Mycom N8WA Reciprocating Compressor

Is a heavy-duty industrial machine primarily used for refrigeration, cold storage, and air conditioning.

Specs:

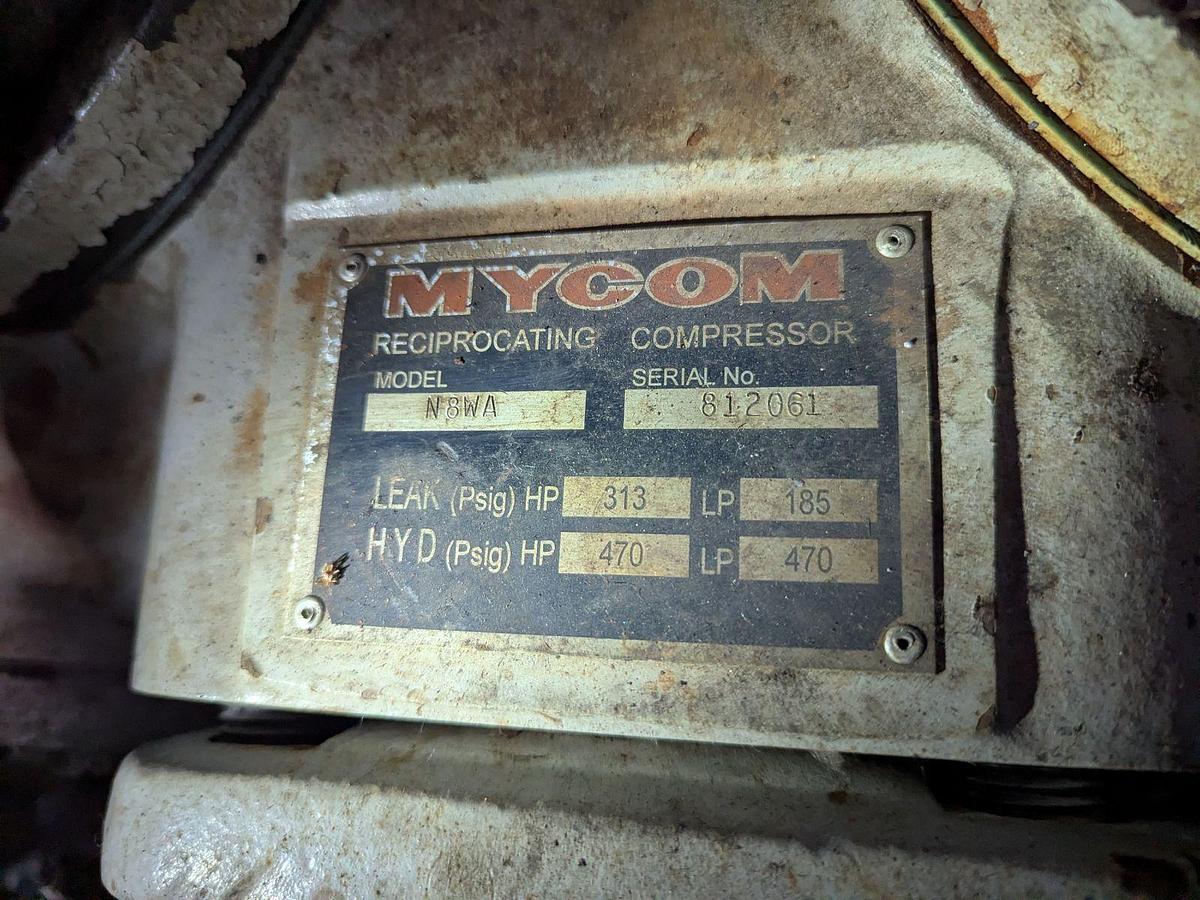

• Model: N8WA
• Cylinders: 8 cylinders
• Refrigerant: Typically Ammonia (NH3/R717), but also compatible with HFCs and Propane
• Leak Test Pressure (Psig): High Pressure (HP) 313 / Low Pressure (LP) 185
• Hydrostatic Test Pressure (Psig): HP 470 / LP 470
• Theoretical Displacement: Approximately 220 CFM at 1450 RPM
• Capacity Control: Unloading options at 25%, 50%, 75%, and 100%
• Rotation Speed: Standard range between 800 and 1450 RPM
• Durability: Features a ductile iron crankshaft resistant to wear and spring-loaded safety heads to prevent liquid hammer damage
• Cooling Options: Supports a 3-way cooling system: water-cooling (standard), air-cooling, or DX-cooling

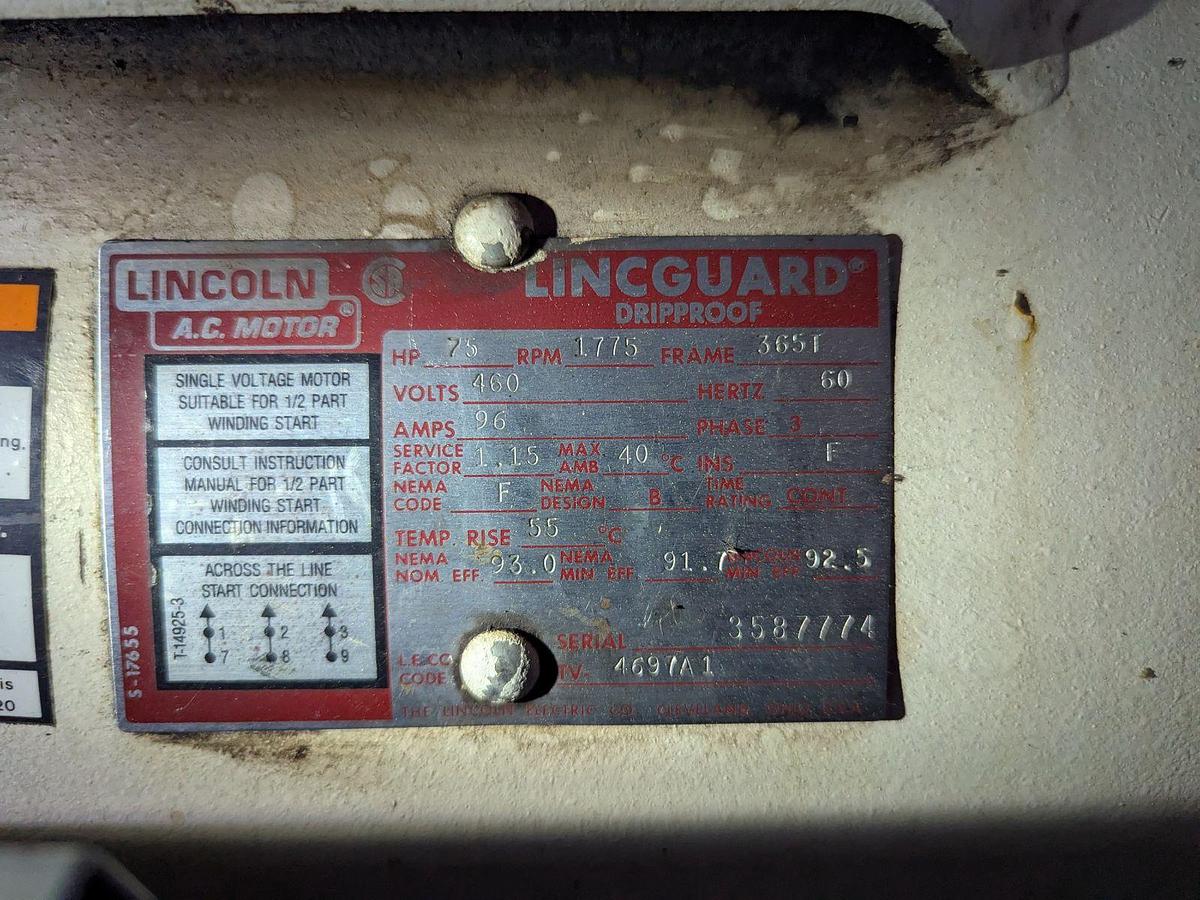

Powered by a Lincoln Lincguard Drip Proof AC Motor

Specs:

• Power: 75 HP
• Speed: 1775 RPM
• Voltage: 460 Volts
• Current: 96 Amps (Full Load)
• Phase: 3-Phase
• Frequency: 60 Hz
