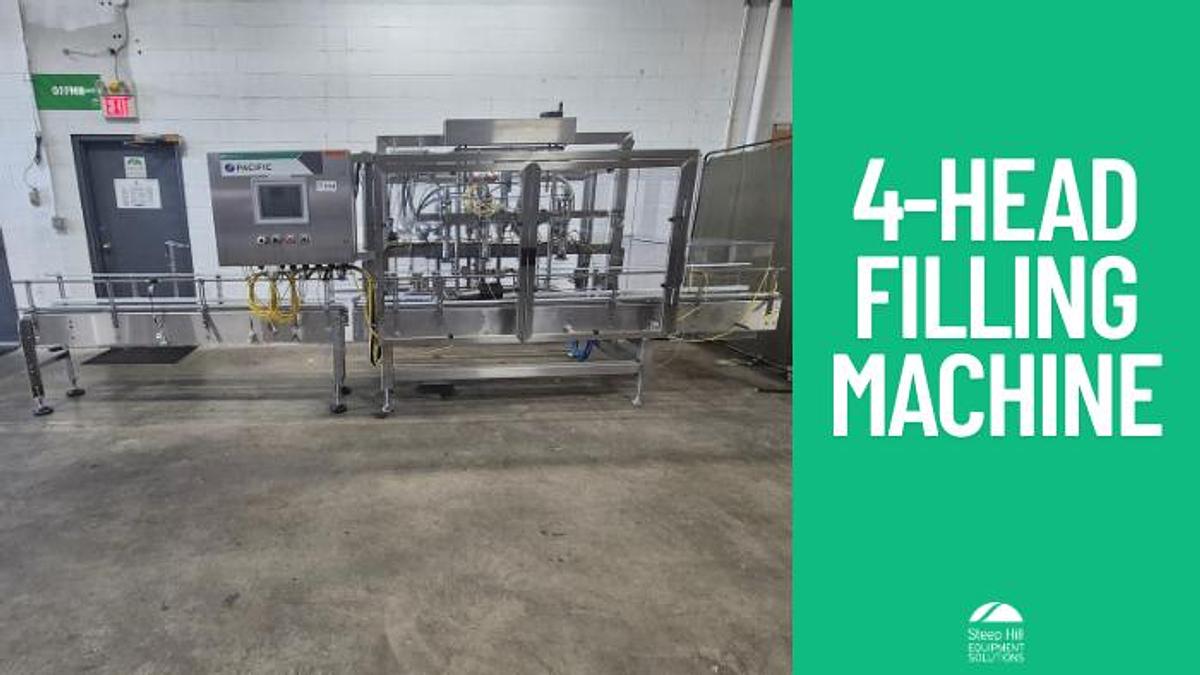

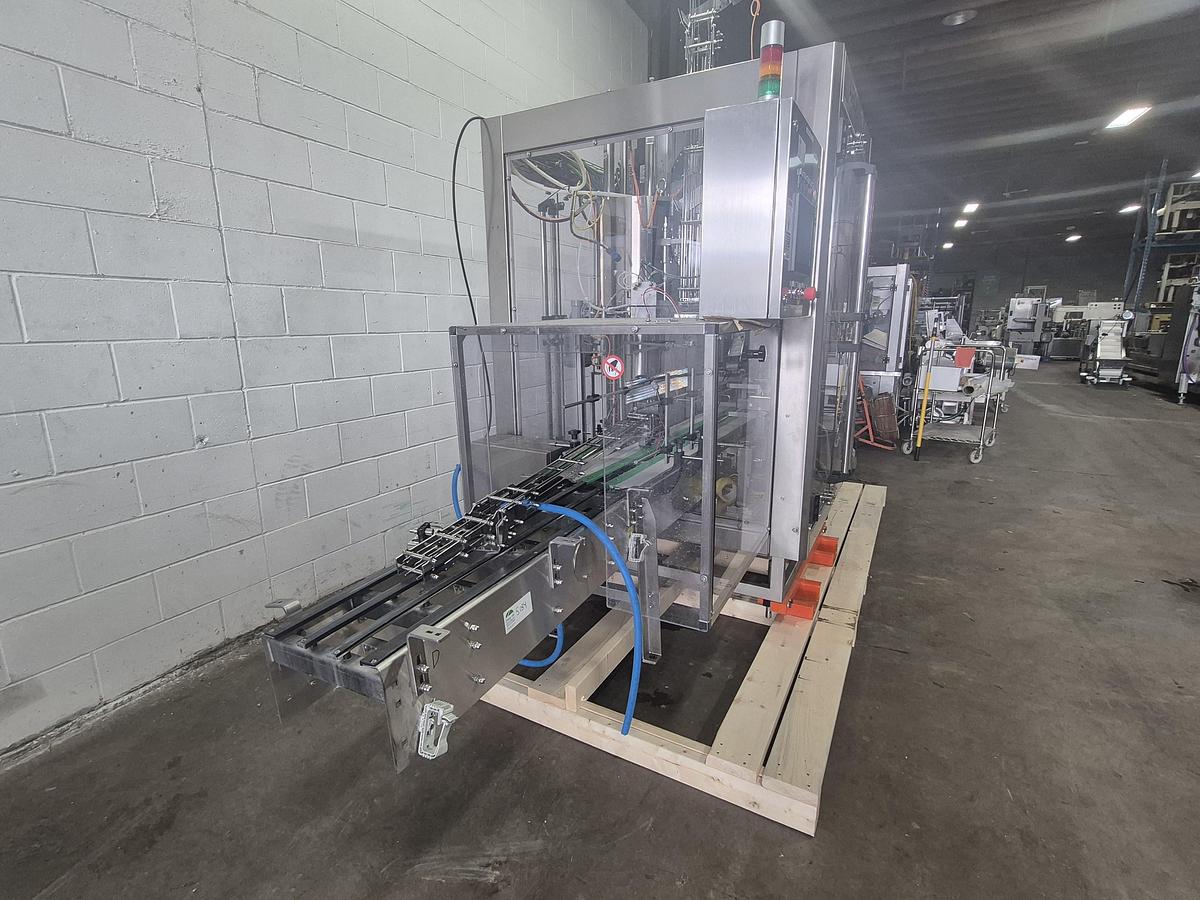

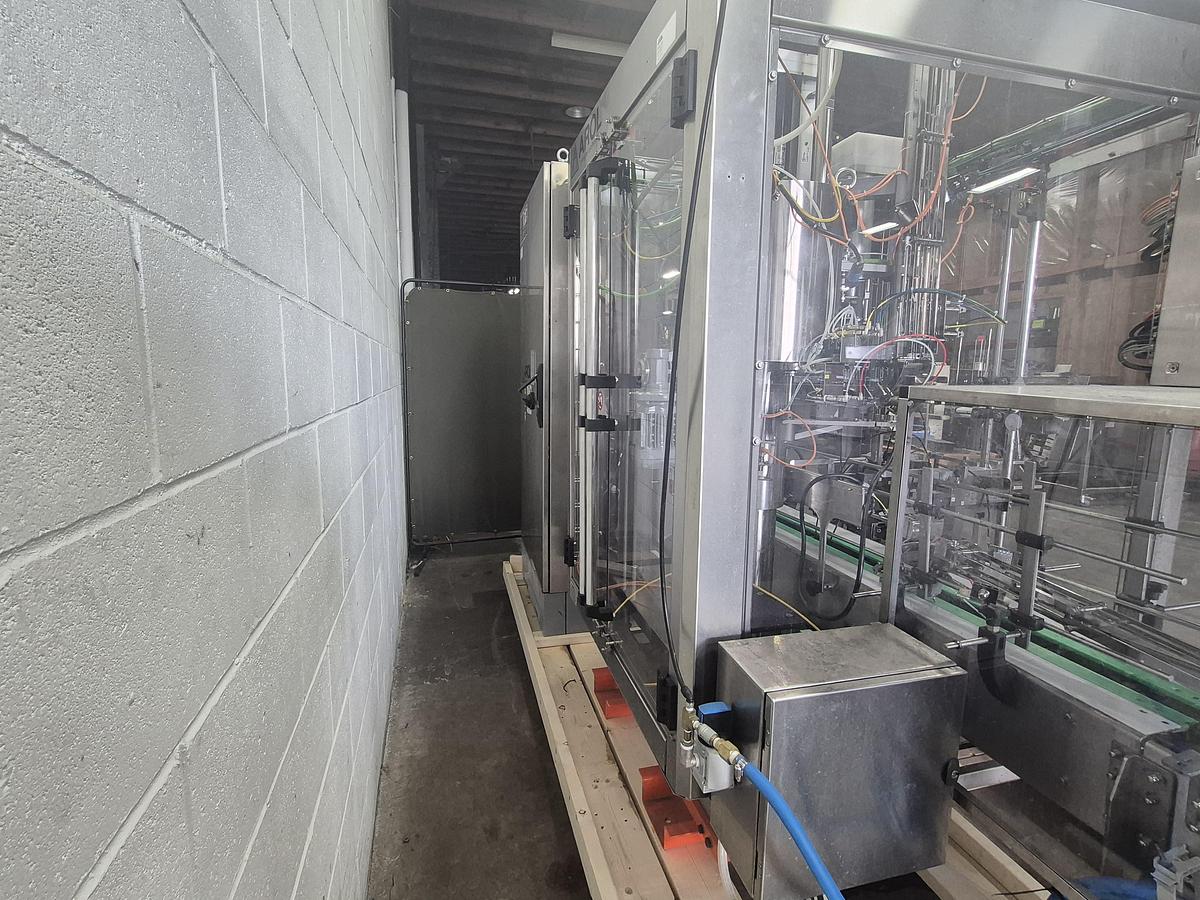

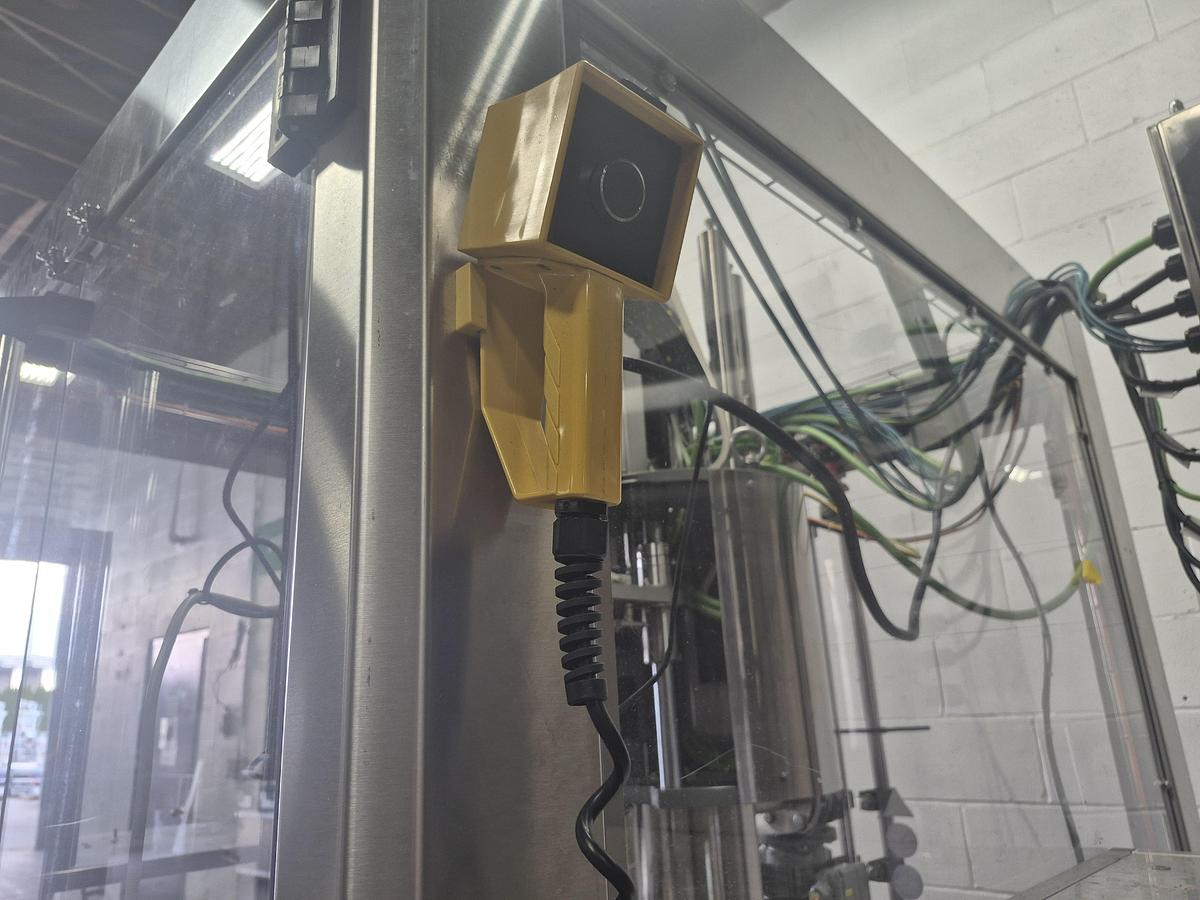

Pacific 4-Head Gravimetric Filler

Pacific 4-Head Gravimetric Filler

Is a precision packaging machine used to fill liquid or semi-viscous products into containers based on weight rather than volume. By using load cells to measure the container's weight in real-time, these systems ensure high accuracy regardless of changes in product density, temperature, or aeration.

Specs:

• High Accuracy: Typically delivers a fill accuracy of ± 0.1% or better
• Load Cell Integration: Uses individual scales at each filling station to tare the container weight and measure only the product
• Dual-Speed Filling: Employs a "bulk and dribble" method—fast flow for the majority of the fill and a slow "top-off" speed for final precision
• Hygienic Design: Constructed with 316L stainless steel wetted parts and often includes CIP (Clean-in-Place) capabilities for easy sterilization
• Versatile Handling: Capable of filling a wide range of containers, from 2 oz bottles up to 5-gallon pails or even larger drums and totes
• Applications Used In: Food & Beverage, Chemical & Industrial and Personal Care

Has 4 Endress+Hauser Dosimass Coriolis Flowmeter

Specifically designed for high-precision filling and bottling applications

• Model: Dosimass (Proline 8BE)
• Measuring Principal: Coriolis mass flow, which allows for simultaneous measurement of mass flow, density, temperature, and volume flow
• Wetted Materials: The measuring tube is made of 1.4539 (904L stainless steel), and the process connection is a 1" Tri-clamp (standard for hygienic applications)
• Accuracy: Typically ±0.15% for liquid mass flow with high repeatability even in very short filling cycles
• Power Supply: 24 VDC nominal (acceptable range: 20...30 VDC)

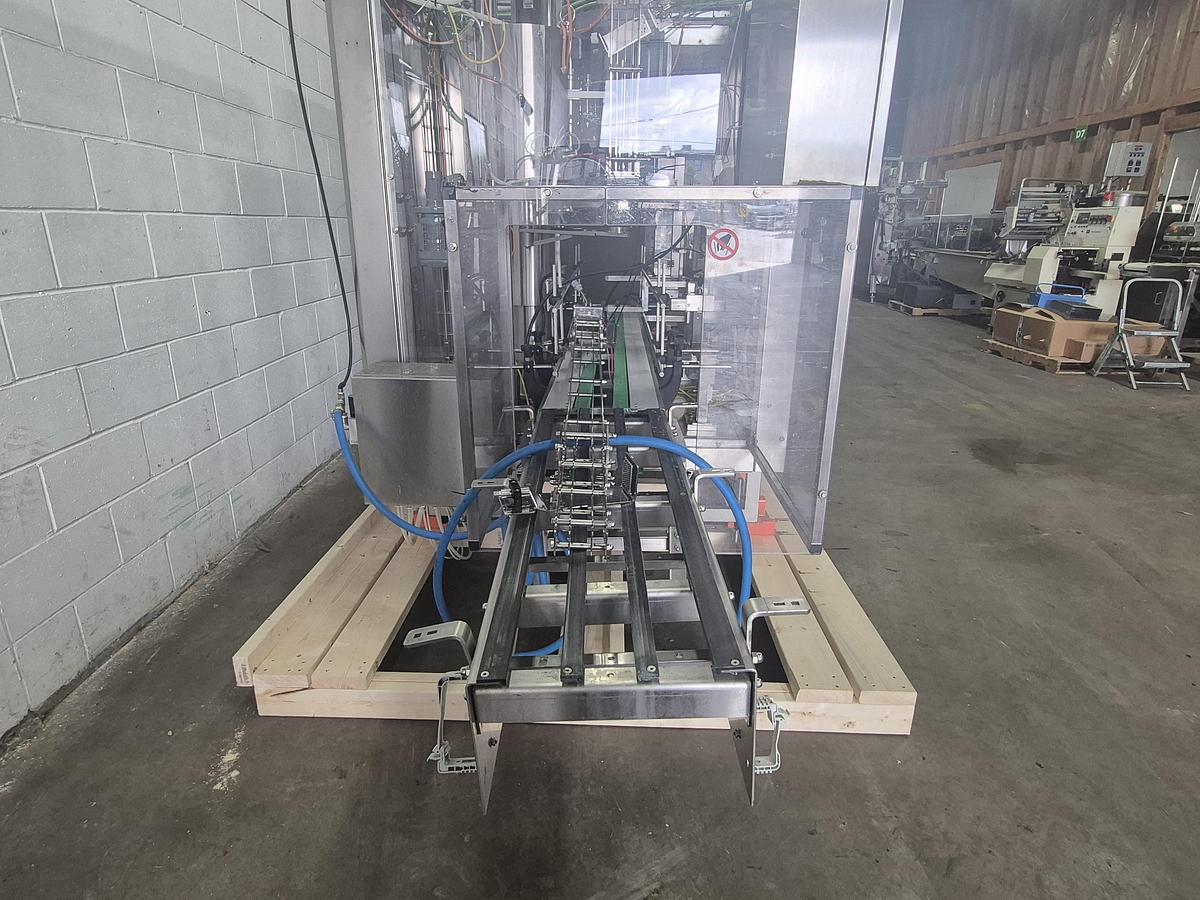

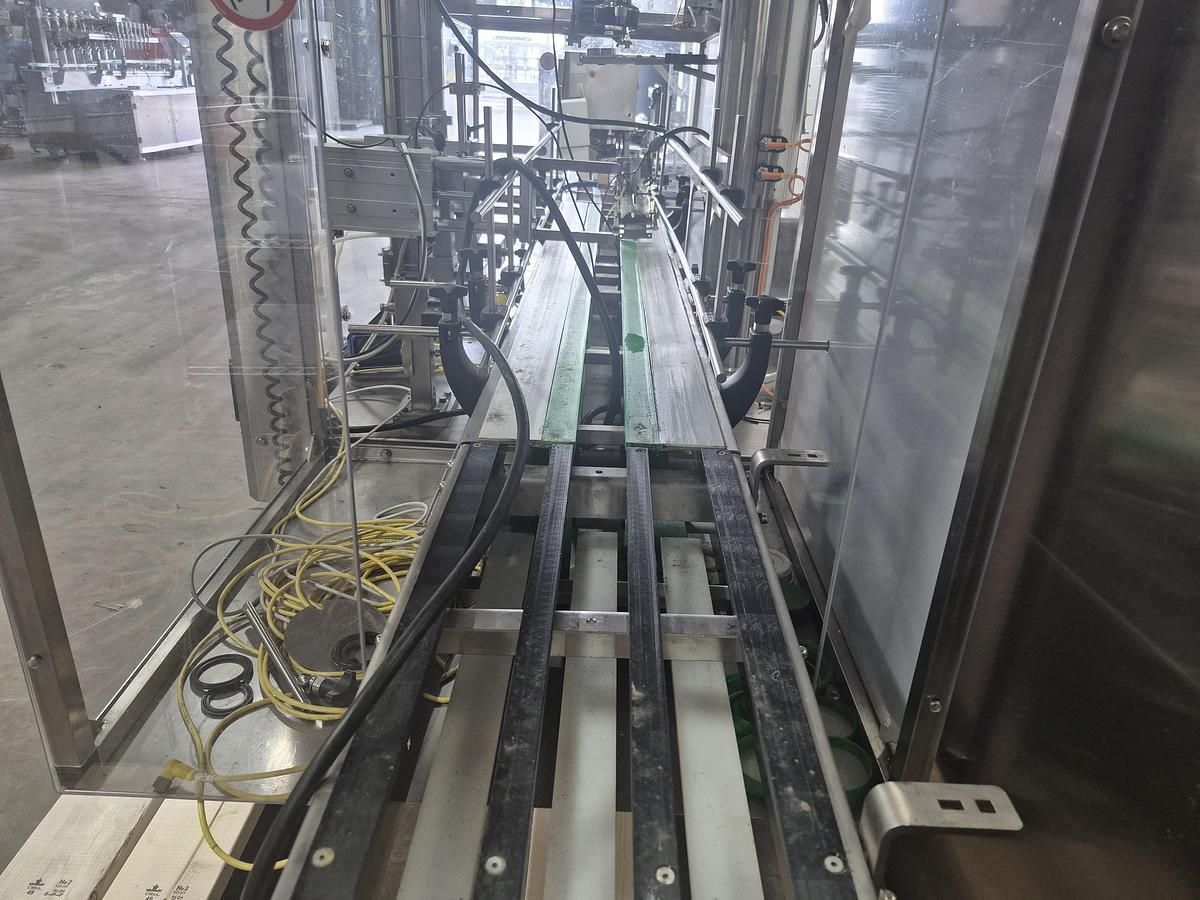

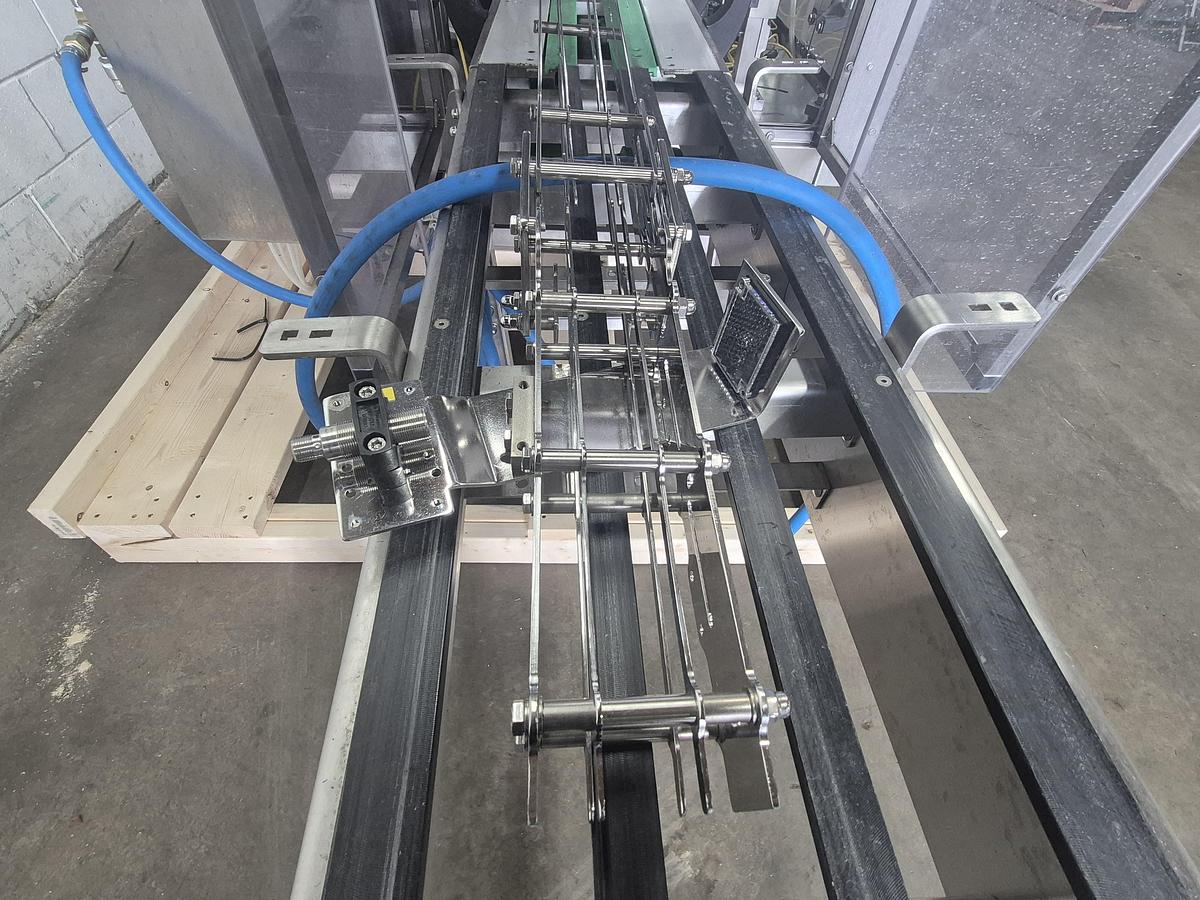

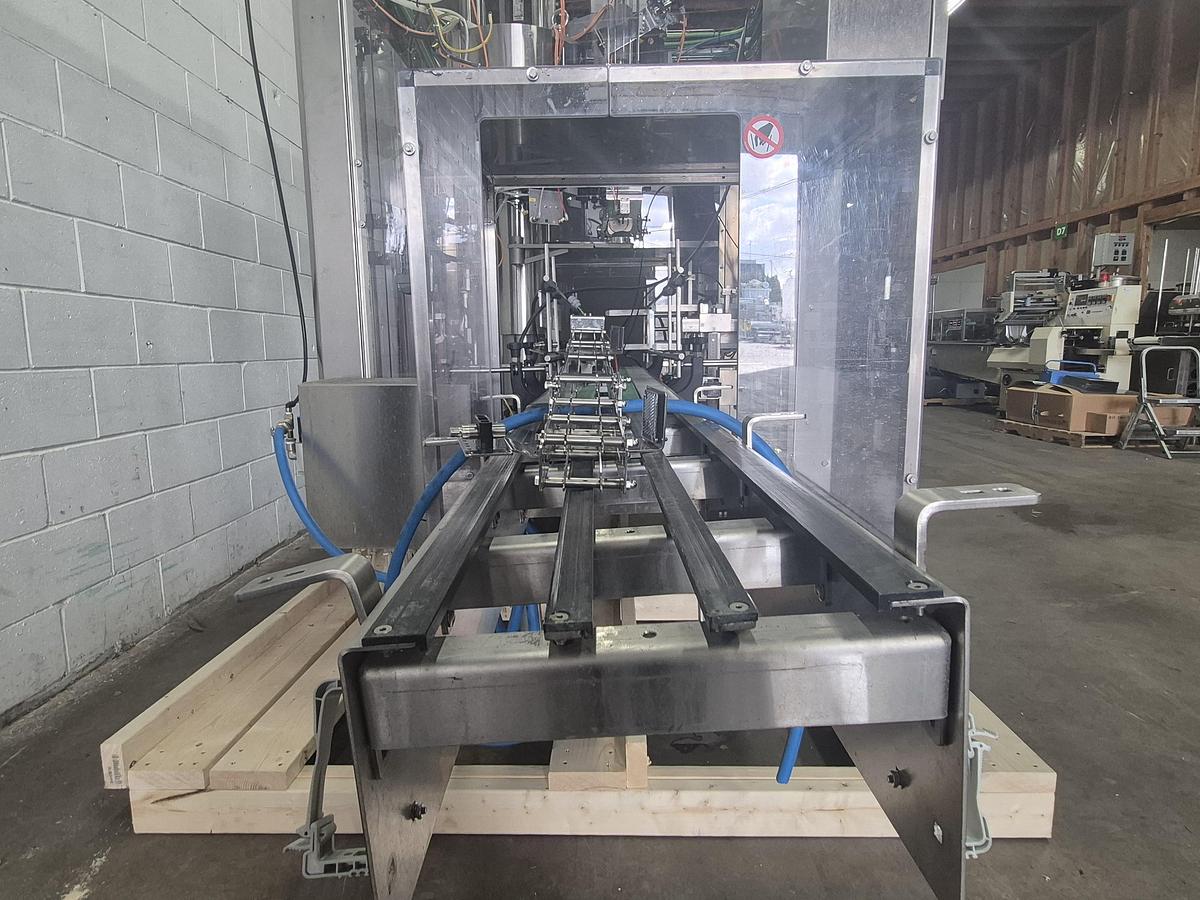

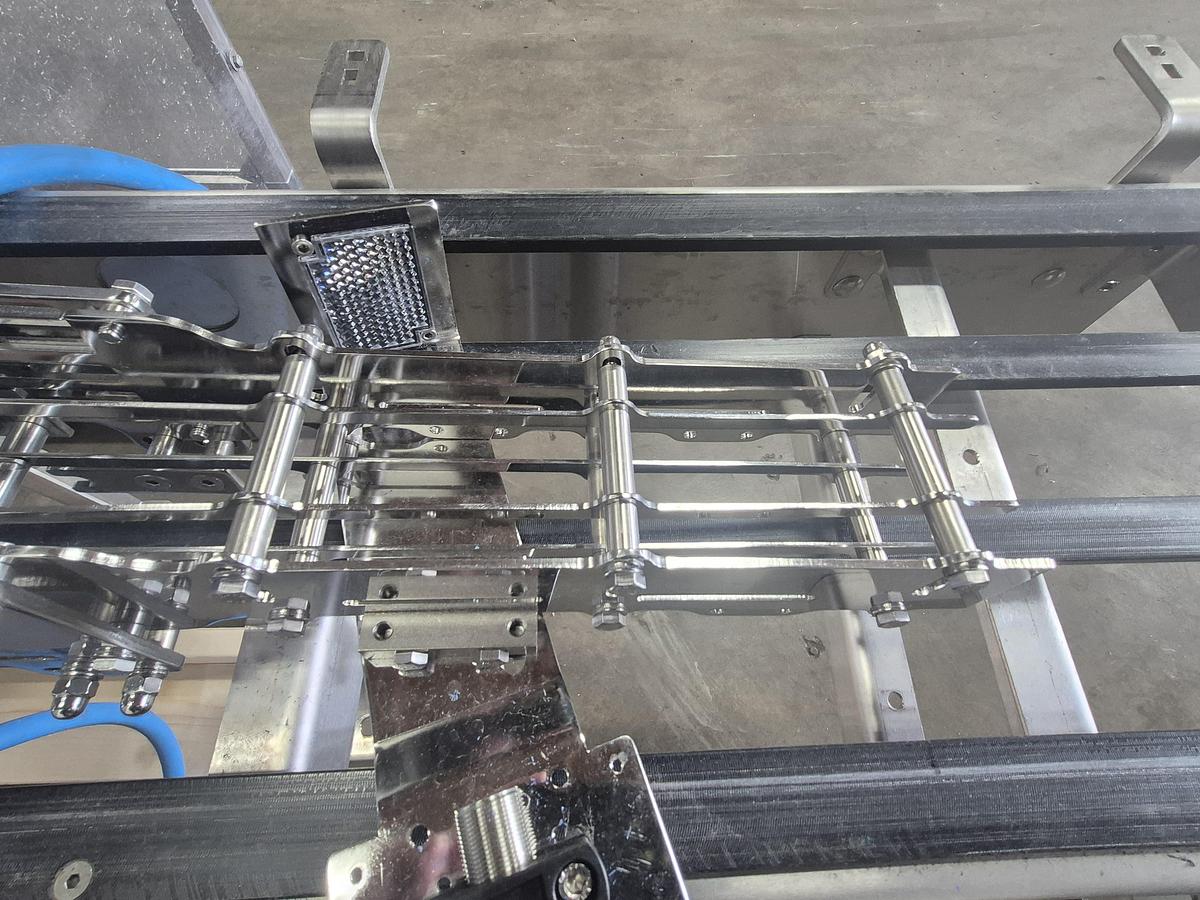

Conveyor at the end has a dimension:

• 83.5" L
• 12" W
• 30" Discharge Height

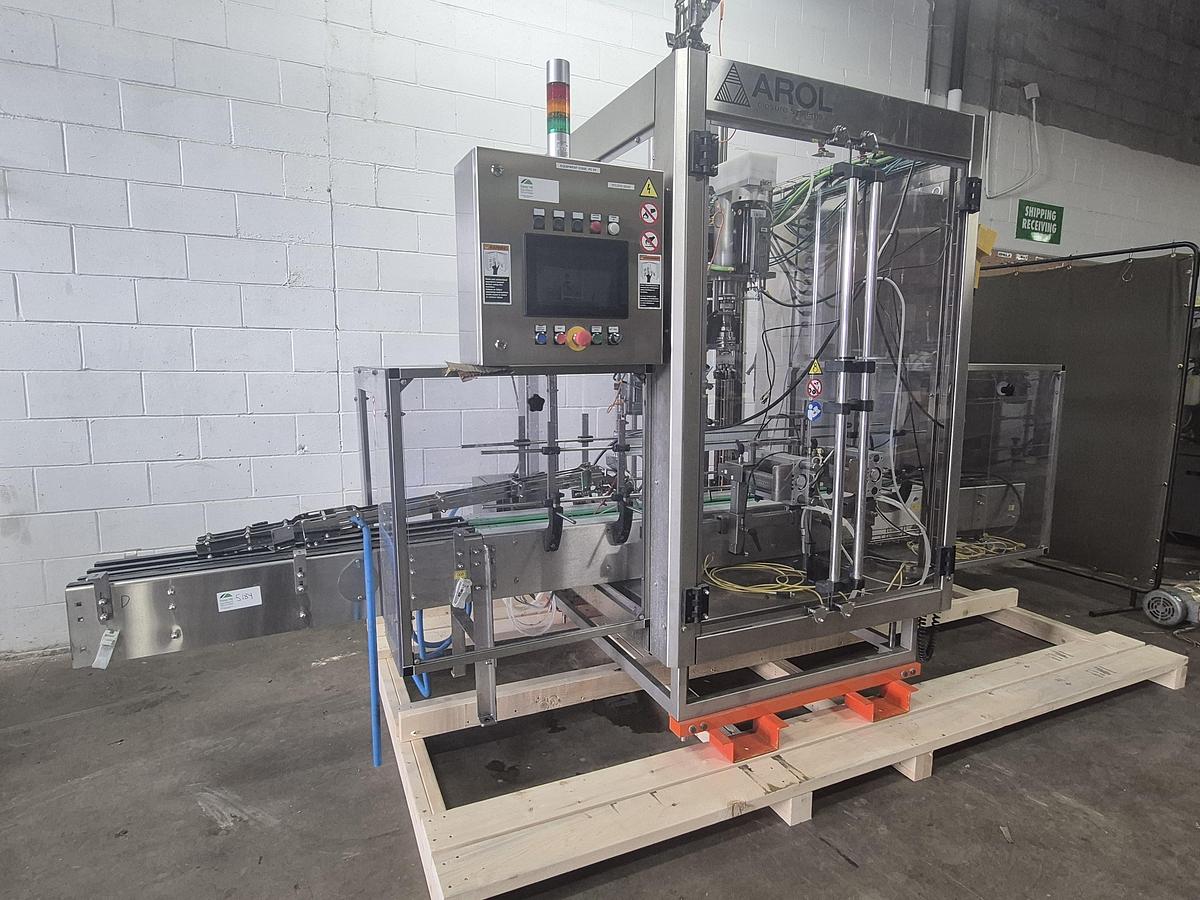

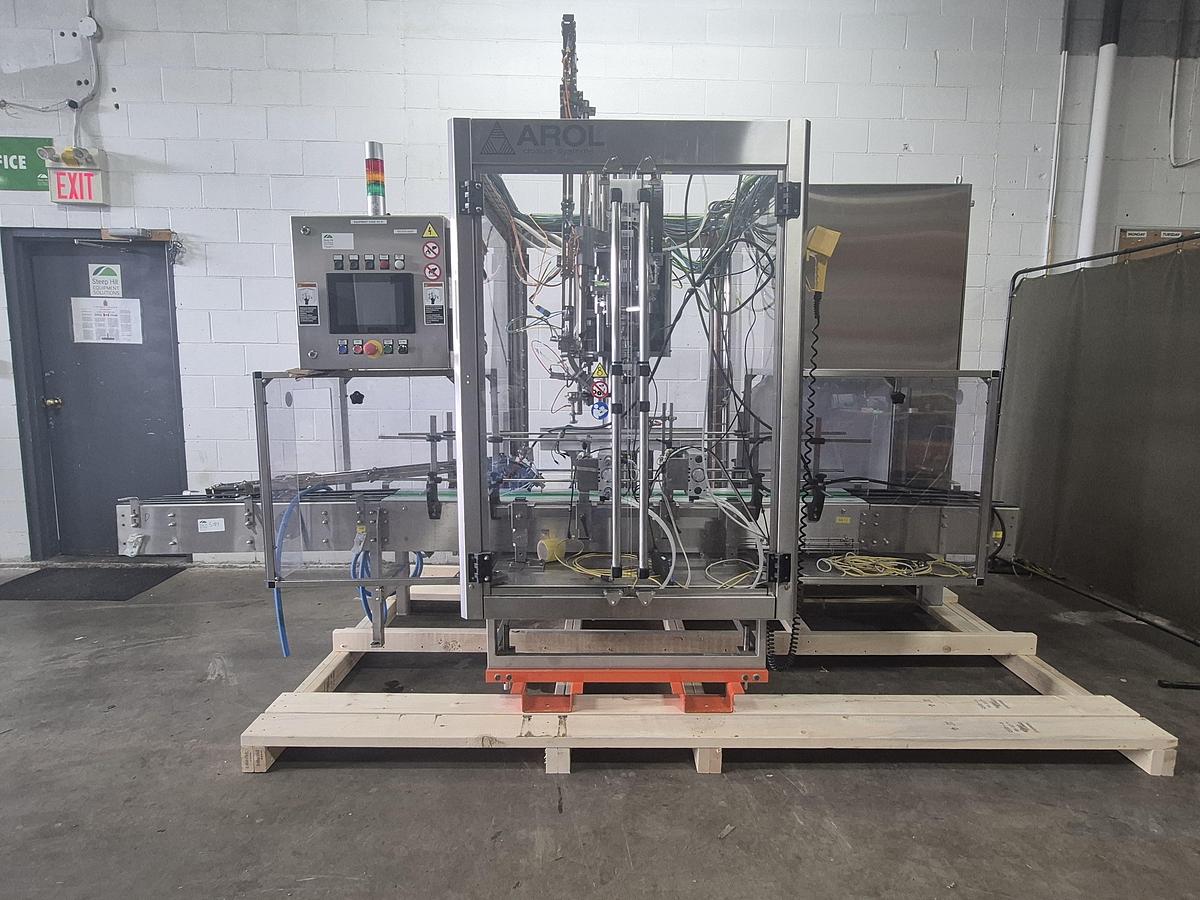

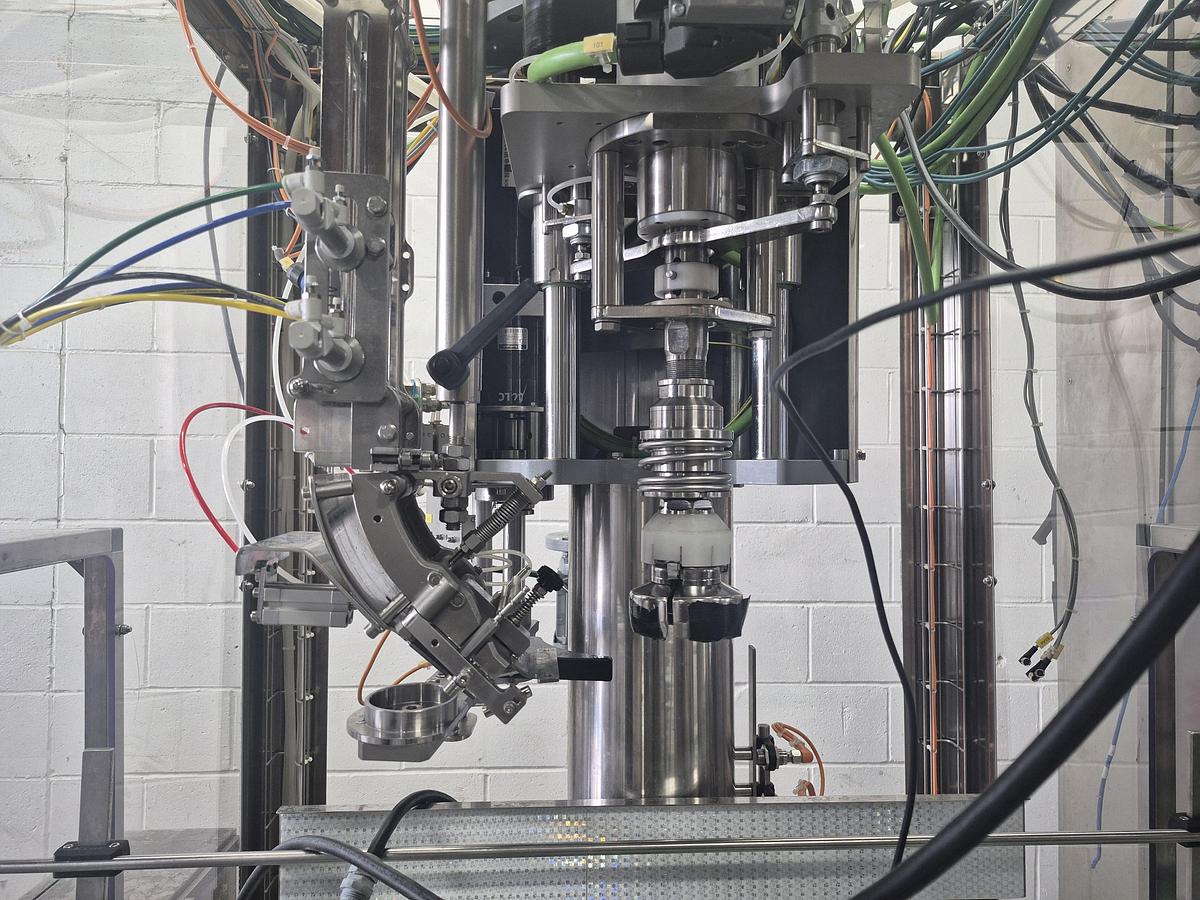

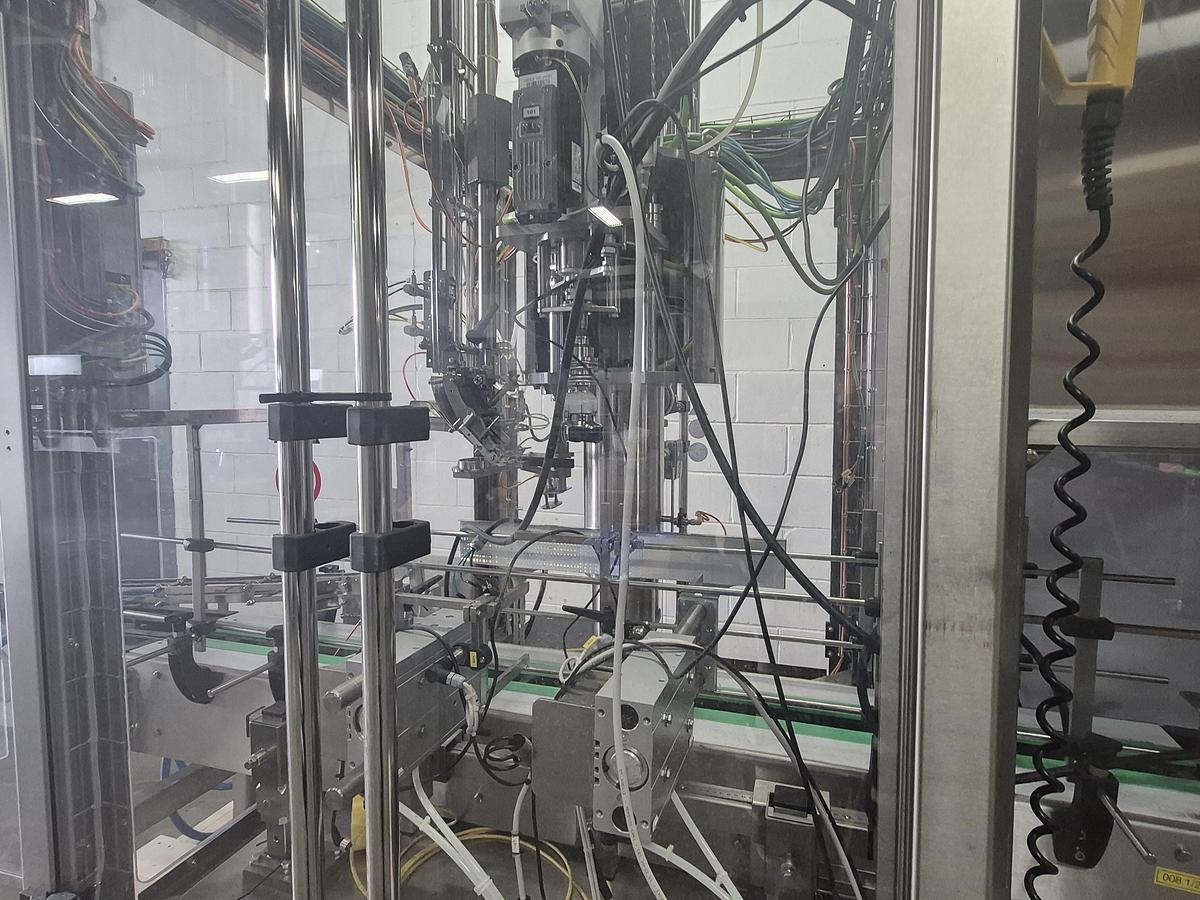

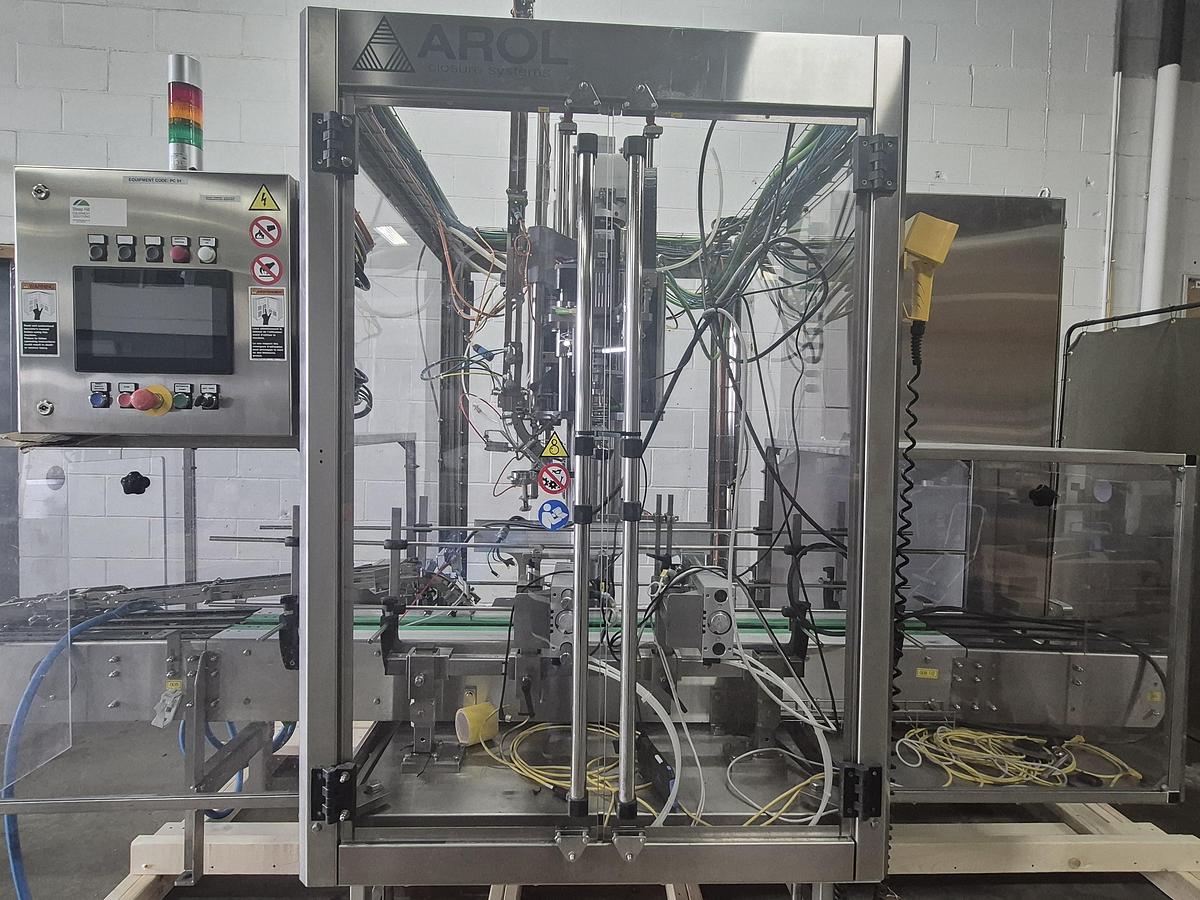

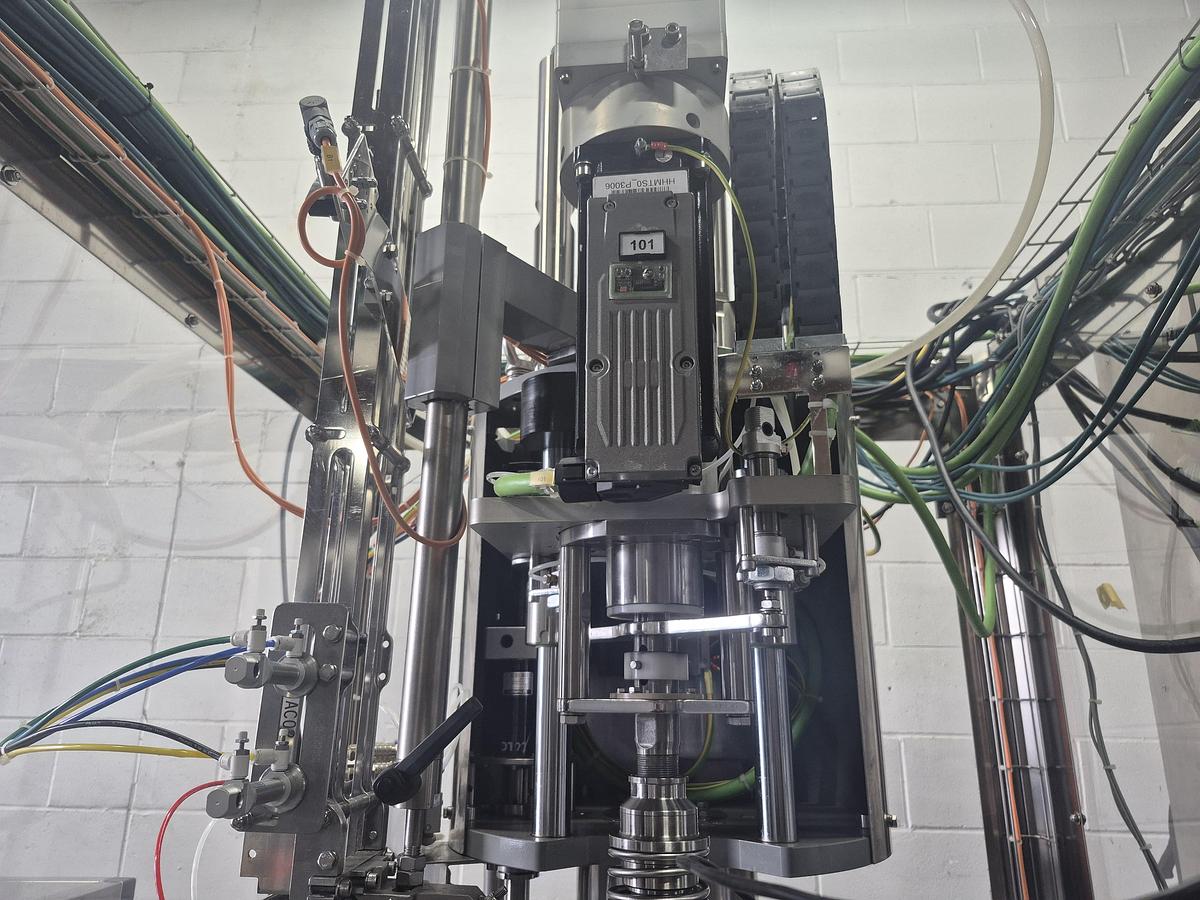

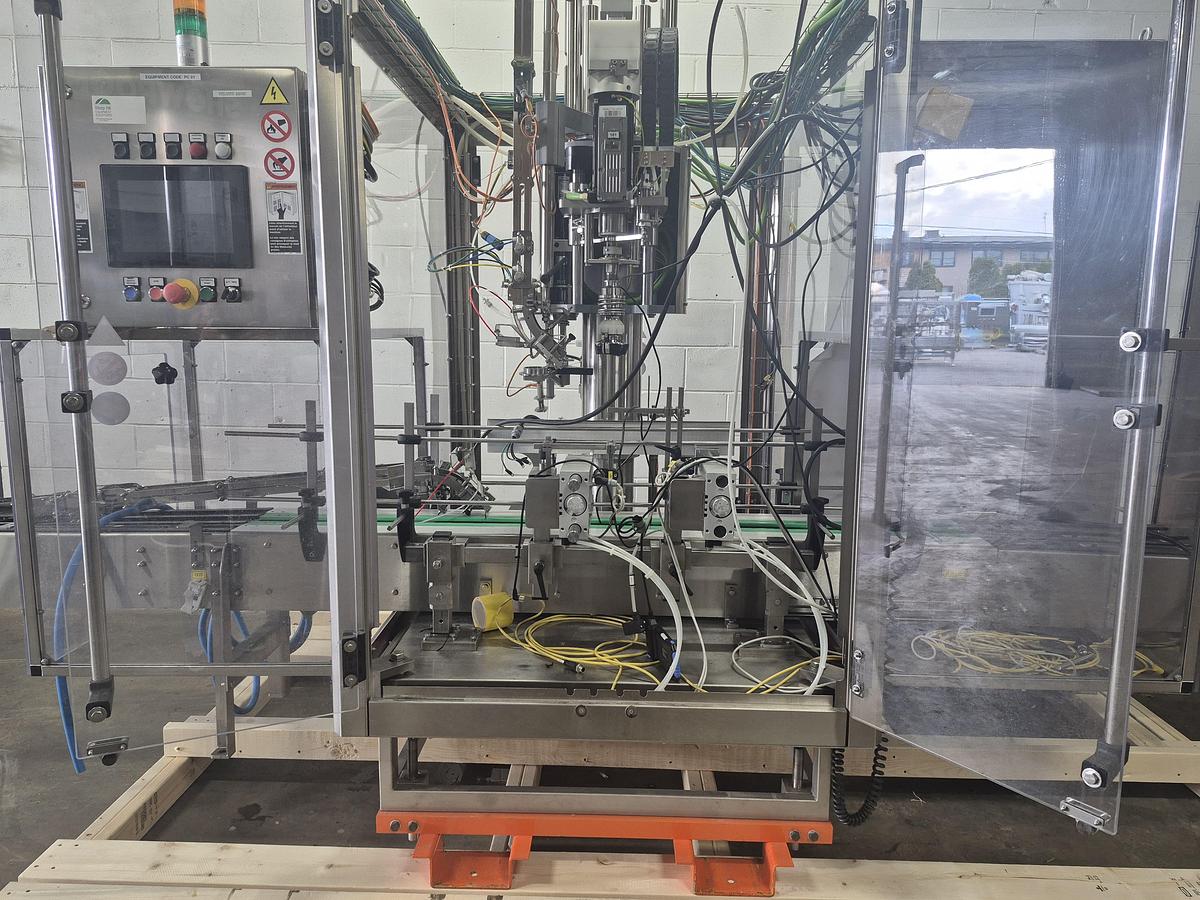

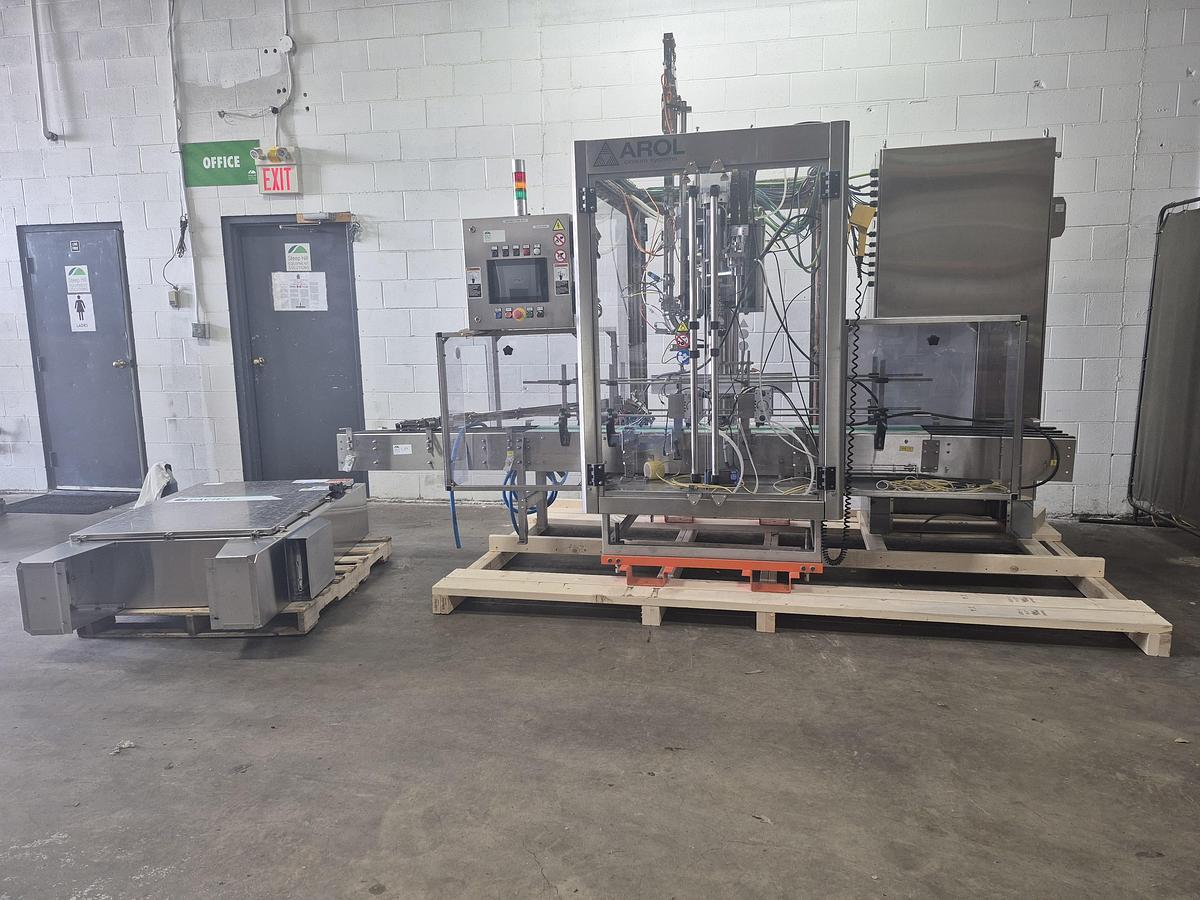

Comes with a AROL Closure Systems Filling and Capping System

Is primarily used for the automated sealing and capping of containers across a wide range of industrial production lines. While it is most famous for its capping capabilities, it is often part of a larger "monoblock" system that performs both filling and capping in one synchronized process.

Specs:

• Sealing Containers: Securely applying a vast array of closures including plastic screw caps, aluminum ROPP (roll-on pilfer-proof) caps, crown corks, T-corks, and specialized tethered or flip-top caps
• Cap Feeding & Orientation: Using gravity elevators and sorters to ensure every cap is correctly positioned before reaching the bottle
• Cap Treatment:  Sanitizing and cleaning caps using UV sterilization or dust removal systems before they are applied, which is critical for high-hygiene industries like dairy or pharmaceuticals

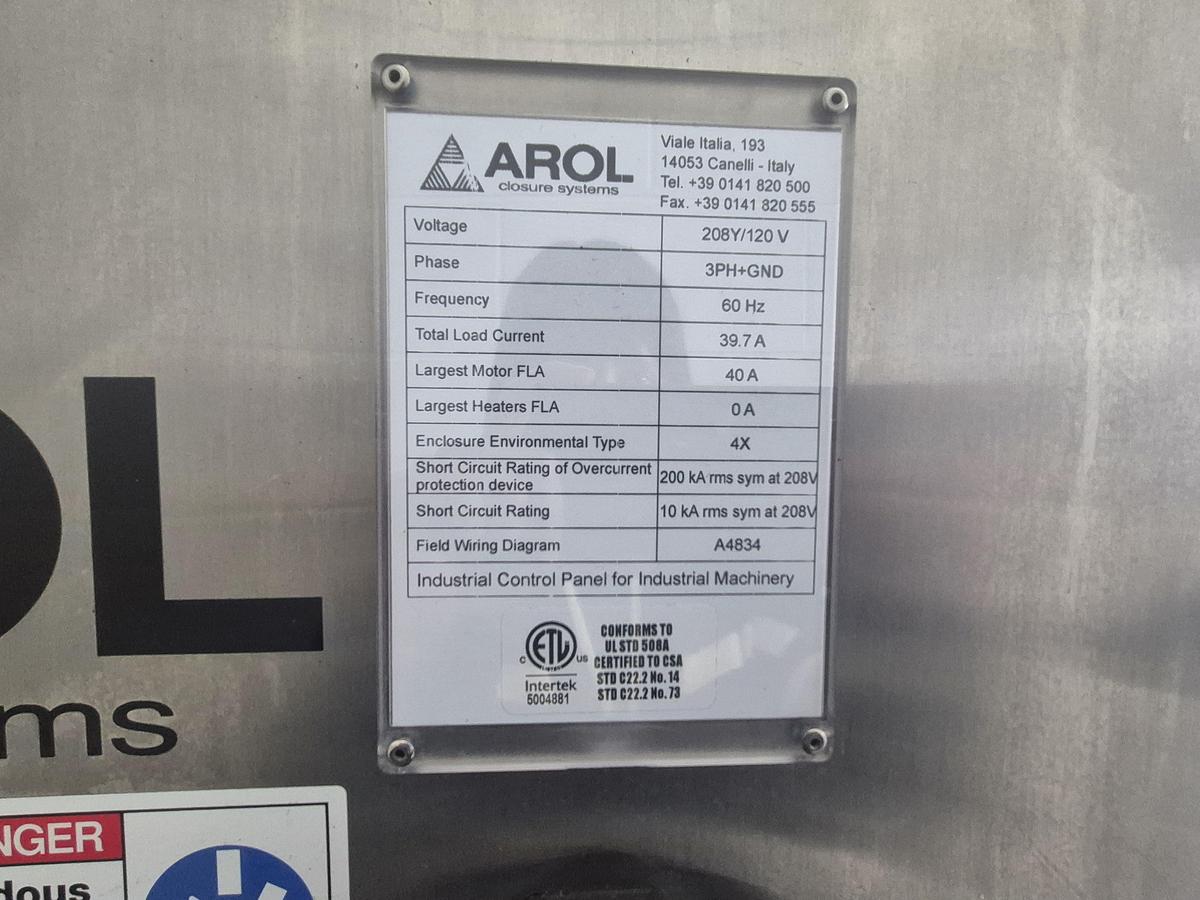

• Voltage: 208Y/120 V
• Phase: 3PH+GND (Three-phase plus ground)
• 60 Hz (Standard for North America)
• Total Load Current: 39.7 A
• Largest Motor FLA: 40 A
• Short Circuit Rating: 10 kA rms sym at 208V
• Cap Feed Track Measurements: The one inside the capper is 3³⁄₄ inches and the one laying down is 3 inches.

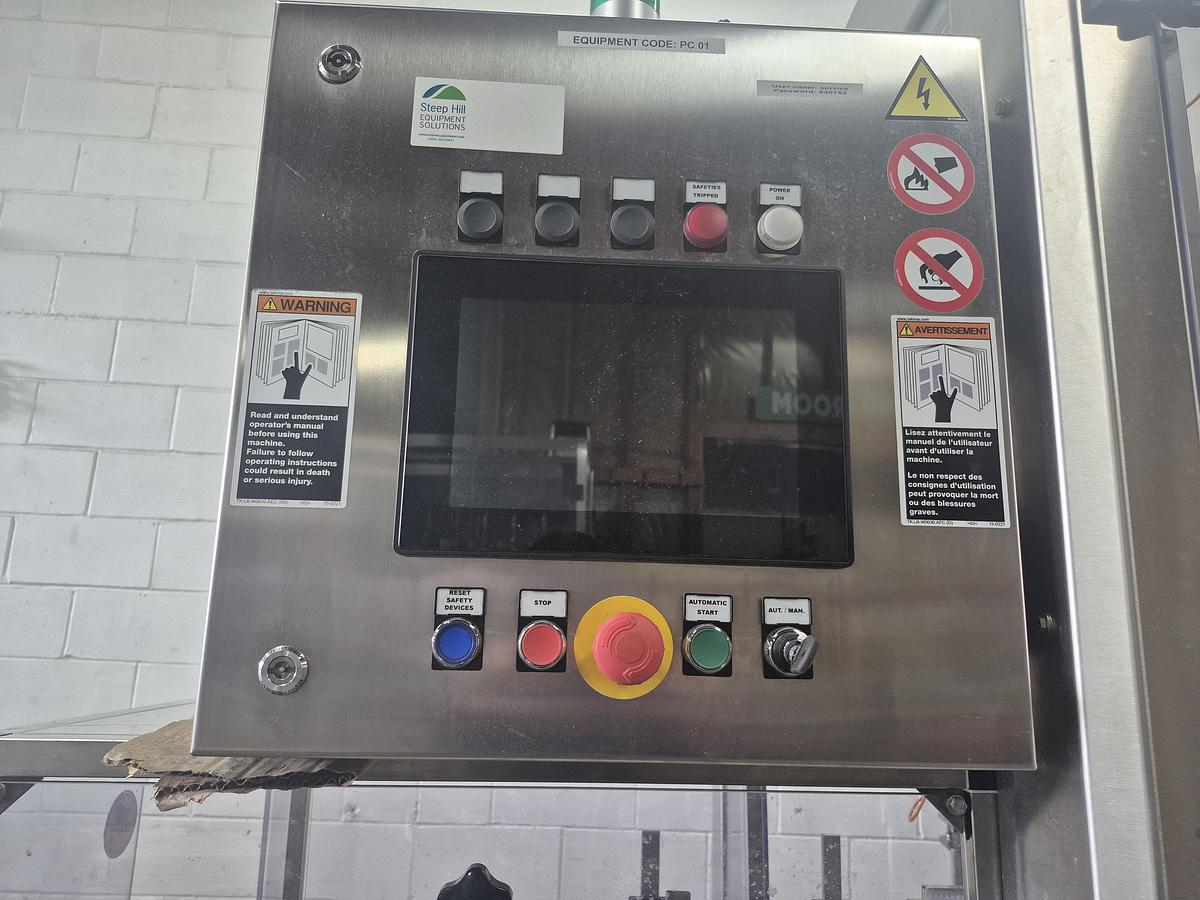

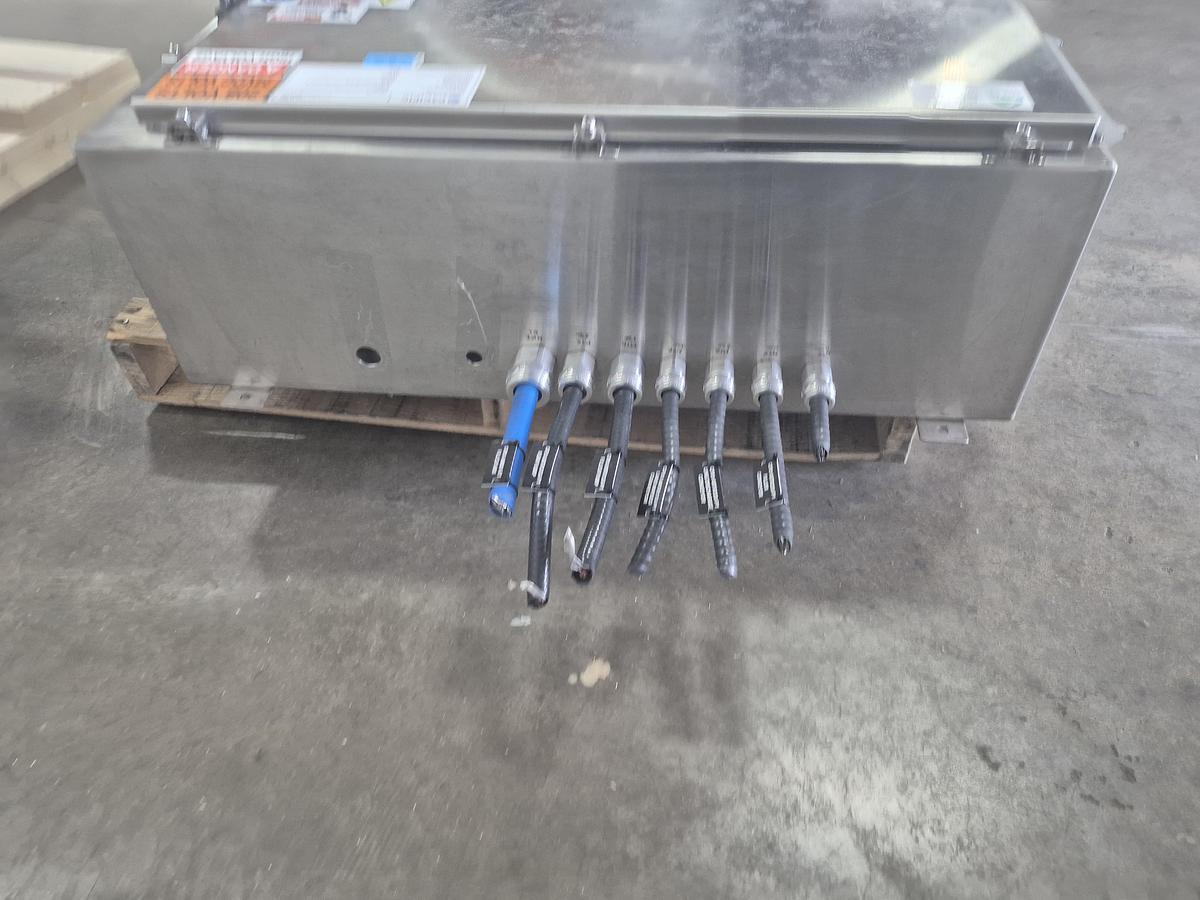

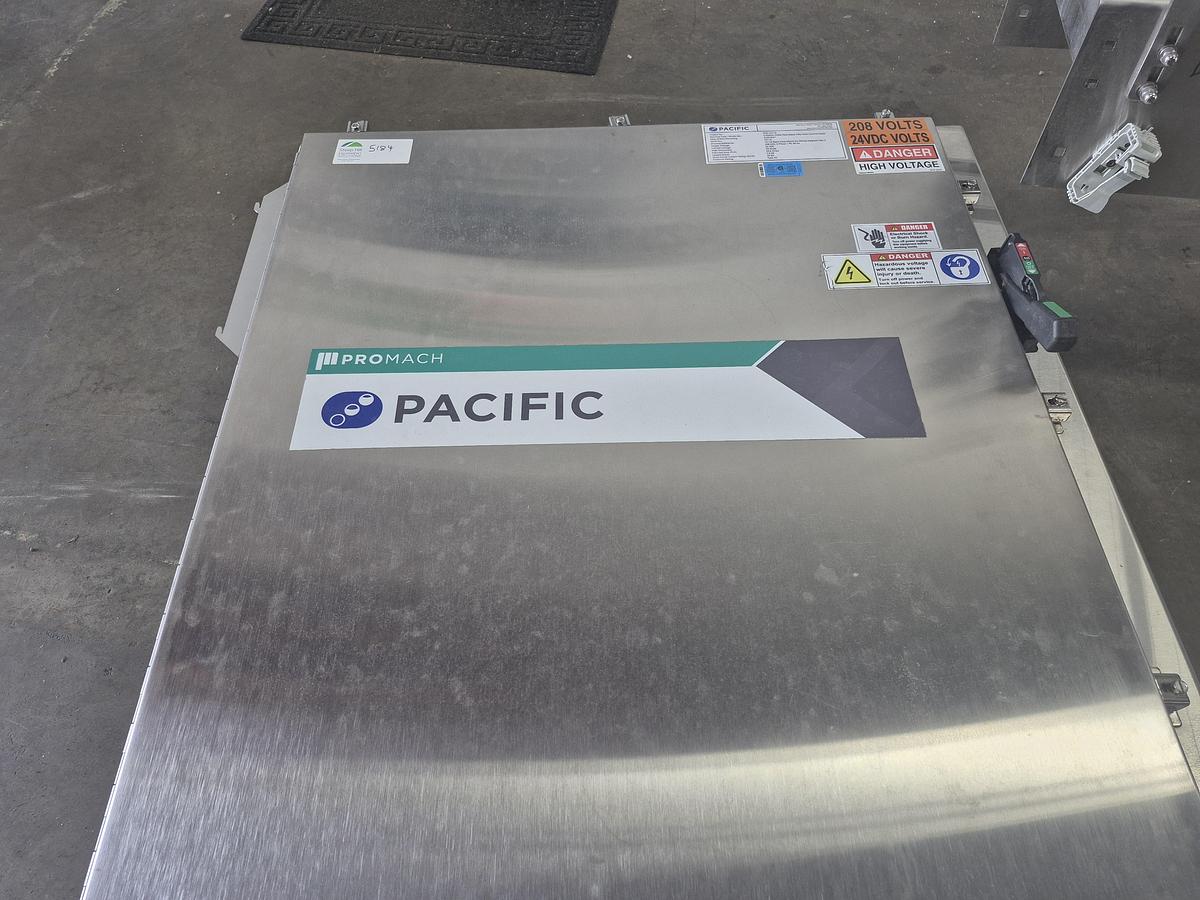

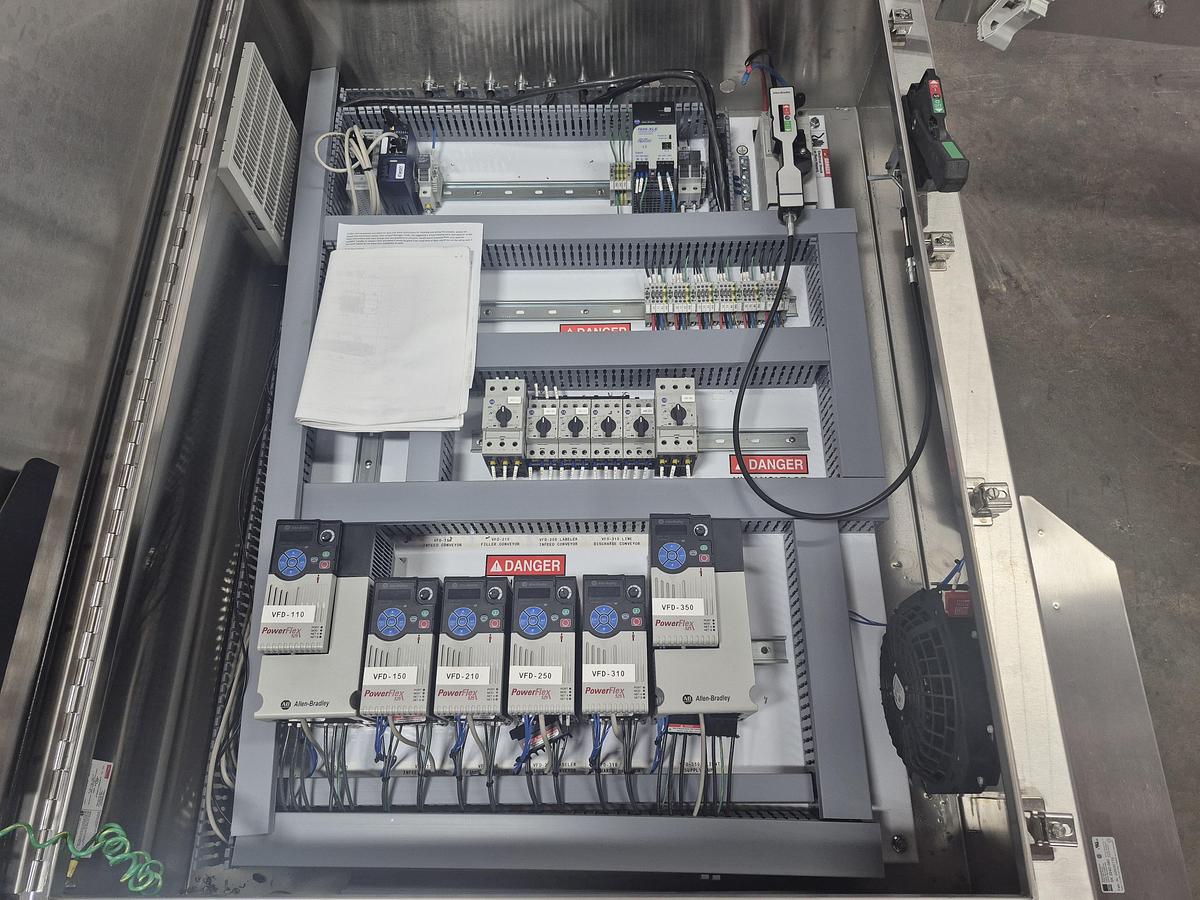

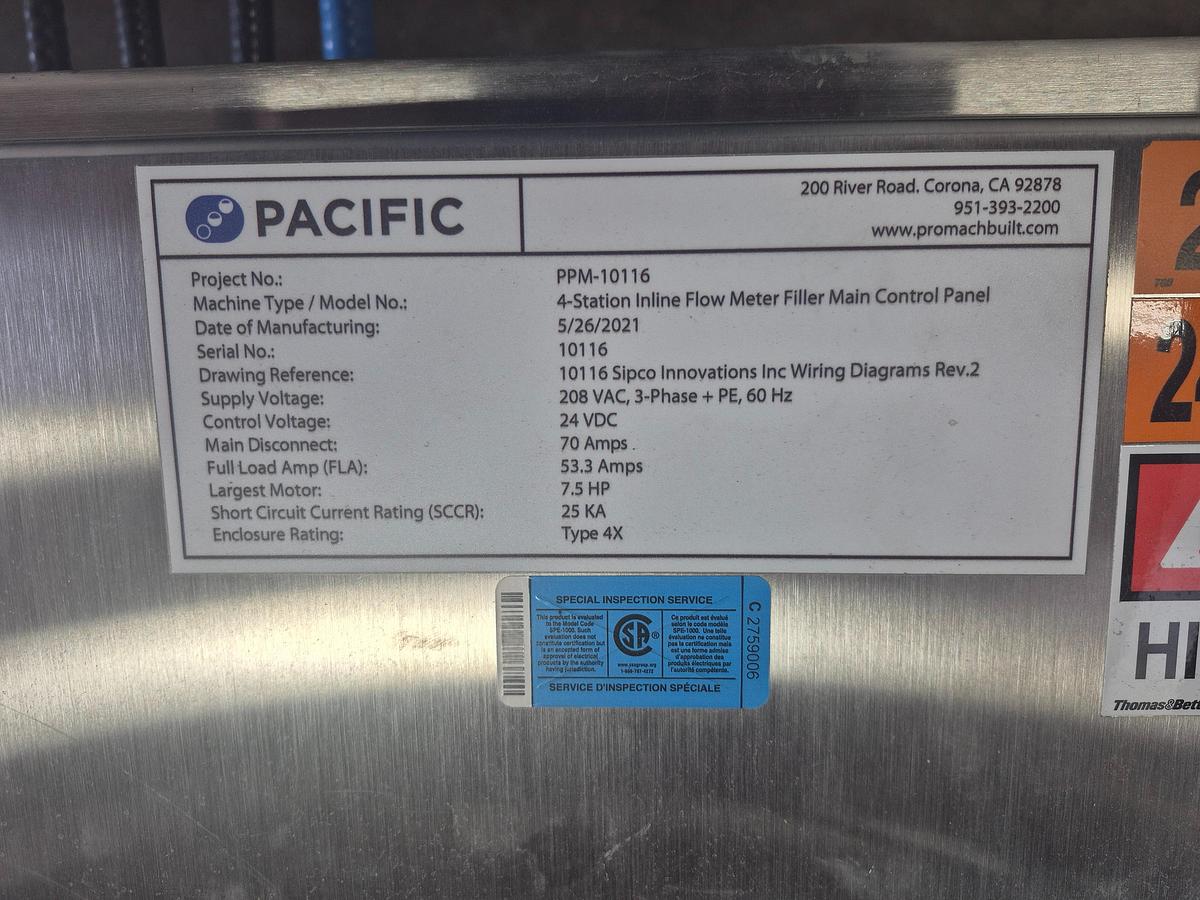

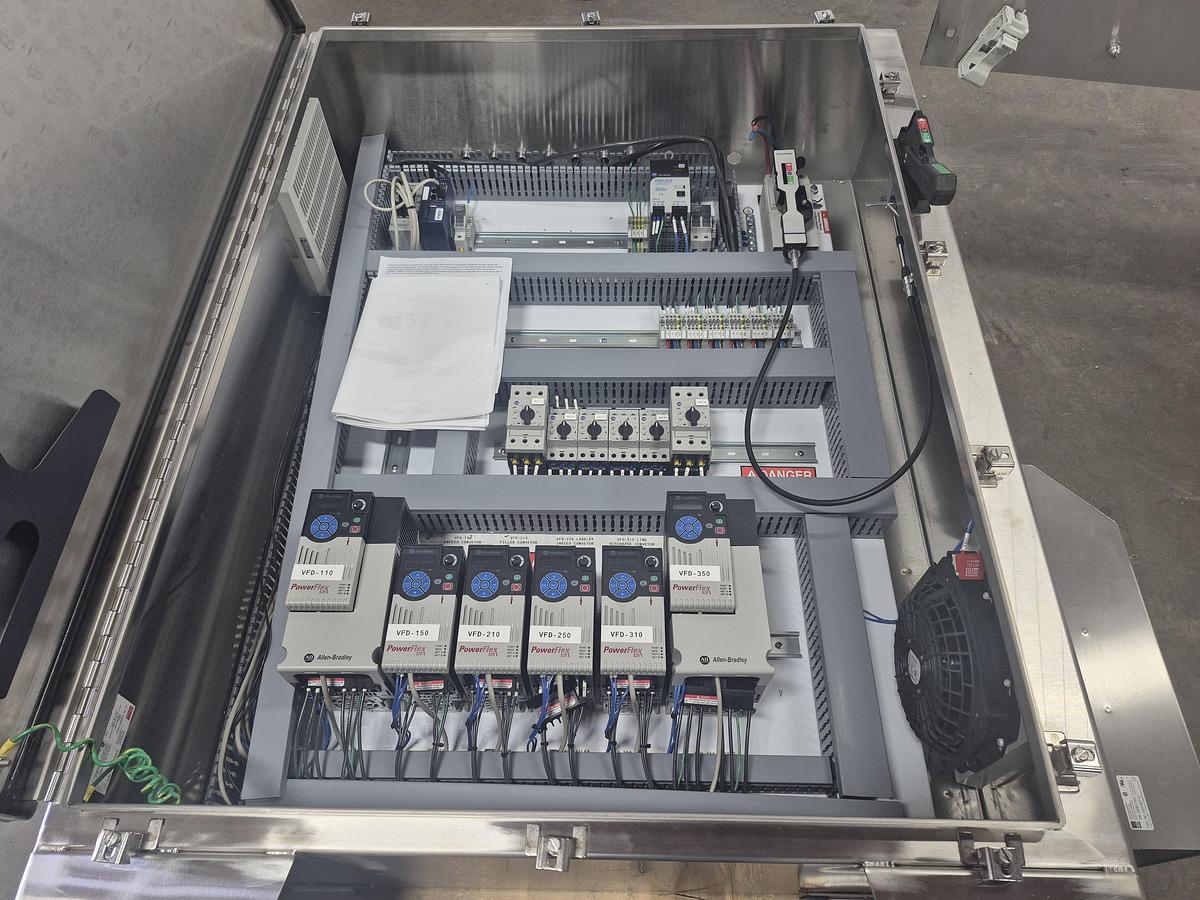

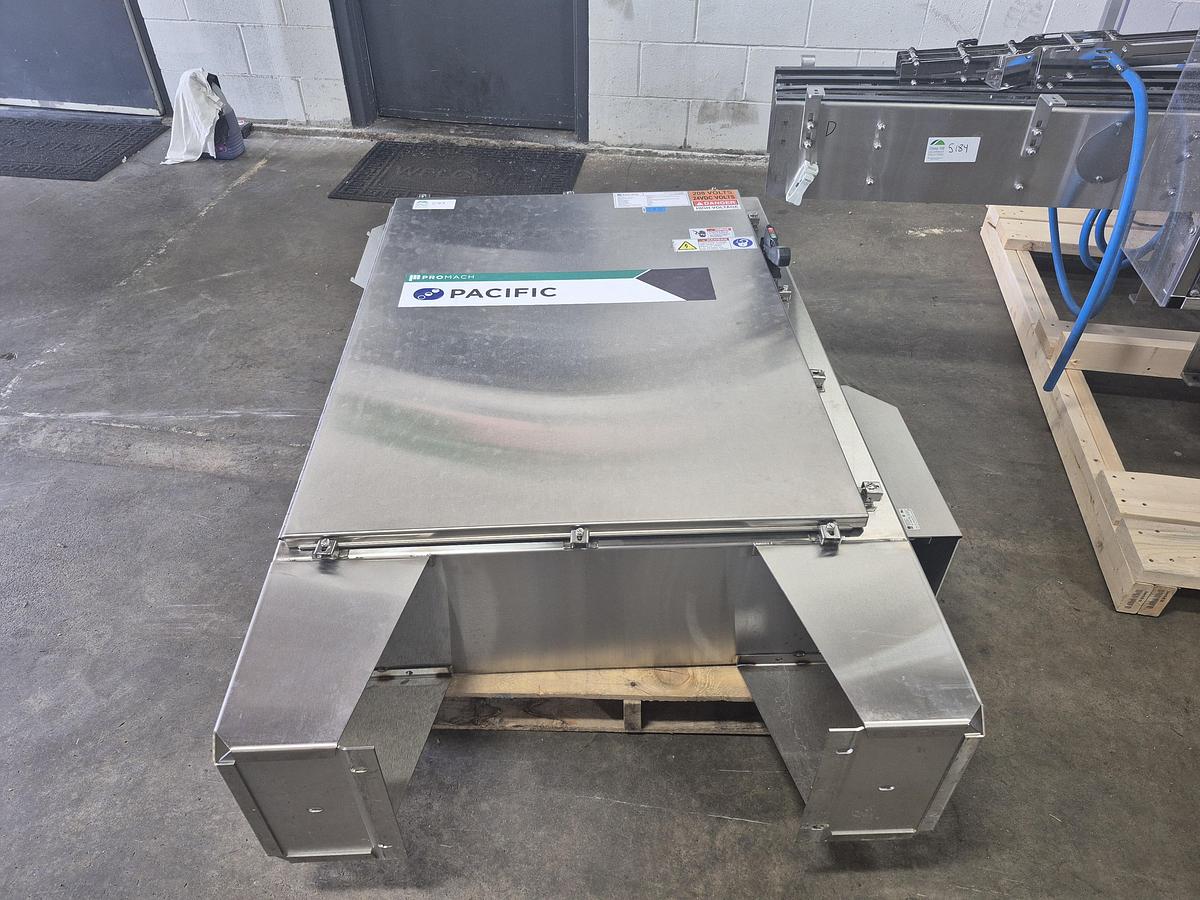

Pacific Flow Meter Filler Main Control Panel

Is specifically designed for industrial liquid filling and capping operations

Specs:

• Supply Voltage: 208 VAC, 3-Phase + PE, 60 Hz
• Control Voltage: 24 VDC
• Main Disconnect: 70 Amps
• Full Load Amp: 53.3 Amps
• Largest Motor: 7.5 HP
• SCCR: 25 KA
• Enclosure Rating: Type 4X (indicates protection against corrosion and water ingress)

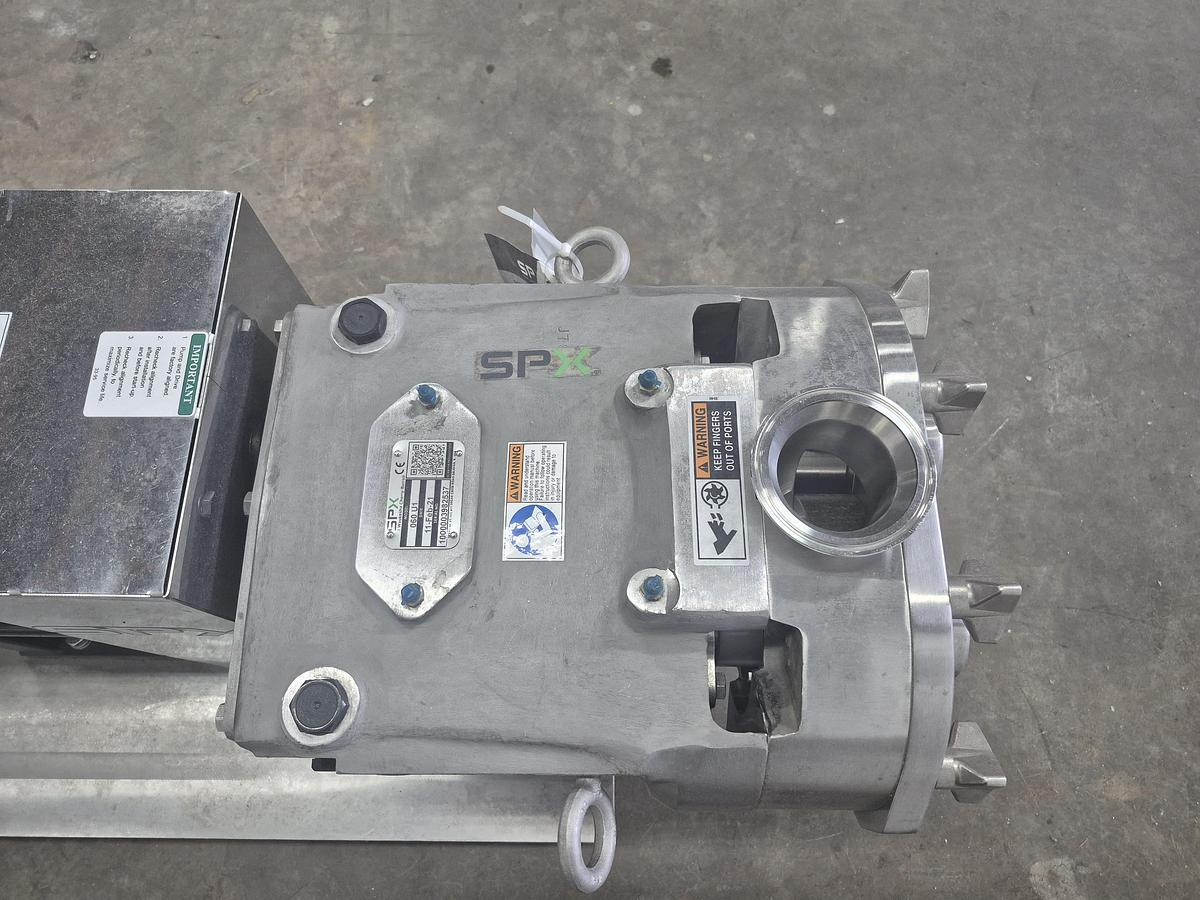

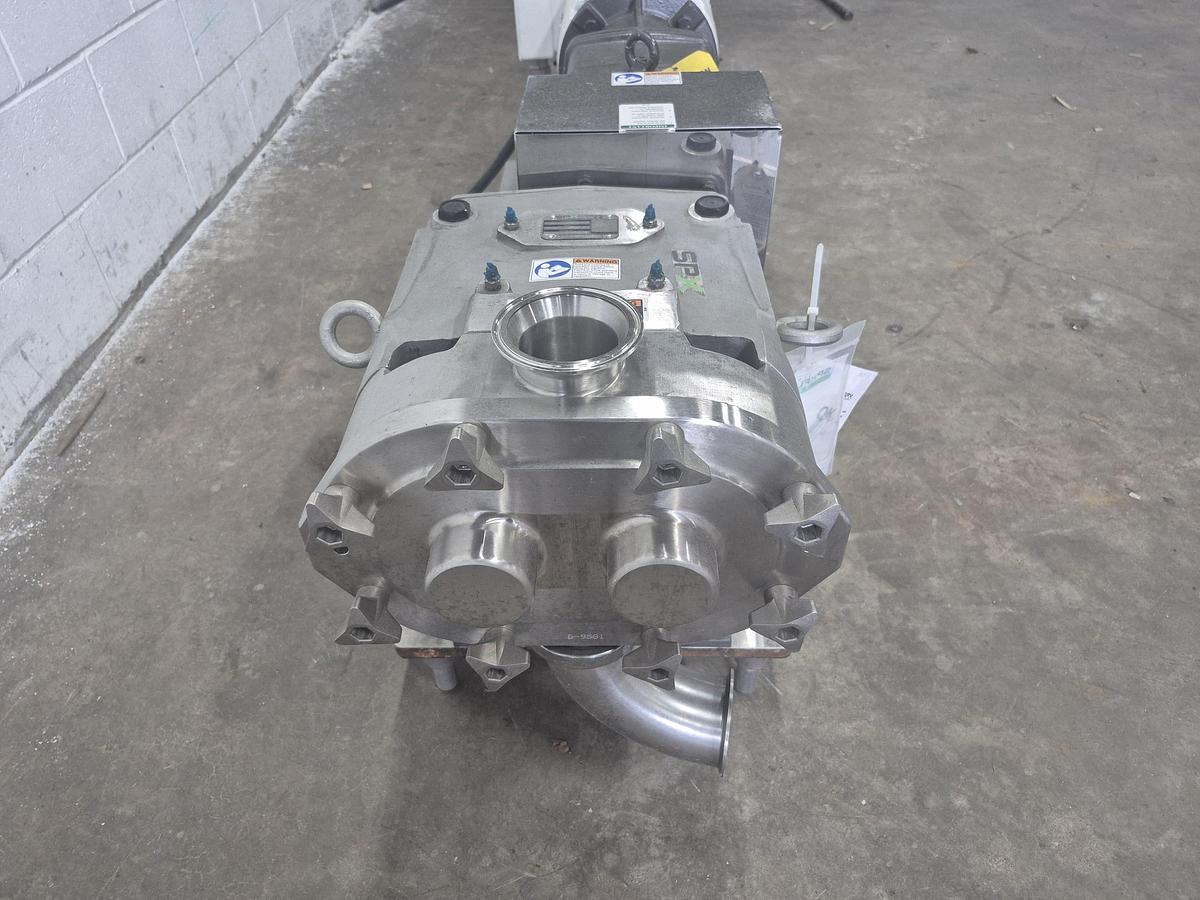

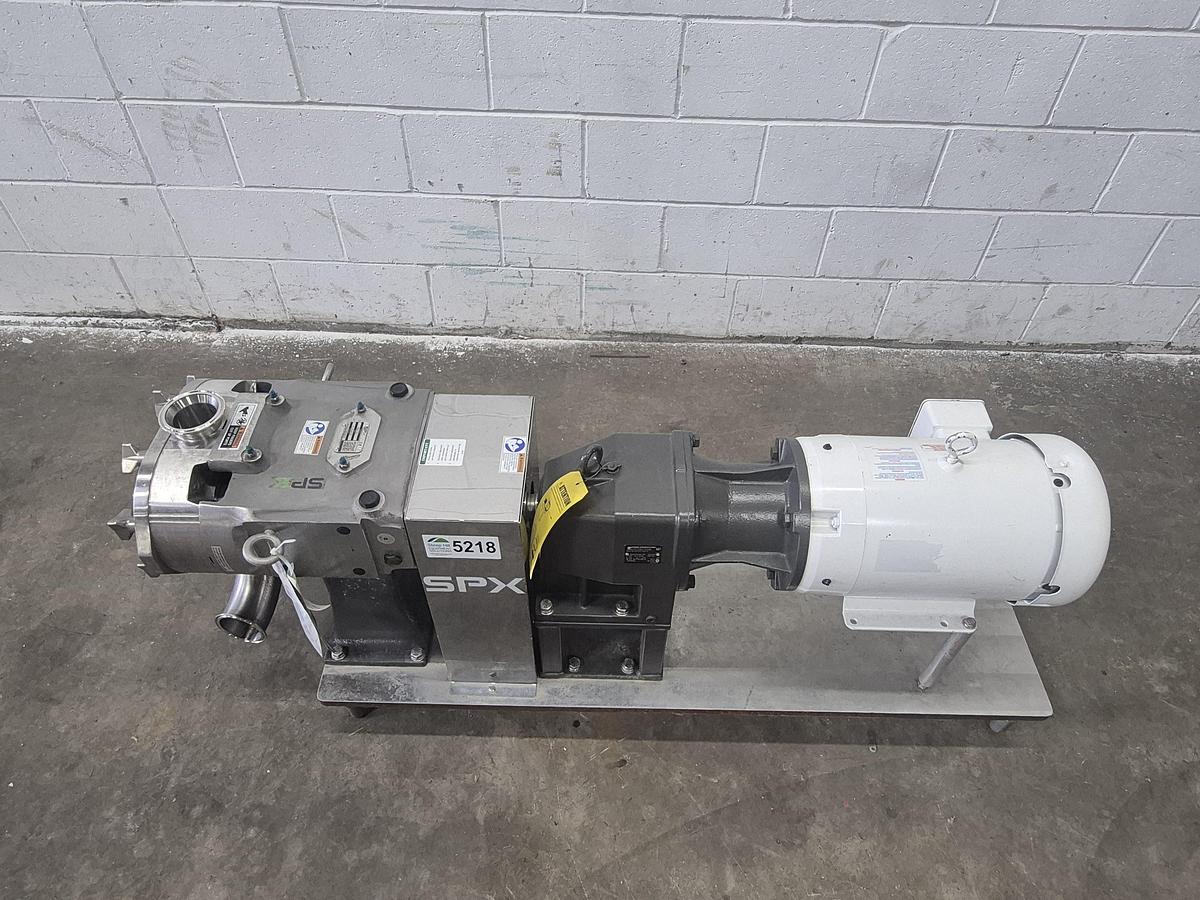

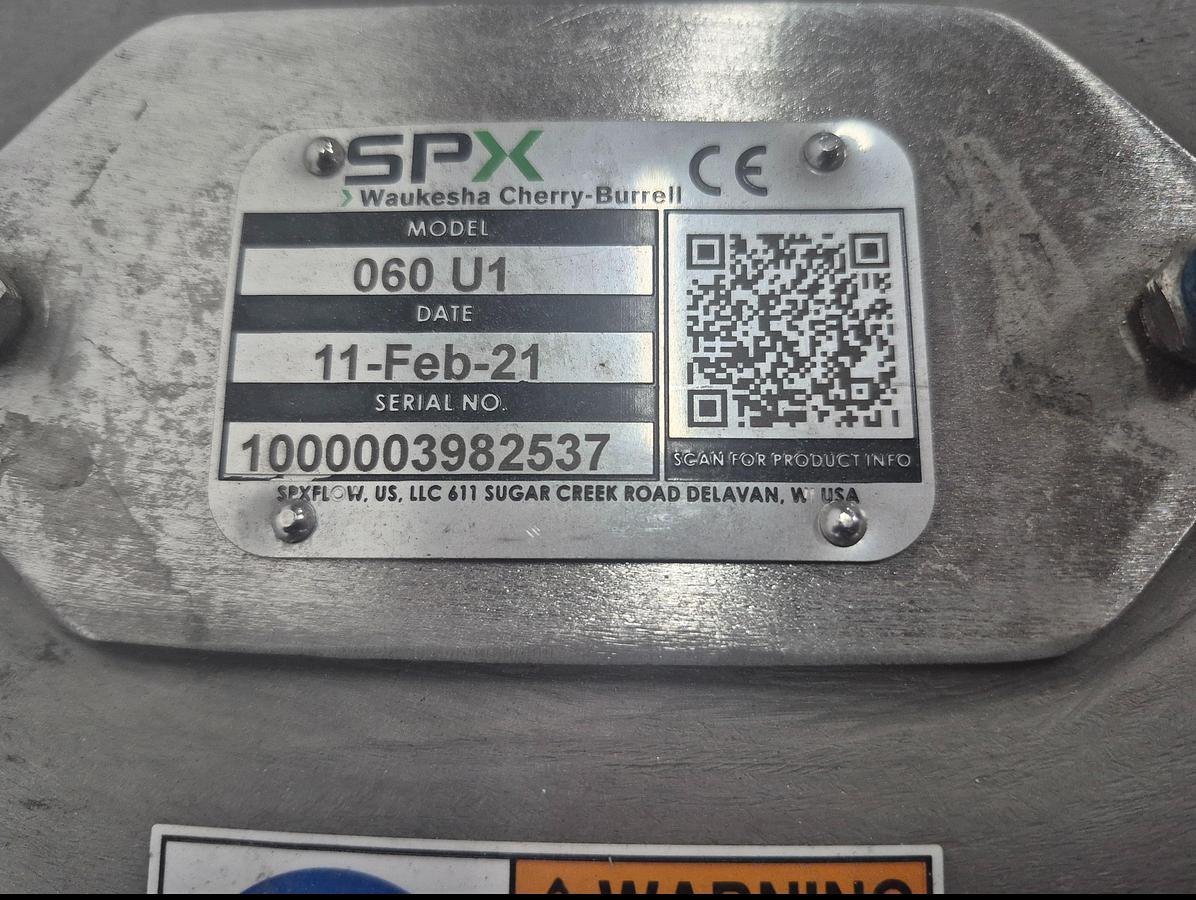

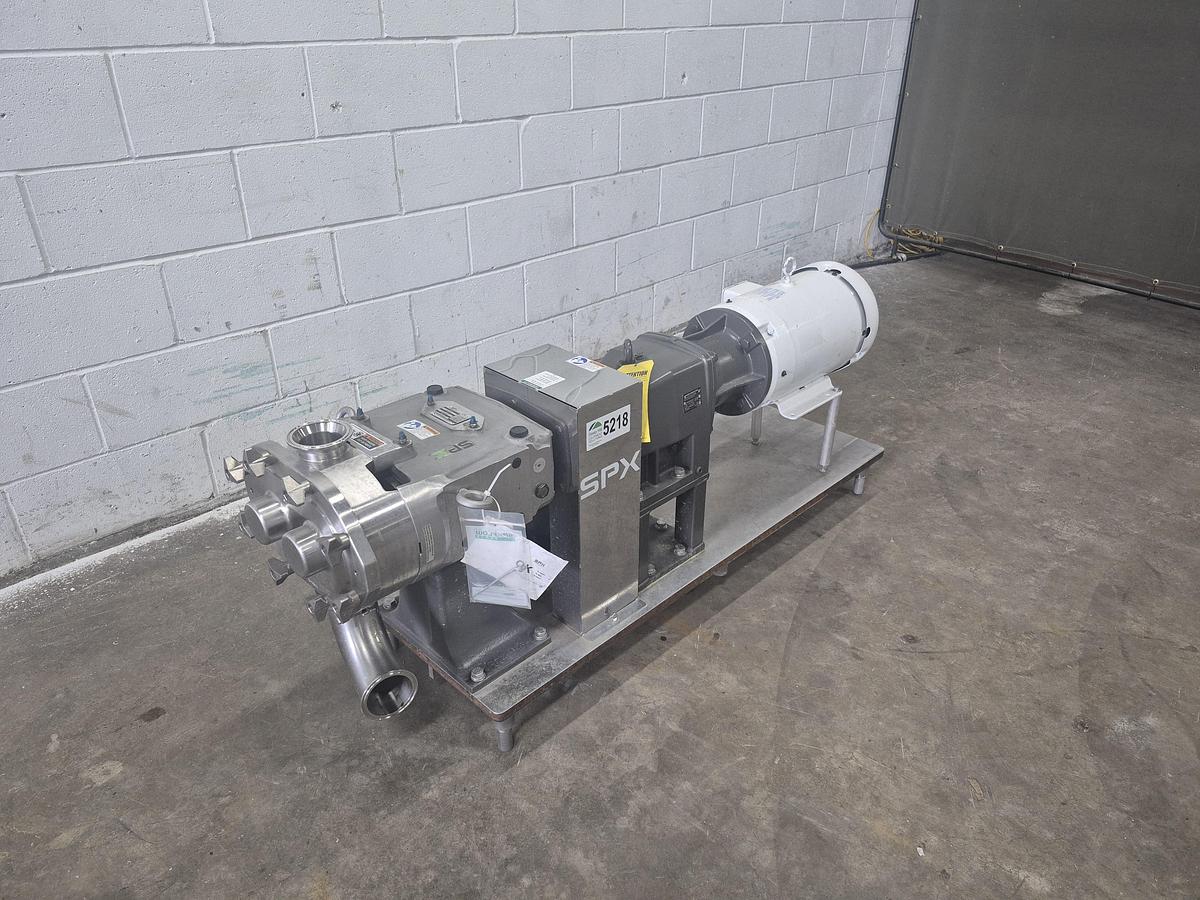

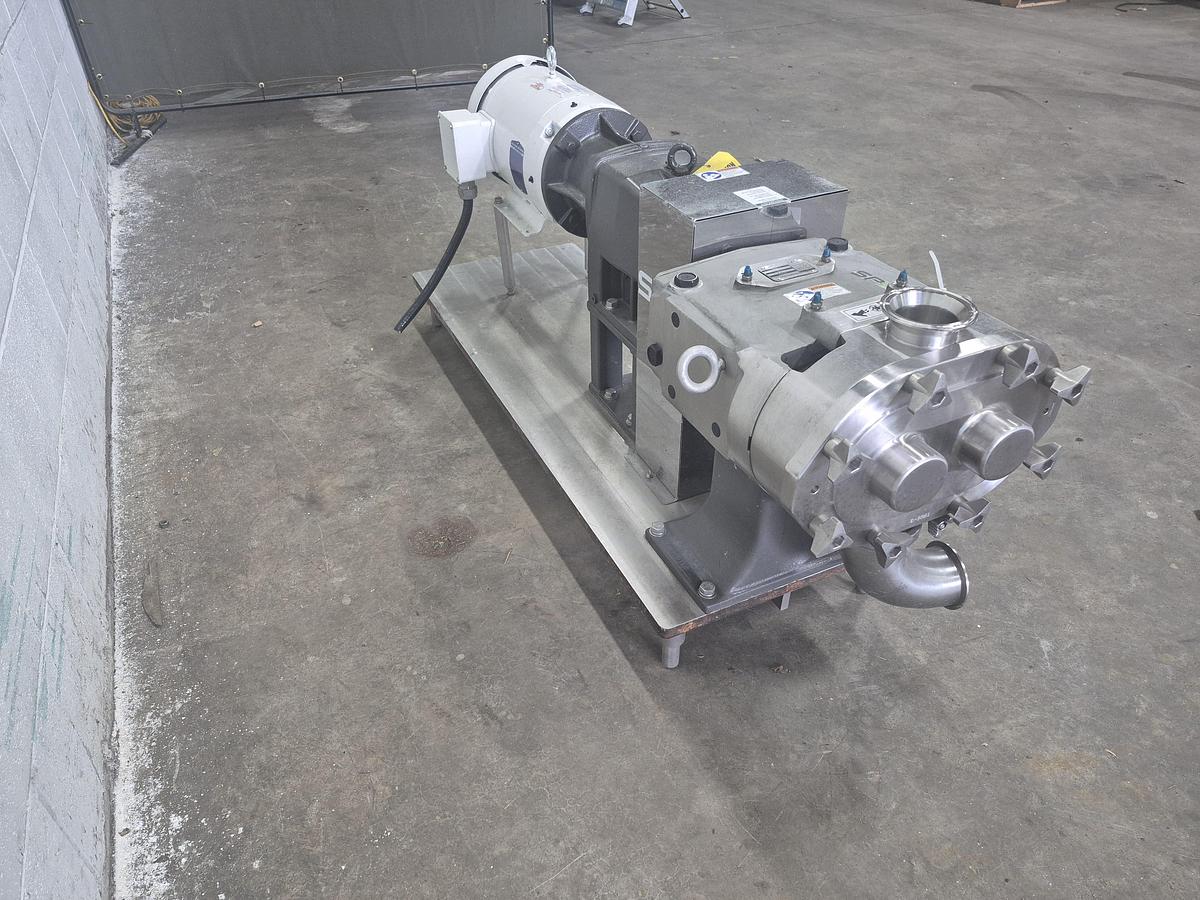

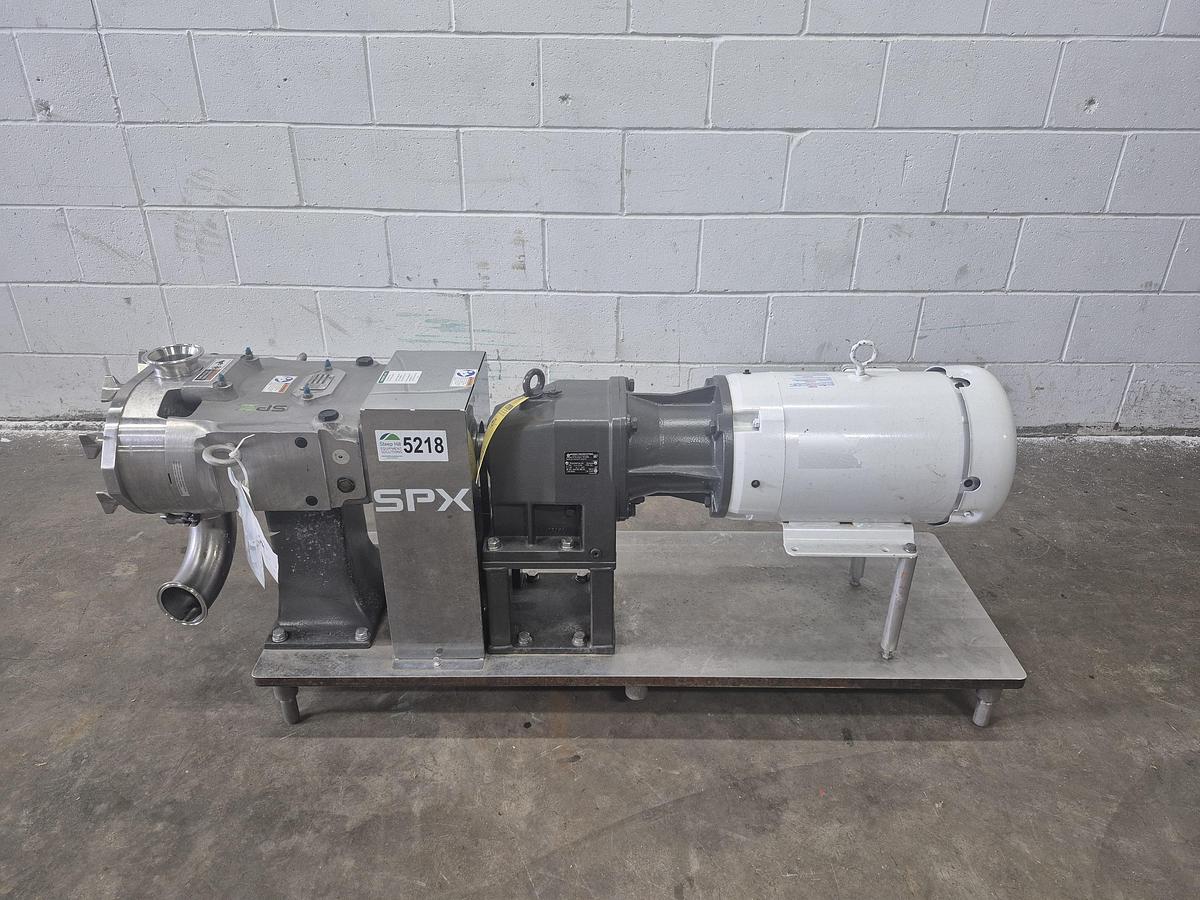

SPX Waukesha External Circumferential Piston Pump

Is a versatile "workhorse" pump primarily used for transferring delicate, thick, or particulate-heavy fluids in sanitary industries. Because it uses a gentle, low-shear pumping action, it moves products without damaging their texture or integrity, making it ideal for everything from chunky soups to cosmetic creams.

Specs:

• Nominal Capacity: Up to 90 GPM
• Maximum Pressure: 200 PSI (13.8 bar)
• Displacement: 0.153 gallons (0.579 liters) per revolution
• Operating Speed: Up to 600 RPM
• Temperature Range: -40 Degrees Fahrenheit (-40 Degrees Celsius) to 300 Degrees Fahrenheit (149 Degrees Celsius)
• Inlet/Outlet Diameter: 2.5 inches

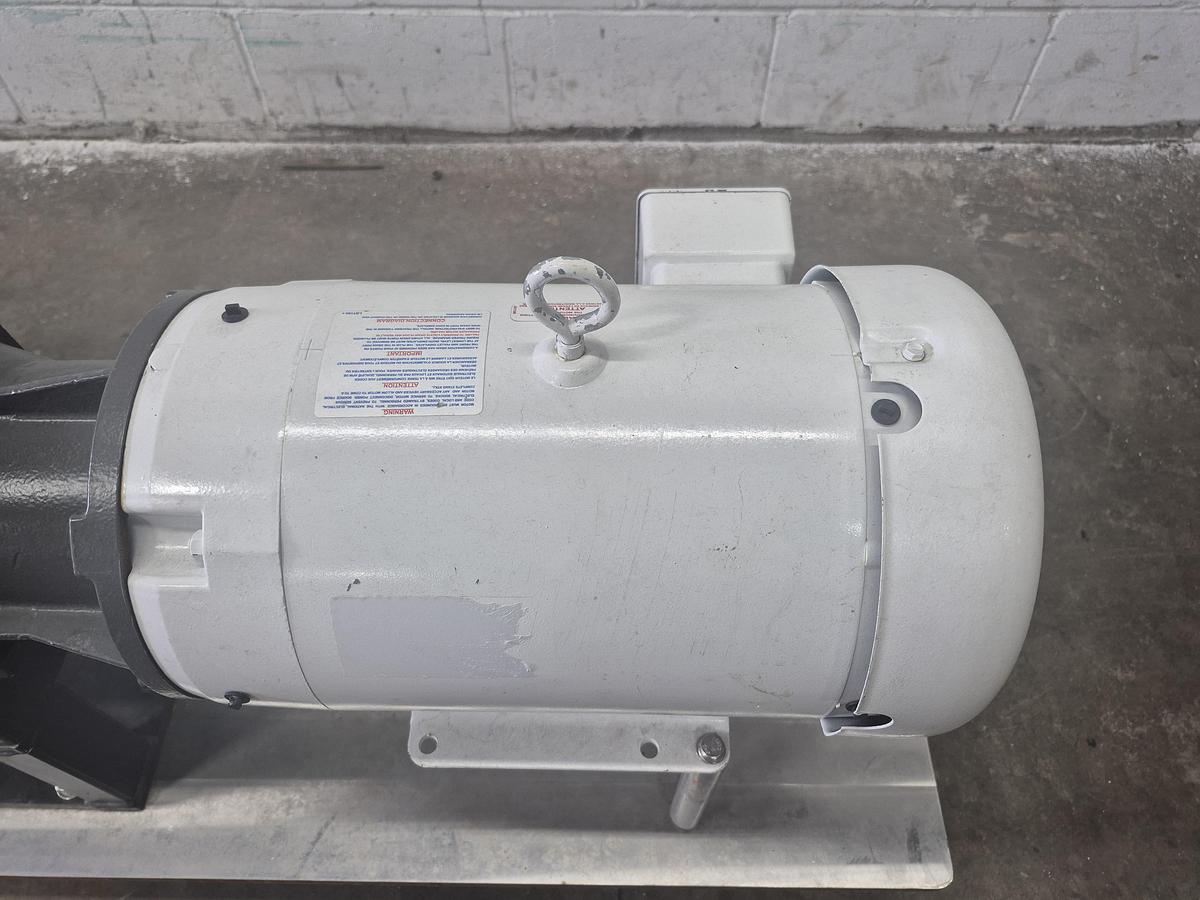

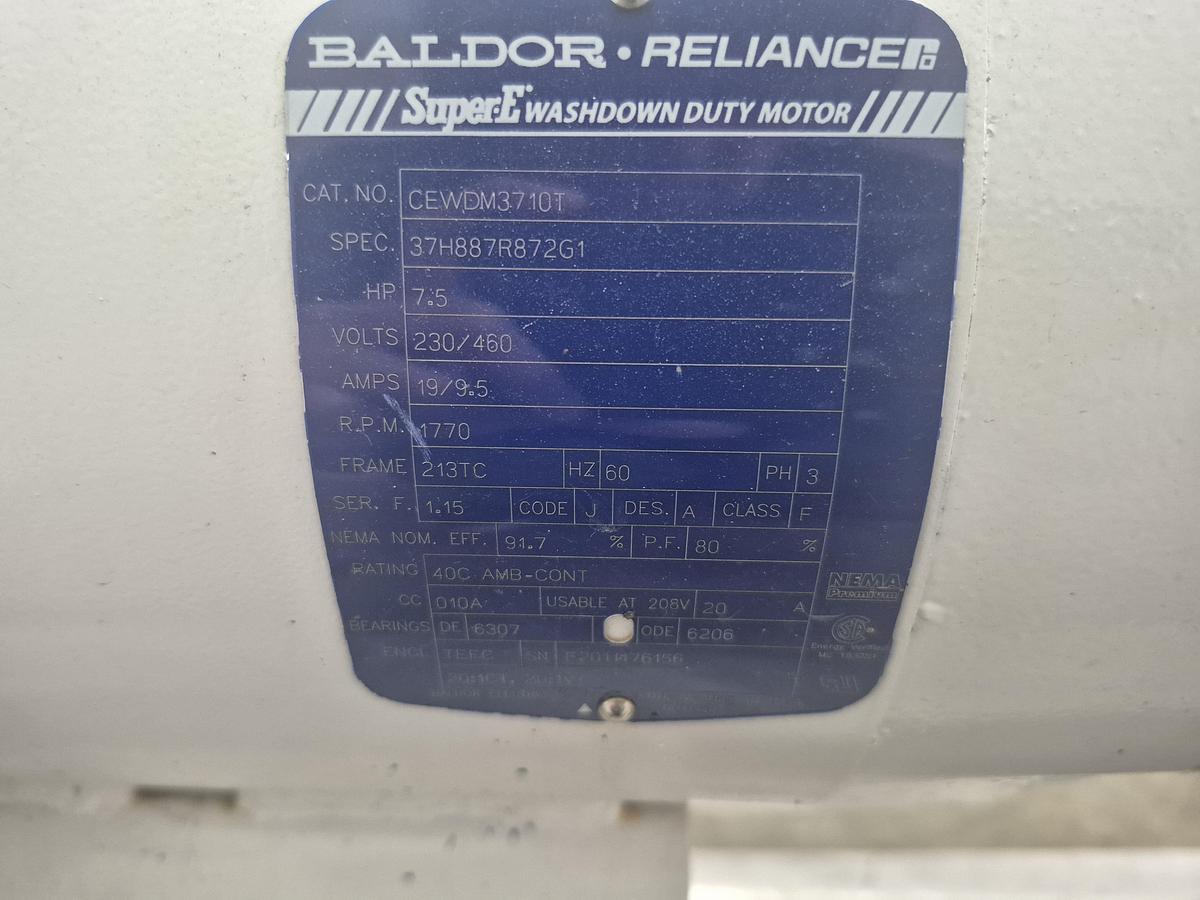

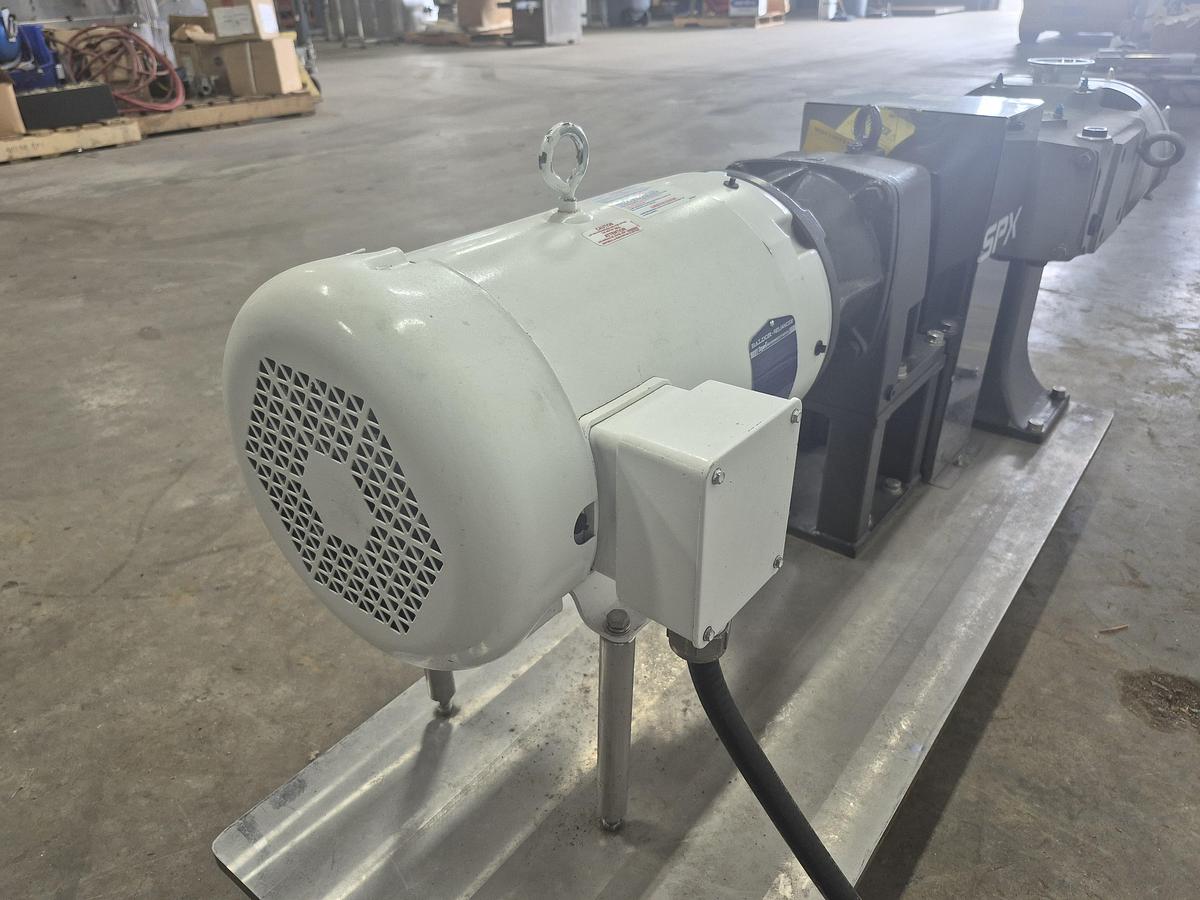

Powered by a Baldor-Reliance CEWDM3710T 7.5 HP Motor

• Power Output: 7.5 HP (5.5 kW)
• Speed: 1770 RPM (Base) / 1800 RPM (Synchronous)
• Voltage: 230/460V (3-Phase)

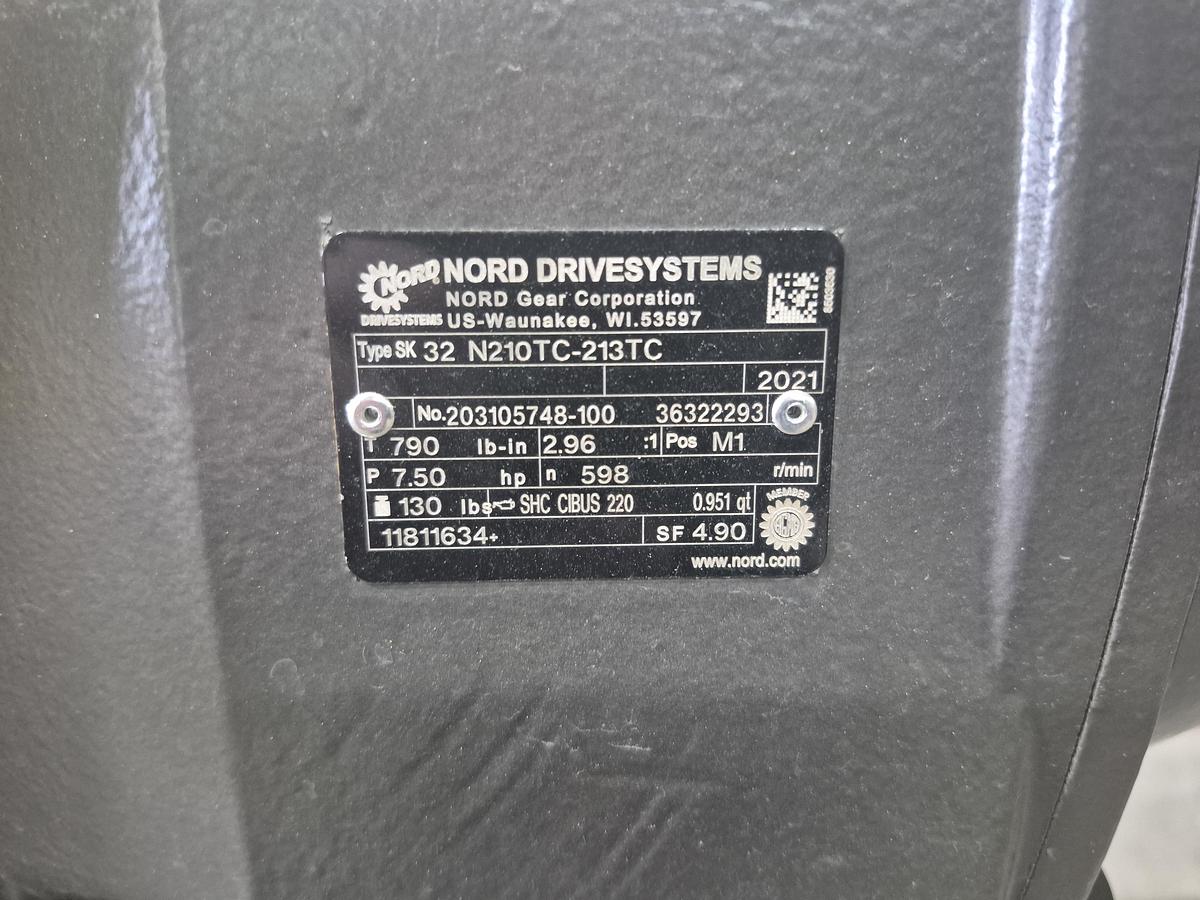

Nord SK 32 N210TC-213TC Helical In-Line Gear Unit

• Torque: 790 lb-in
• Gear Ratio: 2.96:1
• Output Speed: 598 r/min
• Input Power Rating: 7.50 HP

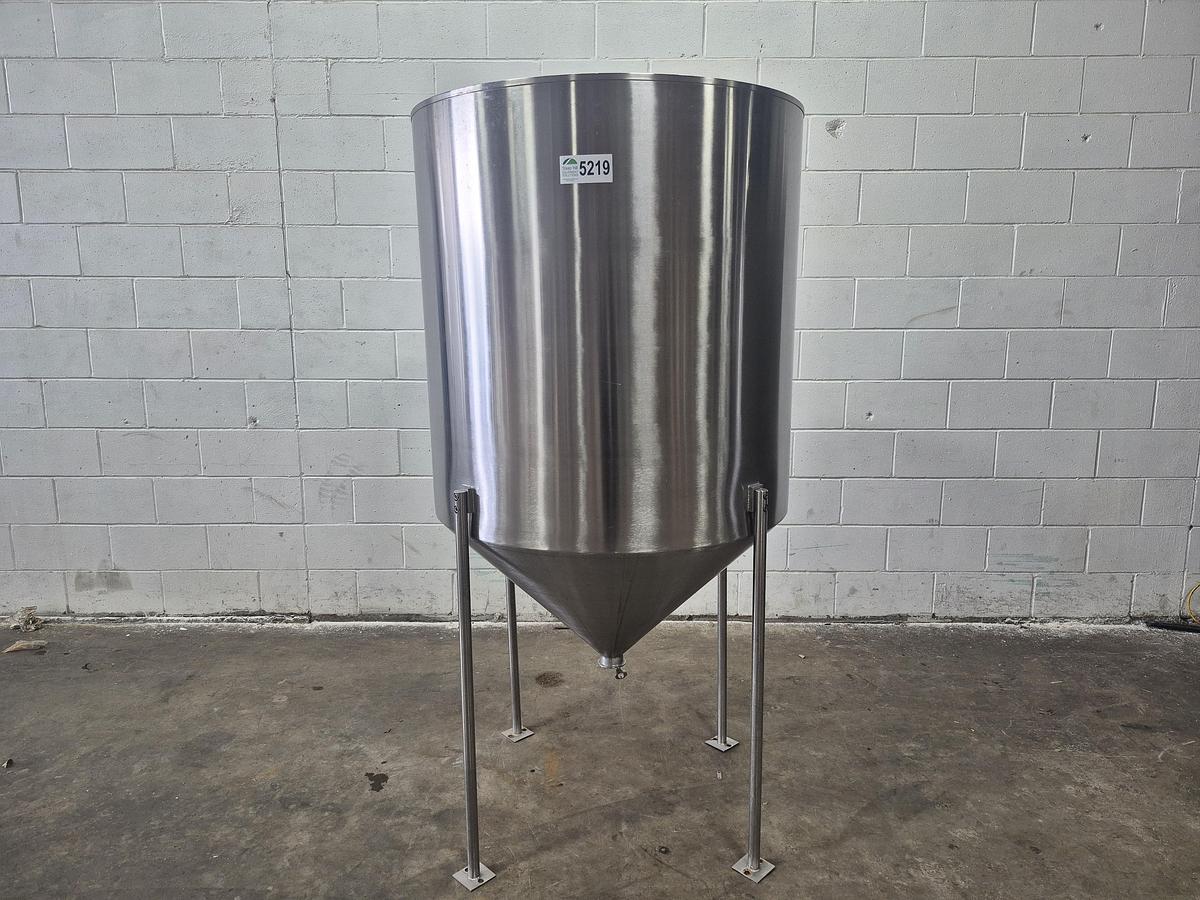

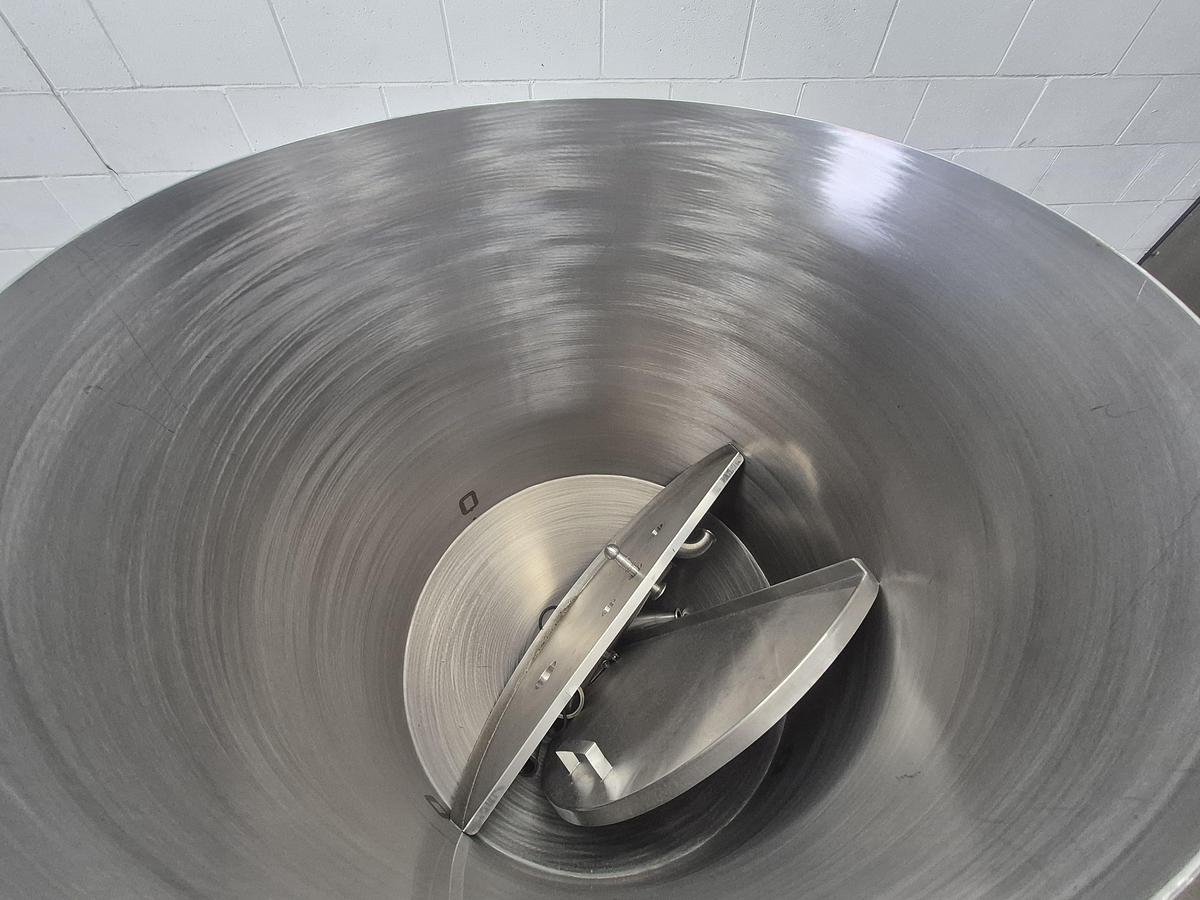

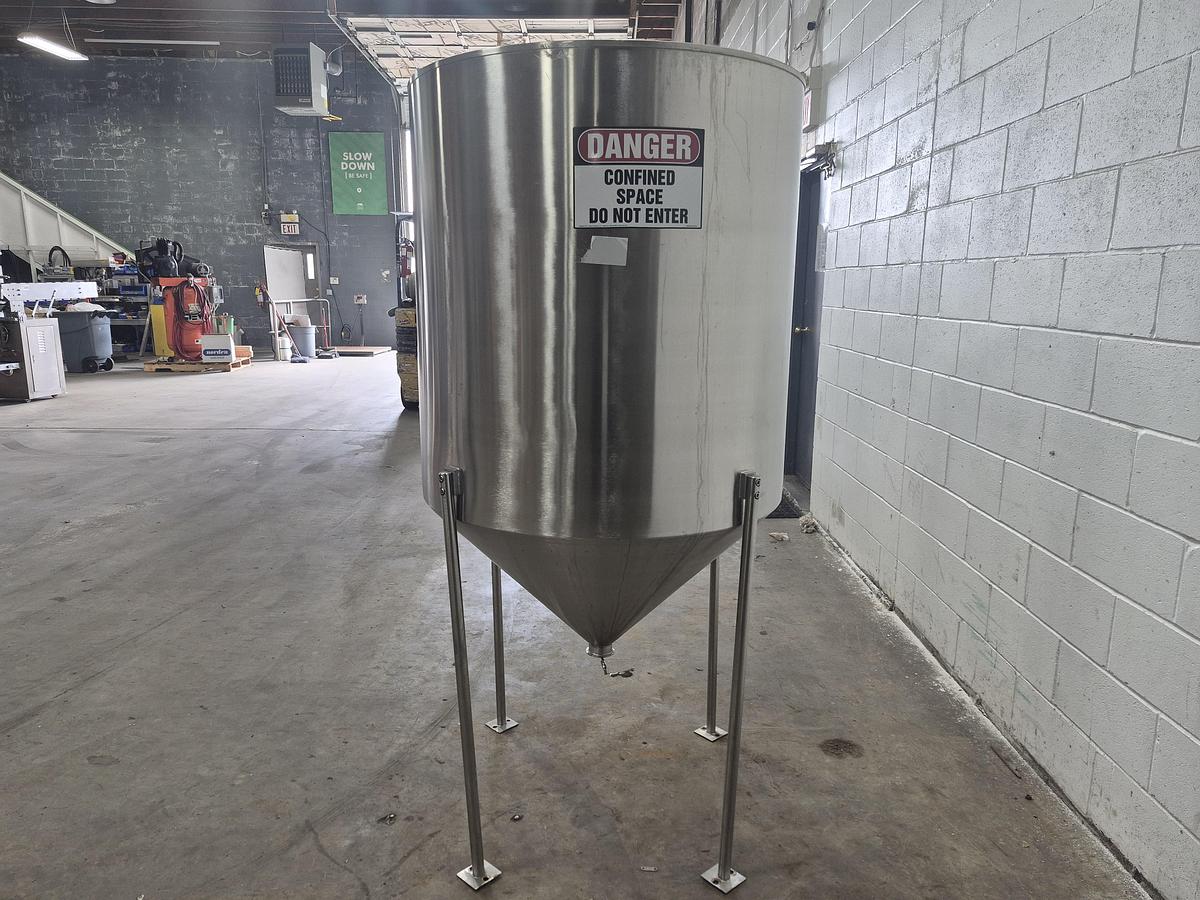

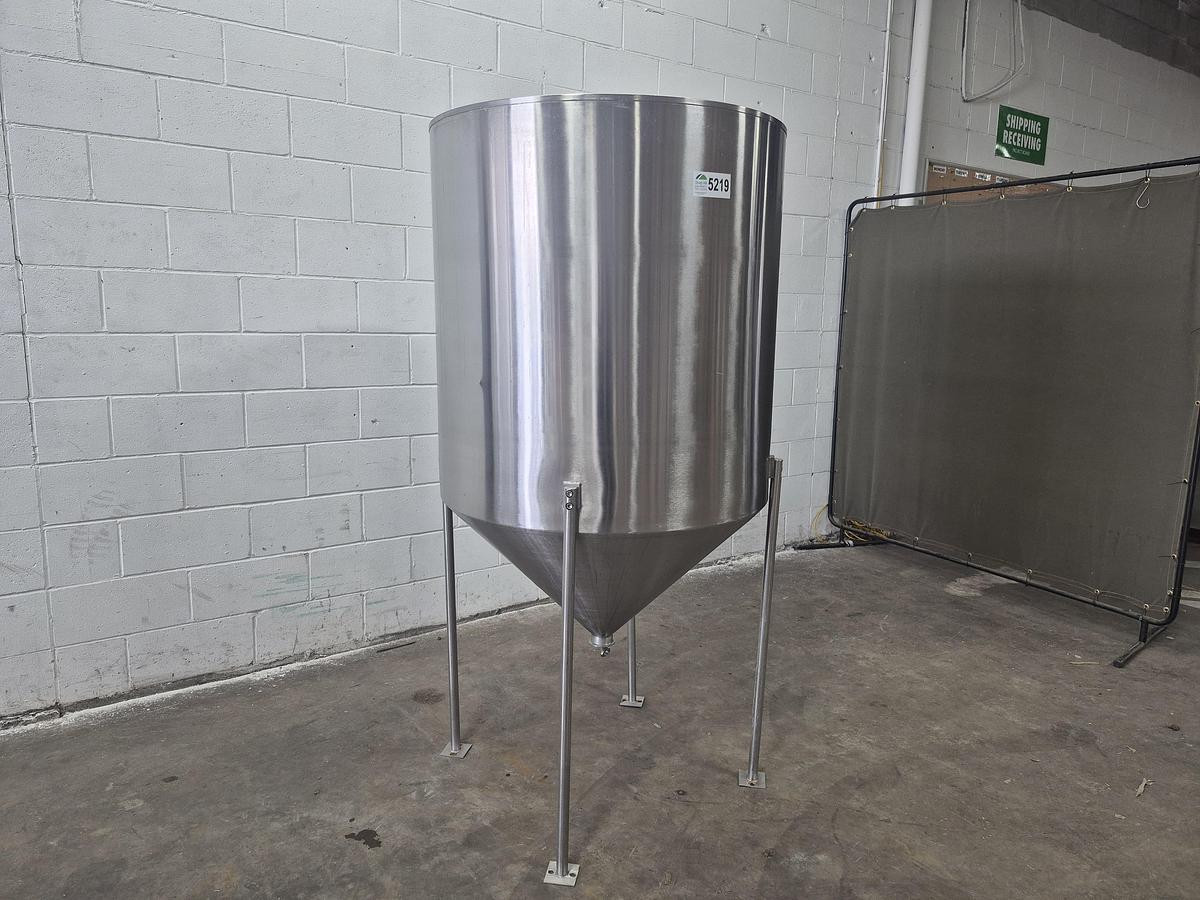

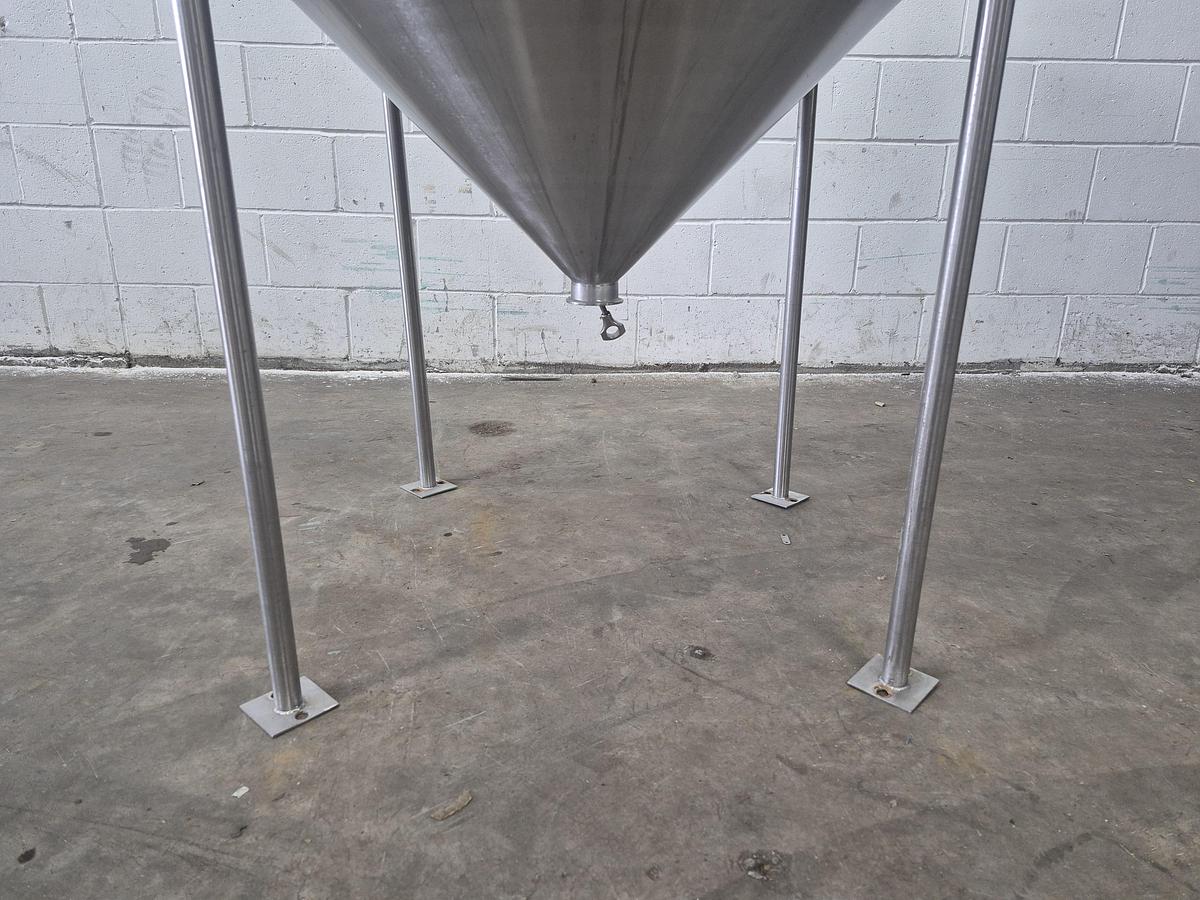

SS 177 Gallon Cone-Bottom Tank

Specs:

• Height of Tank (straight side): 37 inches
• Cone Height: 24.5 inches
• 35 inches across
• 57 inches depth
