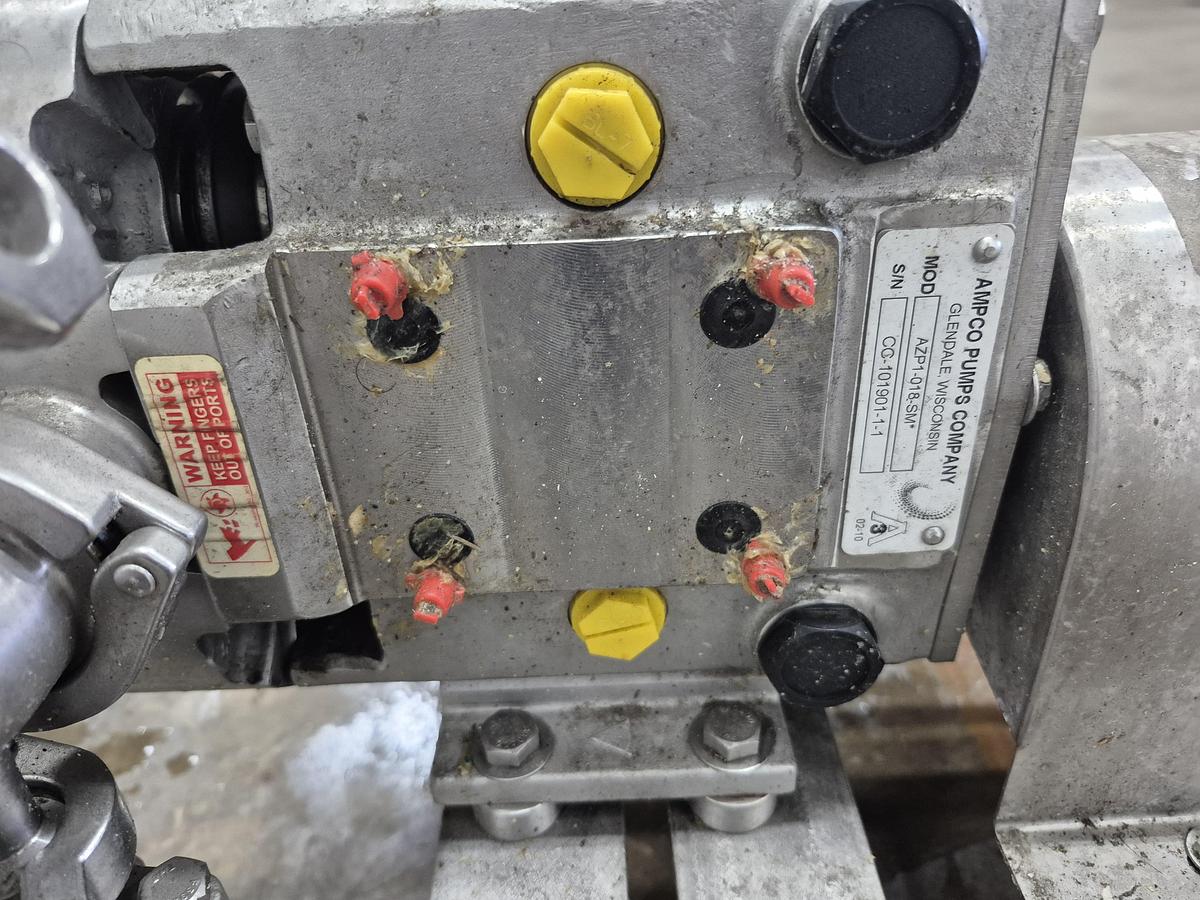

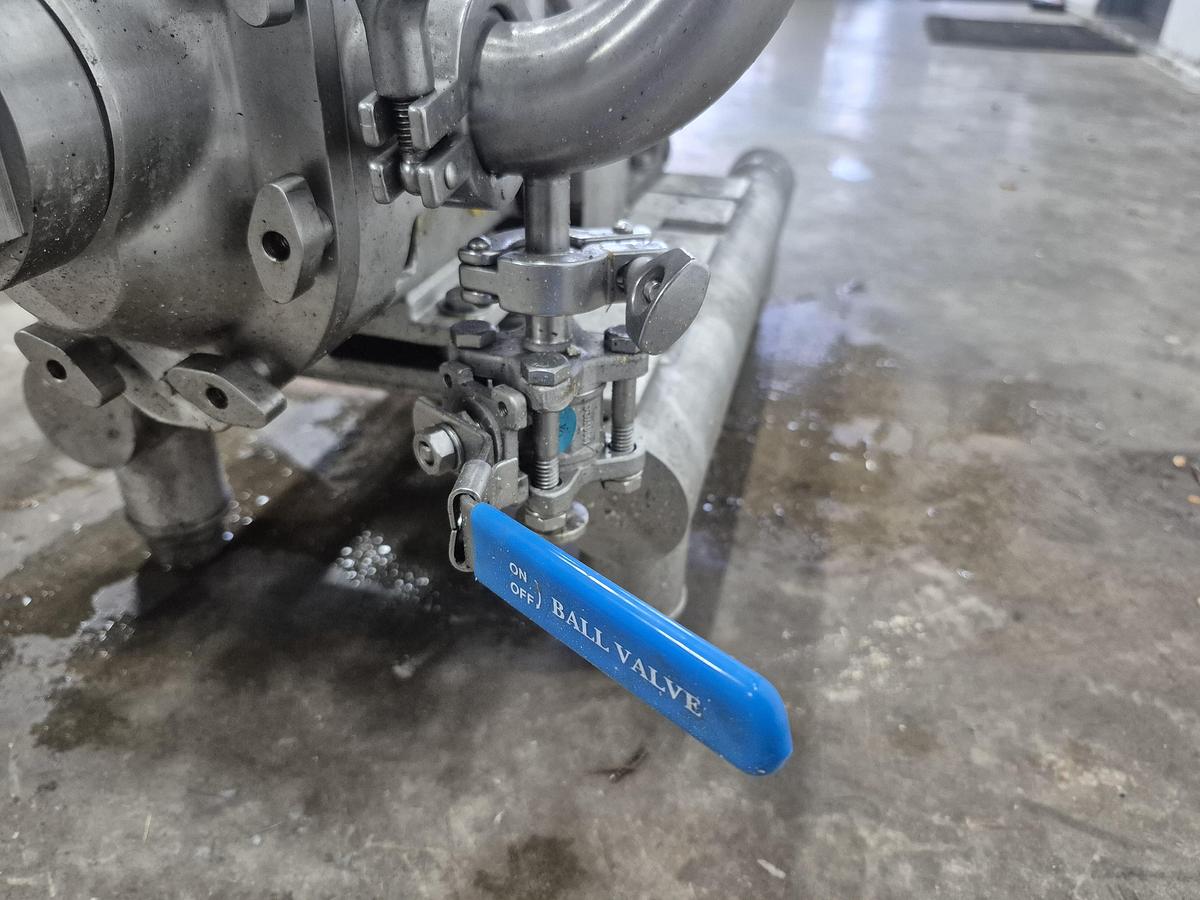

Ampco Sanitary Positive Displacement Pump

Ampco Sanitary Positive Displacement Pump

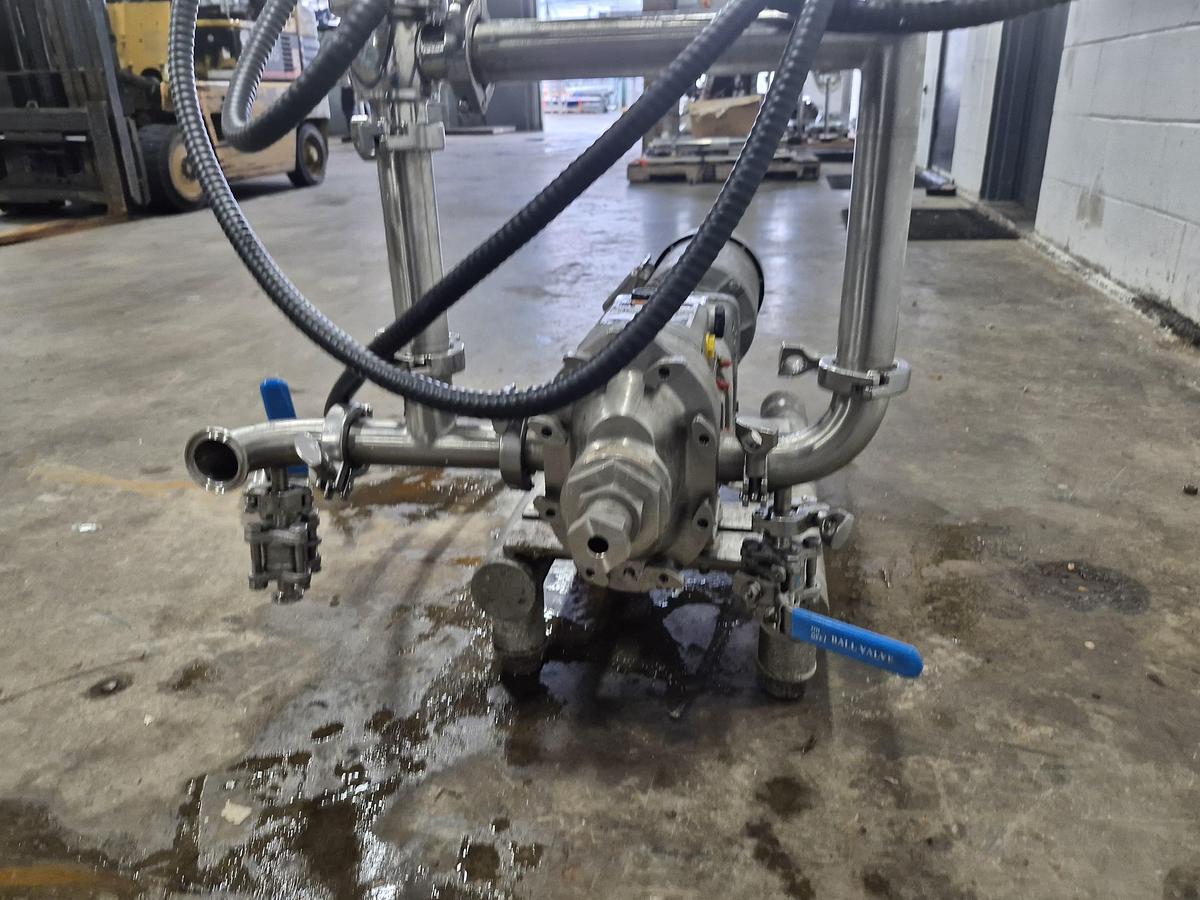

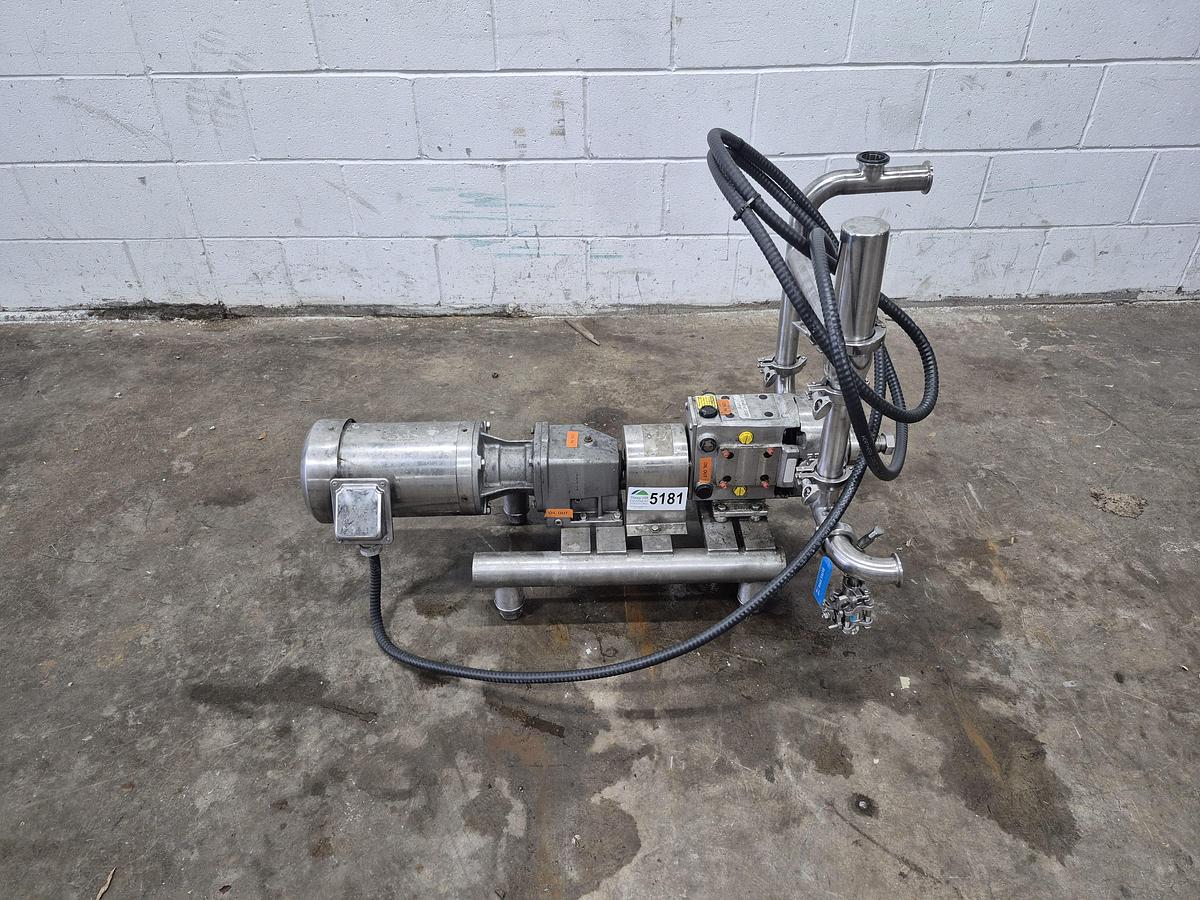

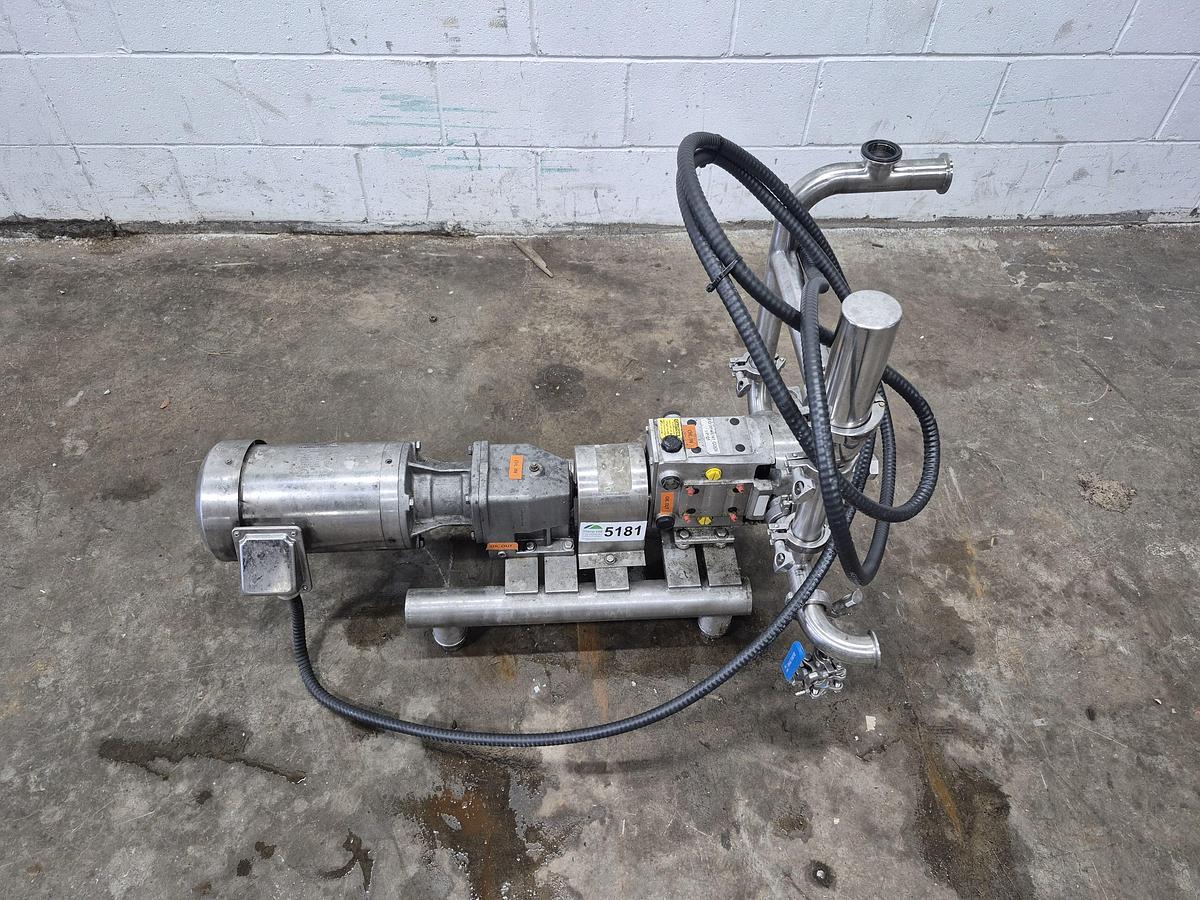

This pump is a sanitary positive displacement (PD) pump, specifically a circumferential piston type. Unlike standard water pumps, it is engineered to handle thick, viscous, or shear-sensitive fluids without damaging the product. It is commonly used across several high-hygiene industries.

Specs:

• Type: Circumferential Piston Pump
• Displacement: 0.029 gallons per revolution (0.108 L/rev)
• Standard Port Size: 1.5 inches
• Max Discharge Pressure: Up to 225 PSI (15.5 BAR)
• Materials: 316L stainless steel fluid end with a 304 stainless steel gearcase and Alloy 88 non-galling rotors

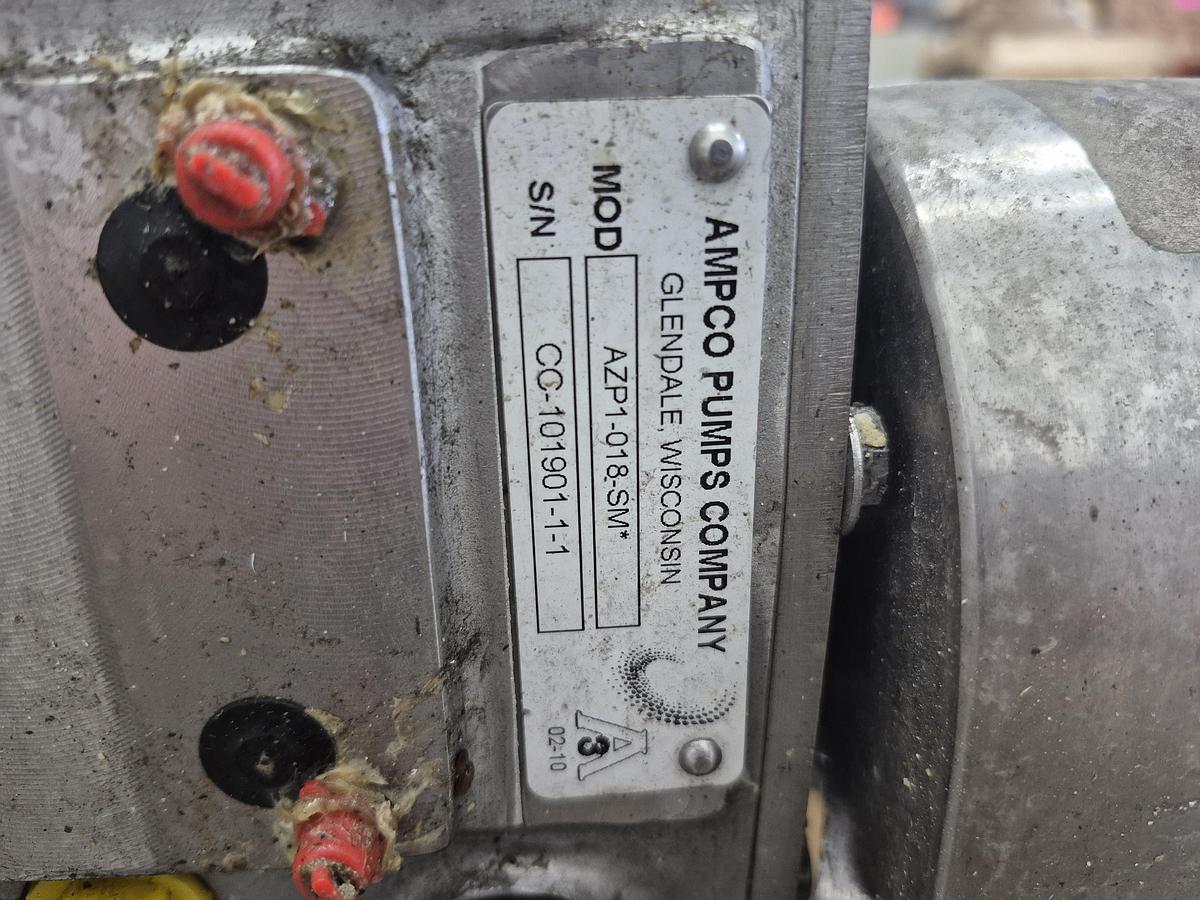

• Standards: Built in compliance with 3-A Sanitary Standards (indicated by the "3A" symbol on the tag)

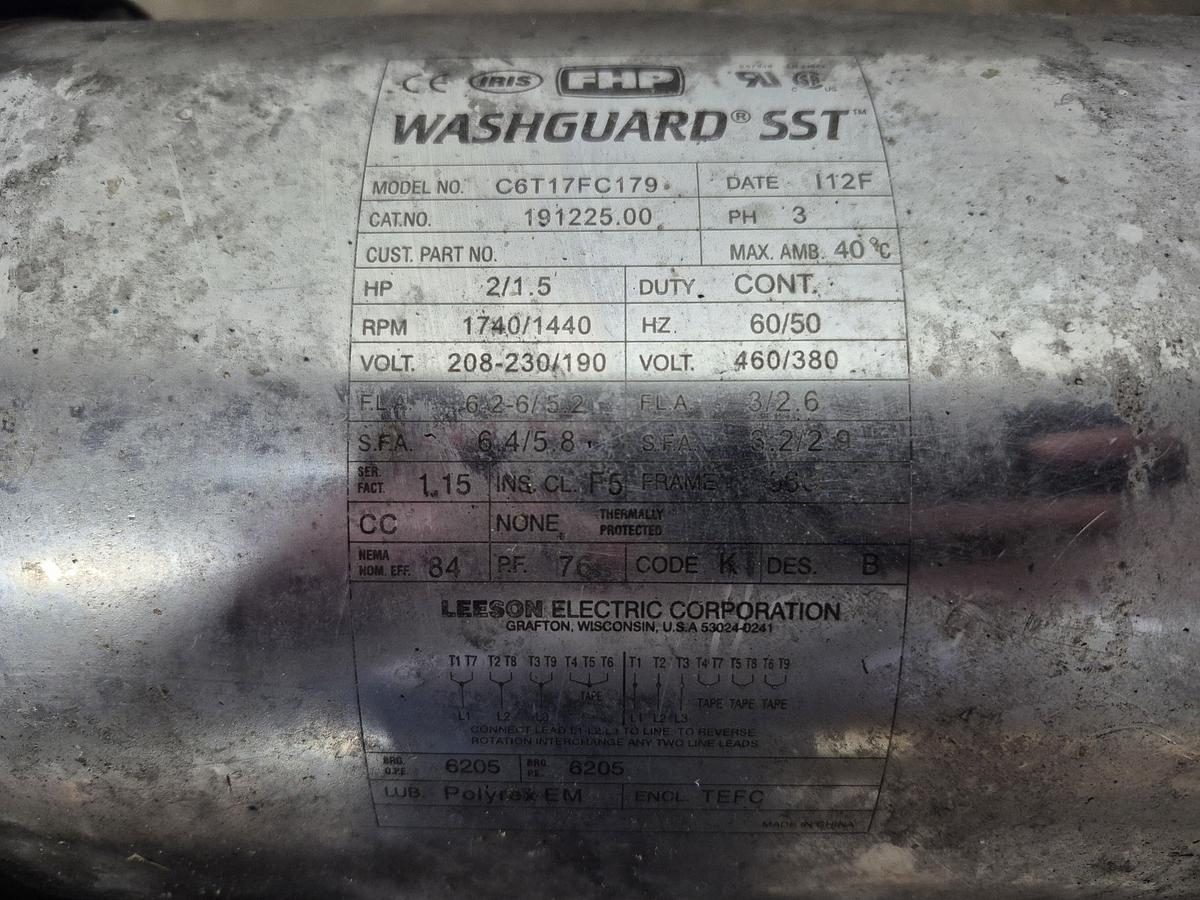

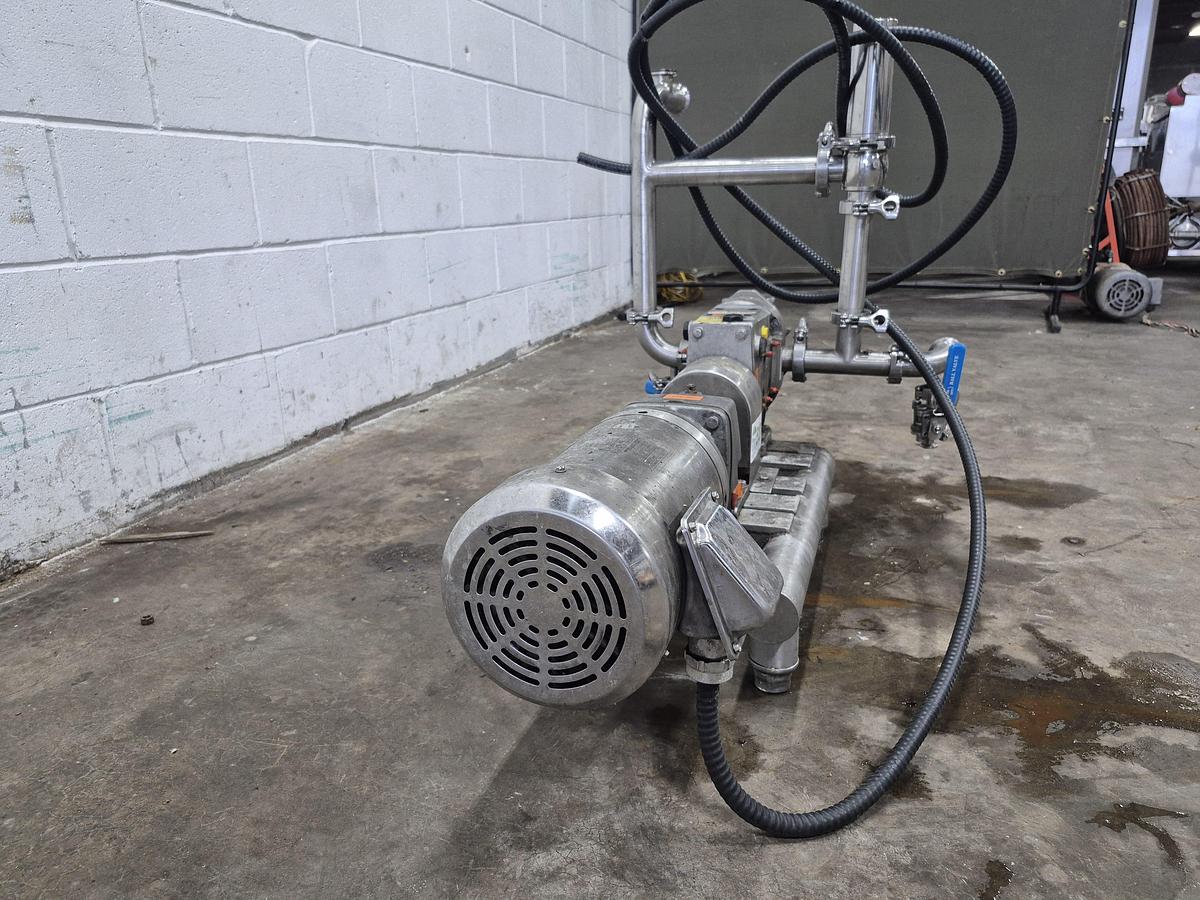

Powered by a Leeson Washguard SST AC Motor

Specs:

• Horsepower: 2 HP (at 60 Hz) / 1.5 HP (at 50 Hz)
• RPM: 1740 (at 60 Hz) / 1440 (at 50 Hz)
• Voltage: 208-230/460 V (3-Phase)

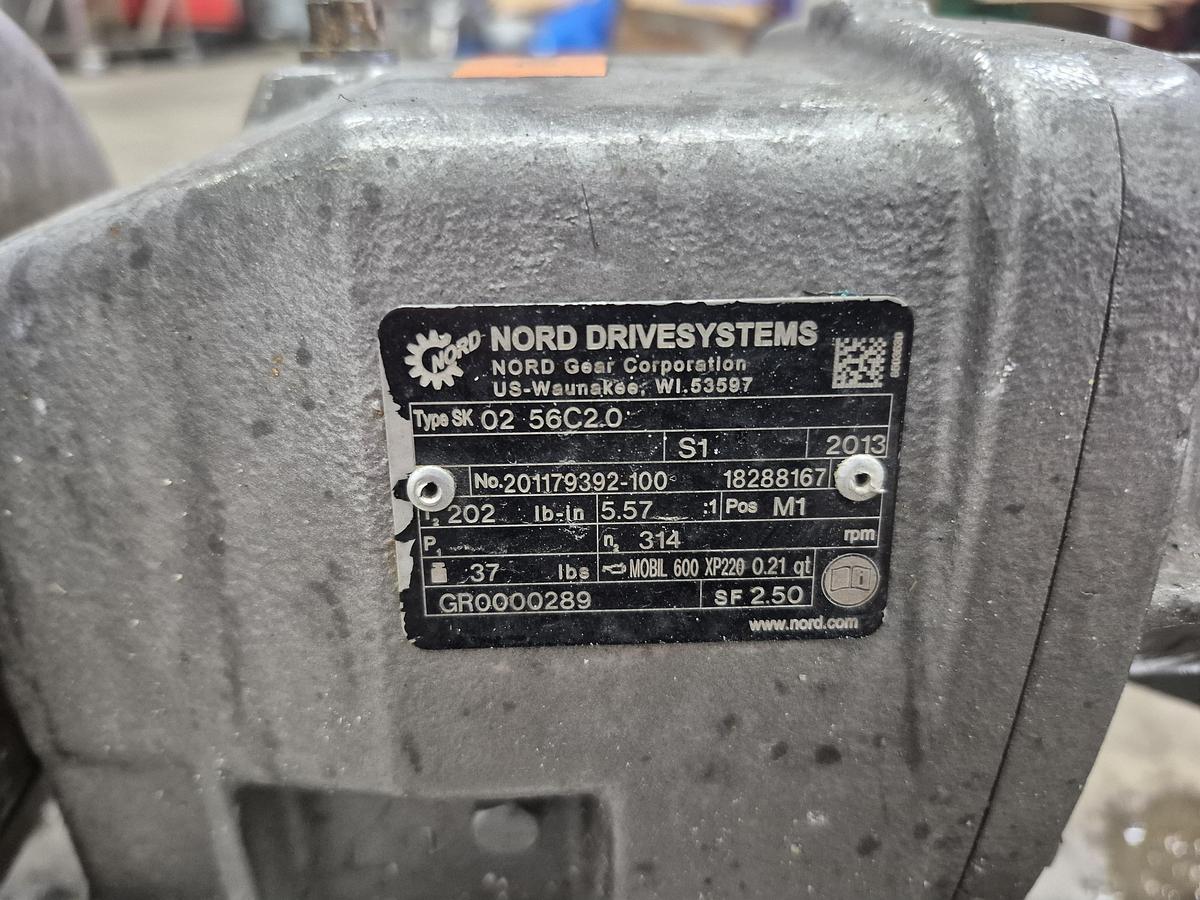

NORD DRIVESYSTEMS Gear Reducer

Specs:

• Model/Type: SK 02 56C2.0.
• Ratio: 5.57:1
• Output Torque: 202 lb-in
• Output Speed: 314 rpm (at nameplate input)
