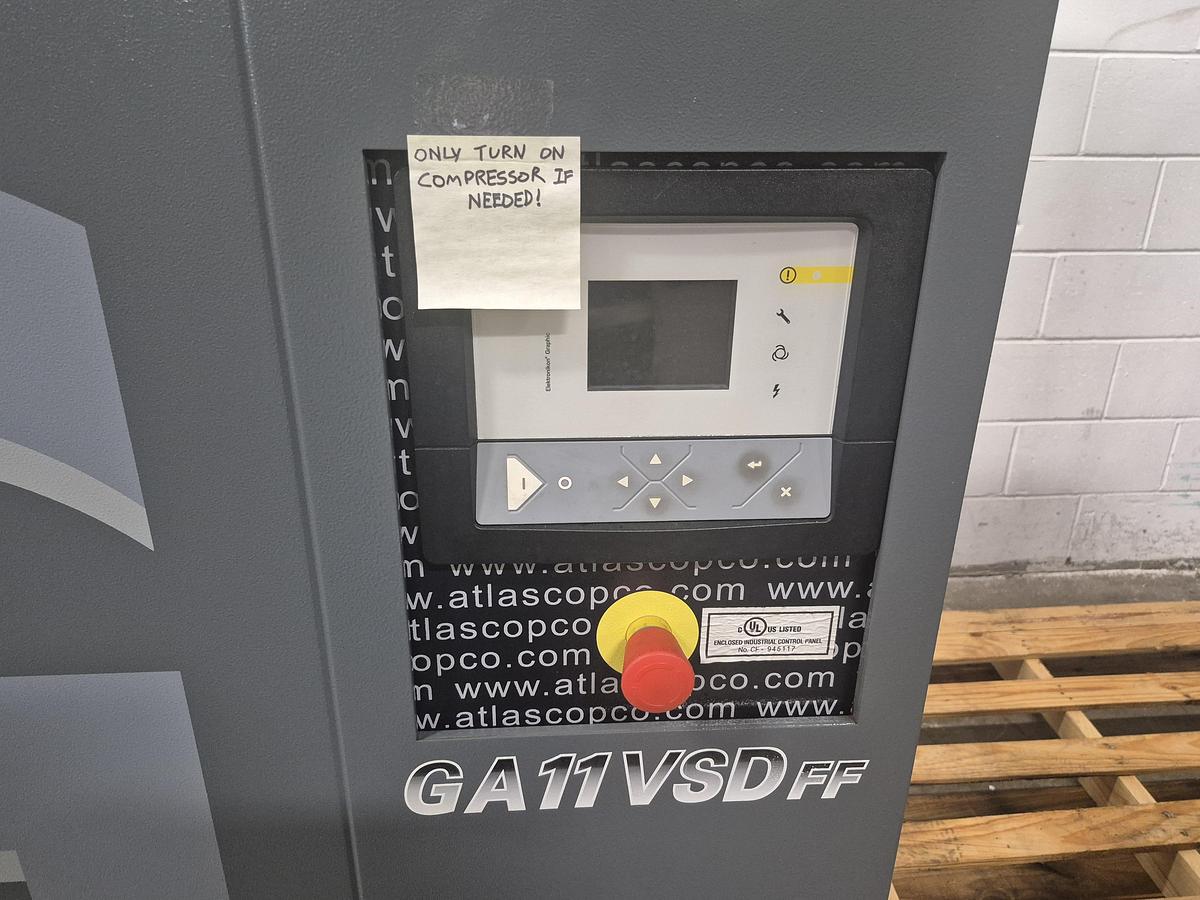

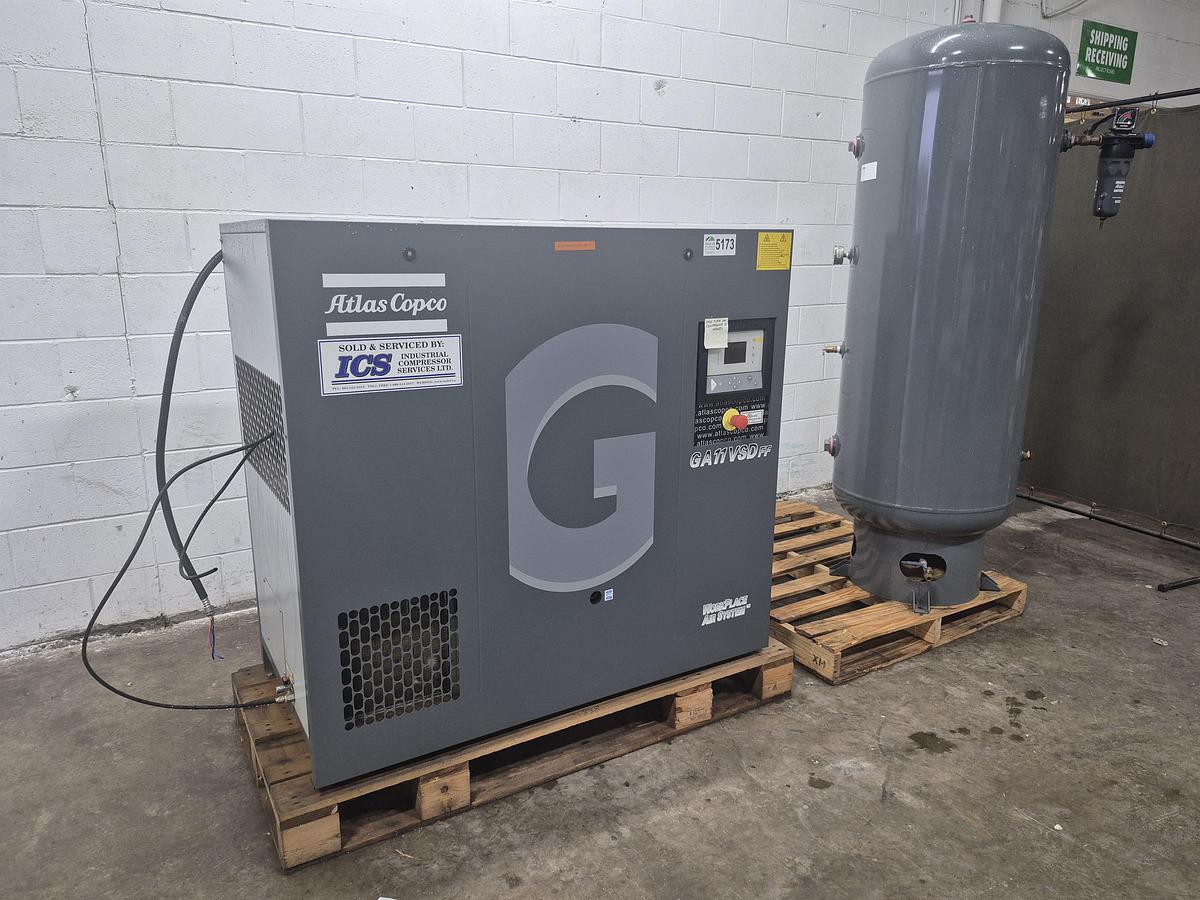

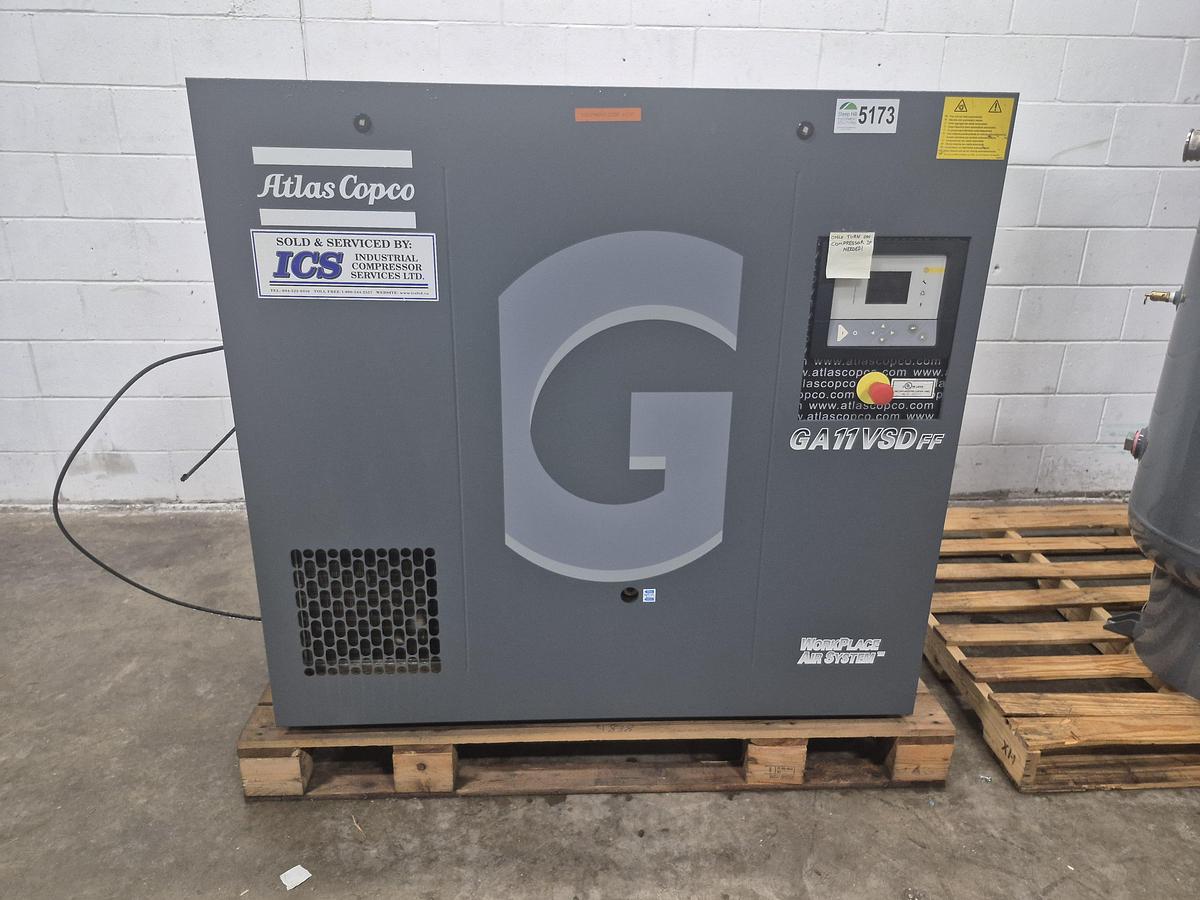

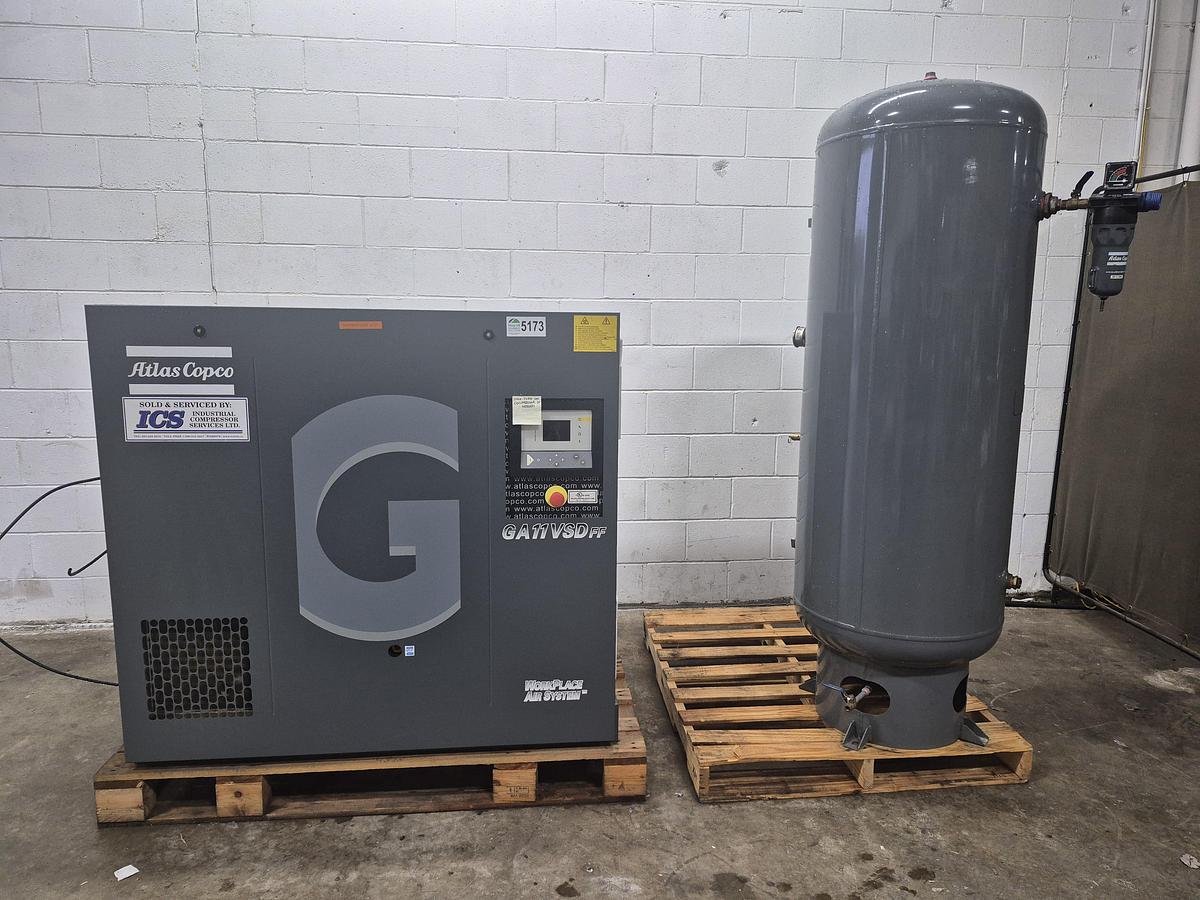

Atlas Copco GA11VSD Air Compressor

Atlas Copco GA11VSD Air Compressor

Is used as a primary source of industrial-grade compressed air for facilities with fluctuating demand. Because its Variable Speed Drive (VSD) technology adjusts air output in real-time, it is specifically designed to power pneumatic tools and automated processes while minimizing energy waste.

Specs:

• Motor Power: 15 HP / 11 kW
• Flow Rate (FAD): Ranges from roughly 14.5 to 70.7 CFM, depending on pressure settings and model generation
• Working Pressure: Operates up to 175 PSI (approx. 12 bar), with standard settings often at 125 or 150 PSI
• Noise Level: Exceptionally quiet for its class, operating at approximately 62–67 dB(A), allowing for installation near the point of use

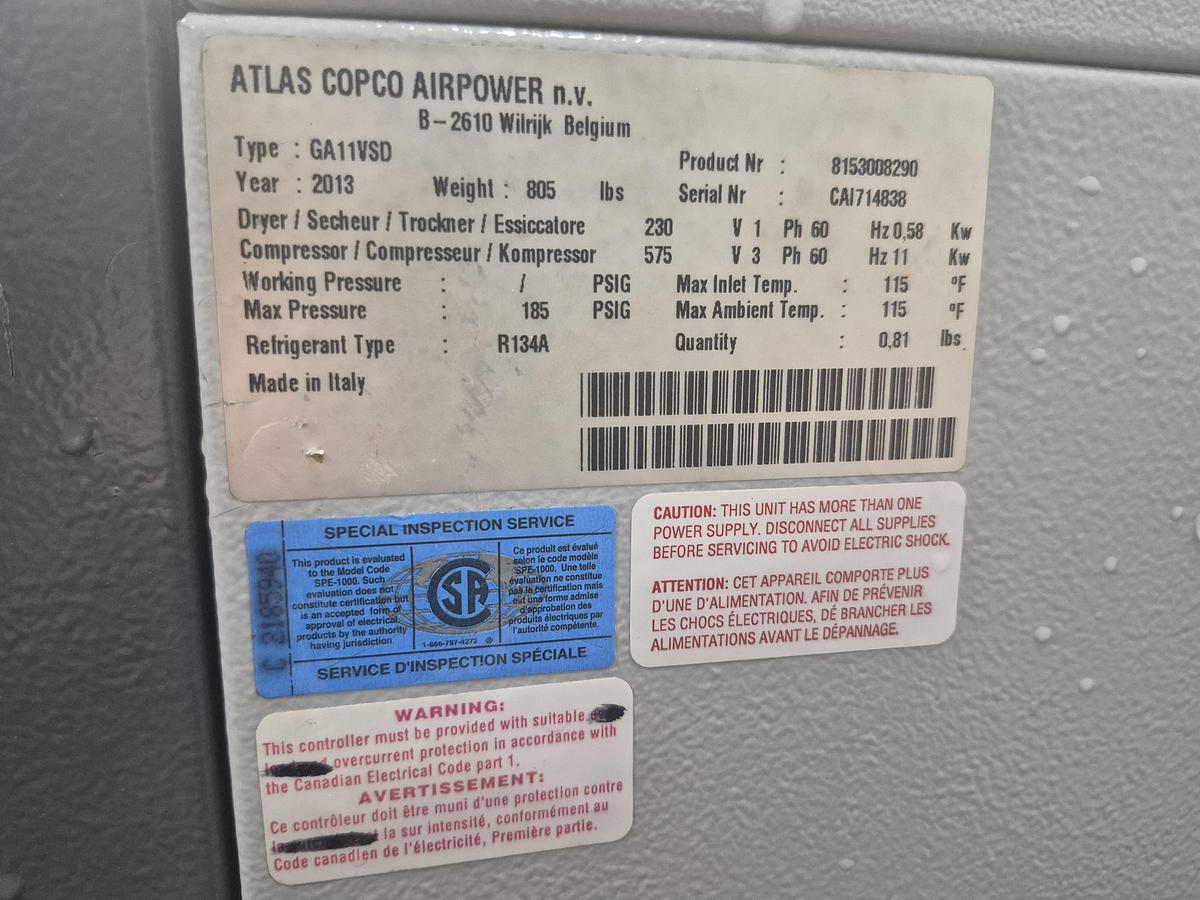

• Max Inlet Temp: 115 Degree Fahrenheit
• Max Ambient Temp: 115 Degree Fahrenheit
• Refrigerant Type: R134A

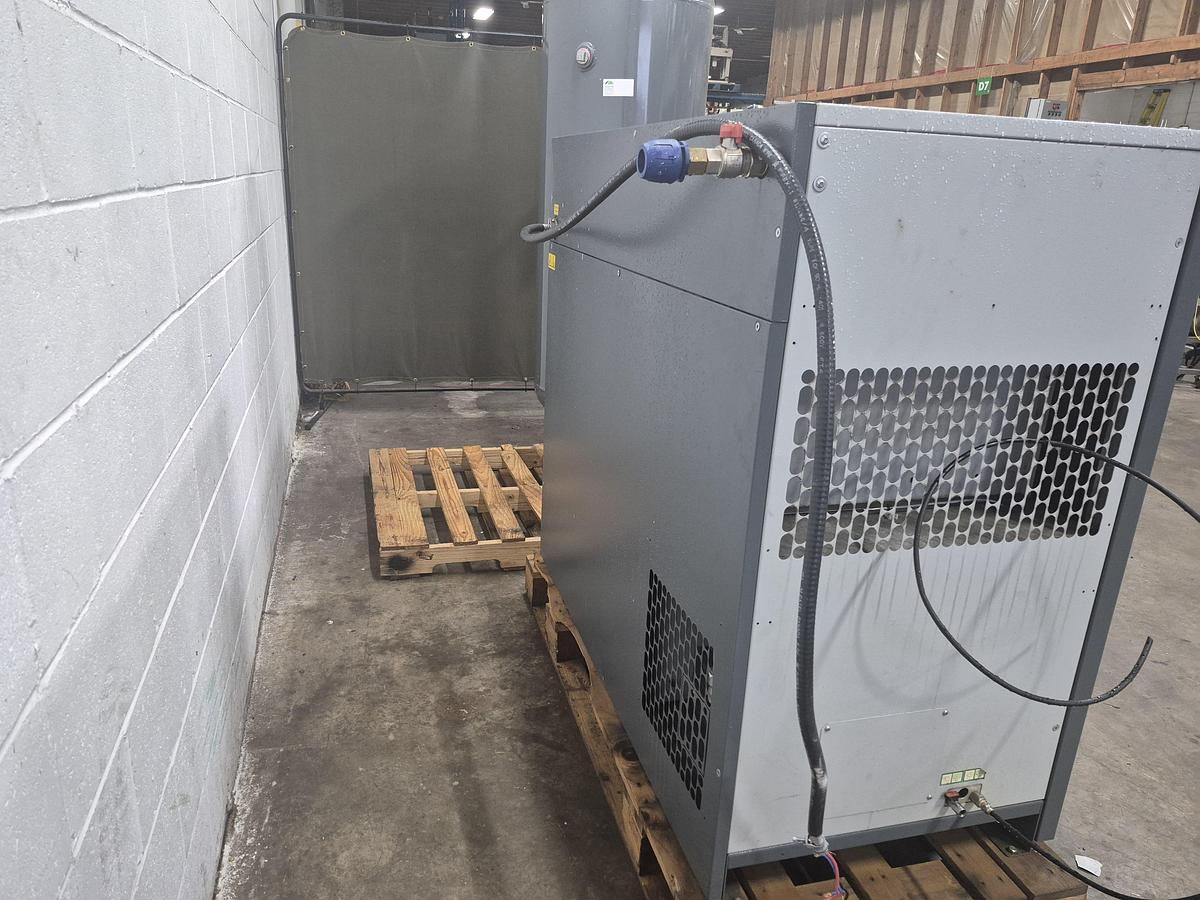

• Dryer: 230V 1 Phase 60 Hz 0.58 Kw

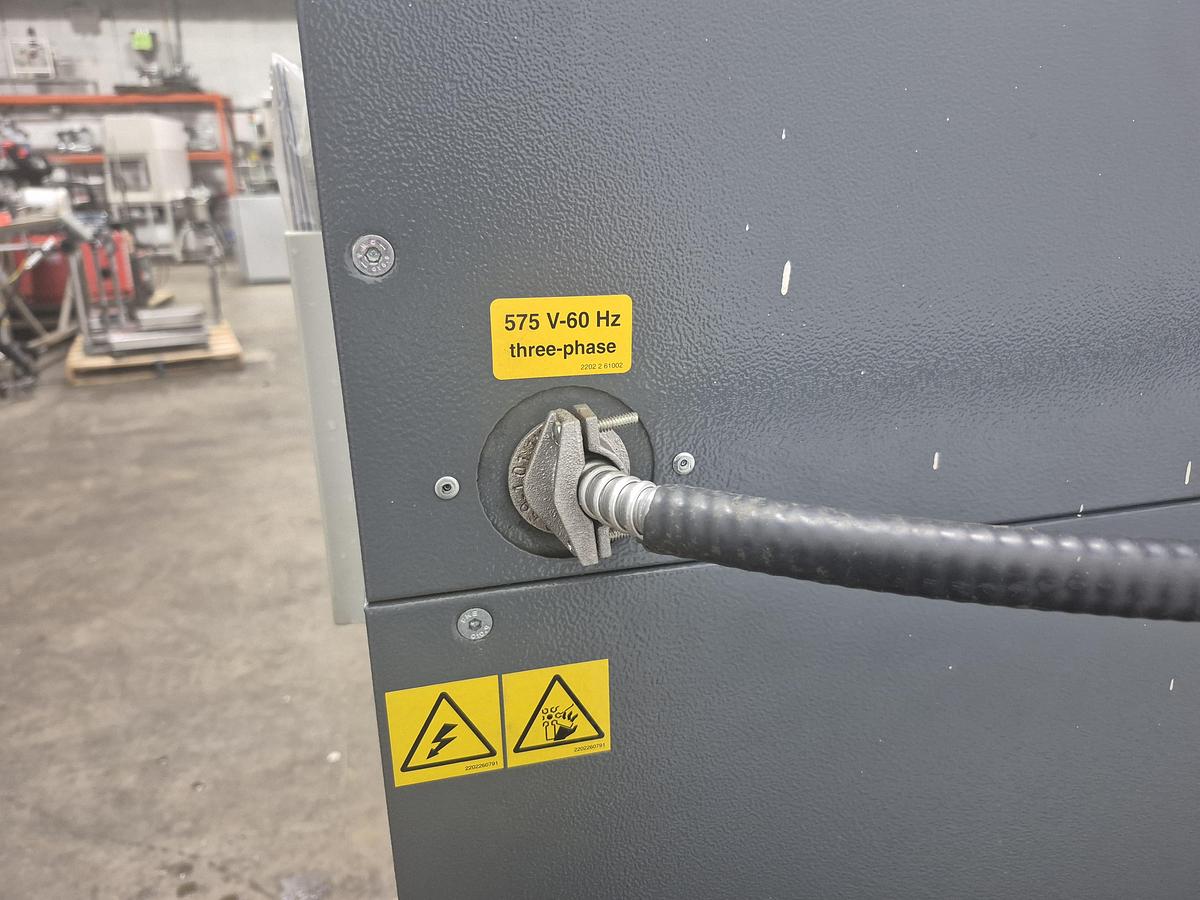

• Compressor: 575V 3 Phase 60 Hz 11 Kw

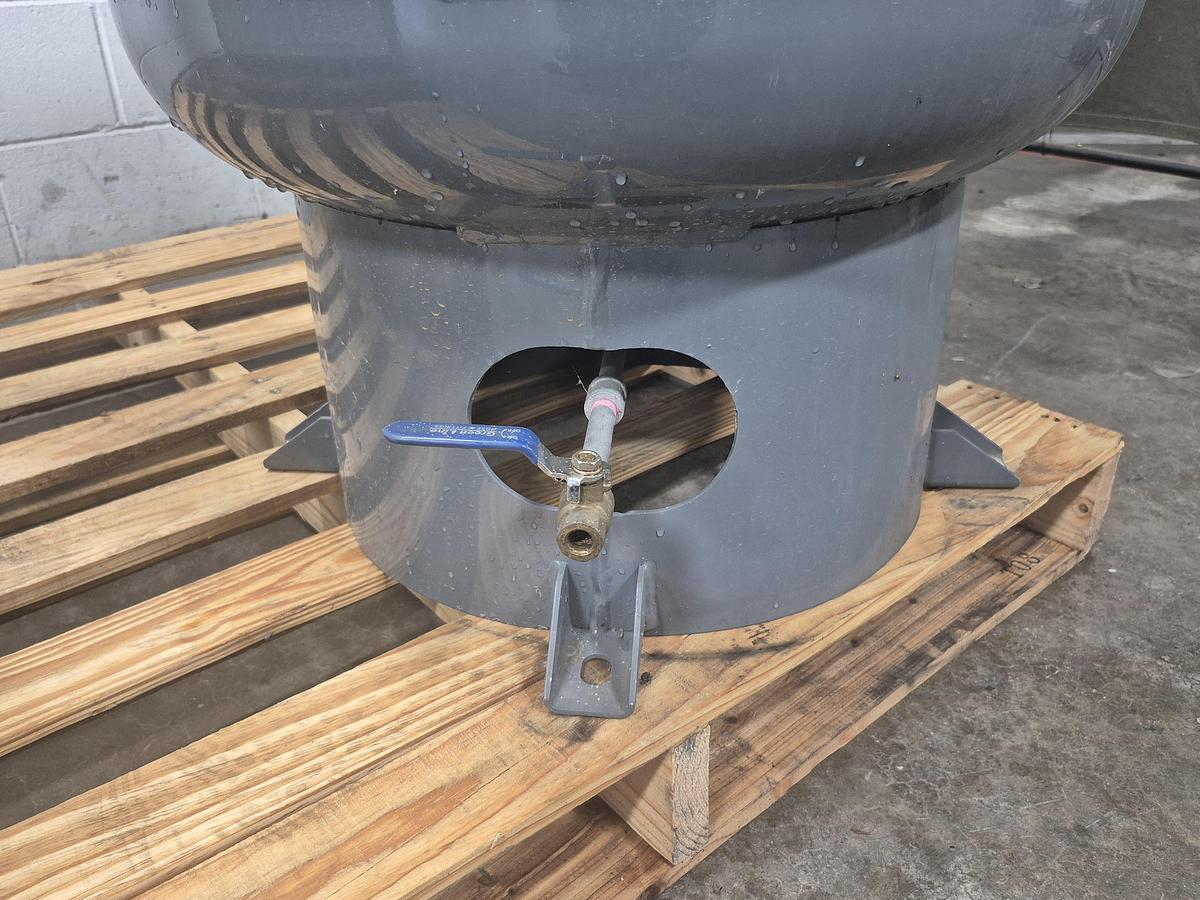

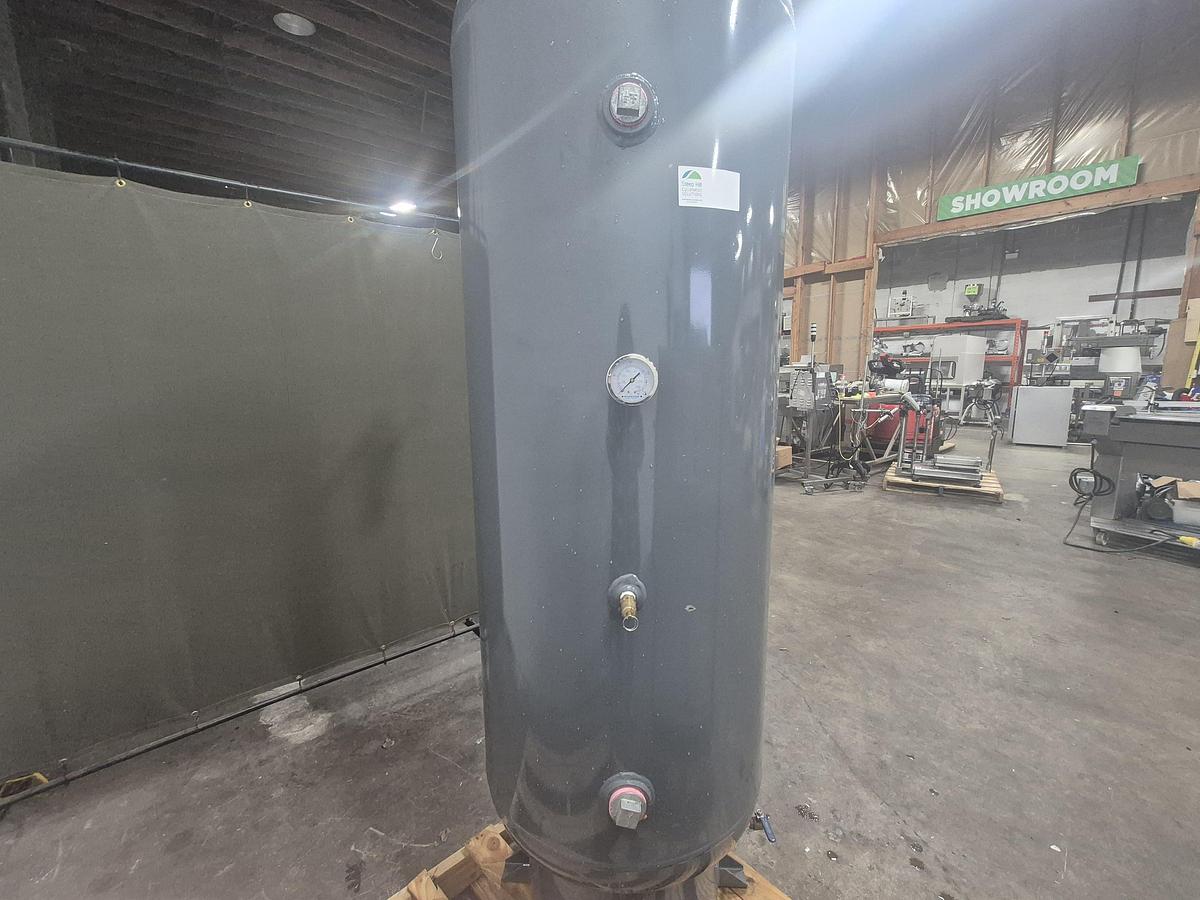

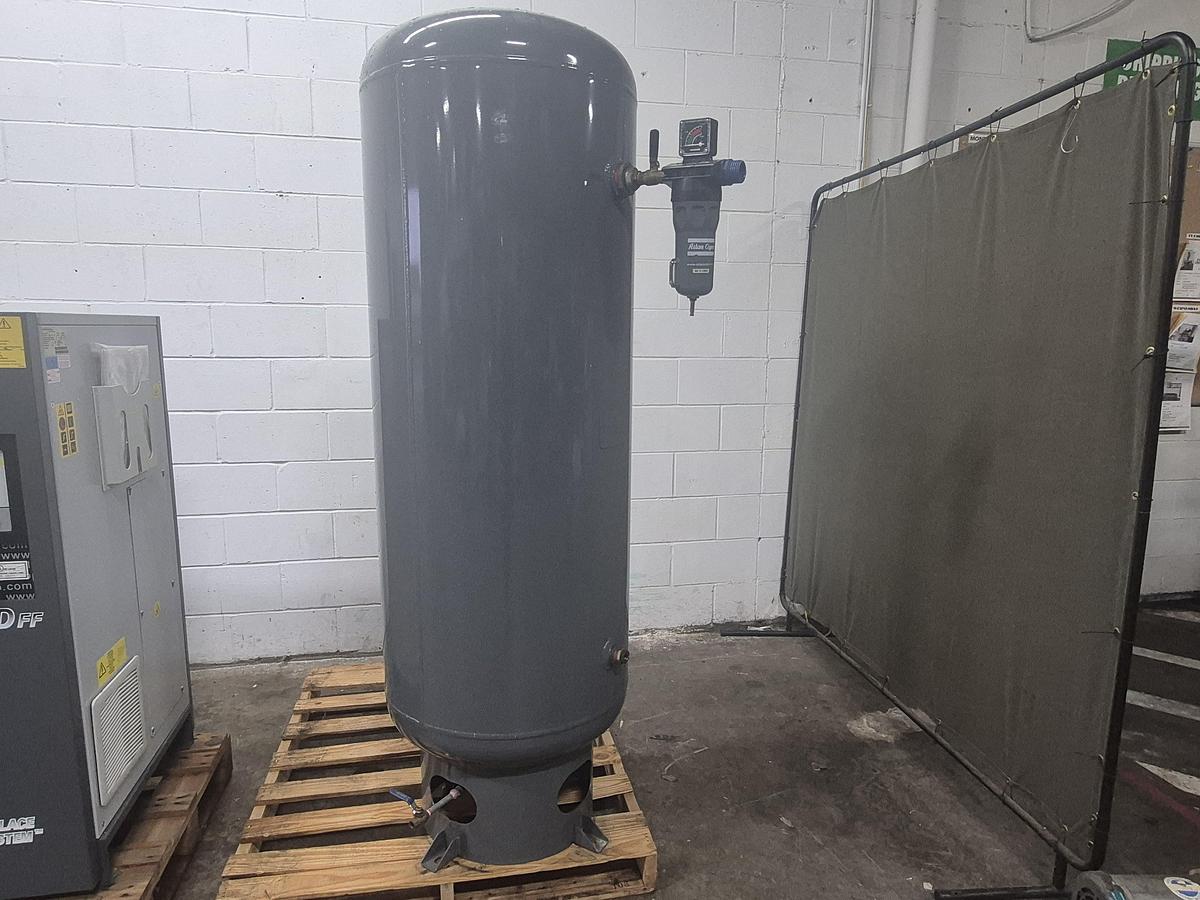

Comes with a Steel Fab 120 Gallon Vertical Air Receiver Tank

Specs:

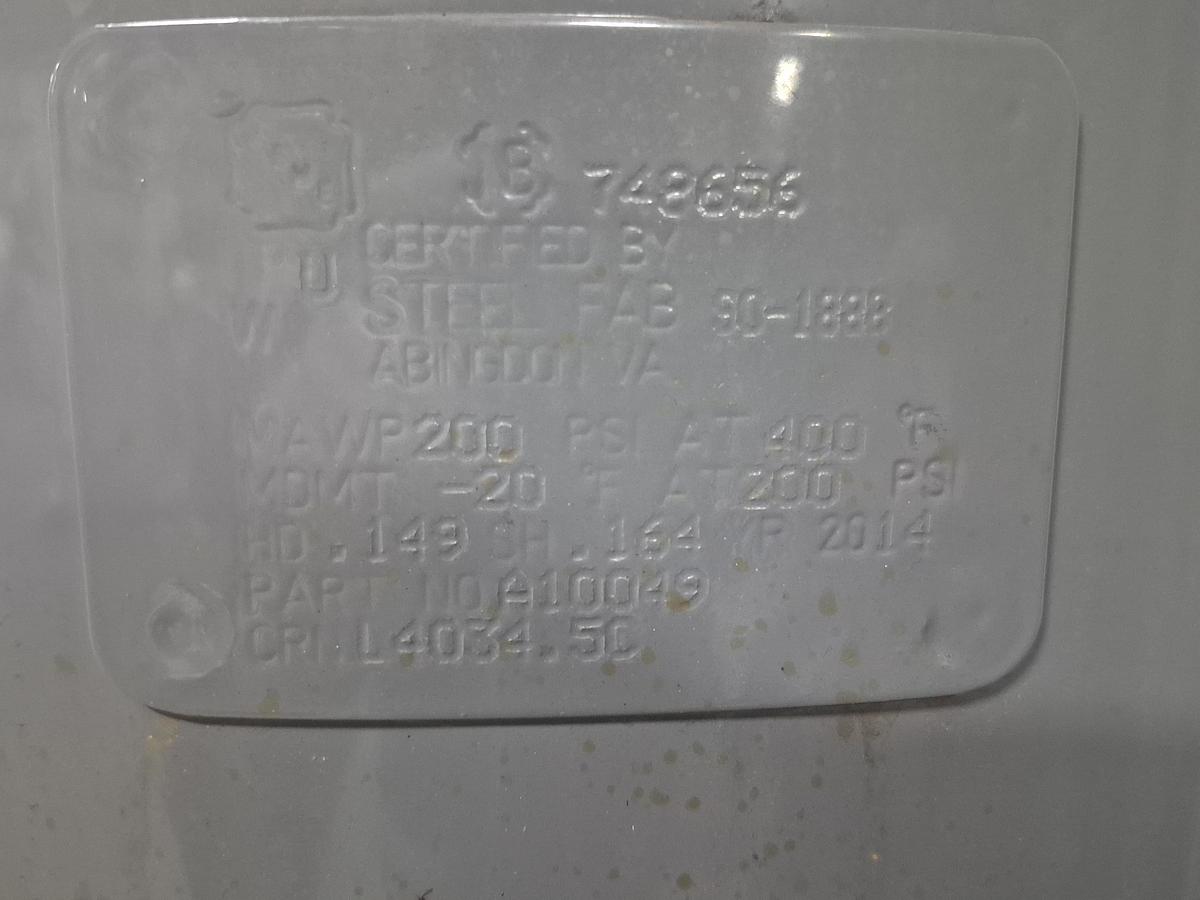

• Max Allowable Working Pressure (MAWP): 200 PSI at 400 Degrees Fahrenheit
• Minimum Design Metal Temperature (MDMT): -20 Degrees Fahrenheit at 200 PSI
• Capacity: Approx 120 Gallons
• Canadian Registration Number (CRN): L4034.5C
