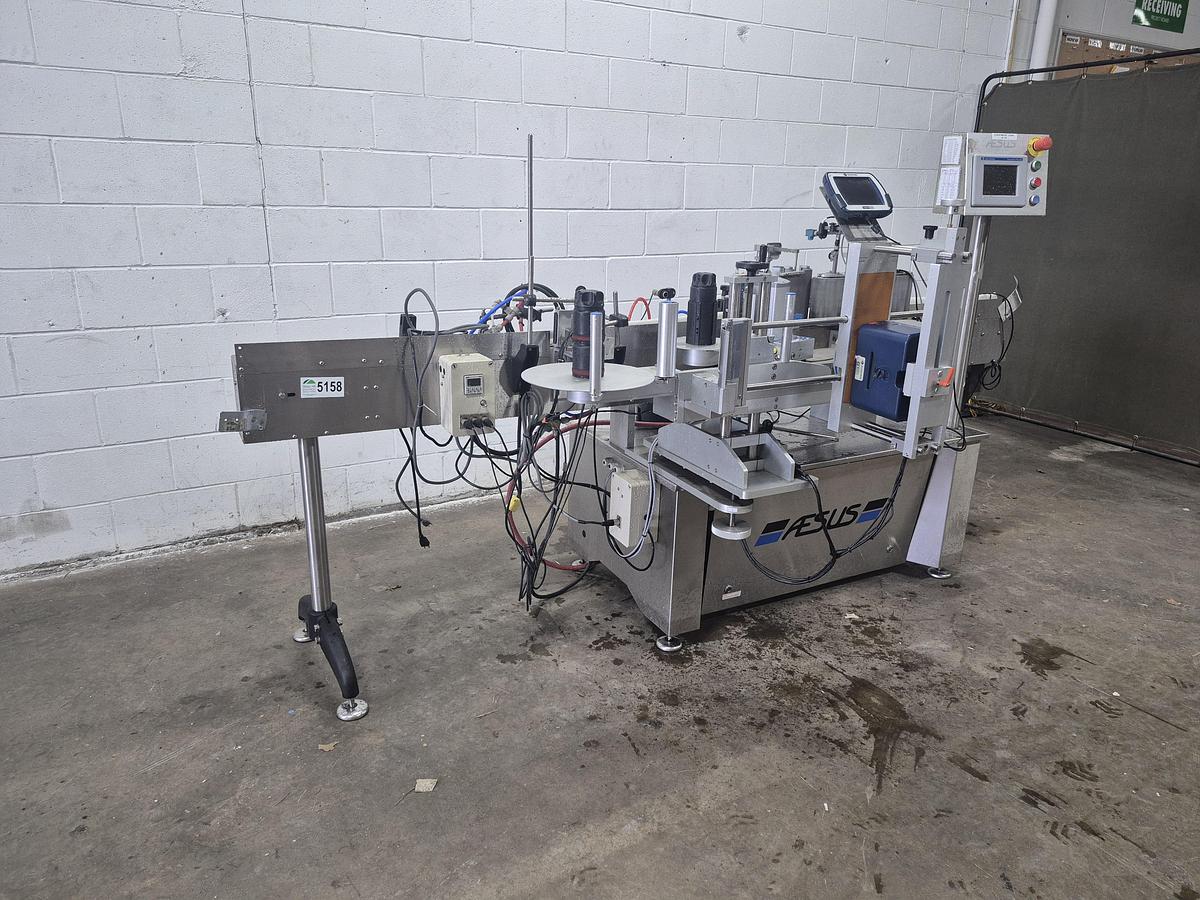

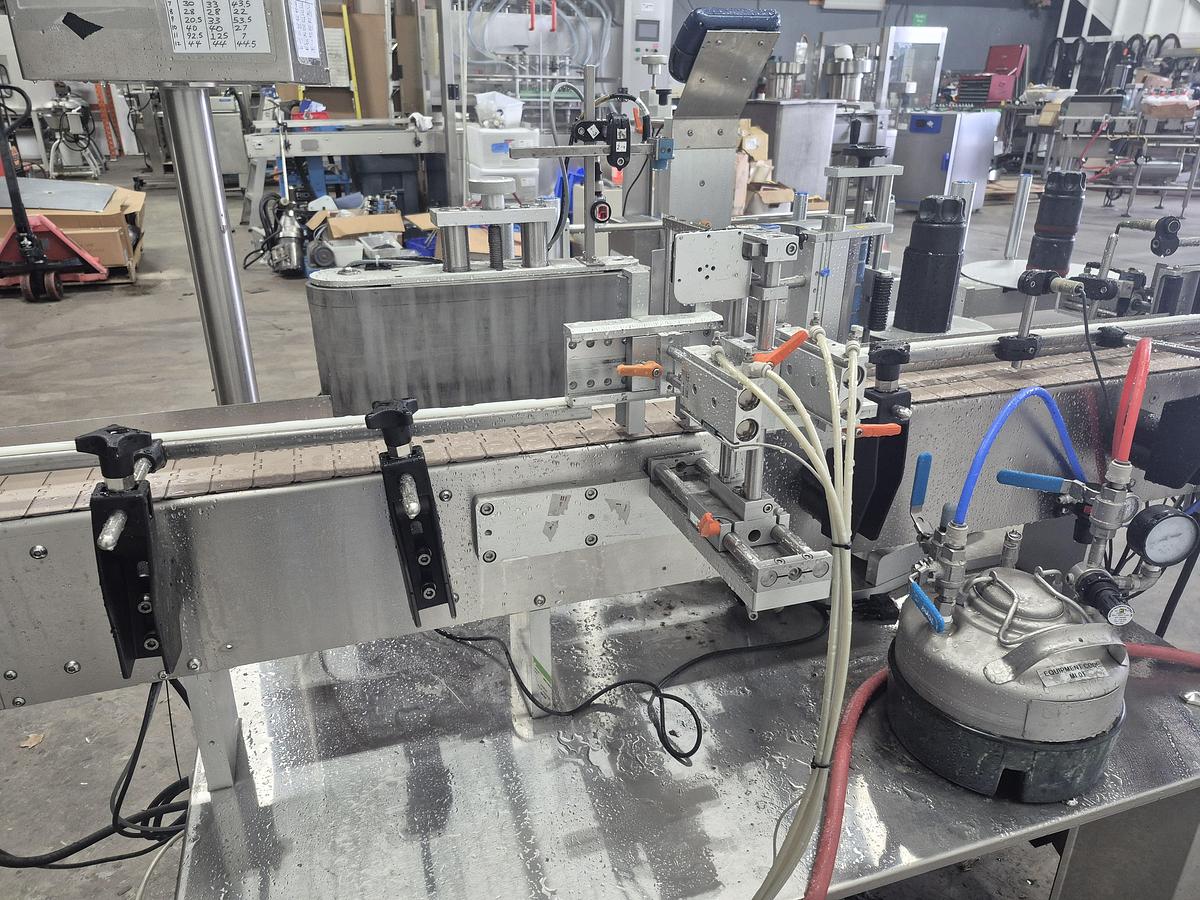

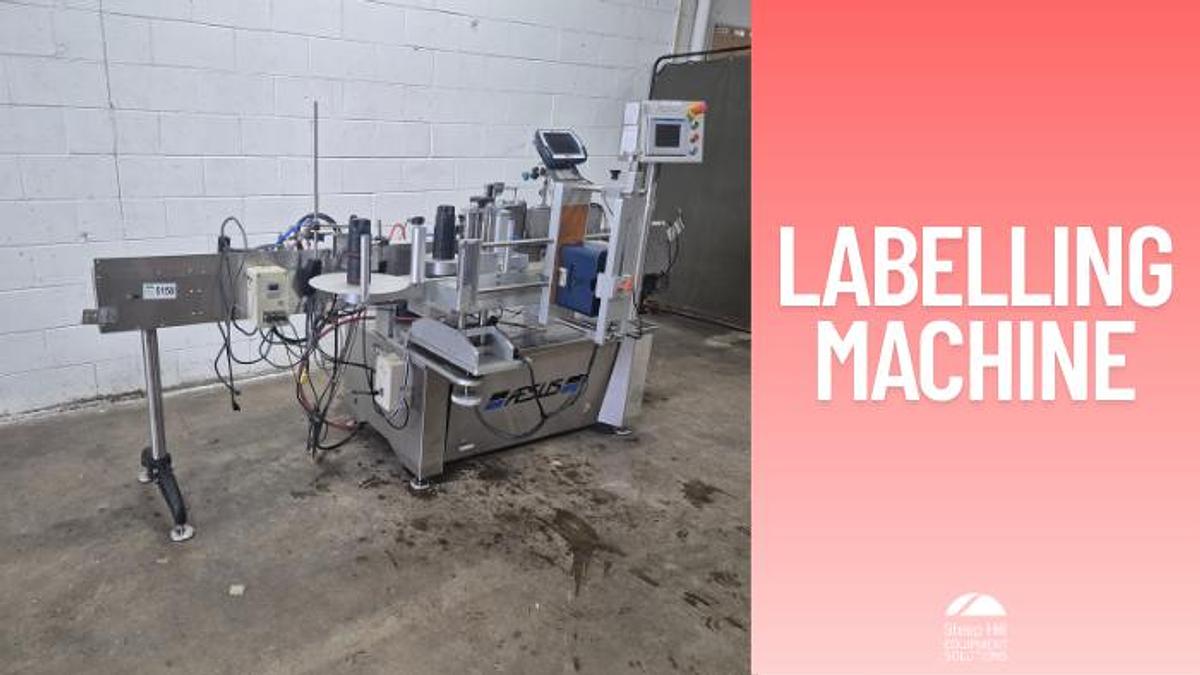

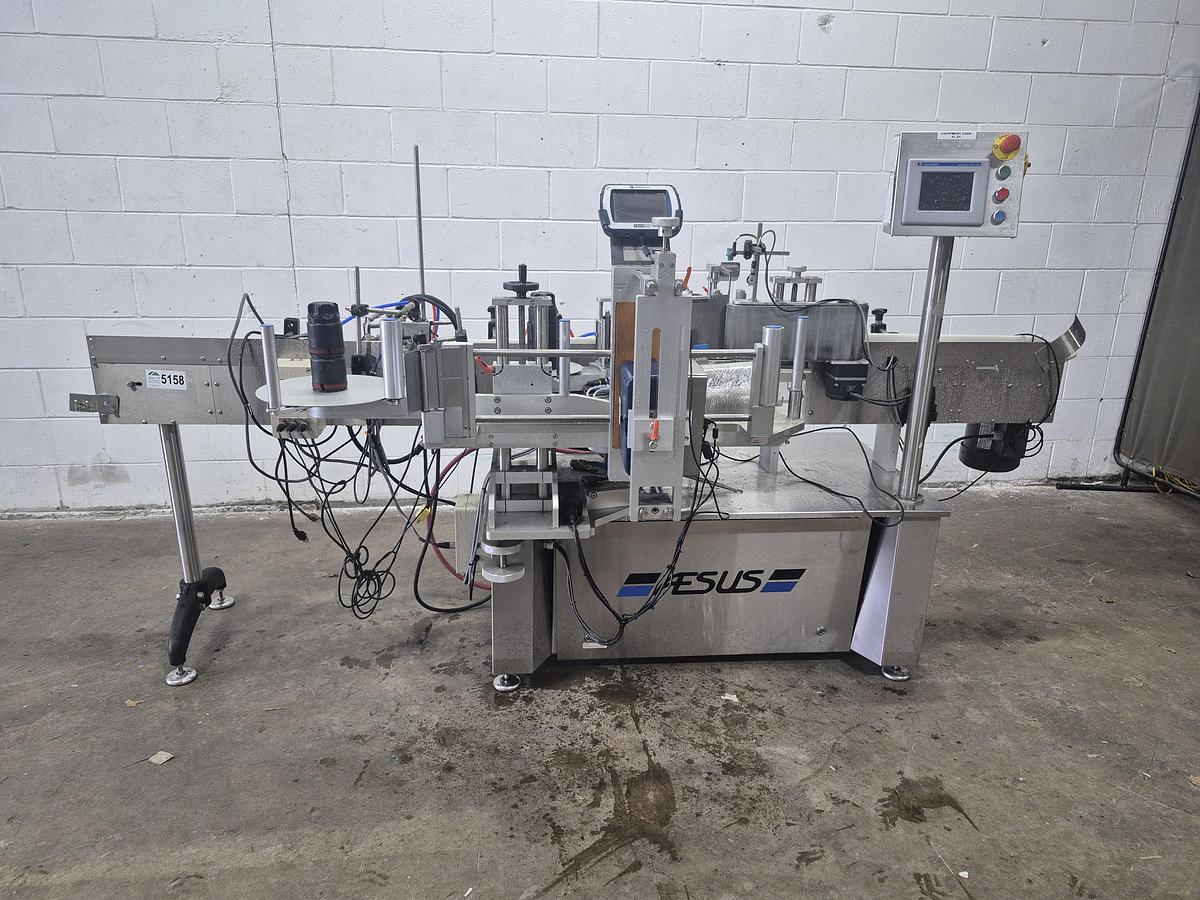

Aesus Eco Wrap Prism Labelling Machine

Aesus Eco Wrap Prism Labelling Machine

The Aesus Eco Wrap Prism is used for high-precision, pressure-sensitive labeling of cylindrical containers where standard "wrap-around" methods might lead to misalignment or "label skew".

Specs:

• Speed: Typically up to 100–120 containers per minute
• Container Size: Diameters from 1" to 8"; heights from 1" to 12"

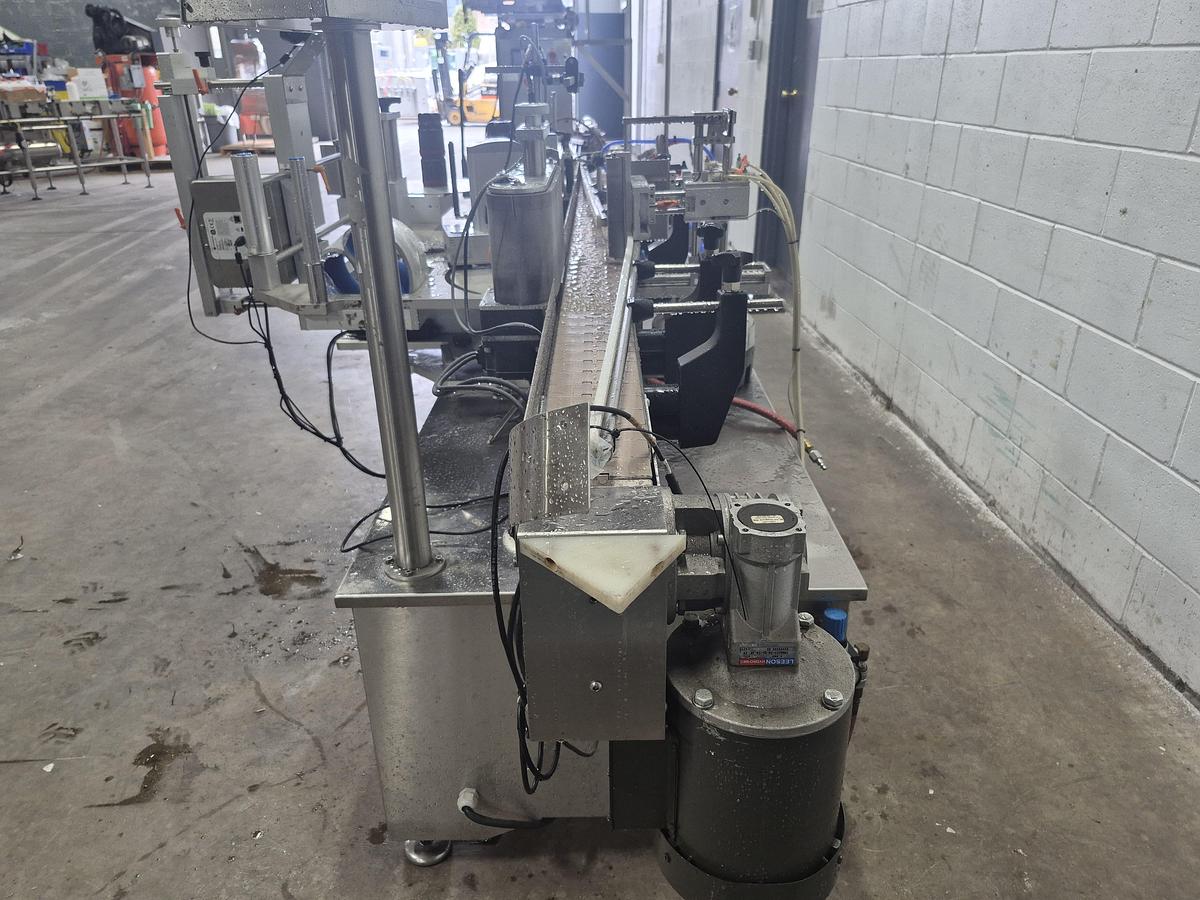

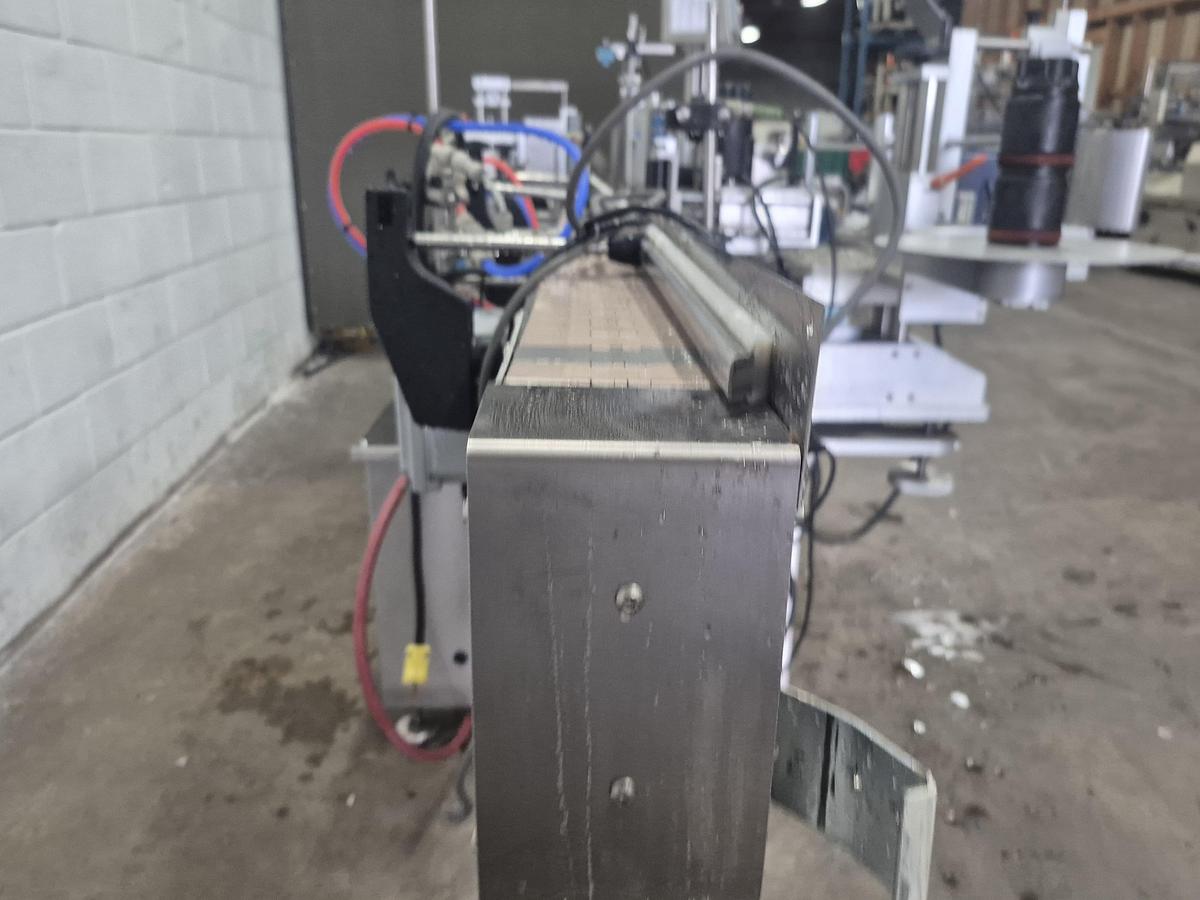

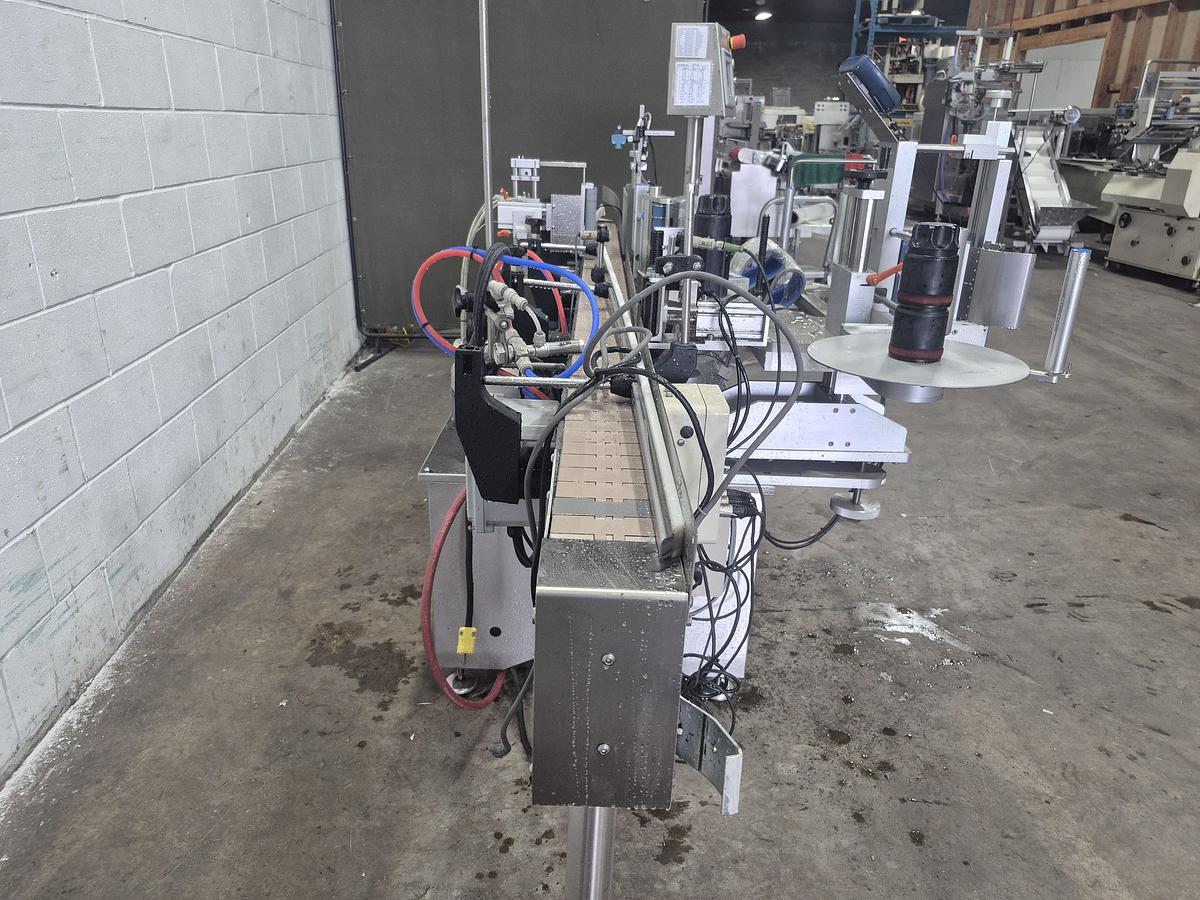

• Conveyor: Standard 7ft stainless steel (up to 10ft on some custom builds)
• Label Sensor: Patented inductive sensor that handles Mylar labels and resists dust
• Construction: Stainless steel and anodized aluminium for durability

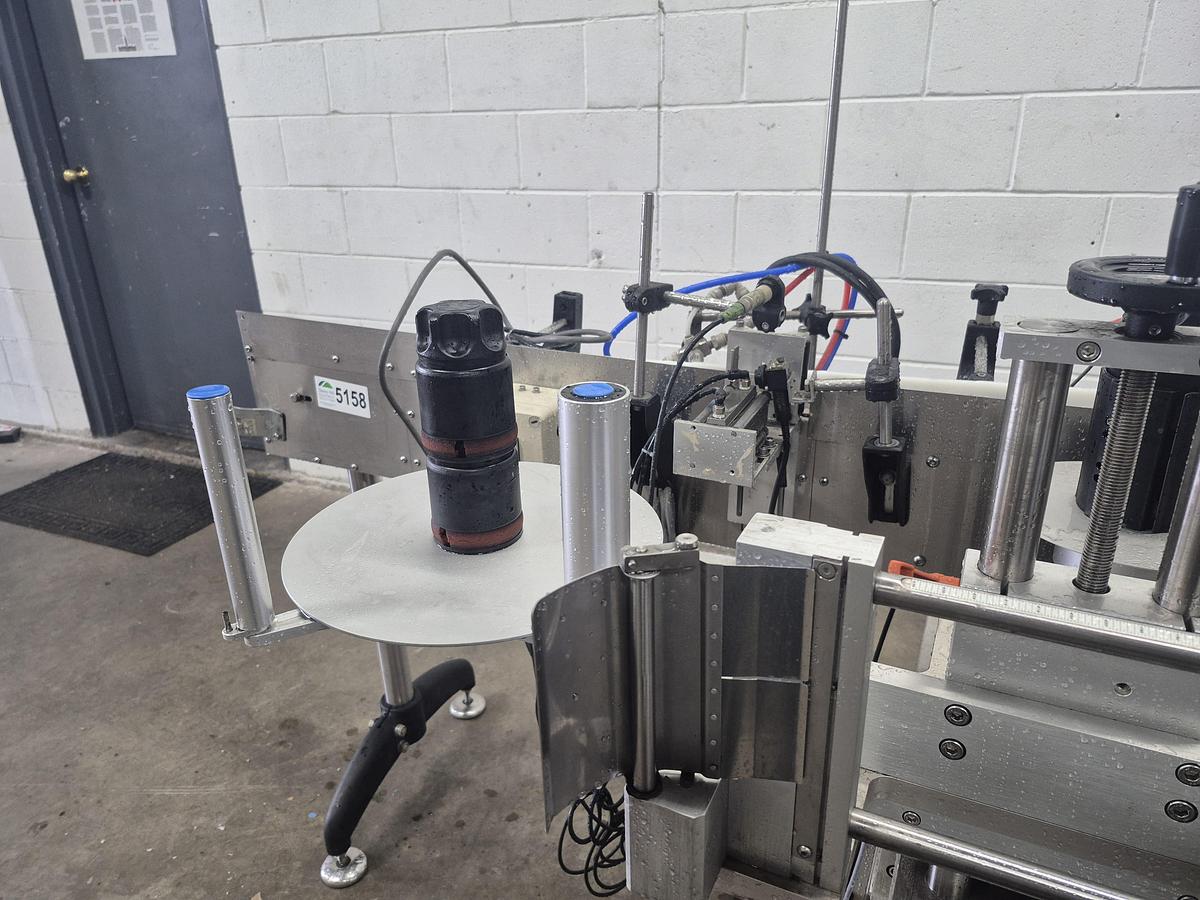

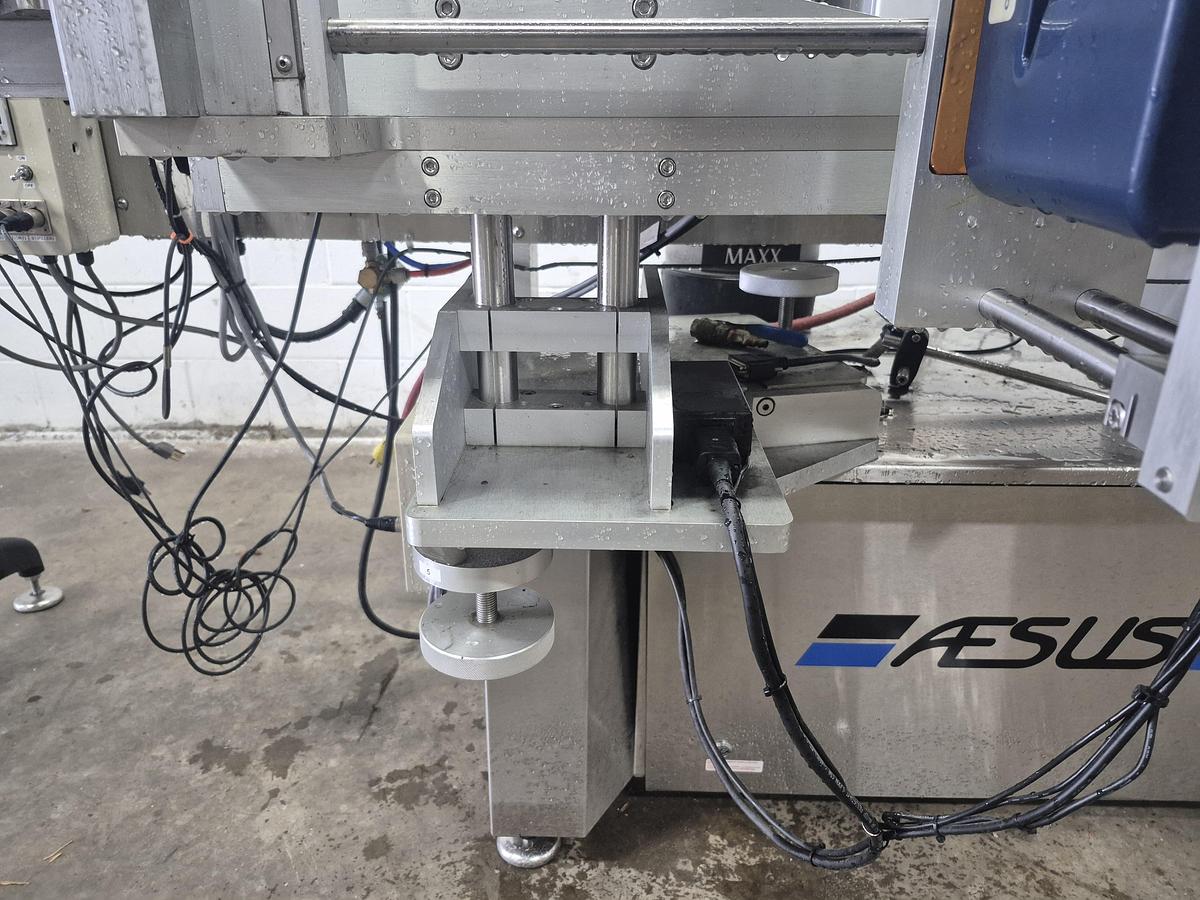

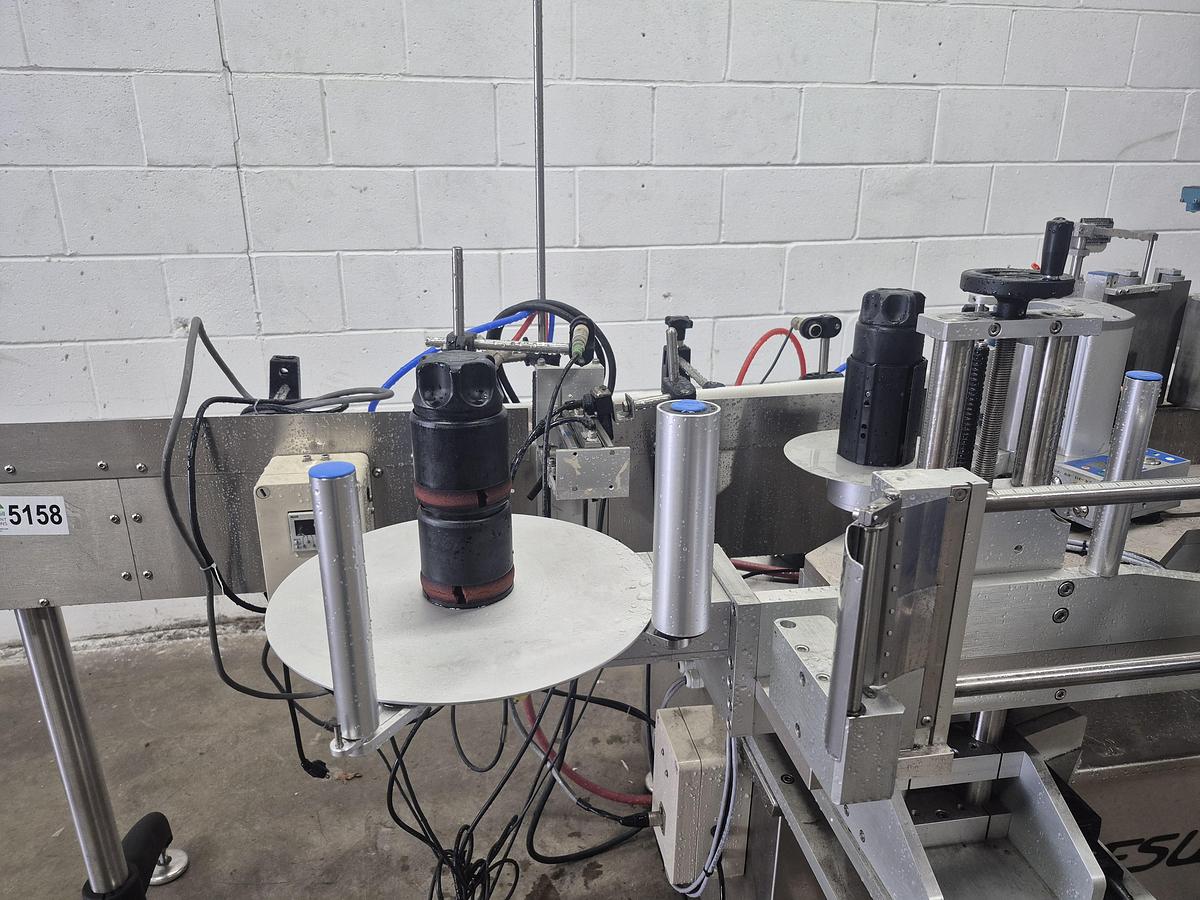

• Prism Roller System: Uses twin adjustable rollers to press and rotate the container against the wrap belt. This setup allows for highly accurate alignment for long labels, application of multiple labels (e.g., front and back) from the same roll and orientation of labels to specific bottle features like handles or marks

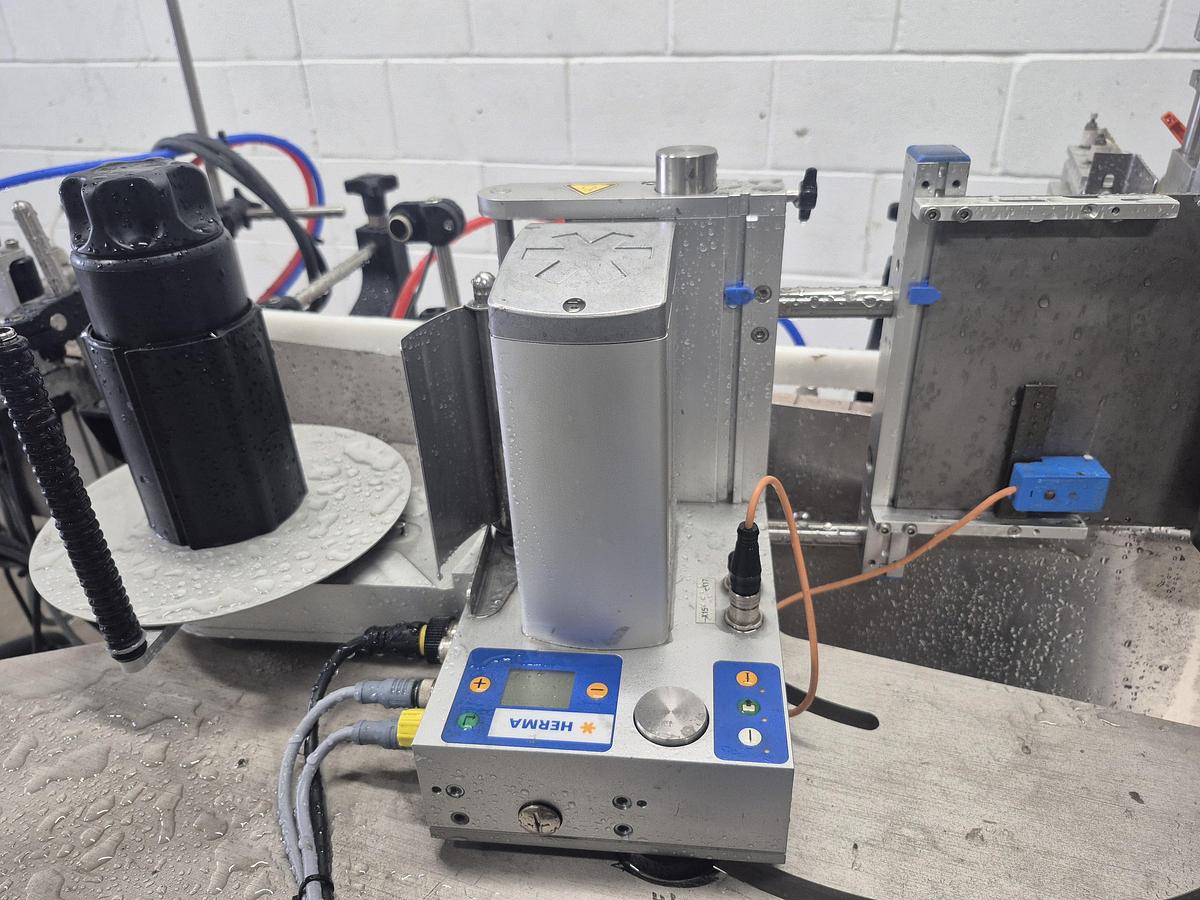

• Eco Wrap Base: Features a powerful Servo H400 applicator head found in higher-end models but in a more streamlined, budget-friendly package

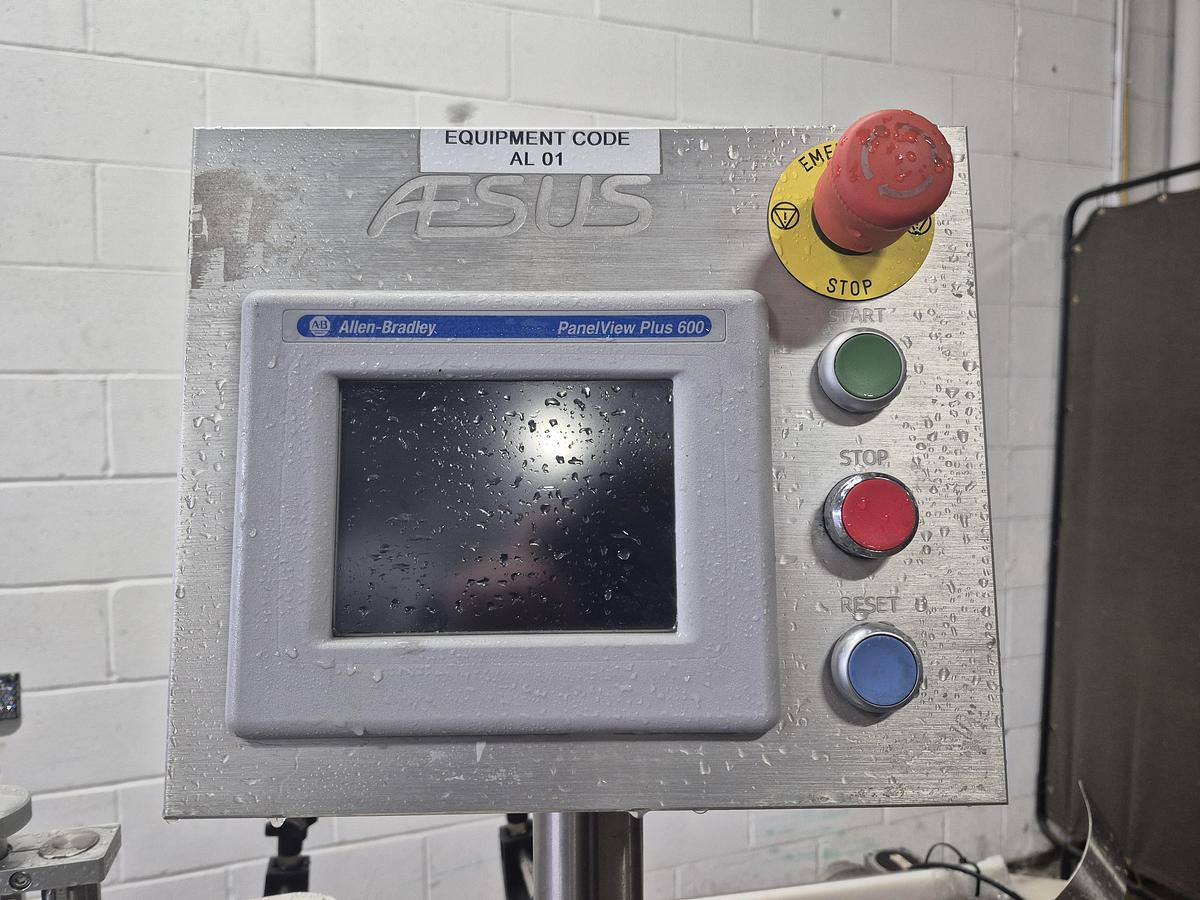

• Control System:  Typically upgraded to a color touch panel HMI screen when the Prism system is included, replacing the standard controls for better recipe management and precision
• Long Labels: Ideal for labels that wrap around the entire circumference of a container (up to 26 inches in length), ensuring the ends meet perfectly
• Straight-Wall Containers:  Used for consistent application on glass or plastic bottles, jars, and vials
• Industry Specific Applications: Cosmetics & Personal Care, Nutraceuticals & Supplements, Food & Beverage and Pharmaceuticals

Comes from a Aesus 6-Head Filling Line
