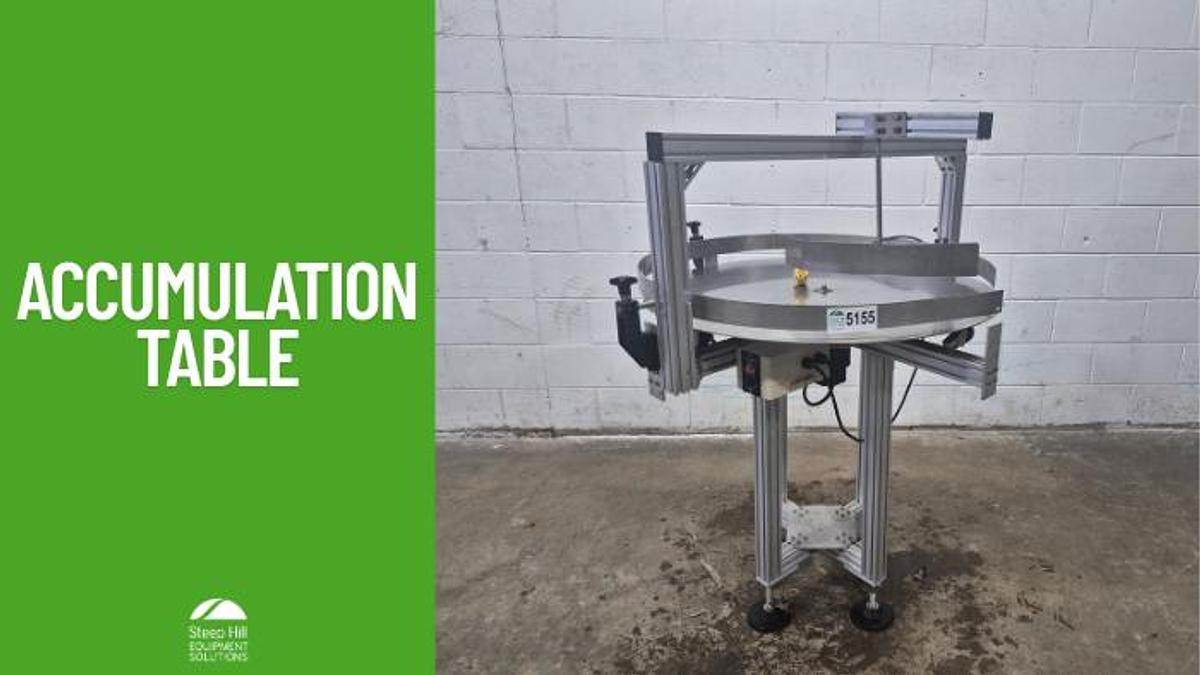

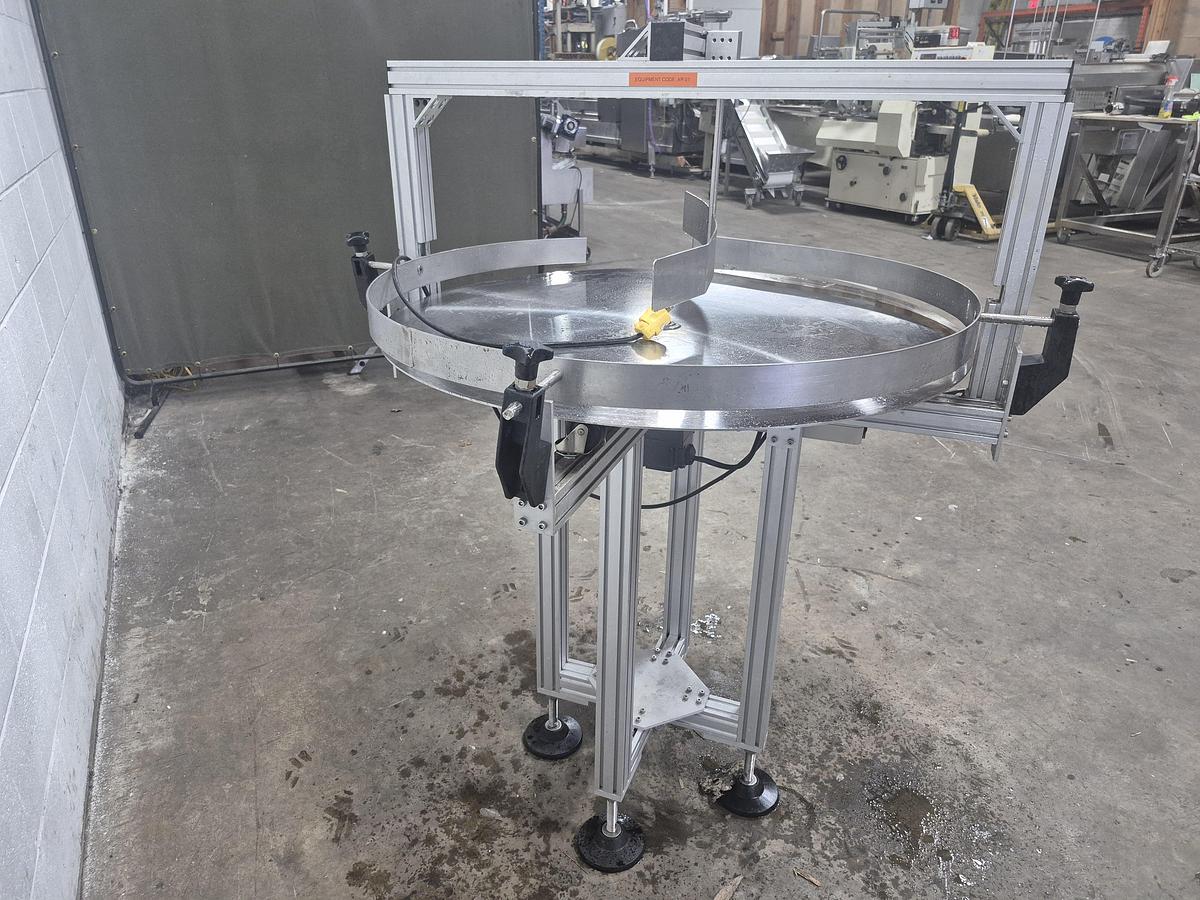

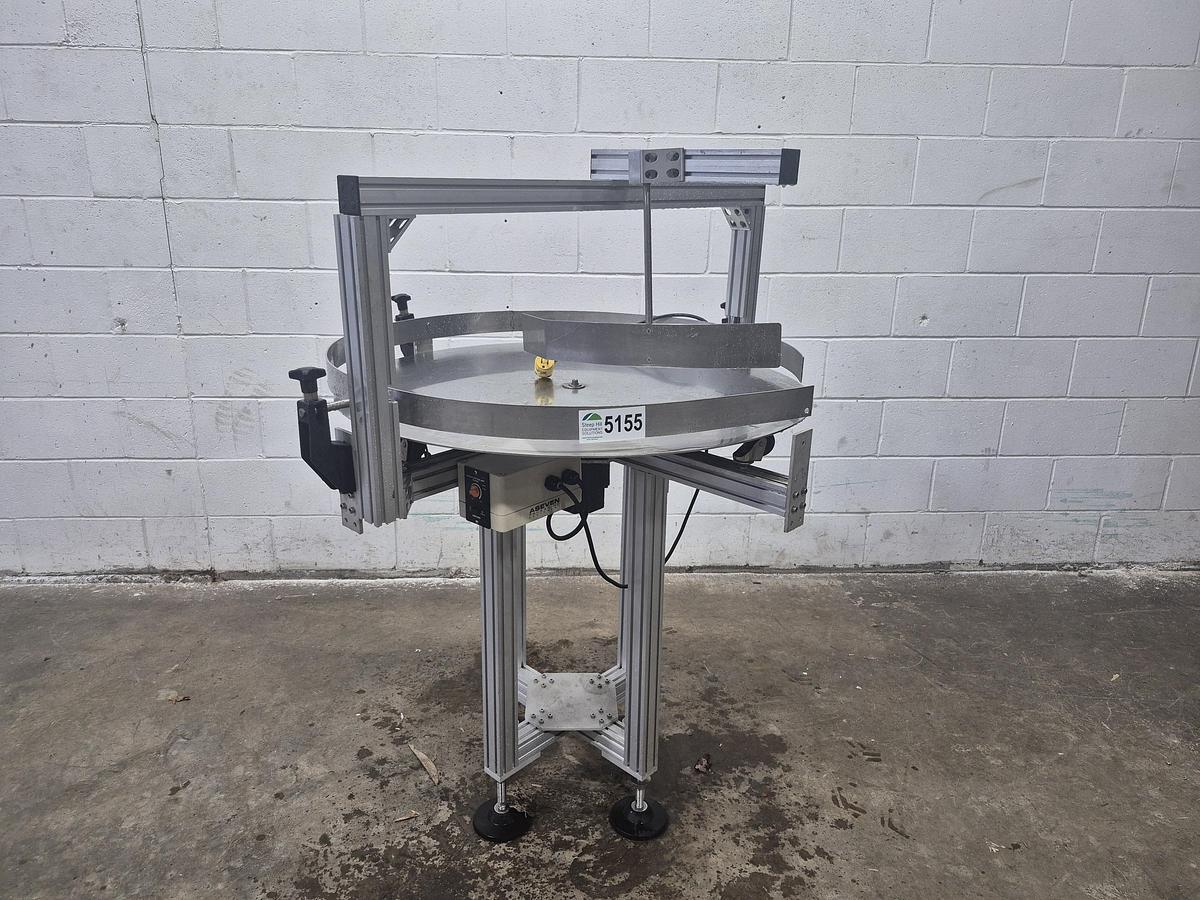

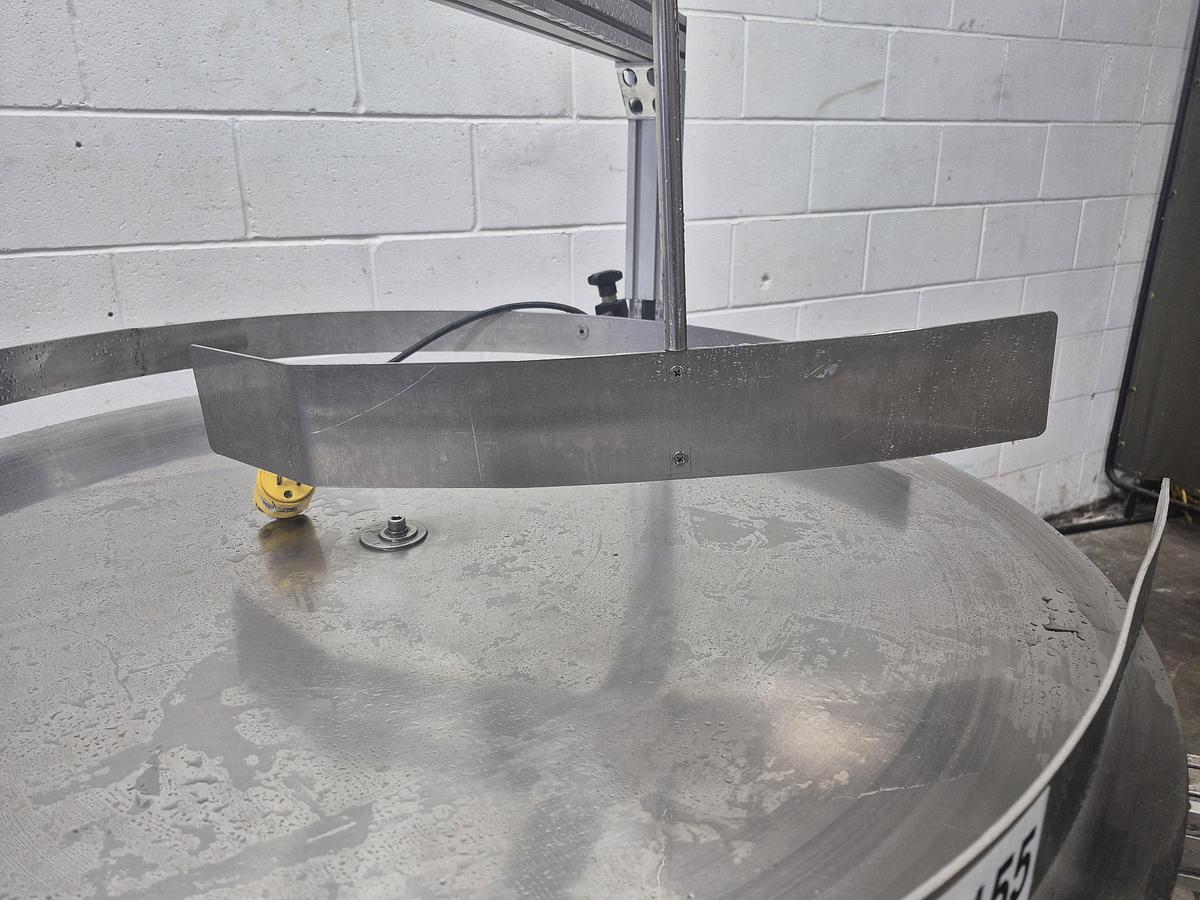

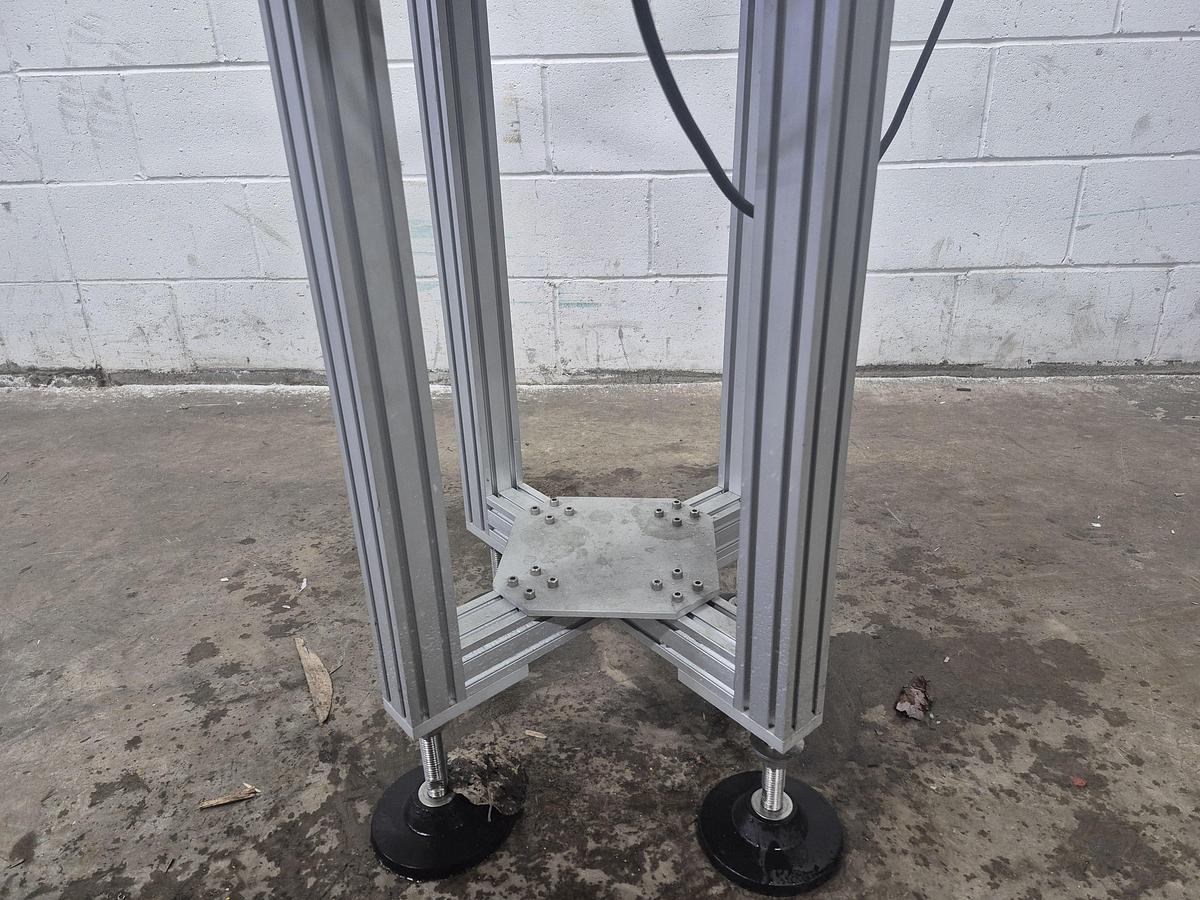

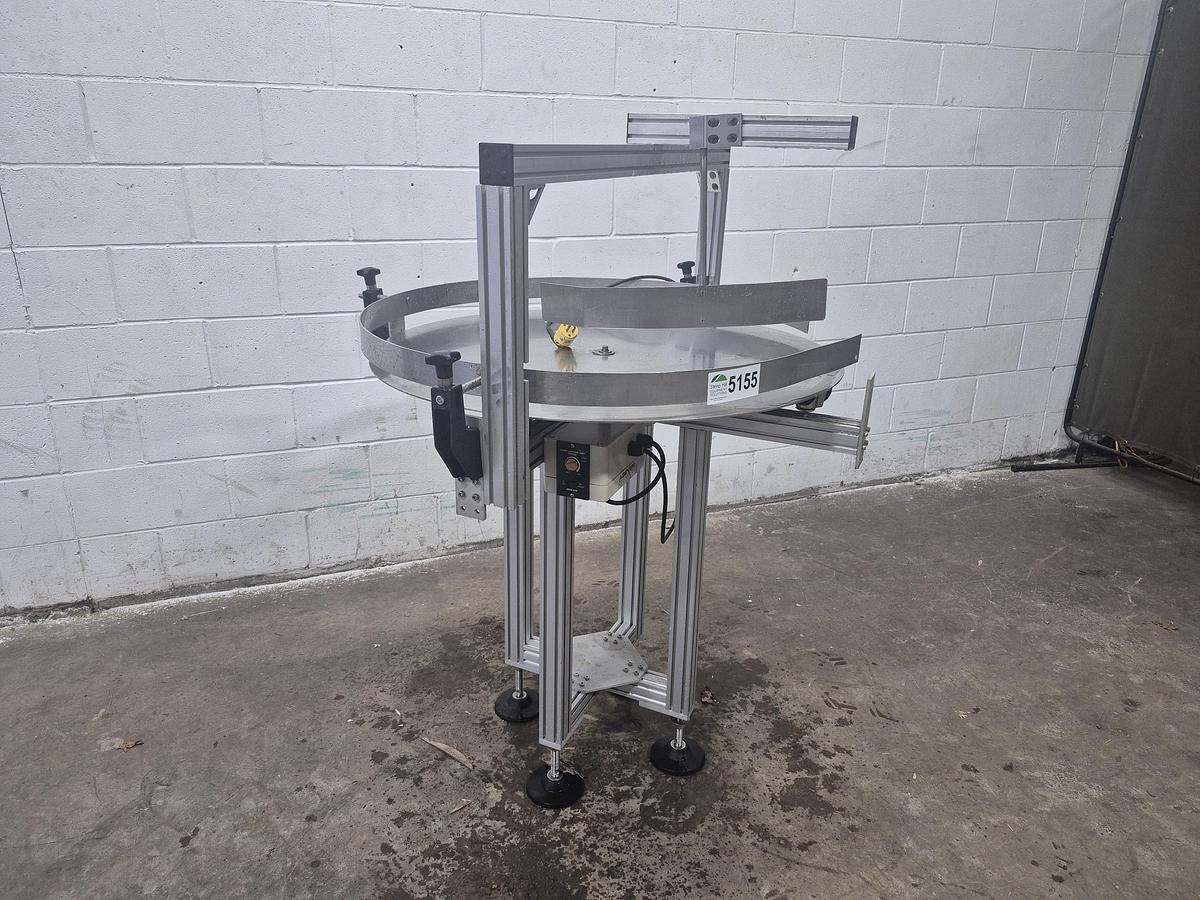

36' Accumulation Table

36' Accumulation Table

Description

36' Accumulation Table

An accumulation table is a specialized piece of material handling equipment designed to temporarily hold and organize products—such as bottles, cans, or jars—to manage production flow. They serve as critical buffer zones in manufacturing and packaging lines, preventing backups when downstream machines slow down or stop, and allowing production to continue smoothly.

Specs:

  • 36" across
  • 54" height

Powered by a Oriental Motor AXUD90A Brushless DC Motor Speed Control Unit

Specs:

  • Output Power: 90 W (1/8 HP)
  • Power Supply: Single-phase 100–115 VAC, 50/60 Hz
  • Rated Input Current: 1.9 A
  • Speed Control Range: 100 to 2,000 r/min

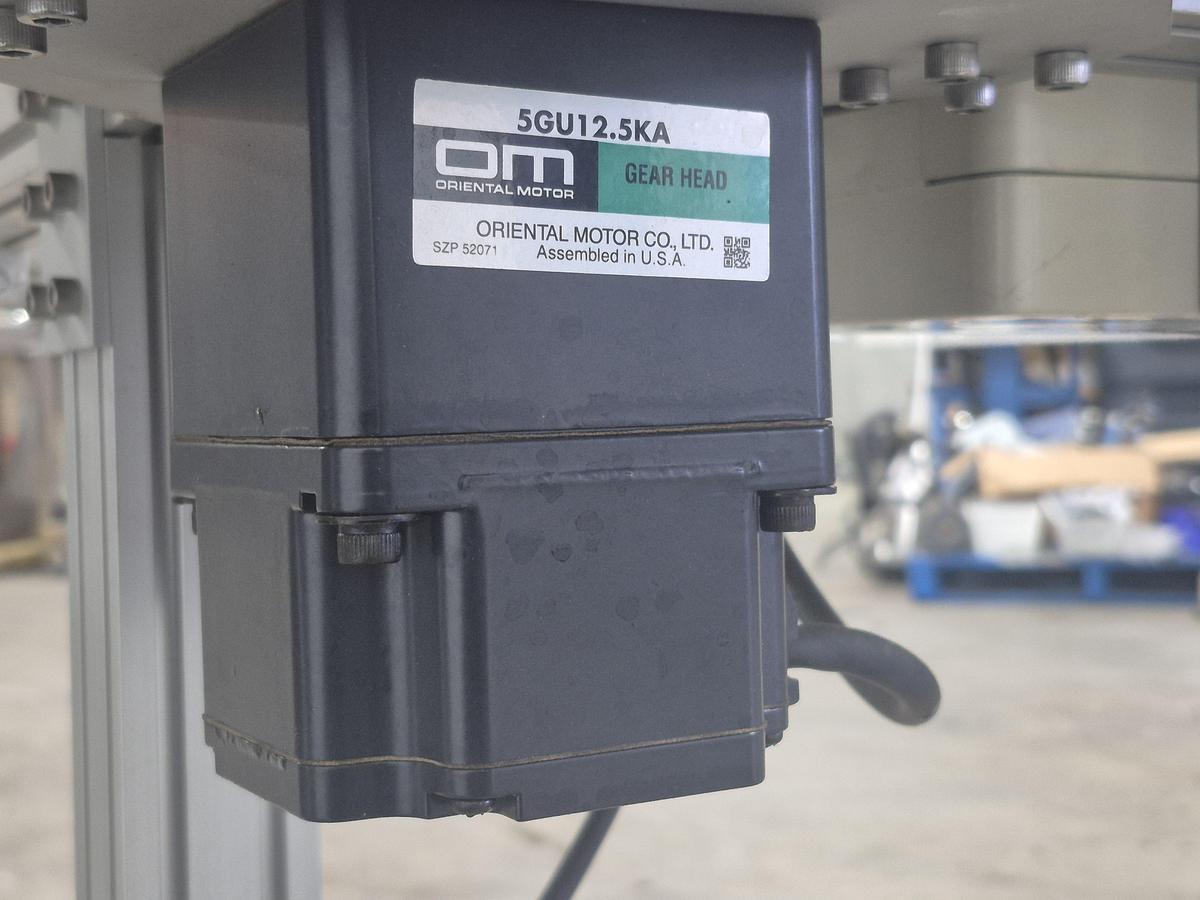

Oriental Motor 5GU12.5KA GU Series Parallel Shaft Gearhead

Specs:

  • Designed for use with AC and brushless motors
  • Gear Ratio: 12.5:1
  • Output Shaft Diameter: 5/8 in
  • Shaft Type: Parallel shaft
Show All

Specifications

ConditionUsed
Stock Number5155
Dimensions (l x w x h)39" x 39" x 54"
