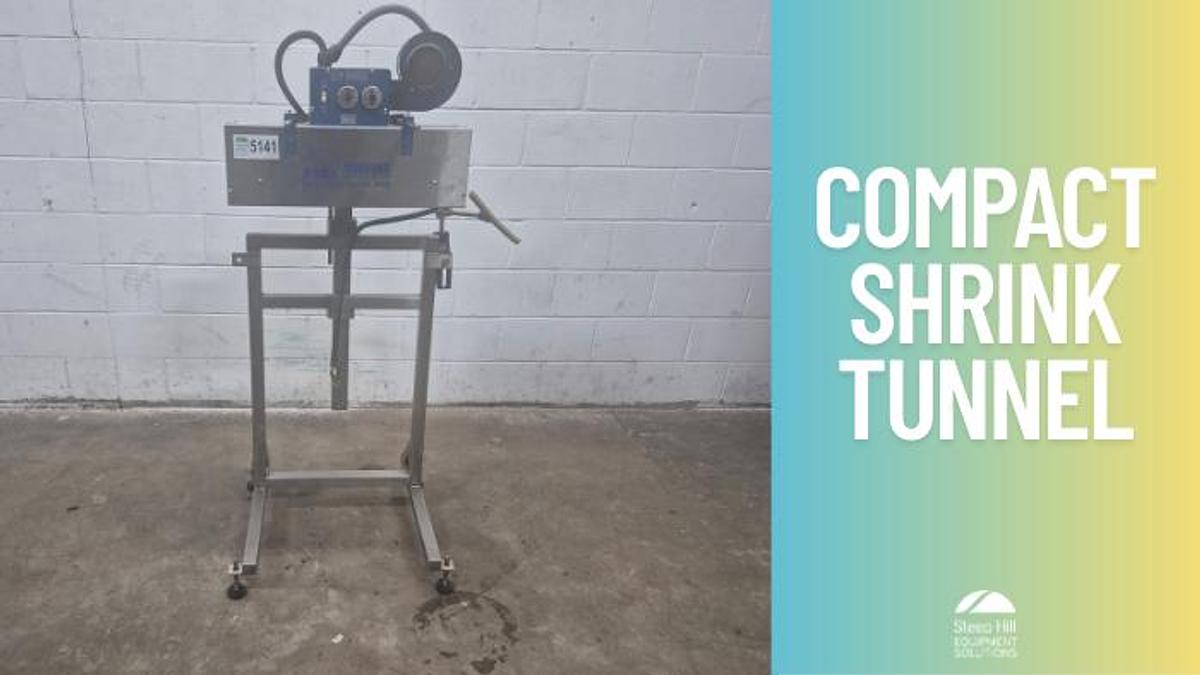

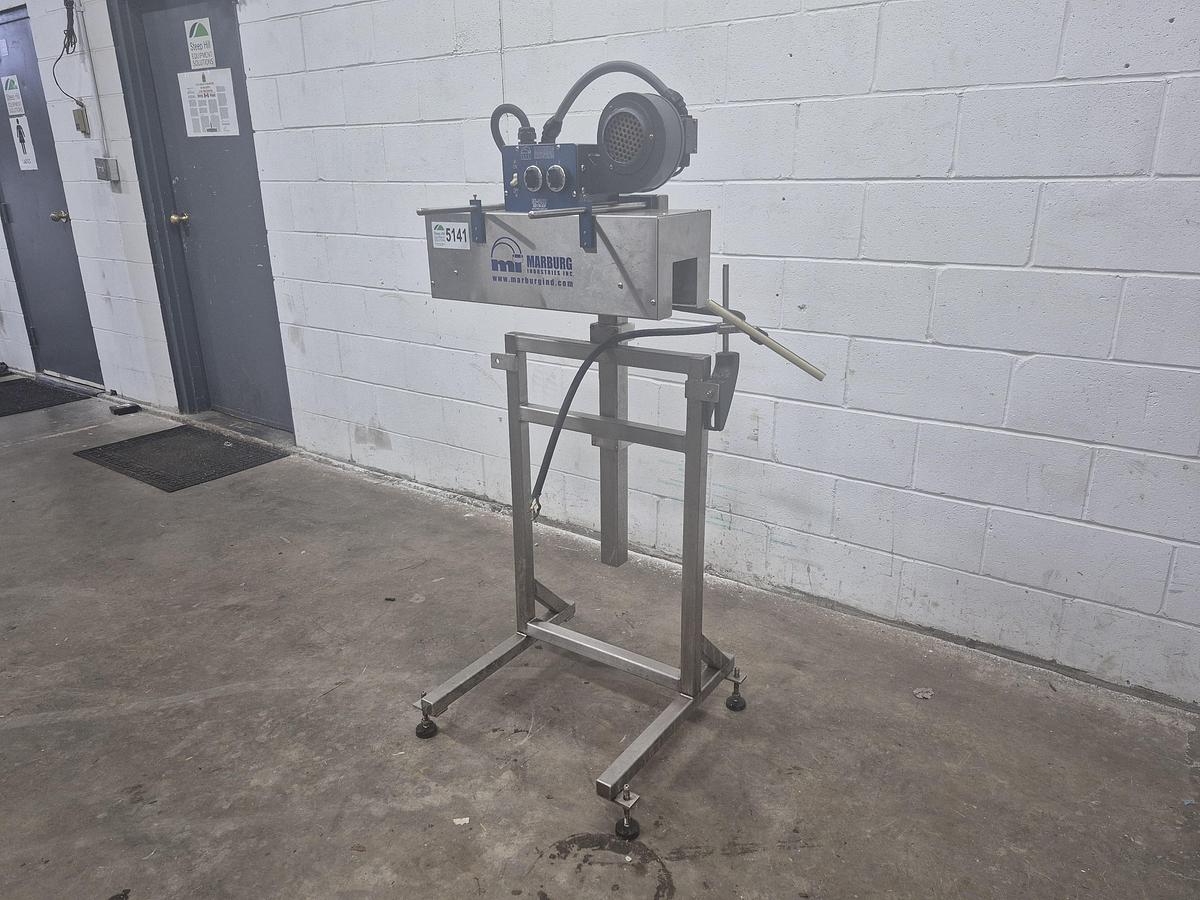

Marburg CR-6000 Compact Heat Shrink Tunnel

Marburg CR-6000 Compact Heat Shrink Tunnel

The Marburg CR-6000 is an industrial heat shrink tunnel used to apply tamper-evident seals and shrink labels to containers. It is primarily designed to shrink PVC bands or sleeves around the necks or bodies of various bottle shapes and sizes.

Specs:

• Heating System: It utilizes two 3,000-watt CAL rods as the primary heat source
• Ventilation: Employs flow-through ventilation, using hot air to lock the band in place and radiant heat for the final shrink finish

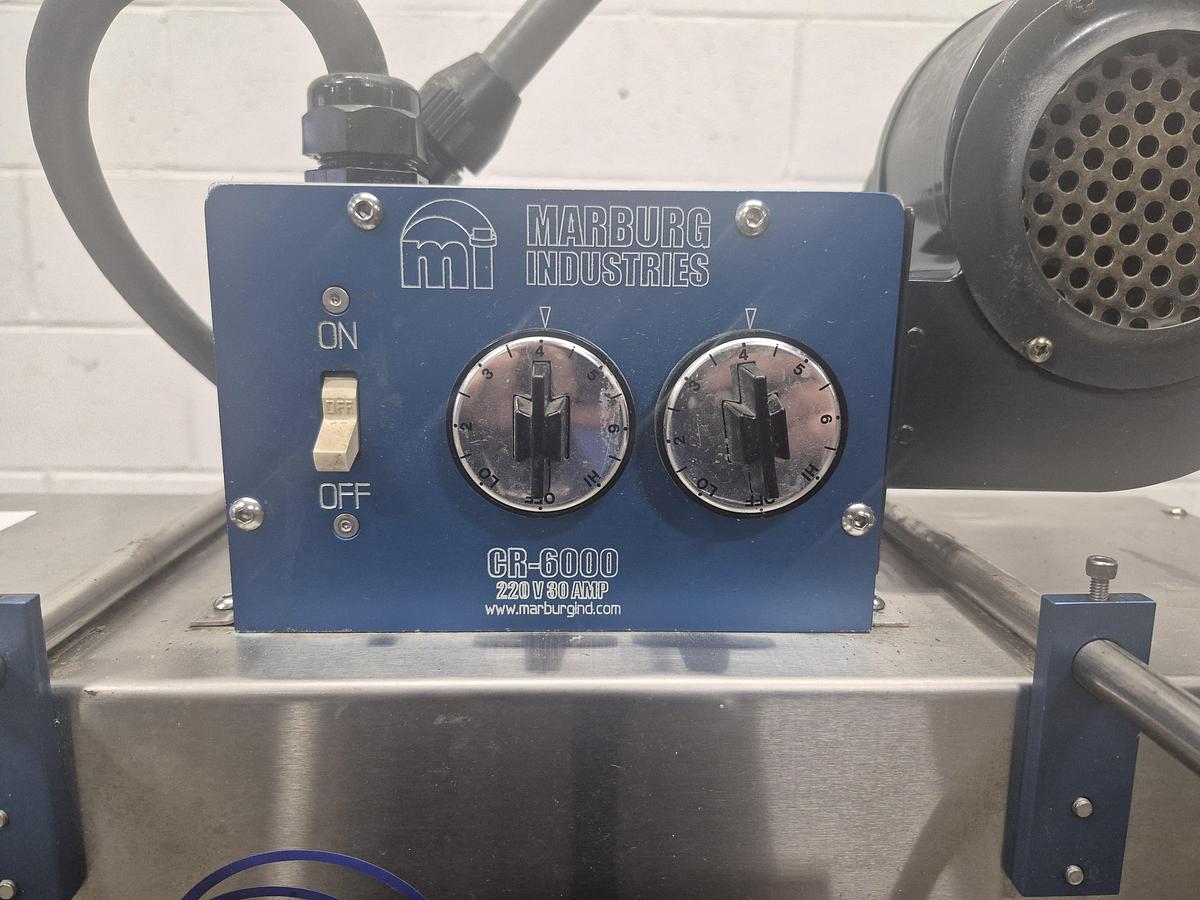

• Power Requirements: Operates on 240 VAC (often cited as 220V or 240V, 30 Amp) and typically requires a 3-phase electrical connection
• Dual Heat Source: It uses a combination of hot air (flow-through ventilation) to lock the band in place and radiant heat (from 3,000-watt CAL rods) for a final, smooth shrink finish
• Versatility: It can handle a "wide variety of bottle shapes and sizes," from standard round bottles to more uniquely contoured containers
• Dimensions: The tunnel is approximately 22 inches long, designed to be compact to avoid the need for lengthy conveyors
• Industries Used In: Pharmaceutical, Cosmetics and Personal Care and Food and Beverage

Dayton 1TDP6 Blower

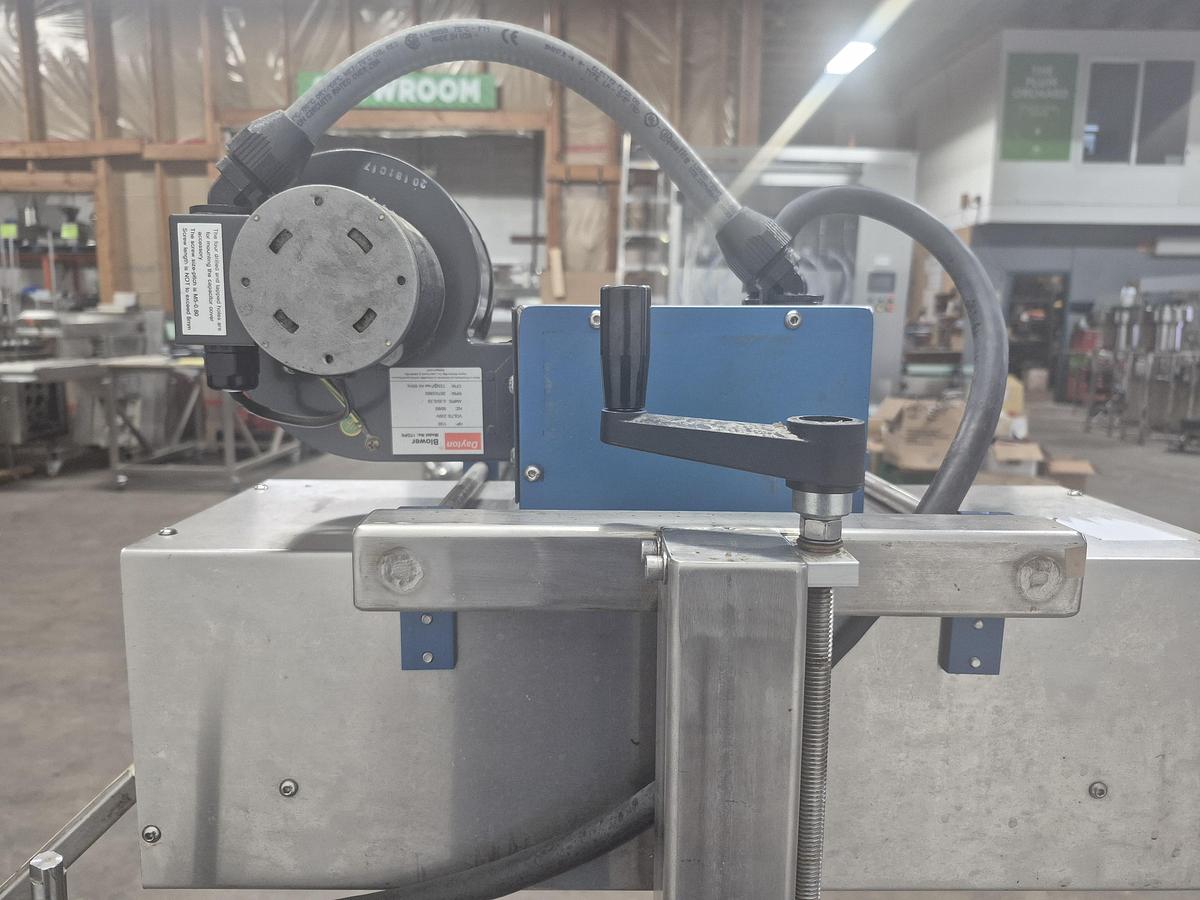

Is a OEM specialty centrifugal blower. This specific component is a common replacement part for Marburg CR-6000 heat shrink tunnels, where it is used to provide the "flow-through ventilation" necessary to circulate hot air for shrinking PVC bands.

Specs:

• Model: 1TDP6
• Power: 1/30 HP
• Voltage:  230V AC
• Airflow: 133 CFM at Free Air
• Speed: 2670/2880 RPM
