Crown RC5535-30 Electric Stand-Up Forklift

Crown RC5535-30 Electric Stand-Up Forklift

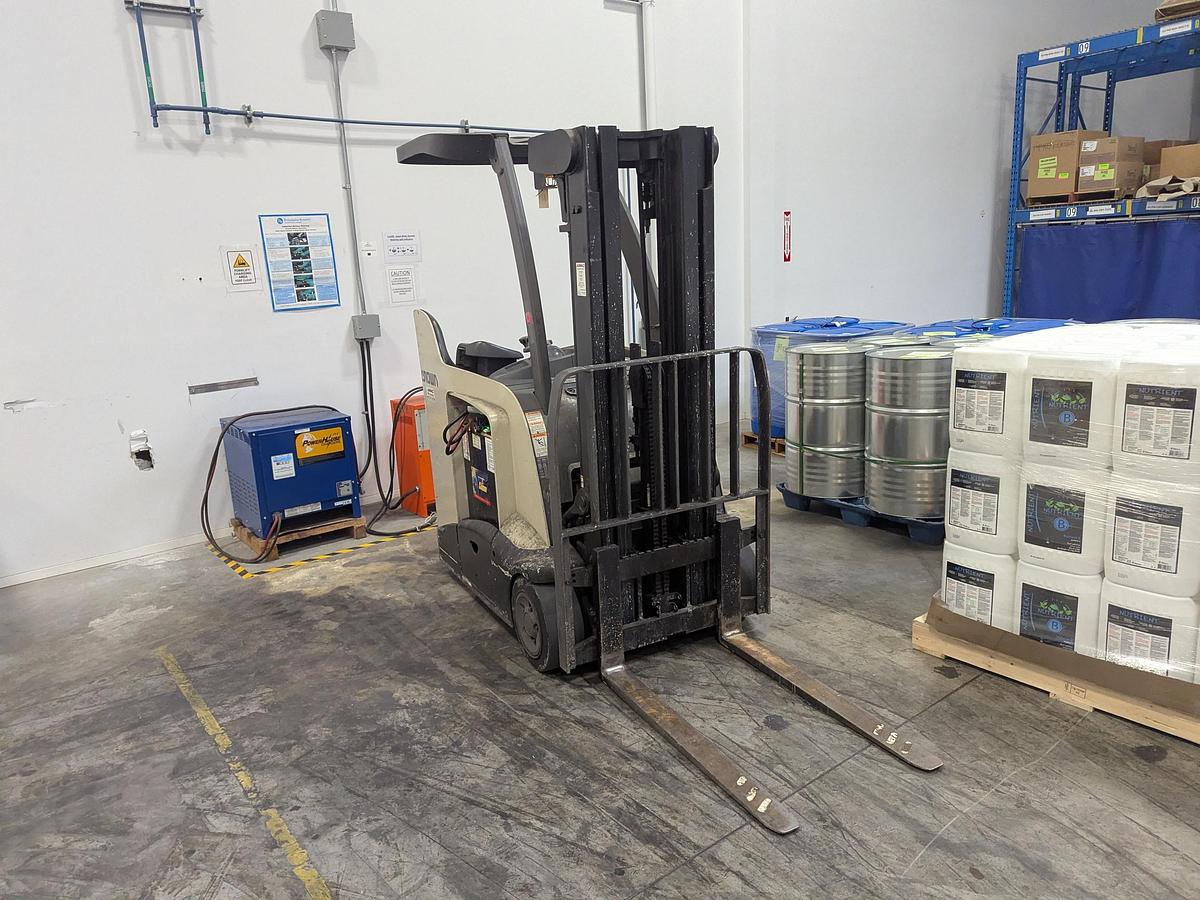

The Crown RC5535-30 is an electric stand-up counterbalance forklift primarily used for high-intensity dock-to-stock warehouse operations. Its unique stand-up, side-stance design is engineered for environments where an operator must frequently step on and off the truck to perform other tasks.

Specs:

• Load Capacity: 3,000 lbs (1,360 kg) at a 24" load center
• Truck Weight: 6,126 lbs (2,780 kg) excluding the battery
• Battery Weight: Max: 2,650 lbs (1,200 kg) | Min: 2,280 lbs (1,035 kg)
• Power System: 36 Volt DC; Max Amp Hr: 1,240
• Mast Performance: Max Fork Height: 190" (approx. 15.8 ft)
• Maneuverability: Designed with a 3-wheel configuration and a side-stance operator position to provide maximum visibility in tight aisles and trailers
• Breaking: Utilizes the e-GEN braking system, which uses motor torque for frictionless stops, reducing mechanical wear and maintenance needs

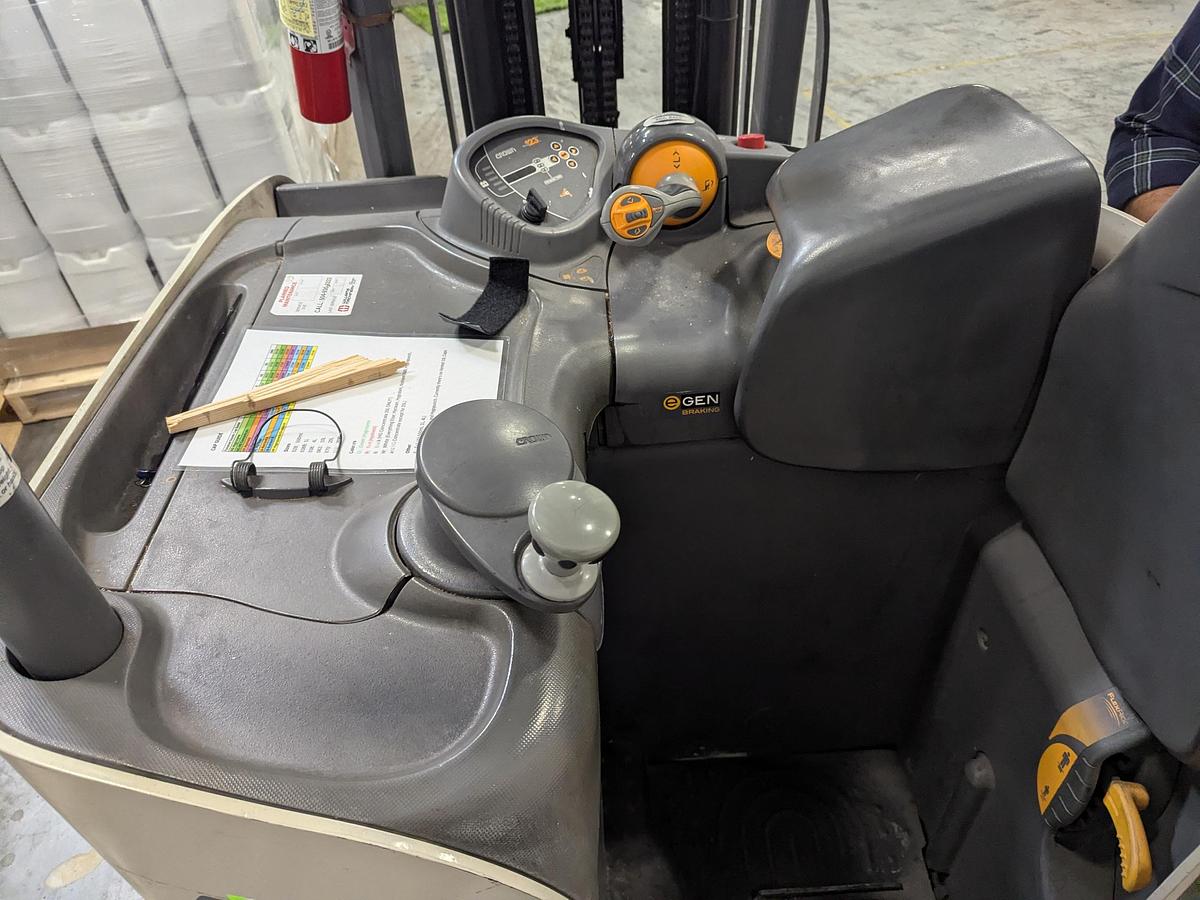

• Ergonomic: Features a FlexRide suspended floorboard to reduce operator fatigue from floor vibrations and shocks
• Common Applications: Dock Work, Narrow Aisle Transport, Replenishment & Retrieval and Staging
• Stability System: Includes Crown’s Intrinsic Stability System, which proactively manages travel, cornering, and ramp speeds to prevent tip-overs
• Industry Use Cases: Warehousing & 3PL, Food & Beverage, Manufacturing and Retail
