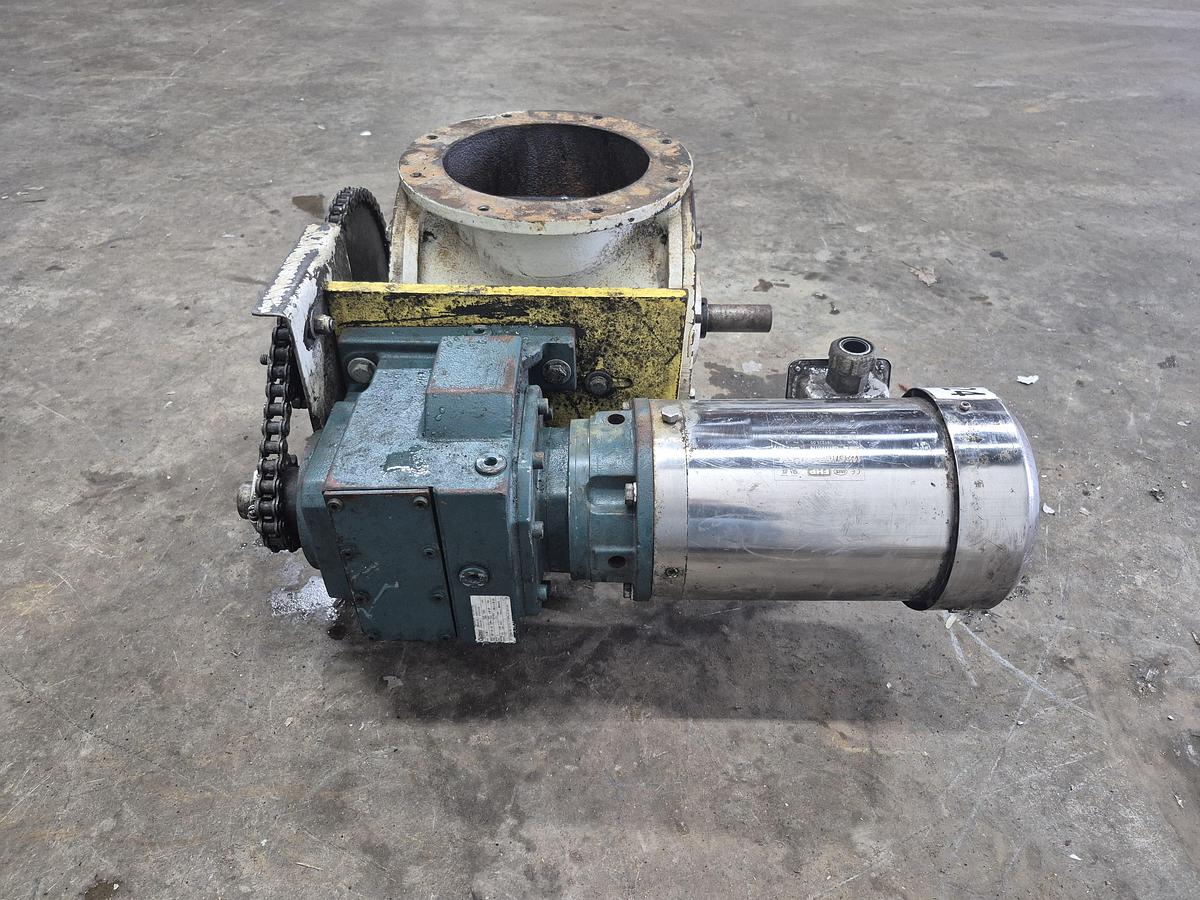

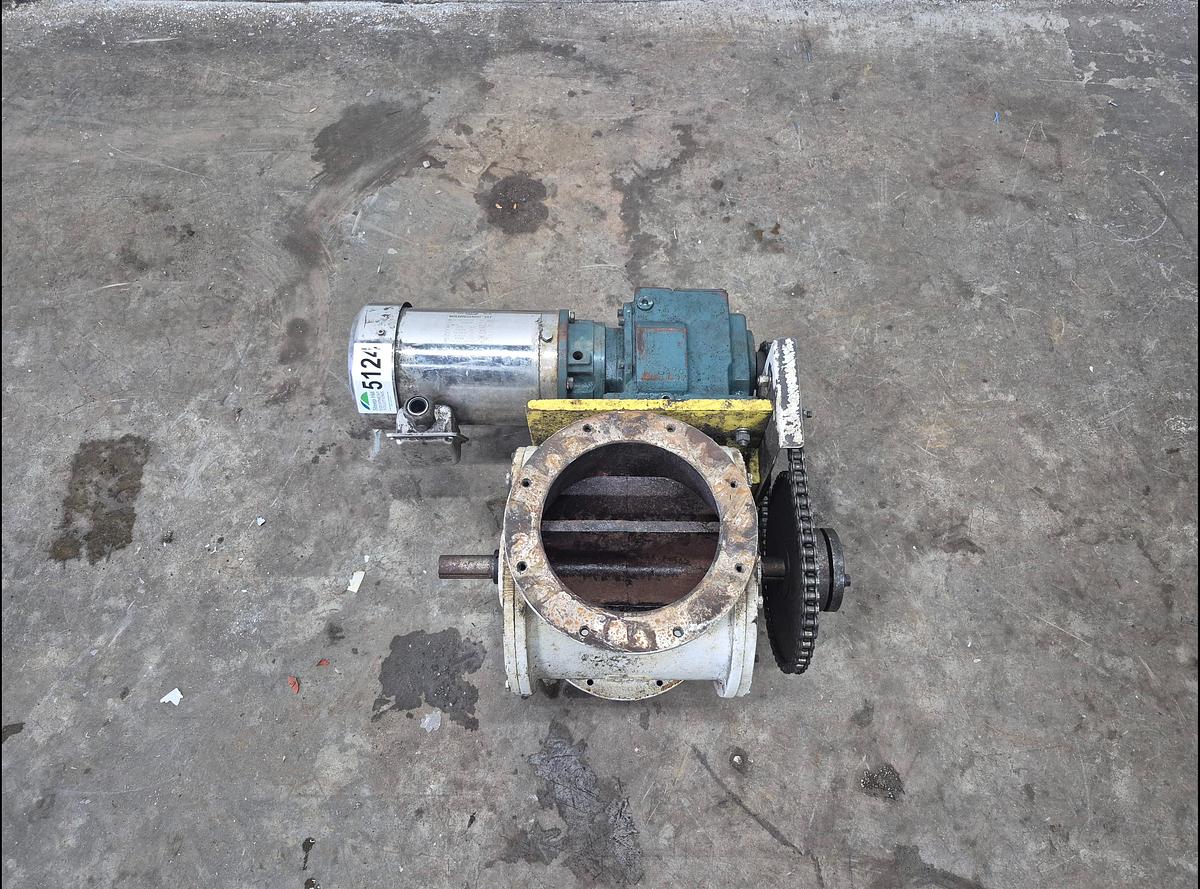

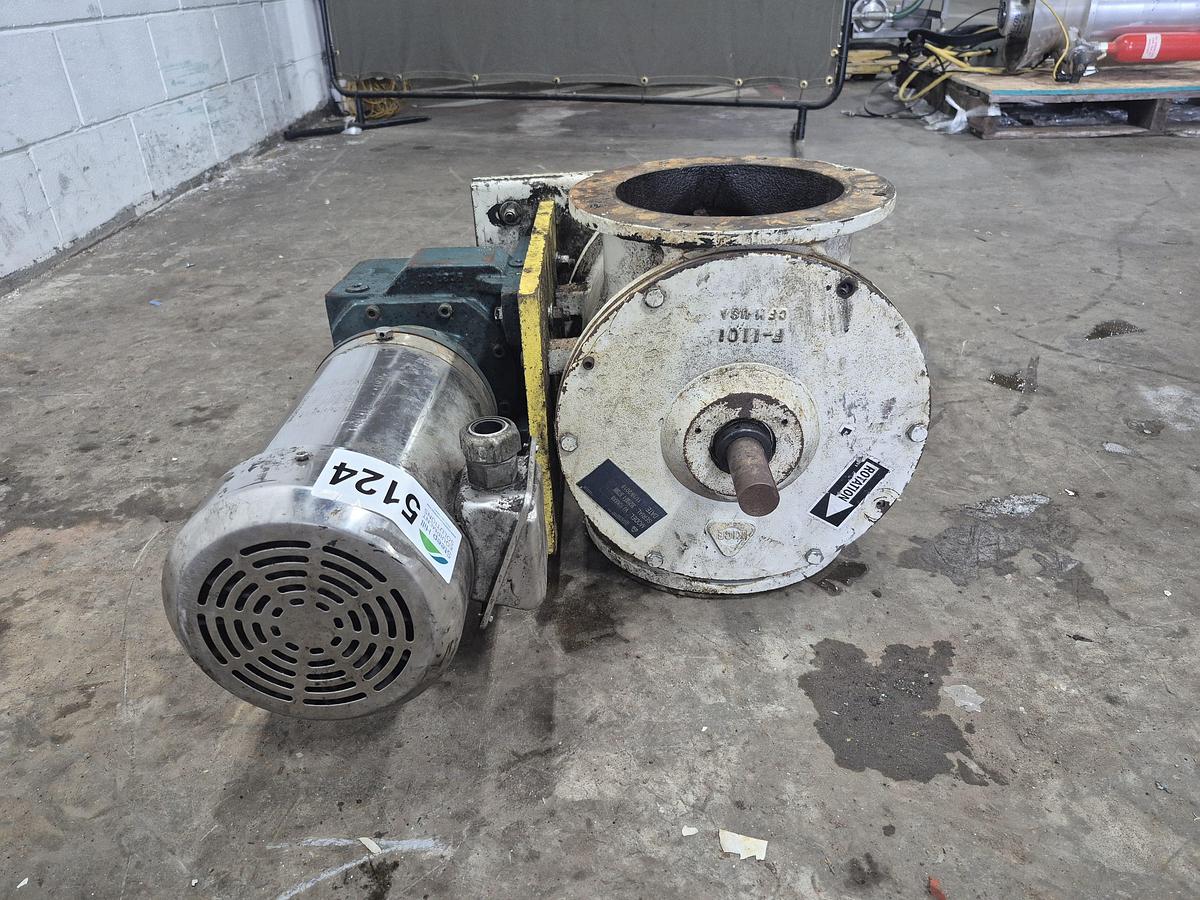

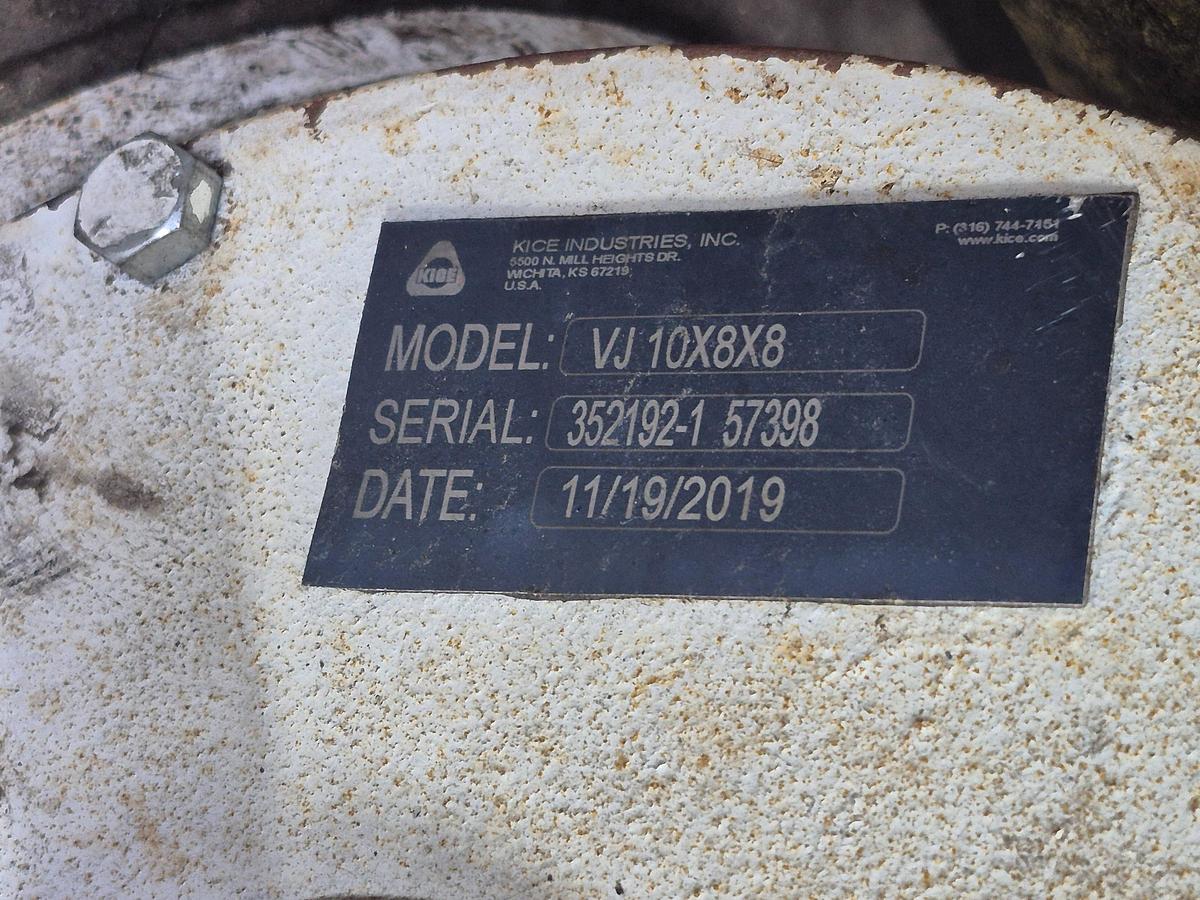

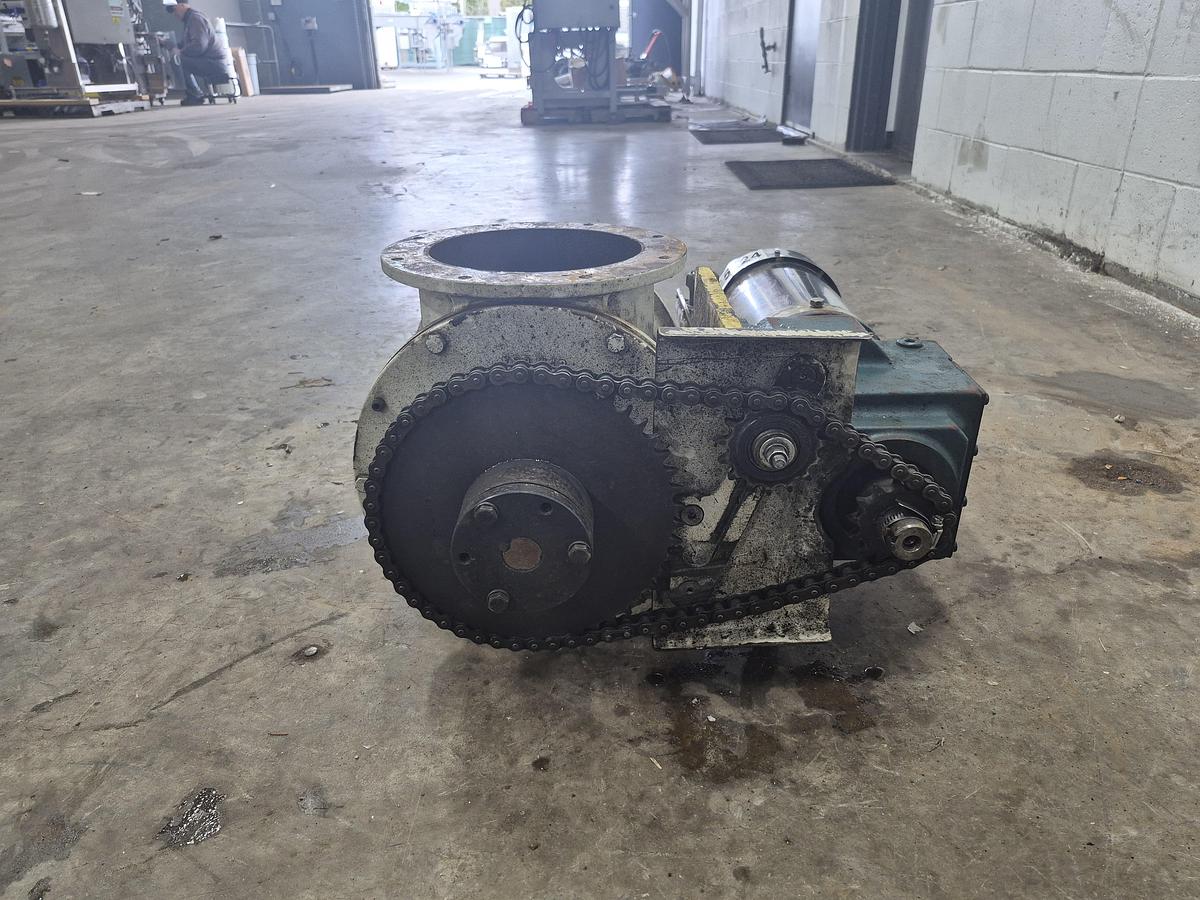

Kice VJ10X8X8 Rotary Airlock Valve

Kice VJ10X8X8 Rotary Airlock Valve

The Kice VJ10X8X8 rotary airlock valve is primarily used in industrial material handling systems to regulate the flow of dry, free-flowing bulk materials while maintaining a seal between two areas with different pressure or vacuum levels.

Specs:

• Primary Applications: Pneumatic Conveying Systems, Dust Collection Systems and Feeding Processing Equipment
• Industries Used In: Agriculture/Food Processing, Chemical Manufacturing, Plastics and Minerals/Construction
• Inlet/Outlet Size: 8" x 8" square openings
• Rotor Diameter: 10" diameter
• Material: Heavy-duty cast-iron body and rotor (some models are carbon steel)
• Valve Height: 13.5" (inlet to outlet)
• Capacity: Approximately 1/3 cubic foot of product per revolution

Powered by a 2/1.5 HP Leeson Washdown Duty Motor

• Model: C6T17FC179
• 3-Phase
• 208-230/190 V
• 6.2-6/5.2 A
• 1740/1440 RPM
• 60 Hz

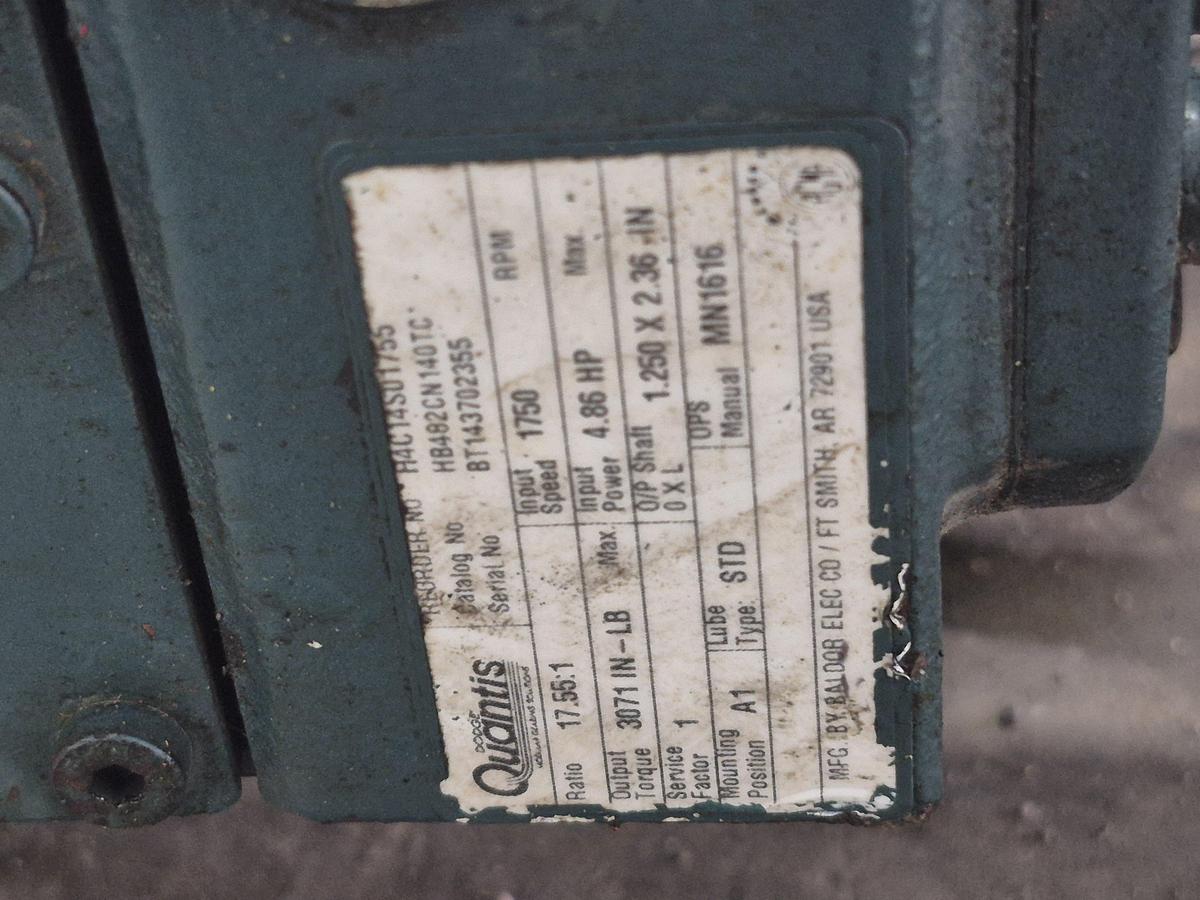

Doge Quantis Inline Helical Speed Reducer (Gearbox)

• Ratio: 17.55:1
• Output Torque: 3071 IN-LB
• Input Speed: 1750 RPM
• Input Power: 4.86 HP
