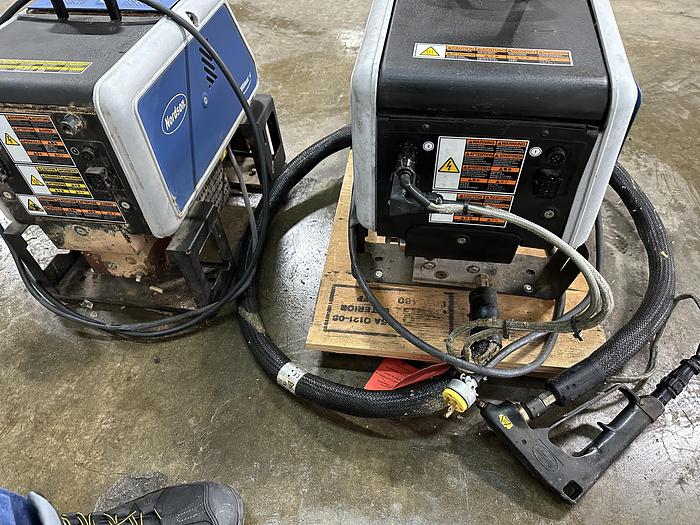

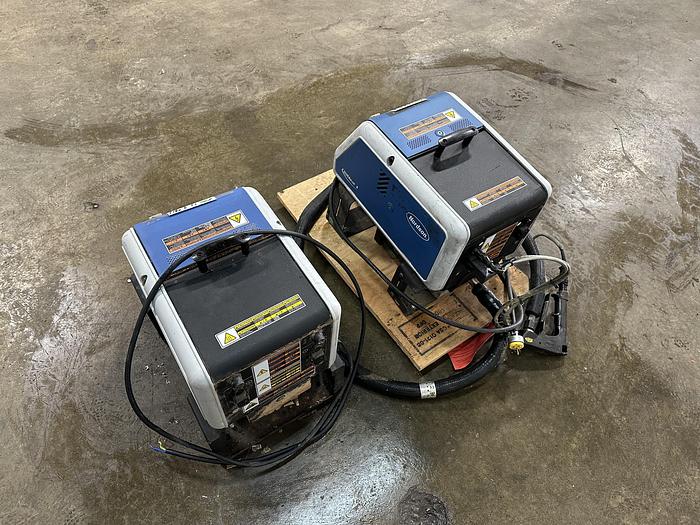

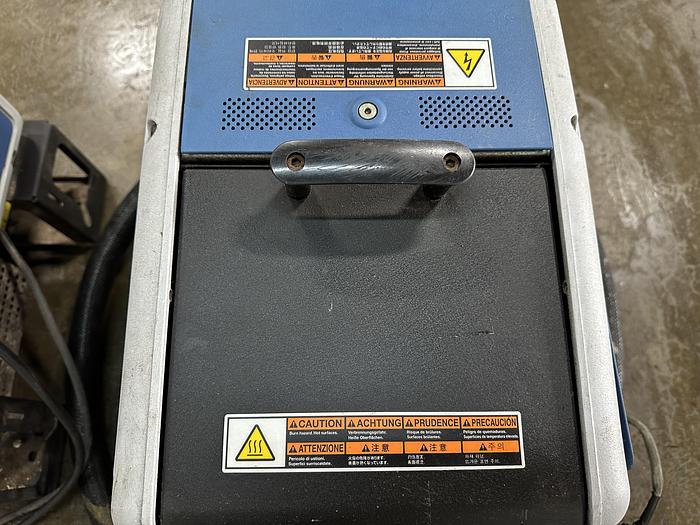

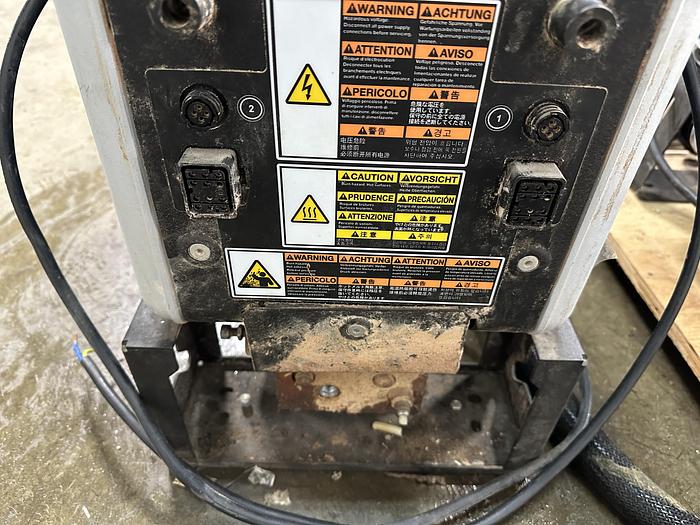

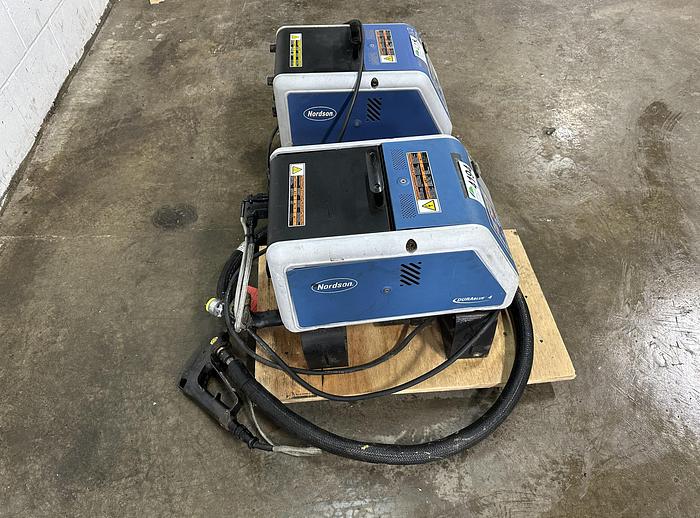

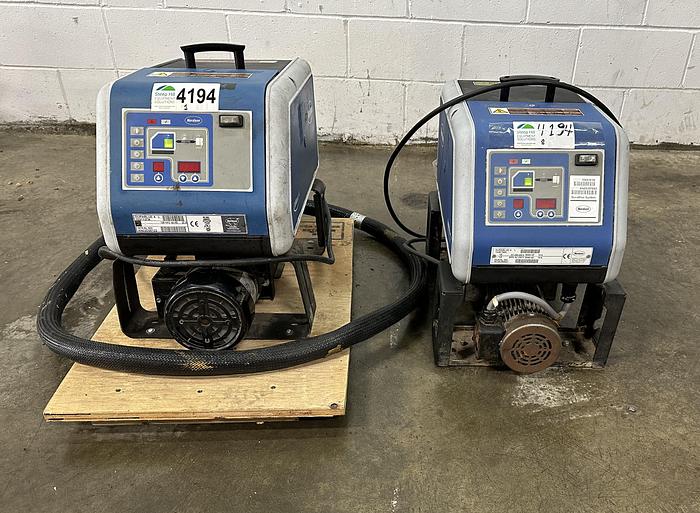

Nordson DuraBlue 4L Hotmelts

Both units power on, but display faults. Our machine technician believes both boards need replacing. FOR PARTS ONLY

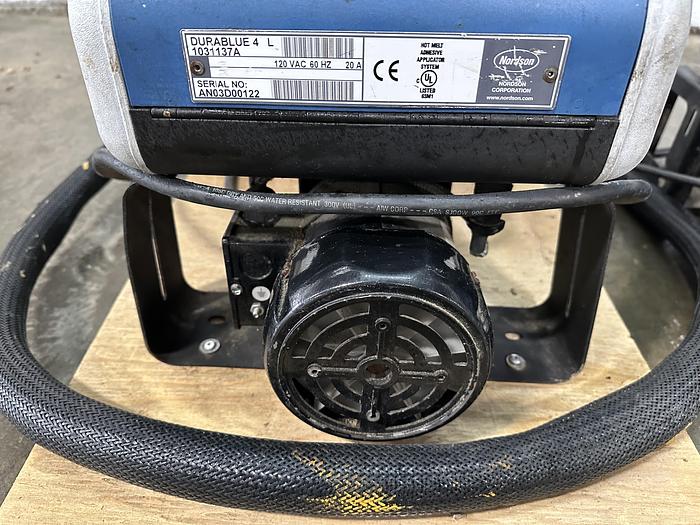

Nordson DuraBlue 4 L-Series Adhesive Melter 1031137A S/N: AN03D00122

• Tank with gerotor pump
• Max pump rate: 22 kg per hour
• Max working hydraulic pressure: 1,100 psi
• Operating temperature: 100 to 450°F
• Holding capacity: 4 L
• Throughput per hour: 6.3 kg (13.9 lb)
• Melt rate per hour: 4.7 kg (10.3 lb)
• 120V | 60Hz | 20 A
• Dimensions (l x w x h): 24" x 14" x 21"

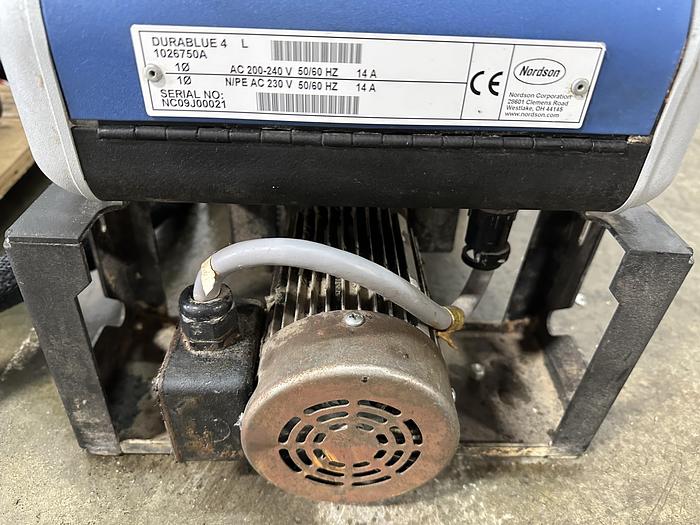

Nordson DuraBlue 4 L Adhesive Melter 1026750A S/N: NC09J00021

• Holding capacity: 4 L (244 in³)
• Throughput: 6.3 kg (13.9 lbs) per hour
• Melt rate: 4.7 kg (10.3 lbs) per hour
• Max pump rate: 22 kg (48 lbs) per hour
• Max working pressure: 1100 psi
• Operating temperature range: 0 to 50°C (32 to 122°F)
• 200-240V | 50/60Hz | 14 A
• Dimensions (l x w x h): 30" x 14" x 24"
