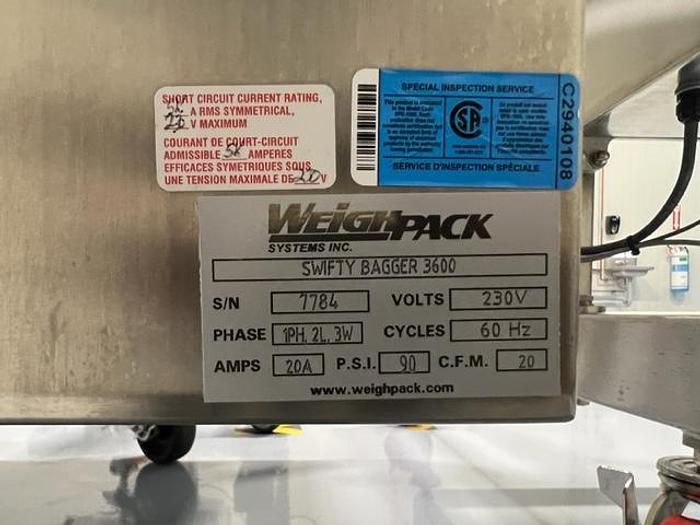

WeighPack Swifty Bagger 3600 Pouch Fill & Seal System

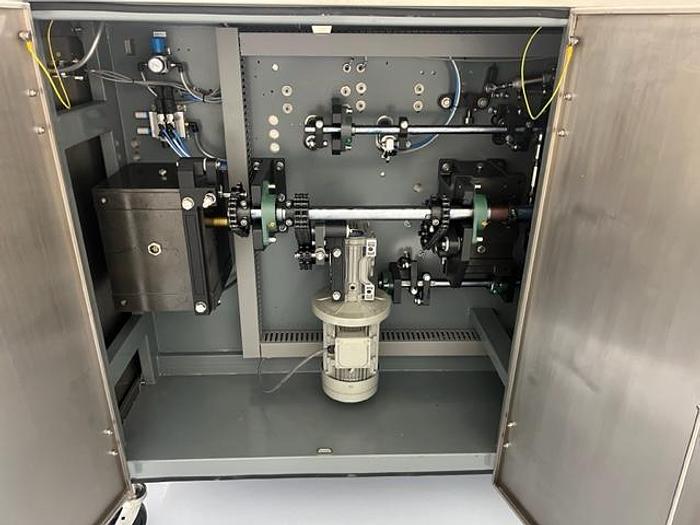

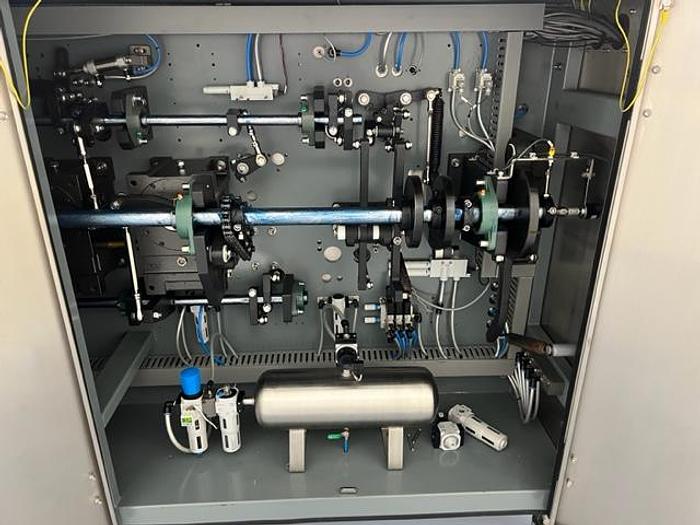

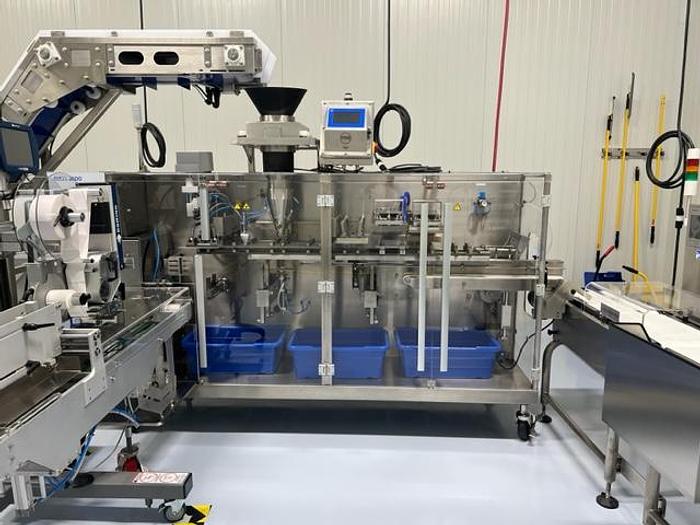

The WeighPack Swifty Bagger 3600 is a cam-driven automatic straight line left-to-right, bagging machine. It has an accessible bag magazine for pouch loading, automatic zipper opening device, bag shaker at the fill station for product leveling and integrated exit conveyor.

Pre-made laminated pouches with CR resealable closure.

Lengths: 3.5" to 11" | 90mm to 280mm; Widths: 3.5" to 8" | 90mm to 200mm

Rate: up to 25-30 cycles per minute.

Included with the Bagger, from left to right:

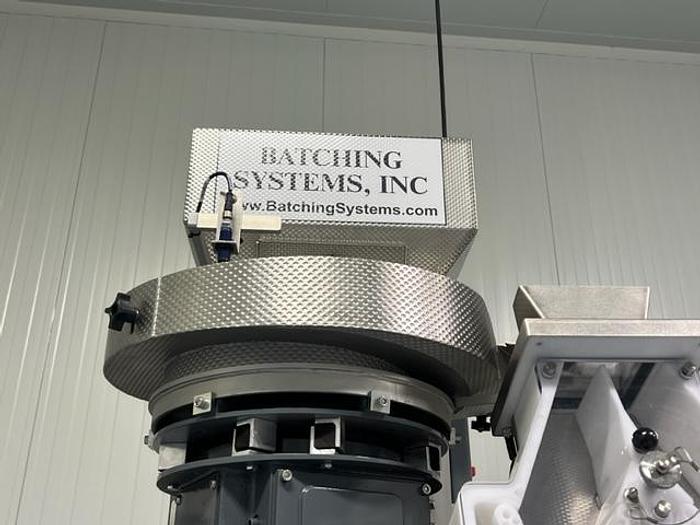

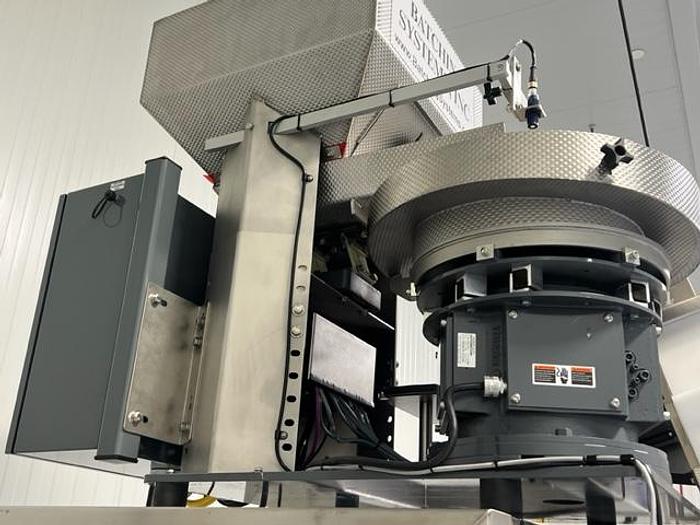

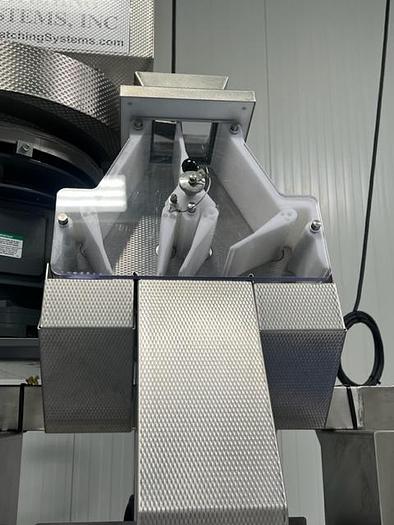

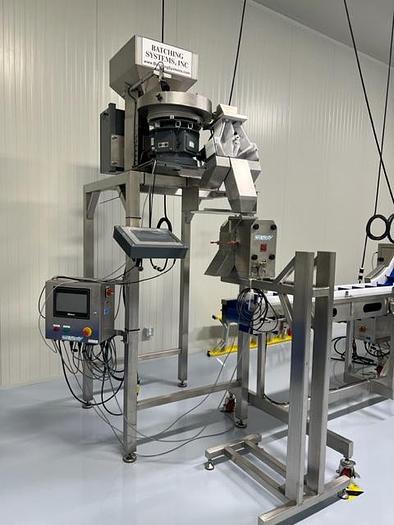

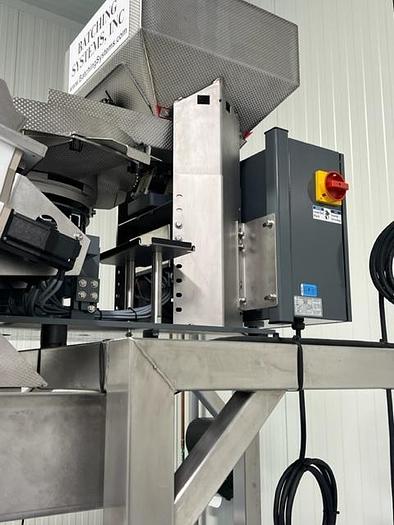

• Batching Systems Vibratory Bowl Feeder Counter

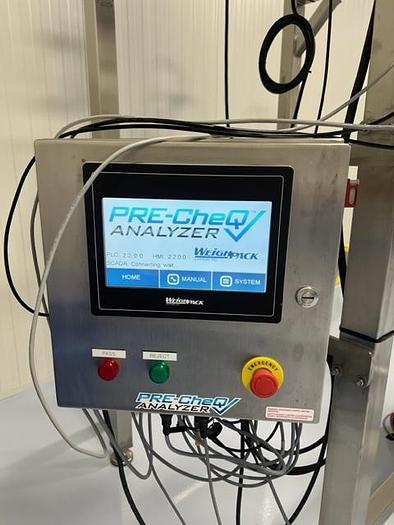

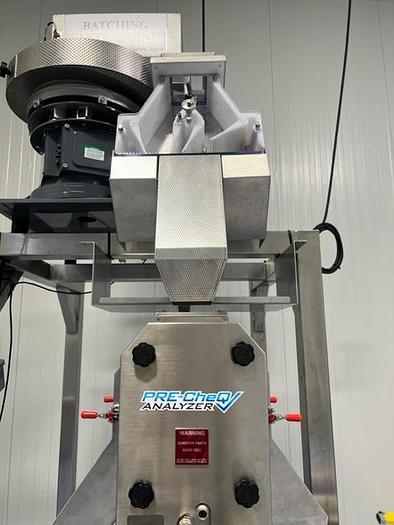

• WeighPack PRE-CheQ Inline Weight Analyzer with exit/reject chute and go-no-flow thru rotary assembly.

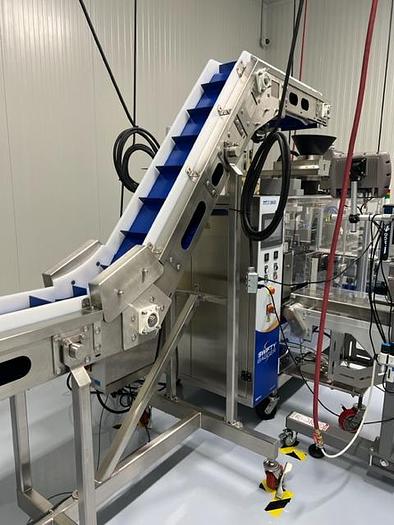

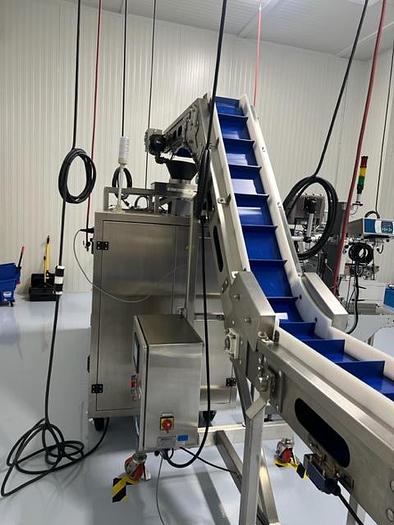

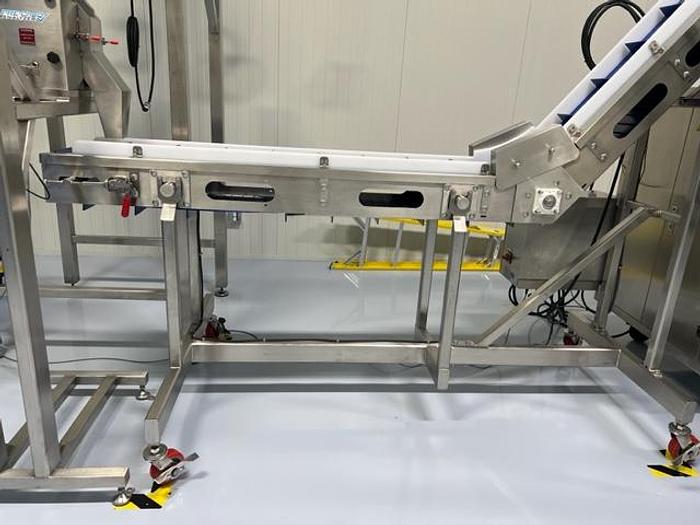

• WeighPack cleated incline Smart Conveyor Poly

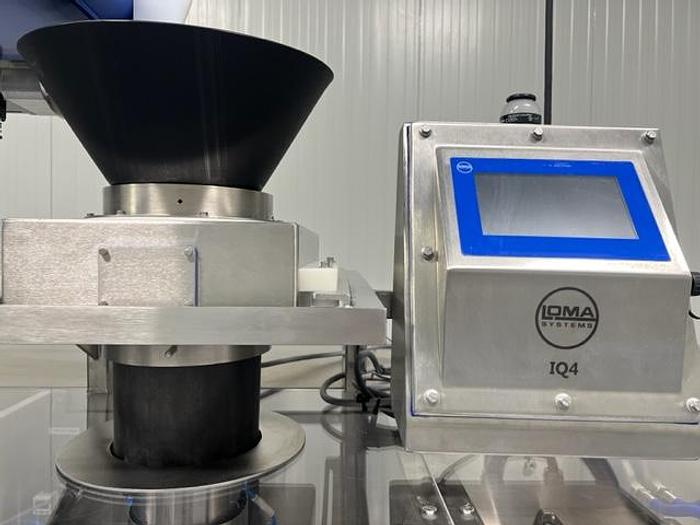

• Loma IQ4 Waferthin Metal Detector

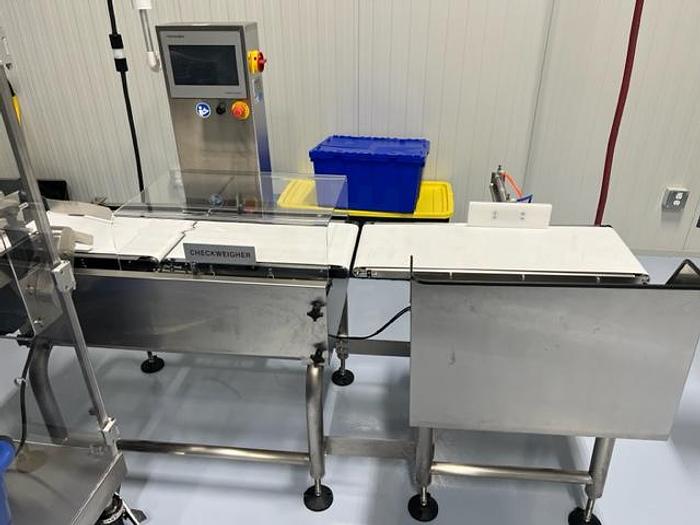

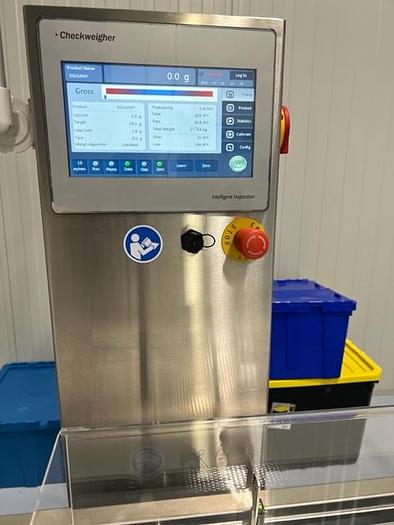

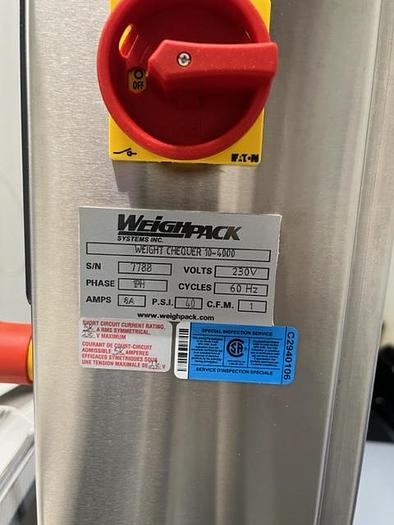

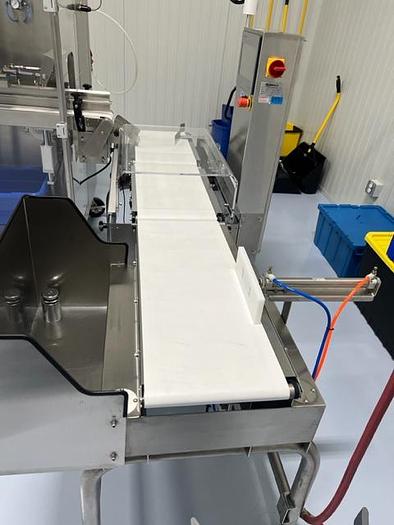

• WeighPack Weight Chequer 10-4000

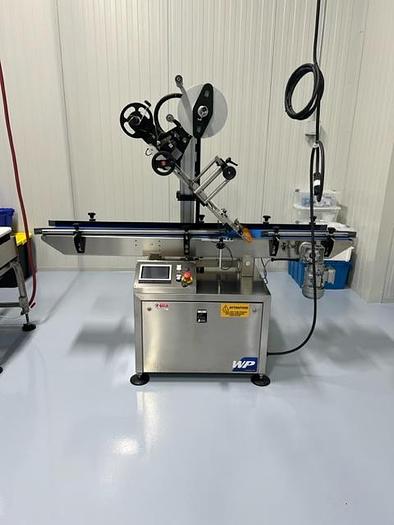

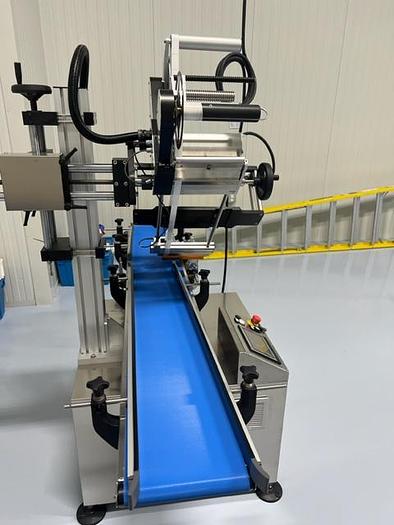

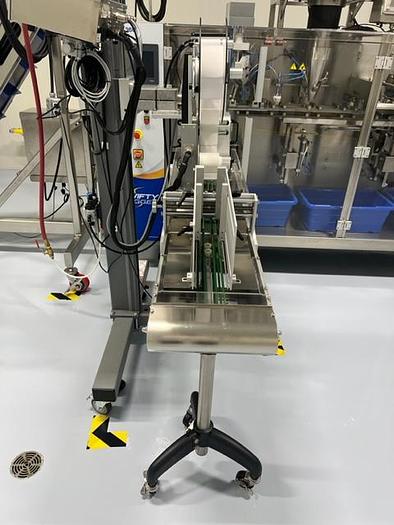

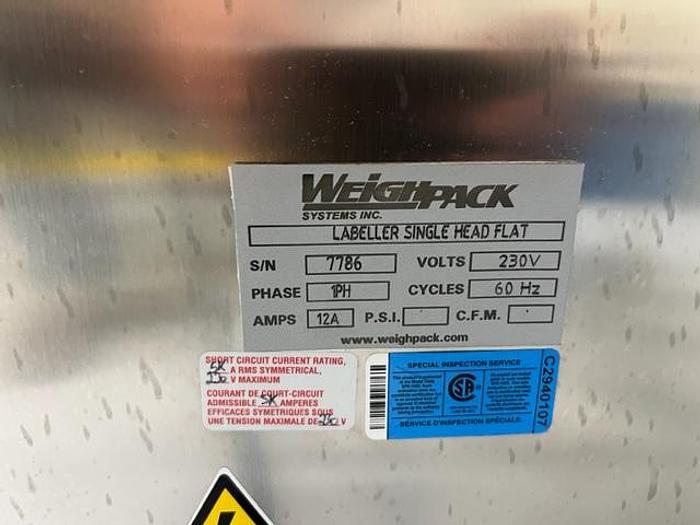

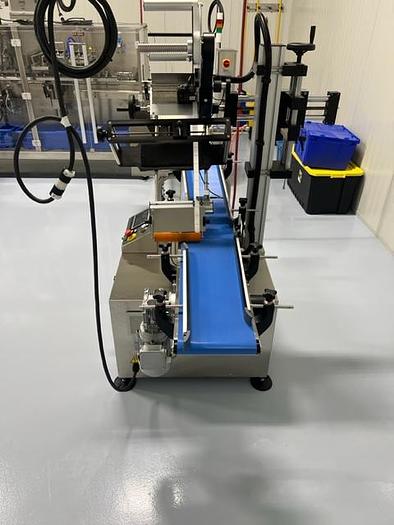

• WeighPack Labeller Single Head Flat

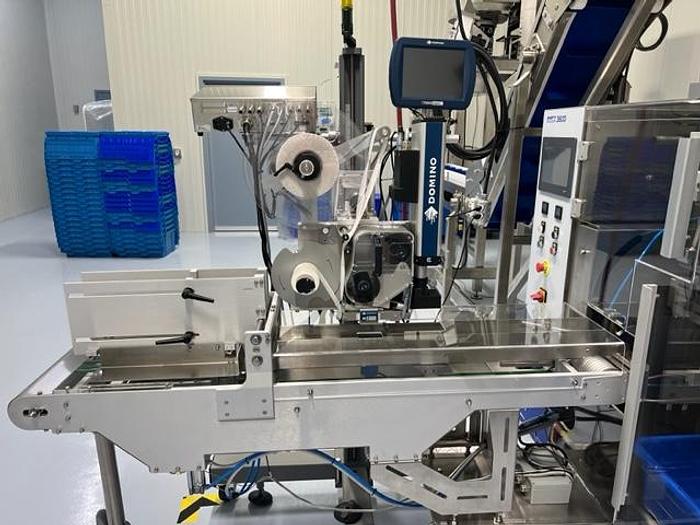

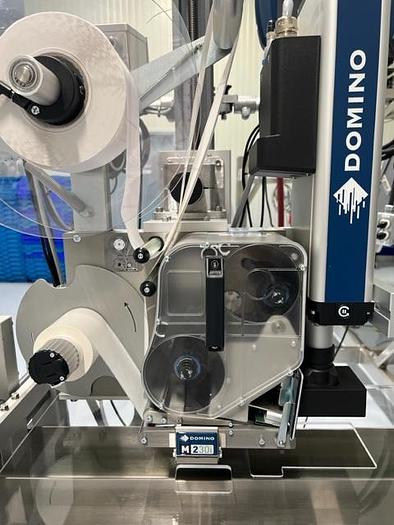

• Domino M230i Print & Apply tax stamp labeller.

How it works:

1. Bowl Feeder Counter will dispense the desired amount of product into a pocket of the bucket conveyor until the pocket has accumulated the target total per package.
2. The Smart Conveyor will advance products to a chute that will dispense product through the Loma Waferthing metal detector into an open pouch in the Swifty 3600 Bagger.
3. Swifty 3600 will automatically take one (1) pouch at a time, open it, signal filler when ready, receive counted product and then seal pouch.
4. A finished pouch will exit via a conveyor to the Weight Chequer to assure final pouch meets acceptable weights
5. Pouches will then run through the labeler for tax stamp

Check out the video to watch the system in action.
