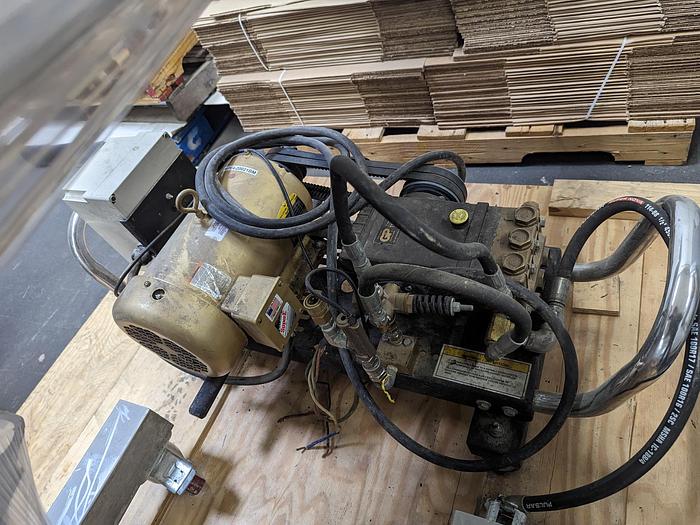

GP T Series 47 Triplex Plunger Pump

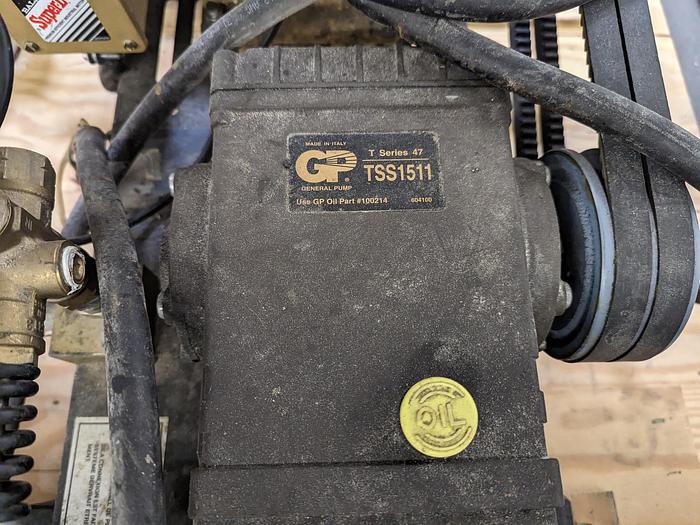

The TSS Series 47 triplex plunger pump is the preferred frame for pressure washing. It features a forged brass manifold with valve caps and has a large capacity oil-bath crankcase.

Bore: 20mm

Inlet Port: 1/2 inch

Max temperature: 165°F

Stroke: 12mm

Crankcase capacity: 40.6 oz

Shaft diameter: 24mm

Max PSI: 3500

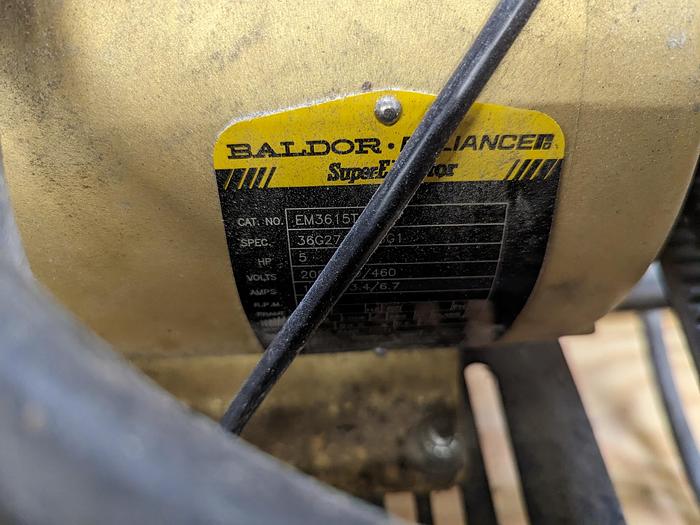

Belt drive powered by a Baldor SuperE 5 hp motor.

Ideal for self-service wash, pressure washing, spot-free rinse, and wash-down, to name a few.
