Bryan CLM240-S Flexible Tube Steam Boiler

Bryan CLM240-S Flexible Tube Steam Boiler

Description

Bryan Flexible Tube Natural Gas Steam Boiler – Steep Hill Equipment

The Bryan Flexible Tube Steam Boiler is designed for commercial, institutional, and industrial space heating applications. Its flexible water tube design ensures rapid internal circulation and maximum heat transfer for efficient steam generation.

Specifications:

  • Fuel: Natural Gas
  • Input: 2,400,000 BTUH (max) / 1,200,000 BTUH (min)
  • Steam Output: 1,979 kg/hr (898 lbs/hr)
  • MAWP (Steam): 15 PSI
  • Heating Surface: 287 sq. ft (26.7 m²)
  • Supply Pressure: Min 7 in. WC / Max 1 psig

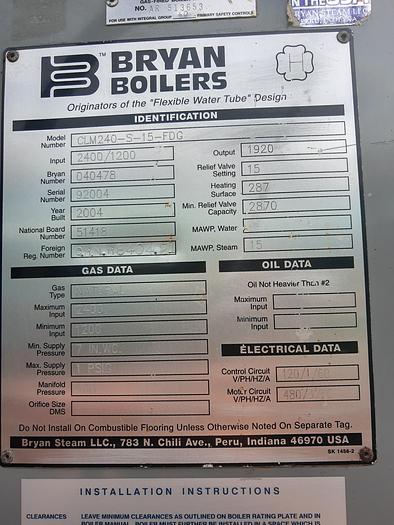

  • National Board #: 51418
  • Foreign Reg. #: C.R.N.R.8404.21


Keywords: Natural Gas Steam Boiler, Flexible Tube Boiler, Bryan Steam Boiler, Industrial Heating System, Commercial Boiler, Water Tube Steam Boiler, Process Heating Equipment

Show All

Specifications

ManufacturerBryan Boilers
ModelCLM240-S-15-FDG
Year2004
ConditionUsed
Serial Number92004
Stock NumberB2379MISEA
Natural Gas (BTU)2,400,000 max / 1,200,000 min
Heating Surface287 sq.ft / 26.7 m²
Steam Output1979 kg/hr / 898 lbs/hr
MAWP Steam15
Min supply pressure7 IN. WC
Max supply pressure1 psig
National Board #51418
Foreign Reg. #C.R.N.R.8404.21
