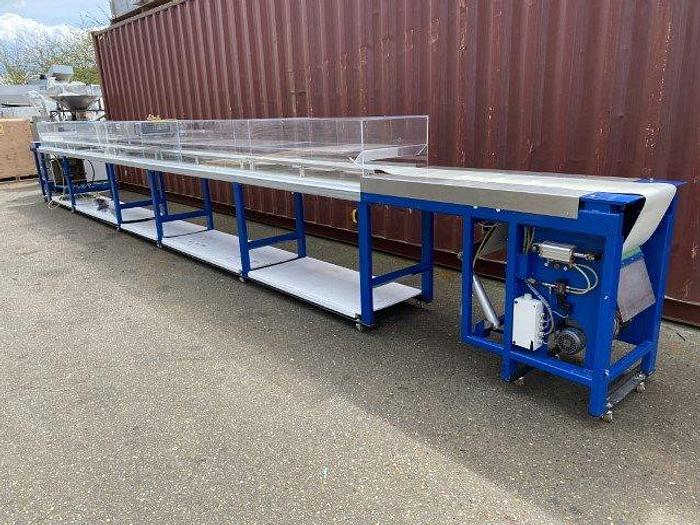

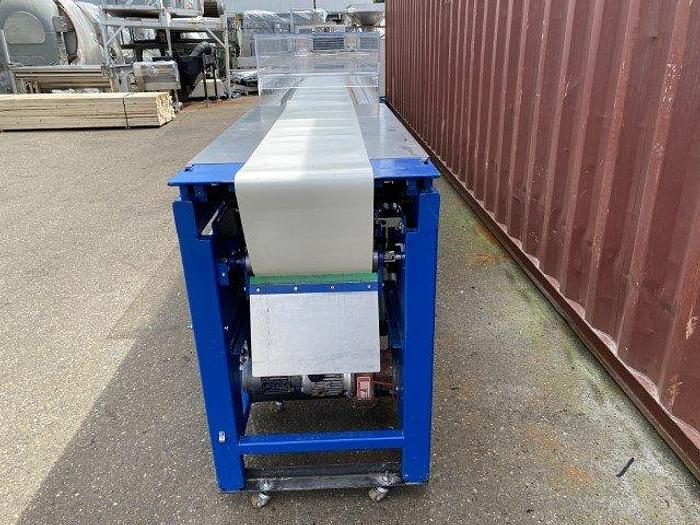

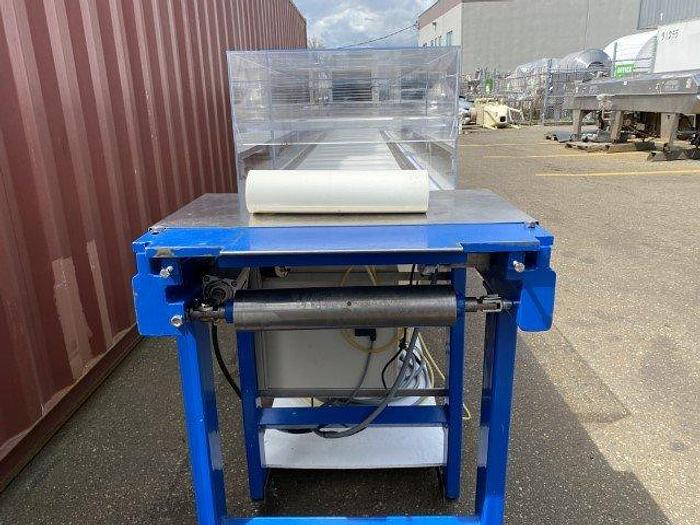

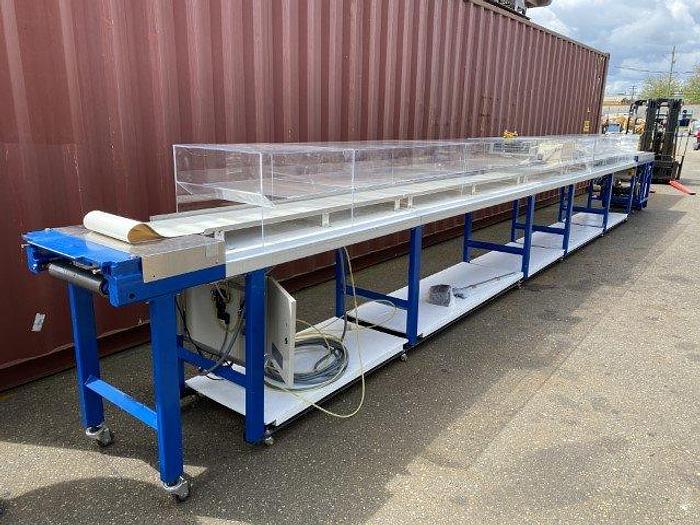

Nielsen Chocolate Cooling Tunnel
Nielsen Chocolate Cooling Tunnel
Description

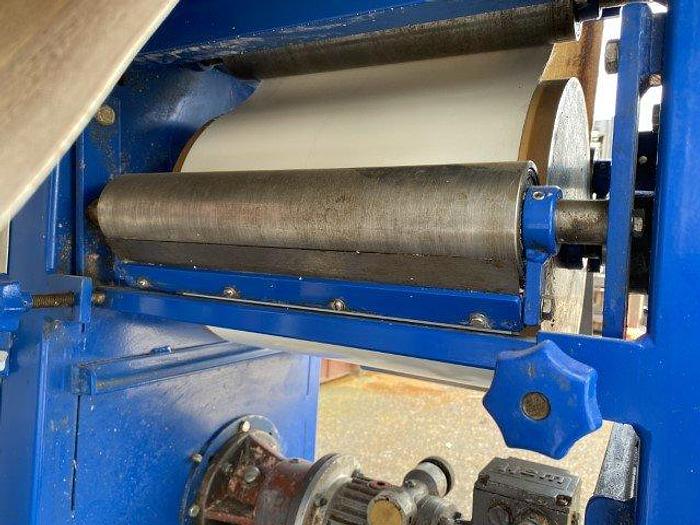

Flat belt: 344″L x 12.5″W

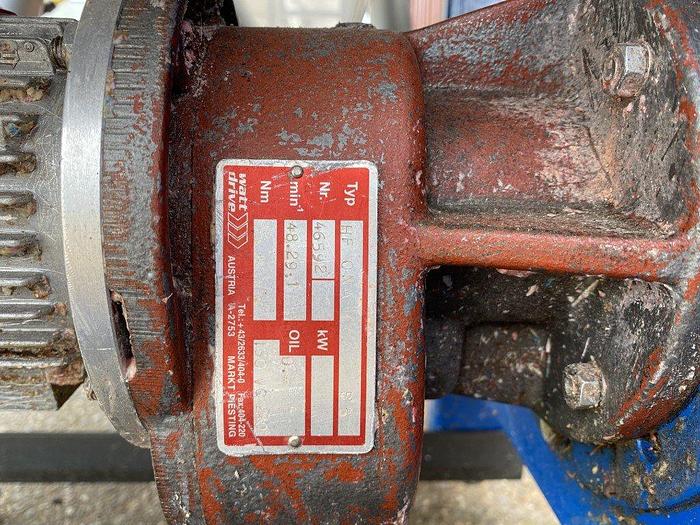

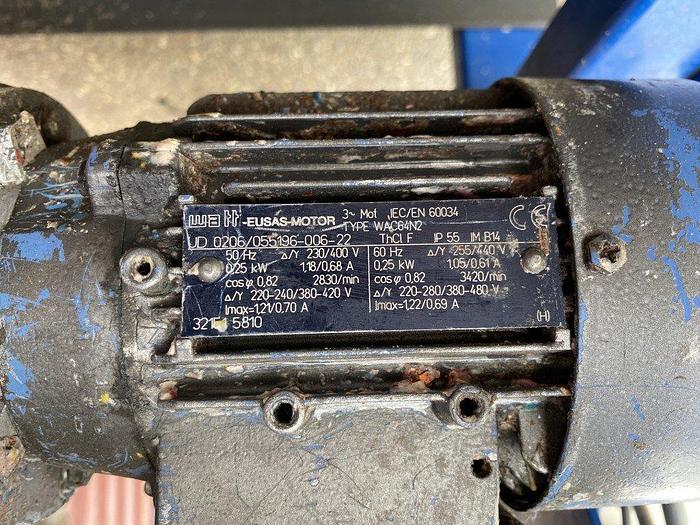

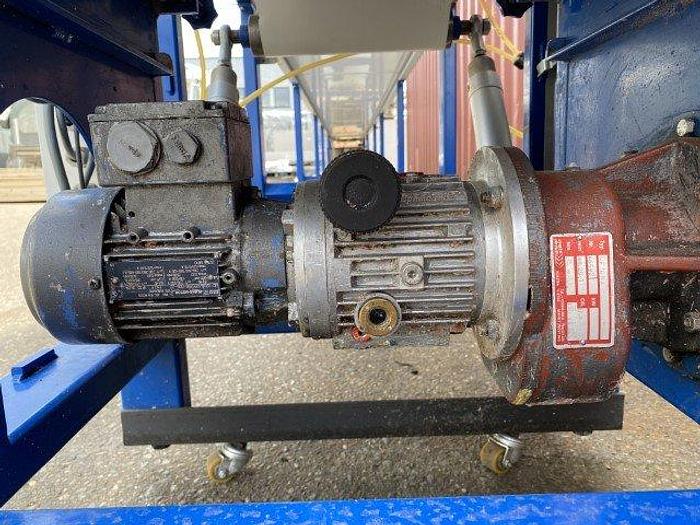

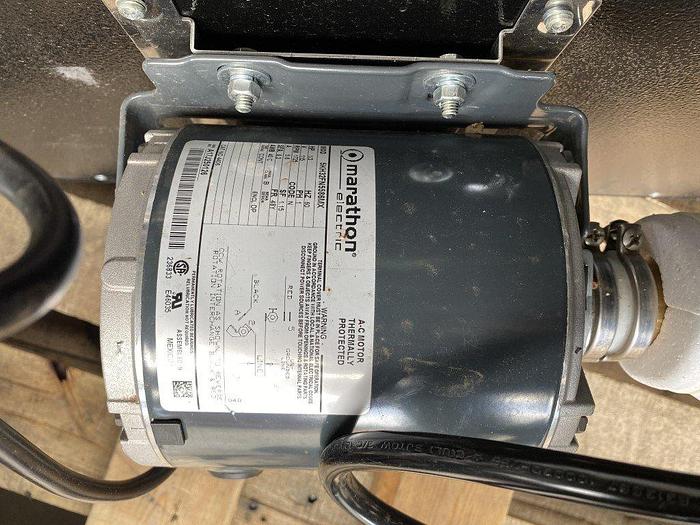

Powered by a 0.25 kW Watt-Eusas-Motor and Watt-Drive gearbox.

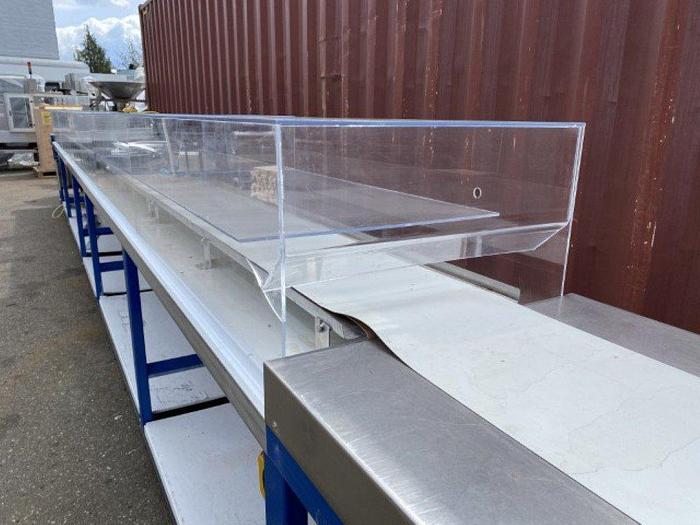

Clear tunnel cover: 306″L x 23″W x 16″H
Aperture: 306″L x 12.5″W x 3″H

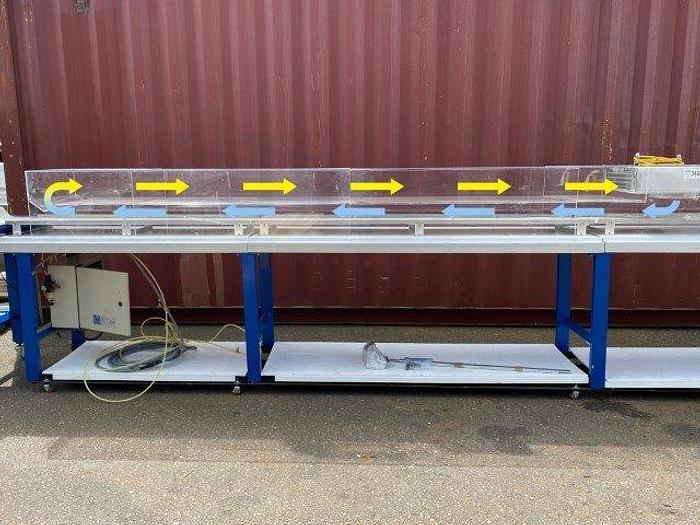

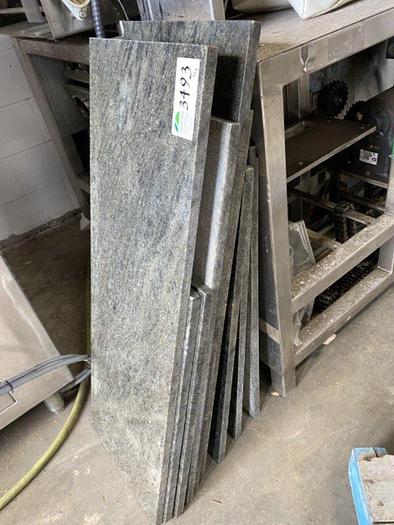

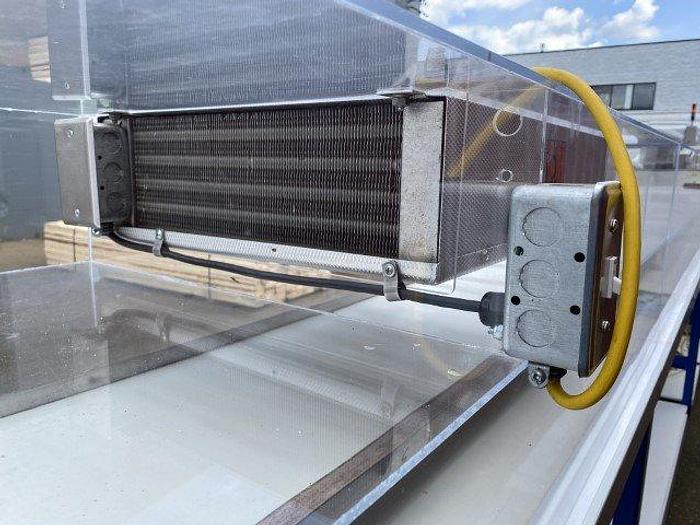

Air-cooled granite or slate slabs maintain tunnel temperatures. (See photo)
Nine 14″W slabs in customized lengths: 39.25″, 24.25″ (x2), 34.5″, 39.25″, 34.25″, 29.5″, 29.25″, and 30″

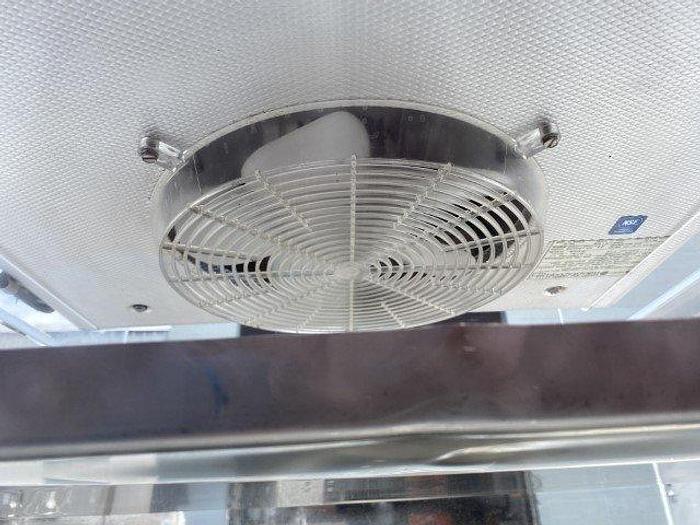

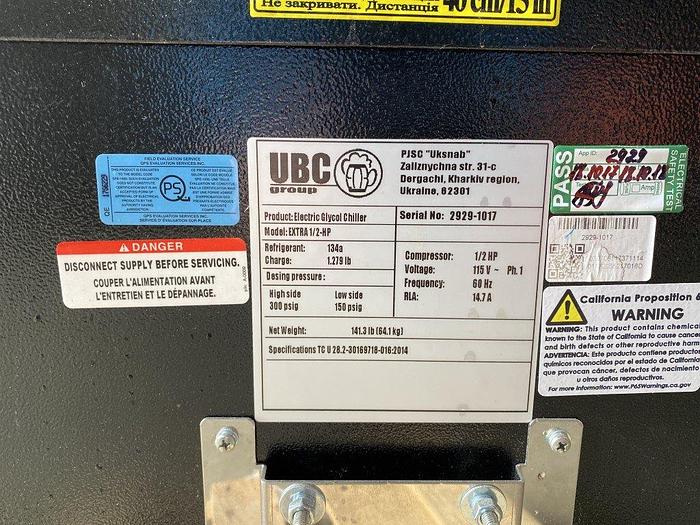

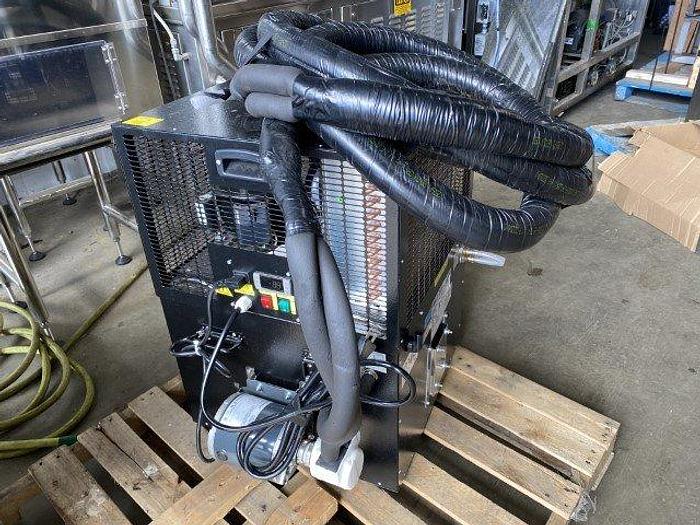

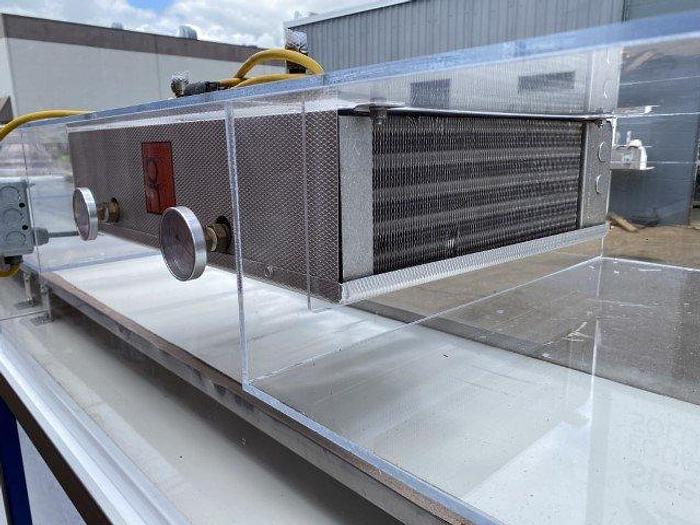

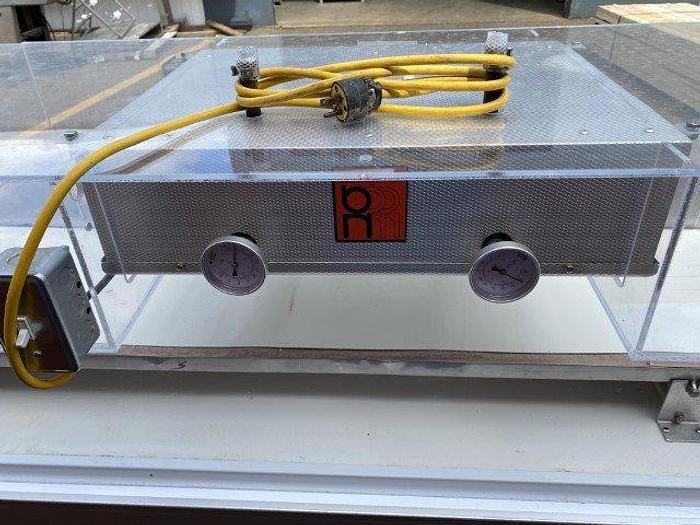

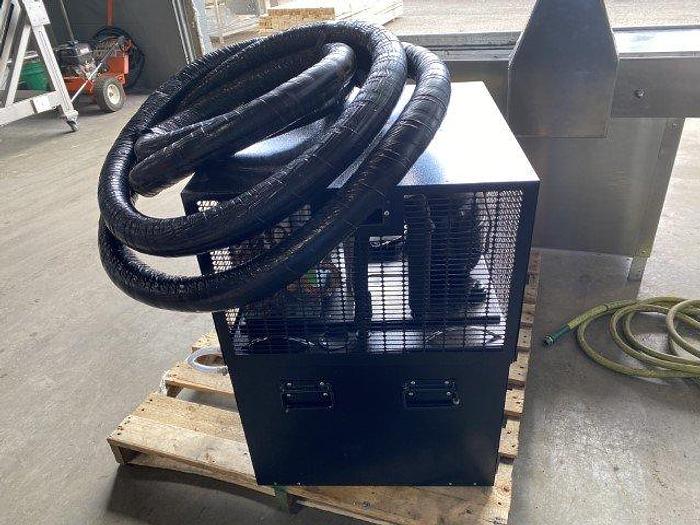

Chilled air provided by an electric UBC glycol chiller.
Tank capacity: 18 gallons
3900 BTU/hr
Refrigerant: 132a
Specifications
| Manufacturer | Nielsen |
| Condition | Used |
| Stock Number | 3493 1, 2, 3 |
| Dimensions (l x w x h) | 344" x 25.5" x 56" |

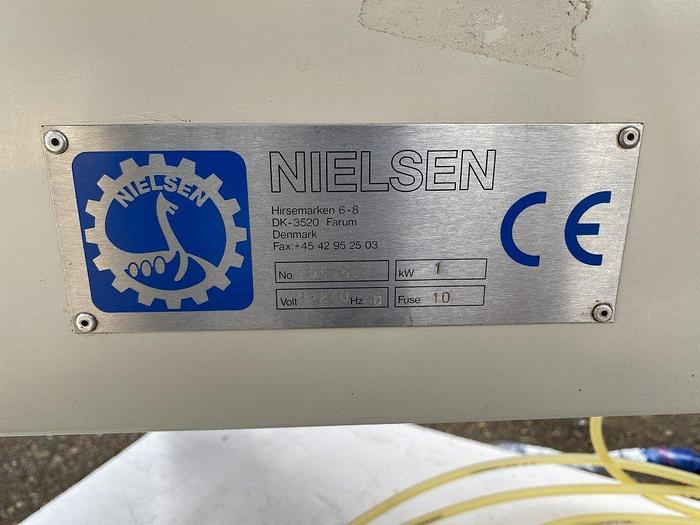

| Power | 3 x 240 V | 1 kW | 60 Hz | Fuse: 10 |
| Location code | PL |
| Length (in) | 344 |
| Width (in) | 25.5 |
| Height (in) | 56 |
