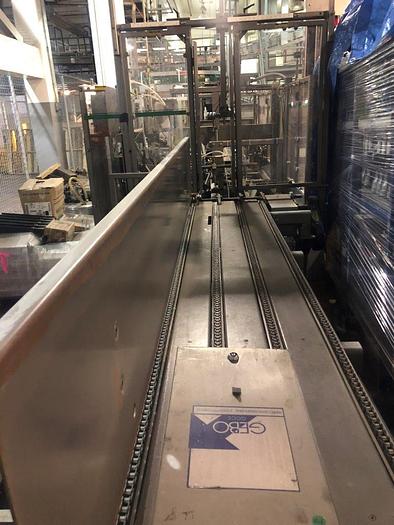

Pearson R208 Case Erector

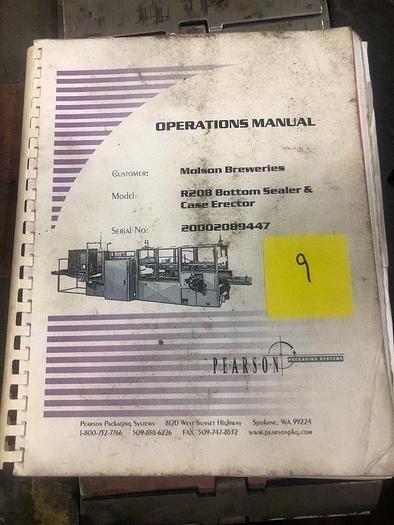

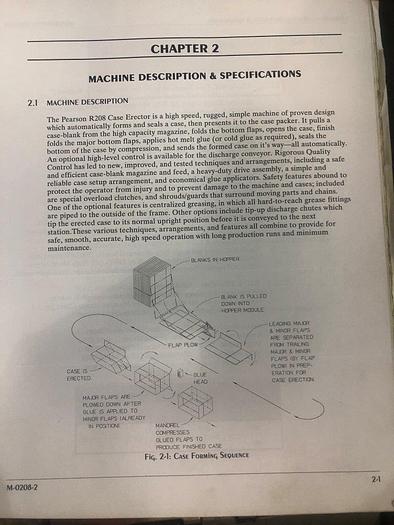

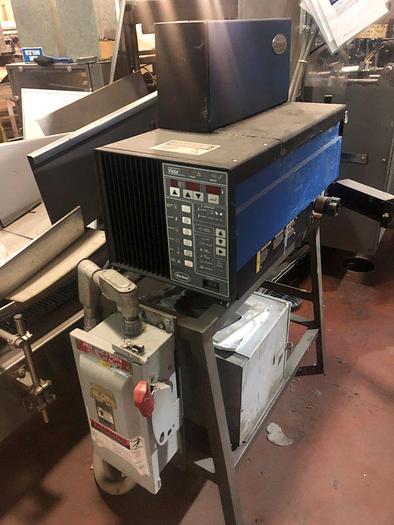

Automatically forms and seals a case, then presents it to the case packer. pulls case-blank from magazine fold the bottom flaps opens the case finish folds the major bottom flaps applies hot melt glue seals the bottom of the case by compression sends the formed case on its way. Standard Case Sizes Knockdown length: 17″ min, 28″ max Knockdown width: 9″ min, 26″ min Set-up length: 10″ min, 19″ max Set-up width: 5″ min, 16″ max Open depth: 5.5″ min, 18.5″ min Minimum bottom flap height is 3.5″ Maximum bottom flap height is 6″ Minimum top flap height is 3.5″ Top flap height must be less than setup case height Compressed Air: 0.56 SCF/case @ 80 psi Cartoner 11′ long Infeed conveyor 9′ long Previously used in beer bottle line. Manual available upon request.
