Key Iso-Flo Vibratory Sorting Conveyor

Key Iso-Flo Vibratory Sorting Conveyor

Description

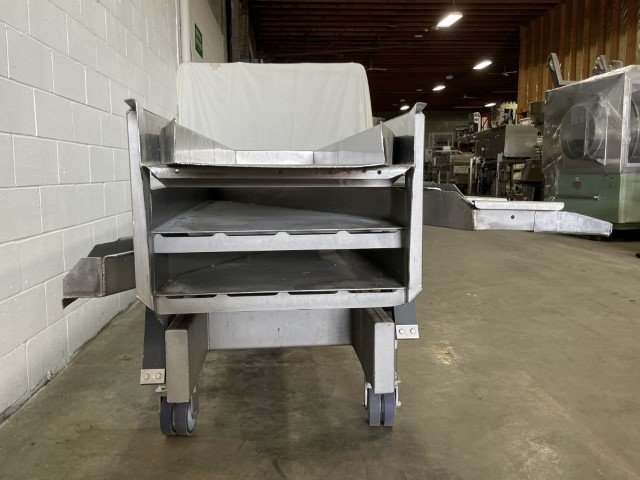

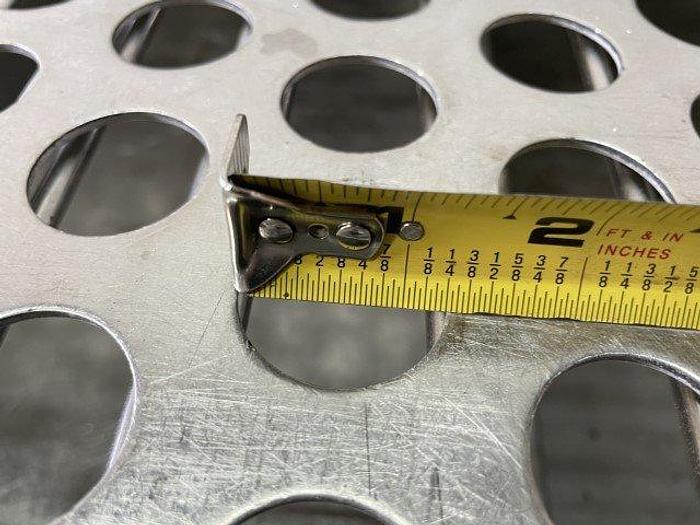

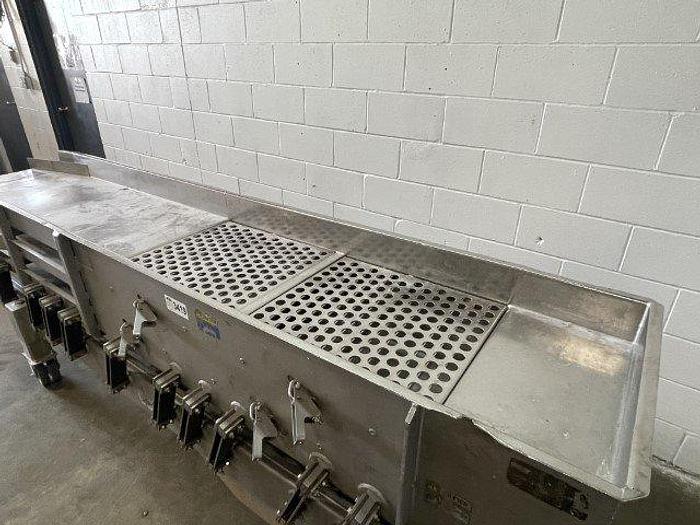

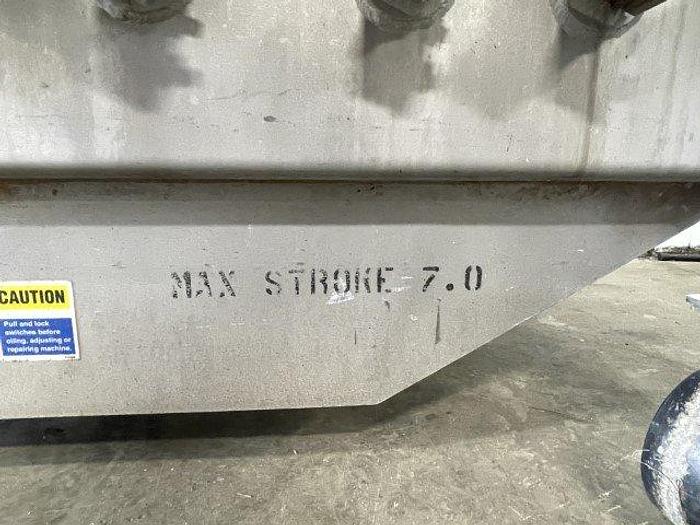

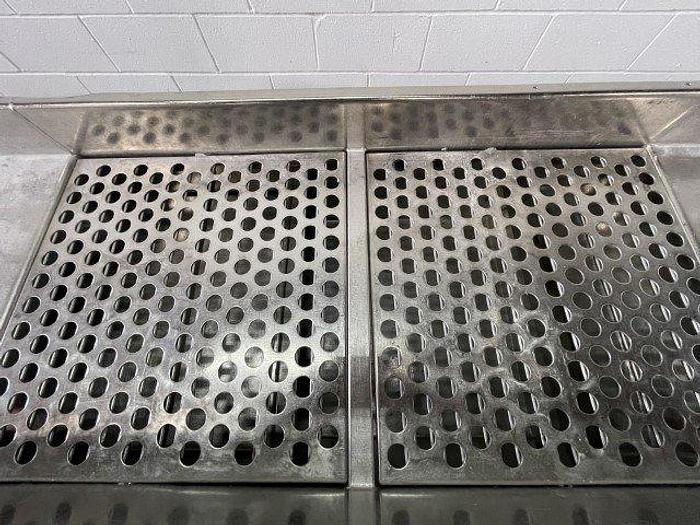

A triple deck vibratory sorting conveyor for grading, sizing and separating. Max strok: 7.0 Sorting panels with 1″ diameter holes. Top deck: 133.75″L x 24″W (narrows at the end to 13.5″W), sides: 5″H Mid deck: 95″L x 24″W, outflow chute: 19″L x 8″W, angles to a 12″L section. Lower deck: 95″L x 24″W, outflow chute: 95″L x 6″W

Specifications

ManufacturerKey Technology
ConditionUsed
Stock Number3419
Dimensions (l x w x h)140" x 51" x 42"
Location codeDD1
Length (in)140
Width (in)51
Height (in)42
