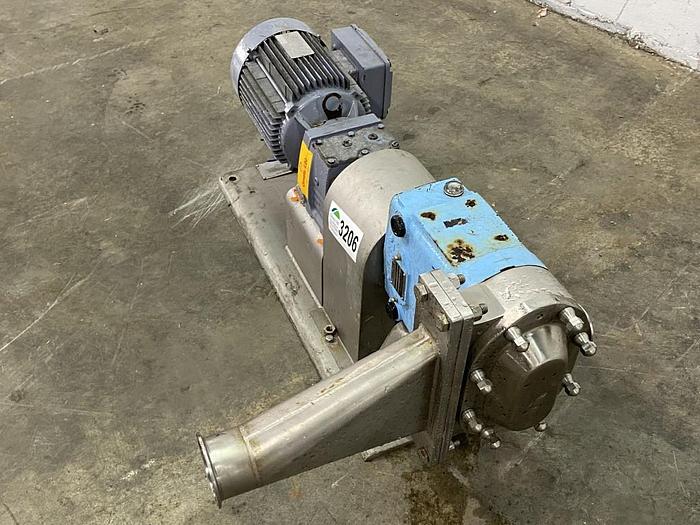

Waukesha 034 Universal II PD Pump
Waukesha 034 Universal II PD Pump
Description

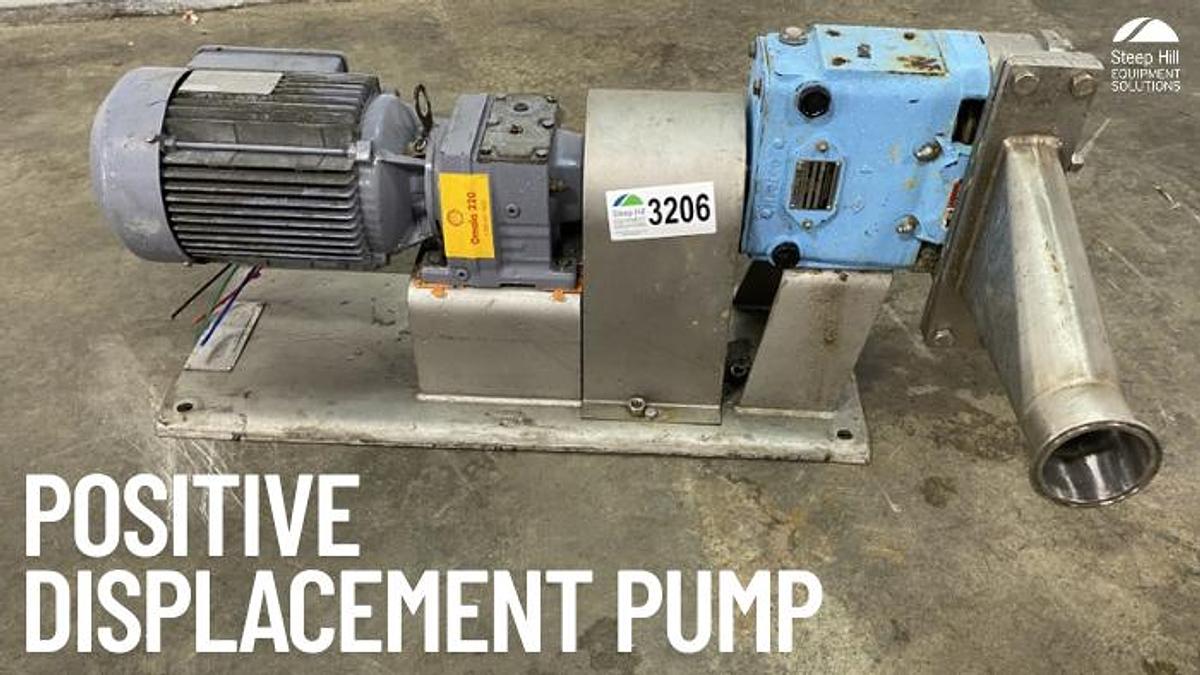

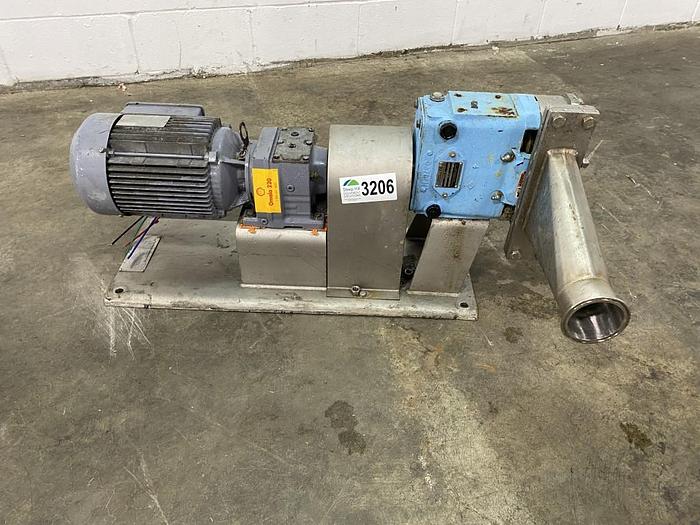

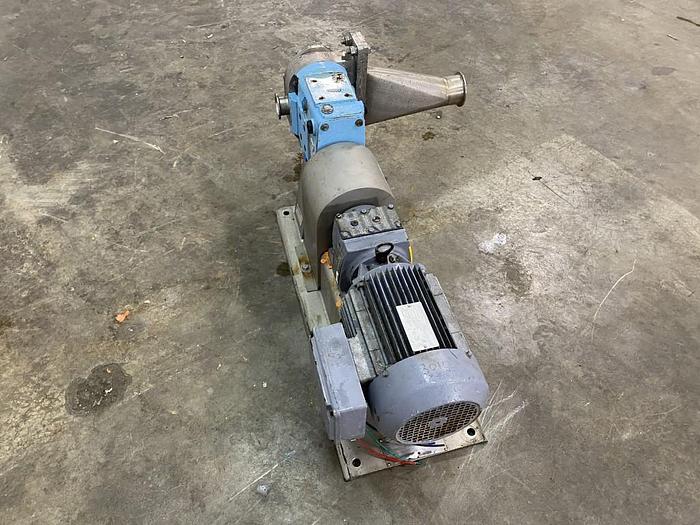

Rotary Positive Displacement Pump with SEW-Eurodrive 3 HP Motor
This used rotary positive displacement pump is ideal for handling fluids with precision and consistency. Designed to deliver steady flow and operate under high pressure, it’s powered by a 3 HP SEW-Eurodrive motor with a gear reducer for efficient performance. Suitable for water and other compatible liquids in industrial applications.
Key Specifications
- Pump Type: Rotary positive displacement
- Displacement per Revolution: 0.060 gallons (0.227 L)
- Nominal Capacity: 24 GPM (5.5 m³/h)
- Pressure Range: Up to 250 PSI

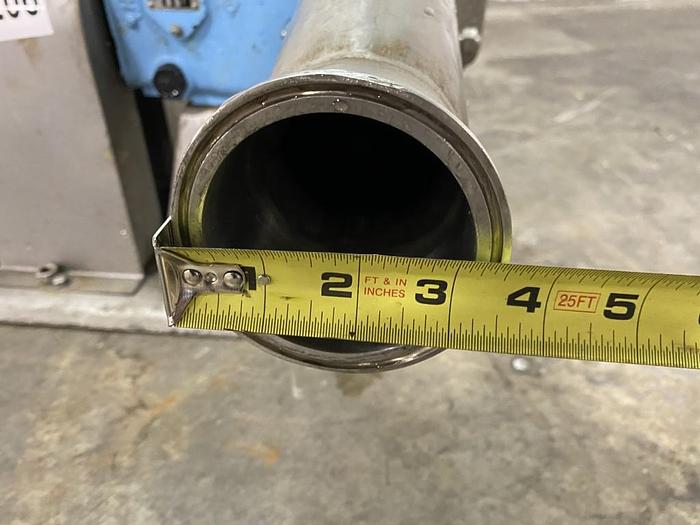

- Inlet Pipe: 2.75″ diameter, connected to rectangular inlet (1.8″ x 6.8″)

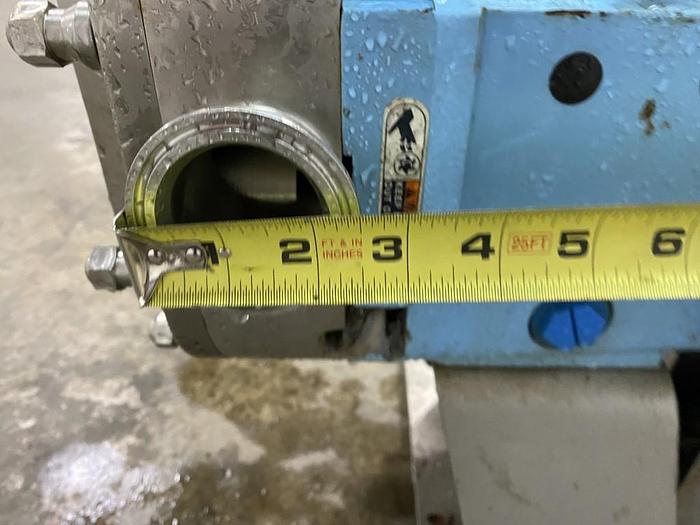

- Outlet Size: 2″ diameter

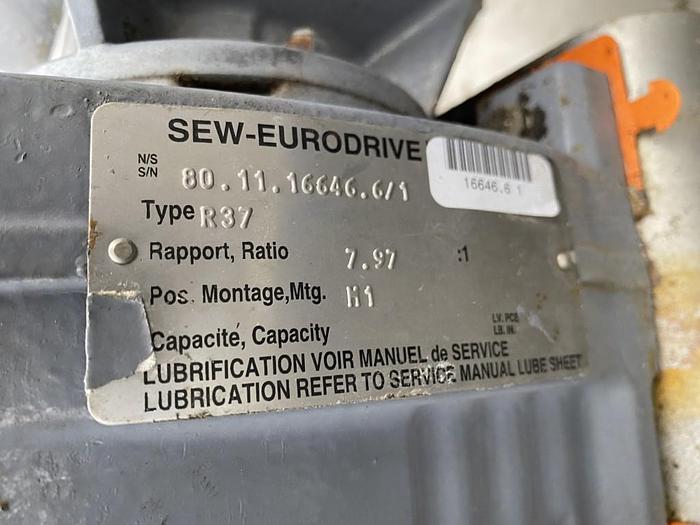

- Motor: 3 HP SEW-Eurodrive with gear reducer
Specifications
| Manufacturer | Waukesha Cherry-Burrell |
| Model | 034 U2 |
| Condition | Used |

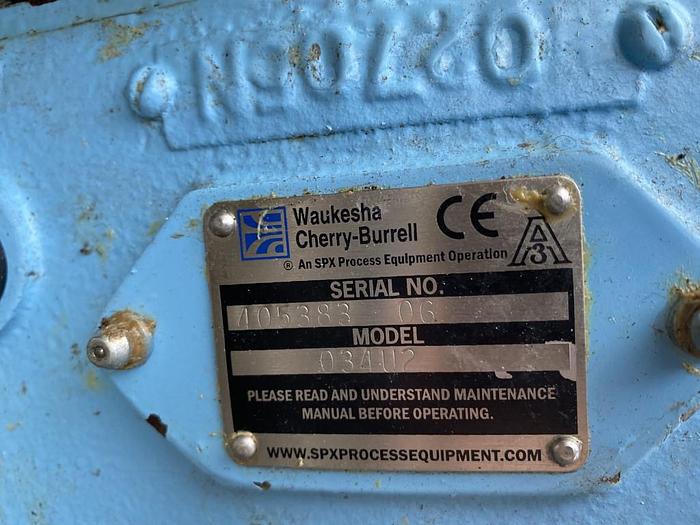

| Serial Number | 405383 06 |
| Stock Number | 3206 |
| Dimensions (l x w x h) | 37" x 22" x 16" |

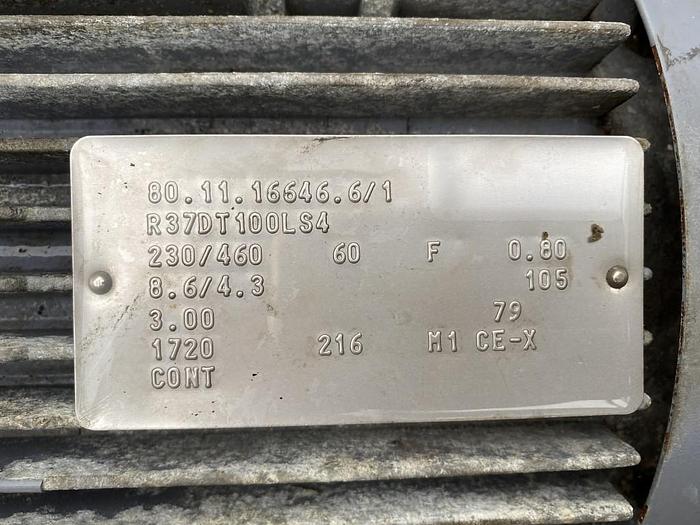

| Power | 230/460 V | 8.6/4.3 A | 3 Hp |
| Location code | AA7 |
| Length (in) | 37 |
| Width (in) | 22 |
| Height (in) | 16 |
