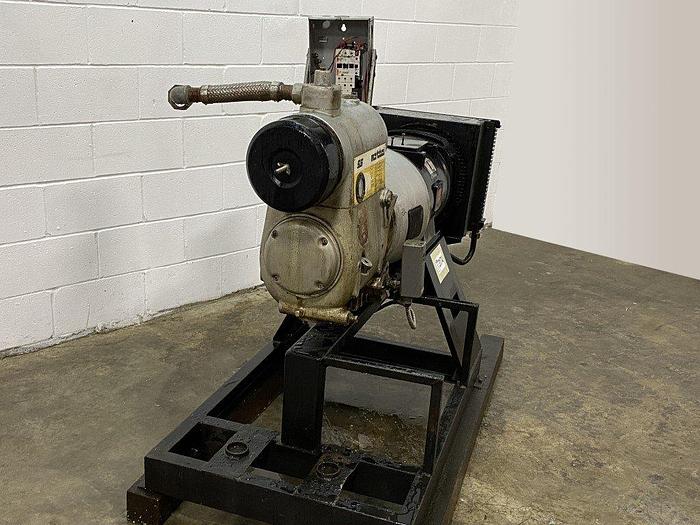

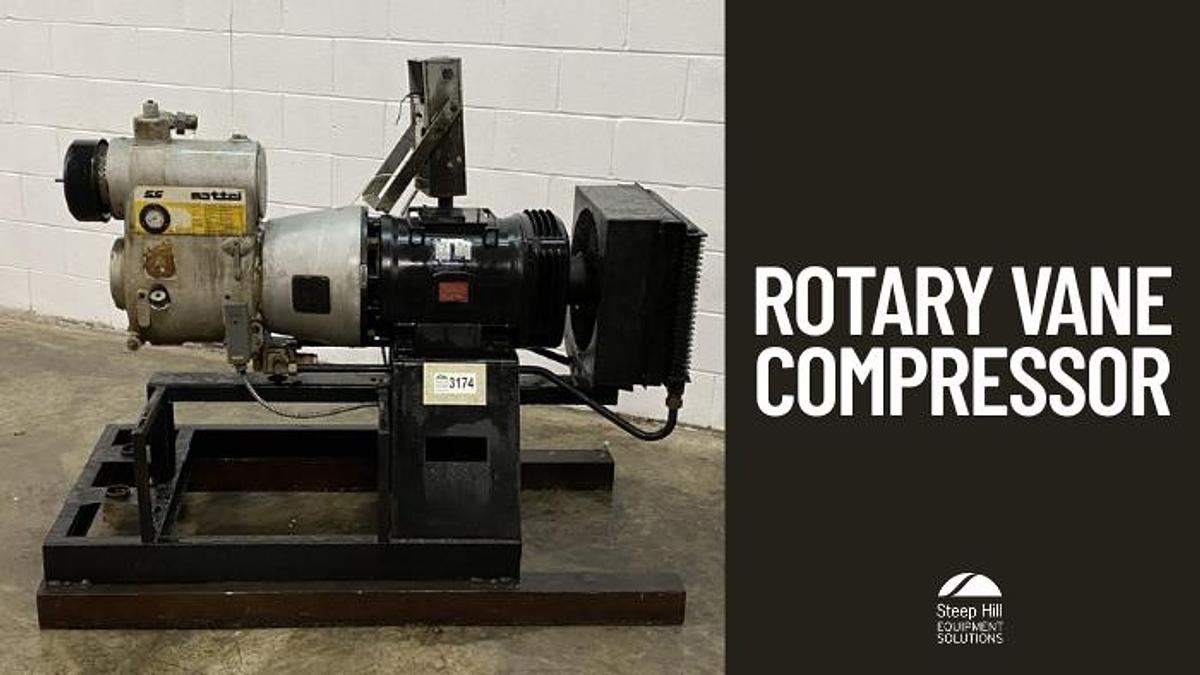

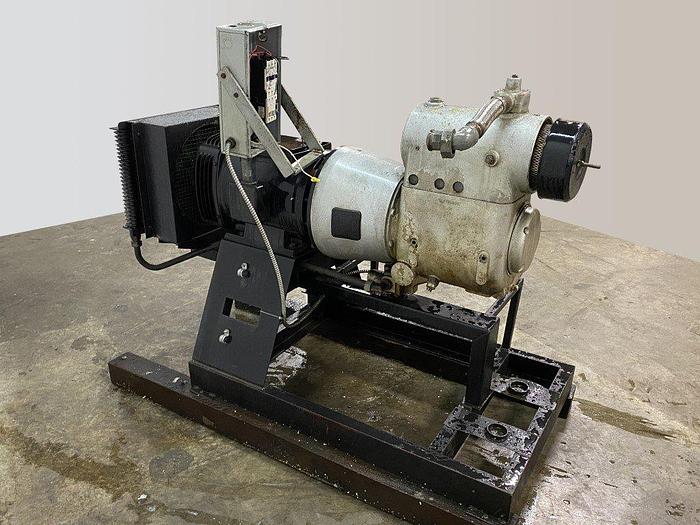

Mattei 55 EM150 Rotary Vane Compressor
Mattei 55 EM150 Rotary Vane Compressor
Description
Rotary Vane Compressor – 15 HP
This rotary vane compressor features a cylindrical casing with dedicated suction and discharge ports. Compression occurs as refrigerant enters the chamber and is compressed through eccentric rotation, reducing the internal volume.
- Working Pressure: 59 CFM at 115 psi
- Rotation Speed: 1750 RPM
- Heat Rejection: 40,982 BTU/hr
- Motor: 15 HP Asyn motor
Specifications
| Manufacturer | Enea Mattei |
| Model | 55 EM150 |
| Condition | Used |
| Serial Number | 44396 |
| Stock Number | 3174 |
| Dimensions (l x w x h) | 60" x 28.5" x 50.5" |
| Power | 230/460 V | 50/25 A | 15 Hp | 3 Ph |
| Location code | DD1 |
| Length (in) | 60 |
| Width (in) | 28.5 |
| Height (in) | 50.5 |
