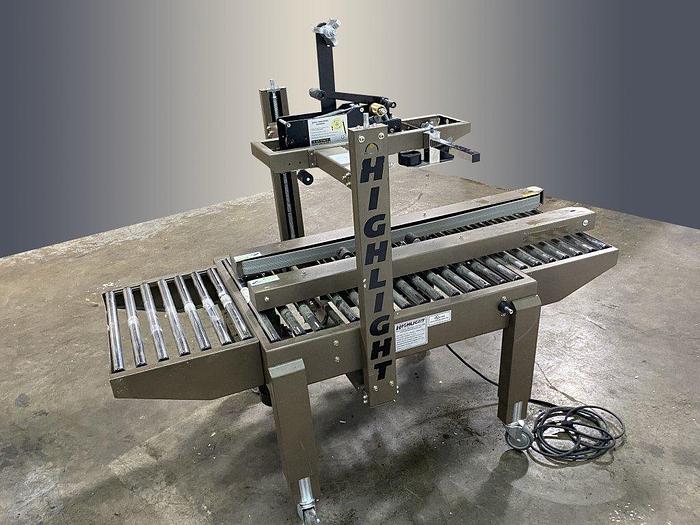

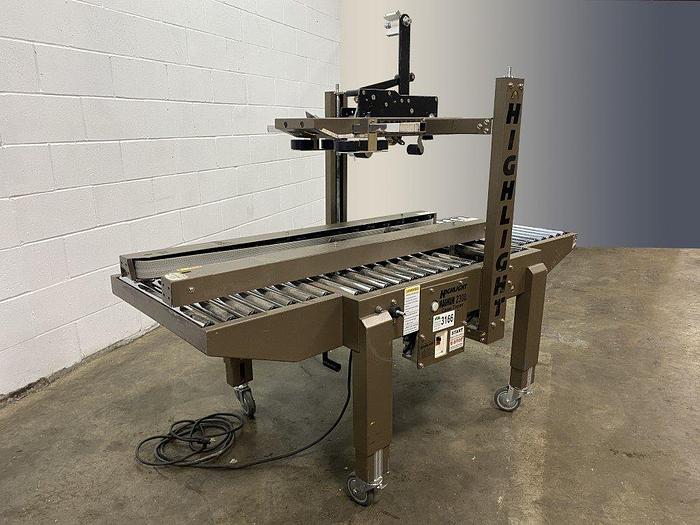

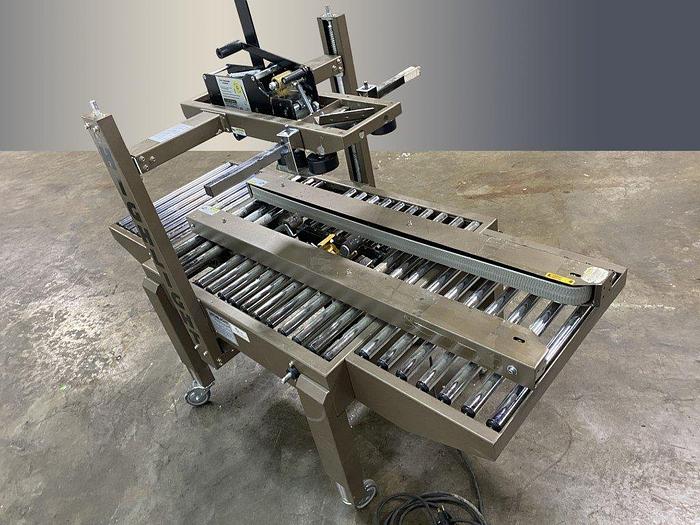

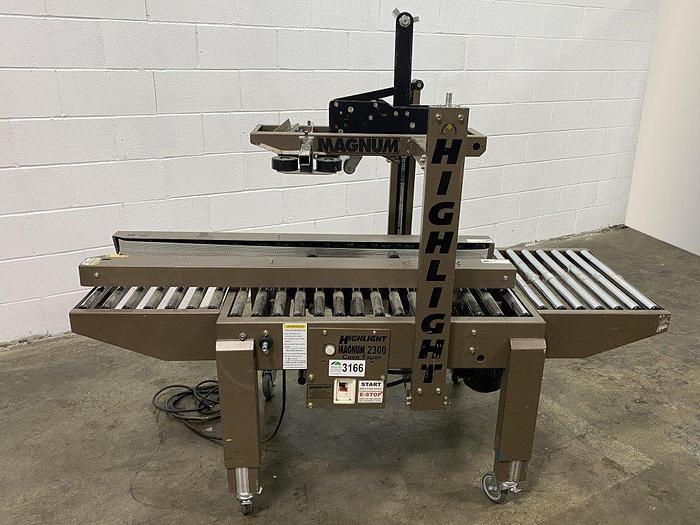

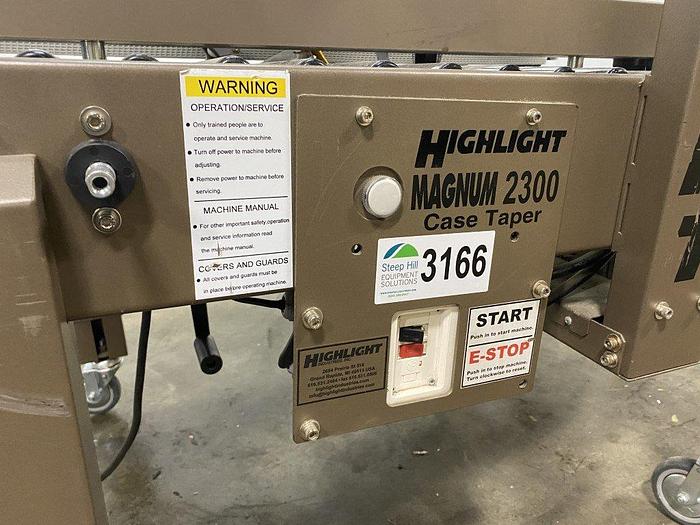

Highlight Magnum 2300 Case Sealer

Uniform Side-Drive Case Sealer

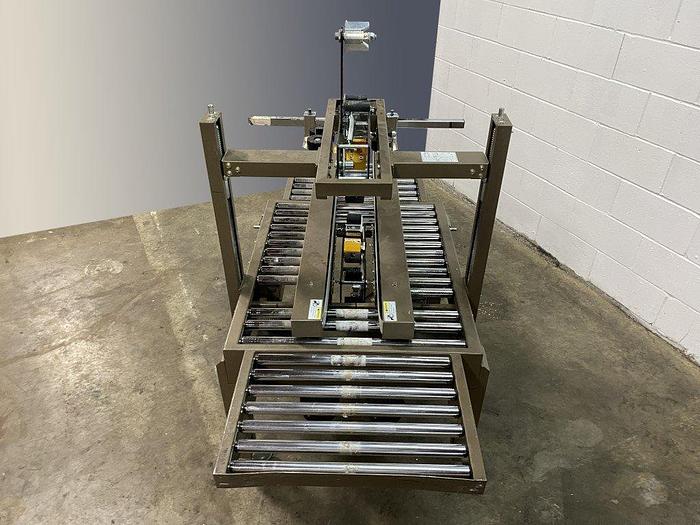

This uniform side-drive case sealer ensures precise and consistent top and bottom tape application for a variety of case sizes. With an operating speed of up to 30 boxes per minute, it’s ideal for mid- to high-volume packaging lines. The unit features dual side belt drives powered by two Li Ming 1/4 hp motors, and is equipped with Highlight’s 200 Series tape heads, compatible with standard 2″ carton sealing tape. Adjustable working height and integrated roller conveyors support smooth, efficient handling.

Specifications & Measurements:

• Case Size Range:
• – Width: 4″ to 20″
• – Height: 5″ to 20″
• – Length: Unlimited

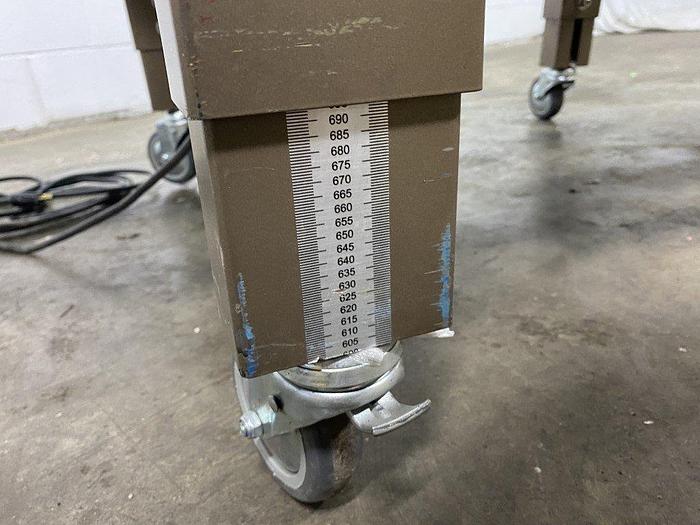

• Working Height: Adjustable from 23″ to 32″ (currently set at 27″)

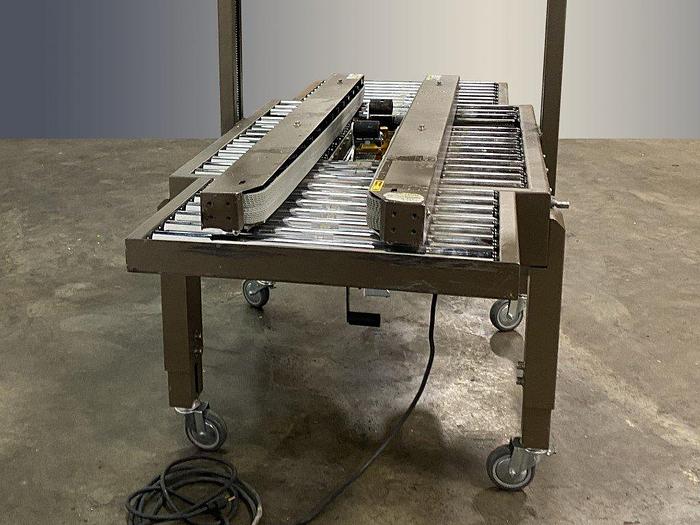

• Roller Conveyor (Sealing Area): 34″L x 26.5″W

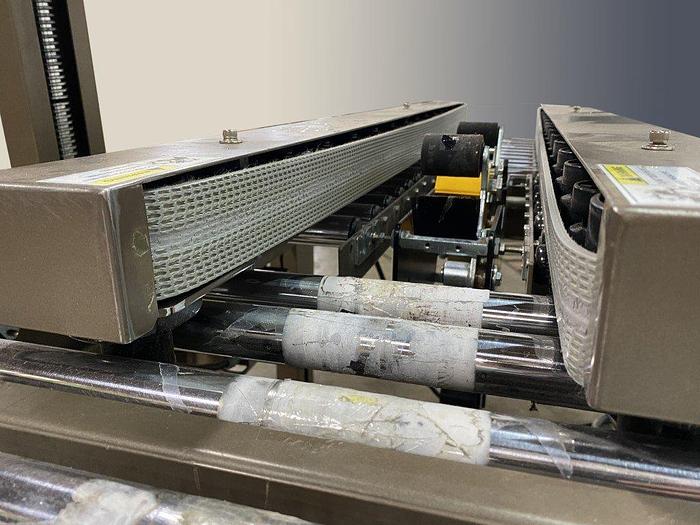

• Side Belt Drives: 48″L x 2″H
• Entry & Exit Roller Conveyors: 15″L x 22″W

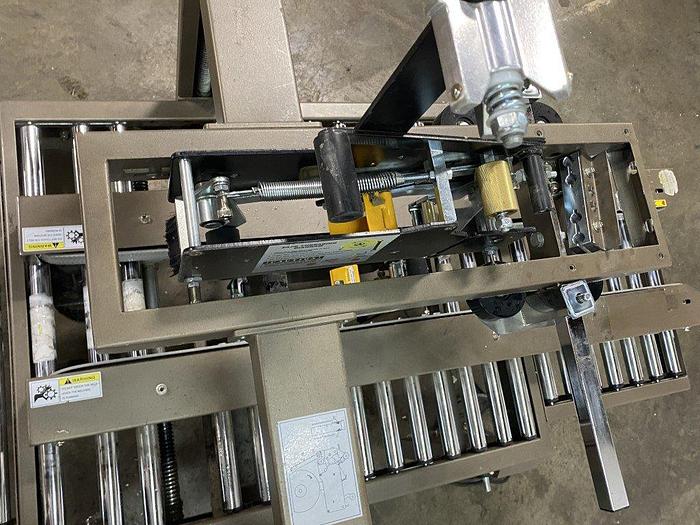

• Tape Head: Highlight 200 Series
• Tape Type: 2″ carton sealing tape

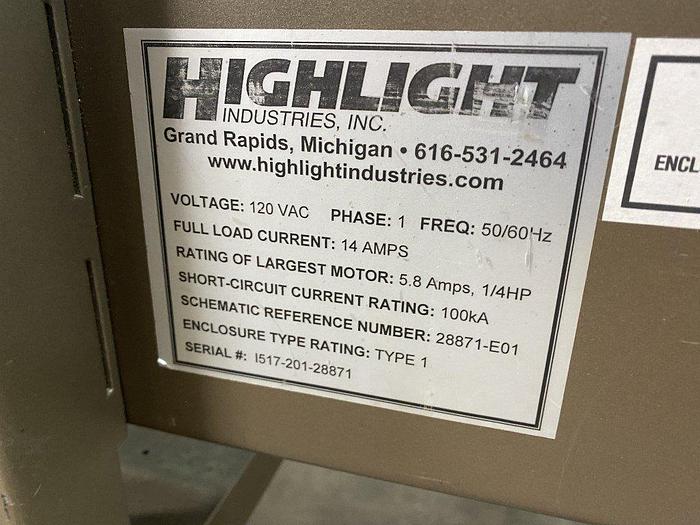

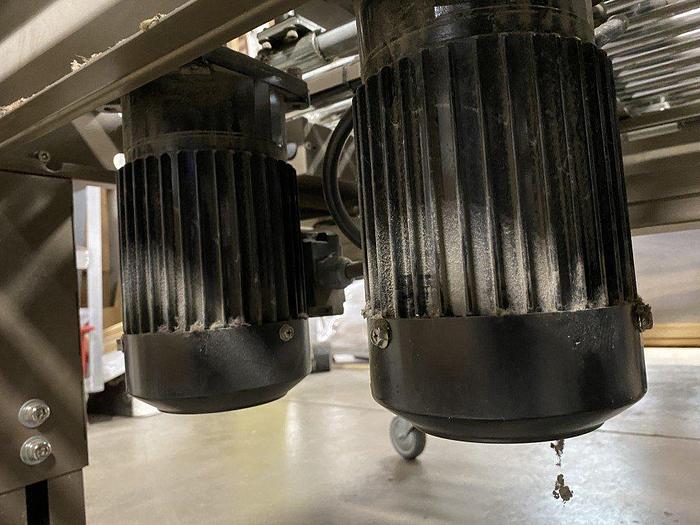

• Motors: Two Li Ming 1/4 hp motors

Key Words: Box Sealer, Case Sealer, Box Taper
