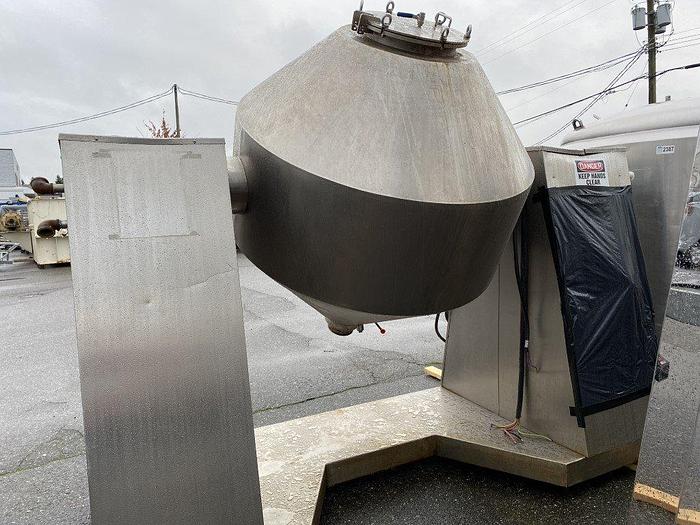

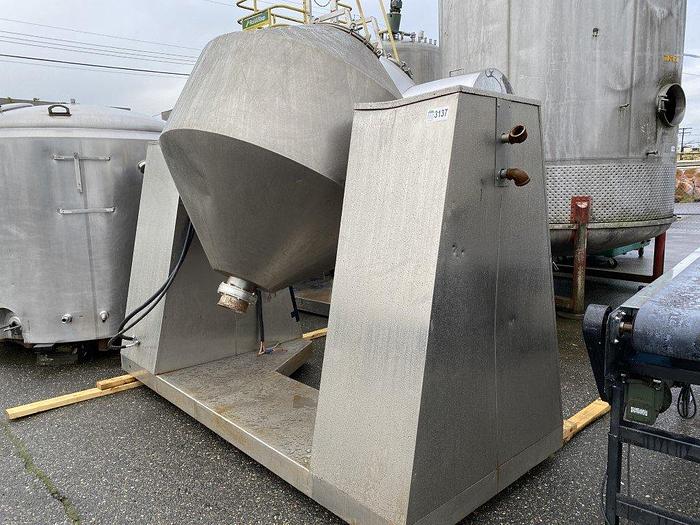

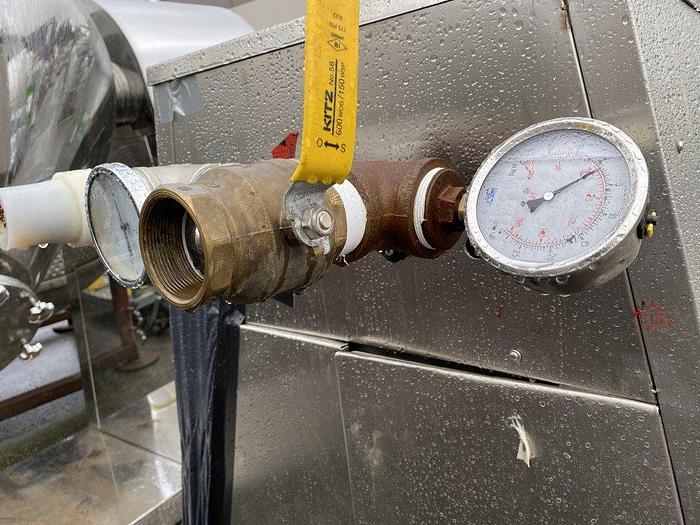

SZG-1000 Rotary Conical Vacuum Dryer
SZG-1000 Rotary Conical Vacuum Dryer
Description
Ideal for drying and mixing powder and raw granule materials.
Hot water passes through the sealed jacket, and the heat dries the product in a vacuum state. The tank rotates for even drying and mixing.

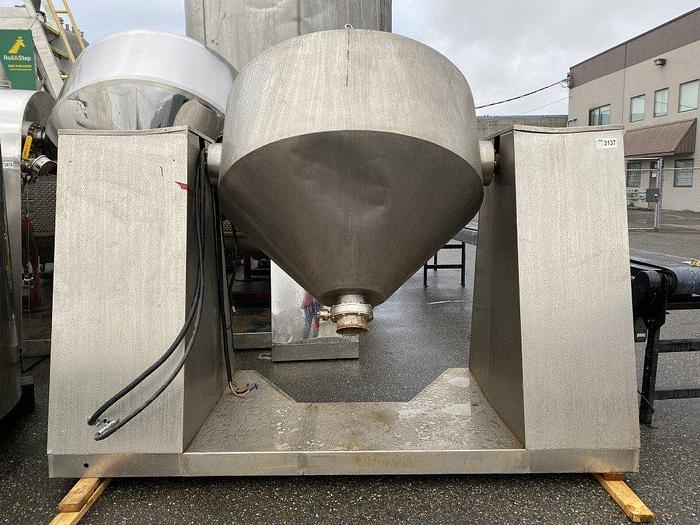

Double conical tank outside dimensions: 50″ at widest point, straight sides: 22″H, approx height from one end to other: 65″
Volume: 1,000L, working volume: 500L
Design pressure of jacket: 0.3 mPa
Heating area: 4.61 m²
Specifications
| Manufacturer | Changzhou Yibu Drying Equipment Co. |
| Model | SZG-1000 |
| Condition | Used |
| Stock Number | 3137 |
| Dimensions (l x w x h) | 130" x 75" x 120" |
| Power | 3 kW |
| Location code | PL |
| Length (in) | 130 |
| Width (in) | 75 |
| Height (in) | 120 |
