Domino Macrojet 2 Large Character Printer

Domino Macrojet 2 Large Character Printer

Description

Also called a dot-matrix coder or valve jet printer, this Macrojet 2 consists of the control cabinet (base unit) and one print head. We may have hand-held pocket terminals available. The control cabinet holds the ink supply and electronic systems. Cabinet: 15″L x 17.5″W x 10″H Table it sits on: 17″L x 18.75″W x 28.75″H Macrojet 2 printheads can operate in any orientation and up to four heads can be driven from each base unit. Prints single or twin lines on a variety of surfaces, such as PVC, wood, metal, sacking, etc. Can print in a variety of coloured inks for porous and non-porous surfaces. Max print speed: 100 metres per second, at 12.5 mm character width. Up to four lines of print (7 x 5) by way of four 7 drop heads, or two 16 drop heads, can be supplied from a single control cabinet. Manual PDF available upon request.

Specifications

ManufacturerDomino
ModelMacrojet 2
ConditionUsed

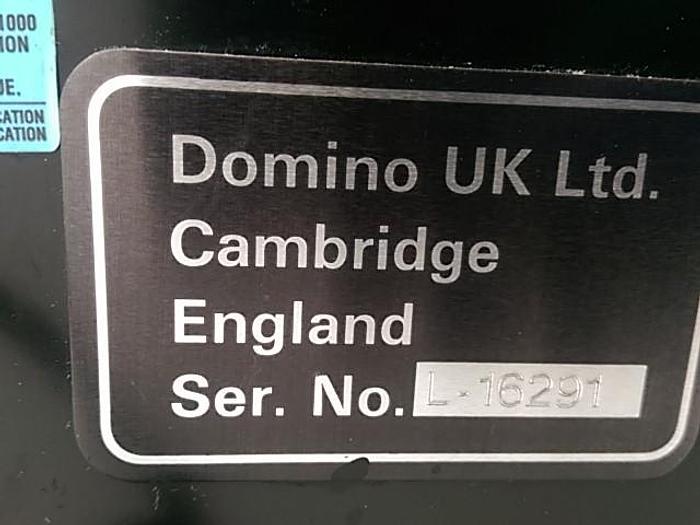

Serial NumberL-16291
Stock Number3068
Dimensions (l x w x h)20" x 22" x 39"
Includes manualYes

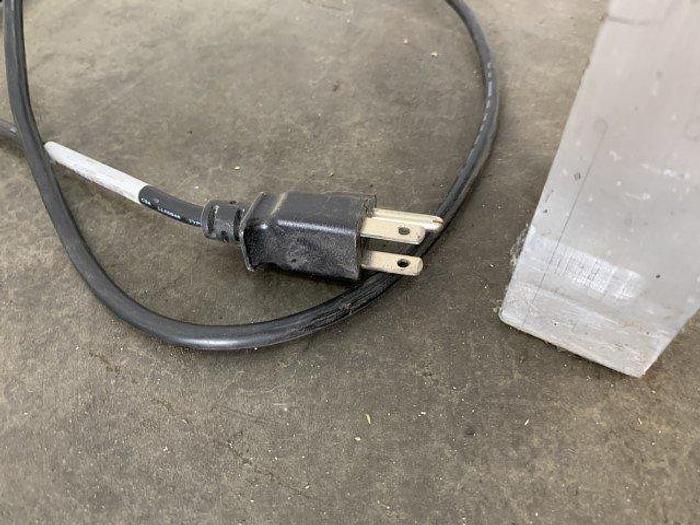

Power110-150/220-260 V | 6.3/4 A
Location code1B5
Length (in)20
Width (in)22
Height (in)39
