Wright 0300 PD Pump
Sold
Wright 0300 PD Pump
Description

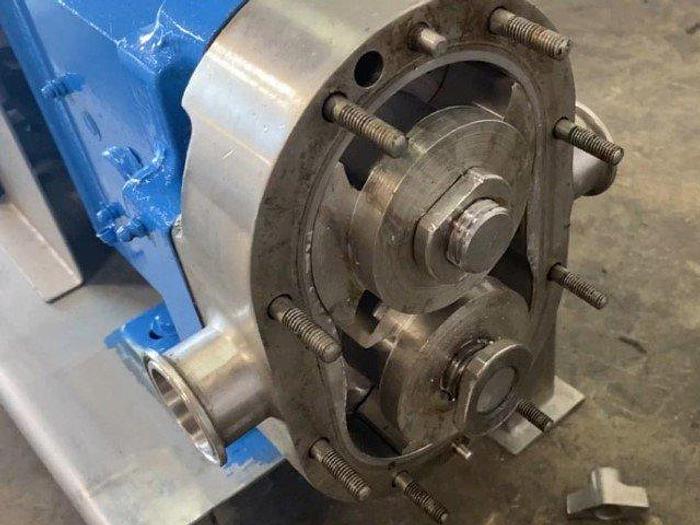

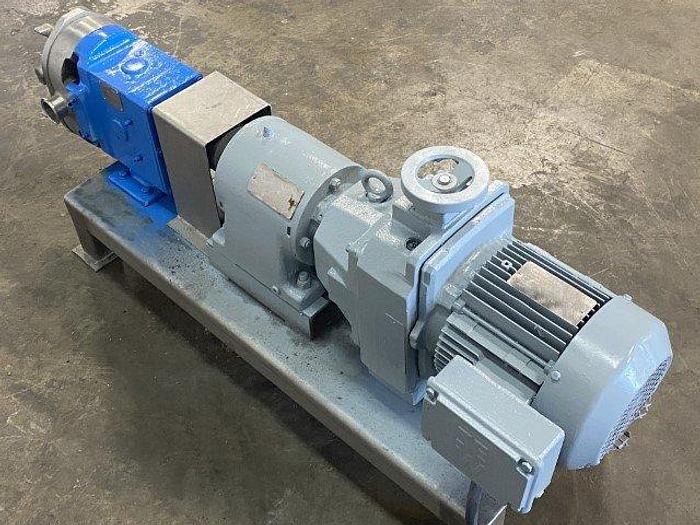

A sanitary positive displacement rotary lobe pump. Nominal capacity: 36.0 gpm, 8.2 m³/hr Displacement per revolution: 0.6 gallon, .23 L Max pressure: 200 psi, 14 bar Temp range: -40°F to 300°F, -40°C to 150°C Standard ports: 1.5″, 38 mm Max speed: 600 rpm Powered by a SEW-Eurodrive 2 hp motor, and a R60A gear reducer.
Specifications
| Manufacturer | Wright Pump / IDEX Corp |
| Model | 0300 |
| Condition | Used |

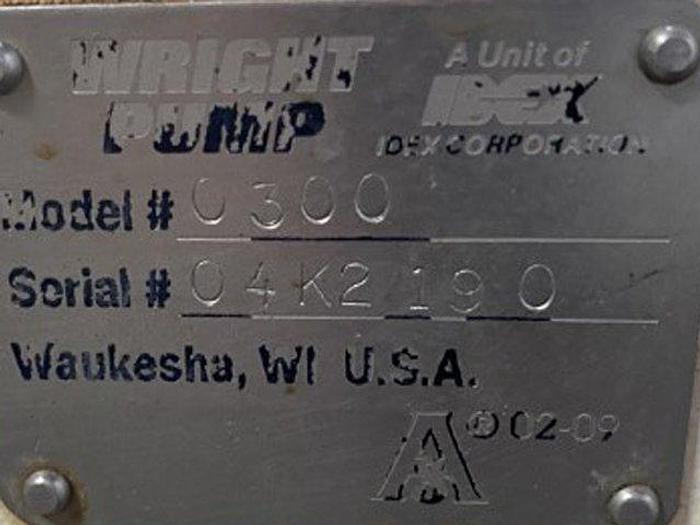

| Serial Number | 04K2190 |
| Stock Number | 2868 |
| Dimensions (l x w x h) | 43.5" x 13.5" x 21" |

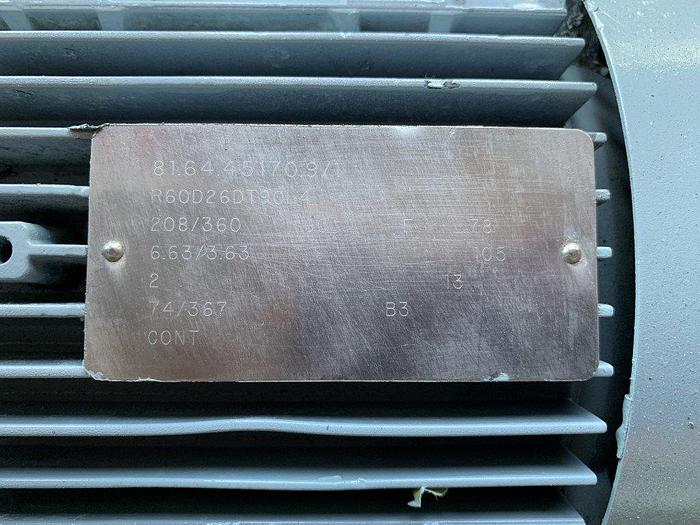

| Power | 208/360 V | 6.65/3.63 A |
| Location code | AA7 |
| Length (in) | 43.5 |
| Width (in) | 13.5 |
| Height (in) | 21 |
