Twin City 150 QSL CO2 Exhaust Fan
Twin City 150 QSL CO2 Exhaust Fan
Description

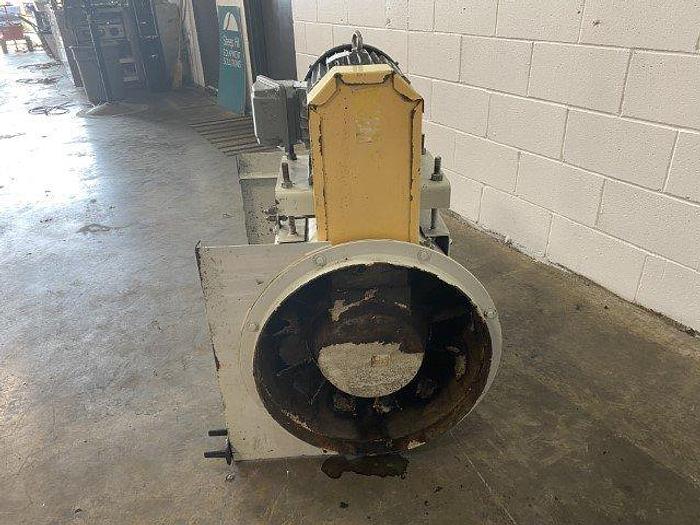

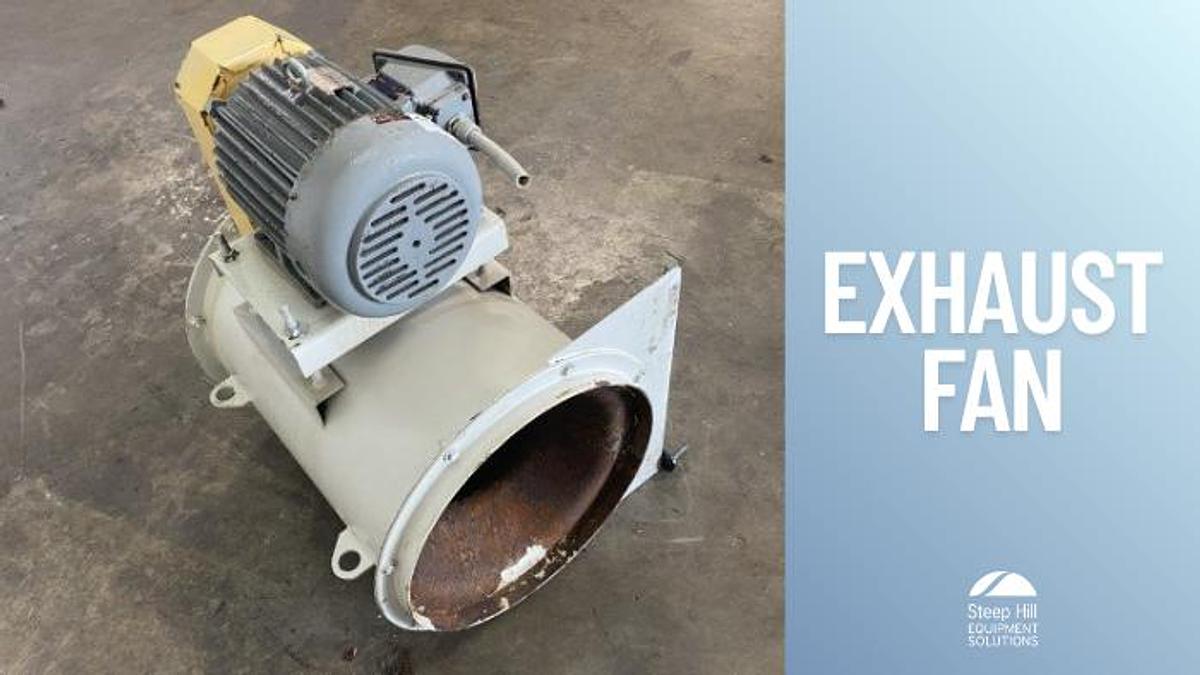

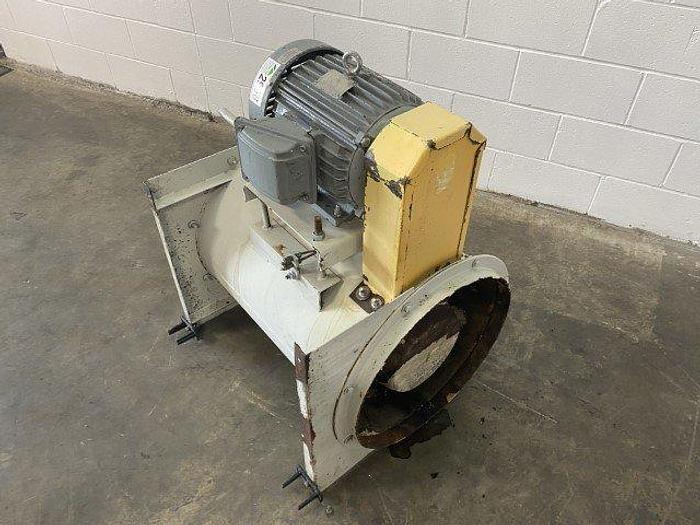

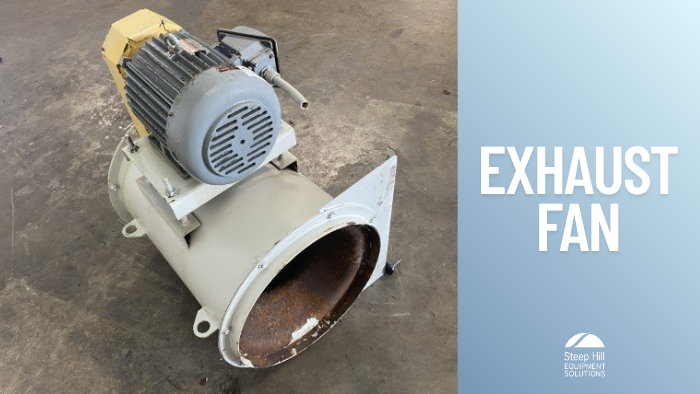

Twin City 150 QSL CO₂ Exhaust Fan
Description:

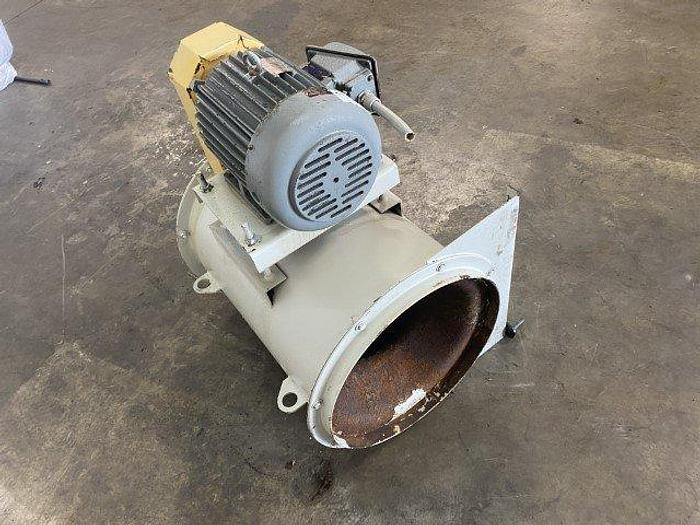

The Twin City 150 QSL CO₂ Exhaust Fan is a mixed flow fan that combines the efficiency of axial flow with the pressure capabilities of centrifugal fans. Designed for high-performance air movement, this belt-driven unit is horizontally base-mounted and powered by a TECO-Westinghouse Max-E1 10 HP inverter duty motor. Ideal for industrial ventilation and exhaust applications. A digital manual is available upon request.
Specifications:
- Model: 150 QSL

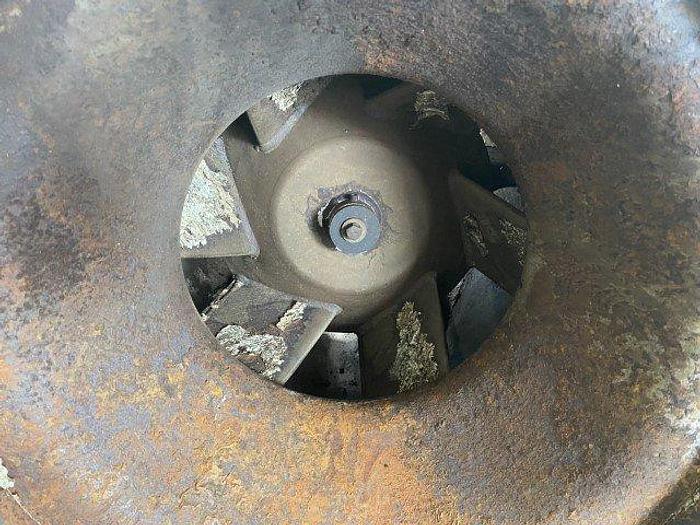

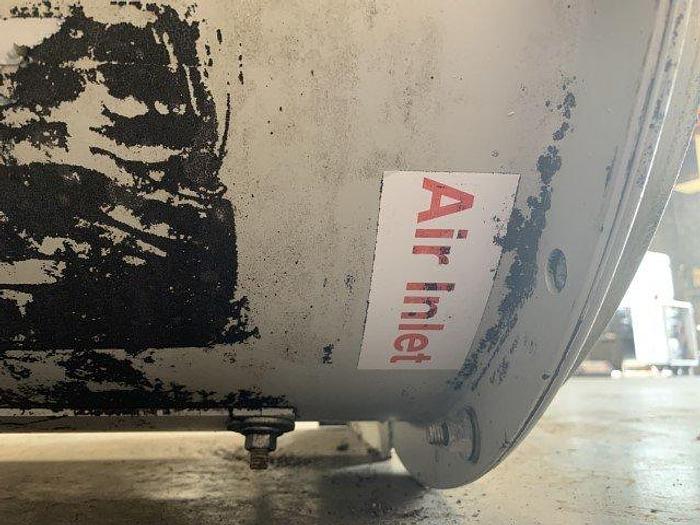

- Air Inlet Diameter: 20.5″ (inside 11″)
- Fan Blades (Inlet): 5″L × 5″W
- Fan Blades (Discharge): 7.75″L × 4″W
- Discharge Diameter: 20.5″

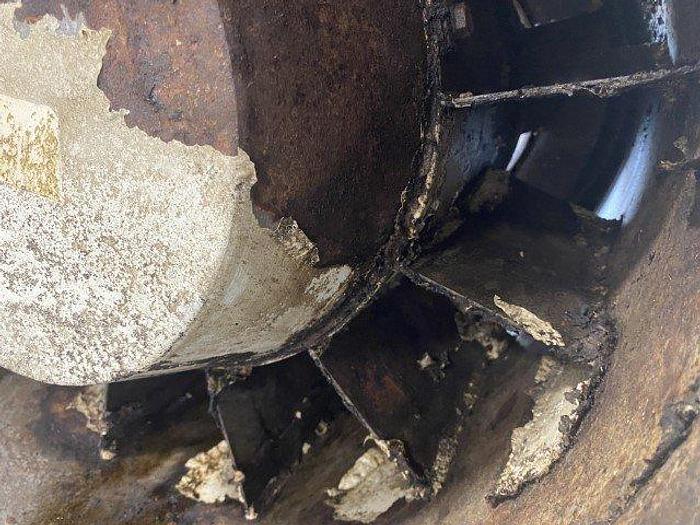

- Wheel Diameter: 18.25″
- Max BHP: 0.20 × (RPM ÷ 1000)³
- Tip Speed (FPM): 4.78 × RPM
- Max RPM: 3558

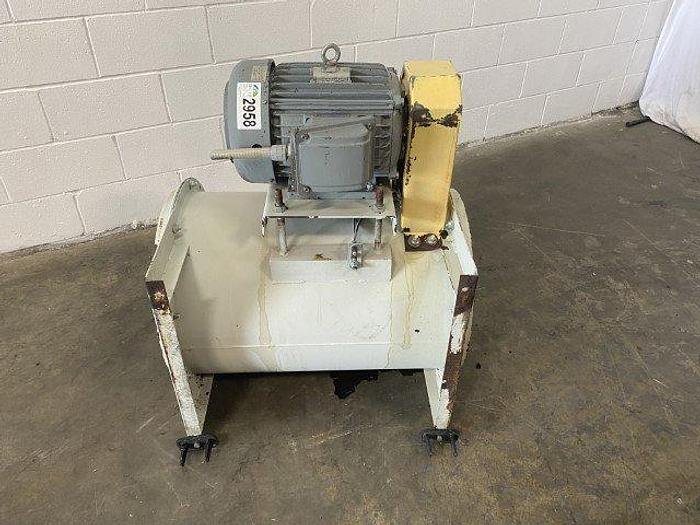

- Arrangement: 9 (belt driven), horizontal base mounted

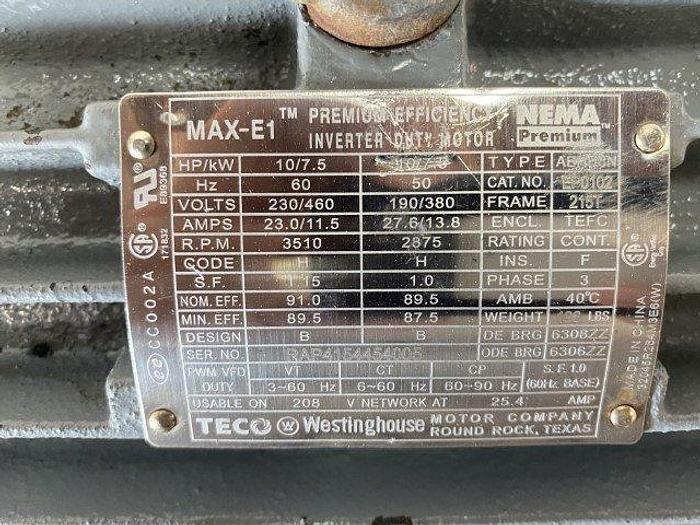

- Motor: TECO-Westinghouse Max-E1, 10 HP, inverter duty
- Manual: Digital version available upon request
Keywords:
Twin City Fan, CO₂ Exhaust Fan, Mixed Flow Fan, Industrial Ventilation Fan, Belt Driven Exhaust Fan, Centrifugal Axial Fan, TECO-Westinghouse Motor Fan
Specifications

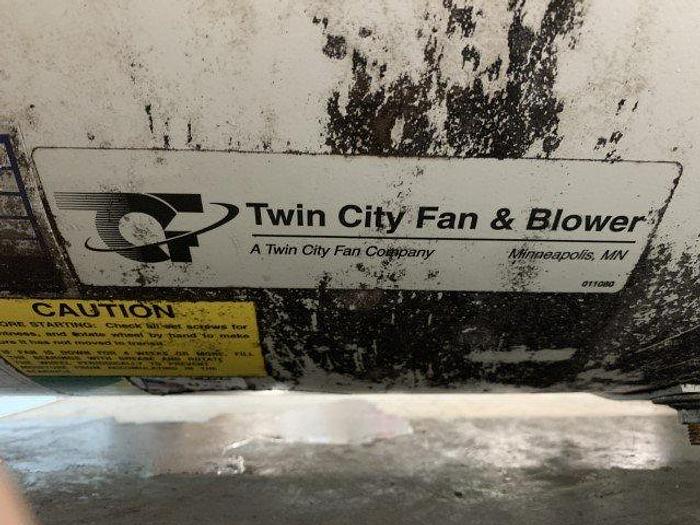

| Manufacturer | Twin City Fan & Blower |
| Model | 150 QSL-S |
| Condition | Used |

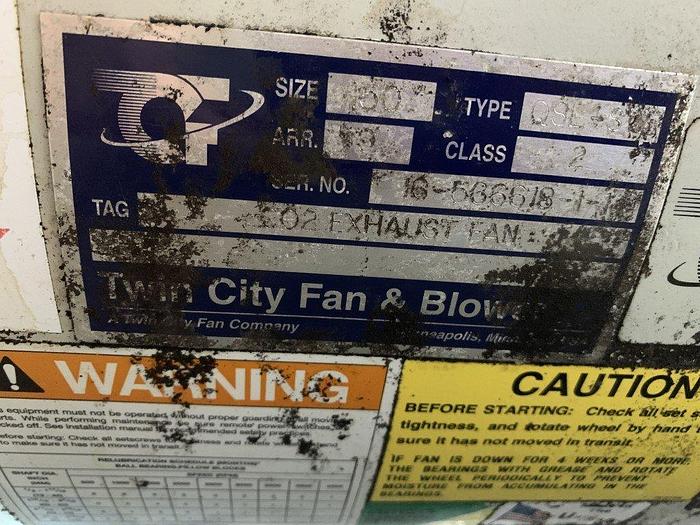

| Serial Number | 16-566618-1-1 |
| Stock Number | 2958 | E7063 |
| Dimensions (l x w x h) | 32" x 34" x 40" |
| Includes manual | Yes |
| Power | 230/460 V | 23.0/11,5 A | 3 Ph |
| Location code | AA7-5 |
| Length (in) | 32 |
| Width (in) | 34 |
| Height (in) | 40 |
| * Model | 150 QSL |
| * Air Inlet Diameter | 20.5″ (inside 11″) |
| * Fan Blades (Inlet) | 5″L × 5″W |
| * Fan Blades (Discharge) | 7.75″L × 4″W |
| * Discharge Diameter | 20.5″ |
| * Wheel Diameter | 18.25″ |
| * Tip Speed (FPM) | 4.78 × RPM |
| * Max RPM | 3558 |
